2A226-TELETMH01Telematics unit for mounting on forklifts

DHUnx - Installation Instructions Toyota Material Handling, Inc. 5559 Inwood Drive Columbus, IN 47201, USA Tel: +1 812 342 0060 www.toyotaforklift.com Federal Registration Number: 0031326713 Date: 16th of november 2021 DHUnx Installation Instructions Model Name: DHUnx Picture showing the Toyota DHUnx unit to the left. Connected with a four-port mini-fakra to the Molex antenna to the right. DHUnx is a telematic node, intended to be mounted into a Toyota forklift. It is always stationary installed in a forklift where it has several wired connections e.g., power, can buses etc. It also communicates wireless with LTE, WiFi and Bluetooth technology. It has an externa antenna connected. Following Pages The following pages shows a typical forklift installation of the DHUnx and antenna. These pages shall be seen as one example of a forklift installation. More forklift variants exist, but the use is the same and the installation is similar. TOYOTA Material Handling (TMH) | 11/16/2021 1.0 PAGE Model: G861 H1T DHU and Antenna Installation 1 / 12 NPD REVISION HISTORY Table of Contents 1. Purpose.............................................................................................................................................. 2 2. Scope ................................................................................................................................................. 2 3. Installation Instructions ...................................................................................................................... 2 Antenna and DHU Installation Location Overview ................................................................ 2 Sub Assembly DHU Controller Installation ........................................................................... 3 DHU Controller Assembly Installation and Cables Connection ............................................ 4 Antenna Installation ............................................................................................................... 6 Antenna with Bracket Installation .......................................................................................... 9 Main Body Harness and Display Harness Connection ....................................................... 10 Antenna Cable Installation .................................................................................................. 10 Wiring Harness Clamps/Bands Installation and Antenna Cable Routing ........................... 12 Date Revision Notes PIC Approved Revision 11/16/2021 Initial TOYOTA Material Handling (TMH) | 11/16/2021 1.0 PAGE Model: G861 H1T DHU and Antenna Installation 2 / 12 NPD H1T DHU and Antenna Installation Instructions 1. Purpose This document describes the H1T DHU and antenna installation performed on the G861 truck model. 2. Scope This document applies to H1T DHU and antenna installation used by TOYOTA Material Handling (TMH). IMPORTANT: These installation instructions are for G861 models only. Installation instructions for other forklift truck models may be similar. 3. Installation Instructions WARNING! Wear safety glasses, safety shoes and gloves at all times. Failure to do so may result in serious injury or death. WARNING! Watch hand placement for pinch points. Failure to do so may result in serious injury. Antenna and DHU Installation Location Overview STD model CABIN model TOYOTA Material Handling (TMH) | 11/16/2021 1.0 PAGE Model: G861 H1T DHU and Antenna Installation 3 / 12 NPD Sub Assembly DHU Controller Installation Set the controller onto the bracket as shown in the illustrations below. Align the controller holes to the bracket holes and hand start the screws, then tighten. Sub Assembly DHU Controller (P35-80, C0-70) Sub Assembly DHU Controller (C35-55) Sub Assembly DHU Controller (CABIN only) No Part No. QtyPart Description 1 57303-H1TD1-71 1 Telematics Bracket S/A 2 57300-H1TX1-71 1 Telematics DHUnx Controller 3 57361-H1TZ1-71 4 Screw M6X45 No Part No. QtyPart Description 1 57301-H1TD1-71 1 Telematics Bracket S/A 2 57300-H1TX1-71 1 Telematics DHUnx Controller 3 57361-H1TZ1-71 4 Screw M6X45 No Part No. QtyPart Description 1 57305-H1TD1-71 1 Telematics Bracket S/A 2 57300-H1TX1-71 1 Telematics DHUnx Controller 3 57361-H1TZ1-71 4 Screw M6X45 TOYOTA Material Handling (TMH) | 11/16/2021 1.0 PAGE Model: G861 H1T DHU and Antenna Installation 4 / 12 NPD CAUTION! Do not handle controller assembly roughly or drop it. If the controller is handles roughly or dropped, it will need to be replaced due to damage and functioning issues. Use the electric impact to tighten the screws to TT = 4.5 Nm C. Use the paint marker to paint mark the screws to verify that they have been tightened and are not loose. DHU Controller Assembly Installation and Cables Connection Install the controller assembly with the bracket to the right hand (RH) side frame below the oil tank cover. Sub Assembly DHU Controller (P35-80, C0-70) Sub Assembly DHU Controller (C35-55) No Part No. Qty Part Description 1 91551-808123 Flange Bolt 2 90465-U2001-71 1 Band No Part No. Qty Part Description 1 91551-808123 Flange Bolt 2 90465-U2001-71 1 Band TOYOTA Material Handling (TMH) | 11/16/2021 1.0 PAGE Model: G861 H1T DHU and Antenna Installation 5 / 12 NPD Sub Assembly DHU Controller (CABIN model only) For Standard (STD) models, do not cut the slit tape. Connect the antenna cable to the smaller port and DHUnx connector the larger port as shown in illustration below. No Part No. Qty Part Description 1 91551-808163 Flange Bolt 2 90465-U2001-711 Band TOYOTA Material Handling (TMH) | 11/16/2021 1.0 PAGE Model: G861 H1T DHU and Antenna Installation 6 / 12 NPD For CABIN models, cut the slit tape and press in the antenna connector to the smaller port and the DHUnx Connector to the larger port shown in illustration below. For Export models, attach the cap to the DHUnx connector as shown below. Fold back the DHUnx cable and attach the band around it. Remove the excess tab from the band. Antenna Instal…

Text truncated - open the document above for the full version.

Page 1 of 7 DHUnx - User Manual Toyota Material Handling, Inc. 5559 Inwood Drive Columbus, IN 47201, USA Tel: +1 812 342 0060 www.toyotaforklift.com Federal Registration Number: 0031326713 Date: 9th of March 2022 DHUnx User Manual Model Name: DHUnx Picture showing the Toyota DHUnx unit to the left. Connected with a four-port mini-fakra to the Molex antenna to the right. General DHUnx is a telematic node, intended to be mounted into a Toyota forklift. It is always stationary installed in a forklift where it has several wired connections e.g., power, can buses etc. It also communicates wireless with LTE, WiFi and Bluetooth technology. It has an externa antenna connected. Page 2 of 7 DHUnx - User Manual Toyota Material Handling, Inc. 5559 Inwood Drive Columbus, IN 47201, USA Tel: +1 812 342 0060 www.toyotaforklift.com Federal Registration Number: 0031326713 Date: 9th of March 2022 Information to the user This product is communicating wirelessly with LTE and/or Bluetooth/WiFi. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help  Warning: Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.  This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation  The device for operation in the band 5150 – 5250 MHz is only for indoor use to prevent harmful interference to co-channel mobile satellite systems;  The maximum antenna gain permitted for devices in the band 5250 – 5350 MHz and 5470 – 5725 MHz shall comply with the e.i.r.p. limit  The maximum antenna gain permitted for devices in the band 5725 – 5825 MHz shall comply with the e.i.r.p. limits specified for point-to-point and non point-to-point operation as appropriate.  High-power radars are allocated as primary users of the bands 5250 – 5350 MHz and 5650 – 5850 MHz and these radars could cause interference and/or damage to LE-LAN devices” Page 3 of 7 DHUnx - User Manual Toyota Material Handling, Inc. 5559 Inwood Drive Columbus, IN 47201, USA Tel: +1 812 342 0060 www.toyotaforklift.com Federal Registration Number: 0031326713 Date: 9th of March 2022 This device complies with ISED Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device. Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de licence. L'exploitation est autorisée aux deux conditions suivantes : (1) l'appareil ne doit pas produire de brouillage, et (2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d'en compromettre le fonctionnement. Cet appareil est conforme aux limites d'exposition aux rayonnements de la IC pour un nvironnement non contrôlé. L'antenne doit être installé de façon à garder une distance minimale de 20 centimètres entre la source de rayonnements et votre corps. Gain de l'antenne doit être ci-dessous. Testing has been performed on the module in a co-located configuration with the identified module(s) to determine if new sources of interference are created when the two transmitter modules are simultaneously transmitting. Warning:  This device is approved for use in a mobile rf exposure environment. A minimum separation distance of 20 cm must be maintained between the antenna and nearby persons.  The module may only be co-located in a host device with the following radio modules: Quectel EG25 FCC ID: XMR201903EG25G, IC ID: 10224A-201903EG25G and Quectel FC20, FCC ID: XMR201703FC20, IC ID: 10224A-201703FC20 List of applicable FCC rules The following FCC rules are applicable to the equipment:  CFR 47, Part 15, Subpart C  CFR 47, Part 2, Subpart J – Radiofrequency radiation exposure: mobile devices Page 4 of 7 DHUnx - User Manual Toyota Material Handling, Inc. 5559 Inwood Drive Columbus, IN 47201, USA Tel: +1 812 342 0060 www.toyotaforklift.com Federal Registration Number: 0031326713 Date: 9th of March 2022 Specific operational use conditions Most of the installations are performed at Toyota production facilities by qualified personnel into a Toyota Forklift. However, after market installations also exists. The user can never operate the DHUnx directly. Important: The DHUnx transmitting antenna must be installed and operated with minimum distance of 20 cm between the radiator and nearby persons. Co-location The following modules have been evaluated and may be co-located in a mobile configuration. Cellular module Quectel EG25: FCC ID: XMR201903EG25G IC ID: 10224A-201903EG25G WiFi/Bluetooth module Quectel FC20: FCC ID: XMR201703FC20 IC ID: 1022…

Text truncated - open the document above for the full version.

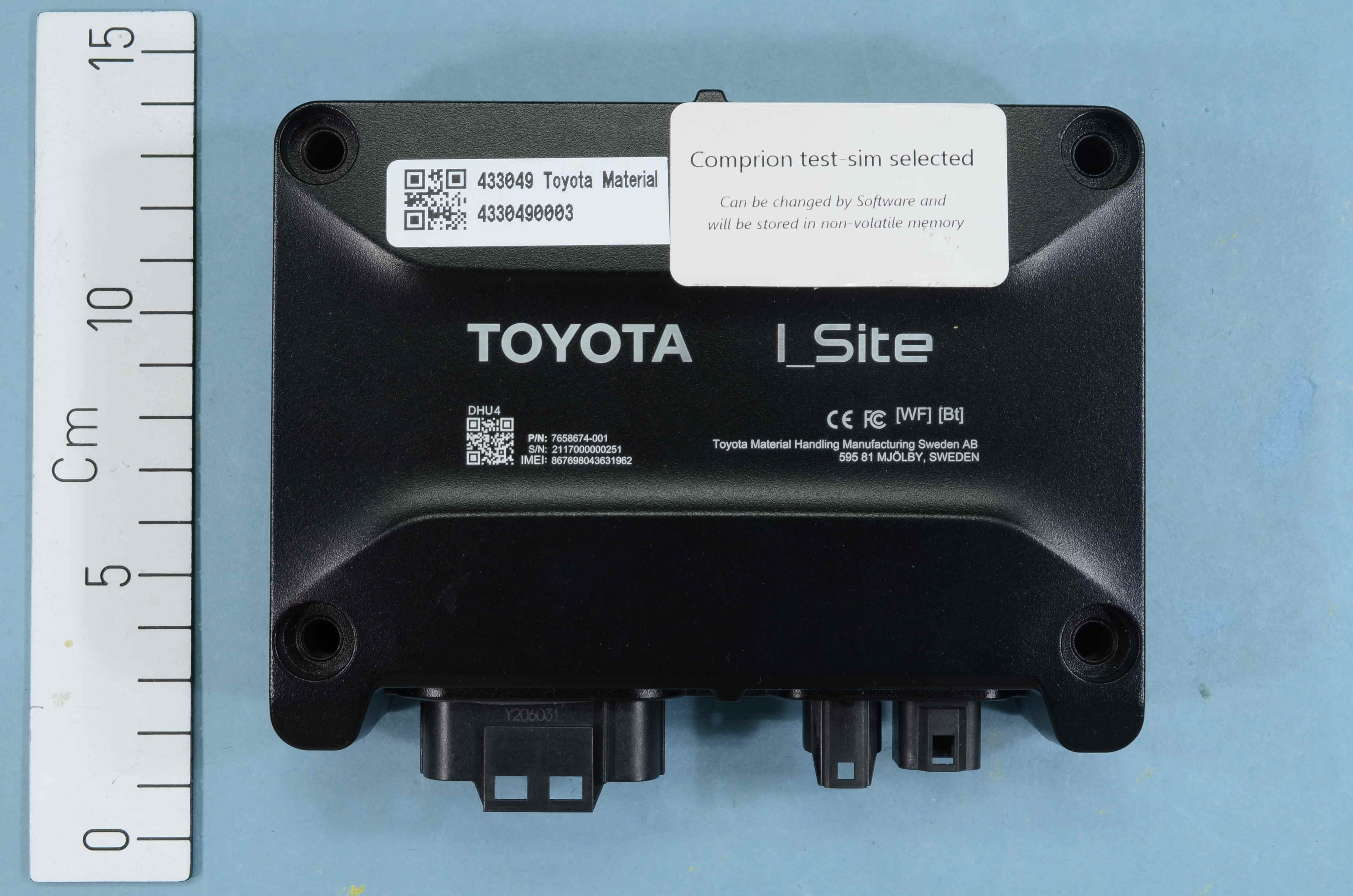

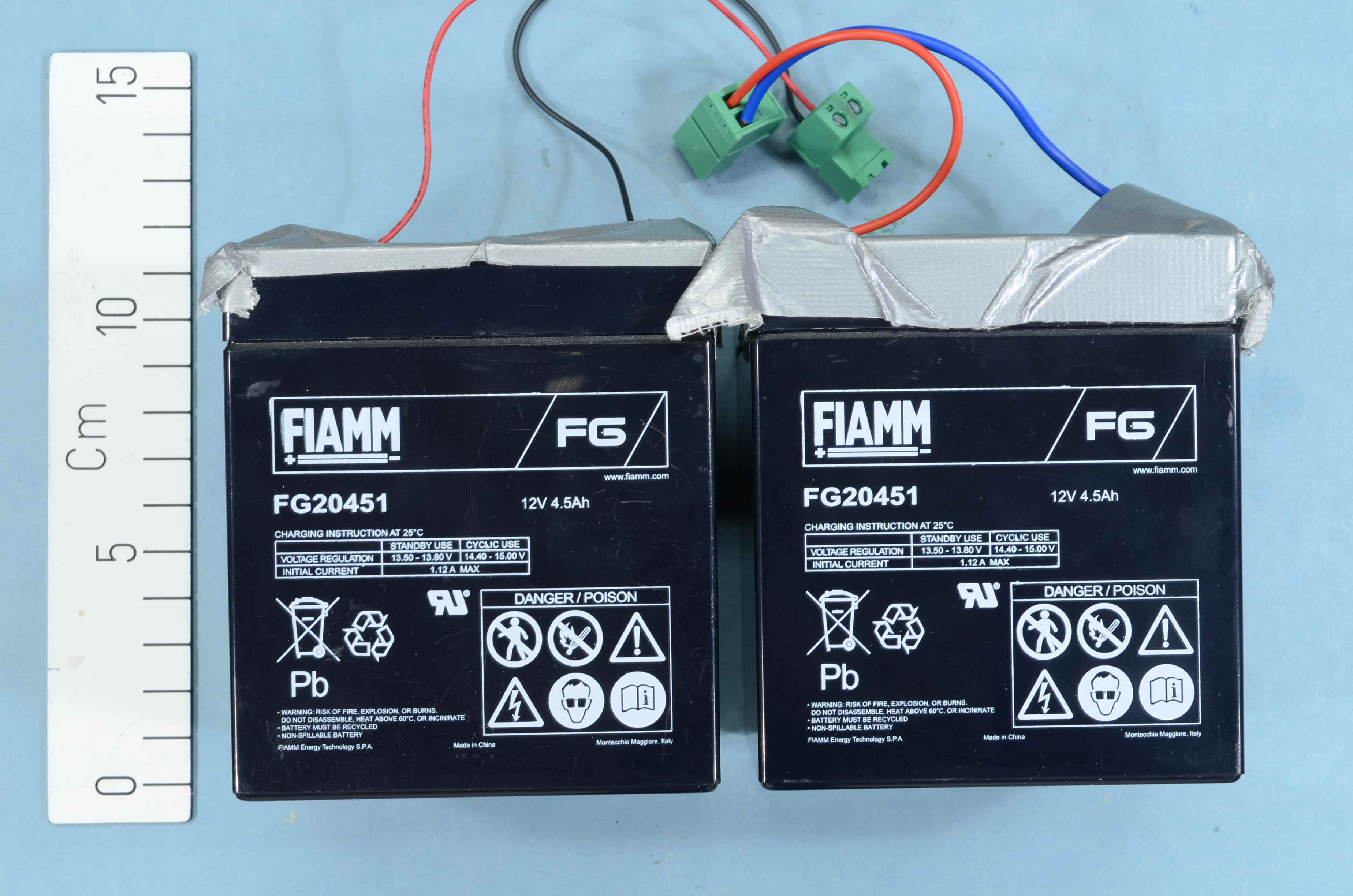

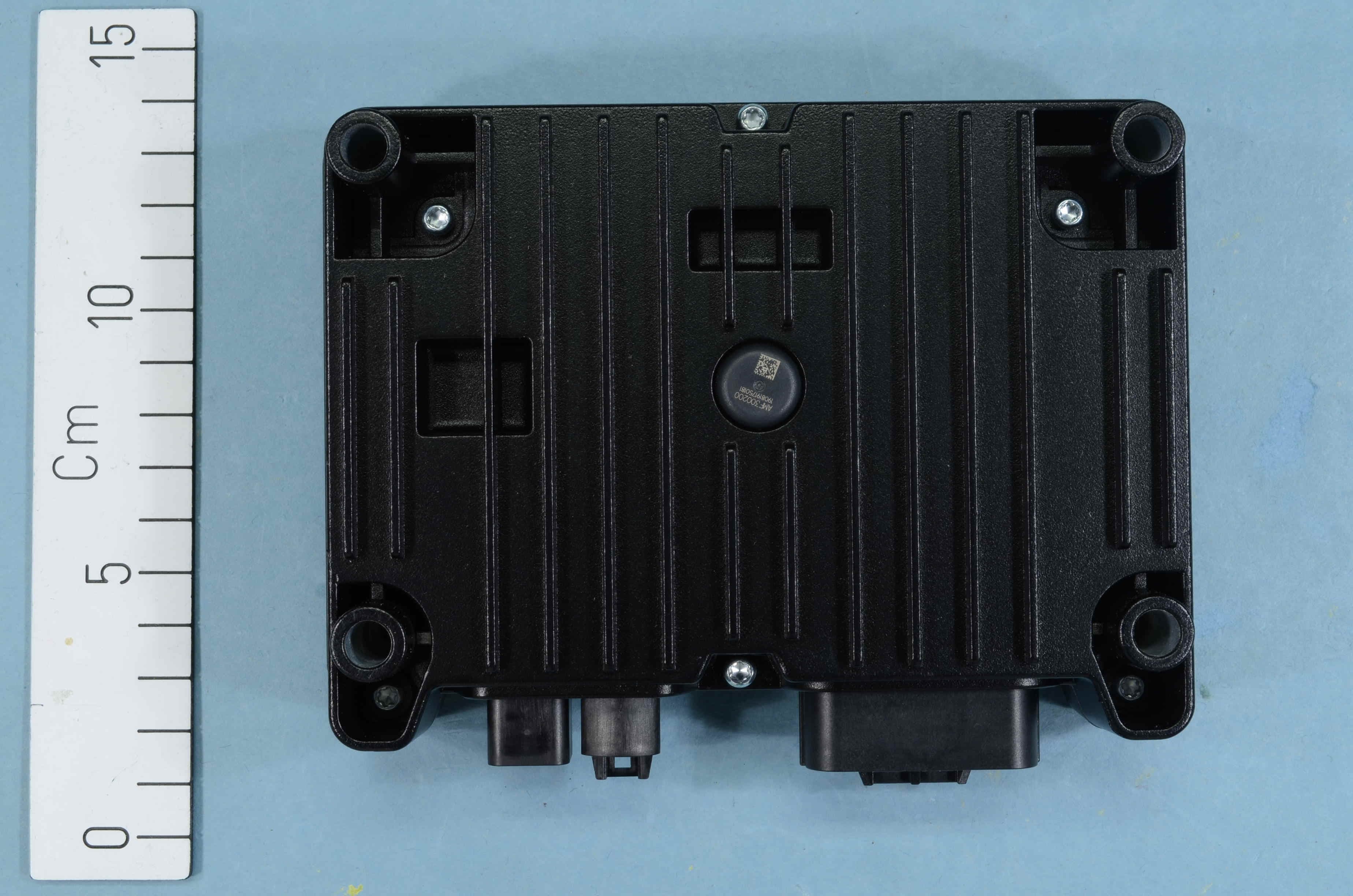

EXTERNAL PHOTOS Project no.: 433049 FCC ID: 2A226-TELETMH01 IC: 27732-TELETMH01 Page 1 (1) EUT Front EUT Back EUT Connectors Test Jig Antenna Batteries

Page 1 of 6 Label Specification Toyota Material Handling, Inc. 5559 Inwood Drive Columbus, IN 47201, USA Tel: +1 812 342 0060 www.toyotaforklift.com Federal Registration Number: 0031326713 Date: 8th of March 2022 DHUnx – Label Specification Table of Contents 1 Definitions ....................................................................................................................................... 2 2 General ............................................................................................................................................ 3 2.1 Marking method ..................................................................................................................... 3 3 Content specification ...................................................................................................................... 3 3.1 Static Content ......................................................................................................................... 3 3.2 Dynamic Content .................................................................................................................... 4 4 Artwork ........................................................................................................................................... 4 5 Positioning....................................................................................................................................... 5 6 Acceptance Criteria ......................................................................................................................... 6 Page 2 of 6 Label Specification Toyota Material Handling, Inc. 5559 Inwood Drive Columbus, IN 47201, USA Tel: +1 812 342 0060 www.toyotaforklift.com Federal Registration Number: 0031326713 Date: 8th of March 2022 1 Definitions Shall: This term indicates an absolute requirement, and will be measured and verified on evaluation of the product prior to project completion. If an item which is referenced by this term cannot be met, it is considered a change of project scope and will require a change to this document approved by product management after re-evaluation of project feasibility to meet market and user requirements. Should: This term indicates an item which is desirable and requires that goal be addressed, either with an appropriate design which achieves the goal or with some disposition as to why the goal could not or should not be achieved. Failure to meet these requirements does not necessarily lead to a re-scope of the project. May: This term indicates an item or condition which is allowable but not desirable. If this item or condition is utilized it does not necessarily lead to a re-scope of the project, but must be at least justified by a disposition. Must: See Shall. Page 3 of 6 Label Specification Toyota Material Handling, Inc. 5559 Inwood Drive Columbus, IN 47201, USA Tel: +1 812 342 0060 www.toyotaforklift.com Federal Registration Number: 0031326713 Date: 8th of March 2022 2 General 2.1 Marking method Laser marking shall be used. The markings shall be placed on the top outer surface of the product enclosure. The information shall be marked directly onto the surface by means of a laser etching machine. 3 Content specification 3.1 Static Content The following items are designated as Static Content, meaning that from device to device the information or symbols displayed do not change. It should be understood that this does not mean that this list or its contents will never change, only that from device to device on a long term scale these items will not change and any addition, deletion, or modification would have prior notice given. Label Item Description TMH Logo Graphic company logo DHUnx Name Product name Part Number The THM specified designator for the product. FCC ID ID for FCC regulations. This ID is: 2A226-TELETMH01 ISED ID ID for Canadian regulations This ID is: 27732-TELETMH01 HVIN Model Name identifier for Canadian Market This ID is: DHUnx IP Rating The rating is IP65 Page 4 of 6 Label Specification Toyota Material Handling, Inc. 5559 Inwood Drive Columbus, IN 47201, USA Tel: +1 812 342 0060 www.toyotaforklift.com Federal Registration Number: 0031326713 Date: 8th of March 2022 3.2 Dynamic Content The following items are designated as Dynamic Content, meaning that from device to device the information or symbols display change and should be specific and or unique to the device it is being printed on. Label Item Description Serial number A unique 16 digit alphanumeric code assigned to each device built. TMH to provide the number format. Origin Mark An identifier indicating the country in which the device was manufactured. QR Code QR code that contains Part Number, Serial Number, and a HTTP link for a web page containing device information 4 Artwork Artwork of the label Page 5 of 6 Label Specification Toyota Material Handling, Inc. 5559 Inwood Drive Columbus, IN 47201, USA Tel: +1 812 342 0060 www.toyotaforklift.com Federal Registration Number: 0031326713 Date: 8th of March 2022 5 Positioning All dimensions shown are in millimeters. Image showing the positioning of the printing Page 6 of 6 Label Specification Toyota Material Handling, Inc. 5559 Inwood Drive Columbus, IN 47201, USA Tel: +1 812 342 0060 www.toyotaforklift.com Federal Registration Number: 0031326713 Date: 8th of March 2022 6 Acceptance Criteria The acceptance of the label shall be conducted by the engineering and quality assurance departments of TMH. - The TMH logo shall be clearly readable and distinguishable. - The TMH logo shall be a minimum of 1 inch wide at its base without altering the aspect ratio of the logo. - A gap of a size equal to the height of the O in the Toyota name of the logo shall be maintained between the logo and other content of the label in all directions. - The QR Code shall be able to be reliably scanned on a regular basis. - Provided a clean and clear visual of the code. - The code shall not fail to be scanned. - All font base text…

Text truncated - open the document above for the full version.

FCC ID: 2A226-TELETMH01 FCC RF Exposure Compliance for Simultaneous Operations Configurations for Simultaneous OperationsConfiguration 1: BT/BLE + WCDMA/LTEConfiguration 2: WiFi 2.4 + WCDMA/LTEConfiguration 3: WiFi 5 + WCDMA/LTEPower Density is calculated from Maximum Conducted Power and Antenna Gain at prediction distanceMaximum of Conducted and Radiated Output Power is used in the calculation. Therefore negative values for antenna gain have been replaced by 0 dBi. RF Function BT BLE WiFi 2.4 WiFi 5GHz WCDMA B2 WCDMA B4 WCDMA B5 LTE B2 LTE B4 LTE B5 LTE B7 LTE B12 LTE B13 LTE B25 LTE B26_1 LTE B26_2 LTE B38 LTE B41 Frequency (MHz) 2402 2402 2412 5180 1852.4 1712.4 826.4 1850.7 1710.7 824.7 2502.5 699.7 779.5 1850.7 814.7 824.7 2572.5 2498.5 Conducted Output Power (dBm) 7.00 2.00 16.00 12.50 25.00 25.00 25.00 25.00 25.00 25.00 25.00 25.00 25.00 25.00 25.00 25.00 25.00 25.00 Tune Up Tolerance (dB) 0.00 0.00 0.00 0.00 0.00 0.00 0.00 0.00 0.00 0.00 0.00 0.00 0.00 0.00 0.00 0.00 0.00 0.00 Output Power (W) 0.005 0.002 0.040 0.018 0.316 0.316 0.316 0.316 0.316 0.316 0.316 0.316 0.316 0.316 0.316 0.316 0.316 0.316 Antenna Gain (dBi) 2.70 2.70 2.70 2.00 3.30 3.30 2.60 3.30 3.30 2.60 2.00 2.60 2.60 3.30 2.60 2.60 2.00 2.00 Antenna Gain (Numeric) 1.86 1.86 1.86 1.58 2.14 2.14 1.82 2.14 2.14 1.82 1.58 1.82 1.82 2.14 1.82 1.82 1.58 1.58 Prediction Distance (cm) 20 20 20 20 20 20 20 20 20 20 20 20 20 20 20 20 20 20 Σ of MPE Time Averaged Duty Cycle (%) 100 100 100 100 100 100 100 100 100 100 100 100 100 100 100 100 100 100 ratios Calculated Power Density (W/m2) 0.019 0.006 0.147 0.056 1.345 1.345 1.145 1.345 1.345 1.145 0.997 1.145 1.145 1.345 1.145 1.145 0.997 0.997 Requirement (W/m2) 10.00 10.00 10.00 10.00 10.00 10.00 5.51 10.00 10.00 5.50 10.00 4.67 5.20 10.00 5.43 5.50 10.00 10.00 MPE ratio (PD/Req.) 0.002 0.001 0.015 0.006 0.135 0.135 0.208 0.135 0.135 0.208 0.100 0.245 0.220 0.135 0.211 0.208 0.100 0.100 Configuration 1 (MPE Ratio) 0.002 0.001 0.135 0.135 0.208 0.135 0.135 0.208 0.100 0.245 0.220 0.135 0.211 0.208 0.100 0.100 0.247 Configuration 2 (MPE Ratio) 0.149 0.135 0.135 0.208 0.135 0.135 0.208 0.100 0.245 0.220 0.135 0.211 0.208 0.100 0.100 0.395 Configuration 3 (MPE Ratio) 0.006 0.135 0.135 0.208 0.135 0.135 0.208 0.100 0.245 0.220 0.135 0.211 0.208 0.100 0.100 0.251 Requirement: Σ of MPE ratios ≤ 1 The maximum value for WCDMA/LTE and BT/BLE is used in the above calculations.

Report No. 433049-11-R01 Template version: C Nemko Group Nemko Scandinavia AS, Instituttveien 6, P.O. Box 96, 2027 Kjeller, Norway TEL +47 22 96 03 30 EMAIL [email protected] nemko.com/no Test Report Product Telematics unit for mounting on forklifts Name and address of the applicant Toyota Material Handling, Inc. 5559 Inwood Drive, Columbus IN 47201, USA Name and address of the manufacturer Toyota Material Handling, Inc. 5559 Inwood Drive, Columbus IN 47201, USA Model DHUnx Rating External DC supply (12-48 V DC ) Trademark TOYOTA Serial number 2117000000251 Additional information WiFi, BT Classic, BLE, WCDMA, LTE Tested according to Parts of FCC Part 15.247 Frequency Hopping Transmitters Parts of ISED Canada RSS-247, Issue 2 Digital Transmission Systems (DTSs), Frequency Hopping Systems (FHSs) and Licence-Exempt Local Area Network (LE-LAN) Devices Order number 433049 Tested in period 2021-09-15 to 2021-10-26 and 2022-03-29 Issue date 2022-03-29 Name and address of the testing laboratory Instituttveien 6 Kjeller, Norway www.nemko.com CAB Number: FCC: NO0001 ISED: NO0470 An accredited technical test executed under the Norwegian accreditation scheme Prepared by [Frode Sveinsen] Approved by [G.Suhanthakumar] This report shall not be reproduced except in full without the written approval of Nemko. Opinions and interpretations expressed within this report are not part of the current accreditation. This report was originally distributed electronically with digital signatures. For more information, please contact Nemko. TEST REPORT FCC Part 15.247 Report no.: 433049-11-R01 FCC ID: 2A226-TELETMH01 IC: 27732-TELETMH01 Nemko Scandinavia Page 2 (19) Revision history Revision Date Comment Sign 00 2022-02-24 First edition FS 01 2022-03-29 Output Power measured at antenna connector FS THIS TEST REPORT APPLIES ONLY TO THE ITEM(S) AND CONFIGURATIONS TESTED. Deviations from, additions to, or exclusions from the test specifications are described in “Summary of Test Data”. Nemko Group authorizes the above named entity to reproduce this report provided it is reproduced in its entirety and for use by the entity’s employees only. Any reproduction of parts of this report requires approval in writing from Nemko Group. Any use that a third party makes of this report, or any reliance on or decisions to be made based on it, are the responsibility of such third parties. Nemko Group accepts no responsibility for damages suffered by any third party caused by decisions made or actions based on this report. TEST REPORT FCC Part 15.247 Report no.: 433049-11-R01 FCC ID: 2A226-TELETMH01 IC: 27732-TELETMH01 Nemko Scandinavia Page 3 (19) CONTENTS 1 INFORMATION ......................................................................................................................... 4 1.1 Test Item ................................................................................................................................................... 4 1.2 Normal test conditions ............................................................................................................................... 4 1.3 Test Engineer ............................................................................................................................................ 5 1.4 Antenna Requirement ................................................................................................................................ 5 1.5 EUT Operating Modes ............................................................................................................................... 5 1.6 Radio Modules .......................................................................................................................................... 5 1.7 Comments ................................................................................................................................................. 5 2 TEST REPORT SUMMARY ...................................................................................................... 6 2.1 General ..................................................................................................................................................... 6 2.2 Test Summary ........................................................................................................................................... 6 3 TEST RESULTS ........................................................................................................................ 7 3.1 Peak Power Output ................................................................................................................................... 7 3.2 Restricted Bands of operation .................................................................................................................. 10 3.3 Radiated Emissions, Band Edge.............................................................................................................. 11 3.4 Radiated Emission, 30 – 1000 MHz ......................................................................................................... 13 3.5 Radiated Emissions, 1-26 GHz ................................................................................................................ 15 4 Measurement Uncertainty ..................................................................................................... 17 5 LIST OF TEST EQUIPMENT................................................................................................... 18 6 BLOCK DIAGRAM .................................................................................................................. 19 6.1 Test Site Radiated Emission .................................................................................................................... 19 TEST REPORT FCC Part 15.247 Report no.: 433049-11-R01 FCC ID: 2A226-TELETMH01 IC: 27732-TELETMH01 Nemko Scandinavia Page 4 (19) 1 INFORMATION 1.1 Test Item Name Toyota Model/version DHUnx FCC ID 2A226-TELETMH01 ISED…

Text truncated - open the document above for the full version.

Report No. 433049-12-R00 Template version: C Nemko Group Nemko Scandinavia AS, Instituttveien 6, P.O. Box 96, 2027 Kjeller, Norway TEL +47 22 96 03 30 EMAIL [email protected] nemko.com/no Test Report Product Telematics unit for mounting on forklifts Name and address of the applicant Toyota Material Handling, Inc. 5559 Inwood Drive, Columbus IN 47201, USA Name and address of the manufacturer Toyota Material Handling, Inc. 5559 Inwood Drive, Columbus IN 47201, USA Model DHUnx Rating External DC supply (12-48 V DC ) Trademark TOYOTA Serial number 2117000000251 Additional information WiFi, BT Classic, BLE, WCDMA, LTE Tested according to Parts of FCC Part 15 Parts of FCC Parts 22 / 24 / 27 / 90 Parts of Canada RSS-247, Issue 2 Parts of Canada RSS-130 / RSS-132 / RSS-133 / RSS-139 / RSS-199 Order number 433049 Tested in period 2021-09-15 to 2021-10-26 Issue date 2022-02-24 Name and address of the testing laboratory Instituttveien 6 Kjeller, Norway www.nemko.com CAB Number: FCC: NO0001 ISED: NO0470 An accredited technical test executed under the Norwegian accreditation scheme Prepared by [Frode Sveinsen] Approved by [G.Suhanthakumar] This report shall not be reproduced except in full without the written approval of Nemko. Opinions and interpretations expressed within this report are not part of the current accreditation. This report was originally distributed electronically with digital signatures. For more information contact Nemko. TEST REPORT FCC Part 15.247 Report no.: 433049-12-R00 FCC ID: 2A226-TELETMH01 IC: 27732-TELETMH01 Nemko Scandinavia Page 2 (21) Revision history Revision Date Comment Sign 00 2022-02-24 First edition FS TEST REPORT FCC Part 15.247 Report no.: 433049-12-R00 FCC ID: 2A226-TELETMH01 IC: 27732-TELETMH01 Nemko Scandinavia Page 3 (21) CONTENTS 1 INFORMATION ......................................................................................................................... 4 1.1 Test Item ................................................................................................................................................... 4 1.2 Normal test conditions ............................................................................................................................... 4 1.3 Test Engineer ............................................................................................................................................ 5 1.4 EUT Operating Modes ............................................................................................................................... 5 1.5 Radio Modules .......................................................................................................................................... 5 1.6 Mobile Frequency Bands and Standards ................................................................................................... 5 1.7 Comments ................................................................................................................................................. 5 2 TEST REPORT SUMMARY ...................................................................................................... 6 2.1 General ..................................................................................................................................................... 6 2.2 Test Summary ................................................................................................…

Text truncated - open the document above for the full version.
