2A23C-BM0104Wireless mouse

BK0104&BM0104

Shenzhen Koorui technology Co., Ltd 2.911 (d)(5)(i) Equipment Type Attestation v1.2 Section 2.911(d)(5)(i) Certification – Equipment Type Company name: Shenzhen Koorui technology Co., Ltd Address: Huike Industrial Park, Shilong Community Shiyan Street, Baoan District, ShenZhen,518108 China Product Name: Wireless mouse FCC ID: 2A23C-BM0104 Model(s): BM0104 2.911(d)(5)(i) Equipment Type We, [Shenzhen Koorui technology Co., Ltd] (“the applicant”) certify that the equipment for which authorization is sought through certification is not: • Prohibited from receiving an equipment authorization pursuant to § 2.903; of the FCC rules. • Identified as an equipment type in the “Covered List” NOTE 1 Yours sincerely, Name: Liang Keven Date: 2023.04.26 Title and Company name: RD Manager/ Shenzhen Koorui technology Co., Ltd NOTE 1 “Covered List”; is the List of Equipment and Services Covered By Section 2 of The Secure Networks Act, available at https://www.fcc.gov/supplychain/coveredlist References; 1) 986446 D01 Covered Equipment v01 https://apps.fcc.gov/oetcf/kdb/forms/FTSSearchResultPage.cfm?switch=P&id=325672 2) Federal Register document 2022-28263 published on 02/06/23 https://www.federalregister.gov/documents/2023/02/06/2022-28263/protecting-against-national-security-threats-to-the-com munications-supply-chain-through-the

Shenzhen Koorui technology Co., Ltd 2.911 (d)(5)(ii) Applicant Attestation v1.2 Section 2.911(d)(5)(ii) Certification – Applicant (Covered List ) Company name: Shenzhen Koorui technology Co., Ltd Address: Huike Industrial Park, Shilong Community Shiyan Street, Baoan District, ShenZhen,518108 China Product Name: Wireless mouse FCC ID: 2A23C-BM0104 Model(s): BM0104 2.911(d)(5)(ii) Applicant filing We, [Shenzhen Koorui technology Co., Ltd] (“the applicant”) certify that, as of the date of the filing of the application, the applicant is not identified NOTE 1 on the “Covered List” NOTE 2 , established pursuant to § 1.50002 of this chapter, as an entity producing covered communications equipment. Yours sincerely, Name: Liang Keven Date: 2023.04.26 Title and Company name: RD Manager/ Shenzhen Koorui technology Co., Ltd NOTE 1 Delete option not applicable to this application. NOTE 2 “Covered List”; is the List of Equipment and Services Covered By Section 2 of The Secure Networks Act, available at https://www.fcc.gov/supplychain/coveredlist References; 1) 986446 D01 Covered Equipment v01 https://apps.fcc.gov/oetcf/kdb/forms/FTSSearchResultPage.cfm?switch=P&id=325672 2) Federal Register document 2022-28263 published on 02/06/23 https://www.federalregister.gov/documents/2023/02/06/2022-28263/protecting-against-national-security-threats-to-the-com munications-supply-chain-through-the

Shenzhen Koorui technology Co., Ltd U.S. Agent Letter of Attestation To: Federal Communications Commission 7435 Oakland Mills Road, Columbia, MD 21046, USA Date: 04-26-2023 Ref: Attestation Statement – Part 2.911(d)(7) filing FCC ID: 2A23C-BM0104 Shenzhen Koorui technology Co., Ltd (“the applicant”) certifies that, as of the date of the filing of the application, CLF Import and Export Limited (“the agent”) is our designated U.S. agent for service of process for the above reference FCC ID. The applicant accepts to maintain an agent for service of process in the United States for no less than one year after either the grantee has permanently terminated all marketing and importation of the applicable equipment within the U.S., or the conclusion of any Commission-related administrative or judicial proceeding involving the equipment, whichever is later. The applicant further acknowledges it is our responsibility to inform the FCC whenever the agent information changes. CLF Import and Export Limited ("the agent) understand it is the agent's obligation to accept service of process in the United States for matters related to the applicable equipment, and at the physical U.S. address and email address. Designated U.S. Agent Company Name: CLF Import and Export Limited FRN: 0033489683 Address: 1312 17th Street #692, Denver, CO 80202, United States Signature: Contact Person: David Chen Tel: +1 949 254 2565 Email: [email protected] Applicant Company Name: Shenzhen Koorui technology Co., Ltd Address: Huike Industrial Park, Shilong Community Shiyan Street, Baoan District, ShenZhen,518108 China Signature: Contact Person: Liang Keven Tel: +86 755-36905888 Email: [email protected]

Shenzhen Koorui technology Co., Ltd Agent Authorization Company: Shenzhen Koorui technology Co., Ltd Address: Huike Industrial Park, Shilong Community Shiyan Street, Baoan District, ShenZhen,518108 China Product Name: Wireless mouse Model Number(s): BM0104 Product Description: Wireless mouse We authorize MiCOM Labs Inc., 575 Boulder Court, Pleasanton, California 94566, USA, to act on our behalf on all matters concerning the certification of above named equipment. We declare that MiCOM Labs Inc. is allowed to forward all information related to the approval and certification of equipment to the regulatory agencies as required and to discuss any issues concerning the approval application. Any and all acts carried out by MiCOM Labs on our behalf shall have the same effect as acts of our own. Signature: Date: 2023.04.26 Name: Liang Keven Title: RD Manager Company: Shenzhen Koorui technology Co., Ltd

Shenzhen Koorui technology Co., Ltd Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 USA Date: April 26, 2023 Subject; Request for Confidentiality FCC ID: 2A23C-BM0104 To Whom It May Concern, Pursuant to the provisions of the Commission’s rules Title 47 Sections §0.457 and §0.459, we are requesting the Commission to withhold the following attachment(s) as confidential documents from public disclosure indefinitely. These documents contain detailed system and equipment descriptions and are considered as proprietary information in operation of the equipment. The public disclosure of these documents might be harmful to our company and would give competitors an unfair advantage in the market. Schematic Diagram Block Diagram Parts List Operational Description Tune-up Procedure In additional to above mentioned documents, in order to comply with the marketing regulations in Title 47 CFR §2.803 and the importation rules in Title 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices, we request Short Term Confidentiality of the following attachment(s); External Photos Test Setup Photos Internal Photos User Manual For 45 days, pursuant to Public Notice DA 04-1705. OR For 180 days pursuant to KDB 726920 D01. It is our understanding that all measurement test reports, FCC ID label format and correspondence during the certification review process cannot be granted as confidential documents and this information will be available for public review once the grant of equipment authorization is issued. Sincerely, Signature: Name: Liang Keven Title: RD Manager

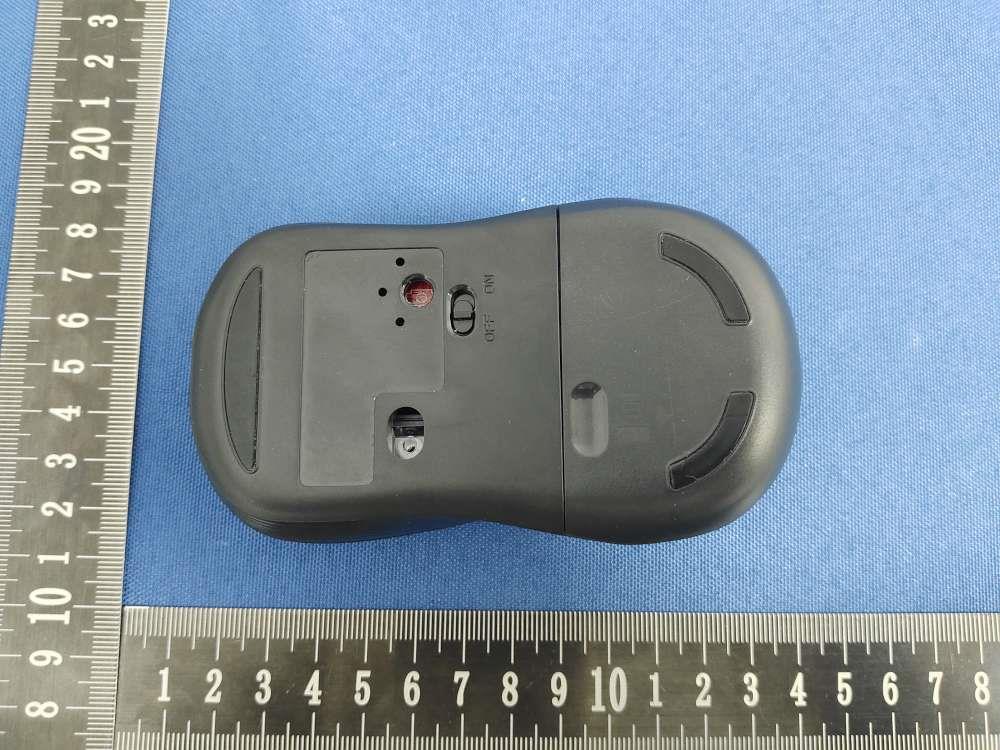

FCC ID: 2A23C-BM0104 EUT PHOTO(External Photos)

Page 1 of 1 Label and Information FCC Label Sample FCC Label Specifications Text is Black in color and is justified. Labels are printed in indelible ink on permanent adhesive backing or silk-screened onto the EUT or shall be affixed at a conspicuous location on the EUT. Where the EUT is constructed in two or more sections connected by wires and marketed together, the above statement is required to be affixed only to the main control unit. When the EUT is so small or for such use that it is not practicable to place the statement on it, the above information shall be placed in a prominent location in the instruction manual or pamphlet supplied to the user or, alternatively, shall be placed on the container in which the device is marketed. FCC Label Location

FCC ID: 2A23C-BM0104 EUT PHOTO(Internal Photos) 2.4G ANT ANT

FCC ID: 2A23C-BM0104 RF Exposure Evaluation According to KDB 447498 D04 RF Exposure Procedures and Equipment Authorization Policies for Mobile and Portable Devices part 2.1.2, a single RF source is exempt RF device (from the requirement to show data demonstrating compliance to RF exposure limits, as previously mentioned) if the available maximum time-averaged power is no more than 1mW, regardless of separation distance. This exemption applies to all operating configurations and exposure conditions, for the frequency range 100 kHz to 100 GHz, regardless of fixed, mobile, or portable device exposure conditions. This is a standalone exemption, and it cannot be applied in conjunction with any other test exemption. The result is rounded to one decimal place for comparison Here, The device has been evaluated to meet general RF exposure requirement. The device can be used in portable exposure condition without restriction. Frequency (MHz) Power (dBuV/m) Power (dBm) Power (mW) Limit (mW) 2474 91.26 -3.94 0.404 1 Notes: 91.26dBuV/m-95.2=-3.94dBm 0.404mW＜1mW, so a SAR test is not required.

Specifications 2400MHz 2450MHz 2500MHz 2400MHz 2450MHz 2500MHz -1.66-0.84-0.61-6.16-3.65-2.21 Horizontal: ANTENNA SPECIFICATION Summary ITEMSPEC. Model Name Center Frequency HorizontalVertical MAX. Gain-0.61 PolarizationHorizontal and Vertical Azimuth Beam Pattern Omni-directional Impedance50 Ohm Antenna Length33.1849mm ManufactureDongguan Couson Antenna Photo Angle(? 2400MHz2450MHz2500MHz Max:0 Min:-40 Scale:5/div Frequency (MHz) Gain(dBi) Max.Min.Avg. 2400-1.66179-30.2813-8.78713 2450-0.84781-38.7595-7.87812 2500-0.6156-23.6329-6.99139 Vertical: Angle(? 2400MHz2450MHz2500MHz Max:0 Min:-30 Scale:5/div Frequency (MHz) Gain(dBi) Max.Min.Avg. 2400-6.1623-23.1425-12.5295 2450-3.6534-26.2866-10.6699 2500-2.21101-29.4381-9.58526

ProjectNo.:ZKT-230322L1966E Page 1 of 27 FCCTESTREPORT FCCID:2A23C-BM0104 ReportNumber. .................................. : ZKT-230322L1966E DateofTest ....................................................... :March23,2023toMarch29,2023 Dateofissue ......................................... :March30,2023 Totalnumberofpages..........................27 TestResult..........................................: PASS TestingLaboratory............................: ShenzhenZKTTechnologyCo.,Ltd. Address...............................................: 1/F,No.101,BuildingB,No.6,TangweiCommunityIndustrial Avenue,FuhaiStreet,Bao'anDistrict,Shenzhen,China Applicant'sname.............................: ShenzhenKooruitechnologyCo.,Ltd Address...............................................: HuikeIndustrialPark,ShilongCommunityShiyanStreet,Baoan District,ShenZhen,518108China Manufacturer'sname......................: ShenzhenKooruitechnologyCo.,Ltd Address ............................................... : HuikeIndustrialPark,ShilongCommunityShiyanStreet,Baoan District,ShenZhen,518108China Testspecification: Standard................................................: FCCCFRTitle47Part15SubpartCSection15.249 ANSIC63.10:2013 Testprocedure.....................................: / Non-standardtestmethod ................ :N/A TestReportFormNo........................: TRF-EL-111_V0 TestReportForm(s)Originator.....: ZKTTesting MasterTRF........................................: Dated:2020-01-06 ThisdevicedescribedabovehasbeentestedbyZKT,andthetestresultsshowthattheequipmentunder test(EUT)isincompliancewiththeFCCrequirements.Anditisapplicableonlytothetestedsample identifiedinthereport. Thisreportshallnotbereproducedexceptinfull,withoutthewrittenapprovalofZKT,thisdocumentmay bealteredorrevisedbyZKT,personalonly,andshallbenotedintherevisionofthedocument. Productname.....................................: Wirelessmouse Trademark...........................................: KOORUI Model/Typereference......................: BM0104 Ratings .................................................. : DC1.5Vby“AA”battery ProjectNo.:ZKT-230322L1966E Page 2 of 27 Testingprocedureandtestinglocation: TestingLaboratory ....................................... :ShenzhenZKTTechnologyCo.,Ltd. Address ............................................................ :1/F,No.101,BuildingB,No.6,TangweiCommunity IndustrialAvenue,FuhaiStreet,Bao'anDistrict, Shenzhen,China JimLiu Testedby(name+signature) ....................... : TomZou Reviewer(name+signature).......................: LakeXie Approved(name+signature) ....................... : ProjectNo.:ZKT-230322L1966E Page 3 of 27 TableofContentsPage 1.VERSION4 2.SUMMARYOFTESTRESULTS5 2.1TESTFACILITY6 2.2MEASUREMENTUNCERTAINTY6 3.GENERALINFORMATION7 3.1GENERALDESCRIPTIONOFEUT7 3.2DESCRIPTIONOFTESTMODES8 3.3BLOCKDIGRAMSHOWINGTHECONFIGURATIONOFSYSTEMTESTED8 3.4DESCRIPTIONOFSUPPORTUNITS(CONDUCTEDMODE)8 3.5EQUIPMENTSLISTFORALLTESTITEMS9 4.EMCEMISSIONTEST11 4.1CONDUCTEDEMISSIONMEASUREMENT11 4.1.1POWERLINECONDUCTEDEMISSIONLIMITS11 4.1.2TESTPROCEDURE11 4.1.3DEVIATIONFROMTESTSTANDARD11 4.1.4TESTSETUP12 4.1.5EUTOPERATINGCONDITIONS12 N/A12 4.2RADIATEDEMISSIONMEASUREMENT13 4.2.1RADIATEDEMISSIONLIMITS13 4.2.2TESTPROCEDURE14 4.2.3DEVIATIONFROMTESTSTANDARD14 4.2.4TESTSETUP15 4.2.5EUTOPERATINGCONDITIONS16 5.RADIATEDBANDEMISSIONMEASUREMENT21 5.1TESTREQUIREMENT:21 5.2TESTPROCEDURE21 5.3DEVIATIONFROMTESTSTANDARD21 5.4TESTSETUP22 5.5EUTOPERATINGCONDITIONS22 5.6TESTRESULT23 6.BANDWIDTHTEST24 7.ANTENNAREQUIREMENT26 8.TESTSETUPPHOTO27 9.EUTCONSTRUCTIONALDETAILS27 ProjectNo.:ZKT-230322L1966E Page 4 of 27 1.VERSION ReportNo.VersionDescriptionApproved ZKT-230322L1966ERev.01InitialissueofreportMarch30,2023 ProjectNo.:ZKT-230322L1966E Page 5 of 27 2.SUMMARYOFTESTRESULTS Testproceduresaccordingtothetechnicalstandards: FCCPart15(15.249),SubpartC Standard Section TestItemJudgmentRemark FCCpart15.203AntennarequirementPASS FCCpart15.207ACPowerLineConductedEmissionN/A FCCpart15.249(d)BandEdgePASS FCCpart15.205/15.209/ 15.249 SpuriousEmissionPASS FCCpart15.215(c)20dBBandwidthPASS NOTE: (1)“N/A”denotestestisnotapplicableinthisTestReport ProjectNo.:ZKT-230322L1966E Page 6 of 27 2.1TESTFACILITY ShenzhenZKTTechnologyCo.,Ltd. Add.:1/F,No.101,BuildingB,No.6,TangweiCommunityIndustrialAvenue,FuhaiStreet,Bao'an District,Shenzhen,China FCCTestFirmRegistrationNumber:692225 DesignationNumber:CN1299 ICRegisteredNo.:27033 2.2MEASUREMENTUNCERTAINTY Thereporteduncertaintyofmeasurementy±U ， whereexpendeduncertaintyUisbasedonastandard uncertaintymultipliedbyacoveragefactorofk=2 ， providingalevelofconfidenceofapproximately95 % 。 No.ItemUncertainty 1 3mcamberRadiatedspurious emission(9KHz-30MHz) U=4.5dB 2 3mcamberRadiatedspurious emission(30MHz-1GHz) U=4.8dB 3 3mchamberRadiatedspurious emission(1GHz-6GHz) U=4.9dB 4 3mchamberRadiatedspurious emission(6GHz-40GHz) U=5.0dB 5ConducteddisturbanceU=3.2dB 6RFBandEdgeU=1.68dB 7RFpowerconductedU=1.86dB 8RFconductedSpuriousEmissionU=2.2dB 9RFOccupiedBandwidthU=1.8dB 10RFPowerSpectralDensityU=1.75dB 11humidityuncertaintyU=5.3% 12Temperatureuncertainty U=0.59 °C ProjectNo.:ZKT-230322L1966E Page 7 of 27 3.GENERALINFORMATION 3.1GENERALDESCRIPTIONOFEUT ProductName: Wirelessmouse ModelNo.: BM0104 ModelDifferent.: N/A SerialNo.: N/A HardwareVersion: V1.0 SoftwareVersion: V1.0 Sample(s)Status:Engineersample OperationFrequency:2408MHz~2474MHz ChannelNumbers:34 ChannelSeparation:2MHz ModulationType:GFSK AntennaType:PCBAntenna Antennagain:-0.61dBi Powersupply:DC1.5Vby“AA”battery SWITCHINGPOWER ADAPTER: N/A OperationFrequencyeachofchannel ChannelFrequencyChannelFrequencyChannelFrequencyChannelFrequency 12408MHz102426MHz192444MHz282462MHz 22410MHz 11 2428MHz202446MHz292464MHz 32412MHz 12 2430MHz 21 2448MHz302466MHz 42414MHz 13 2432MHz 22 2450MHz 31 2468MHz 52416MHz 14 2434MHz 23 2452MHz 32 2470MHz 62418MHz 15 2436MHz 24 2454MHz 33 2472MHz 72420MHz 16 2438MHz 25 2456MHz 34 2474MHz 82422MHz 17 2440MHz 26 2458MHz 92424MHz 18 2442MHz 27 24…

Text truncated - open the document above for the full version.

EUT TEST PHOTO FCC ID: 2A23C-BM0104 Radiated band emission (30MHz-1GHz): Radiated band emission (Above 1GHz):
