2A24D-DHU4Telematics unit for mounting on forklifts

DHU4 - Installation Instructions Toyota Material Handling Manufacturing Sweden AB Svarvargatan 8 SE-595 81 Mjölby, Sweden Tel: +46 142 860 00 www.toyota-forklifts.eu Company No. 556198-2868 VAT. SE556198286801 Date: 10th of December 2021 DHU4 Installation Instructions Model Name: DHU4 Picture showing the Toyota DHU4 unit to the left. Connected with a four-port mini-fakra to the Smarteq antenna to the right. DHU4 is a telematic node, intended to be mounted into a Toyota forklift. It is always stationary installed in a forklift where it has several wired connections e.g., power, can buses etc. It also communicates wireless with LTE, WiFi and Bluetooth technology. It has an external antenna connected. Following Pages The following pages shows a typical forklift installation of the DHU4 and antenna. These pages shall be seen as one example of a forklift installation. More forklift variants exist, but the use is the same and the installation is similar. TOYOTA Material Handling Manufacturing Sweden AB (TMHMS) | 12/10/2021 1.0 PAGE Model: RRE160 DHU4 and Antenna Installation 1 / 11 NPD REVISION HISTORY Table of Contents 1. Purpose.............................................................................................................................................. 3 2. Scope ................................................................................................................................................. 3 3. Installation Instructions ...................................................................................................................... 3 Antenna and DHU Installation location overview .................................................................. 3 DHU4 Assembly Installation and Cables Connection ........................................................... 4 Mount the DHU4 onto the bracket as shown in the illustrations below. Align the DHU4 holes to the bracket holes and hand start the screws, then tighten. ................................................ 4 Use the electric impact to tighten the screws to TT = 4.5 Nm C. .......................................... 5 DHU4 Assembly Installation and Cables Connection ........................................................... 5 Install the DHU4 assembly with the bracket to the right-hand side of the drive motor. ........ 5 Antenna Installation ............................................................................................................... 6 For Cabin and STD models, install the antenna on the roof. ................................................ 6 Align the antenna on the roof in dedicated hole. Hand start the bolt from below, then tighten............................................................................................................................................... 6 Antenna Cable Installation .................................................................................................... 8 Antenna Cable Location Overview. Applicable for both Cabin and STD models. Antenna Cable Installation is routed along Main Roof Cabling and Main Driver Cab Cabling. ..................... 8 Antenna Cable Installation is routed along with Main Roof Cabling and Driver Cab Cabling. First press clamp into roof bracket, then place the cable into it. Make sure clamp is secure in bracket and the cable is secure within the clamp. ........................................................................... 9 Secondly press clamp into roof post bracket, then place the cable into it. Make sure clamp is secure in bracket and the cable is secure within the clamp. ........................................................ 9 Date Revision Notes PIC Approved Revision 9/24/2021 Initial Draft VP 1.0 TOYOTA Material Handling Manufacturing Sweden AB (TMHMS) | 12/10/2021 1.0 PAGE Model: RRE160 DHU4 and Antenna Installation 2 / 11 NPD For both Cabin and STD models, Main Roof Cabling is connected to Main Driver Cab Cabling with connectors X60 and X61. Make sure the connectors are secured in the tabs and that the cable is also securely installed to the clamps. ......................................................................... 10 Main Driver Cab Cabling. Make sure cabling is secured to the clamps and clamps secured into chassi. ..................................................................................................................................... 10 Final antenna cabling and connection to DHU4. Make sure antenna cabling is secured to the clamps and antenna connectors are securely installed into the DHU4. .................................. 11 TOYOTA Material Handling Manufacturing Sweden AB (TMHMS) | 12/10/2021 1.0 PAGE Model: RRE160 DHU4 and Antenna Installation 3 / 11 NPD DHU4 and Antenna Installation Instructions 1. Purpose This document describes the DHU4 and antenna installation performed on RRE 160 truck model. 2. Scope This document applies to DHU4 and antenna installation used by TOYOTA Material Handling Manufacturing Sweden AB (TMHMS). IMPORTANT: These installation instructions are for RRE160 models only. Installation instructions for other forklift truck models may be similar. 3. Installation Instructions WARNING! Wear safety glasses, safety shoes and gloves at all times. Failure to do so may result in serious injury or death. WARNING! Watch hand placement for pinch points. Failure to do so may result in serious injury. Antenna and DHU Installation location overview Cabin model STD model TOYOTA Material Handling Manufacturing Sweden AB (TMHMS) | 12/10/2021 1.0 PAGE Model: RRE160 DHU4 and Antenna Installation 4 / 11 NPD DHU4 Assembly Installation and Cables Connection Mount the DHU4 onto the bracket as shown in the illustrations below. Align the DHU4 holes to the bracket holes and hand start the screws, then tighten. Sub Assembly DHU4 Controller TOYOTA Material Handling Manufacturing Sweden AB (TMHMS) | 12/10/2021 1.0 PAGE Model: RRE160 DHU4 and Antenna Installation 5 / 11 NPD CAUTION! Do no…

Text truncated - open the document above for the full version.

Page 1 of 9 DHU4 - User Manual Toyota Material Handling Manufacturing Sweden AB Svarvargatan 8 SE-595 81 Mjölby, Sweden Tel: +46 142 860 00 www.toyota-forklifts.eu Company No. 556198-2868 VAT. SE556198286801 Date: 10th of December 2021 DHU4 User Manual Model Name: DHU4 Picture showing the Toyota DHU4 unit to the left. Connected with a four-port mini-fakra to the Smarteq antenna to the right. General DHU4 is a telematic node, intended to be mounted into a Toyota forklift. It is always stationary installed in a forklift where it has several wired connections e.g., power, can buses etc. It also communicates wireless with LTE, WiFi and Bluetooth technology. It has an external antenna connected. Page 2 of 9 DHU4 - User Manual Toyota Material Handling Manufacturing Sweden AB Svarvargatan 8 SE-595 81 Mjölby, Sweden Tel: +46 142 860 00 www.toyota-forklifts.eu Company No. 556198-2868 VAT. SE556198286801 Date: 10th of December 2021 Information to the user This product is communicating wirelessly with LTE and/or Bluetooth/WiFi. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help  Warning: Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.  This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation  The device for operation in the band 5150 – 5250 MHz is only for indoor use to prevent harmful interference to co-channel mobile satellite systems;  The maximum antenna gain permitted for devices in the band 5250 – 5350 MHz and 5470 – 5725 MHz shall comply with the e.i.r.p. limit  The maximum antenna gain permitted for devices in the band 5725 – 5825 MHz shall comply with the e.i.r.p. limits specified for point-to-point and non point-to-point operation as appropriate.  High-power radars are allocated as primary users of the bands 5250 – 5350 MHz and 5650 – 5850 MHz and these radars could cause interference and/or damage to LE-LAN devices” Page 3 of 9 DHU4 - User Manual Toyota Material Handling Manufacturing Sweden AB Svarvargatan 8 SE-595 81 Mjölby, Sweden Tel: +46 142 860 00 www.toyota-forklifts.eu Company No. 556198-2868 VAT. SE556198286801 Date: 10th of December 2021 This device complies with ISED Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device. Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de licence. L'exploitation est autorisée aux deux conditions suivantes : (1) l'appareil ne doit pas produire de brouillage, et (2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d'en compromettre le fonctionnement. Cet appareil est conforme aux limites d'exposition aux rayonnements de la IC pour un nvironnement non contrôlé. L'antenne doit être installé de façon à garder une distance minimale de 20 centimètres entre la source de rayonnements et votre corps. Gain de l'antenne doit être ci-dessous. Testing has been performed on the module in a co-located configuration with the identified module(s) to determine if new sources of interference are created when the two transmitter modules are simultaneously transmitting. Warning:  This device is approved for use in a mobile rf exposure environment. A minimum separation distance of 20 cm must be maintained between the antenna and nearby persons.  The module may only be co-located in a host device with the following radio modules: Quectel EG25, Quectel FC20. List of applicable FCC rules The following FCC rules are applicable to the equipment:  CFR 47, Part 15, Subpart C  CFR 47, Part 2, Subpart J – Radiofrequency radiation exposure: mobile devices Page 4 of 9 DHU4 - User Manual Toyota Material Handling Manufacturing Sweden AB Svarvargatan 8 SE-595 81 Mjölby, Sweden Tel: +46 142 860 00 www.toyota-forklifts.eu Company No. 556198-2868 VAT. SE556198286801 Date: 10th of December 2021 Specific operational use conditions Most of the installations are performed at Toyota production facilities by qualified personnel into a Toyota Forklift. However, after market installations also exists. The user can never operate the DHU4 directly. Important: The DHU4 transmitting antenna must be installed and operated with minimum distance of 20 cm between the radiator and nearby persons. Co-location The following modules have been evaluated and may be co-located in a mobile configuration. Cellular module Quectel EG25: FCC ID: XMR201903EG25G IC ID: 10224A-201903EG25G WiFi/Bluetooth module Quectel FC20: FCC ID: XMR201703FC20 IC ID: 10224A-201703FC2…

Text truncated - open the document above for the full version.

Page 1 of 10 Software Security Description Toyota Material Handling Manufacturing Sweden AB Svarvargatan 8 SE-595 81 Mjölby, Sweden Tel: +46 142 860 00 www.toyota-forklifts.eu Company No: 556198-2868 VAT SE556198286801 Information classification: Internal Date: 20th of December 2021 Toyota Material Handling Manufacturing Sweden AB FCC Software Security Description for ‘DHU4’ Table of Contents 1 Introduction .................................................................................................................................... 3 2 Detailed description ........................................................................................................................ 4 2.1 Model Name ........................................................................................................................... 4 2.2 Files involved ........................................................................................................................... 4 2.3 Building a firmware image ...................................................................................................... 4 2.4 Downloading a firmware image .............................................................................................. 4 2.5 Using the settings files on device ............................................................................................ 4 2.5.1 Booting ............................................................................................................................ 4 2.5.2 Loading the parameter files ............................................................................................ 5 2.5.3 On device summary ........................................................................................................ 5 3 Answers to questionnaire in FCC KBD 594280................................................................................ 6 3.1 General Description, question #1 ........................................................................................... 6 3.2 General Description, question #2 ........................................................................................... 6 3.3 General Description, question #3 ........................................................................................... 6 3.4 General Description, question #4 ........................................................................................... 6 3.5 General Description, question #5 ........................................................................................... 7 3.6 Third-Party Access Control, question #1 ................................................................................. 7 3.7 Third-Party Access Control, question #2 ................................................................................. 7 3.8 Third-Party Access Control, question #3 ................................................................................. 8 3.9 User Configuration Guide, questions ...................................................................................... 8 3.9.1 User Configuration Guide, question #1a ......................................................................... 8 3.9.2 User Configuration Guide, question #1b ........................................................................ 8 3.9.3 User Configuration Guide, question #1b1 ...................................................................... 8 3.9.4 User Configuration Guide, question #1b2 ...................................................................... 8 3.9.5 User Configuration Guide, question #1c ......................................................................... 9 3.9.6 User Configuration Guide, question #1c1 ....................................................................... 9 3.9.7 User Configuration Guide, question #1c2 ....................................................................... 9 3.9.8 User Configuration Guide, question #1d ........................................................................ 9 3.9.9 User Configuration Guide, question #1d1 ...................................................................... 9 3.10 User Configuration Guide, question #1e ................................................................................ 9 Page 2 of 10 Software Security Description Toyota Material Handling Manufacturing Sweden AB Svarvargatan 8 SE-595 81 Mjölby, Sweden Tel: +46 142 860 00 www.toyota-forklifts.eu Company No: 556198-2868 VAT SE556198286801 Information classification: Internal Date: 20th of December 2021 3.11 User Configuration Guide, question #2 ................................................................................ 10 3.12 User Configuration Guide, question #3 ................................................................................ 10 3.13 User Configuration Guide, question #4 ................................................................................ 10 Page 3 of 10 Software Security Description Toyota Material Handling Manufacturing Sweden AB Svarvargatan 8 SE-595 81 Mjölby, Sweden Tel: +46 142 860 00 www.toyota-forklifts.eu Company No: 556198-2868 VAT SE556198286801 Information classification: Internal Date: 20th of December 2021 1 Introduction This document describes the security measures taken by Toyota Material Handling Manufacturing Sweden (TMHMS) to ensure that no unwanted changes are introduced in the software images loaded onto trucks using our product ‘DHU4’. Especially relating to the WiFi radio module settings, to make sure that we conform to the testing and tuning performed for FCC certification of the WiFi radio module, the FC20 module from Quectel. Page 4 of 10 Software Security Description Toyota Material Handling Manufacturing Sweden AB Svarvargatan 8 SE-595 81 Mjölby, Sweden Tel: +46 142 860 00 www.toyota-forklifts.eu Company No: 556198-2868 VAT SE556198286801 Information classification: Internal Date: 20th of December 2021 2 Detailed description 2.1 Model Name The model …

Text truncated - open the document above for the full version.

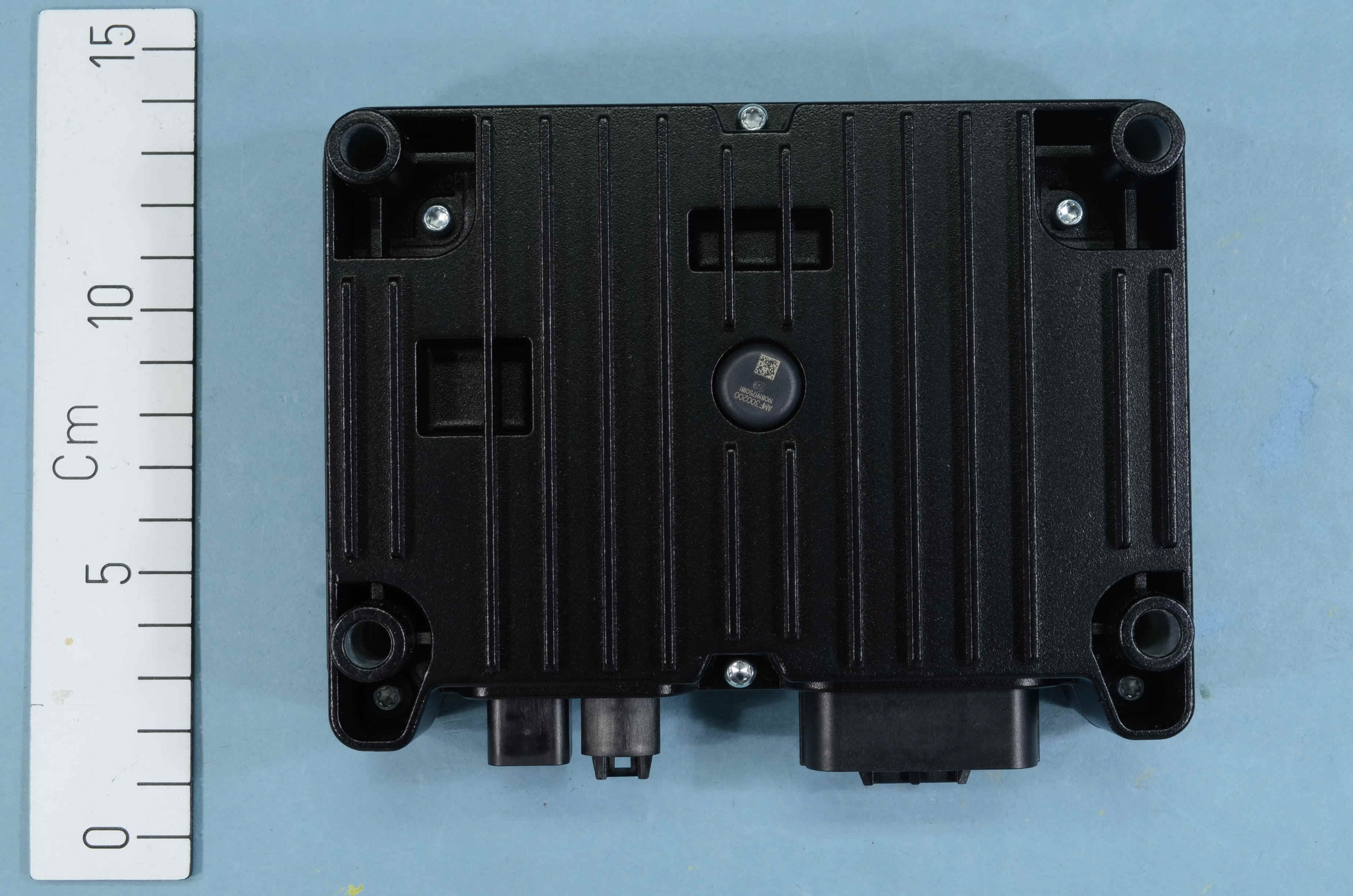

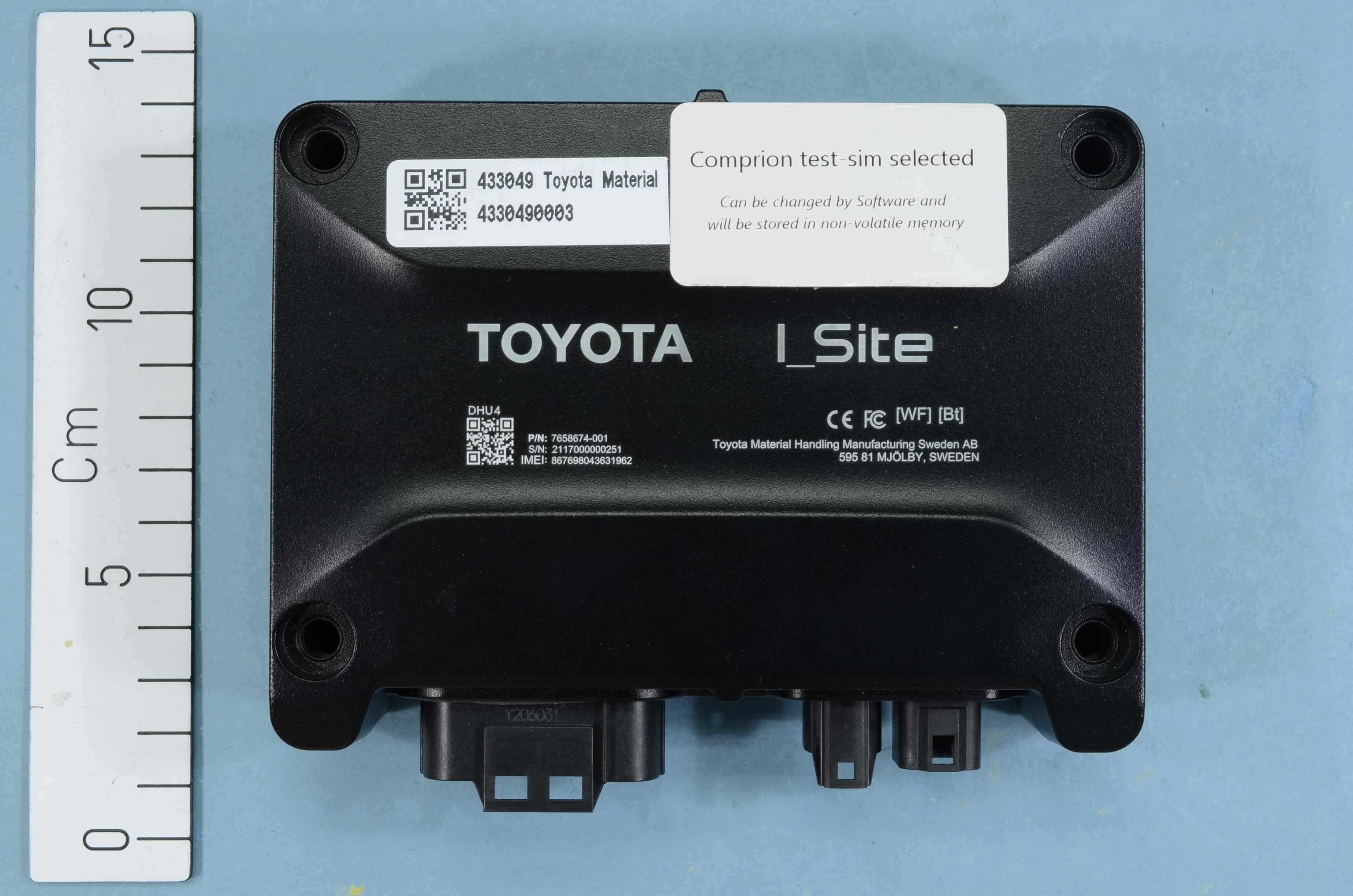

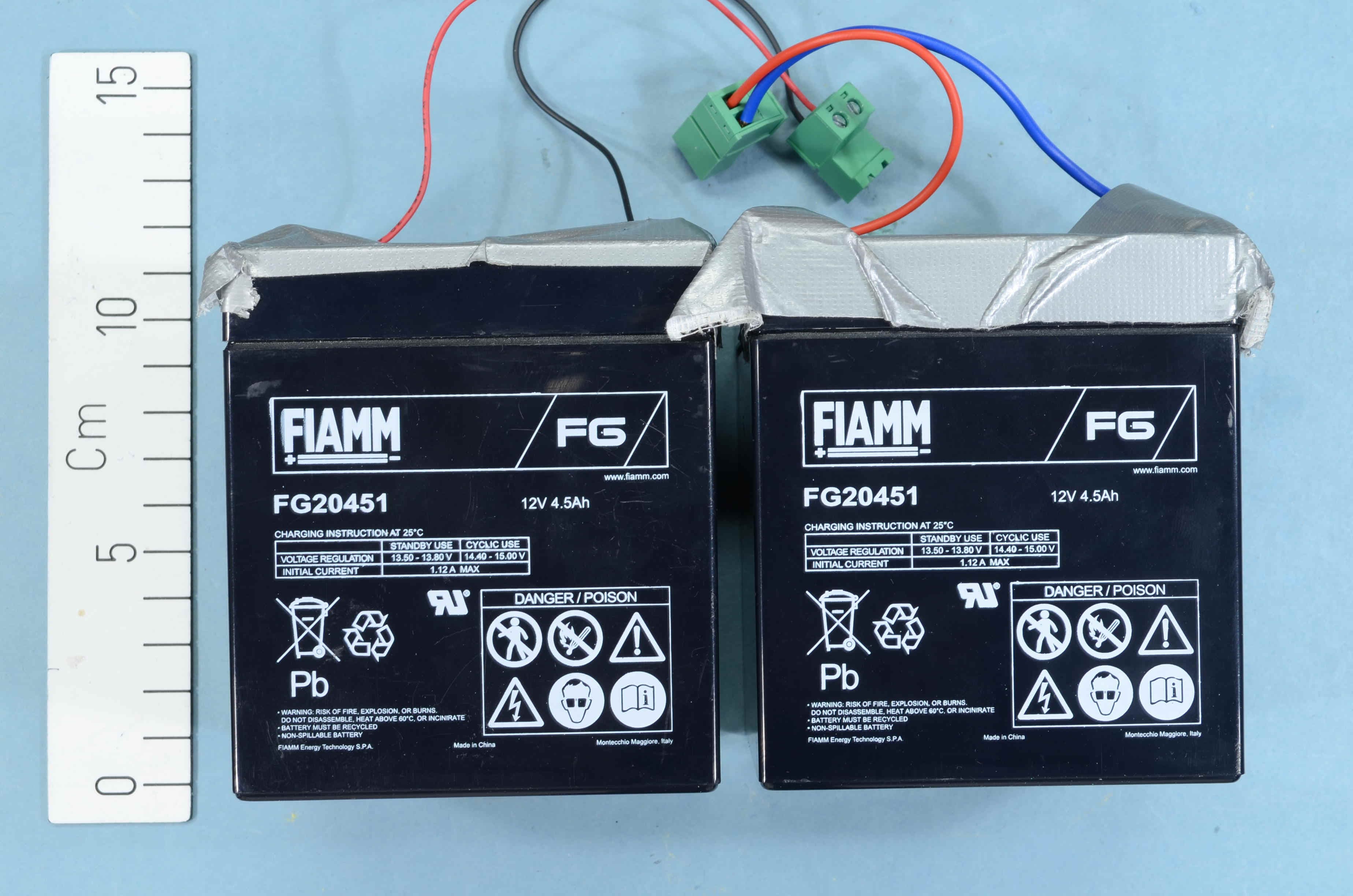

EXTERNAL PHOTOS Project no.: 433049 FCC ID: 2A24D-DHU4 IC: 27803-DHU4 Page 1 (1) EUT Front EUT Back EUT Connectors Test Jig Antenna Batteries

Reference Document Name Page no DFR/Linus Helgesson DHU4_label_spec 1(6) Date Doc No Issue 2022-03-10 DHU4 Label Specification 6 Information classification: Internal DHU4 Label Specification Reference Document Name Page no DFR/Linus Helgesson DHU4_label_spec 2(6) Date Doc No Issue 2022-03-10 DHU4 Label Specification 6 Information classification: Internal 1 Revision history ..................................................................................................................... 3 2 General ................................................................................................................................. 4 2.1 Notation .......................................................................................................................... 4 2.2 Abbreviations .................................................................................................................. 4 2.3 References ..................................................................................................................... 4 2.4 Description ...................................................................................................................... 4 3 Requirements ........................................................................................................................ 5 3.1 Genral ............................................................................................................................. 5 3.2 Static Contents ............................................................................................................... 5 3.3 Dynamic contents ........................................................................................................... 6 Reference Document Name Page no DFR/Linus Helgesson DHU4_label_spec 3(6) Date Doc No Issue 2022-03-10 DHU4 Label Specification 6 Information classification: Internal 1 Revision history Issue Date Name Action 1-draft 2020-12-14 DFR/Linus Helgesson First draft 1 2021-02-02 DFR/Linus Helgesson First release 2 2021-02-17 DFR/Linus Helgesson Updated label image 20210: Added requirement on TMHMS address 3 2021-02-19 DFR/Linus Helgesson 10150: Clarification around placeholders. 4 2021-05-25 DFR/Linus Helgesson Updated image 1 5 2021-11-23 DFR/Linus Helgesson Updated image 1 20160: removed static QR-code requirement 30120, 30130, 30140: added dynamic QR-code requirements 6 2022-03-10 DFR/Linus Helgesson Updated image 1 10120: Added measurement drawing 20110, 20120: Added final FCC/IC ID 20220, 20230: Added IP and electrical supply Reference Document Name Page no DFR/Linus Helgesson DHU4_label_spec 4(6) Date Doc No Issue 2022-03-10 DHU4 Label Specification 6 Information classification: Internal 2 General 2.1 Notation New, changed or removed requirements shall be indicated in the revision history. Requirement numbers shall not be re-used. 2.2 Abbreviations CE Conformité Européenne DC Direct Current DHU4 Data Handling Unit generation 4 ECU Electronic Control Unit FCC Federal Communications Commission I_Site Toyota Material Handling fleet management system IMEI International Mobile Equipment Identity IP Ingress Protection TMHMS Toyota Material Handling Manufacturing Sweden UUID Universally Unique IDentifier WEEE Waste Electrical and Electronic Equipment Directive QR-code Quick Response code, 2D code for optical scanning 2.3 References [1] Graphics_200819.ai, Vector image DHU4 label [2] RFC 4122 UUID namespace 2.4 Description This document specifies requirements on the label that is laser printed on the top surface of the DHU4 telematics ECU. Image 1 - Example label Reference Document Name Page no DFR/Linus Helgesson DHU4_label_spec 5(6) Date Doc No Issue 2022-03-10 DHU4 Label Specification 6 Information classification: Internal 3 Requirements 3.1 General Req. no. Parameter Specification 10100 Layout The label layout shall be according to [1] 10120 Position The label position shall be centered on the top surface. According to drawing below: 10130 Resolution The label resolution shall be high enough that all text is easily readable, and the QR-code can be scanned reliably. 10140 Font The font for the textual content (except Toyota and I_Site logotypes) shall be Helvetica Neue Bold75. 10150 Placeholders There shall be a placeholder for WiFi and/or Bluetooth symbols shown as [WF] and [BT] in [1]. These shall be left blank for DHU4. TMHMS may in the future decide to certify the product for WiFi and/or Bluetooth. 3.2 Static Contents Req. no. Parameter Specification 20100 Product name DHU4 20110 Part number TMHMS part number: 7658674-001 20120 FCC ID FCC registration id: 2A24D-DHU4 20130 IC IC number for Canadian registration: 27803-DHU4 20140 Toyota logo The Toyota logotype shall be according to [1] 20150 I_Site logo The I_Site logotype shall be according to [1] 20160 QR code The QR code shall contain the static URL: Reference Document Name Page no DFR/Linus Helgesson DHU4_label_spec 6(6) Date Doc No Issue 2022-03-10 DHU4 Label Specification 6 Information classification: Internal Req. no. Parameter Specification 20170 CE The label shall contain a CE symbol 20180 FCC The label shall contain a FCC symbol 20190 WEEE The label shall contain a WEEE symbol 20200 Origin mark Indicating production country 20210 TMHMS Address Address to TMHMS: Toyota Material Handling Manufacturing Sweden AB 595 81 MJÖLBY, SWEDEN 20220 Ingress protection The label shall be marked with IP65 class ingress protection 20230 Electrical supply The label shall be marked with 12-48 VDC 1.5 A electrical supply 3.3 Dynamic contents Req. no. Parameter Specification 30100 IMEI The IMEI number shall be read from the cellular module in production and printed on the label. 30110 Serial number The ECU serial number shall be assigned in production and printed on the label. The serial number shall be a 9-digit running number starting from 000000001. Can optionally be prepended by production year/week e.g. 2104000000001. 30120 QR code The QR code shall conta…

Text truncated - open the document above for the full version.

INTERNAL PHOTOS Project no.: 433049 FCC ID: 2A24D-DHU4 IC: 27803-DHU4 Page 1 (1)

FCC ID: 2A24D-DHU4 RF Exposure Compliance for Simultaneous Operations Configurations for Simultaneous OperationsConfiguration 1: BT/BLE + GSM/WCDMA/LTEConfiguration 2: WiFi 2.4 + GSM/WCDMA/LTEConfiguration 3: WiFi 5 + GSM/WCDMA/LTEPower Density is calculated from Maximum Conducted Power and Antenna Gain at prediction distanceMaximum of Conducted and Radiated Output Power is used in the calculation. Therefore negative values for antenna gain have been replaced by 0 dBi.RF Function BT BLE WiFi 2.4 WiFi 5GHz GSM850 GSM1900 WCDMA B2 WCDMA B4 WCDMA B5 LTE B2 LTE B4 LTE B5 LTE B7 LTE B12 LTE B13 LTE B25 LTE B26_1 LTE B26_2 LTE B38 LTE B41 Frequency (MHz) 2402 2402 2412 5180 824.2 1850.2 1852.4 1712.4 826.4 1850.7 1710.7 824.7 2502.5 699.7 779.5 1850.7 814.7 824.7 2572.5 2498.5 Conducted Output Power (dBm) 7.00 2.00 16.00 12.50 25.81 22.81 25.00 25.00 25.00 25.00 25.00 25.00 25.00 25.00 25.00 25.00 25.00 25.00 25.00 25.00 Tune Up Tolerance (dB) 0.00 0.00 0.00 0.00 0.00 0.00 0.00 0.00 0.00 0.00 0.00 0.00 0.00 0.00 0.00 0.00 0.00 0.00 0.00 0.00 Output Power (W) 0.005 0.002 0.040 0.018 0.381 0.191 0.316 0.316 0.316 0.316 0.316 0.316 0.316 0.316 0.316 0.316 0.316 0.316 0.316 0.316 Antenna Gain (dBi) 4.40 4.40 4.40 4.50 0.00 3.50 3.50 3.50 0.00 3.50 3.50 0.00 2.00 0.00 0.00 3.50 0.00 0.00 2.00 2.00 Antenna Gain (Numeric) 2.75 2.75 2.75 2.82 1.00 2.24 2.24 2.24 1.00 2.24 2.24 1.00 1.58 1.00 1.00 2.24 1.00 1.00 1.58 1.58 Prediction Distance (cm) 20 20 20 20 20 20 20 20 20 20 20 20 20 20 20 20 20 20 20 20 Σ of MPE Time Averaged Duty Cycle (%) 100 100 100 100 100 100 100 100 100 100 100 100 100 100 100 100 100 100 100 100 ratios Calculated Power Density (W/m2) 0.027 0.009 0.218 0.100 0.758 0.851 1.408 1.408 0.629 1.408 1.408 0.629 0.997 0.629 0.629 1.408 0.629 0.629 0.997 0.997 Requirement (W/m2) 10.00 10.00 10.00 10.00 5.50 10.00 10.00 10.00 5.51 10.00 10.00 5.50 10.00 4.67 5.20 10.00 5.43 5.50 10.00 10.00 MPE ratio (PD/Req.) 0.003 0.001 0.022 0.010 0.138 0.085 0.141 0.141 0.114 0.141 0.141 0.114 0.100 0.135 0.121 0.141 0.116 0.114 0.100 0.100 Configuration 1 (MPE Ratio) 0.003 0.001 0.138 0.085 0.141 0.141 0.114 0.141 0.141 0.114 0.100 0.135 0.121 0.141 0.116 0.114 0.100 0.100 0.144 Configuration 2 (MPE Ratio) 0.163 0.138 0.085 0.141 0.141 0.114 0.141 0.141 0.114 0.100 0.135 0.121 0.141 0.116 0.114 0.100 0.100 0.303 Configuration 3 (MPE Ratio) 0.010 0.138 0.085 0.141 0.141 0.114 0.141 0.141 0.114 0.100 0.135 0.121 0.141 0.116 0.114 0.100 0.100 0.151 Requirement: Σ of MPE ratios ≤ 1 The maximum value for GSM/WCDMA/LTE and BT/BLE is used in the above calculations.

Report No. 433049-07-R00 Template version: C Nemko Group Nemko Scandinavia AS, Instituttveien 6, P.O. Box 96, 2027 Kjeller, Norway TEL +47 22 96 03 30 EMAIL [email protected] nemko.com/no Test Report Product Telematics unit for mounting on forklifts Name and address of the applicant Toyota Material Handling Manufacturing Sweden AB Svarvargatan 8 SE-59581 Mjölby, Sweden Name and address of the manufacturer Toyota Material Handling Manufacturing Sweden AB Svarvargatan 8 SE-59581 Mjölby, Sweden Model DHU4 Rating External DC supply (12-48 V DC ) Trademark TOYOTA Serial number 2117000000251 Additional information WiFi, BT Classic, BLE, GSM, WCDMA, LTE Tested according to Parts of FCC Part 15 Parts of FCC Parts 22 / 24 / 27 / 90 Parts of Canada RSS-247, Issue 2 Parts of Canada RSS-130 / RSS-132 / RSS-133 / RSS-139 / RSS-199 Order number 433049 Tested in period 2021-09-15 to 2021-10-26 Issue date 2022-02-24 Name and address of the testing laboratory Instituttveien 6 Kjeller, Norway www.nemko.com CAB Number: FCC: NO0001 ISED: NO0470 An accredited technical test executed under the Norwegian accreditation scheme Prepared by [Frode Sveinsen] Approved by [G.Suhanthakumar] This report shall not be reproduced except in full without the written approval of Nemko. Opinions and interpretations expressed within this report are not part of the current accreditation. This report was originally distributed electronically with digital signatures. For more information contact Nemko. TEST REPORT FCC Part 15.247 Report no.: 433049-07-R00 FCC ID: 2A24D-DHU4 IC: 27803-DHU4 Nemko Scandinavia Page 2 (22) Revision history Revision Date Comment Sign 00 2022-02-24 First edition FS THIS TEST REPORT APPLIES ONLY TO THE ITEM(S) AND CONFIGURATIONS TESTED. Deviations from, additions to, or exclusions from the test specifications are described in “Summary of Test Data”. Nemko Group authorizes the above named entity to reproduce this report provided it is reproduced in its entirety and for use by the entity’s employees only. Any reproduction of parts of this report requires approval in writing from Nemko Group. Any use that a third party makes of this report, or any reliance on or decisions to be made based on it, are the responsibility of such third parties. Nemko Group accepts no responsibility for damages suffered by any third party caused by decisions made or actions based on this report. TEST REPORT FCC Part 15.247 Report no.: 433049-07-R00 FCC ID: 2A24D-DHU4 IC: 27803-DHU4 Nemko Scandinavia Page 3 (22) CONTENTS 1 INFORMATION ......................................................................................................................... 4 1.1 Test Item ................................................................................................................................................... 4 1.2 Normal test conditions ............................................................................................................................... 4 1.3 Test Engineer ............................................................................................................................................ 4 1.4 Radio Modules ...........................…
