2A24K-OLA02LOladance Wearable Stereo B1

Oladance Break B1 Quick Start Guide Touch control area Bluetooth LED light Charging LED indicator Type-C port Product Introduction Open case lid. Bluetooth is ready to pair when lights on earbuds start slow blinking Get Started In the box Earbuds x 1 QSG Case x 1 USB Type-C cable x 1 Clear Bluetooth pairing list Tap and hold both buds at the same time for 5s Bluetooth Discovery Mode Tap and hold 2s on both buds at the same time You think is that all? Download Oladance APP to enjoy more customization and cool feature. Let's have fun with your Oladance Wearable Stereo! Slide Forward: Volume up Slide Back: Volume down Control Music Make Phone call Slide Forward: Volume up Slide Back: Volume down x3 Active voice assistant x2 Control Music Tap twice: Left bud: Previous track Right bu: Next track Make Phone call Tap Twice: End or decline a call x1 Control Music Tap once: Play / Pause Make Phone call Tap Once: Answer a call How to wear it? 1 1. Pick up 2 2. Rota the earbud along ear curve3. Check fit 3 4. You are all set 4 Disposal and Recycling Information This symbol (with or without a solid bar) on the device, batteries (included), and / or the packaging, indicates that the device and its electrical accessories (for example, a headset, adapter or cable) and batteries should not be disposed of as household garbage. Battery warning The built-in lithium battery of the product is forbidden to be disassembled, impacted, extruded or put into fire. The battery under the very low air pressure may result in explosion or flammable liquid or gas leakage. Avoid the battery in a high-temperature environment or being exposed to strong sunlight to avert explosion. Don't use the battery continuously in case of serious ballooning. The battery shall be handled pursuant to the local regulations and shall not be disposed as household garbage. Don't try to repair, remove or refit the battery. The explosion may happen if the battery is replaced by the one subject to incorrect model. Don't compress or puncture the battery with hard object. The battery leakage, overheating or outbreak of a fire may occur if the battery is destroyed. Declaration of Conformity: Hereby, Shenzhen Dancing Tech Co., Ltd., declares that this device is in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: https://www.oladance.com SAR: RF exposure information: The EIRP power of the device at maximal case is below the exempt condition, 20mW specified in EN 62479: 2010. RF exposure assessment has been performed to prove that this unit will not generate the harmful EM emission above the reference level as specified in EC Council Recommendation (1999/519/EC). Basic Parameters Charging time Bluetooth communication distance Working frequency Rated power 2 Hours ≥10m 2402-2480MHz 15mW Product name Product model Bluetooth version Bluetooth 5.2 OLA02 Oladance Wearable Stereo Bluetooth protocol HFP/A2DP/AVRCP Charging interface Type-C Operation temperature: 0~45°C Input: 5.0V 1A FCC Statement This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit di�erent from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help important announcement. The SAR limit of IC is 1.6W/Kg for head. The highest SAR value reported under this standard during product certification when used against the headis 0.457W/Kg. FCC ID: 2A24K-OLA02L FCC ID:2A24K-OLA02R IC: 27690-OLA02L IC: 27690-OLA02R 201-220076 CMIIT ID：2021DP17737 Important Note: Radiation Exposure Statement This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 0cm between the radiator and your body. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. Warning: 1. Don’t place the product into a liquid environment or avoid the product exposed to high humidity 2. Avoid extrusion to avert the damage to the product 3. Don’t attempt to dismantle the product. Put the product in a cool and dry place to keep it dry if stored for a long time 4. Avoid touching the strong magnet to prevent the magnetic headset from being demagnetized. 5. Avoid the dusty, wet and dirty environment where the electronic circuit of the equipment may be damaged if being used. 6. Don’t Use the equipment at the moment of thunderstorm because the thunderstorm may incur equipment fault or shock hazard. 7. Don’t use the equipment when riding a motorcycle or a bicycle,driving a car or crossing the road to ensure your safety. 8. Keep the equipment out of …

Text truncated - open the document above for the full version.

Date:11February2022 ShenzhenDancingTechCo.,Ltd. To:FederalCommunicationsCommission, Authorization&EvaluationDivision, 7435OaklandMillsRoad, Columbia,MD21046 ToWhomItMayConcern: TheShenzhenDancingTechCo.,Ltd.theundersigned,herebyauthorizesMr.WuXuewenfrom ShenzhenBALUNTechnologyCo.,Ltd.,toactonthebehalfoftheShenzhenDancingTechCo., Ltd.solelyinmattersrelatingtotheapplicationforanFCCequipmentauthorizationforFCCID: 2A24K-OLA02LincludingthesigningofdocumentsinconnectionwiththisApplication. NecessaryactscarriedoutbyShenzhenBALUNTechnologyCo.,Ltd.inconnectionwiththe ApplicationshallhavethesameeffectasactsoftheShenzhenDancingTechCo.,Ltd. TheShenzhenDancingTechCo.,Ltd.alsoherebycertifythatnopartytothisapplicationis subjecttoadenialofbenefits,includingFCCbenefits,pursuanttoSection5301oftheAnti-Drug AbuseActof1988,21U.S.C.Section862. YoursSincerely, RuihuaChen

Date:11February2022 ShenzhenDancingTechCo.,Ltd. To:FederalCommunicationsCommission, Authorization&EvaluationDivision, 7435OaklandMillsRoad, Columbia,MD21046 Re:ShenzhenDancingTechCo.,Ltd. FCCID:2A24K-OLA02L FCCCertificationConfidentialityRequest Gentlemen: Thisletteristocomplywith47CFR0.457and0.459pertainingtoconfidentiality material.ShenzhenDancingTechCo.,Ltd.requeststhatthefollowingdocuments regardingthissubmissionforFCCID:2A24K-OLA02Lbekeptconfidential: ExhibitTypeFileName BlockDiagramBlockDiagram.pdf SchematicsSchematics.pdf OperationalDescriptionOperationalDescription.pdf Andbelowexhibitkeptshort-termconfidential(180days): ExternalphotosExternalphotos.pdf Testsetupphotostestphoto.pdf InternalphotosInternalphotos.pdf UsermanualUsermanual.pdf Thosedocumentscontaindetailedsystemandequipmentdescriptionandrelated informationabouttheproductwhichShenzhenDancingTechCo.,Ltd.considers tobeconfidentialproprietary,acustomdesignand,otherwise,notreleasableto thegeneralpublic.Sincethisdesignisabasisformwhichfuturetechnological productswillevolve,ShenzhenDancingTechCo.,Ltd.considersthisinformation wouldbeofbenefittoitscompetitors,andthatthedisclosureoftheinformationin thesedocumentswouldgivecompetitorsanunfairadvantageinthemarket. YoursSincerely, RuihuaChen

The device is too small, FCC ID,IC will show on the user manual FCC ID：2A24K-OLA02L ,IC: 27690-OLA02L

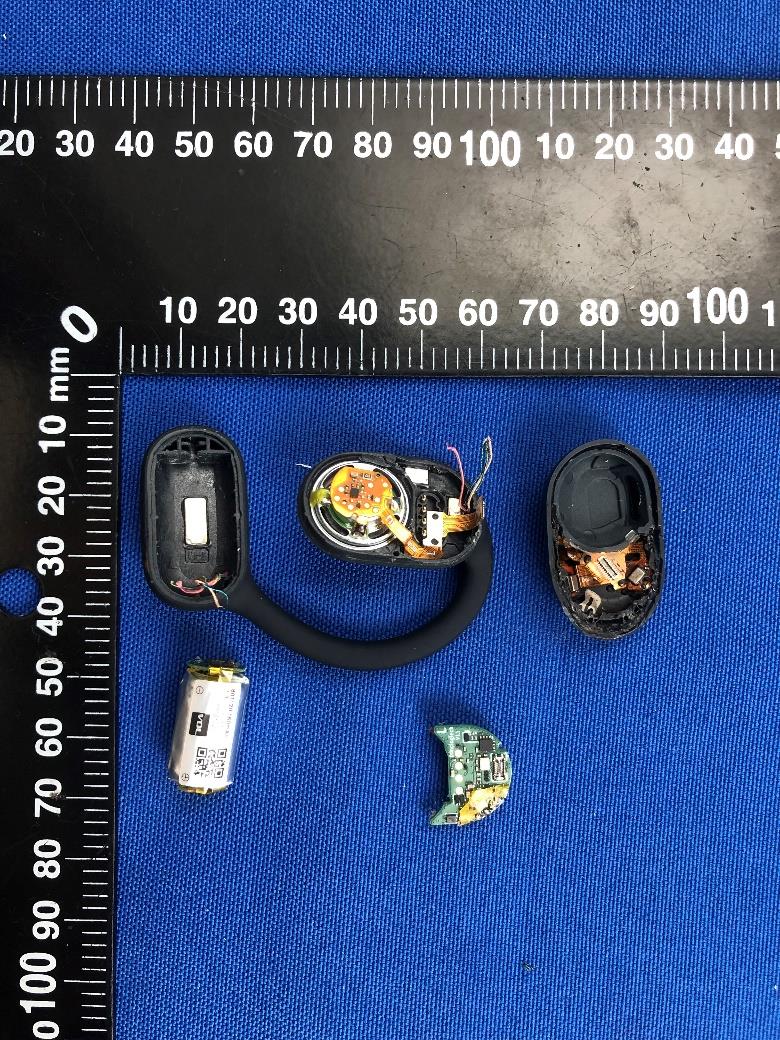

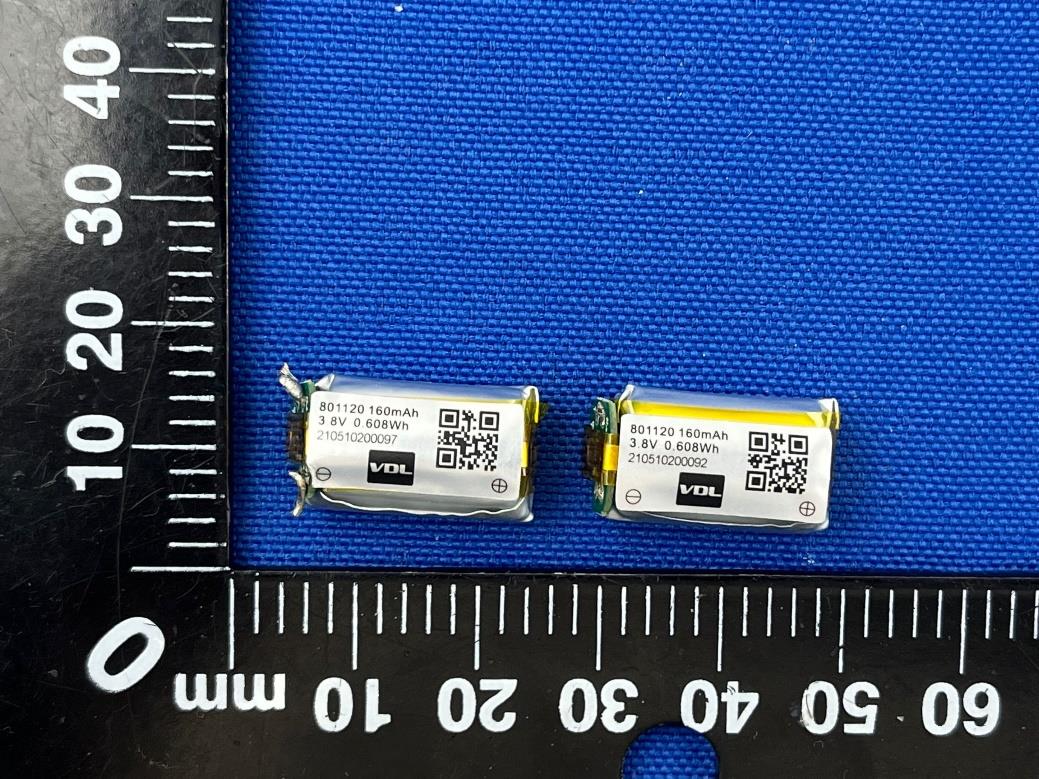

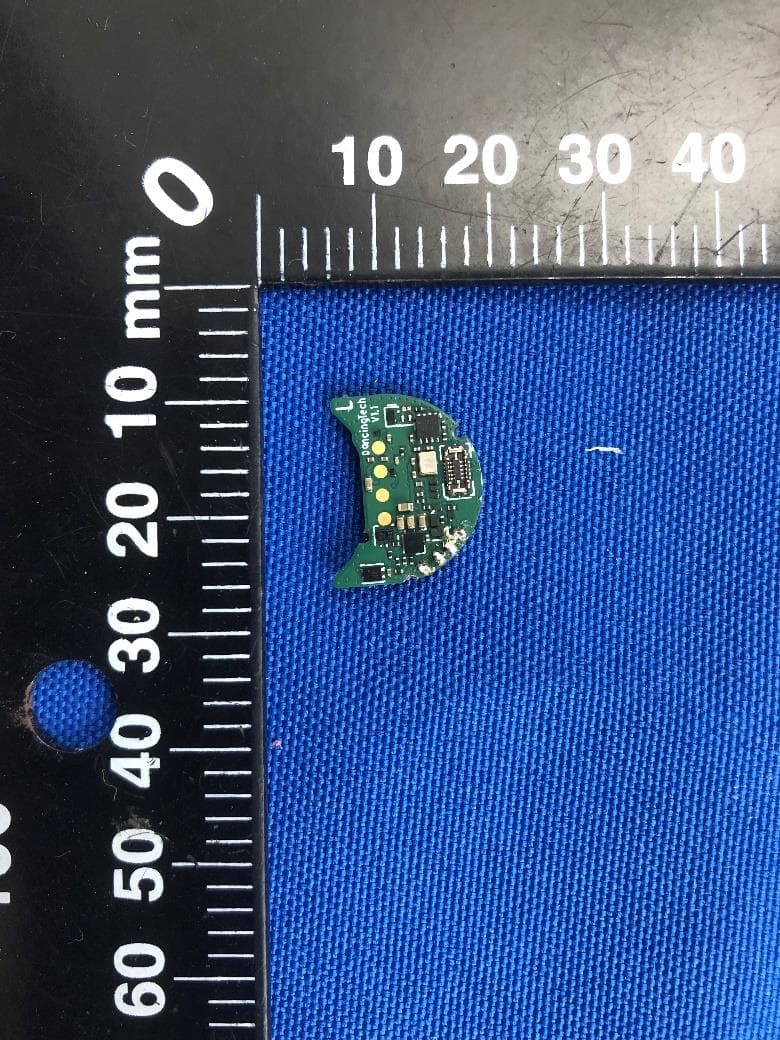

Annex No.: BL-SZ2190057-AI-2 1 / 4 EUT INTERNAL PHOTOS EUT UNCOVER VIEW EUT UNCOVER VIEW LDS Antenna Annex No.: BL-SZ2190057-AI-2 2 / 4 EUT UNCOVER VIEW EUT UNCOVER VIEW RF Chip Annex No.: BL-SZ2190057-AI-2 3 / 4 Battery Photo (SG Micro Corp(FRONT)) Battery Photo (SG Micro Corp(REAR)) Annex No.: BL-SZ2190057-AI-2 4 / 4 Battery Photo (XySemi Inc(FRONT)) Battery Photo (XySemi Inc(REAR))

RF Exposure Evaluation for FCC ID: 2A24K-OLA02L Refer user manual this device is a Oladance Wearable Stereo, and this device was designed used in portable devices that the minimum distance between human’s body is 5mm. Based on the 47CFR 2.1093, this device belongs to portable device. The definition of the category as following: Portable Derives: CFR Title 47 §2.1093(b) (b) For purposes of this section, a portable device is defined as a transmitting device designed to be used so that the radiating structure(s) of the device is/are within 20 centimeters of the body of the user. FCC KDB 447498 D01 General RF Exposure Guidance v06 Limit Unless specifically required by the published RF exposure KDB procedures, standalone 1-g head or body and 10-g extremity SAR evaluation for general population exposure conditions, by measurement or numerical simulation, is not required when the corresponding SAR Test Exclusion Threshold condition, listed below, is satisfied. These test exclusion conditions are based on source-based time-averaged maximum conducted output power of the RF channel requiring evaluation, adjusted for tune-up tolerance, and the minimum test separation distance required for the exposure conditions. The minimum test separation distance is determined by the smallest distance from the antenna and radiating structures or outer surface of the device, according to the host form factor, exposure conditions and platform requirements, to any part of the body or extremity of a user or bystander. The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW) / (min. test separation distance, mm)] · [√f(GHz) ] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR Where • f (GHz) is the RF channel transmit frequency in GHz • Power and distance are rounded to the nearest mW and mm before calculation • The result is rounded to one decimal place for comparison The test exclusions are applicable only when the minimum test separation distance is ≤ 50 mm and for transmission frequencies between 100 MHz and 6 GHz. When the minimum test separation distance is < 5 mm, a distance of 5 mm is applied to determine SAR test exclusion. Test data Bluetooth Mode Bluetooth (BR+EDR) GFSK π/4-DQPSK 8-DPSK Peak Power (dBm) 8.87 8.87 8.87 Note: This report listed the worst case peak power value, please refer to RF test report for more details. Bluetooth Mode GFSK (BLE) Low Channel Middle Channel High Channel Peak Power (dBm) -1.42 -1.41 -2.72 Note: This report listed the worst case peak power value, please refer to RF test report for more details. Turn-up power Mode Power Range (dBm) Bluetooth 9.00 – (-3.00) RF Exposure Evaluation Result Mode Tune-up limit power (dBm) Distance (mm) Calculation Frequency (MHz) Calculation Results Threshold Value Verdict Bluetooth 9.00 5 2402 2.46 3.0 Compliance --END OF REPORT--

Block B, 1st FL, Baisha Science and Technology Park, Shahe Xi Road, Nanshan District, Shenzhen, Guangdong, P. R. China 518055 TEL: +86-755-66850100, FAX: +86-755-61824271 Email: [email protected] www.baluntek.com 1 / 52 RF ISSUED BY Shenzhen BALUN Technology Co., Ltd. FOR Oladance Wearable Stereo B1 ISSUED TO Shenzhen Dancing Tech Co., Ltd. Room 314, Block H2, OCT east industrial area, No1 Xiangshan east street, Guanghua community, Shahe street, Nanshan district, Shenzhen China. Report No.: BL-SZ2190057-602 EUT Name: Oladance Wearable Stereo B1 Model Name: OLA02 Tested by: Brand Name: Oladance Julie Zhu Test Standard: 47 CFR Part 15 Subpart C Date Feb. 16, 2022 RSS-Gen Issue 5 RSS-247 Issue 2 FCC ID: 2A24K-OLA02L Approved by: ISED Number: 27690-OLA02L Liao Jianming HVIN: OLA02L (Technical Director) Test Conclusion: Pass Date Feb. 16, 2022 Test Date: Sep. 08, 2021 ~ Sep. 17, 2021 Date of Issue: Feb. 16, 2022 NOTE: This test report of test results only related to testing samples, which can be duplicated completely for the legal use with the approval of the applicant; it shall not be reproduced except in full, without the written approval of Shenzhen BALUN Technology Co., Ltd. Any objections should be raised within thirty days from the date of issue. To validate the report, please contact us. TEST REPORT Report No.: BL-SZ2190057-602 2 / 52 Revision History Version Issue Date Revisions Content Rev. 01 Jan. 25, 2022 Initial Issue Rev. 02 Feb. 16, 2022 Add the HVIN number to the home page TABLE OF CONTENTS 1 ADMINISTRATIVE DATA (GENERAL INFORMATION) ........................................................................ 5 1.1 Identification of the Testing Laboratory ..................................................................................... 5 1.2 Identification of the Responsible Testing Location .................................................................... 5 1.3 Laboratory Condition ................................................................................................................ 5 1.4 Announce ................................................................................................................................. 5 2 PRODUCT INFORMATION ................................................................................................................... 6 2.1 Applicant Information ................................................................................................................ 6 2.2 Manufacturer Information .......................................................................................................... 6 2.3 Factory Information ................................................................................................................... 6 2.4 General Description for Equipment under Test (EUT) ............................................................... 6 2.5 Technical Information ............................................................................................................... 7 2.6 Additional Instructions .............................................................................................................. 8 3 SUMMARY OF TEST RESULTS ........................................................................................................... 9 3.1 Test Standards ......................................................................................................................... 9 3.2 Verdict ...................................................................................................................................... 9 4 GENERAL TEST CONFIGURATIONS ................................................................................................ 10 4.1 Test Environments .................................................................................................................. 10 4.2 Test Equipment List ................................................................................................................ 10 4.3 Measurement Uncertainty ....................................................................................................... 10 4.4 Description of Test Setup ....................................................................................................... 11 4.4.1 For Antenna Port Test ............................................................................................................ 11 4.4.2 For AC Power Supply Port Test .............................................................................................. 11 4.4.3 For Radiated Test (Below 30 MHz) ......................................................................................... 12 4.4.4 For Radiated Test (30 MHz-1 GHz) ........................................................................................ 12 4.4.5 For Radiated Test (Above 1 GHz) .......................................................................................... 13 4.5 Measurement Results Explanation Example ........................................................................... 14 4.5.1 For conducted test items: ....................................................................................................... 14 Report No.: BL-SZ2190057-602 3 / 52 4.5.2 For radiated band edges and spurious emission test: ............................................................. 14 5 TEST ITEMS ....................................................................................................................................... 15 5.1 Antenna Requirements ........................................................................................................... 15 5.1.1 Relevant Standards ................................................................................................................ 15 5.1.2 Antenna Anti-Replacement Construction ................................................................................ 15 5.1.3 Antenna Gain ..........................................................................…

Text truncated - open the document above for the full version.

Annex No.: BL-SZ2190057-AR-1 1 / 5 TEST SETUP PHOTOS 1 Radiated Test Photo Below 30MHz 30MHz-1GHz Annex No.: BL-SZ2190057-AR-1 2 / 5 Close-up Above 1GHz v Annex No.: BL-SZ2190057-AR-1 3 / 5 Close-up 2 Conducted Test Photo Conducted Test-BT3.0 Annex No.: BL-SZ2190057-AR-1 4 / 5 Conducted Test-BLE v 3 Conducted Emissions Test Photo 1 Annex No.: BL-SZ2190057-AR-1 5 / 5 Test Photo 2
