2A26YWP1018SKeilton Wall Switch

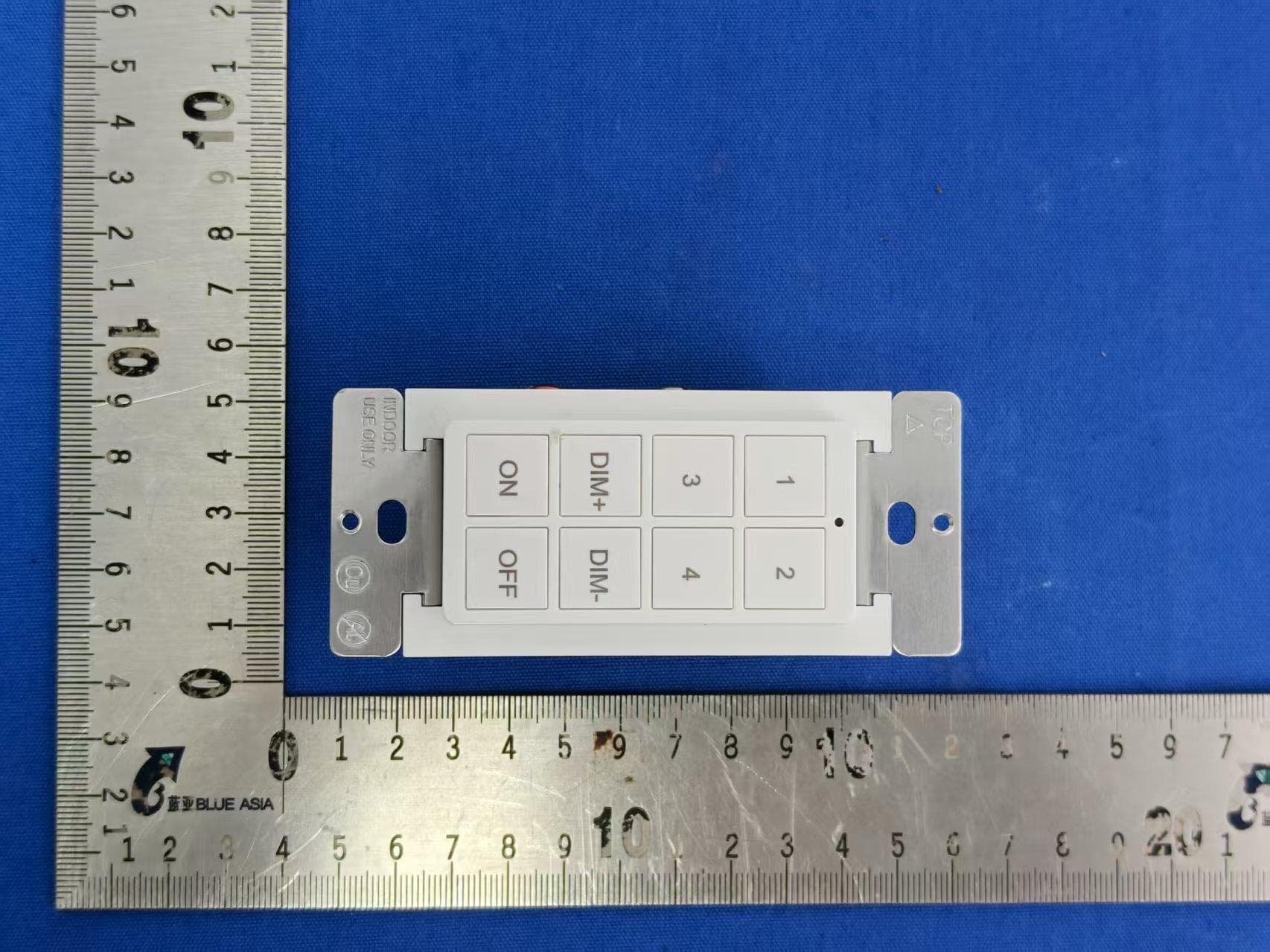

HOT(BLACK) NEUTRAL(WHITE) GROUND(GREEN) Electronic Controller Switch · Compatible with Keilton devices. · Purpose of control: Operating Control, Electronic Controller Switch. · B.Construction of control: Independently Mounted for Flush Mounting. · Network technology for Bluetooth enabled IOS or Android smartphone. Linkable with light groups. · Manual On/Off/Dim & sences control of any connected load. Voltage120~277VAC,50/60Hz Wattage0.07W Wire Strip Length16mm(5/8 in.) Operating Temperature 0°C-40°C 1. Connect the 8-key scene controller as shown in the wiring diagram: Black lead to hot wire, white lead to neutral wire, green lead to ground wire. 2.Check connections to be sure they are tight and no bare conductors are exposed. 3. Put the controller into the outlet box carefully. 4. Use the supplied screws to mount the controller into a standard outlet box. 5. Attach the wall plate. 6. Restore power to the circuit breaker and test the system. · Follow the instruction to connect Bluetooth Wall Switch to the lights. · Press button DIM+ and ON together over 3 seconds to enter pairing mode and achieve reset function. This switch can be scanned in next 30 seconds. · In Keilton App "Switch" page, click to add the switch. · Select the light/light group to be controlled by this switch. · Detail operation please refer Keilton APP instruction. WP1018S installation instructions TIPS:This Bluetooth device is compatible with Keilton lighting control system only. WARNING: May result in serious injury or death. Turn off power at circuit breaker before installing the unit. Attention: pour éviter un incendie, un choc électrique ou la mort. Coupez l'alimentation au disjoncteur ou au fusible et testez que l'alimentation est coupée avant le câblage WIRING FEATURES SPECIFICATIONS INSTRUCTIONS · Wire Strip Length; 16 mm (5/8 in.) · The device shall install in a standard outlet box. V202509 Pollution Degree 2 Type of Action Type 1 Action Electronic Controller Switch WP1018S installation instructions V202509 FCC STATEMENT Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -Reorient or relocate the receiving antenna. -Increase the separation between the equipment and receiver. -Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -Consult the dealer or an experienced radio/TV technician for help. RF Exposure This equipment must be installed and operated in accordance with provided instructions and the antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter. End-users and installers must be provided with antenna installation instructions and transmitter operating conditions for satisfying RF exposure compliance. Our company warranties this product to be free of defects in materials and workmanship for a period of five(5) years.There are no obligations or liabilities on the part of our company for consequential damages arising out of, or in connection with, the use or performance of this product or other indirect damages with respect to loss of property, revenue or profit, or cost of removal, installation or reinstallation. Contact: [email protected] WARRANTY INFORMATION Scan to download the Keilton+autani app instructionsScan a QR code below to download the app.

ShenzhenLiteTraceTechnologiesCo.,Ltd CoveredEquipmentCertificationAttestationLetter 9/26/2025 FederalCommunicationsCommission AuthorizationandEvaluationDivision 7435OaklandMillsRoad Columbia,MD21046 USA ATTN.:ReviewingEngineer FCCID:2A26YWP1018S ShenzhenLiteTraceTechnologiesCo.,Ltd(“theapplicant”)certifiesthattheequipment forwhichauthorizationissoughtisnot“covered”equipmentprohibitedfromreceivingan equipmentauthorizationpursuanttosection2.903oftheFCCrules. Note:Iftheequipmentforwhichtheapplicantseeksauthorizationisproducedby anyoftheentitiesidentifiedonthecurrentCoveredList,theapplicantshould includeanexplanationonwhytheequipmentisnot“covered”equipment. ShenzhenLiteTraceTechnologiesCo.,Ltd(“theapplicant”)certifiesthat,asofthedateof thefilingoftheapplication,theapplicantisnotidentifiedontheCoveredList(asa specificallynamedentityoranyofitssubsidiariesoraffiliates)asanentityproducing “covered”equipment. ShenzhenLiteTraceTechnologiesCo.,Ltd(“theapplicant”)certifiesthattheequipment forwhichauthorizationissoughtdoesnotincludecybersecurityoranti-virussoftware producedorprovidedbyKasperskyLab,Inc.oranyofitssuccessorsandassignees, includingequipmentwithintegratedKasperskyLab,Inc.(oranyofitssuccessorsand assignees)cybersecurityoranti-virussoftwarepursuanttoDA-24-886andKDB986446 D01CoveredEquipmentGuidancesectionB(2a). Signed: Printedname:MingDeng Title:Manager CompanyName:ShenzhenLiteTraceTechnologiesCo.,Ltd Date:9/26/2025

DATE:2025/9/26 FederalCommunicationsCommission Authorization&EvaluationDivision 7345OaklandMillsRoad Columbia,Maryland21046 AuthoritytoActasAgent Onourbehalf,IappointBlueAsiaofTechnicalServices(Shenzhen)Co.,LtdAnd BuildingC,No.107,ShihuanRoad,ShiyanSub-District,BaoanDistrict,Shenzhen, GuangdongProvince,China(NameofAgentcompanynameandaddress)toactasour agentinthepreparationofthisapplicationforequipmentcertification.Icertifythat submitteddocumentsproperlydescribethedeviceorsystemforwhichequipment certificationissought.Ialsocertifythateachunitmanufactured,importedormarketed,as definedintheFederalCommunicationsCommission’sregulationswillhaveaffixedtoita labelidenticaltothatsubmittedforapprovalwiththisapplication. Forinstanceswhereourauthorizedagentsignstheapplicationforcertificationonourbehalf, Iacknowledgethatallresponsibilityforcomplyingwiththetermsandconditionsfor certification,stillresideswithShenzhenLiteTraceTechnologiesCo.Ltd , And305SuiteC, 3151ShaheWestStreetJianxingTechnologyPlaza,NanshanShenzhen,China(Applicant Nameandaddress) <Signature> Name：MingDeng Title：Manager Company：ShenzhenLiteTraceTechnologiesCo.,Ltd

DATE2025/9/26 EquipmentAutorisationDivision FederalCommunicationsCommission 7435OaklandMillsRoad Columbia,MD21046 FCCID:2A26YWP1018S ProductName:KeiltonWallSwitch RequestforConfidentiality PursuanttoSections0.457and0.459ofthecommission’srules,weherebyrequestthat thefollowingdocumentsbeheldconfidential: (Listherethedocumentsforwhichyouareseekingconfidentiality–forexample...) Schematics Blockdiagram  Operationdescription Thesematerialscontaintradesecretsandproprietaryinformationandarenot customarilyreleasedtothepublic.Thepublicdisclosureofthisinformationmightbe harmfultothecompanyandprovideunjustifiedbenefitstoourcompetitors. <Signature> Name ： MingDeng Title：Manager Company ： ShenzhenLiteTraceTechnologiesCo.,Ltd

ProductName:KeiltonWallswitch

FCCID:2A26YWP1018S

ProductName:KeiltonWallswitch

Website:www.cblueasia.com Tel:+86-755-23059481 Email:[email protected] ThetestreportiseffectiveonlywithbothsignatureandspecializedstampandTheresult(s)showninthisreportreferonlytothesample(s)tested.Without writtenapprovalofBlueAsia,thisreportcan ’ tbereproducedexceptinfull.Theresultsdescribedinthisreportdonotrepresentthequalityorcharacteristicsofthe sampledbatch,nordotheyrepresentanysimilaroridenticalproductsthatarenotexplicitlystated. RFExposure Applicant:ShenzhenLiteTraceTechnologiesCo.,Ltd Address: 305SuiteC,3151ShaheWestStreetJianxing TechnologyPlaza,NanshanShenzhen,China ProductName:KeiltonWallswitch BrandMark:Keilton+Autani Model:WP1018S FCCID:2A26YWP1018S ReportNumber:BLA-EMC-202508-A7503 DateofReceipt:Aug.19,2025 DateofTest:Aug.19,2025toAug.29,2025 TestStandard:KDB447498D04GeneralRFExposureGuidancev01 TestResult:Pass Compiledby:Reviewby:Approvedby: IssuedDate:Aug.29,2025 BlueAsiaofTechnicalServices(Shenzhen)Co.,Ltd. Address: BuildingC,No.107,ShihuanRoad,ShiyanSub-District,BaoanDistrict, Shenzhen,GuangdongProvince,China ReportNo.:BLA-EMC-202508-A7503 Page 2 of 6 BlueAsiaofTechnicalServices(Shenzhen)Co.,Ltd Tel:+86-755-23059481 Email:[email protected] Version:v1.1 TableofContents 1Generalinformation................................................................................................................................................4 1.1Generalinformation..........................................................................................................................................4 1.2GeneraldescriptionofEUT..............................................................................................................................4 2RFExposureComplianceRequirement...............................................................................................................5 2.1StandardRequirement.....................................................................................................................................5 2.2Limits................................................................................................................................................................5 2.3Result...............................................................................................................................................................6 ReportNo.:BLA-EMC-202508-A7503 Page 3 of 6 BlueAsiaofTechnicalServices(Shenzhen)Co.,Ltd Tel:+86-755-23059481 Email:[email protected] Version:v1.1 ReviseRecord VersionNo.DateDescription 01Aug.29,2025Original ReportNo.:BLA-EMC-202508-A7503 Page 4 of 6 BlueAsiaofTechnicalServices(Shenzhen)Co.,Ltd Tel:+86-755-23059481 Email:[email protected] Version:v1.1 1Generalinformation 1.1Generalinformation ApplicantShenzhenLiteTraceTechnologiesCo.,Ltd Address 305SuiteC,3151ShaheWestStreetJianxingTechnologyPlaza, NanshanShenzhen,China ManufacturerShenzhenLiteTraceTechnologiesCo.,Ltd Address 305SuiteC,3151ShaheWestStreetJianxingTechnologyPlaza, NanshanShenzhen,China FactoryN/A AddressN/A 1.2GeneraldescriptionofEUT ProductnameKeiltonWallswitch Modelno.WP1018S SeriesmodelN/A OperationFrequency:2402MHz-2480MHz ModulationType:GFSK Ratedata:1Mbps;2Mbps ChannelSpacing:2MHz NumberofChannels:40 AntennaType:PCBantenna AntennaGain:-1.37dBi(Providedbycustomer) Powersupplyoradapter information AC120V HardwareVersionN/A SoftwareVersionN/A Note:Foramoredetaileddescription,pleaserefertoSpecificationorUser’sManualsuppliedby theapplicantand/ormanufacturer. ReportNo.:BLA-EMC-202508-A7503 Page 5 of 6 BlueAsiaofTechnicalServices(Shenzhen)Co.,Ltd Tel:+86-755-23059481 Email:[email protected] Version:v1.1 2RFExposureComplianceRequirement 2.1StandardRequirement Accordingto447498D04InterimGeneralRFExposureGuidancev01 StandaloneSARtestexclusionconsiderations UnlessspecificallyrequiredbythepublishedRFexposureKDBprocedures,standalone1-gheador bodyand10-gextremitySARevaluationforgeneralpopulationexposureconditions,bymeasurement ornumericalsimulation,isnotrequiredwhenthecorrespondingSARExclusionThreshold condition,listedbelow,issatisfied. 2.2Limits ReportNo.:BLA-EMC-202508-A7503 Page 6 of 6 BlueAsiaofTechnicalServices(Shenzhen)Co.,Ltd Tel:+86-755-23059481 Email:[email protected] Version:v1.1 2.3Result EIRP=ptxgt=(EXd) 2 /30 Where: pt=transmitteroutputpowerinwatts, gt=numericgainofthetransmittingantenna(unitless), E=electricfieldstrengthinV/m,---10((dBuV/m)/20)/106 d=measurementdistanceinmeters(m)---3m Spot=(EXd) 2 /30xgt Antgain=-1.37dBi 2.4GWIFI MaxOutputpower=3.206dBm@BLE1M2402MHz ERP=3.206-1.37-2.15=-0.314dBm So ERPisworsecase 10^0.3206=2.092mW<3060mW ComplywithRFexposureexemptionlimit. ----ENDOFREPORT---- Thetestreportiseffectiveonlywithbothsignatureandspecializedstamp,theresult(s)showninthisreportrefer onlytothesample(s)tested.WithoutwrittenapprovalofBlueAsia,thisreportcan’tbereproducedexceptinfull.

深圳市铄点电子科技有限公司 Shenzhen Shuodian Electronic Technology Co.,Ltd Date:2024-9-13 Page number 1-10 规 格 书 for 板载 2.4G天线 客户料号 本公司料号 KEWT-INPCB-2.4G 编制：曾小凤 审核：李明 日期： 2024.09.13 深圳市铄点电子科技有限公司 深圳市南山区马家龙金龙工业城64栋西508 邮箱：[email protected] 电话: 0755-86006322 传真: 0755-86006323 Shenzhen Shuodian Electronic Technology Co.,Ltd Date:2014-6-30 Page number 2-8 深圳市铄点电子科技有限公司 Shenzhen Shuodian Electronic Technology Co.,Ltd Date:2024-9-13 Page number 2-10 目录 规 格 书 .................................................................................................................................... 1 深圳市铄点电子科技有限公司 ................................................................................................ 1 目录 ............................................................................................................................................ 2 1.双方确认 ................................................................................................................................. 3 2.一般事项 ................................................................................................................................. 4 3.产品一般规格 ......................................................................................................................... 4 4.产品规格明细 ......................................................................................................................... 5 4.1产品结构参数 ...................................................................................................................... 5 4. 2产品电性能测试数据 ......................................................................................................... 7 5. 产品包装方式 ..................................................................................................................... 10 6. 文档履历 ............................................................................................................................. 10 Shenzhen Shuodian Electronic Technology Co.,Ltd Date:2014-6-30 Page number 3-8 深圳市铄点电子科技有限公司 Shenzhen Shuodian Electronic Technology Co.,Ltd Date:2024-9-13 Page number 3-10 1.双方确认 1.1客户确认签字 客户： 客户部门/职位 确认人签字 确认日期 硬件/射频 结构 项目经理 商务/采购 审核 1.2铄点科技确认签字 部门/职位 确认人签字 确认日期 天线工程师 结构工程师 项目经理 QA 审核 Shenzhen Shuodian Electronic Technology Co.,Ltd Date:2014-6-30 Page number 4-8 深圳市铄点电子科技有限公司 Shenzhen Shuodian Electronic Technology Co.,Ltd Date:2024-9-13 Page number 4-10 2.一般事项 2.1 适用范围 本规格书只适用于板载PCB天线 2.2 使用温度范围 本产品使用温度范围-20 ~ +65 °C 2.3 保存温度范围 本产品保存于-30 ~ +75 °C 3.产品一般规格 NO. ITEMS DETAILS 1 机型 2 频段 2400-2500MHz 3 VSWR ≤2.0 4 阻抗 50Ω 5 天线类型 Monopole 6 天线实现形式 PCB 7 天线图片 Shenzhen Shuodian Electronic Technology Co.,Ltd Date:2014-6-30 Page number 5-8 深圳市铄点电子科技有限公司 Shenzhen Shuodian Electronic Technology Co.,Ltd Date:2024-9-13 Page number 5-10 4.产品规格明细 4.1产品结构参数 4.11产品物料组成： 序号 材料 规格(MM) 1 PCB 绿色 4.12 外观 产品外观良好，无伤痕、汗迹、突起等严重影响外观缺陷。 4.13 结构尺寸 参考产品图纸： Shenzhen Shuodian Electronic Technology Co.,Ltd Date:2014-6-30 Page number 6-8 深圳市铄点电子科技有限公司 Shenzhen Shuodian Electronic Technology Co.,Ltd Date:2024-9-13 Page number 6-10 产品图纸： Shenzhen Shuodian Electronic Technology Co.,Ltd Date:2014-6-30 Page number 7-8 深圳市铄点电子科技有限公司 Shenzhen Shuodian Electronic Technology Co.,Ltd Date:2024-9-13 Page number 7-10 4. 2产品电性能测试数据 4.21 测试环境及仪器设备 测试环境： 温度： 10°C——+30°C 相对湿度：≤80%（+40°C） 大气压力：750mmkg±30mmkg 测试设备： 网络分析仪 E5071C 多探头微波暗室 4.22 产品电性能测试数据： 4.22.1产品的S11图： Marker 2400MHz 2450MHz 2500MHz Returnloss -9.98 -15.58 -30.17 VSWR 1.93 1.39 1.06 Shenzhen Shuodian Electronic Technology Co.,Ltd Date:2014-6-30 Page number 8-8 深圳市铄点电子科技有限公司 Shenzhen Shuodian Electronic Technology Co.,Ltd Date:2024-9-13 Page number 8-10 4.22.2 天线的增益效率方向图： 频率（MHz） 2400 2410 2420 2430 2440 2450 2460 2470 2480 2490 2500 Gain（dBi） -1.90 -2.20 -2.64 -2.92 -3.06 -2.93 -2.08 -1.37 -1.37 -1.61 -2.17 Efficency（%） 21.7 21.1 20.3 19.5 19.5 19.1 18.3 17.9 16.7 16.1 15.6 2450MHz方向图： Shenzhen Shuodian Electronic Technology Co.,Ltd Date:2014-6-30 Page number 9-8 深圳市铄点电子科技有限公司 Shenzhen Shuodian Electronic Technology Co.,Ltd Date:2024-9-13 Page number 9-10 Shenzhen Shuodian Electronic Technology Co.,Ltd Date:2014-6-30 Page number 10-8 深圳市铄点电子科技有限公司 Shenzhen Shuodian Electronic Technology Co.,Ltd Date:2024-9-13 Page number 10-10 5. 产品包装方式 包装方式： 自封袋包装，每包 200PCS。 6. 文档履历 文件编号 Document No. 日期 Release Date 2024/09/13 编制 Author Hungjie 复核 Review WH 文件历次表 Revised History Date Version Revised Record 2024/09/13 1.00 New Project

Website:www.cblueasia.com Tel:+86-755-23059481 Email:[email protected] ThetestreportiseffectiveonlywithbothsignatureandspecializedstampandTheresult(s)showninthisreportreferonlytothesample(s)tested.Without writtenapprovalofBlueAsia,thisreportcan ’ tbereproducedexceptinfull.Theresultsdescribedinthisreportdonotrepresentthequalityorcharacteristicsofthe sampledbatch,nordotheyrepresentanysimilaroridenticalproductsthatarenotexplicitlystated. TestReport Applicant:ShenzhenLiteTraceTechnologiesCo.,Ltd Address: 305SuiteC,3151ShaheWestStreetJianxing TechnologyPlaza,NanshanShenzhen,China ProductName:KeiltonWallswitch BrandMark:Keilton+Autani Model:WP1018S FCCID:2A26YWP1018S ReportNumber:BLA-EMC-202508-A7502 DateofReceipt:Aug.19,2025 DateofTest:Aug.19,2025toAug.29,2025 TestStandard:47CFRPart15,SubpartC15.247 TestResult:Pass Compiledby:Reviewby:Approvedby: IssuedDate:Aug.29,2025 BlueAsiaofTechnicalServices(Shenzhen)Co.,Ltd. Address: BuildingC,No.107,ShihuanRoad,ShiyanSub-District,BaoanDistrict, Shenzhen,GuangdongProvince,China ReportNo.:BLA-EMC-202508-A7502 Page 2 of 72 BlueAsiaofTechnicalServices(Shenzhen)Co.,Ltd. Tel:+86-755-23059481 Email:[email protected] Version:v1.3 TableofContents 1Generalinformation................................................................................................................................................5 1.1Generalinformation..........................................................................................................................................5 1.2GeneraldescriptionofEUT..............................................................................................................................5 2Testsummary..........................................................................................................................................................6 3TestConfiguration..................................................................................................................................................7 3.1Testmode.........................................................................................................................................................7 3.2OperationFrequencyeachofchannel.............................................................................................................8 3.3Testchannel.....................................................................................................................................................8 3.4Auxiliaryequipment..........................................................................................................................................8 3.5Testenvironment..............................................................................................................................................8 4Laboratoryinformation..........................................................................................................................................9 4.1Laboratoryandaccreditations..........................................................................................................................9 4.2Measurementuncertainty.................................................................................................................................9 5Testequipment......................................................................................................................................................10 6Testresult..............................................................................................................................................................12 6.1Antennarequirement......................................................................................................................................12 6.2ConductedemissionsatACpowerline(150kHz-30MHz)...........................................................................13 6.3ConductedpeakoutputPower.......................................................................................................................17 6.4Minimum6dBbandwidth................................................................................................................................18 6.5Powerspectrumdensity.................................................................................................................................19 6.6ConductedBandEdgesMeasurement..........................................................................................................20 6.7Conductedspuriousemissions......................................................................................................................22 6.8Radiatedspuriousemissions.........................................................................................................................24 6.9Radiatedemissionswhichfallintherestrictedbands...................................................................................35 7AppendixA............................................................................................................................................................42 7.1MaximumConductedOutputPower..............................................................................................................42 7.2-6dBBandwidth..............................................................................................................................................46 7.3OccupiedChannelBandwidth........................................................................................................................50 7.4MaximumPowerSpectralDensityLevel.......................................................................................................54 7.5BandEdge......................................................................................................................................................58 ReportNo.:BLA-EMC-202508-A7502 Page 3 of 72 BlueAsiaofTechnicalServices(Shenzhen)Co.,Ltd. Tel:+86-755-230594…
