2A296-X5Network camera

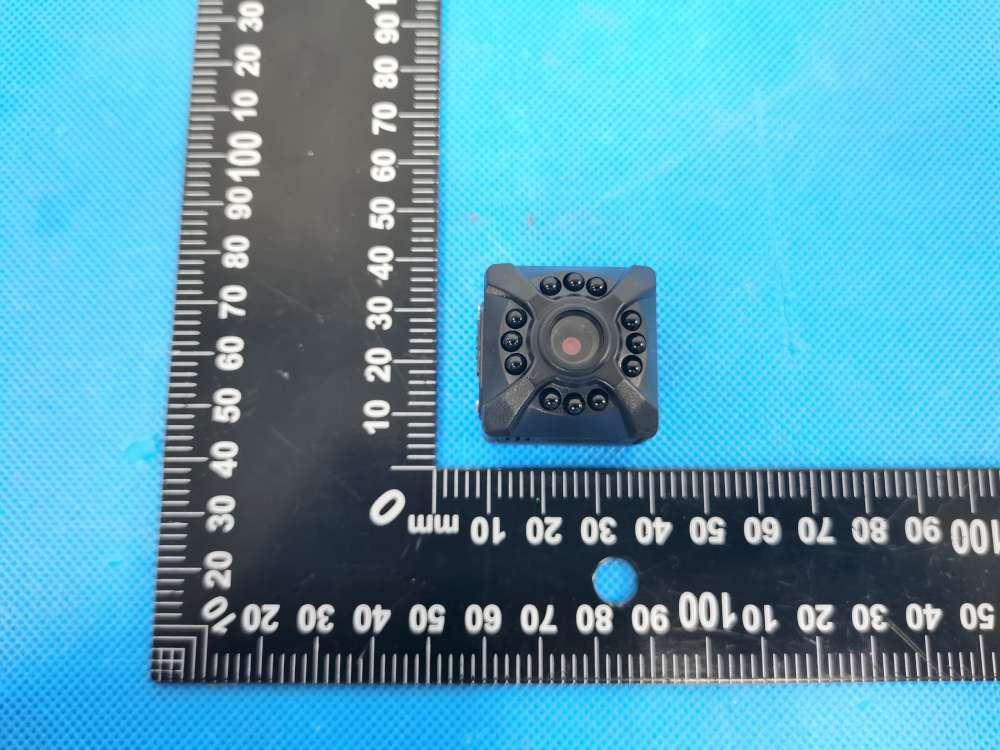

Ebarsenc Network camera Product Display IR Light SD Card Slot Lens USB Charging Port Magnetic holder Configuration Product Name Network camera Video resolution 720P-l 080P H.265 Vision range 120 。 wide angle Video frame rate 30年s±fps Video file 30 minute/file Video Format MP4 Loop recording Support Sensor 1/3 ” color CI孔10S Antenna 2.4G. 802.1 ln WiFi built-in antenna Image ratio 4:3 Charging voltage DC-5V-1.5A Storage support. Micro SD Card (TF Card) support up to l 28GB Battery type Built-in 300mAh polymer lithium battery Long-term plug-in use The charger should use l .5A, it is not recommended to use 2A.If you want to tum off the camera and charge quickly. 2A is available. Charging instruction The red light is on while charging, and it is fully charged when the red light is off Charge method USB Night Vision Distance About 5meters Battery life About 60 minutes App compatibility All kinds of mobile phones Warning TF cards should be authentic enough to accommodate high-speed ones.If you want to pull out the TF card, you need to tum off the camera. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Any Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -Reorient or relocate the receiving antenna. -Increase the separation between the equipment and receiver. -Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -Consult the dealer or an experienced radio/TV technician for help. This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body.

Shenzhen Ou Nuo Fa Electronics Technology Co., Ltd. Model Difference Product Name: Network camera Model Number: X5, X6, X7, X20, Y1, Y3, Q7, A9, K2, K6, K8 FCC Identifier: 2A296-X5 All the models are the same circuit and RF module, except the mode names and outlook color. Regards Sincerely Client’s signature Client’s name / title: Peter Peng / Manager Contact information: 2-201, Shengyue Arts Education City, Longhua Industry Road and Longhua Road crossingsouth, Longhua Dist. Shenzhen, Guangdong

Shenzhen Ou Nuo Fa Electronics Technology Co., Ltd. 1/1 Letter of Authorization Company: Shenzhen Ou Nuo Fa Electronics Technology Co., Ltd. Address: 2-201, Shengyue Arts Education City, Longhua Industry Road and Longhua Road crossingsouth, Longhua Dist. Shenzhen, Guangdong Product Name: Network camera Model Number: X5, X6, X7, X20, Y1, Y3, Q7, A9, K2, K6, K8 FCC Identifier: 2A296-X5 We authorize LGAI Technological Center S.A., Ronda de la Font del Carme, s/n, 08193 Bellaterra, Spain, to act on our behalf on all matters concerning the above named equipment. Any individual within LGAI Technological Center S.A. is authorized to act on our behalf and take action on the application. We declare that authorize LGAI Technological Center S.A., Ronda de la Font del Carme, s/n, 08193 Bellaterra, Spain, is allowed to forward all information related to the approval project to the Federal Communication Commission and to discuss any issues concerning the approval application. Any and all acts carried out by LGAI Technological Center S.A. on our behalf shall have the same effect as acts of our own. Name: Peter Peng Date: 2021-09-25 Title: Manager Signature of applicant:

Shenzhen Ou Nuo Fa Electronics Technology Co., Ltd. 1/1 Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 Date: 2021-09-25 Subject: Request for Confidentiality FCC ID: 2A296-X5 To Whom It May Concern, Pursuant to the provisions of Sections 0.457 and 0.459 of Commission's rules (47CFR0.457, 0.459), we are requesting the Commission to withhold the following attachment(s) as confidential document from public disclosure. Exhibits Long-Term Confidentiality Short-Term Confidentiality NOTE 2 ID Label/Location No No Attestation Statement No No External Photos No ☐ Block Diagram ☒ ☐ Schematics ☒ ☐ Test Report No No Test Setup Photos No ☐ User’s Manual No ☐ Internal Photos No ☐ Parts List / Tune Up ☐ ☐ RF Exposure Info No No Operational Description ☒ ☐ Cover Letter(s) No No SDR Software / Security Info ☐ No NOTE 1: Long-Term Confidentiality may be permitted under special conditions (See II. LONG-TERM CONFIDENTIALITY, Section 3 of KDB 726920, use last in force) NOTE 2: Short-Term Confidentiality can be requested for a maximum of 180 days from the date of the grant. Above mentioned document contains detailed system and equipment description are considered as proprietary information in operation of the equipment. The public disclosure of above documents might be harmful to our company and would give competitor an unfair advantage in the market. It is our understanding that all measurement test reports, FCC ID label format and correspondent during certification review process cannot be granted as confidential documents and those information will be available for public review once the grant of equipment authorization is issued. Sincerely, Signature: Name: Peter Peng Title: Manager

Size:6*8mm M/N: X5 FCC ID: 2A296-X5 Label location

antenna location

FCC ID:2A296-X5 RF Exposure Evaluation Limits The criteria listed in the following table shall be used to evaluate the environment impact of human exposure to radio frequency (RF) radiation as specified in 1.1307(b) Limits for Maximum Permissible Exposure (MPE) Frequency range (MHz) Electric field strength (V/m) Magnetic field strength (A/m) Power density (mW/cm 2 ) Averaging time (minutes) (A) Limits for Occupational/Controlled Exposures 0.3–3.0 614 1.63 *(100) 6 3.0–30 1842/f 4.89/f *(900/f 2 ) 6 30–300 61.4 0.163 1.0 6 300–1500 f/300 6 1500–100,000 5 6 (B) Limits for General Population/Uncontrolled Exposure 0.3–1.34 614 1.63 *(100) 30 1.34–30 824/f 2.19/f *(180/f 2 ) 30 30–300 27.5 0.073 0.2 30 300–1500 f/1500 30 1500–100,000 1.0 30 f = frequency in MHz Friis transmission formula: Pd = (Pout*G)/(4*pi*r 2 ) Where Pd = power density in mW/cm 2 , Pout = output power to antenna in mW; G = gain of antenna in linear scale, Pi = 3.1416; R = distance between observation point and center of the radiator in cm Pd id the limit of MPE, 1 mW/cm 2 . If we know the maximum gain of the antenna and the total power input to the antenna, through the calculation, we will know the distance r where the MPE limit is reached. Test Procedure Software provided by client enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. Test Result of RF Exposure Evaluation wifi mode Channel Output power to antenna (dBm) Output power to antenna (mW) Power Density at R=20cm (mW/cm 2 ) Limit (mW/cm 2 ) Result Lowest 14.619 28.967 0.011525 1.0 PASS Middle 15.548 35.876 0.014274 1.0 PASS Highest 14.132 25.894 0.010303 1.0 PASS Remark: antenna gain=2dBi

Shenzhen DL Testing Technology Co., Ltd. Report No.: DL-20210925006E Test Report Tel: 400-688-3552 Web:www.dl-cert.com Email: [email protected] Page 1 of 59 FCC Part 15C Test Report FCC ID:2A296-X5 Applicant: Shenzhen Ou Nuo Fa Electronics Technology Co., Ltd. Address: 2-201, Shengyue Arts Education City, Longhua Industry Road and Longhua Road crossing south, Longhua Dist. Shenzhen, Guangdong Manufacturer: Shenzhen Ou Nuo Fa Electronics Technology Co., Ltd. Address: 2-201, Shengyue Arts Education City, Longhua Industry Road and Longhua Road crossing south, Longhua Dist. Shenzhen, Guangdong EUT: Network camera Trade Mark: N/A Model Number: X5, X6, X7, X20, Y1, Y3, Q7, A9, K2, K6, K8 Date of Receipt: Sep. 08, 2021 Test Date: Sep. 08, 2021 - Sep. 25, 2021 Date of Report: Sep. 25, 2021 Prepared By: Shenzhen DL Testing Technology Co., Ltd. Address: 101-201, Building C, Shuanghuan, No.8, Baoqing Road, Baolong Industrial Zone, Baolong Street, Longgang District, Shenzhen, Guangdong, China Applicable Standards: FCC PART 15 C 15.247 ANSI C63.10:2014 Test Result: Pass Report Number: DL-20210925006E Prepared (Test Engineer): Pxing Huang Reviewer (Supervisor): Jack Bu Approved (Manager): Jade Yang This test report is based on a single evaluation of one sample of above mentioned products. It is not permitted to be duplicated in extracts without written approval of Shenzhen DL Testing Technology Co., Ltd. Shenzhen DL Testing Technology Co., Ltd. Report No.: DL-20210925006E Test Report Tel: 400-688-3552 Web:www.dl-cert.com Email: [email protected] Page 2 of 59 Table of Contents Page 1 . SUMMARY OF TEST RESULTS 4 1.1 MEASUREMENT UNCERTAINTY 4 2 . GENERAL INFORMATION 5 2.1 GENERAL DESCRIPTION OF EUT 5 2.2 DESCRIPTION OF TEST MODES 6 2.3 BLOCK DIGRAM SHOWING THE CONFIGURATION OF SYSTEM TESTED 7 2.4 DESCRIPTION OF SUPPORT UNITS(CONDUCTED MODE) 7 2.5 TABLE OF PARAMETERS OF TEST SOFTWARE SETTING 7 2.6 EQUIPMENTS LIST FOR ALL TEST ITEMS 8 3 . EMC EMISSION TEST 9 3.1 CONDUCTED EMISSION MEASUREMENT 9 3.1.1 POWER LINE CONDUCTED EMISSION LIMITS 9 3.1.2 TEST PROCEDURE 9 3.1.3 DEVIATION FROM TEST STANDARD 9 3.1.4 TEST SETUP 10 3.1.5 EUT OPERATING CONDITIONS 10 3.1.6 TEST RESULTS 10 3.2 RADIATED EMISSION MEASUREMENT 13 3.2.1 RADIATED EMISSION LIMITS 13 3.2.2 TEST PROCEDURE 14 3.2.3 DEVIATION FROM TEST STANDARD 14 3.2.4 TEST SETUP 14 3.2.5 EUT OPERATING CONDITIONS 15 3.2.6 TEST RESULTS (BETWEEN 9KHZ – 30 MHZ) 16 3.2.7 TEST RESULTS (BETWEEN 30MHZ – 1GHZ) 17 3.2.8 TEST RESULTS (1GHZ~25GHZ) 19 3.3 RADIATED BAND EMISSION MEASUREMENT 24 3.3.1 TEST REQUIREMENT: 24 3.3.2 TEST PROCEDURE 24 3.3.3 DEVIATION FROM TEST STANDARD 24 3.3.4 TEST SETUP 25 3.3.5 EUT OPERATING CONDITIONS 25 4 . PEAK OUTPUT POWER 38 4.1 APPLIED PROCEDURES / LIMIT 38 4.1.1 TEST PROCEDURE 38 4.1.2 DEVIATION FROM STANDARD 38 4.1.3 TEST SETUP 38 4.1.4 EUT OPERATION CONDITIONS 38 Shenzhen DL Testing Technology Co., Ltd. Report No.: DL-20210925006E Test Report Tel: 400-688-3552 Web:www.dl-cert.com Email: [email protected] Page 3 of 59 Table of Contents Page 4.1.5 TEST RESULTS 39 5 . POWER SPECTRAL DENSITY TEST 42 5.1 APPLIED PROCEDURES / LIMIT 42 5.1.1 TEST PROCEDURE 42 5.1.2 DEVIATION FROM STANDARD 42 5.1.3 TEST SETUP 42 5.1.4 EUT OPERATION CONDITIONS 42 5.1.5 TEST RESULTS 43 6 . 6DB BANDWIDTH TEST 46 6.1 APPLIED PROCEDURES / LIMIT 46 6.1.1 TEST PROCEDURE 46 6.1.2 DEVIATION FROM STANDARD 46 6.1.3 TEST SETUP 46 6.1.4 EUT OPERATION CONDITIONS 46 6.1.5 TEST RESULTS 47 7 . ANTENNA REQUIREMENT 50 7.1 STANDARD REQUIREMENT 50 7.2 EUT ANTENNA 50 8 . TEST SEUUP PHOTO 51 9 . EUT PHOTO 53 Shenzhen DL Testing Technology Co., Ltd. Report No.: DL-20210925006E Test Report Tel: 400-688-3552 Web:www.dl-cert.com Email: [email protected] Page 4 of 59 1. SUMMARY OF TEST RESULTS Test procedures according to the technical standards: FCC Part15 (15.247) , Subpart C Standard Section Test Item Judgment Remark 15.207 Conducted Emission PASS 15.247(c) Radiated Spurious Emission PASS 15.205 Band Edge Emission PASS 15.247(b)(1) Peak Output Power PASS 15.247(a)(2) 6dB Bandwidth PASS 15.247(d) Power Spectral Density PASS 15.203 Antenna Requirement PASS NOTE: (1)” N/A” denotes test is not applicable in this Test Report 1.1 MEASUREMENT UNCERTAINTY The reported uncertainty of measurement y ± U, where expended uncertainty U is based on a standard uncertainty multiplied by a coverage factor of k=2，providing a level of confidence of approximately 95 %。 No. Item Uncertainty 1 Conducted Emission Test ±2.56dB 2 RF power,conducted ±0.42dB 3 Spurious emissions,conducted ±2.76dB 4 All emissions,radiated(<1G) ±3.65dB 5 All emissions,radiated(>1G) ±4.89dB 6 Temperature ±0.5°C 7 Humidity ±2% Shenzhen DL Testing Technology Co., Ltd. Report No.: DL-20210925006E Test Report Tel: 400-688-3552 Web:www.dl-cert.com Email: [email protected] Page 5 of 59 2. GENERAL INFORMATION 2.1 GENERAL DESCRIPTION OF EUT Product Name: Network camera Trademark N/A Model No.: X5, X6, X7, X20, Y1, Y3, Q7, A9, K2, K6, K8 Model Difference The product's different for model number and appearance color. Operation Frequency: 2412~2462 MHz for 802.11b/g/nHT20 2422~2452 MHz for 802.11nHT40 Channel numbers: 11 Channels for 802.11b/g/n(HT20) 7 channels for 802.11nHT40 Channel separation: 5MHz Modulation technology: 802.11b: DSSS (CCK, DQPSK, DBPSK) 802.11g/n(20): DSSS (CCK, DQPSK,DBPSK)+OFDM (QPSK, BPSK, 16-QAM, 64-QAM) Rate of Transmitter 802.11b: 11/5.5/2/1Mbps 802.11g: 54/48/36/24/18/12/9/6Mbps 802.11n: up to 150Mbps Antenna Type: Built-in antenna Antenna gain: 2dBi Power supply: DC 3.7V from battery DC 5V from USB Note: 1.For a more detailed features description, please refer to the manufacturer’s specifications or the User's Manual. 2.The EUT’s all information provided by client. Shenzhen DL Testing Technology Co., Ltd. Report No.: DL-20210925006E Test Report Tel: 400-688-3552 Web:www.dl-cert.com Email: [email protected] Page 6 of 59 2. Channel List(802.11b/g/nHT20) Channel Frequency (GHz) Channel Frequency (GHz) 01 2.412 …

Text truncated - open the document above for the full version.

Shenzhen DL Testing Technology Co., Ltd. Report No.: DL-20210925006E Test Report Tel: 400-688-3552 Web:www.dl-cert.com Email: [email protected] Page 31 of 59 Shenzhen DL Testing Technology Co., Ltd. Report No.: DL-20210925006E Test Report Tel: 400-688-3552 Web:www.dl-cert.com Email: [email protected] Page 32 of 59 802.11g Shenzhen DL Testing Technology Co., Ltd. Report No.: DL-20210925006E Test Report Tel: 400-688-3552 Web:www.dl-cert.com Email: [email protected] Page 33 of 59 Shenzhen DL Testing Technology Co., Ltd. Report No.: DL-20210925006E Test Report Tel: 400-688-3552 Web:www.dl-cert.com Email: [email protected] Page 34 of 59 802.11n HT20 Shenzhen DL Testing Technology Co., Ltd. Report No.: DL-20210925006E Test Report Tel: 400-688-3552 Web:www.dl-cert.com Email: [email protected] Page 35 of 59 Shenzhen DL Testing Technology Co., Ltd. Report No.: DL-20210925006E Test Report Tel: 400-688-3552 Web:www.dl-cert.com Email: [email protected] Page 36 of 59 802.11n HT40 Shenzhen DL Testing Technology Co., Ltd. Report No.: DL-20210925006E Test Report Tel: 400-688-3552 Web:www.dl-cert.com Email: [email protected] Page 37 of 59 Shenzhen DL Testing Technology Co., Ltd. Report No.: DL-20210925006E Test Report Tel: 400-688-3552 Web:www.dl-cert.com Email: [email protected] Page 38 of 59 4. AVERAGE OUTPUT POWER 4.1 APPLIED PROCEDURES / LIMIT FCC Part15 (15.247) , Subpart C Section Test Item Limit Frequency Range (MHz) Result 15.247 (b)(3) Peak Output Power 1 watt or 30dBm 2400-2483.5 PASS 4.1.1 TEST PROCEDURE a. The EUT was directly connected to the spectrum analyzer and antenna output port as show in the block diagram below, b. Spectrum Setting : RBW > the 20 dB bandwidth of the emission being measured Span = approximately 5 times the 20 dB bandwidth, centered on a hopping channel VBW  RBW Sweep = auto Detector function = peak Trace = max hold 4.1.2 DEVIATION FROM STANDARD No deviation. 4.1.3 TEST SETUP 4.1.4 EUT OPERATION CONDITIONS The EUT tested system was configured as the statements of 2.4 Unless otherwise a special operating condition is specified in the follows during the testing. Shenzhen DL Testing Technology Co., Ltd. Report No.: DL-20210925006E Test Report Tel: 400-688-3552 Web:www.dl-cert.com Email: [email protected] Page 39 of 59 4.1.5 TEST RESULTS Temperature: 25 °C Relative Humidity: 60% Pressure: 1012 hPa Test Voltage : DC 3.7V Mode Test Channel Average Output Power (dBm) LIMIT (dBm) 802.11b Low 14.574 30.00 Moddle 13.94 30.00 High 14.132 30.00 802.11g Low 11.667 30.00 Moddle 12.179 30.00 High 12.351 30.00 802.11n HT20 Low 14.619 30.00 Moddle 15.548 30.00 High 13.818 30.00 802.11n HT40 Low 13.516 30.00 Moddle 14.812 30.00 High 13.231 30.00 Shenzhen DL Testing Technology Co., Ltd. Report No.: DL-20210925006E Test Report Tel: 400-688-3552 Web:www.dl-cert.com Email: [email protected] Page 40 of 59 802.11b 802.11g 2412MHz 2412MHz 2437MHz 2437MHz 2462MHz 2462MHz Shenzhen DL Testing Technology Co., Ltd. Report No.: DL-20210925006E Test Report Tel: 400-688-3552 Web:www.dl-cert.com Email: [email protected] Page 41 of 59 802.11n HT20 802.11n HT40 2412MHz 2422MHz 2437MHz 2437MHz 2462MHz 2452MHz Shenzhen DL Testing Technology Co., Ltd. Report No.: DL-20210925006E Test Report Tel: 400-688-3552 Web:www.dl-cert.com Email: [email protected] Page 42 of 59 5. POWER SPECTRAL DENSITY TEST 5.1 APPLIED PROCEDURES / LIMIT FCC Part15 (15.247) , Subpart C Section Test Item Limit Frequency Range (MHz) Result 15.247 Power Spectral Density 8 dBm (in any 3KHz) 2400-2483.5 PASS Spectrum Parameters Setting Attenuation Auto Span Frequency = the frequency band of operation RB RBW  3kHz VB VBW  3RBW Detector Peak Trace Max Hold Sweep Time Auto 5.1.1 TEST PROCEDURE a. The EUT was directly connected to the spectrum analyzer and antenna output port as show in the block diagram below, 5.1.2 DEVIATION FROM STANDARD No deviation. 5.1.3 TEST SETUP 5.1.4 EUT OPERATION CONDITIONS The EUT tested system was configured as the statements of 2.4 Unless otherwise a special operating condition is specified in the follows during the testing. Shenzhen DL Testing Technology Co., Ltd. Report No.: DL-20210925006E Test Report Tel: 400-688-3552 Web:www.dl-cert.com Email: [email protected] Page 43 of 59 5.1.5 TEST RESULTS Mode Test Channel Reading Level (dBm) Limit (dBm) Result 802.11b Low -2.51 8 PASS Moddle -3.043 8 PASS High -2.409 8 PASS 802.11g Low -3.24 8 PASS Moddle -3.04 8 PASS High -2.622 8 PASS 802.11n20 Low -3.358 8 PASS Moddle -1.946 8 PASS High -3.856 8 PASS 802.11n40 Low -6.404 8 PASS Moddle -5.27 8 PASS High -6.438 8 PASS Shenzhen DL Testing Technology Co., Ltd. Report No.: DL-20210925006E Test Report Tel: 400-688-3552 Web:www.dl-cert.com Email: [email protected] Page 44 of 59 802.11b 802.11g 2412MHz 2412MHz 2437MHz 2437MHz 2462MHz 2462MHz Shenzhen DL Testing Technology Co., Ltd. Report No.: DL-20210925006E Test Report Tel: 400-688-3552 Web:www.dl-cert.com Email: [email protected] Page 45 of 59 802.11n HT20 802.11n HT40 2412MHz 2422MHz 2437MHz 2437MHz 2462MHz 2452MHz Shenzhen DL Testing Technology Co., Ltd. Report No.: DL-20210925006E Test Report Tel: 400-688-3552 Web:www.dl-cert.com Email: [email protected] Page 46 of 59 6. 6DB BANDWIDTH TEST 6.1 APPLIED PROCEDURES / LIMIT FCC Part15 (15.247) , Subpart C Section Test Item Limit Frequency Range(MHz) Result 15.247(a)(2) Bandwidth >= 500KHz (6dB bandwidth) 2400-2483.5 PASS 6.1.1 TEST PROCEDURE 1. Set RBW = 100 kHz. 2. Set the video bandwidth (VBW) ≥RBW. 3. Detector = Peak. 4. Trace mode = max hold. 5. Sweep = auto couple. 6. Allow the trace to stabilize. 7. Measure the maximum width of the emission that is constrained by the frequencies associated with the two outermost amplitude points (upper and lower frequencies) that are attenuated by 20 dB relative to the maximum level measured in the fundamental emission. 6.1.2 DEVIATION FROM STANDARD No deviation. 6.1.3 TEST SETUP 6.1.4 EUT OPERATION CONDITIONS The EUT tested system was configured as…

Text truncated - open the document above for the full version.

Radiated Emission Conducted Emissions
