2A2BY-HE-102True Wireless Earphones

尺 寸 ： 7 0 x9 0 mm 材质： 1 00 g书写纸 工艺：风琴折，正反面印刷，单黑印刷 3. Product Overview 4. How to Use True Wireless Earphones Model: HE-102 INSTRUCTION Please read the instruction manual carefully before using the product and keep it with future care. 1. What's in the Box 二 w 勹 ］ Open Earbuds *2 Open Earbuds USB-C Use「Guide*l Cha「gingCase* 1 Charging Cable勹 Decorative Accessories•2 (Accesso「iesare optional) If any of the above-listed items are n勹issingor the product is damaged, do not use it Please contact our customer service team for assistance 2. LED Indicator Guide (Charging Case) Status LED Behavior Charging Earbuds Solid White (Turns off when fully charged) Low Batter; (<20%) Flashing White Charging the Case Flashing Orange Case Fully Charged Solid Orange -1- Earbud Diagram Charging Case ects gta idoln 。 r'r c t n B r C0g e c n e k b h g cr a . XI u ae e oh p /] 1). For first-time use, open the charging case lid. The earbuds will automatically power on 2), Turn on your device's Bluetooth, find and select "HE-102" to connect. Note: After the first successful pairing, the earbuds will automatically reconnect to your device the next time you open the case Charging Slot Indicator Light USB-C Charging Port 1 than 10m (33ft) away from your device丁heywill automatically reconnect if you return within range within 3 minutes -2- I -3- 4.2). ＼ ｀ :七'""臣 （即咖叫•O CD ) 4). Auto Power-Off & Manual Reconnection: lf out of range for more than 3 minutes, the earbuds will automatically turn off to save powe「. To Reconnect: 4.1). Press and hold the touch sensors on both earbuds for 5 seconds to power them on. They will then automatically reconnect toyourdevice 4.2). Place the earbuds back into the charging case and close the lid. The earbuds will automatically power off and disconnect from your device -4- 5. Wearing Instructions 1). Pinch the Flexible C-Bridgewith your thumb and forefinger and raise it toward your ear. 2). Position the oval speaker inside your ear, and rest the square section behind your ear 3). Ad」ustthe earbuds lo「asecure and comfo「tablefit Note: Avoid over-bending the Flexible C-Bridge to prevent damage. x 尸 ＼ 』 x 三 ＼ 》 尸 ＼ 6. Touch Control Instructions Audio Control Functions Earbud Gesture 00 / 1> L/R Tap 2 times Play/Pause I<] L Tap 3 times Previous Track 以 R Tap 3 times Next Track (] - L Tap 1 time and hold Volume- (] + R Tap 1 time and hold Volume+ � lj R Tap 1 time Answer 逵 ＼ L/R Tap 2 times Hang Up/ Reject Call ＠ L/R Hold for2s Activate Assistant ＠ L/R Tap 1 time Dismiss Assistant 7. Charging 1 d un oa ， s y y II d d a n u cab r 兀 a tti h e g no e ． ne g e a r h ut g hit m t In e w r i aw g r d a h y t h o e h c Sh g ． t ,“ r e t o ii n t h u a w c e e . _ s d t a n _ d c ih ／ ge w e g d r s a n g c lia r o h s c a g hn cgiglys lly e r tau s f a ： hrg Flashing orange light ""' � 三 Charging the Charging Case 1). Insert the p「ovidedUSB-C to USB-C charging cable into the charging case and connect it to a USB-C power source or certified wall charger. 2). The LED flashes orange while charging the case, and turns solid orange when fully charged 8. Product · · Spec巾cations Mo del: HE-102 Bluetooth chip version: V6.0 Playtime: Up to 6 Hours (at 50% volume) lnput:5V=lA Battery Capacity (L/R): 3.85V/60mAh Charging Time: 1.6H Battery Ca pacity (Charging case): 3.7V/350mAh Charging Time: 2H Transmission Distance: �1om 9. Important Safety Instructions & Precautions • Do not attempt to d,sassemble your earbuds for any reason Doing so may damage the p「oductor cause the batte「yto spontaneously com bust or catch fire. If your earbuds malfunction, please contact our customer service team immediately • When using earbuds while driving, please adhere to the local laws and regulations in your country or region • Avoid exposing the earbuds to high-temperature environments (above 122"F / 5D"C), such as leaving them in direct sunlight丁hiscan degrade product performance and shorten battery life. • Avoid exposing the earbuds to rain or immersingthem in liquid • Please use the included charging cable to charge the device • For optimal charging speed, the charger's power output must be between O.SW and 5.SW 10. Troubleshooting Guide Why do I hear static or interference during a call? Devices such as cordless phones and wireless network equipment (like Wi-Fi routers) can cause inte�erence, which often sounds like static noise To reduce interfe「ence,do not place your earbuds nea「othe「devicesthat use or emit radio waves Why do I hear an echo during a call? Try ad」usting theearbud volume or moving to a different area and try again How do I clean the earbuds? Please wipe them with a dry, soft cloth Why won't my earbuds charge fully? The charging contacts on the earbuds may not be properly connected to the charging pins in the case. Please take the ea「budsout and place them back in the case, ensuring they are seated correctly If you experience any other issues with your earbuds, please contact our customer service team for assistance. 5 6 7 8 9 FCC ID: 2A2BY-HE-102 FCC Warning This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. NOTE 1: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on…

Text truncated - open the document above for the full version.

Dongguan Huien Electronic Technology Co., Ltd Covered Equipment Certification Attestation Letter 1/30/2026 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 USA ATTN.: Reviewing Engineer FCC ID: 2A2BY-HE-102 Dongguan Huien Electronic Technology Co., Ltd (“the applicant”) certifies that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. Note: If the equipment for which the applicant seeks authorization is produced by any of the entities identified on the current Covered List, the applicant should include an explanation on why the equipment is not “covered” equipment. Dongguan Huien Electronic Technology Co., Ltd (“the applicant”) certifies that, as of the date of the filing of the application, the applicant is not identified on the Covered List (as a specifically named entity or any of its subsidiaries or affiliates) as an entity producing “covered” equipment. Dongguan Huien Electronic Technology Co., Ltd (“the applicant”) certifies that the equipment for which authorization is sought does not include cybersecurity or anti-virus software produced or provided by Kaspersky Lab, Inc. or any of its successors and assignees, including equipment with integrated Kaspersky Lab, Inc. (or any of its successors and assignees) cybersecurity or anti-virus software pursuant to DA-24-886 and KDB 986446 D01 Covered Equipment Guidance section B(2a). Signed: Printed name: Yanfeng Zhang Title: Manager Company Name: Dongguan Huien Electronic Technology Co., Ltd Date: 1/30/2026

Dongguan Huien Electronic Technology Co., Ltd U.S. Agent Letter of Attestation To: Federal Communications Commission 7435 Oakland Mills Road, Columbia, MD 21046, USA Date: January 30, 2026 Ref: Attestation Statement – Part 2.911(d)(7) filing FCC ID: 2A2BY-HE-102 Dongguan Huien Electronic Technology Co., Ltd (“the applicant”) certifies that, as of the date of the filing of the application, CLF Import and Export Limited (“the agent”) is our designated U.S. agent for service of process for the above reference FCC ID. The applicant accepts to maintain an agent for service of process in the United States for no less than one year after either the grantee has permanently terminated all marketing and importation of the applicable equipment within the U.S., or the conclusion of any Commission-related administrative or judicial proceeding involving the equipment, whichever is later. The applicant further acknowledges it is our responsibility to inform the FCC whenever the agent information changes. CLF Import and Export Limited ("the agent) understand it is the agent's obligation to accept service of process in the United States for matters related to the applicable equipment, and at the physical U.S. address and email address. Designated U.S. Agent Company Name: CLF Import and Export Limited FRN: 0033489683 Address: 1312 17th Street #692, Denver, CO 80202, United States Signature: Contact Person: David Chen Tel: +1 949 254 2565 Email: [email protected] Applicant Company Name: Dongguan Huien Electronic Technology Co., Ltd FRN: 0031047020 Address: Room 301, Building of 1, No. 429, Changdong Road, Changping Town Dongguan city, Guangdong Province, China Signature: Contact Person: Yanfeng Zhang Tel: 86-18123809176 Email: [email protected]

Dongguan Huien Electronic Technology Co., Ltd Model Difference Statement FCC ID: 2A2BY-HE-102 DATE: January 30, 2026 Dear Sir/Madam, Added models HE-102A, HE-102B, HE-102C, HE-102D, HE-102E, AirClip 1, ZP-682, ACTIVE OWS-1, RONiN HOOKED basis of the original product HE-102 The color of appearance and model name of series models listed are different from the main model, but the circuit and the electronic construction are the same, declared by the manufacturer. Sincerely, Name: Yanfeng Zhang Company name: Dongguan Huien Electronic Technology Co., Ltd Address: Room 301, Building of 1, No. 429, Changdong Road, Changping Town Dongguan city, Guangdong Province, China

DATE: January 30, 2026 Federal Communications Commission Authorization & Evaluation Division 7345 Oakland Mills Road Columbia, Maryland 21046 Authority to Act as Agent On our behalf, I appoint Shenzhen CCUT Quality Technology Co., Ltd. (1F, Building 35, Changxing Technology Indstrl Park Changzhen Community, Yutang Street,Shenzhen,China) to act as our agent in the preparation of this application for equipment certification. I certify that submitted documents properly describe the device or system for which equipment certification is sought. I also certify that each unit manufactured, imported or marketed, as defined in the Federal Communications Commission’s regulations will have affixed to it a label identical to that submitted for approval with this application. For instances where our authorized agent signs the application for certification on our behalf, I acknowledge that all responsibility for complying with the terms and conditions for certification, still resides with Dongguan Huien Electronic Technology Co., Ltd (Room 301, Building of 1, No. 429, Changdong Road, Changping Town Dongguan city, Guangdong Province, China). <Signature> Name: Yanfeng Zhang Title: Manager Applicant Company: Dongguan Huien Electronic Technology Co., Ltd

Date: January 30, 2026 Federal Communications Commission Authorization & Evaluation Division 7345 Oakland Mills Road Columbia, Maryland 21046 RE: LETTER OF AGENT AUTHORIZATION To Whom It May Concern: We, the undersigned, hereby authorize Compliance Testing, LLC to act on our behalf in all matters relating to application for equipment authorization, including the signing of all documents relating to these matters. We also hereby certify that no party to the application authorized hereunder is subject to the denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C.853(a). Sincerely, <Signature> Name: Yanfeng Zhang Title: Manager Company: Dongguan Huien Electronic Technology Co., Ltd

DATE: January 30, 2026 Equipment Autorisation Division Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 FCC ID: 2A2BY-HE-102 Product Name: True Wireless Earphones Request for Confidentiality Pursuant to Sections 0.457 and 0.459 of the commission’s rules, we hereby request that the following documents be held confidential: (List here the documents for which you are seeking confidentiality – for example ...)  Schematics  Block diagram  Operation description These materials contain trade secrets and proprietary information and are not customarily released to the public. The public disclosure of this information might be harmful to the company and provide unjustified benefits to our competitors. <Signature> Name: Yanfeng Zhang Title: Manager Company: Dongguan Huien Electronic Technology Co., Ltd

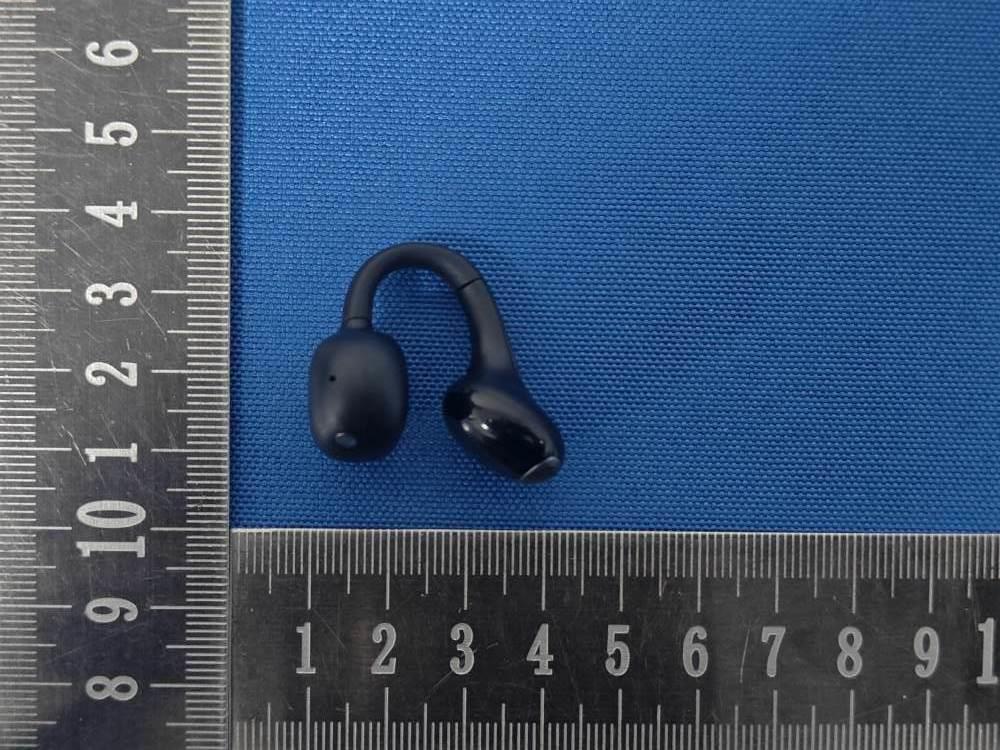

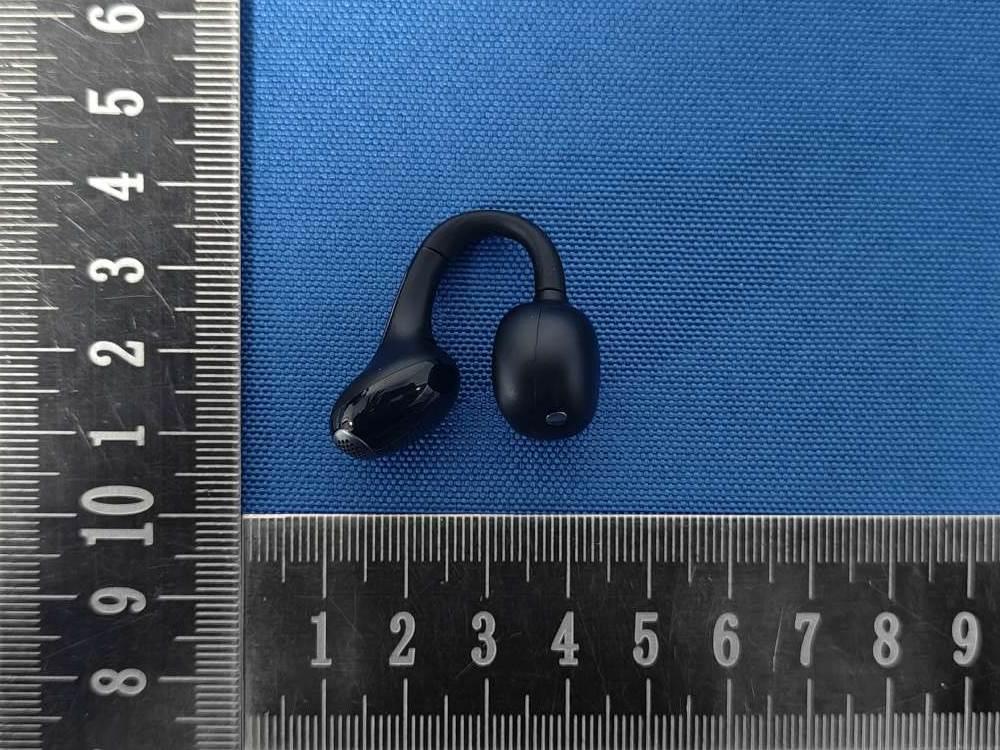

Report No: DSP25120622-1&2E FCC ID: 2A2BY-HE-102 Annex of Test Report Annex A. EUT External Photos Model: HE-102 EUT View 1 EUT View 2 Report No: DSP25120622-1&2E FCC ID: 2A2BY-HE-102 Annex of Test Report EUT View 3 EUT View 4 Report No: DSP25120622-1&2E FCC ID: 2A2BY-HE-102 Annex of Test Report EUT View 5 EUT View 6 Report No: DSP25120622-1&2E FCC ID: 2A2BY-HE-102 Annex of Test Report EUT View 7 EUT View 8

Report No: DSP25120622-1&2E FCC ID: 2A2BY-HE-102 Annex of Test Report Annex D. Label and Inf ormation FCC Label Sample FCC Labe Size: 8mm * 3mm FCC Label Specifications Text is Black in color and is justified. Labels are printed in indelible ink on permanent adhesive backing or silk-screened onto the EUT or shall be affixed at a conspicuous location on the EUT. Where the EUT is constructed in two or more sections connected by wires and marketed together, the above statement is required to be affixed only to the main control unit. When the EUT is so small or for such use that it is not practicable to place the statement on it, the above information shall be placed in a prominent location in the instruction manual or pamphlet supplied to the user or, alternatively, shall be placed on the container in which the device is marketed. FCC Label Location Label Location

Report No: DSP25120622-1&2E FCC ID: 2A2BY-HE-102 Annex of Test Report Annex B. EUT Internal Photos Model: HE-102 EUT Internal View 1 EUT Internal View 2 Transmitter ANT Report No: DSP25120622-1&2E FCC ID: 2A2BY-HE-102 Annex of Test Report EUT Internal View 3 EUT Internal View 4

FCC ID: 2A2BY-HE-102 RF Exposure Evaluation According to KDB 447498 D01 General RF Exposure Guidance v06 and part 2.1093，Unless specifically required by the published RF exposure KDB procedures, standalone 1-g head or body and 10-g extremity SAR evaluation for general population exposure conditions, by measurement or numerical simulation, is not required when the corresponding SAR Test Exclusion Threshold condition(s), listed below, is (are) satisfied. For 100 MHz to 6 GHz and test separation distances ≤ 50 mm, the 1-g and 10-g SAR test exclusion thresholds are determined by the following: [(max. power of channel, including tune-up tolerance, mW) / (min. test separation distance, mm)] · [√f(GHz)] ≤ 3.0 for 1-g SAR, and ≤ 7.5 for 10-g extremity SAR, where f(GHz) is the RF channel transmit frequency in GHz Power and distance are rounded to the nearest mW and mm before calculation The result is rounded to one decimal place for comparison Here, The device has been evaluated to meet general RF exposure requirement. The device can be used in portable exposure condition without restriction. For BR+EDR Max Conducted Power(dBm) Tune-up Power(dBm) Max Tune-up Power(dBm) Max Power(mW) Frequency(MHz) Min. distance(mm) Calc. thresholds limit 1.03 1(±1) 2 1.585 2402 5 0.4913 3.0 For BLE Max Conducted Power(dBm) Tune-up Power(dBm) Max Tune-up Power(dBm) Max Power(mW) Frequency(MHz) Min. distance(mm) Calc. thresholds limit 1.42 1(±1) 2 1.585 2402 5 0.4913 3.0 So a SAR test is not required

Report No: DSP25120622-1E FCC Test Report Page 1 of 45 FCC TEST REPORT FCC ID: 2A2BY-HE-102 Report No. : DSP25120622-1E Applicant : Dongguan Huien Electronic Technology Co., Ltd Product Name : True Wireless Earphones Model Name : HE-102 Test Standard : FCC Part 15.247 Date of Issue : 2026-01-28 Shenzhen CCUT Quality Technology Co., Ltd. 1F, Building 35, Changxing Technology Industrial Park, Yutang Street, Guangming District, Shenzhen, Guangdong, China; (Tel.:+86-755-23406590 website: www.ccuttest.com) This test report is limited to the above client company and the product model only. It may not be duplicated without prior permitted by Shenzhen CCUT Quality Technology Co., Ltd. Report No: DSP25120622-1E FCC Test Report Page 2 of 45 Test Report Basic Information Applicant..................................: Dongguan Huien Electronic Technology Co., Ltd Address of Applicant...............: Room 301, Building of 1, No. 429, Changdong Road, Changping Town Dongguan city, Guangdong Province, China Manufacturer..........................: Dongguan Huien Electronic Technology Co., Ltd Address of Manufacturer........: Room 301, Building of 1, No. 429, Changdong Road, Changping Town Dongguan city, Guangdong Province, China Product Name.........................: True Wireless Earphones Brand Name.............................: - Main Model..............................: HE-102 Series Models..........................: HE-102A, HE-102B, HE-102C, HE-102D, HE-102E, AirClip 1, ZP-682, ACTIVE OWS-1, RONiN HOOKED Test Standard..........................: FCC Part 15 Subpart C ANSI C63.4-2014 ANSI C63.10-2020 Date of Test .............................: 2025-12-07 to 2026-01-16 Test Result...............................: PASS Tested By ................................: (Walker Wu) Reviewed By............................: (Lorzix Luo) Authorized Signatory............: (Lahm Peng) Note : This test report is limited to the above client company and the product model only. It may not be duplicated without prior permitted by Shenzhen CCUT Quality Technology Co., Ltd.. All test data presented in this test report is only applicable to presented test sample. Report No: DSP25120622-1E FCC Test Report Page 3 of 45 CONTENTS 1. General Information ....................................................................................................................................................5 1.1 Product Information .............................................................................................................................................5 1.2 Test Setup Information..........................................................................................................................................6 1.3 Compliance Standards ...........................................................................................................................................7 1.4 Test Facilities ........................................................................................................................................................7 1.5 List of Measurement Instruments ..........................................................................................................................8 1.6 Measurement Uncertainty .....................................................................................................................................9 2. Summary of Test Results ........................................................................................................................................... 10 3. Antenna Requirement ............................................................................................................................................... 11 3.1 Standard and Limit.............................................................................................................................................. 11 3.2 Test Result .......................................................................................................................................................... 11 4. Conducted Emissions ................................................................................................................................................ 12 4.1 Standard and Limit.............................................................................................................................................. 12 4.2 Test Procedure.................................................................................................................................................... 12 4.3 Test Data and Results .......................................................................................................................................... 13 5. Radiated Emissions ................................................................................................................................................... 16 5.1 Standard and Limit.............................................................................................................................................. 16 5.2 Test Procedure.................................................................................................................................................... 16 5.3 Test Data and Results .......................................................................................................................................... 18 6. Band-edge Emissions(Radiated) ............................................................................................................................... 22 6.1 Standard and Limit.............................................................................................................................................. 22 6.2 Test Procedure.................................................................................................................................................... 22 6.3 Test Data and Results ......................................…

Text truncated - open the document above for the full version.

2.4GHz 1608 Chip Antenna: RANT1608F245C04 _ Application: WLAN, 802.11b/g, Bluetooth, WLAN, etc... Features SMD, high reliability, ultra Impact, Omni-directional... Part number Information RANT1608F245C04 (A) (B) (C) (D)(E) (F) Electrical Specification Dimension and Terminal Configuration No.Terminal Name 1Feeding/GNG 2GND/Feeding (A)Product TypeSMD Antenna (B) Size Code 1.6x0.8mm( ± 0.1mm) (C) MaterialHigh K material (D) Frequency2.4 ~ 2.5GHz (E) Feeding modePIFA & Single Feeding (F) Antenna typeType=04 Working Frequency Range2400 ~2500 MHz Bandwidth120 MHz (Min.) Peak Gain2.78 dBi (Typ.) Impedance50 Ohm Return loss10 dB ( Min) PolarizationLinear Azimuth BeamwidthOmni-directional Operation Temperature( °C )-40 ~85 °C Resistance to Soldering Heats 10sec. ( @ 280 °C ) TerminationNi / Au (Leadless) Dimension (mm) L 1.60±0.10 W 0.80 ± 0.10 T 0.80 ± 0.10 Add:Room 707, Building F, Tongan Zhichuangyuan, xixiang street, Baoan District, Shenzhen. 2.4GHz 1608 Chip Antenna: RANT1608F245C04 _ 1 Evaluation BoardReference PCB DimensionAntenna Layout Reference Unit :mm Electrical Characteristics Return Loss & Radiation ELECTRICAL CHARACTERISTICSS11 Radiation Electrical Characteristics Freque ncy Effic Percen Gain 2400-1.64 72.27% 2.38 2450-1.33 75.34% 2.78 2500-1.59 72.98% 2.59 Add:Room 707, Building F, Tongan Zhichuangyuan, xixiang street, Baoan District, Shenzhen. 2.4GHz 1608 Ch ip Antenna: RANT1608F245C04 _ Taping Sp ecifi cati ons Reel and Taping Specification Reel Spe cification TYPESIZ EABCD 16087”4K/R eel 4.0 ±0.5 4.0 ±213.5 ±0.5178±2 Ta ppi ng Spe cification PackagingTypeABWEFGHTψDP Paper Type 1608 1.90±0.20 3.50±0.20 8.0±0.20 1.75±0.10 3.5±0.05 4.0±0.10 2.0±0.05 0.75±0.10 1.50±0.10 4.0±0.1 Add:Room 707, Building F, Tongan Zhichuangyuan, xixiang street, Baoan District, Shenzhen. 2.4GHz 1608 Ch ip Antenna: RANT1608F245C04 _ Reliability Table Test ItemProcedure Requireme nts Cerami c Type Rema rk (Reference) Electrical Characterization Fulfill the electrical specification User Spec. Thermal Shock 1. Preconditioning: 50 ± 10°C/ 1 hr , then keep for 24 ± 1 hrs at room temp. 2. Initial measure: Spec: refer Initialspec. 3. Rapid change of temperature test: -30°Cto +85°C; 100 cycles; 15 minutes at Lower category temperature; 15 minutes at Upper category temperature. No Visible Damage. Fulfill the electrical specif ication. MIL-STD-202 107 Temperature Cycling 1. Initial measure: Spec: refer Initialspec. 2. 100 Cycles (-30°Cto +85°C), Soak Mode=1 (2 Cycle/hours). 3. Measurement at 24 ± 2Hours after testcondition. No Visible Damage. Fulfill the electrical specification. JESD22 JA104 High Temperature Exposure 1. Initial measure: Spec: refer Initialspec. 2. Unpowered; 500hours @ T=+85°C. 3. Measurement at 24 ± 2 hours aftertest. No Visible Damage. Fulfill the electrical specific ation. MIL-STD-202 108 Low Temperature Storage 1. Initial measure: Spec: refer Initialspec. 2. Unpowered: 500hours @ T=-30°C. 3. Measurement at 24 ± 2 hours aftertest. No Visible Damage. Fulfill the electrical specification. MIL-STD-202 108 Solderability (SMD Bottom Side) Dipping method: a. Temperature: 235 ±5°C b. Dipping time: 3 ±0.5s The solder should cover over 95% of the critical area of bottom side. IEC 60384-21/22 4.10 Soldering Heat Resistance (RSH) Preheati ng temperature: 150 ± 10°C. Preheating time: 1~2 min. Solder temperature: 260 ± 5°C. Dipping time: 5 ± 0.5s No Visible Damage.IEC 60384-21/22 4.10 Vibration5g's for 20 min., 12 cycles each of 3 orientations Note: Use 8"X5" PCB .031" thick 7 secure points on, one long side and 2 secure points at corners of opposite sides. Parts mounted within 2" from any secure point. Test from 10-2000 Hz. No Visible Damage.MIL-STD-202 Method 204 Mechanical Shock Three shocks in each direction shall be applied along the three mutually perpendicular axes of the test specimen (18 shocks) Peak value: 1,500g’s Duration: 0.5ms Velocity change: 15.4 ft/s Waveform: Half-sine No Visible Damage.MIL-STD-202 Method 213 Humidity Bias 1. Humidity: 85% R.H., Temperature:85 ± 2 °C. 2. Time: 500 ± 24hours. 3. Measurement at 24 ± 2hrs after testcondition. No Visible Damage. Fulfill the electrical specification. MIL-STD-202 Method 106 Add:Room 707, Building F, Tongan Zhichuangyuan, xixiang street, Baoan District, Shenzhen. 2.4GHz 1 6 0 8 Chip Antenna: RANT1608F245C04 _ Board Flex (SMD) 1. Mounting method: IR-Reflow. PCB Size (L:100 × W:40 × T:1.6mm) 2. Apply the load in direction of the arrow until bending reaches 2 mm. No Visible Damage.AEC-Q200 005 AdhesionForce of 1.8Kg for 60 seconds.No Visible Damage Magnification of 20X or greater may be employed for inspection of the mechanical integrity of the device body terminals and body/terminal junction. AEC-Q200 006 Physical Dimension Any applicable method using x10 magnification, micrometers, calipers, gauges, contour projectors, or other measuring equipment, capable of determining the actual specimen dimensions. In accordance with specification. JESD22 JB100 Revision Histo ry Revisi onDateContent 12019/03/01New Datash eet 22020/02/22Add 2D radiation ch aract erist ic Add:Room 707, Building F, Tongan Zhichuangyuan, xixiang street, Baoan District, Shenzhen.

Report No: DSP25120622-1&2E FCC ID: 2A2BY-HE-102 Annex of Test Report Annex C. Test Photos Conducted Emission Test View 1 Radiated Emission Test View Below 1GHz Report No: DSP25120622-1&2E FCC ID: 2A2BY-HE-102 Annex of Test Report Radiated Emission Test View Above 1GHz
