2A2CO-FALCON-504G POC Radio

For face up operation, should hold the device 10 mm from your face and speak in a normal voice, with the antenna pointed up and away.

Samuelson Enterprises PLLC Address: 16540 Scenic Drive, Barbeau, 49710, Michigan,USA Tel: (202) 262 2218 Email: [email protected] QA-FR-170-B 7/29/2014 FCC Authorization Date: 2021-06-29 FEDERAL COMMUNICATIONS COMMISSIONS Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Subject: Agent Authorization To whom it may concern: We Samuelson Enterprises PLLC , the undersigned, here by authorizes Bay Area Compliance Laboratories Corporation (Dongguan) to act on its behalf in all matters relating to application for Equipment authorization, including the signing of all documents relating to these matters. All acts carried out by Bay Area Compliance Laboratories Corporation (Dongguan) on our behalf shall have the same effect as our own action. We, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. This authorization is valid until further written notice from the applicant. Sincerely Yours, Signature: Bensson V Samuel Owner

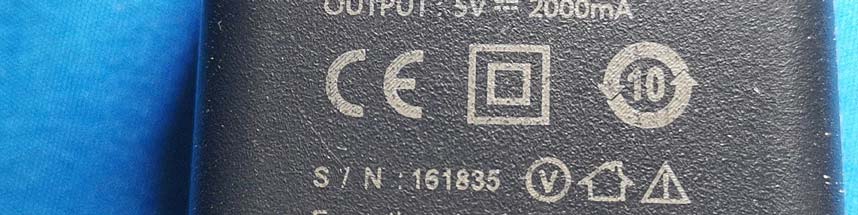

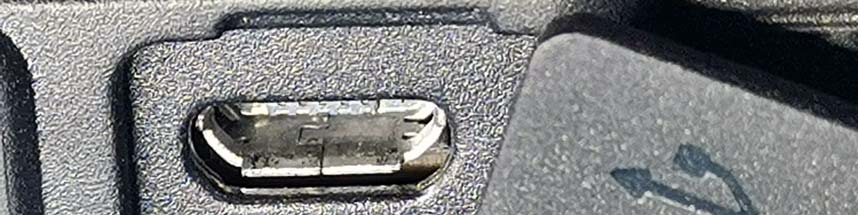

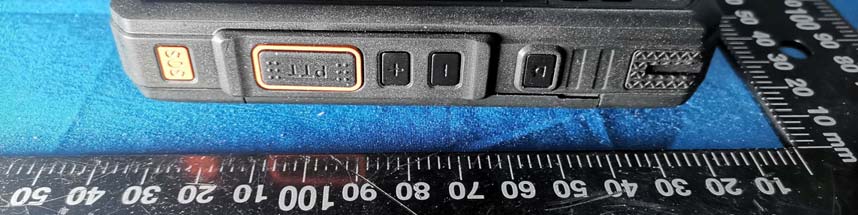

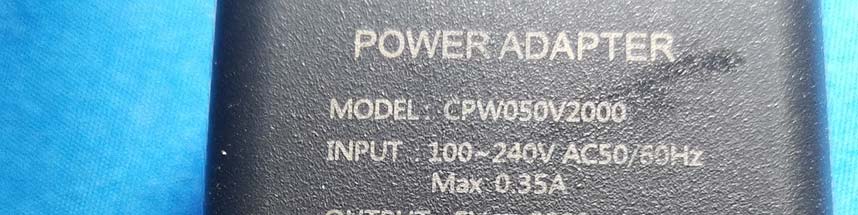

EXHIBIT B - EUT EXTERNAL PHOTOGRAPHS

EXHIBIT C - EUT INTERNAL PHOTOGRAPHS WWAN Antenna WIFI/Bluetooth Antenna

Note: This test report is prepared for the customer shown above and for the device described herein. It may not be duplicated or used in part without prior written consent from Bay Area Compliance Laboratories Corp. (Dongguan). This report must not be used by the customer to claim product certification, approval, or endorsement by A2LA* or any agency of the Federal Government. * This report may contain data that are not covered by the A2LA accreditation and are marked with an asterisk “*”. SAR EVALUATION REPORT For Samuelson Enterprises PLLC 16540 Scenic Drive, Barbeau, 49710,Michigan,USA FCC ID: 2A2CO-FALCON-50 Report Type: Original Report Product Type: 4G POC Radio Report Number: SZ1210511-16362E-20 Report Date: 2021-07-05 Reviewed By: Brave Lu SAR Engineer Prepared By: Bay Area Compliance Laboratories Corp. (Dongguan) No.12, Pulong East 1st Road, Tangxia Town, Dongguan, Guangdong, China Tel: +86-769-86858888 Fax: +86-769-86858891 www.baclcorp.com.cn Bay Area Compliance Laboratories Corp. (Dongguan) Report No.: SZ1210511-16362E-20 SAR Evaluation Report 2 of 101 Attestation of Test Results EUT Information EUT Description 4G POC Radio Tested Model Scorpion Falcon 50 FCC ID 2A2CO-FALCON-50 Serial Number SZ1210511-16362-SA-S1 Test Date 2021-05-01~ 2021-05-18 MODE Max. SAR Level(s) Reported(W/kg) Limit (W/kg) Head Mode GSM 850 1g Head SAR 0.64 1.6 PCS 1900 1g Head SAR 0.48 WCDMA Band 21g Head SAR 0.93 WCDMA Band 51g Head SAR 0.42 LTE Band 2 1g Head SAR 0.76 LTE Band 4 1g Head SAR 0.79 LTE Band 5 1g Head SAR 0.40 LTE Band 7 1g Head SAR 0.46 LTE Band 17 1g Head SAR 0.51 LTE Band 40 1g Head SAR 0.37 LTE Band 41&381g Head SAR 0.46 2.4G Wi-Fi 1g Head SAR 0.61 5.2G Wi-Fi 1g Head SAR 0.61 5.8G Wi-Fi 1g Head SAR 0.48 Simultaneous 1g Head SAR 1.54 Face Up Mode GSM 850 1g Head SAR 1.16 PCS 1900 1g Head SAR 0.38 WCDMA Band 21g Head SAR 0.73 WCDMA Band 51g Head SAR 0.55 LTE Band 2 1g Head SAR 0.53 LTE Band 4 1g Head SAR 0.76 LTE Band 5 1g Head SAR 0.61 LTE Band 7 1g Head SAR 0.48 LTE Band 17 1g Head SAR 0.47 LTE Band 40 1g Head SAR 0.29 LTE Band 41&381g Head SAR 0.27 2.4G Wi-Fi 1g Head SAR 0.24 5.2G Wi-Fi 1g Head SAR 0.25 5.8G Wi-Fi 1g Head SAR 0.21 Simultaneous 1g Head SAR 1.41 Bay Area Compliance Laboratories Corp. (Dongguan) Report No.: SZ1210511-16362E-20 SAR Evaluation Report 3 of 101 MODE Max. SAR Level(s) Reported(W/kg) Limit (W/kg) Body Worn Mode GSM 850 1g Body SAR 1.21 1.6 PCS 1900 1g Body SAR 1.19 WCDMA Band 21g Body SAR 1.22 WCDMA Band 51g Body SAR 0.68 LTE Band 2 1g Body SAR 1.10 LTE Band 4 1g Body SAR 1.13 LTE Band 5 1g Body SAR 0.74 LTE Band 7 1g Body SAR 1.42 LTE Band 17 1g Body SAR 0.56 LTE Band 40 1g Body SAR 0.62 LTE Band 41&381g Body SAR 1.42 2.4G Wi-Fi 1g Body SAR 0.35 5.2G Wi-Fi 1g Body SAR 0.15 5.8G Wi-Fi 1g Body SAR 0.17 Simultaneous 1g Body SAR 1.55 1g Body SAR 1.55 (Hotspot) Applicable Standards FCC 47 CFR part 2.1093 Radiofrequency radiation exposure evaluation: portable devices RF Exposure Procedures: TCB Workshop April 2019 IEEE1528:2013 IEEE Recommended Practice for Determining the Peak Spatial-Average Specific Absorption Rate (SAR) in the Human Head from Wireless Communications Devices: Measurement Techniques IEC 62209-1:2016 Measurement procedure for the assessment of specific absorption rate of human exposure to radio frequency fields from hand-held and body-mounted wireless communication devices – Part 1: Devices used next to the ear (Frequency range of 300 MHz to 6 GHz) KDB procedures KDB 447498 D01 General RF Exposure Guidance v06 KDB 648474 D04 Handset SAR v01r03 KDB 865664 D01 SAR Measurement 100 MHz to 6 GHz v01r04 KDB 865664 D02 RF Exposure Reporting v01r02 KDB 941225 D01 3G SAR Procedures v03r01 KDB 941225 D05 SAR for LTE Devices v02r05 KDB 248227 D01 802 11 Wi-Fi SAR v02r02 KDB 941225 D06 Hotspot Mode v02r01 Note: This wireless device has been shown to be capable of compliance for localized specific absorption rate (SAR) for General Population/Uncontrolled Exposure limits specified in FCC 47 CFR part 2.1093 and has been tested in accordance with the measurement procedures specified in IEEE 1528-2013 and RF exposure KDB procedures. The results and statements contained in this report pertain only to the device(s) evaluated. Bay Area Compliance Laboratories Corp. (Dongguan) Report No.: SZ1210511-16362E-20 SAR Evaluation Report 4 of 101 TABLE OF CONTENTS DOCUMENT REVISION HISTORY ............................................................................................................................ 5 EUT DESCRIPTION ........................................................................................................................................................ 6 TECHNICAL SPECIFICATION............................................................................................................................................. 6 REFERENCE, STANDARDS, AND GUIDELINES .................................................................................................... 7 SAR LIMITS ..................................................................................................................................................................... 8 FACILITIES ...................................................................................................................................................................... 9 DESCRIPTION OF TEST SYSTEM ........................................................................................................................... 10 EQUIPMENT LIST AND CALIBRATION ................................................................................................................ 16 EQUIPMENTS LIST & CALIBRATION INFORMATION ...................................................................................................... 16 SAR MEASUREMENT SYSTEM VERIFICATION ................................................................................................ 17 LIQUID VERIFICATION ...............................................…

Text truncated - open the document above for the full version.

APPENDIX C PROBE CALIBRATION CERTIFICATES DIPOLE CALIBRATION CERTIFICATES

Report No.: SZ1210511-16362E-20 Page 1 of 247 Plot 1#: GSM 850_ Head Left Cheek_Mid DUT: 4G POC Radio; Type: Scorpion Falcon 50; Serial: SZ1210511-16362E-SA-S1 Communication System: Generic GSM; Frequency: 836.6 MHz;Duty Cycle: 1:8 Medium parameters used: f = 836.6 MHz; σ = 0.906 S/m; ε r = 40.958; ρ = 1000 kg/m 3 Phantom section: Left Section DASY5 Configuration:  Probe: EX3DV4 - SN7329; ConvF(10.13, 10.13, 10.13) @ 836.6 MHz; Calibrated: 2020/11/30  Sensor-Surface: 1.4mm (Mechanical Surface Detection)  Electronics: DAE4 Sn772; Calibrated: 2020/11/23  Phantom: SAM (30deg probe tilt) with CRP v5.0_20150321; Type: QD000P40CD; Serial: TP:1874  Measurement SW: DASY52, Version 52.10 (2); SEMCAD X Version 14.6.12 (7470) Area Scan (71x121x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Maximum value of SAR (interpolated)= 0.612 W/kg Zoom Scan (5x5x4)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 7.497 V/m; Power Drift = -0.15 dB Peak SAR (extrapolated)= 0.709 W/kg SAR(1 g) = 0.566 W/kg; SAR(10 g) = 0.428 W/kg Maximum value of SAR (measured) = 0.592 W/kg 0 dB = 0.592 W/kg = -2.28 dBW/kg Report No.: SZ1210511-16362E-20 Page 2 of 247 Plot 2#: GSM 850_ Head Left Tilt_Mid DUT: 4G POC Radio; Type: Scorpion Falcon 50; Serial: SZ1210511-16362E-SA-S1 Communication System: Generic GSM; Frequency: 836.6 MHz;Duty Cycle: 1:8 Medium parameters used: f = 836.6 MHz; σ = 0.906 S/m; ε r = 40.958; ρ = 1000 kg/m 3 Phantom section: Left Section DASY5 Configuration:  Probe: EX3DV4 - SN7329; ConvF(10.13, 10.13, 10.13) @ 836.6 MHz; Calibrated: 2020/11/30  Sensor-Surface: 1.4mm (Mechanical Surface Detection)  Electronics: DAE4 Sn772; Calibrated: 2020/11/23  Phantom: SAM (30deg probe tilt) with CRP v5.0_20150321; Type: QD000P40CD; Serial: TP:1874  Measurement SW: DASY52, Version 52.10 (2); SEMCAD X Version 14.6.12 (7470) Area Scan (71x121x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Maximum value of SAR (interpolated)= 0.561 W/kg Zoom Scan (5x5x4)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 16.27 V/m; Power Drift = -0.04 dB Peak SAR (extrapolated)= 0.638 W/kg SAR(1 g) = 0.521 W/kg; SAR(10 g) = 0.401 W/kg Maximum value of SAR (measured) = 0.547 W/kg 0 dB = 0.547 W/kg = -2.62 dBW/kg Report No.: SZ1210511-16362E-20 Page 3 of 247 Plot 3#: GSM 850_ Head Right Cheek_Mid DUT: 4G POC Radio; Type: Scorpion Falcon 50; Serial: SZ1210511-16362E-SA-S1 Communication System: Generic GSM; Frequency: 836.6 MHz;Duty Cycle: 1:8 Medium parameters used: f = 836.6 MHz; σ = 0.906 S/m; ε r = 40.958; ρ = 1000 kg/m 3 Phantom section: Right Section DASY5 Configuration:  Probe: EX3DV4 - SN7329; ConvF(10.13, 10.13, 10.13) @ 836.6 MHz; Calibrated: 2020/11/30  Sensor-Surface: 1.4mm (Mechanical Surface Detection)  Electronics: DAE4 Sn772; Calibrated: 2020/11/23  Phantom: SAM (30deg probe tilt) with CRP v5.0_20150321; Type: QD000P40CD; Serial: TP:1874  Measurement SW: DASY52, Version 52.10 (2); SEMCAD X Version 14.6.12 (7470) Area Scan (71x121x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Maximum value of SAR (interpolated)= 0.629 W/kg Zoom Scan (5x5x4)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 10.44 V/m; Power Drift = -0.09 dB Peak SAR (extrapolated)= 0.754 W/kg SAR(1 g) = 0.598 W/kg; SAR(10 g) = 0.453 W/kg Maximum value of SAR (measured) = 0.638 W/kg 0 dB = 0.638 W/kg = -1.95 dBW/kg Report No.: SZ1210511-16362E-20 Page 4 of 247 Plot 4#: GSM 850_ Head Right Tilt_Mid DUT: 4G POC Radio; Type: Scorpion Falcon 50; Serial: SZ1210511-16362E-SA-S1 Communication System: Generic GSM; Frequency: 836.6 MHz;Duty Cycle: 1:8 Medium parameters used: f = 836.6 MHz; σ = 0.906 S/m; ε r = 40.958; ρ = 1000 kg/m 3 Phantom section: Right Section DASY5 Configuration:  Probe: EX3DV4 - SN7329; ConvF(10.13, 10.13, 10.13) @ 836.6 MHz; Calibrated: 2020/11/30  Sensor-Surface: 1.4mm (Mechanical Surface Detection)  Electronics: DAE4 Sn772; Calibrated: 2020/11/23  Phantom: SAM (30deg probe tilt) with CRP v5.0_20150321; Type: QD000P40CD; Serial: TP:1874  Measurement SW: DASY52, Version 52.10 (2); SEMCAD X Version 14.6.12 (7470) Area Scan (71x121x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Maximum value of SAR (interpolated)= 0.483 W/kg Zoom Scan (5x5x4)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 17.35 V/m; Power Drift = 0.17 dB Peak SAR (extrapolated)= 0.582 W/kg SAR(1 g) = 0.463 W/kg; SAR(10 g) = 0.351 W/kg Maximum value of SAR (measured) = 0.484 W/kg 0 dB = 0.484 W/kg = -3.15 dBW/kg Report No.: SZ1210511-16362E-20 Page 5 of 247 Plot 5#: GSM 850_ Body Worn Back_Mid DUT: 4G POC Radio; Type: Scorpion Falcon 50; Serial: SZ1210511-16362E-SA-S1 Communication System: Generic GSM; Frequency: 836.6 MHz;Duty Cycle: 1:8 Medium parameters used: f = 836.6 MHz; σ = 0.906 S/m; ε r = 40.958; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY5 Configuration:  Probe: EX3DV4 - SN7329; ConvF(10.13, 10.13, 10.13) @ 836.6 MHz; Calibrated: 2020/11/30  Sensor-Surface: 1.4mm (Mechanical Surface Detection)  Electronics: DAE4 Sn772; Calibrated: 2020/11/23  Phantom: SAM (30deg probe tilt) with CRP v5.0_20150321; Type: QD000P40CD; Serial: TP:1874  Measurement SW: DASY52, Version 52.10 (2); SEMCAD X Version 14.6.12 (7470) Area Scan (71x121x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Maximum value of SAR (interpolated)= 0.749 W/kg Zoom Scan (5x5x4)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 25.96 V/m; Power Drift = 0.11 dB Peak SAR (extrapolated)= 0.918 W/kg SAR(1 g) = 0.714 W/kg; SAR(10 g) = 0.527 W/kg Maximum value of SAR (measured) = 0.755 W/kg 0 dB = 0.755 W/kg = -1.22 dBW/kg Report No.: SZ1210511-16362E-20 Page 6 of 247 Plot 6#: GSM 850_ Face Up_Mid DUT: 4G POC Radio; Type: Scorpion Falcon 50; Serial: SZ1210511-16362E-SA-S1 Communication System: Generic GSM; Frequency: 836.6 MHz;Duty Cycle: 1:8 Medium parameters used: f = 836.6 MHz; σ = 0.906 S/m; ε r = 40.958; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY5 Configuration:  Probe: EX3DV4 - SN7329; C…

Text truncated - open the document above for the full version.

Report No.: SZ1210511-16362E-20 Page 1 of 6 APPENDIX B EUT TEST POSITION PHOTOS Liquid depth ≥ 15cm Phantom Type: SAM (30deg probe tilt) with CRP v5.0_20150321; Type: QD000P40CD; Serial: TP:1874 Report No.: SZ1210511-16362E-20 Page 2 of 6 Head Left Cheek Setup Photo Head Left Tilt Setup Photo Report No.: SZ1210511-16362E-20 Page 3 of 6 Head Right Cheek Setup Photo Head Right Tilt Setup Photo Report No.: SZ1210511-16362E-20 Page 4 of 6 Body (Worn) Back Setup Photo (0mm) Face Up Setup Photo (10mm) 10 mm Report No.: SZ1210511-16362E-20 Page 5 of 6 Body Left Setup Photo (10mm) Body Right Setup Photo (10mm) 10 mm 10 mm Report No.: SZ1210511-16362E-20 Page 6 of 6 Body Bottom Setup Photo (10mm) 10mm

FCC PART 15.247 TEST REPORT For Samuelson Enterprises PLLC 16540 Scenic Drive, Barbeau, 49710, Michigan,USA Report Type: Original Report Product Name: 4G POC Radio Re port Number: SZ1210511-16362E-00B Re port Date: 2021-06-21 Reviewed By: Ivan Cao Assistant Manager Test Laboratory: Bay Area Compliance Laboratories Corp. (Dongguan) No.12, Pulong East 1 st Road, Tangxia Town, Dongguan, Guangdong, China Tel: +86-769-86858888 Fax: +86-769-86858891 www.baclcorp.com.cn FCC ID:2A2CO-FALCON-50 Bay Area Compliance Laboratories Corp. (Dongguan) Report No.: SZ1210511-16362E-00B Page 2 of 58 TABLE OF CONTENTS GENERAL INFORMATION ....................................................................................................................................... 4 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT) ..................................................................................... 4 OBJECTIVE ................................................................................................................................................................... 4 TEST METHODOLOGY .................................................................................................................................................. 4 MEASUREMENT UNCERTAINTY .................................................................................................................................... 5 TEST FACILITY ............................................................................................................................................................. 5 DECLARATIONS ............................................................................................................................................................ 5 SYSTEM TEST CONFIGURATION .......................................................................................................................... 6 DESCRIPTION OF TEST CONFIGURATION ...................................................................................................................... 6 EUT EXERCISE SOFTWARE .......................................................................................................................................... 6 EQUIPMENT MODIFICATIONS ....................................................................................................................................... 9 SUPPORT CABLE LIST AND DETAILS ............................................................................................................................ 9 BLOCK DIAGRAM OF TEST SETUP .............................................................................................................................. 10 SUMMARY OF TEST RESULTS ............................................................................................................................. 11 FCC §15.247 (i) & §1.1310 & §2.1093- RF EXPOSURE .......................................................................................... 12 APPLICABLE STANDARD ............................................................................................................................................ 12 FCC §15.203 - ANTENNA REQUIREMENT ........................................................................................................... 13 APPLICABLE STANDARD ............................................................................................................................................ 13 ANTENNA CONNECTOR CONSTRUCTION .................................................................................................................... 13 FCC §15.207 (a) – AC LINE CONDUCTED EMISSIONS ..................................................................................... 14 APPLICABLE STANDARD ............................................................................................................................................ 14 EUT SETUP ................................................................................................................................................................ 14 EMI TEST RECEIVER SETUP ....................................................................................................................................... 14 TEST PROCEDURE ...................................................................................................................................................... 15 CORRECTED AMPLITUDE & MARGIN CALCULATION ................................................................................................. 15 TEST EQUIPMENT LIST AND DETAILS ......................................................................................................................... 15 TEST DATA ................................................................................................................................................................ 16 FCC §15.209, §15.205 & §15.247(d) - SPURIOUS EMISSIONS ............................................................................. 18 APPLICABLE STANDARD ............................................................................................................................................ 18 EUT SETUP ................................................................................................................................................................ 18 EMI TEST RECEIVER & SPECTRUM ANALYZER SETUP .............................................................................................. 19 TEST PROCEDURE ...................................................................................................................................................... 19 CORRECTED AMPLITUDE & MARGIN CALCULATION ................................................................................................. 19 TEST EQUIPMENT LIST AND DETAILS ......................................................................................................................... 20 TEST DATA ............…

Text truncated - open the document above for the full version.

EXHIBIT D - TEST SETUP PHOTOGRAPHS Conducted Emission -front View Conducted Emission -Side View Radiated Emission Below 1GHz View Radiated Emission Above 1GHz View
