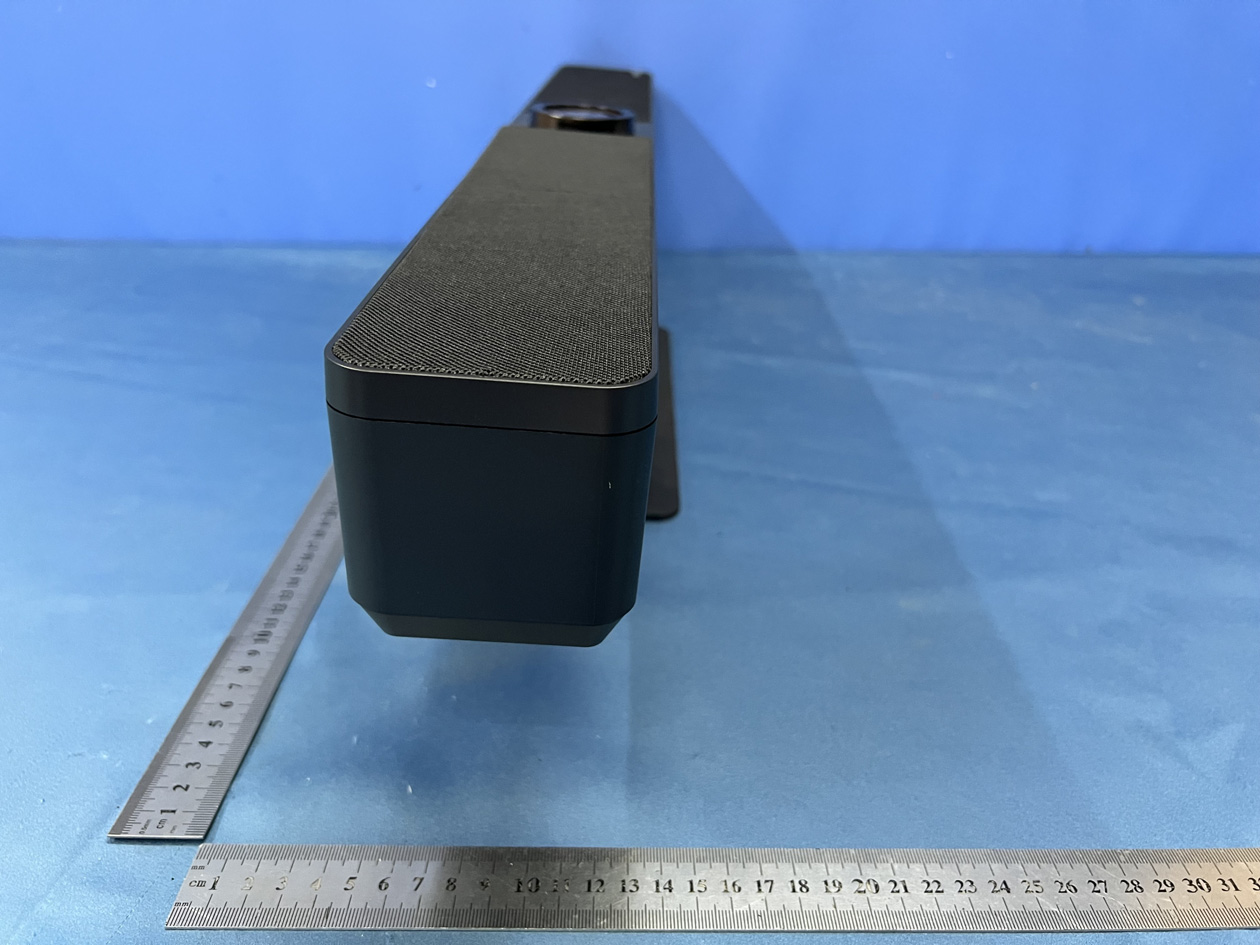

2A2CW-APO-VX20Video Bar

WyreStorm Apollo VX20 WyreStorm Apollo VX20 WyreStorm Apollo VX20 WyreStorm Apollo VX20 Connecting To Microsoft Teams To connect the WyreStorm Apollo VX20 to your Microsoft Teams software, first navigate to your settings pane which can be found by clicking on your display image in the top right hand corner, then click on the devices tab. Here you can change the device by using the dropdown menus. Select WyreStorm Apollo VX20 under the applicable options. WyreStorm Apollo VX20 WyreStorm Apollo VX20 WyreStorm Apollo VX20 Copyright © 2022 WyreStorm Technologies ProAV Corporation wyrestorm.com| ApolloVX20Quickstart Guide | 220907 INT: +44 (0) 1793 230 343 | US: 844.280.WYRE (9973) [email protected] 2 of 3 Software Device Setup Connecting To Zoom To connect the WyreStorm Apollo VX20 to your Zoom software, first navigate to your settings pane which can be found by clicking the gear icon in the top right hand corner, then click on the Audio or Video tab. Here you can change the device by using the dropdown menus. Select WyreStorm Apollo VX20 under the applicable options. APO-DG1 Pairing The Apollo VX20 is compatible with the optional APO-DG1 wireless casting dongle. To pair an APO-DG1 with the VX20, insert the USB-C connector of the dongle into the USB-C port on the right side of the video bar. A message will appear on the display connected to the VX20 saying "Pairing Dongle". Wait for the pairing process to complete before disconnecting the APO-DG1. Up to two dongles can be paired with a VX20. Extending the Microphone Pickup Range The APO-COM-MIC USB add-on microphone can be used to extend the microphone pickup range of the Apollo VX20 and can be cascaded to a maximum of 3 times. Connect the APO-COM-MIC to the USB port labeled "MIC" on the rear of the VX20. If longer distance is required between the VX20 and the APO-COM-MIC than the provided 7m USB cable, an optional USB to Ethernet extender (APO-MIC-EXT) can be used for up to 60m extension. APO-COM-MIC APO-MIC-EXT Accessing the Web UI By default the IP address is set to DHCP and will pull the IP address from a connected DHCP server. 1. Connect the Apollo VX20 to the same network as a DHCP server. 2. To find the IP address of the Apollo VX20, press and hold the Home button on the remote control and it will appear on the connected display. Alternatively, you can use a 3rd party network scanner to scan the network to find the IP address of the Apollo VX20. 3.Open a web browser and enter the IP Address of the Apollo VX20. 4.Default Username & Password are both admin Troubleshooting No or Poor Quality Picture (snow or noisy image) • Verify that WyreStorm Apollo VX20 has been selected in your software’s device settings • Verify that the device is not in standby • Verify that power is being supplied to the device • Verify that all connections are not loose and are functioning properly • Try using a different USB port on your computer No Audio Input or Output • Verify that WyreStorm Apollo VX20 has been selected in your software’s audio input/output settings • Verify that the volume and microphone settings in your software are not muted • Verify that the volume on your PC/Mac is not muted • Verify that the microphone settings on your PC/Mac are not muted This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. The distance between user and products should be no less than 20cm. We declare that this device is in compliance with the essential requirements and other relevant provisions of Directive 2014/53/EU. Manufacturer: Shen Zhen Proitav Technology Co.,Ltd Address: 301-401, Building 16, Hejing Industrial Park, No.87, Hexiu west Road, Zhancheng Community, Fuhai street, Baoan District, Shenzhen, China Operating temperature: 0°c to +40°c We declare that this device is in compliance with the essential requirements and other relevant provisions of Directive 2014/53/EU. The adapter shall be installed near the equipment and shall be easily accessible. Operation Frequency: 2412MHz~2462MHz for WIFI 2.4G; 5180MHz~5240MHz for WIFI 5G; 5745MHz~5805MHz for WIFI 5.8G 2402~2480MHz for BT-EDR 2402~2480MHz for BT-BLE Maximum Power: FCC:WIFI 2.4G 23.07dbm. WIFI 5G 16.91dbm. WIFI 5.8G 14.65dbm RED:WIFI 2.4G 16.30dbm(E.I.R.P). WIFI 5G 14.81dbm(E.I.R.P). WIFI 5.8G 13.78dbm(E.I.R.P) Bluetooth Classic: 2.94dbm(E.I.R.P). Bluetooth Low Energy (LE): 2.94dbm(E.I.R.P) Accessory: Bluetooth Remote Accessory Manufacturer: JIANGSU ASTARTE ELECTRONICS CO.,LTD Address of Manufacturer: FuYong Town, BaoanDistrict, Shenzhen, and love the new Homestead Industrial Park Accessory: AC Power Cord (EU/UK/US/AU) Accessory Manufacturer: Dongguan Hope Electronic Co.,Ltd Address of Manufacturer: Dongshadun, Xiansha industrial Avenue, Xiansha Village, Gaobu Town, Dongguan City, Guang Dong Province, China Accessory: Power Supply Accessory Manufacturer: Don…

Text truncated - open the document above for the full version.

Wyrestorm Technologies LLC Letter of Authorization Company: Wyrestorm Technologies LLC Address: 23 Wood Rd, Round Lake, New York 12151, United States Product Type: Video Bar Model Number(s): APO-VX20-UC(VB10-A00) Product Description: Video Bar We authorize MiCOM Labs Inc., 575 Boulder Court, Pleasanton, California 94566, USA, to act on our behalf on all matters concerning the certification of above named equipment. We declare that MiCOM Labs Inc. is allowed to forward all information related to the approval and certification of equipment to the regulatory agencies as required and to discuss any issues concerning the approval application. Any and all acts carried out by MiCOM Labs on our behalf shall have the same effect as acts of our own. Signature: Date: 2022-07-20 Name: Andrew R Herron Title: Product Development Manager Company: Wyrestorm Technologies LLC

Wyrestorm Technologies LLC Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 USA Date: 2022-07-20 FCC ID: 2A2CW-APO-VX20 To Whom It May Concern, Pursuant to the provisions of the Commission’s rules Title 47 Sections §0.457 and §0.459, we are requesting the Commission to withhold the following attachment(s) as confidential documents from public disclosure indefinitely. These documents contain detailed system and equipment descriptions and are considered as proprietary information in operation of the equipment. The public disclosure of these documents might be harmful to our company and would give competitors an unfair advantage in the market. Schematic Diagram Block Diagram Parts List Operational Description Tune-up Procedure FCC Software Security Requirements for UNII devices In additional to above mentioned documents, in order to comply with the marketing regulations in Title 47 CFR §2.803 and the importation rules in Title 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices, we request Short Term Confidentiality of the following attachment(s); External Photos Test Setup Photos Internal Photos User Manual For 45 days, pursuant to Public Notice DA 04-1705. OR For 180 days pursuantto KDB 726920 D01. It is our understanding that all measurement test reports, FCC ID label format and correspondence during the certification review process cannot be granted as confidential documents and this information will be available for public review once the grant of equipment authorization is issued. Sincerely, Signature: Name: Andrew R Herron Title: Product Development Manager

128 51

FCC ID: 2A2CW-APO-VX20 RF Exposure Evaluation Limits The criteria listed in the following table shall be used to evaluate the environment impact of human exposure to radio frequency (RF) radiation as specified in 1.1307(b) Limits for Maximum Permissible Exposure (MPE) Frequency range (MHz) Electric field strength (V/m) Magnetic field strength (A/m) Power density (mW/cm 2 ) Averaging time (minutes) (A) Limits for Occupational/Controlled Exposures 0.3–3.0 614 1.63 *(100) 6 3.0–30 1842/f 4.89/f *(900/f 2 ) 6 30–300 61.4 0.163 1.0 6 300–1500 f/300 6 1500–100,000 5 6 (B) Limits for General Population/Uncontrolled Exposure 0.3–1.34 614 1.63 *(100) 30 1.34–30 824/f 2.19/f *(180/f 2 ) 30 30–300 27.5 0.073 0.2 30 300–1500 f/1500 30 1500–100,000 1.0 30 f = frequency in MHz Friis transmission formula: Pd = (Pout*G)/(4*pi*r 2 ) Where Pd = power density in mW/cm 2 , Pout = output power to antenna in mW; G = gain of antenna in linear scale, Pi = 3.1416; R = distance between observation point and center of the radiator in cm Pd id the limit of MPE, 1 mW/cm 2 . If we know the maximum gain of the antenna and the total power input to the antenna, through the calculation, we will know the distance r where the MPE limit is reached. Test Procedure Software provided by client enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. FCC ID: 2A2CW-APO-VX20 Test Result of RF Exposure Evaluation WIFI 2.4G Channel Max output power to antenna (dBm) Output power to antenna (mW) Power Density at R=20cm (mW/cm 2 ) Limit (mW/cm 2 ) Result 2412MHz SISO(ANT 1) 20.98 125.31 0.0484 1.0 PASS 2412MHz MIMO 23.07 202.77 0.1308 1.0 PASS Antenna gain: ANT 1: 2.88dBi ANT 2: 1.25dBi MIMO: 5.11Bi WiFi 5Gmode Channel Max output power to antenna (dBm) Output power to antenna (mW) Power Density at R=20cm (mW/cm 2 ) Limit (mW/cm 2 ) Result 5200 MHz (802.11ac HT20 SISO) ANT 1 15.31 33.96 0.0116 1.0 PASS 5200 MHz (802.11ac HT20 MIMO) 16.91 49.09 0.0282 1.0 PASS Antenna gain: ANT 1: 2.34dBi ANT 2: 0.78dBi MIMO: 4.61dBi 5.8G mode Channel Max output power to antenna (dBm) Output power to antenna (mW) Power Density at R=20cm (mW/cm 2 ) Limit (mW/cm 2 ) Result 5745 MHz (802.11ac HT20 SISO) ANT 1 12.82 19.14 0.0084 1.0 PASS 5805 MHz (802.11ac HT20 MIMO) 14.65 29.17 0.0249 1.0 PASS Antenna gain: ANT 1: 3.45dBi ANT 2: 3.17dBi MIMO: 6.32dBi FCC ID: 2A2CW-APO-VX20 BT EDR mode Channel Max output power to antenna (dBm) Output power to antenna (mW) Power Density at R=20cm (mW/cm 2 ) Limit (mW/cm 2 ) Result 2402MHz 1.46 1.40 0.0003 1.0 PASS Antenna gain: -0.28dBi BLE mode Channel Max output power to antenna (dBm) Output power to antenna (mW) Power Density at R=20cm (mW/cm 2 ) Limit (mW/cm 2 ) Result 2402MHz 4.88 3.08 0.0006 1.0 PASS Antenna gain: -0.28dBi Remark: The max power density is less than MPE exempt limit, so it is compliance. Simultaneous transmitting is not supported.

Report No.: GTS202206000036F04 Global United Technology Services Co., Ltd. No. 123- 128, Tower A, Jinyuan Business Building, No.2, Laodong Industrial Zone, Xixiang Road, Baoan District, Shenzhen, Guangdong, China 518102 Telephone: +86 (0) 755 2779 8480 Fax: +86 (0) 755 2779 8960 Page 1 of 52 Appendix for 15.247 1. Bandwidth 1.1 OBW 1.1.1 Test Result Mode TX Type Frequency (MHz) Packet Type ANT 99% Occupied Bandwidth (MHz) Verdict Result GFSK SISO 2402 DH5 1 0.879 Pass 2441 DH5 1 0.879 Pass 2480 DH5 1 0.884 Pass π/4-DQPSK SISO 2402 2DH5 1 1.199 Pass 2441 2DH5 1 1.199 Pass 2480 2DH5 1 1.200 Pass 8-DPSK SISO 2402 3DH5 1 1.168 Pass 2441 3DH5 1 1.168 Pass 2480 3DH5 1 1.172 Pass Report No.: GTS202206000036F04 Global United Technology Services Co., Ltd. No. 123- 128, Tower A, Jinyuan Business Building, No.2, Laodong Industrial Zone, Xixiang Road, Baoan District, Shenzhen, Guangdong, China 518102 Telephone: +86 (0) 755 2779 8480 Fax: +86 (0) 755 2779 8960 Page 2 of 52 1.1.2 Test Graph GFSK_DH5_LCH_2402MHz_Ant1_NTNV GFSK_DH5_MCH_2441MHz_Ant1_NTNV Report No.: GTS202206000036F04 Global United Technology Services Co., Ltd. No. 123- 128, Tower A, Jinyuan Business Building, No.2, Laodong Industrial Zone, Xixiang Road, Baoan District, Shenzhen, Guangdong, China 518102 Telephone: +86 (0) 755 2779 8480 Fax: +86 (0) 755 2779 8960 Page 3 of 52 GFSK_DH5_HCH_2480MHz_Ant1_NTNV π/4-DQPSK_2DH5_LCH_2402MHz_Ant1_NTNV Report No.: GTS202206000036F04 Global United Technology Services Co., Ltd. No. 123- 128, Tower A, Jinyuan Business Building, No.2, Laodong Industrial Zone, Xixiang Road, Baoan District, Shenzhen, Guangdong, China 518102 Telephone: +86 (0) 755 2779 8480 Fax: +86 (0) 755 2779 8960 Page 4 of 52 π/4-DQPSK_2DH5_MCH_2441MHz_Ant1_NTNV π/4-DQPSK_2DH5_HCH_2480MHz_Ant1_NTNV Report No.: GTS202206000036F04 Global United Technology Services Co., Ltd. No. 123- 128, Tower A, Jinyuan Business Building, No.2, Laodong Industrial Zone, Xixiang Road, Baoan District, Shenzhen, Guangdong, China 518102 Telephone: +86 (0) 755 2779 8480 Fax: +86 (0) 755 2779 8960 Page 5 of 52 8-DPSK_3DH5_LCH_2402MHz_Ant1_NTNV 8-DPSK_3DH5_MCH_2441MHz_Ant1_NTNV Report No.: GTS202206000036F04 Global United Technology Services Co., Ltd. No. 123- 128, Tower A, Jinyuan Business Building, No.2, Laodong Industrial Zone, Xixiang Road, Baoan District, Shenzhen, Guangdong, China 518102 Telephone: +86 (0) 755 2779 8480 Fax: +86 (0) 755 2779 8960 Page 6 of 52 8-DPSK_3DH5_HCH_2480MHz_Ant1_NTNV Report No.: GTS202206000036F04 Global United Technology Services Co., Ltd. No. 123- 128, Tower A, Jinyuan Business Building, No.2, Laodong Industrial Zone, Xixiang Road, Baoan District, Shenzhen, Guangdong, China 518102 Telephone: +86 (0) 755 2779 8480 Fax: +86 (0) 755 2779 8960 Page 7 of 52 1.2 20dB BW 1.2.1 Test Result Mode TX Type Frequency (MHz) Packet Type ANT 20dB Bandwidth (MHz) Verdict Result GFSK SISO 2402 DH5 1 1.031 Pass 2441 DH5 1 1.031 Pass 2480 DH5 1 1.033 Pass π/4-DQPSK SISO 2402 2DH5 1 1.369 Pass 2441 2DH5 1 1.369 Pass 2480 2DH5 1 1.375 Pass 8-DPSK SISO 2402 3DH5 1 1.304 Pass 2441 3DH5 1 1.304 Pass 2480 3DH5 1 1.308 Pass Report No.: GTS202206000036F04 Global United Technology Services Co., Ltd. No. 123- 128, Tower A, Jinyuan Business Building, No.2, Laodong Industrial Zone, Xixiang Road, Baoan District, Shenzhen, Guangdong, China 518102 Telephone: +86 (0) 755 2779 8480 Fax: +86 (0) 755 2779 8960 Page 8 of 52 1.2.2 Test Graph GFSK_DH5_LCH_2402MHz_Ant1_NTNV GFSK_DH5_MCH_2441MHz_Ant1_NTNV Report No.: GTS202206000036F04 Global United Technology Services Co., Ltd. No. 123- 128, Tower A, Jinyuan Business Building, No.2, Laodong Industrial Zone, Xixiang Road, Baoan District, Shenzhen, Guangdong, China 518102 Telephone: +86 (0) 755 2779 8480 Fax: +86 (0) 755 2779 8960 Page 9 of 52 GFSK_DH5_HCH_2480MHz_Ant1_NTNV Pπ/4-DQPSK_2DH5_LCH_2402MHz_Ant1_NTNV Report No.: GTS202206000036F04 Global United Technology Services Co., Ltd. No. 123- 128, Tower A, Jinyuan Business Building, No.2, Laodong Industrial Zone, Xixiang Road, Baoan District, Shenzhen, Guangdong, China 518102 Telephone: +86 (0) 755 2779 8480 Fax: +86 (0) 755 2779 8960 Page 10 of 52 π/4-DQPSK_2DH5_MCH_2441MHz_Ant1_NTNV π/4-DQPSK_2DH5_HCH_2480MHz_Ant1_NTNV Report No.: GTS202206000036F04 Global United Technology Services Co., Ltd. No. 123- 128, Tower A, Jinyuan Business Building, No.2, Laodong Industrial Zone, Xixiang Road, Baoan District, Shenzhen, Guangdong, China 518102 Telephone: +86 (0) 755 2779 8480 Fax: +86 (0) 755 2779 8960 Page 11 of 52 8-DPSK_3DH5_LCH_2402MHz_Ant1_NTNV 8-DPSK_3DH5_MCH_2441MHz_Ant1_NTNV Report No.: GTS202206000036F04 Global United Technology Services Co., Ltd. No. 123- 128, Tower A, Jinyuan Business Building, No.2, Laodong Industrial Zone, Xixiang Road, Baoan District, Shenzhen, Guangdong, China 518102 Telephone: +86 (0) 755 2779 8480 Fax: +86 (0) 755 2779 8960 Page 12 of 52 8-DPSK_3DH5_HCH_2480MHz_Ant1_NTNV Report No.: GTS202206000036F04 Global United Technology Services Co., Ltd. No. 123- 128, Tower A, Jinyuan Business Building, No.2, Laodong Industrial Zone, Xixiang Road, Baoan District, Shenzhen, Guangdong, China 518102 Telephone: +86 (0) 755 2779 8480 Fax: +86 (0) 755 2779 8960 Page 13 of 52 2. Maximum Conducted Output Power 2.1 Power 2.1.1 Test Result Mode TX Type Frequency (MHz) Packet Type Maximum Peak Conducted Output Power (dBm) Verdict ANT1 Limit GFSK SISO 2402 DH5 -0.02 <=20.97 Pass 2441 DH5 -0.98 <=20.97 Pass 2480 DH5 -3.09 <=20.97 Pass π/4-DQPSK SISO 2402 2DH5 1.26 <=20.97 Pass 2441 2DH5 0.35 <=20.97 Pass 2480 2DH5 -1.66 <=20.97 Pass 8-DPSK SISO 2402 3DH5 1.46 <=20.97 Pass 2441 3DH5 0.58 <=20.97 Pass 2480 3DH5 -1.44 <=20.97 Pass Note1: Antenna Gain: Ant1: -0.28dBi; Report No.: GTS202206000036F04 Global United Technology Services Co., Ltd. No. 123- 128, Tower A, Jinyuan Business Building, No.2, Laodong Industrial Zone, Xixiang Road, Baoan District, Shenzhen, Guangdong, China 518102 Telephone: +86 (0) 755 2779 8480 Fax: +86 (0) 755 2779 8960 Page 14 of 52 2.1.2 Test Gr…

Text truncated - open the document above for the full version.

Product specification Quick Reference Date Antenna module on the system board Antenna type PCB Frequency 2.45GHz Gain(dBi) -0.28dBi Antenna Layout & module on the system board Antenna Gain Freq(MHz) Effi(%) Gain(dBi) 2400 20.97 -2.04 2410 21.07 -1.85 2420 26.54 -0.89 2430 29.51 -0.36 2440 28.85 -0.38 2450 26.32 -0.72 2460 27.86 -0.28 2470 25.28 -1.24 2480 23.02 -0.69 2490 21.37 -1.6 2500 22.19 -1.55 VSWR Frequency (MHz) 2400 2450 2500 VSWR 2.6 1.3 2.9 The Environment of Antenna Radiation Pattern H-plane-XY；E1-plane-XZ；E2-plane-YZ 3D radiation pattern diagram

Global United Technology Services Co., Ltd. Report No.: GTS202206000036F04 Authorized Signature: Robinson Luo Laboratory Manager This results shown in this test report refer only to the sample(s) tested, this test report cannot be reproduced, except in full, without prior written permission of the company. The report would be invalid without specific stamp of test institute and the signatures of compiler and approver. Page 1 of 35 TEST REPORT Applicant: Wyrestorm Technologies LLC Address of Applicant: 23 Wood Rd, Round Lake, New York 12151, United States Manufacturer/Factory: Shen Zhen Proitav Technology Co.,Ltd Address of Manufacturer/Factory: 301-401, Building 16, Hejing Industrial Park, No.87, Hexiu West Road, Zhancheng Community, Fuhai St., Baoan District, Shenzhen, China Equipment Under Test (EUT) Product Name: Video Bar Model No.: APO-VX20-UC(VB10-A00) Trade Mark: WyreStorm FCC ID: 2A2CW-APO-VX20 Applicable standards: FCC CFR Title 47 Part 15 Subpart C Section 15.247 Date of sample receipt: June 06, 2022 Date of Test: June 07, 2022-August 29, 2022 Date of report issued: August 29, 2022 Test Result : PASS * * In the configuration tested, the EUT complied with the standards specified above. Report No.: GTS202206000036F04 Global United Technology Services Co., Ltd. No. 123- 128, Tower A, Jinyuan Business Building, No.2, Laodong Industrial Zone, Xixiang Road, Baoan District, Shenzhen, Guangdong, China 518102 Telephone: +86 (0) 755 2779 8480 Fax: +86 (0) 755 2779 8960 Page 2 of 35 2 Version Version No. Date Description 00 August 29, 2022 Original Prepared By: Date: August 29, 2022 Project Engineer Check By: Date: August 29, 2022 Reviewer Report No.: GTS202206000036F04 Global United Technology Services Co., Ltd. No. 123- 128, Tower A, Jinyuan Business Building, No.2, Laodong Industrial Zone, Xixiang Road, Baoan District, Shenzhen, Guangdong, China 518102 Telephone: +86 (0) 755 2779 8480 Fax: +86 (0) 755 2779 8960 Page 3 of 35 3 Contents Page 1 COVER PAGE ........................................................................................................................................... 1 2 VERSION .................................................................................................................................................. 2 3 CONTENTS .............................................................................................................................................. 3 4 TEST SUMMARY ..................................................................................................................................... 4 5 GENERAL INFORMATION ...................................................................................................................... 5 5.1 GENERAL DESCRIPTION OF EUT ......................................................................................................... 5 5.2 TEST MODE ........................................................................................................................................ 7 5.3 DESCRIPTION OF SUPPORT UNITS ....................................................................................................... 7 5.4 DEVIATION FROM STANDARDS ............................................................................................................. 7 5.5 ABNORMALITIES FROM STANDARD CONDITIONS ................................................................................... 7 5.6 TEST FACILITY .................................................................................................................................... 7 5.7 TEST LOCATION ................................................................................................................................. 7 5.8 ADDITIONAL INSTRUCTIONS ................................................................................................................. 7 6 TEST INSTRUMENTS LIST ..................................................................................................................... 8 7 TEST RESULTS AND MEASUREMENT DATA .................................................................................... 10 7.1 ANTENNA REQUIREMENT ................................................................................................................... 10 7.2 CONDUCTED EMISSIONS ................................................................................................................... 11 7.3 CONDUCTED PEAK OUTPUT POWER .................................................................................................. 14 7.4 20DB EMISSION BANDWIDTH ............................................................................................................ 15 7.5 CARRIER FREQUENCIES SEPARATION ................................................................................................ 16 7.6 HOPPING CHANNEL NUMBER ............................................................................................................ 17 7.7 DWELL TIME ..................................................................................................................................... 18 7.8 SPURIOUS EMISSION IN NON-RESTRICTED & RESTRICTED BANDS ....................................................... 19 7.8.1 Conducted Emission Method ..................................................................................................... 19 7.8.2 Radiated Emission Method ........................................................................................................ 20 8 TEST SETUP PHOTO ............................................................................................................................ 35 9 EUT CONSTRUCTIONAL DETAILS ..................................................................................................... 35 Report No.: GTS202206000036F04 Global United Technology Services Co., Ltd. No. 123- 128, Tower A, Jinyuan Business Building, No.2, Laodong Industrial Zone, Xixiang Road, Baoan Distric…

Text truncated - open the document above for the full version.

Radiated Emission Conducted Emissions(AC port)
