2A2DZ-IPCAMERAIP Camera

Shenzhen Hiseeu Technolgy Co., Ltd
IP Camera - FCC ID 2A2DZ-IPCAMERA - Shenzhen Hiseeu Technolgy Co., Ltd
Click to zoom

Application Details

Equipment Class
DTS - Digital Transmission System
Date of Grant
Jun 27, 2021
Application Purpose
Original Equipment
Date of Application
Jun 27, 2021
Equipment Note
IP Camera
Frequency Range
2412.00000000 - 2462.00000000
Company
Shenzhen Hiseeu Technolgy Co., Ltd
Country
China

Documents & Files

Select a file to view

Users Manual

β†—

Attestation Statements

β†—

Cover Letter(s)

β†—
β†—

External Photos

β†—

ID Label/Location Info

β†—

Internal Photos

β†—

RF Exposure Info

β†—

Test Report

β†—

Test Setup Photos

β†—

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Any Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -Reorient or relocate the receiving antenna. -Increase the separation between the equipment and receiver. -Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -Consult the dealer or an experienced radio/TV technician for help. This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body.

Attestation Statements

Shenzhen Hiseeu Technolgy Co., Ltd Model Difference Product Name: IP Camera Model Number: TZ-HB312, TZ-HB612, TZ-HB613, TZ-HB612B, TZ-HB613B, TZ-HT822, TZ-HC913, TZ-HBK13, TZ-HB412, SFTZ-HB913, C10, C10+,C10-TZ, C10-TZ+, C20, C30, C40, GL-C10+, P20, FJ2C, BV50, WHD602Z, WHD103Z, WHD303, WHD203, WHD902A, WTD803, WTB503, TZ-HB612-B, TZ-HB612a, TZ-HB611, TZ-HB412B, AMZ-WHD902A, WHD702, WTDA03, SFWTD823, WHD403, WHD503, WHD603, WHD703, WHD803, TZ-HB113, TZ-HB213, TZ-HB513, TZ-HB713, TZ-HB813, C50, C60, C70, C80, C90 FCC Identifier: 2A2DZ-IPCAMERA All the models are the same circuit and RF module, except the mode names and outlook color. Regards Sincerely Client’s signature Client’s name / title: Hans Yi / Manager Contact information: K411, Jinhetian Business Center, No. 329, Longhuan 3rd Road, Longhua District, Shenzhen, Guangdong, China

Cover Letter(s)

Shenzhen Hiseeu Technolgy Co., Ltd 1/1 Letter of Authorization Company: Shenzhen Hiseeu Technolgy Co., Ltd Address:K411, Jinhetian Business Center, No. 329, Longhuan 3rd Road, Longhua District, Shenzhen, Guangdong, China Product Name: IP Camera Model Number: TZ-HB312, TZ-HB612, TZ-HB613, TZ-HB612B, TZ-HB613B, TZ-HT822, TZ-HC913, TZ-HBK13, TZ-HB412, SFTZ-HB913, C10, C10+, C10-TZ, C10-TZ+, C20, C30, C40, GL-C10+, P20, FJ2C, BV50, WHD602Z, WHD103Z, WHD303, WHD203, WHD902A, WTD803, WTB503, TZ-HB612-B, TZ-HB612a, TZ-HB611, TZ-HB412B, AMZ-WHD902A, WHD702, WTDA03, SFWTD823, WHD403, WHD503, WHD603, WHD703, WHD803, TZ-HB113, TZ-HB213, TZ-HB513, TZ-HB713, TZ-HB813, C50, C60, C70, C80, C90 FCC Identifier: 2A2DZ-IPCAMERA We authorize LGAI Technological Center S.A., Ronda de la Font del Carme, s/n, 08193 Bellaterra, Spain, to act on our behalf on all matters concerning the above named equipment. Any individual within LGAI Technological Center S.A. is authorized to act on our behalf and take action on the application. We declare that authorize LGAI Technological Center S.A., Ronda de la Font del Carme, s/n, 08193 Bellaterra, Spain, is allowed to forward all information related to the approval project to the Federal Communication Commission and to discuss any issues concerning the approval application. Any and all acts carried out by LGAI Technological Center S.A. on our behalf shall have the same effect as acts of our own. Name: Hans Yi Date: 2021-06-24 Title: Manager Signature of applicant:

Cover Letter(s)

Shenzhen Hiseeu Technolgy Co., Ltd 1/1 Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 Date: 2021-06-24 Subject: Request for Confidentiality FCC ID: 2A2DZ-IPCAMERA To Whom It May Concern, Pursuant to the provisions of Sections 0.457 and 0.459 of Commission's rules (47CFR0.457, 0.459), we are requesting the Commission to withhold the following attachment(s) as confidential document from public disclosure. Exhibits Long-Term Confidentiality Short-Term Confidentiality NOTE 2 ID Label/Location No No Attestation Statement No No External Photos No ☐ Block Diagram β˜’ ☐ Schematics β˜’ ☐ Test Report No No Test Setup Photos No ☐ User’s Manual No ☐ Internal Photos No ☐ Parts List / Tune Up ☐ ☐ RF Exposure Info No No Operational Description β˜’ ☐ Cover Letter(s) No No SDR Software / Security Info ☐ No NOTE 1: Long-Term Confidentiality may be permitted under special conditions (See II. LONG-TERM CONFIDENTIALITY, Section 3 of KDB 726920, use last in force) NOTE 2: Short-Term Confidentiality can be requested for a maximum of 180 days from the date of the grant. Above mentioned document contains detailed system and equipment description are considered as proprietary information in operation of the equipment. The public disclosure of above documents might be harmful to our company and would give competitor an unfair advantage in the market. It is our understanding that all measurement test reports, FCC ID label format and correspondent during certification review process cannot be granted as confidential documents and those information will be available for public review once the grant of equipment authorization is issued. Sincerely, Signature: Name: Hans Yi Title: Manager

External Photos

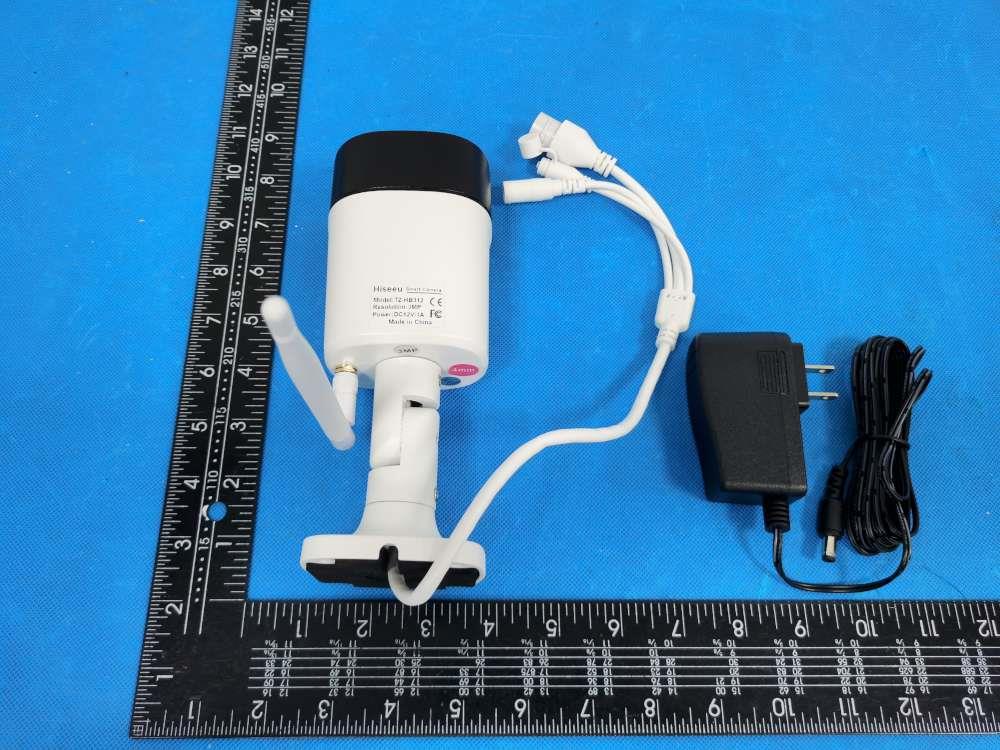

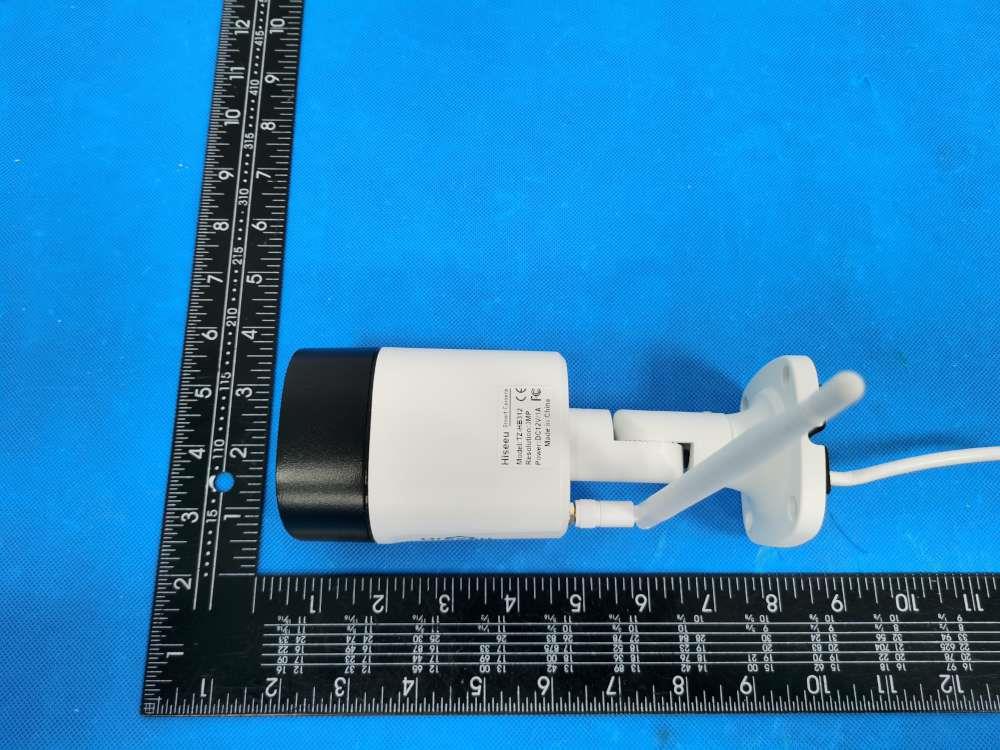

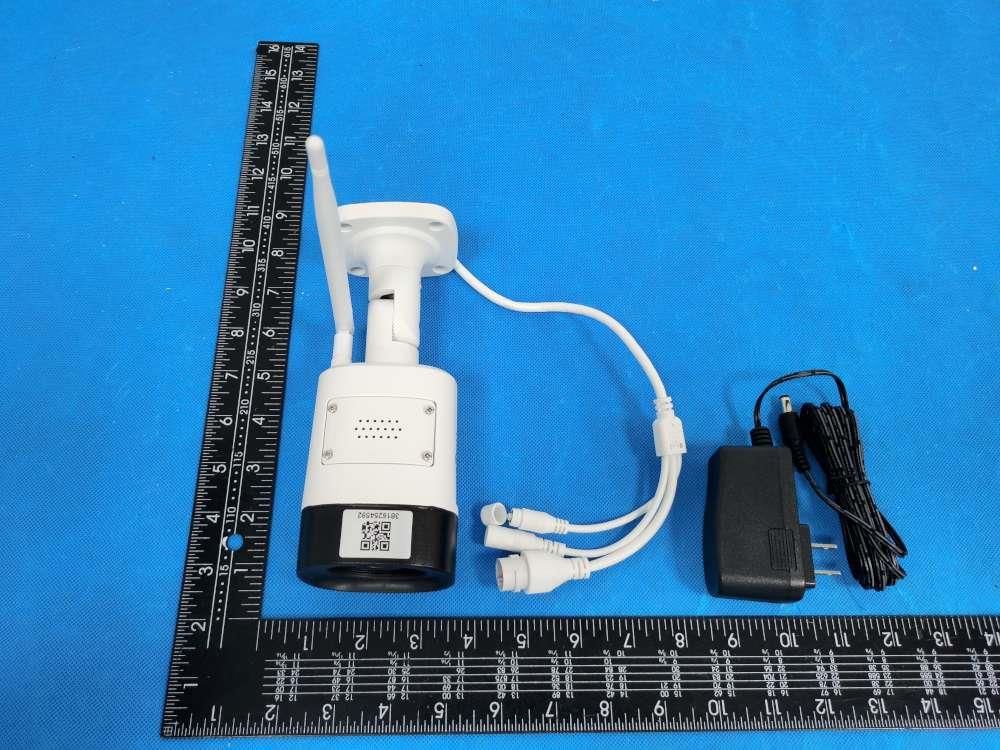

EUT PHOTO(External Photos) ANT 1 Photo s

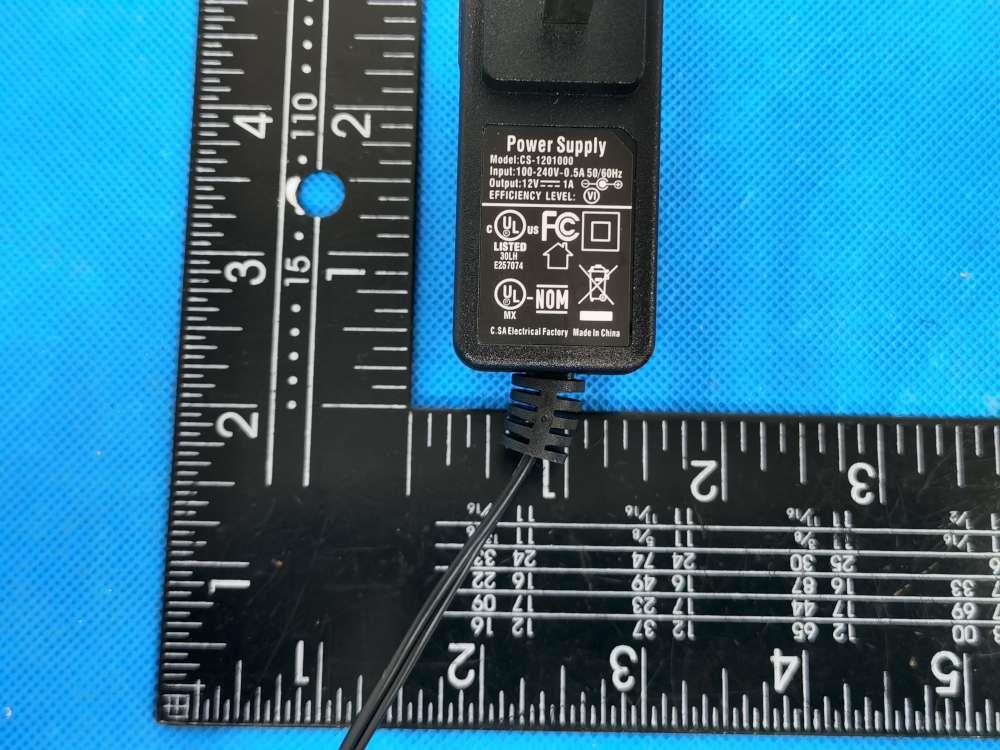

ID Label/Location Info

Size:10.5*7.5mm M/N: TZ-HB312 FCC ID: 2A2DZ-IPCAMERA Label location

Internal Photos

EUT PHOTO(Internal Photos) β€»β€»β€»β€»β€» END OF REPORT β€»β€»β€»β€»β€»

RF Exposure Info

FCC ID: 2A2DZ-IPCAMERA RF Exposure Evaluation Limits The criteria listed in the following table shall be used to evaluate the environment impact of human exposure to radio frequency (RF) radiation as specified in 1.1307(b) Limits for Maximum Permissible Exposure (MPE) Frequency range (MHz) Electric field strength (V/m) Magnetic field strength (A/m) Power density (mW/cm 2 ) Averaging time (minutes) (A) Limits for Occupational/Controlled Exposures 0.3–3.0 614 1.63 *(100) 6 3.0–30 1842/f 4.89/f *(900/f 2 ) 6 30–300 61.4 0.163 1.0 6 300–1500 f/300 6 1500–100,000 5 6 (B) Limits for General Population/Uncontrolled Exposure 0.3–1.34 614 1.63 *(100) 30 1.34–30 824/f 2.19/f *(180/f 2 ) 30 30–300 27.5 0.073 0.2 30 300–1500 f/1500 30 1500–100,000 1.0 30 f = frequency in MHz Friis transmission formula: Pd = (Pout*G)/(4*pi*r 2 ) Where Pd = power density in mW/cm 2 , Pout = output power to antenna in mW; G = gain of antenna in linear scale, Pi = 3.1416; R = distance between observation point and center of the radiator in cm Pd id the limit of MPE, 1 mW/cm 2 . If we know the maximum gain of the antenna and the total power input to the antenna, through the calculation, we will know the distance r where the MPE limit is reached. Test Procedure Software provided by client enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. Test Result of RF Exposure Evaluation wifi mode Channel Output power to antenna (dBm) Output power to antenna (mW) Power Density at R=20cm (mW/cm 2 ) Limit (mW/cm 2 ) Result Lowest 8.471 7.032 0.0042 1.0 PASS Middle 8.565 7.186 0.0043 1.0 PASS Highest 7.962 6.255 0.0037 1.0 PASS Remark: antenna gain=3dBi

Test Report

Project No.: ZKT-210610L2485E Page 1 of 56 FCC TEST REPORT FCC ID:2A2DZ-IPCAMERA Report Number. .............................. : ZKT-210610L2485E Date of Test ................................................. : Jun. 05, 2021 to Jun. 17, 2021 Date of issue .................................... : Jun. 17, 2021 Total number of pages ...................... 55 Test Result ....................................... : PASS Testing Laboratory. ........................ : Shenzhen ZKT Technology Co., Ltd. Address .......................................... : 1/F, No. 101, Building B, No. 6, Tangwei Community Industrial Avenue, Fuhai Street, Bao'an District, Shenzhen, China Applicant's name ......................... : Shenzhen Hiseeu Technolgy Co., Ltd Address .......................................... : K411, Jinhetian Business Center, No. 329, Longhuan 3rd Road, Longhua District, Shenzhen, Guangdong, China Manufacturer's name ................... : Shenzhen Hiseeu Technolgy Co., Ltd Address .......................................... : K411, Jinhetian Business Center, No. 329, Longhuan 3rd Road, Longhua District, Shenzhen, Guangdong, China Test specification: Standard .......................................... : FCC CFR Title 47 Part 15 Subpart C Section 15.247 ANSI C63.10:2013 Test procedure ................................. : / Non-standard test method ............. : N/A Test Report Form No. .................... : TRF-EL-110_V0 Test Report Form(s) Originator .... : ZKT Testing Master TRF .................................... : Dated: 2020-01-06 This device described above has been tested by ZKT, and the test results show that the equipment under test (EUT) is in compliance with the FCC requirements. And it is applicable only to the tested sample identified in the report. This report shall not be reproduced except in full, without the written approval of ZKT, this document may be altered or revised by ZKT, personal only, and shall be noted in the revision of the document. Product name ................................. : IP Camera Trademark ...................................... : N/A Model/Type reference ...................... : TZ-HB312 TZ-HB612, TZ-HB613, TZ-HB612B, TZ-HB613B, TZ-HT822, TZ-HC913, TZ-HBK13, TZ-HB412, SFTZ-HB913, C10, C10+,C10-TZ, C10-TZ+, C20, C30, C40, GL-C10+, P20, FJ2C, BV50, WHD602Z, WHD103Z, WHD303, WHD203, WHD902A, WTD803, WTB503, TZ-HB612-B, TZ-HB612a, TZ-HB611, TZ-HB412B, AMZ-WHD902A, WHD702, WTDA03, SFWTD823, WHD403, WHD503, WHD603, WHD703, WHD803, TZ-HB113, TZ-HB213, TZ-HB513, TZ-HB713, TZ-HB813, C50, C60, C70, C80, C90 Ratings ............................................. : DC 12V from Adapter Project No.: ZKT-210610L2485E Page 2 of 56 Testing procedure and testing location: Testing Laboratory ................................... : Shenzhen ZKT Technology Co., Ltd. Address ...................................................... : 1/F, No. 101, Building B, No. 6, Tangwei Community Industrial Avenue, Fuhai Street, Bao'an District, Shenzhen, China Alen He Tested by (name + signature) .................... : Joe Liu Reviewer (name + signature) ..................... : Lake Xie Approved (name + signature) .................... : Project No.: ZKT-210610L2485E Page 3 of 56 Table of Contents Page 1. VERSION ..................................................................................................................... 5 2. SUMMARY OF TEST RESULTS .................................................................................. 6 2.1 TEST FACILITY ............................................................................................................... 7 2.2 MEASUREMENT UNCERTAINTY ................................................................................... 7 3. GENERAL INFORMATION .......................................................................................... 8 3.1 GENERAL DESCRIPTION OF EUT................................................................................. 8 3.2 DESCRIPTION OF TEST MODES ................................................................................... 9 3.3 BLOCK DIGRAM SHOWING THE CONFIGURATION OF SYSTEM TESTED ................ 9 3.4 DESCRIPTION OF SUPPORT UNITS(CONDUCTED MODE) ....................................... 10 3.5EQUIPMENTS LIST FOR ALL TEST ITEMS .................................................................. 10 4. EMC EMISSION TEST ............................................................................................... 11 4.1 CONDUCTED EMISSION MEASUREMENT ................................................................. 11 4.1.1 POWER LINE CONDUCTED EMISSION Limits ................................................... 11 4.1.2 TEST PROCEDURE .............................................................................................. 11 4.1.3 DEVIATION FROM TEST STANDARD .................................................................. 12 4.1.4 TEST SETUP ......................................................................................................... 12 4.1.5 EUT OPERATING CONDITIONS ........................................................................... 12 4.1.6 TEST RESULT ....................................................................................................... 12 4.2 RADIATED EMISSION MEASUREMENT ...................................................................... 15 4.2.1 RADIATED EMISSION LIMITS .............................................................................. 15 4.2.2 TEST PROCEDURE .............................................................................................. 15 4.2.3 DEVIATION FROM TEST STANDARD .................................................................. 16 4.2.4 TEST SETUP ......................................................................................................... 16 4.2.5 EUT OPERATING CONDITIONS ........................................................................... 17 4.2.6 TEST RESULTS ......................…

Text truncated - open the document above for the full version.

Test Setup Photos

EUT TEST PHOTO

Contact Information

Applicant

Hans Yi
[email protected]18826978584Fax: 18826978584

Technical Contact

Shenzhen ZKT Technology Co., Ltd.Lake xie
[email protected]0086-400 000 9970

Shenzhen Β· China

Test Firm

Shenzhen ZKT Technology Co., Ltd.Lake Xie
[email protected]0086-13620010775

Technical Specifications

#Rule PartsFrequency RangePower Output
115C2.41 GHz - 2.46 GHz7.20 mW
Confidentiality
Long Term
Grant Notes
Output power listed is conducted. The antenna(s) used for thistransmitter must be installed to provide a separation distance of at least 20cm from all persons. End-users must be provided with operating procedures for satisfying RF exposure compliance. The device contains 20MHz and 40MHz bandwidth.
