2A2E6-SUPER20Graphene fast charge power bank

1 0 0 % Name SUPER 20 Fast Charge Graphene Power Bank Material ABS+PC Color Black Weight 545g Battery Capacity 3.7V/20000mAh(74Wh) Rated
Output Capacity 5V/13000mAh(65Wh) Battery Type 18650 Graphene-Li Fast charge battery Input(C1) 5V/1A，9V/1.1A (10W，Including Apple7.5W） C1 Output Specification Size 193*83*25mm A B C D E F A: C1 IN/OUT B: C2 OUT C: USB OUT D: Power Display E: Power Button F: Wirless Output PD2.0 5V/3A, 9V/3A, 12V/3A, 15V/3A, 20V/5.0A （Max 100W） QC2.0 5V/3A, 9V/2A, 12V/1.5A （Max 18W） QC3.0： 5V/3A, 9V/2A, 12V/1.5A （18W）Max AFC：5V/3A, 9V/2A,12V/1.5A （18W） Max FCP：5V/3A, 9V/2A,

18W）( Max PD2.0 5V/3A, 9V/3A, 12V/3A, 15V/3A, 20V/5.0A （Max 100W） QC2.0 5V/3A, 9V/2A, 12V/1.5A （Max 18W） C2 Output PD2.0 5V/3A, 9V/3A, 12V/3A, 15V/3A, 20V/2.25A






（

45W）Max QC3.0 5V/3A, 9V/2A, 12V/1.5A






（18W）Max USB Output Wireless Output Working Temperature Certification Carried Standard Warranty -20°C - 70°C FCC CE ROHS GB/T 35590-2017 1 Year The Type-C (C1) port of the power bank supports 5W-100W power input. Users can use PD Type-C charger and USB-C charger to charge the power bank. 1) Use PD Type-C charger.( The power bank supports PD2.0 input, supports 5V/3A (max, 9V/3A (max), 12V/3A (max), 15V/3A (max), 20V/5A (max) different voltages and currents (power) ), any PD Type-C charger with the above power can be used to Power bank charging. The greater the input power, the faster the charging time of the mobile power supply. The fastest charging time of the mobile power supply is about 60 minutes. (2) Use a USB-C charger or charging cable. In addition to the PD Type-C charger, users can also use the USB-C charger and charging cable to charge the power bank. The USB-C input supports QC fast charge protocol up to 18W. —1— —2— 2. To Charge The Power Bank 1. Product Feature and Specification APPEAR INC. Tel: :(415)967-9960 Email:[email protected] Web: www.appearhome.com Add: APPEAR INCONE MARKET STREETONE MARKET, SPEAR TOWER, 36TH FLOOR, SAN FRANCISCO, CALIFORNIA, 94105 ·Do not charge other devices while charging the power bank. ·Please do not charge the power bank with power over 100W. ·Do not put this product in high temperatures, damp environments, or expose it to direct sunlight. ·Do not place this product near flammable substances, high-pressure equipment or heaters. ·Do not throw, squeeze, disassemble or pierce the power bank ·Please do not make contact with the power bank when your body is wet. ·Do not throw this product in fire, water, or corrosive liquid. ·This product was built-in battery. The battery may be dangerous under certain circumstances, so it is not suitable for specific groups of people. These groups include, but are not limited to: Children, those with limited physical or mental functions. If any issue in using process, please contact with local distributor or send us Email at [email protected]. MADE
IN
CHINA Please Tear off The Warranty Card Along The Dotted Line And Keep It Sales Date Product Model Distributor Distributor address Distributor telephone Problem description Warranty Card of SUPER 20 Power Bank The warranty terms 1. The product is provided with a one-year free warranty from the date of sale. Beyond the warranty period, the cost price for maintenance is will be charged. 2. The product damaged by human and force majeure factors does not belong to warranty. 3. If it is damaged because of unfollowing the instructions, the factory will not provide replaced or repaired services. 4. This card is the certificate for warranty, please keep it properly. 5. The company reserves the right to modify and interpret all content. 5. Precautions —4— To ensure safety using, please take note of the following precautions: SUPER 20 USER GUIDE To ensure right and safe use the product, please read the user guide carefully before using this product. 3. To Charge Other Devices The output of SUPER 20 is four independent outputs, namely C1, C2, USB and wireless charging four output ports. The maximum output of each channel and the supported protocol are detailed in the basic parameters on page 1 above. (1) Charge the smartphones All 4 output ports can be used to charge mobile phones. When using, you only need to connect one end of the charging cable to the C1/C2/USB port of the power bank, and the other end to the mobile phone charging port. The power bank can intelligently identify the power required by the mobile phone. Corresponding voltage and current output; When using wireless charging to charge the phone, the phone itself needs to support the wireless charging protocol to directly charge the phone; if the phone itself does not have the wireless charging function, you need to add a wireless receiver to the phone to use it. can Support 4 mobile phones to charge at the same time. (2) Charge the laptop Both the C1 and C2 output ports of the power bank can be used to charge the laptop. The maximum output power of the C1 port is 100W, and the maximum output power of the C2 port is 45W (see the basic parameters on page 1 for details). There are two situations for charging a laptop, one is a laptop with a Type-C charging interface, and the other is a laptop with a non-Type-C charging interface. * When charging a laptop with a Type-C charging port, you only need to connect one end of the original CC of the laptop (that is, both ends of the charging cable are Type-C ports) to the laptop charging port, and the other end to the power bank C1 or The C2 interface can charge the laptop. When charging, the power bank automatically recognizes the power required by the laptop to match the corresponding charging current and voltage. * When charging a non-Type-C interface notebook computer, because the non-Type-C interface is a non-standard DC interface and there are many interface types, the power bank cannot directly charge this type of notebook computer; when charging, the user needs to be based on their own Laptop interface type and power use a Type-C to DC adapter cable to convert th…

Text truncated - open the document above for the full version.

C5266091_X8_Ed.1 1/1 Letter of Authorization <Appear Inc.> Company:Appear Inc. Address:APPEAR INC, ONE MARKET STREET, ONE MARKET,SPEAR TOWER, 36TH FLOOR,SAN FRANCISCO,California,United States Product Name: Graphene fast charge power bank Model Number: SUPER 20 FCC Identifier:2A2E6-SUPER20 We authorize LGAI Technological Center S.A., Ronda de la Font del Carme, s/n, 08193 Bellaterra, Spain, to act on our behalf on all matters concerning the above named equipment. Any individual within LGAI Technological Center S.A. is authorized to act on our behalf and take action on the application. We declare that authorize LGAI Technological Center S.A., Ronda de la Font del Carme, s/n, 08193 Bellaterra, Spain, is allowed to forward all information related to the approval project to the Federal Communication Commission and to discuss any issues concerning the approval application. Any and all acts carried out by LGAI Technological Center S.A. on our behalf shall have the same effect as acts of our own. Name: Candy Liu Date: 2021-06-28 Title: N/A Signature of applicant:

C5266091_X10_Ed.1 1/1 < Appear Inc.> Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 Date: 2021-06-28 Subject: Request for Confidentiality FCC ID: 2A2E6-SUPER20 To Whom It May Concern, Pursuant to the provisions of Sections 0.457 and 0.459 of Commission's rules (47CFR0.457, 0.459), we are requesting the Commission to withhold the following attachment(s) as confidential document from public disclosure. Exhibits Long-Term Confidentiality Short-Term Confidentiality ID Label/Location No No Attestation Statement No No External Photos No Block Diagram Schematics Test Report No No Test Setup Photos No User’s Manual Internal Photos Parts List / Tune Up RF Exposure Info Operational Description Cover Letter(s) No No SDR Software / Security Info No Above mentioned document contains detailed system and equipment description are considered as proprietary information in operation of the equipment. The public disclosure of above documents might be harmful to our company and would give competitor an unfair advantage in the market. It is our understanding that all measurement test reports, FCC ID label format and correspondent during certification review process cannot be granted as confidential documents and those information will be available for public review once the grant of equipment authorization is issued. Sincerely, Signature: Name: Candy Liu Title: N/A

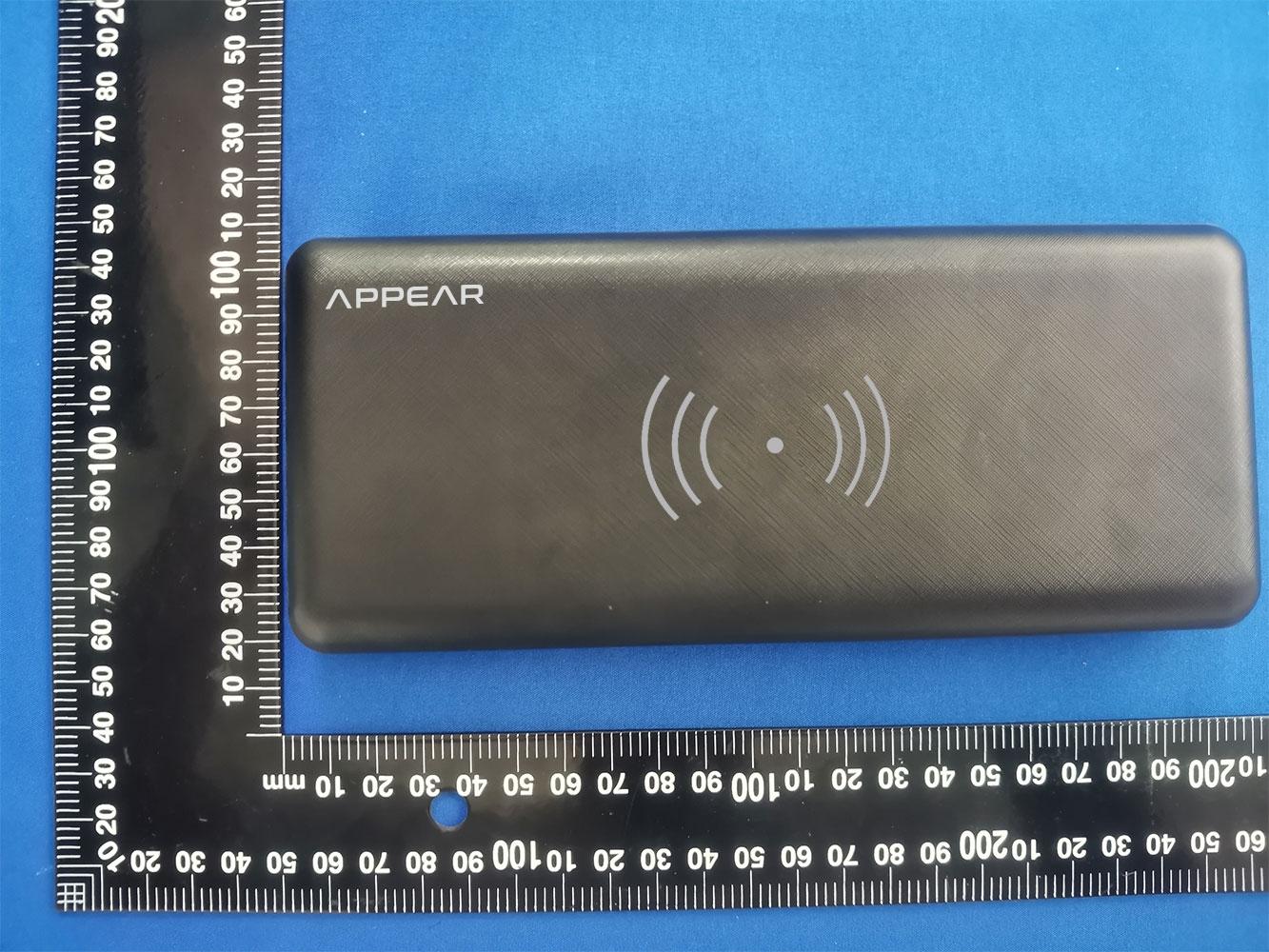

EUTPHOTO(ExternalPhotos)

Label and label location Graphene fast charge power bank FCC ID:2A2E6-SUPER20

EUTPHOTO(InternalPhotos) ANT ※※※※※ENDOFREPORT※※※※※

FCCID:2A2E6-SUPER20 RFExposureEvaluation 1MeasuringStandard KDB680106RFExposureWirelessChargingAppsv03r01 2Requirements Accordingtotheitem5ofKDB680106v03r01: Inductivewirelesspowertransferapplicationsthatmeetallofthefollowingrequirementsareexcludedfrom submittinganRFexposureevaluation. (1)Powertransferfrequencyislessthan1MHz. (2)Outputpowerfromeachprimarycoilislessthanorequalto15watts. (3)Thesystemmayconsistofmorethanonesourceprimarycoils,chargingoneormoreclients.Ifmorethan oneprimarycoilispresent,thecoilpairsmaybepoweredonatthesametime. (4)Clientdeviceisplaceddirectlyincontactwiththetransmitter. (5)Mobileexposureconditionsonly(portableexposureconditionsarenotcoveredbythisexclusion). (6)TheH-fieldandE-Filedstrengthsanywhereatorbeyond10cmto2cmatiteration,i.e.atadistanceof 10cm,9cm,8cm,.....2cmawayfromthesurfacefromallcoilsthatbydesigncansimultaneouslytransmit,and whilethosecoilsaresimultaneouslyenergized,aredemonstratedtobelessthan10%oftheapplicableMPE limit. Remark:Meetalltheaboverequirements. Limits Thecriterialistedinthefollowingtableshallbeusedtoevaluatetheenvironmentimpactofhumanexposure toradiofrequency(RF)radiationasspecifiedin1.1307(b) LimitsforMaximumPermissibleExposure(MPE) 3TestSetup 4TestProcedure 1)TheRFexposuretestwasperformedinanechoicchamber. 2)Themeasurementprobewasplacedattestdistance(2-10cmfromallsidesand2-10cmfromthetop) whichisbetweentheedgeofthechargerandthegeometriccenterofprobe. 3)Thehighestemissionlevelwasrecordedandcomparedwithlimitassoonasmeasurementofeachpoints (A,B,C,D,E)werecompleted. 4)TheEUTwasmeasuredaccordingtothedictatesofKDB680106v03r01. Remark：TheEUT’stestpositionA,B,C,DandEisvalidfortheEandHfieldmeasurements. 5TestInstrumentslist TestEquipmentManufacturerModelNo.SN. Cal.Date (mm-dd-yy) Cal.Duedate (mm-dd-yy) ExposureLevelTesterNardaELT-400N-0231June.262020June.252021 Magneticfieldprobe 100cm 2 NardaELTprobe100cm 2 M0675June.262020June.252021 6TestResult E-FiledStrengthat10cmfromtheedgessurroundingtheEUT(V/m) FrequencyRange (MHz) Test PositionA Test PositionB Test PositionC Test PositionD Limits (V/m) 0.110-0.2050.730.720.720.71614 E-FiledStrengthat10cmfromthetopoftheEUT(V/m) FrequencyRange (MHz) Test PositionE Limits (V/m) 0.110-0.2050.71614 E-FiledStrengthat9cmfromtheedgessurroundingtheEUT(V/m) FrequencyRange (MHz) Test PositionA Test PositionB Test PositionC Test PositionD Limits (V/m) 0.110-0.2050.740.730.730.74614 E-FiledStrengthat9cmfromthetopoftheEUT(V/m) FrequencyRange (MHz) Test PositionE Limits (V/m) 0.110-0.2050.73614 E-FiledStrengthat8cmfromtheedgessurroundingtheEUT(V/m) FrequencyRange (MHz) Test PositionA Test PositionB Test PositionC Test PositionD Limits (V/m) 0.110-0.2050.750.760.770.76614 E-FiledStrengthat8cmfromthetopoftheEUT(V/m) FrequencyRange (MHz) Test PositionE Limits (V/m) 0.110-0.2050.77614 E-FiledStrengthat7cmfromtheedgessurroundingtheEUT(V/m) FrequencyRange (MHz) Test PositionA Test PositionB Test PositionC Test PositionD Limits (V/m) 0.110-0.2050.810.790.820.81614 E-FiledStrengthat7cmfromthetopoftheEUT(V/m) FrequencyRange (MHz) Test PositionE Limits (V/m) 0.110-0.2050.82614 E-FiledStrengthat6cmfromtheedgessurroundingtheEUT(V/m) FrequencyRange (MHz) Test PositionA Test PositionB Test PositionC Test PositionD Limits (V/m) 0.110-0.2050.870.870.870.88614 E-FiledStrengthat6cmfromthetopoftheEUT(V/m) FrequencyRange (MHz) Test PositionE Limits (V/m) 0.110-0.2050.87614 E-FiledStrengthat5cmfromtheedgessurroundingtheEUT(V/m) FrequencyRange (MHz) Test PositionA Test PositionB Test PositionC Test PositionD Limits (V/m) 0.110-0.2050.940.920.930.92614 E-FiledStrengthat5cmfromthetopoftheEUT(V/m) FrequencyRange (MHz) Test PositionE Limits (V/m) 0.110-0.2050.93614 E-FiledStrengthat4cmfromtheedgessurroundingtheEUT(V/m) FrequencyRange (MHz) Test PositionA Test PositionB Test PositionC Test PositionD Limits (V/m) 0.110-0.2050.960.950.970.96614 E-FiledStrengthat4cmfromthetopoftheEUT(V/m) FrequencyRange (MHz) Test PositionE Limits (V/m) 0.110-0.2050.97614 E-FiledStrengthat3cmfromtheedgessurroundingtheEUT(V/m) FrequencyRange (MHz) Test PositionA Test PositionB Test PositionC Test PositionD Limits (V/m) 0.110-0.2050.980.980.970.97614 E-FiledStrengthat3cmfromthetopoftheEUT(V/m) FrequencyRange (MHz) Test PositionE Limits (V/m) 0.110-0.2050.99614 E-FiledStrengthat2cmfromtheedgessurroundingtheEUT(V/m) FrequencyRange (MHz) Test PositionA Test PositionB Test PositionC Test PositionD Limits (V/m) 0.110-0.2051.031.041.041.03614 E-FiledStrengthat2cmfromthetopoftheEUT(V/m) FrequencyRange (MHz) Test PositionE Limits (V/m) 0.110-0.2051.05614 H-FiledStrengthat10cmfromtheedgessurroundingtheEUT(A/m) FrequencyRange (MHz) Test PositionA Test PositionB Test PositionC Test PositionD Limits (A/m) 0.110-0.2050.020.030.040.031.63 H-FiledStrengthat10cmfromthetopoftheEUT(A/m) FrequencyRange (MHz) Test PositionE Limits (A/m) 0.110-0.2050.031.63 H-FiledStrengthat9cmfromtheedgessurroundingtheEUT(A/m) FrequencyRange (MHz) Test PositionA Test PositionB Test PositionC Test PositionD Limits (A/m) 0.110-0.2050.070.070.070.061.63 H-FiledStrengthat9cmfromthetopoftheEUT(A/m) FrequencyRange (MHz) Test PositionE Limits (A/m) 0.110-0.2050.071.63 H-FiledStrengthat8cmfromtheedgessurroundingtheEUT(A/m) FrequencyRange (MHz) Test PositionA Test PositionB Test PositionC Test PositionD Limits (A/m) 0.110-0.2050.070.080.060.061.63 H-FiledStrengthat8cmfromthetopoftheEUT(A/m) FrequencyRange (MHz) Test PositionE Limits (A/m) 0.110-0.2050.071.63 H-FiledStrengthat7cmfromtheedgessurroundingtheEUT(A/m) FrequencyRange (MHz) Test PositionA Test PositionB Test PositionC Test PositionD Limits (A/m) 0.110-0.2050.090.090.090.101.63 H-FiledStrengthat7cmfromthetopoftheEUT(A/m) FrequencyRange (MHz) Test PositionE Limits (A/m) 0.110-0.2050.111.63 H-FiledStrengthat6cmfromtheedgessurroundingtheEUT(A/m) FrequencyRange (MHz) Test PositionA Test PositionB Test PositionC Test PositionD Limits (A/m) 0.110-0.2050.110.110.120.101.63 H-FiledStrengthat6cmfromthetopoftheEUT(A/m) FrequencyRange (MHz) Test PositionE Limits (…
