2A2EB-V20Smartphone

Speaker 7 Press the power button to put your phone to sleep. Press the power button again to wake your phone up, then swipe upwards to unlock the screen. 8 9 10 11 12 13 14 15 17 18 20 21 Touch to manage apps notiication. You can set permission of apps notiication, the authority to show the notiications on lacked screen, etc. 25 26

System Settings 1.6 FCC Hearing Aid Compatibility (HAC) Regulations for Wireless Devices The U.S. Federal Communications Commission (FCC) has established requirements for digital wireless mobile devices to be compatible with hearing aids and other assistive hearing devices. When individuals employing some assistive hearing devices (hearing aids and cochlear implants) use wireless mobile devices, they may detect a buzzing, humming, or whining noise. Some hearing devices are more immune than others to this interference noise, and mobile devices also vary in the amount of interference they generate. The wireless telephone industry has developed a rating system for wireless mobile devices to assist hearing device users find mobile devices that may be compatible with their hearing devices. Not all mobile devices have been rated. Mobile devices that are rated have the rating on their box or a label located on the box. The ratings are not guarantees. Results will vary depending on the user's hearing device and hearing loss. If your hearing device happens to be vulnerable to interference, you may not be able to use a rated mobile device successfully. Trying out the mobile device with your hearing device is the best way to evaluate it for your personal needs. M-Ratings: Wireless mobile devices rated M3 or M4 meet FCC requirements and are likely to generate less interference to hearing devices than mobile devices that are not labeled. M4 is the better/higher of the two ratings. M-ratings refer to enabling acoustic coupling with hearing aids that do not operate in telecoil mode. T-Ratings: Mobile devices rated T3 or T4 meet FCC requirements and are likely to generate less interference to hearing devices than mobile devices that are not labeled. T4 is the better/higher of the two ratings. T-ratings refer to enabling inductive coupling with hearing aids operating in telecoil mode. Hearing devices may also be rated. Your hearing aid manufacturer or hearing health professional may help you find this rating. Higher ratings mean that the hearing device is relatively immune to interference noise. Under the current industry standard, American National Standards Institute (ANSI) C63.19, the hearing aid and wireless mobile device rating values are added together to indicate how usable they are together. For example, if a hearing aid meets the M2 level rating and the wireless mobile device meets the M3 level rating, the sum of the two values equals M5. Under the standard, this should provide the hearing aid user with normal use while using the hearing aid with the particular wireless mobile device. A sum of 6 or more would indicate excellent performance. However, these are not guarantees that all users will be satisfied. T ratings work similarly. M3 The HAC rating and measurement procedure are described in the American National Standards Institute (ANSI) C63.19 standard.

CONFIDENTIALITY REQUEST for Certification Servicein USA Federal Communication Commission Equipment Authorization Division, Application Processing Branch 7435 OaklandMillsRoad Columbia, MD 21046 Date:2021/06/25 Pursuant to Paragraphs $0.457and 0.459 of the Commission's Rules (47 C.F.R.) and Section S552(b)(4) of the Freedomof Information Act, we requests confidentiality for the following products: FCC ID 2A2EB-V20 Model name V20 For the product stated above, we request that the following information be held confidential; Long-Term Confidentiality Short-Term Short-Term Exhibits Confidentiality_ Confidentiality Days External Photos InternalPhotos Block Diagram Schematics Test Setup Photos User's Manual Parts List Tune Up Operational Descriptions The long-term confidentiality exhibits contain our trade secrets and proprietary information that could be of bernefit to our competitors. The short-term confidentiality on the basis of ensuring that business sensitive information remains confidential until the actual marketing of our new device. If you have any questions, please feel free to contact me at the addressshownbelow. Sincerely Votrr Ld Name/Title: Company: Address: Vortex Cellular MCMLXV 1309 CoffeenAve, Suite1200,Sheridan, WY 82801,UnitedStates Phone 3012550410 Fax: 3017700650 E-Mail: [email protected]

MCMLXV 1309 CoffeenAve, Suite1200,Sheridan,WY 82801,UnitedStates Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 OaklandMillsRoad Columbia, MD 21046 2021/06/25 To whom it may concern: We, MCMLXVthe undersigned, hereby authorize Eurofins Product Service GmbH to act on our behalf in all matters relating to applications for equipment authorization FCC ID: 2A2EB-V20 including the signing of all documents related to these matters. Anyand all acts carried out by EurofinsProductServiceGmbH on our behalfshallhave the same effectas acts of our own. We also hereby certify that no partyto this application is subject to a denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C.862. Sincerely. Name/Title: Vortex Cellular MCMLXV 1309 Coffeen Ave, Suite 1200, Sheridan, WY 82801, United States Company: Address: Phone: 3012550410 Fax: 3017700650 E-Mail [email protected]

MCMLXV 1309 Coffeen Ave, Suite 1200, Sheridan, WY 82801, United States Date: 2021/06/25 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD FCC ID: 2A2EB-V20 To whom it may concern: We, MCMLXV declare that the MIF values detailed below are based on worst case. Operating modes for all air interfaces for which the HAC M-rating is provided based on the current methodology ANSI C63.19-2011 with pre-determined MIF values which provided by Speag. Sincerely, Name/Title： Vortex Cellular Company: MCMLXV Address: 1309 Coffeen Ave, Suite 1200, Sheridan, WY 82801, United States Phone: 3012550410 Fax: 3017700650 E-Mail: [email protected]

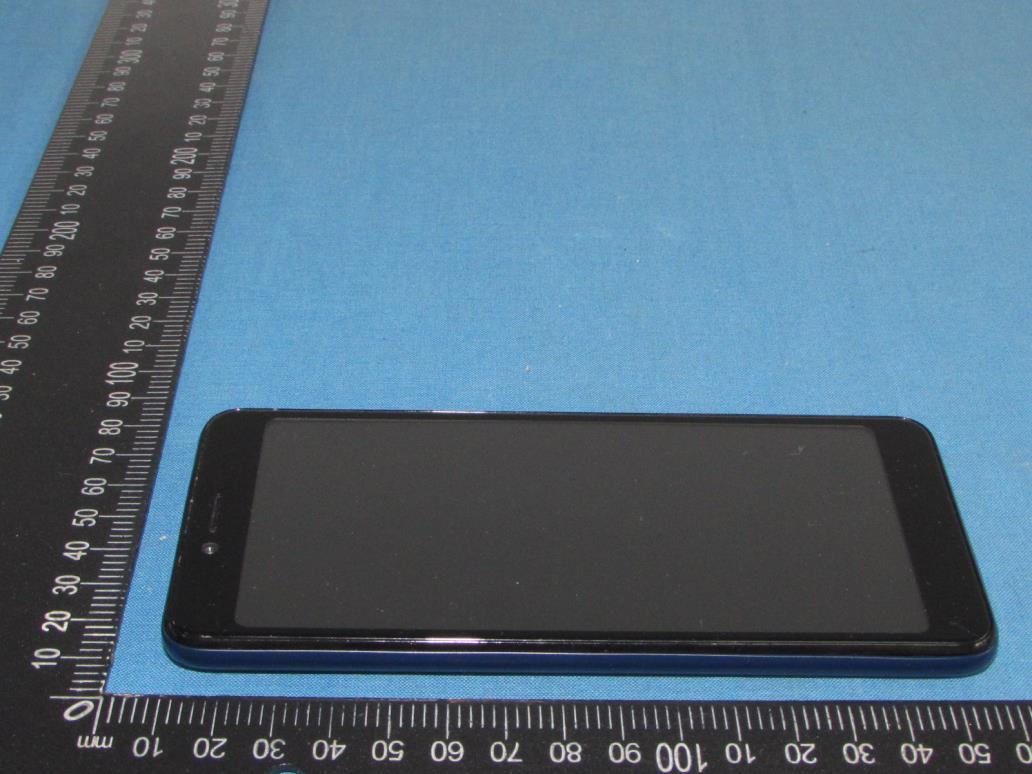

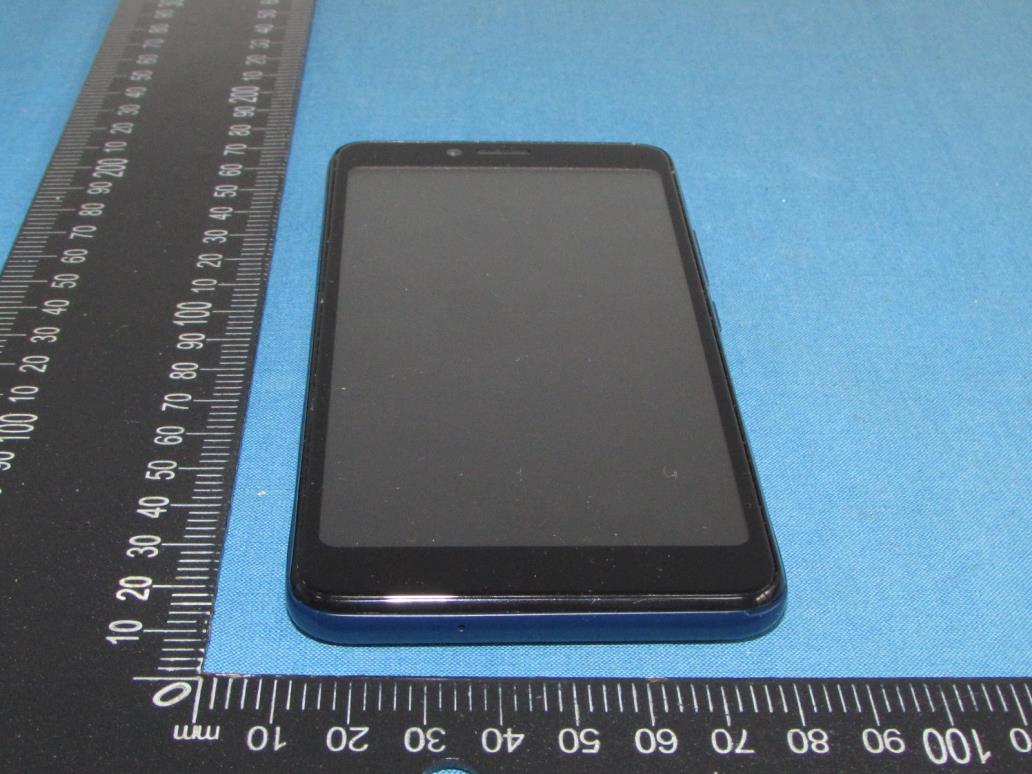

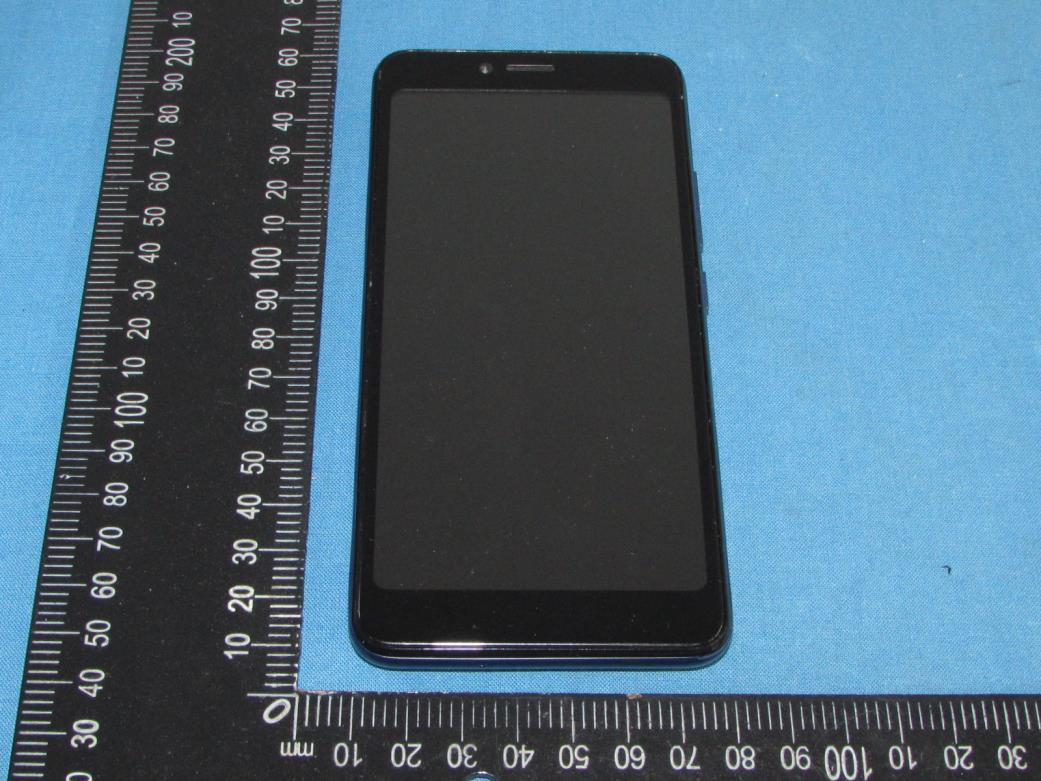

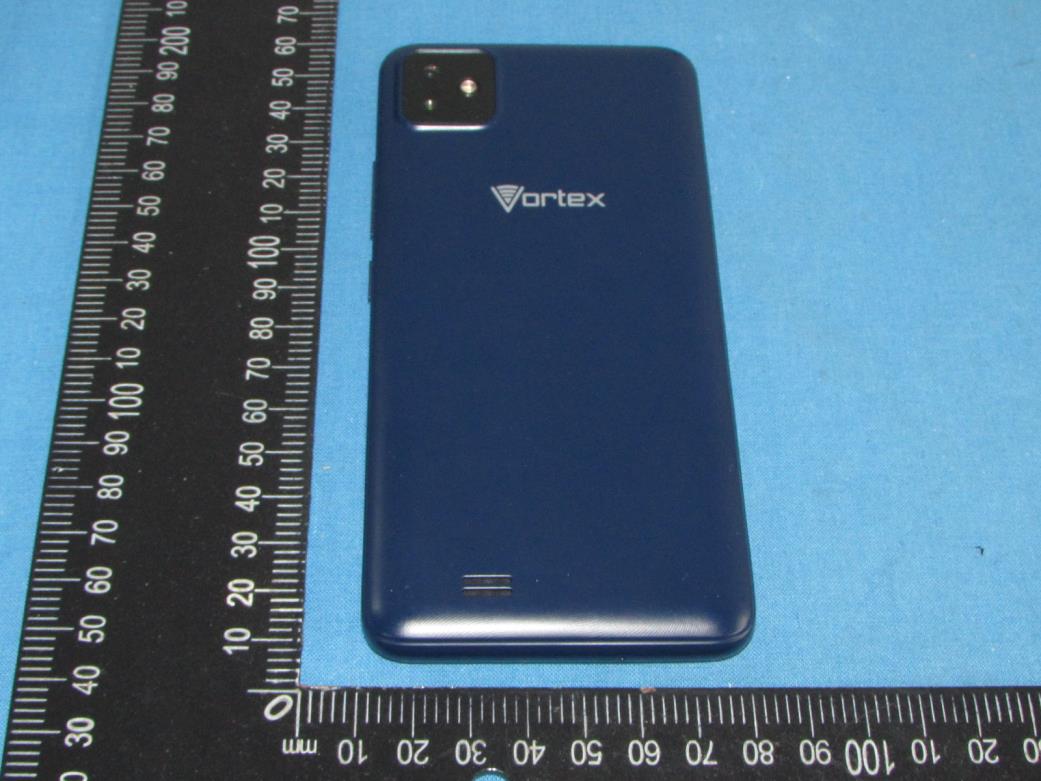

Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2A2EB-V20 This reportshall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd Page 1 of 4 EXTERIOR PHOTOGRAPHS OF EUT Fig.1 Fig.2 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2A2EB-V20 This reportshall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd Page 2 of 4 Fig.3 Fig.4 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2A2EB-V20 This reportshall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd Page 3 of 4 Fig.5 Fig.6 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2A2EB-V20 This reportshall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd Page 4 of 4 Fig.7

Label Location:

Shenzhen Tongzhou Testing Co.,Ltd FCC ID:2A2EB-V20 This report shall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd Page 1 of 5 INTERIOR PHOTOGRAPHS OF EUT Fig.1 Fig.2 GSM/WCDMA/ LTE Antenna LTE diversity Antenna WiFi/Bluetooth/ FM Antenna Shenzhen Tongzhou Testing Co.,Ltd FCC ID:2A2EB-V20 This report shall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd Page 2 of 5 Fig.3 Fig.4 Shenzhen Tongzhou Testing Co.,Ltd FCC ID:2A2EB-V20 This report shall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd Page 3 of 5 Fig.5 Fig.6 Shenzhen Tongzhou Testing Co.,Ltd FCC ID:2A2EB-V20 This report shall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd Page 4 of 5 Fig.7 Fig.8 Shenzhen Tongzhou Testing Co.,Ltd FCC ID:2A2EB-V20 This report shall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd Page 5 of 5 Fig.9 Fig.10

Page 1 of 241 Report No.: AGC10211210501FH01 Page 2 of 241 Report Revise Record Report Version Revise Time Issued Date Valid Version Notes V1.0 / Jul. 09,2021 Valid Initial Release Report No.: AGC10211210501FH01 Page 3 of 241 Applicant Name MCMLXV Applicant Address 1309 Coffeen Ave Suite 1200 Sheridan WY 82801 US Manufacturer Name MCMLXV Manufacturer Address 1309 Coffeen Ave Suite 1200 Sheridan WY 82801 US Factory Name MCMLXV Factory Address 1309 Coffeen Ave Suite 1200 Sheridan WY 82801 US Product Designation Smartphone Brand Name Vortex Model Name V20 EUT Voltage DC3.8V by battery Applicable Standard IEEE Std. 1528:2013 FCC 47 CFR Part 2§2.1093:2013 -2005 IEC 62209-1: 2016 Test Date May 26,2021 to Jun. 09,2021 Report Template AGCRT-US-4G/SAR (2021-04-20) Note: The results of testing in this report apply to the product/system which was tested only. Prepared By Thea Huang (Project Engineer) Jun. 09,2021 Reviewed By Angela Li (Reviewer) Jul. 09,2021 Approved By Forrest Lei (Authorized Officer) Jul. 09,2021 Report No.: AGC10211210501FH01 Page 4 of 241 1. SUMMARY OF MAXIMUM SAR VALUE ......................................................................................................... 5 2. GENERAL INFORMATION ............................................................................................................................... 6 2.1. EUT DESCRIPTION......................................................................................................................................... 6 3. SAR MEASUREMENT SYSTEM ........................................................................................................................ 8 3.1. THE SATIMO SYSTEM USED FOR PERFORMING COMPLIANCE TESTS CONSISTS OF FOLLOWING ITEMS .................. 8 3.2. COMOSAR E-FIELD PROBE .......................................................................................................................... 9 3.3. ROBOT .......................................................................................................................................................... 9 3.4. VIDEO POSITIONING SYSTEM ........................................................................................................................ 10 3.5. DEVICE HOLDER .......................................................................................................................................... 10 3.6. SAM TWIN PHANTOM ................................................................................................................................... 11 4. SAR MEASUREMENT PROCEDURE .............................................................................................................. 12 4.1. SPECIFIC ABSORPTION RATE (SAR) .............................................................................................................. 12 4.2. SAR MEASUREMENT PROCEDURE ................................................................................................................ 13 4.3. RF EXPOSURE CONDITIONS ......................................................................................................................... 15 5. TISSUE SIMULATING LIQUID ......................................................................................................................... 17 5.1. THE COMPOSITION OF THE TISSUE SIMULATING LIQUID..................................................................................... 17 5.2. TISSUE DIELECTRIC PARAMETERS FOR HEAD AND BODY PHANTOMS ............................................................... 18 5.3. TISSUE CALIBRATION RESULT ....................................................................................................................... 19 6. SAR SYSTEM CHECK PROCEDURE ........................................................................................................... 22 6.1. SAR SYSTEM CHECK PROCEDURES ............................................................................................................. 22 6.2. SAR SYSTEM CHECK ................................................................................................................................... 23 7. EUT TEST POSITION ...................................................................................................................................... 25 7.1. DEFINE TWO IMAGINARY LINES ON THE HANDSET ........................................................................................... 25 7.2. CHEEK POSITION ......................................................................................................................................... 26 7.3. TILT POSITION .............................................................................................................................................. 26 7.4. BODY WORN POSITION ................................................................................................................................ 27 8. SAR EXPOSURE LIMITS ............................................................................................................................... 28 9. TEST FACILITY .............................................................................................................................................. 29 10. TEST EQUIPMENT LIST .............................................................................................................................. 30 11. MEASUREMENT UNCERTAINTY ................................................................................................................ 31 12. CONDUCTED POWER MEASUREMENT ..................................................................................................... 34 13. TEST RESULTS ........................................................................................................................................... 69 13.1. SAR TEST RESULTS SUMMARY..............................................................................................…

Text truncated - open the document above for the full version.

Report No.: AGC10211210501FH01 Page 211 of 241 Test Laboratory: AGC Lab Date: Jun. 04,2021 LTE Band 26 Mid-Touch-Right (50% RB#0) DUT: Smartphone; Type: V20 Communication System: LTE; Communication System Band: LTE Band 26; Duty Cycle:1:1; Conv.F=5.26 Frequency: 831.5 MHz; Medium parameters used: f = 835 MHz; =0.85 mho/m; r =42.39; = 1000 kg/m³ ; Phantom section: Right Section Ambient temperature (): 22.2, Liquid temperature (): 22.0 SATIMO Configuration: Probe: SSE5; Calibrated: Jun. 24,2020; Serial No.: SN 24/20 EP336 Sensor-Surface: 4mm (Mechanical Surface Detection) Phantom: SAM twin phantom Measurement SW: OpenSAR V4_02_35 Configuration/ LTE Band 26 Mid- Touch-Right /Area Scan: Measurement grid: dx=8mm, dy=8mm Configuration/ LTE Band 26 Mid- Touch-Right /Zoom Scan: Measurement grid: dx=8mm,dy=8mm, dz=5mm; Area Scan dx=8mm dy=8mm, h= 5.00 mm Zoom Scan 5x5x7,dx=8mm dy=8mm dz=5mm Phantom Right head Device Position Cheek Band LTE Band 26 Channels Middle Signal OFDM (Crest factor: 1.0) SURFACE SAR VOLUME SAR Maximum location: X=-50.00, Y=-38.00 SAR Peak: 0.43 W/kg SAR 10g (W/Kg) 0.257202 SAR 1g (W/Kg) 0.345772 Report No.: AGC10211210501FH01 Page 212 of 241 Z (mm) 0.00 4.00 9.00 14.00 19.00 24.00 29.00 SAR (W/Kg) 0.4312 0.3569 0.2824 0.2246 0.1779 0.1407 0.1103 3D screen shot Hot spot position Report No.: AGC10211210501FH01 Page 213 of 241 Test Laboratory: AGC Lab Date: Jun. 04,2021 LTE Band 26 Mid-Body-Back (50% RB#0) Communication System: LTE; Communication System Band: LTE Band 26; Duty Cycle:1:1; Conv.F=5.26 Frequency:831.5 MHz; Medium parameters used: f = 835 MHz; =0.85 mho/m; r =42.39; = 1000 kg/m³ ; Phantom section: Flat Section Ambient temperature (): 22.2, Liquid temperature (): 22.0 SATIMO Configuration: Probe: SSE5; Calibrated: Jun. 24,2020; Serial No.: SN 24/20 EP336 Sensor-Surface: 4mm (Mechanical Surface Detection) Phantom: ELLI39 Phantom Measurement SW: OpenSAR V4_02_35 Configuration/ LTE Band 26 Mid-Body-back/Area Scan: Measurement grid: dx=8mm, dy=8mm Configuration/ LTE Band 26 Mid-Body-back/Zoom Scan: Measurement grid: dx=8mm,dy=8mm, dz=5m; Area Scan dx=8mm dy=8mm, h= 5.00 mm Zoom Scan 5x5x7,dx=8mm dy=8mm dz=5mm Phantom ELLI Device Position Body Back Band LTE Band 26 Channels Middle Signal OFDM (Crest factor: 1.0) SURFACE SAR VOLUME SAR Maximum location: X=-1.00, Y=33.00 SAR Peak: 0.31 W/kg SAR 10g (W/Kg) 0.228713 SAR 1g (W/Kg) 0.277388 Report No.: AGC10211210501FH01 Page 214 of 241 Z (mm) 0.00 4.00 9.00 14.00 19.00 24.00 29.00 SAR (W/Kg) 0.3112 0.2861 0.2492 0.2133 0.1807 0.1540 0.1351 3D screen shot Hot spot position Report No.: AGC10211210501FH01 Page 215 of 241 Test Laboratory: AGC Lab Date: Jun. 09,2021 LTE Band 41 Mid-Touch-Left (1RB#0) DUT: Smartphone; Type: V20 Communication System: LTE; Communication System Band: LTE Band 41; Duty Cycle:1:1.58; Conv.F=3.81 Frequency: 2605MHz; Medium parameters used: f =2600 MHz; =1.93 mho/m; r =37.67; = 1000 kg/m³ ; Phantom section: Left Section Ambient temperature (): 21.4, Liquid temperature (): 21.2 SATIMO Configuration: Probe: SSE5; Calibrated: Jun. 24,2020; Serial No.: SN 24/20 EP336 Sensor-Surface: 4mm (Mechanical Surface Detection) Phantom: SAM twin phantom Measurement SW: OpenSAR V4_02_35 Configuration/ LTE BAND 41 Mid-Touch-Left/Area Scan: Measurement grid: dx=8mm, y=8mm Configuration/ LTE BAND 41 Mid-Touch-Left/Zoom Scan: Measurement grid: dx=5mm, dy=5mm, dz=5mm Area Scan dx=8mm dy=8mm, h= 5.00 mm ZoomScan 7x7x7,dx=5mm dy=5mm dz=5mm Phantom Left head Device Position Cheek Band LTE BAND 41 Channels Middle Signal OFDM (Crest factor: 1.58) SURFACE SAR VOLUME SAR Maximum location: X=-48.00, Y=-48.00 SAR Peak: 0.51 W/kg SAR 10g (W/Kg) 0.145343 SAR 1g (W/Kg) 0.294550 Report No.: AGC10211210501FH01 Page 216 of 241 Z (mm) 0.00 4.00 9.00 14.00 19.00 24.00 29.00 SAR (W/Kg) 0.5081 0.3202 0.1717 0.0907 0.0463 0.0242 0.0121 3D screen shot Hot spot position Report No.: AGC10211210501FH01 Page 217 of 241 Test Laboratory: AGC Lab Date: Jun. 09,2021 LTE Band 41 Mid-Body- Edge 3(Bottom) (1RB#0) DUT: Smartphone; Type: V20 Communication System: LTE; Communication System Band: LTE Band 41; Duty Cycle:1:1.58; Conv.F=3.81 Frequency: 2605MHz; Medium parameters used: f =2600 MHz; =1.93 mho/m; r =37.67; = 1000 kg/m³ ; Phantom section: Flat Section Ambient temperature (): 21.4, Liquid temperature (): 21.2 SATIMO Configuration: Probe: SSE5; Calibrated: Jun. 24,2020; Serial No.: SN 24/20 EP336 Sensor-Surface: 4mm (Mechanical Surface Detection) Phantom: ELLI39 Phantom Measurement SW: OpenSAR V4_02_35 Configuration/ LTE BAND 41 Mid-Body- Edge 3(Bottom) /Area Scan: Measurement grid: dx=10mm, y=10mm Configuration/ LTE BAND 41 Mid-Body- Edge 3(Bottom)/Zoom Scan: Measurement grid: dx=5mm, dy=5mm, dz=5mm Area Scan dx=8mm dy=8mm, h= 5.00 mm ZoomScan 7x7x7,dx=5mm dy=5mm dz=5mm Phantom ELLI Device Position Body Edge 3(Bottom) Band LTE BAND 41 Channels Middle Signal OFDM (Crest factor: 1.58) SURFACE SAR VOLUME SAR Maximum location: X=-2.00, Y=0.00 SAR Peak: 0.69 W/kg SAR 10g (W/Kg) 0.194115 SAR 1g (W/Kg) 0.397275 Report No.: AGC10211210501FH01 Page 218 of 241 Z (mm) 0.00 4.00 9.00 14.00 19.00 24.00 29.00 SAR (W/Kg) 0.6759 0.4358 0.2388 0.1220 0.0611 0.0322 0.0166 3D screen shot Hot spot position Report No.: AGC10211210501FH01 Page 219 of 241 Test Laboratory: AGC Lab Date: Jun. 09,2021 LTE Band 41 Mid-Touch-Left (1RB#0) DUT: Smartphone; Type: V20 Communication System: LTE; Communication System Band: LTE Band 41; Duty Cycle:1:1.58; Conv.F=3.81 Frequency: 2605MHz; Medium parameters used: f =2600 MHz; =1.93 mho/m; r =37.67; = 1000 kg/m³ ; Phantom section: Left Section Ambient temperature (): 21.4, Liquid temperature (): 21.2 SATIMO Configuration: Probe: SSE5; Calibrated: Jun. 24,2020; Serial No.: SN 24/20 EP336 Sensor-Surface: 4mm (Mechanical Surface Detection) Phantom: SAM twin phantom Measurement SW: OpenSAR V4_02_35 Configuration/ LTE BAND 41 Mid-Touch-Left/Area Scan: Measurement grid: dx=8mm, y=8mm Configuration/ LTE BAND 41 Mid-Touch-Left/Zoom Scan: Measure…

Text truncated - open the document above for the full version.

Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2A2EB-V20 Report No.: TZ210502250-E5 Page 1 of 330 RF Test Data for LTE (Conducted Measurement) Product Name: Smartphone Trade Mark: Vortex Test Model: V20 Sample ID: TZ210502250-1# FCC ID: 2A2EB-V20 Environmental Conditions Temperature: 23.8°C Relative Humidity: 56% ATM Pressure: 100.0 kPa Test Engineer: Anna Hu Supervised by: Hugo Chen Remark: For LTE Band2 and Band4 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2A2EB-V20 Report No.: TZ210502250-E5 Page 2 of 330 Band Edge and Emission Mask Band Bandwidth(MHz) UL Frequency(MHz) Modulation RB Size RB Offset Conclusion Band2 1.4 1850.7 QPSK 6 LOW Pass Band2 1.4 1850.7 QPSK 1 LOW Pass Band2 1.4 1850.7 16QAM 6 LOW Pass Band2 1.4 1850.7 16QAM 1 LOW Pass Band2 1.4 1909.3 QPSK 6 LOW Pass Band2 1.4 1909.3 QPSK 1 HIGH Pass Band2 1.4 1909.3 16QAM 6 LOW Pass Band2 1.4 1909.3 16QAM 1 HIGH Pass Band2 3 1851.5 QPSK 15 LOW Pass Band2 3 1851.5 QPSK 1 LOW Pass Band2 3 1851.5 16QAM 15 LOW Pass Band2 3 1851.5 16QAM 1 LOW Pass Band2 3 1908.5 QPSK 15 LOW Pass Band2 3 1908.5 QPSK 1 HIGH Pass Band2 3 1908.5 16QAM 15 LOW Pass Band2 3 1908.5 16QAM 1 HIGH Pass Band2 5 1852.5 QPSK 25 LOW Pass Band2 5 1852.5 QPSK 1 LOW Pass Band2 5 1852.5 16QAM 25 LOW Pass Band2 5 1852.5 16QAM 1 LOW Pass Band2 5 1907.5 QPSK 25 LOW Pass Band2 5 1907.5 QPSK 1 HIGH Pass Band2 5 1907.5 16QAM 25 LOW Pass Band2 5 1907.5 16QAM 1 HIGH Pass Band2 10 1855 QPSK 50 LOW Pass Band2 10 1855 QPSK 1 LOW Pass Band2 10 1855 16QAM 50 LOW Pass Band2 10 1855 16QAM 1 LOW Pass Band2 10 1905 QPSK 50 LOW Pass Band2 10 1905 QPSK 1 HIGH Pass Band2 10 1905 16QAM 50 LOW Pass Band2 10 1905 16QAM 1 HIGH Pass Band2 15 1857.5 QPSK 75 LOW Pass Band2 15 1857.5 QPSK 1 LOW Pass Band2 15 1857.5 16QAM 75 LOW Pass Band2 15 1857.5 16QAM 1 LOW Pass Band2 15 1902.5 QPSK 75 LOW Pass Band2 15 1902.5 QPSK 1 HIGH Pass Band2 15 1902.5 16QAM 75 LOW Pass Band2 15 1902.5 16QAM 1 HIGH Pass Band2 20 1860 QPSK 100 LOW Pass Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2A2EB-V20 Report No.: TZ210502250-E5 Page 3 of 330 Band2 20 1860 QPSK 1 LOW Pass Band2 20 1860 16QAM 100 LOW Pass Band2 20 1860 16QAM 1 LOW Pass Band2 20 1900 QPSK 100 LOW Pass Band2 20 1900 QPSK 1 HIGH Pass Band2 20 1900 16QAM 100 LOW Pass Band2 20 1900 16QAM 1 HIGH Pass Band4 1.4 1710.7 QPSK 6 LOW Pass Band4 1.4 1710.7 QPSK 1 LOW Pass Band4 1.4 1710.7 16QAM 6 LOW Pass Band4 1.4 1710.7 16QAM 1 LOW Pass Band4 1.4 1754.3 QPSK 6 LOW Pass Band4 1.4 1754.3 QPSK 1 HIGH Pass Band4 1.4 1754.3 16QAM 6 LOW Pass Band4 1.4 1754.3 16QAM 1 HIGH Pass Band4 3 1711.5 QPSK 15 LOW Pass Band4 3 1711.5 QPSK 1 LOW Pass Band4 3 1711.5 16QAM 15 LOW Pass Band4 3 1711.5 16QAM 1 LOW Pass Band4 3 1753.5 QPSK 15 LOW Pass Band4 3 1753.5 QPSK 1 HIGH Pass Band4 3 1753.5 16QAM 15 LOW Pass Band4 3 1753.5 16QAM 1 HIGH Pass Band4 5 1712.5 QPSK 25 LOW Pass Band4 5 1712.5 QPSK 1 LOW Pass Band4 5 1712.5 16QAM 25 LOW Pass Band4 5 1712.5 16QAM 1 LOW Pass Band4 5 1752.5 QPSK 25 LOW Pass Band4 5 1752.5 QPSK 1 HIGH Pass Band4 5 1752.5 16QAM 25 LOW Pass Band4 5 1752.5 16QAM 1 HIGH Pass Band4 10 1715 QPSK 50 LOW Pass Band4 10 1715 QPSK 1 LOW Pass Band4 10 1715 16QAM 50 LOW Pass Band4 10 1715 16QAM 1 LOW Pass Band4 10 1750 QPSK 50 LOW Pass Band4 10 1750 QPSK 1 HIGH Pass Band4 10 1750 16QAM 50 LOW Pass Band4 10 1750 16QAM 1 HIGH Pass Band4 15 1717.5 QPSK 75 LOW Pass Band4 15 1717.5 QPSK 1 LOW Pass Band4 15 1717.5 16QAM 75 LOW Pass Band4 15 1717.5 16QAM 1 LOW Pass Band4 15 1747.5 QPSK 75 LOW Pass Band4 15 1747.5 QPSK 1 HIGH Pass Band4 15 1747.5 16QAM 75 LOW Pass Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2A2EB-V20 Report No.: TZ210502250-E5 Page 4 of 330 Band4 15 1747.5 16QAM 1 HIGH Pass Band4 20 1720 QPSK 100 LOW Pass Band4 20 1720 QPSK 1 LOW Pass Band4 20 1720 16QAM 100 LOW Pass Band4 20 1720 16QAM 1 LOW Pass Band4 20 1745 QPSK 100 LOW Pass Band4 20 1745 QPSK 1 HIGH Pass Band4 20 1745 16QAM 100 LOW Pass Band4 20 1745 16QAM 1 HIGH Pass Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2A2EB-V20 Report No.: TZ210502250-E5 Page 5 of 330 Band2-1.4-1850.7-QPSK-6#LOW@Pass Band2-1.4-1850.7-QPSK-1#LOW@Pass Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2A2EB-V20 Report No.: TZ210502250-E5 Page 6 of 330 Band2-1.4-1850.7-16QAM-6#LOW@Pass Band2-1.4-1850.7-16QAM-1#LOW@Pass Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2A2EB-V20 Report No.: TZ210502250-E5 Page 7 of 330 Band2-1.4-1909.3-QPSK-6#LOW@Pass Band2-1.4-1909.3-QPSK-1#HIGH@Pass Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2A2EB-V20 Report No.: TZ210502250-E5 Page 8 of 330 Band2-1.4-1909.3-16QAM-6#LOW@Pass Band2-1.4-1909.3-16QAM-1#HIGH@Pass Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2A2EB-V20 Report No.: TZ210502250-E5 Page 9 of 330 Band2-3-1851.5-QPSK-15#LOW@Pass Band2-3-1851.5-QPSK-1#LOW@Pass Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2A2EB-V20 Report No.: TZ210502250-E5 Page 10 of 330 Band2-3-1851.5-16QAM-15#LOW@Pass Band2-3-1851.5-16QAM-1#LOW@Pass Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2A2EB-V20 Report No.: TZ210502250-E5 Page 11 of 330 Band2-3-1908.5-QPSK-15#LOW@Pass Band2-3-1908.5-QPSK-1#HIGH@Pass Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2A2EB-V20 Report No.: TZ210502250-E5 Page 12 of 330 Band2-3-1908.5-16QAM-15#LOW@Pass Band2-3-1908.5-16QAM-1#HIGH@Pass Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2A2EB-V20 Report No.: TZ210502250-E5 Page 13 of 330 Band2-5-1852.5-QPSK-25#LOW@Pass Band2-5-1852.5-QPSK-1#LOW@Pass Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2A2EB-V20 Report No.: TZ210502250-E5 Page 14 of 330 Band2-5-1852.5-16QAM-25#LOW@Pass Band2-5-1852.5-16QAM-1#LOW@Pass Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2A2EB-V20 Report No.: TZ210502250-E5 Page 15 of 330 Band2-5-1907.5-QPSK-25#LOW@Pass Band2-5-1907.5-QPSK-1#HIGH@Pass Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2A2EB-V20 Report No.: TZ210502250-E5 Page 16 of 330 Band2-5-1907.5-16QAM-25#LOW@Pass Band2-5-1907.5-16QAM-1#HIGH@Pass Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2A2EB-V20 Report No.: TZ210502250-E5 Page 17 of 330 Band2-10-1855-QPSK-50#LOW@Pass Band2-10-1855-QPSK-1#LOW@Pass Shenzhen Tongzhou Testing…

Text truncated - open the document above for the full version.

Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2A2EB-V20 Report No.: TZ210502250-E5 Page 75 of 330 OB2-1.4-1909.3-QPSK-6#LOW@30mHz-1GHz@Pass OB2-1.4-1909.3-QPSK-6#LOW@1GHz-7GHz@Pass Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2A2EB-V20 Report No.: TZ210502250-E5 Page 76 of 330 OB2-1.4-1909.3-QPSK-6#[email protected]@Pass OB2-1.4-1909.3-QPSK-6#[email protected]@Pass Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2A2EB-V20 Report No.: TZ210502250-E5 Page 77 of 330 OB2-1.4-1909.3-QPSK-1#LOW@30mHz-1GHz@Pass OB2-1.4-1909.3-QPSK-1#LOW@1GHz-7GHz@Pass Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2A2EB-V20 Report No.: TZ210502250-E5 Page 78 of 330 OB2-1.4-1909.3-QPSK-1#[email protected]@Pass OB2-1.4-1909.3-QPSK-1#[email protected]@Pass Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2A2EB-V20 Report No.: TZ210502250-E5 Page 79 of 330 OB2-1.4-1909.3-QPSK-1#HIGH@30mHz-1GHz@Pass OB2-1.4-1909.3-QPSK-1#HIGH@1GHz-7GHz@Pass Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2A2EB-V20 Report No.: TZ210502250-E5 Page 80 of 330 OB2-1.4-1909.3-QPSK-1#[email protected]@Pass OB2-1.4-1909.3-QPSK-1#[email protected]@Pass Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2A2EB-V20 Report No.: TZ210502250-E5 Page 81 of 330 OB2-3-1851.5-QPSK-15#LOW@30mHz-1GHz@Pass OB2-3-1851.5-QPSK-15#LOW@1GHz-7GHz@Pass Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2A2EB-V20 Report No.: TZ210502250-E5 Page 82 of 330 OB2-3-1851.5-QPSK-15#[email protected]@Pass OB2-3-1851.5-QPSK-15#[email protected]@Pass Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2A2EB-V20 Report No.: TZ210502250-E5 Page 83 of 330 OB2-3-1851.5-QPSK-1#LOW@30mHz-1GHz@Pass OB2-3-1851.5-QPSK-1#LOW@1GHz-7GHz@Pass Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2A2EB-V20 Report No.: TZ210502250-E5 Page 84 of 330 OB2-3-1851.5-QPSK-1#[email protected]@Pass OB2-3-1851.5-QPSK-1#[email protected]@Pass Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2A2EB-V20 Report No.: TZ210502250-E5 Page 85 of 330 OB2-3-1851.5-QPSK-1#HIGH@30mHz-1GHz@Pass OB2-3-1851.5-QPSK-1#HIGH@1GHz-7GHz@Pass Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2A2EB-V20 Report No.: TZ210502250-E5 Page 86 of 330 OB2-3-1851.5-QPSK-1#[email protected]@Pass OB2-3-1851.5-QPSK-1#[email protected]@Pass Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2A2EB-V20 Report No.: TZ210502250-E5 Page 87 of 330 OB2-3-1880-QPSK-15#LOW@30mHz-1GHz@Pass OB2-3-1880-QPSK-15#LOW@1GHz-7GHz@Pass Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2A2EB-V20 Report No.: TZ210502250-E5 Page 88 of 330 OB2-3-1880-QPSK-15#[email protected]@Pass OB2-3-1880-QPSK-15#[email protected]@Pass Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2A2EB-V20 Report No.: TZ210502250-E5 Page 89 of 330 OB2-3-1880-QPSK-1#LOW@30mHz-1GHz@Pass OB2-3-1880-QPSK-1#LOW@1GHz-7GHz@Pass Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2A2EB-V20 Report No.: TZ210502250-E5 Page 90 of 330 OB2-3-1880-QPSK-1#[email protected]@Pass OB2-3-1880-QPSK-1#[email protected]@Pass Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2A2EB-V20 Report No.: TZ210502250-E5 Page 91 of 330 OB2-3-1880-QPSK-1#HIGH@30mHz-1GHz@Pass OB2-3-1880-QPSK-1#HIGH@1GHz-7GHz@Pass Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2A2EB-V20 Report No.: TZ210502250-E5 Page 92 of 330 OB2-3-1880-QPSK-1#[email protected]@Pass OB2-3-1880-QPSK-1#[email protected]@Pass Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2A2EB-V20 Report No.: TZ210502250-E5 Page 93 of 330 OB2-3-1908.5-QPSK-15#LOW@30mHz-1GHz@Pass OB2-3-1908.5-QPSK-15#LOW@1GHz-7GHz@Pass Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2A2EB-V20 Report No.: TZ210502250-E5 Page 94 of 330 OB2-3-1908.5-QPSK-15#[email protected]@Pass OB2-3-1908.5-QPSK-15#[email protected]@Pass Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2A2EB-V20 Report No.: TZ210502250-E5 Page 95 of 330 OB2-3-1908.5-QPSK-1#LOW@30mHz-1GHz@Pass OB2-3-1908.5-QPSK-1#LOW@1GHz-7GHz@Pass Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2A2EB-V20 Report No.: TZ210502250-E5 Page 96 of 330 OB2-3-1908.5-QPSK-1#[email protected]@Pass OB2-3-1908.5-QPSK-1#…
