2A2EE-SWB130Bluetooth headphone

USER MANUAL Specifications Wireless Version: V5.0 Wireless Range: 10m Drive Size: 40mm Impedance: 32Ω Sensitivity: 105db+/-3db Frequency Response: 20Hz-20kHz Rechargeable Battery: 3.7V 200 mAH Built-in Hands-free Microphone Music playing time about 4 hours(depends on the volume) Location of Controls: 1.Power ON / OFF,Play/Pasuse 2.Volume - /Previous track 3.Volume + /Next track 4. TF card slot 5. LED Indicator 6. Micro USB DC 5V charging port 7. AUX-IN jack How to use 1.Power key and Pair key Press "Power key "for about 2-3 seconds , Red and Blue Led light will flash alternatively, we can search Pair name" SYLVANIA SBT272 "from Wireless device ,then start to connect. Under bluetooth connected curcumstance,Short press to answer when calling is coming,then make voice communication. Under bluetooth connected and Calling circumstance,short press to hang off the call. Under bluetooth connected and music circumstance,short press to play/pause the music,Double click to redial the last call. Volume +/Next Track Short press to increase volume continuously. Long Press to Next Track. Volume -/Previous Track Short press to decrease volume continuously. Long Press to Previous Track. 2. LED light indicator Press power key for 2-3 second to turn it on,red and blue light will flash alternatively and start pair. 3. Red light is on when charge , No light will be on when fully charge 4. How to play AUX mode: Inserting the 3.5mm cable to the 3.5mm jack of the product, then the unit will switch to AUX mode automatically. You can adjust the volume and select the song from the input device. The volume up/down and previous/ next track button cannot work when in the AUX mode. Warnings • Always keep and follow the instrucions given to ensure the safe use of the product and other connectable devices. • Use the product and its accessories only for their intended use and in compliance with the declared electrical characteristcs and in indoor/protected environments to avoid serious dangers. • Keep away from heat, direct sunlight, humidity and liquids. • Only use the cables provided with the purchased product. • The product must not be used by children or persons unable to understand any potential danger. • Do not leave the product charging or connected to the mains for prolonged periods when it is not in use or if a fault is suspected. • Do not drop, crush, cut or handle the product roughly to avoid dangerous situaions. • Never disassemble the product or attempt to repair it in the event of a defect. • If the product leaks flfluids, avoid contact with skin or eyes; if contact occurs, immediately wash the affffected area with water and consult a doctor. • Do not leave packaging materials unattended, especially storage bags which are a potentially dangerous toy for children (choking,swallowing, etc.) • Avoid using the device in proximity to electro-medical devices • Contact the CDR customer service department if you have any doubts regarding the operation, safety or connect on method of the product. • Do not use high-volume during use! It could severely damage your hearing. This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: •Reorient or relocate the receiving antenna. •Increase the separation between the equipment and receiver. •Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. •Consult the dealer or an experienced radio/TV technician for help. The device has been evaluated to meet general RF exposure requirement. The device can be used in portable exposure condition without restriction.

JiangXi Sunwe Industrial Co., Ltd. Industrial part, Wanzai county, JiangXi Province, China Equipment Autorisation Division Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 FCC ID: 2A2EE-SWB130 Product Name: Bluetooth headphone Request for Confidentiality Pursuant to Sections 0.457 and 0.459 of the commissions rules, we hereby request that the following documents be held confidential: (List here the documents for which you are seeking confidentiality – for example ...) • Schematics • Block diagram • Operation description These materials contain trade secrets and proprietary information and are not customarily released to the public. The public disclosure of this information might be harmful to the company and provide unjustified benefits to our competitors. Dated this 6-30-2021 By: CC Ting Signature Printed Title: Sales Manager On behalf of : JiangXi Sunwe Industrial Co., Ltd. Telephone: 0769-2662-1939

JiangXi Sunwe Industrial Co., Ltd. Industrial part, Wanzai county, JiangXi Province, China Models Difference Description Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 To whom it may concern: Our product (Name: Bluetooth headphone), Models number: SW­B130，SBT-272-1024 proposed certification number FCC ID: 2A2EE-SWB130. All the models have same electrical, PCB and BOM, only different in the model number for different color and marketing purpose. For more information, please refer to the user’s manual. Sincerely, Signature: Print: CC Ting Title: Sales Manager Phone number: 0769-2662-1939 Email: [email protected]

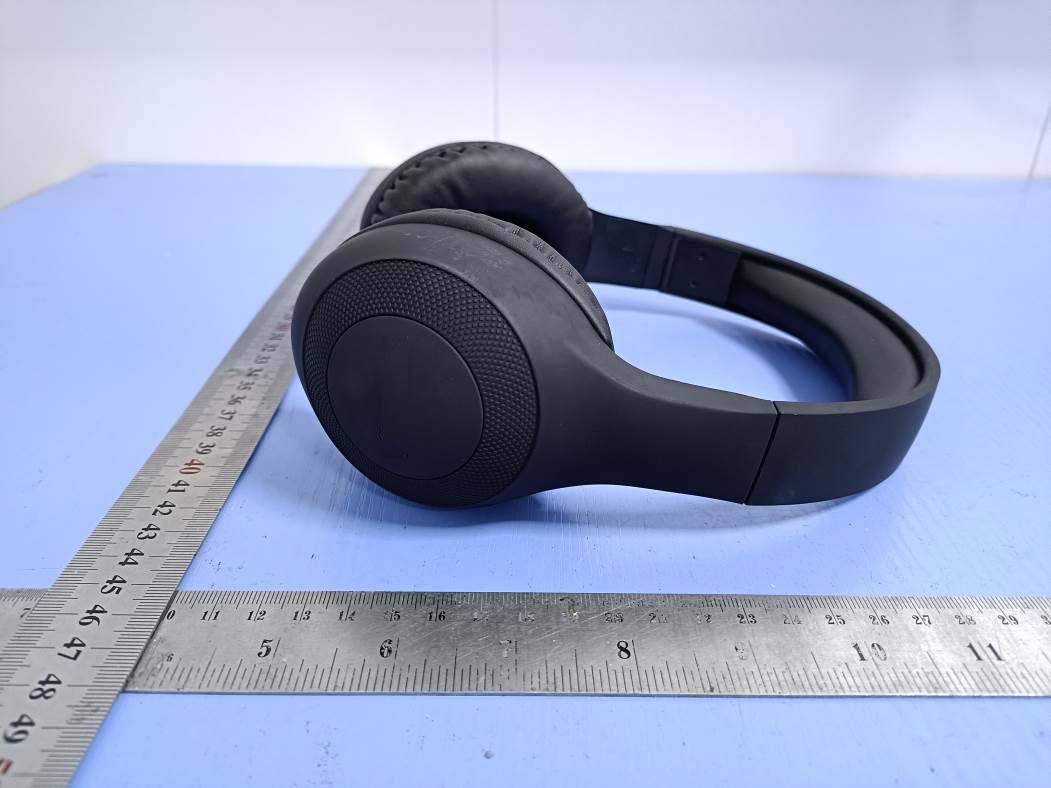

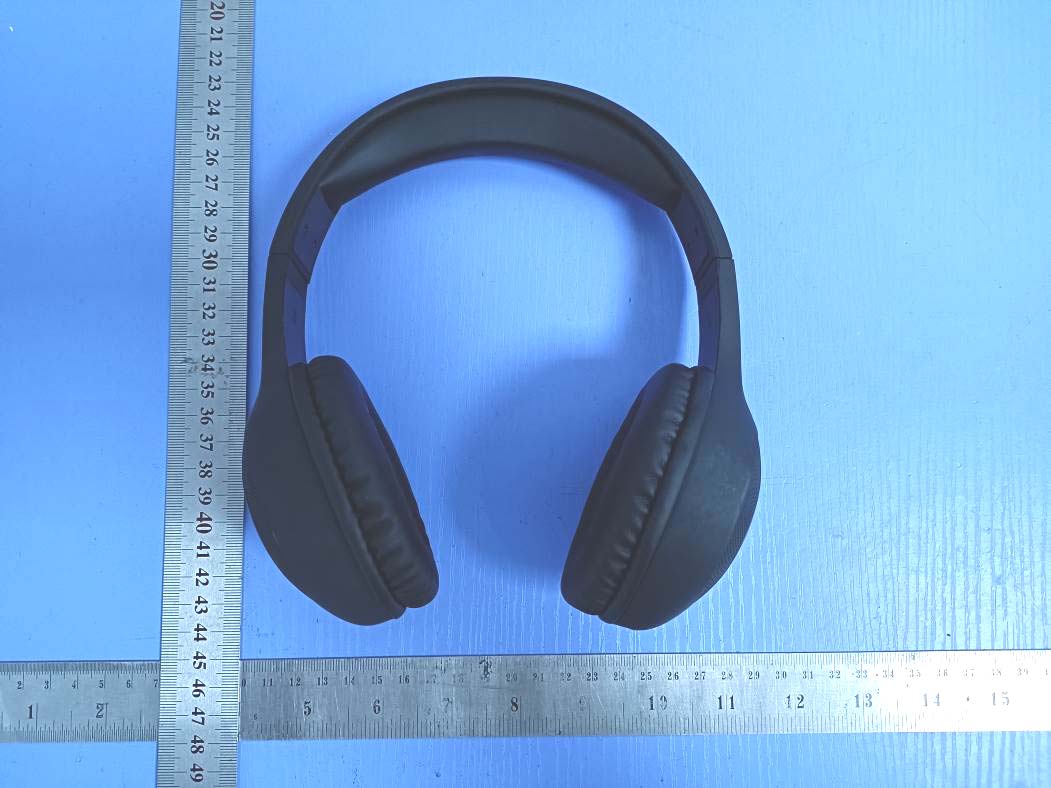

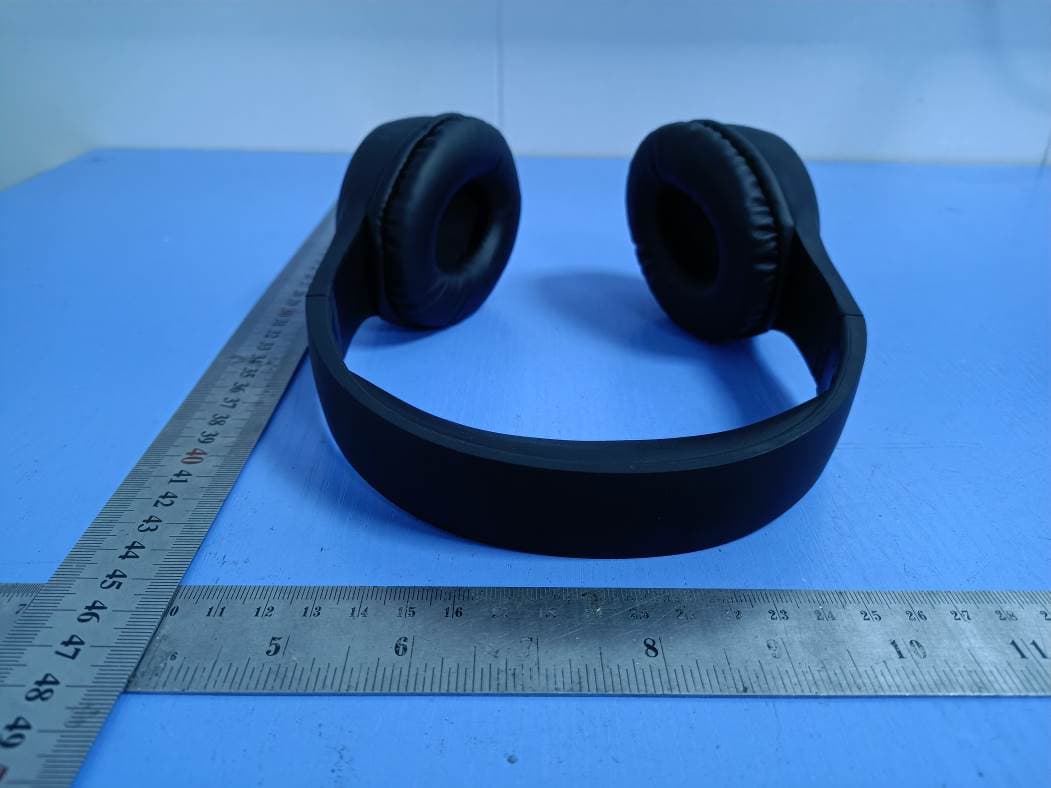

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2A2EE-SWB130 This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 1 of 3 External Photos of the EUT Fig.1 Fig.2 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2A2EE-SWB130 This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 2 of 3 Fig.3 Fig.4 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2A2EE-SWB130 This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 3 of 3 Fig.5 Fig.6

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2A2EE-SWB130 _____________________________________________________________________________________________________ This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 1 of 1 LABEL AND LOCATION Material: Tagboard Glue: adhesive sticker Font color: Blue Label color: White Label Location Bluetooth headphone Model No.: SW-B130 FCC ID: 2A2EE-SWB130 (Size: L3.0m x 2.0cm)

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2A2EE-SWB130 This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 1 of 3 Internal Photos of the EUT Fig.1 Fig.2 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2A2EE-SWB130 This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 2 of 3 Fig.3 Fig.4 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2A2EE-SWB130 This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 3 of 3 Fig.5 BT Antenna

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2A2EE‐SWB130 ________________________________________________________________________ ___ This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 1 of 3 FCC RF Exposure Evaluation 1. Product Information FCC ID : 2A2EE‐SWB130 Product name : Bluetooth headphone Test Model : SW‐B130 Additional Model No. : SBT‐272‐1024 Model Declaration : PCB board, structure and internal of these model(s) are the same, So no additional models were tested Power Supply : Input: DC 5V, 200mA DC 3.7V by Rechargeable Li‐ion Battery, 200mAh Hardware Version : / Software Version : / Bluetooth : 2402‐2480MHz Channel Number : 79 channels for Bluetooth V5.0(DSS) Channel Spacing : 1MHz for Bluetooth V5.0(DSS) Modulation Type : GFSK , π/4‐DQPSK for Bluetooth V5.0(DSS) Bluetooth Version : V5.0 Antenna Type : Internal Antenna Antenna Gain : 0dBi Exposure category : General population/uncontrolled environment EUT Type : Production Unit Device Type : Portable Device 2. Evaluation method and Limit According to KDB447498 D01 General RF Exposure Guidance v06 Section 4.3.1 Standalone SAR test exclusion considerations: “Unless specifically required by the published RF exposure KDB procedures, standalone 1‐g head or body and 10‐g extremity SAR evaluation for general population exposure conditions, by measurement or numerical simulation, is not required when the corresponding SAR Test Exclusion Threshold condition, listed below, is satisfied. These test exclusion conditions are based on source‐based time‐averaged maximum conducted output power of the RF channel requiring evaluation, adjusted for tune‐up tolerance, and the minimum test separation distance required for the exposure conditions.22 The minimum test separation distance is determined by the smallest distance from the antenna and radiating structures or outer surface of the device, according to the host form factor, exposure conditions and platform requirements, to any part of the body or extremity of a user or bystander (see 5) of section 4.1). To qualify for SAR test exclusion, the test separation distances applied must be fully explained and justified by the operating configurations and exposure conditions of the transmitter and applicable host platform requirements, typically in the SAR measurement or SAR analysis report, according to the required published RF exposure KDB procedures. When no other RF exposure testing or reporting is required, a statement of justification and compliance must be included in the equipment approval, in lieu of the SAR report, to qualify for the SAR test exclusion. When required, the device specific conditions described in the other published RF exposure KDB procedures must be satisfied before applying these SAR test exclusion provisions; for example, handheld PTT two‐way radios, handsets, laptops & tablets etc.“ [(max. power of channel, including tune‐up tolerance, mW)/ (min. test separaƟon distance, mm)] · [√f (GHz)] ≤ 3.0 for 1‐g SAR and ≤ 7.5 for 10‐g extremity SAR, where: • f (GHz) is the RF channel transmit frequency in GHz • Power and distance are rounded to the nearest mW and mm before calculation • The result is rounded to one decimal place for comparison SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2A2EE‐SWB130 ________________________________________________________________________ ___ This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 2 of 3 • 3.0 and 7.5 are referred to as the numeric thresholds in the step 2 below The test exclusions are applicable only when the minimum test separation distance is ≤ 50 mm and for transmission frequencies between 100 MHz and 6 GHz. When the minimum test separation distance is < 5 mm, a distance of 5 mm according to f) in section 4.1 is applied to determine SAR test exclusion. When one of the following test exclusion conditions is satisfied for all combinations of simultaneous transmission configurations, further equipment approval is not required to incorporate transmitter modules in host devices that operate in the mixed mobile and portable host platform exposure conditions. The grantee is responsible for documenting this according to Class I permissive change requirements. Antennas that qualify for standalone SAR test exclusion must apply the estimated standalone SAR to determine simultaneous transmission test exclusion. a) The [∑ of (the highest measured or estimated SAR for each standalone antenna configuration, adjusted for maximum tune‐up tolerance) / 1.6 W/kg] + [∑ of MPE ratios] is ≤ 1.0. b)The SAR to peak location separation ratios of all simultaneously transmitting antenna pairs operating in portable device exposure conditions are all ≤ 0.04, and the [∑ of MPE ratios] is ≤ 1.0. 3. Refer Evaluation Method ANSI C95.1–1999: IEEE Standard for Safety Levels with Respect to Human Exposure to Radio Frequency Electromagnetic Fields, 3 kHz to 300 GHz. FCC KDB publication 447498 D01 General RF Exposure Guidance v06: Mobile and Portable Devices RF Exposure Procedures and Equipment Authorization Policies. FCC CFR 47 part1 1.1310: Radiofrequency radiation exposure limits. FCC CFR 47 part2 2.1093: Radiofrequency radiation exposure evaluation: portable devices 4. Conducted Power Results <BT Classics> Mode Channel Frequency (MHz)Peak Conducted Output Power (dBm) GFSK 0 2402‐1.907 39 24411.329 78 24800.863 π/4DQPSK 0 24020.033 39 24413.254 78 24802.709 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2A2EE‐SWB130 ________________________________________________________________________ ___ This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 3 of 3 5. Manufacturing Tolerance <BT Classics> GFSK (Peak) Channel Channel 0Channel 39Channel 78 Target (dBm) ‐1.01.00 Tolerance ±(dB)1.01.0…

Text truncated - open the document above for the full version.

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2A2EE-SWB130 Report No.: LCS210618024AEA001 This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 1 of 35 FCC TEST REPORT FOR JiangXi Sunwe Industrial Co., Ltd. Bluetooth headphone Test Model: SW-B130 Additional Model No.: SBT-272-1024 Prepared for : JiangXi Sunwe Industrial Co., Ltd. Address : Industrial part, Wanzai county, JiangXi Province, China Prepared by : Shenzhen LCS Compliance Testing Laboratory Ltd. Address : 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel : (+86)755-82591330 Fax : (+86)755-82591332 Web : www.LCS-cert.com Mail : [email protected] Date of receipt of test sample : June 18, 2021 Number of tested samples : 2 Sample No. : 210618024A-1, 210618024A-2 Serial number : Prototype Date of Test : June 18, 2021 ~ June 25, 2021 Date of Report : July 07, 2021 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2A2EE-SWB130 Report No.: LCS210618024AEA001 This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 3 of 35 FCC -- TEST REPORT Test Result Positive The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Test Report No. : LCS210618024AEA001 July 07, 2021 Date of issue Test Model.............................. : SW-B130 EUT......................................... : Bluetooth headphone Applicant............................... : JiangXi Sunwe Industrial Co., Ltd. Address................................... : Industrial part, Wanzai county, JiangXi Province, China Telephone............................... : / Fax.......................................... : / Manufacturer......................... : Dongguan Sunwe Electronic Co., Ltd. Address................................... : BuildingA, No.21, Jinxiu Road, Cuntou, Humen, Dongguan, Guangdong, China Telephone............................... : / Fax.......................................... : / Factory................................... : JiangXi Sunwe Industrial Co., Ltd. Address................................... : Industrial part, Wanzai county, JiangXi Province, China Telephone............................... : / Fax.......................................... : / SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2A2EE-SWB130 Report No.: LCS210618024AEA001 This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 4 of 35 Revision History Revision Issue Date Revisions Revised By 000 June 29, 2021 Initial Issue Gavin Liang 001 July 07, 2021 Modify product name Gavin Liang Note: This report is based on the report No. LCS210618024AEA. This report is replacing the original report. SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2A2EE-SWB130 Report No.: LCS210618024AEA001 This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 5 of 35 TABLE OF CONTENTS Description Page 1.GENERAL INFORMATION ....................................................................................................... 6 1.1 Description of Device (EUT) ............................................................................................................ 6 1.2 Support equipment List ..................................................................................................................... 7 1.3 External I/O Cable ............................................................................................................................. 7 1.4 Description of Test Facility ............................................................................................................... 7 1.5 Statement of the Measurement Uncertainty .................................................................................. 7 1.6 Measurement Uncertainty ................................................................................................................ 7 1.7 Description of Test Modes ............................................................................................................... 8 2. TEST METHODOLOGY ............................................................................................................ 9 2.1 EUT Configuration ............................................................................................................................. 9 2.2 EUT Exercise ..................................................................................................................................... 9 2.3 General Test Procedures ................................................................................................................. 9 2.4. Test Sample ...................................................................................................................................... 9 3. SYSTEM TEST CONFIGURATION ...................................................................................... 10 3.1 Justification ....................................................................................................................................... 10 3.2 EUT Exercise Software .................................................................................................................. 10 3.3 Special Accessories ........................................................................................................................ 10 3.4 Block Diagram/Schematics ............................................................................................................ 10 3.5 Equipment Modifications ................................................................................................................ 10 3.6 Test Setup ..…

Text truncated - open the document above for the full version.

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2A2EE-SWB130 Report No.: LCS210618024AEA001 Page 1 of 33 Appendix A RF Test Data for BT V5.0(BDR/EDR) (Conducted Measurement) Product Name: Bluetooth headphone Trade Mark: N/A Test Model: SW-B130 Environmental Conditions Temperature: 24.6  C Relative Humidity: 54.1% ATM Pressure: 100.0 kPa Test Engineer: Ken He Supervised by: Li Huan A.1 Maxmum Conducted Peak Output Power Mode Channel. Maximum Peak Output Power [dBm]Limit [dBm] Verdict GFSK LCH -1.907 21 PASS MCH 1.329 21 PASS HCH 0.863 21 PASS π/4DQPSK LCH 0.033 21 PASS MCH 3.254 21 PASS HCH 2.709 21 PASS SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2A2EE-SWB130 Report No.: LCS210618024AEA001 Page 2 of 33 Test Graphs GFSK/LCH GFSK/MCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2A2EE-SWB130 Report No.: LCS210618024AEA001 Page 3 of 33 GFSK/HCH π/4DQPSK/LCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2A2EE-SWB130 Report No.: LCS210618024AEA001 Page 4 of 33 π/4DQPSK/MCH π/4DQPSK/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2A2EE-SWB130 Report No.: LCS210618024AEA001 Page 5 of 33 A.2 20dB Bandwidth Mode Channel. 20dB Bandwidth [MHz] Limit [MHz] Verdict GFSK LCH 0.9443 Not Specified PASS MCH 0.9457 Not Specified PASS HCH 0.9459 Not Specified PASS π/4DQPSK LCH 1.289 Not Specified PASS MCH 1.290 Not Specified PASS HCH 1.289 Not Specified PASS Test Graphs GFSK/LCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2A2EE-SWB130 Report No.: LCS210618024AEA001 Page 6 of 33 GFSK/MCH GFSK/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2A2EE-SWB130 Report No.: LCS210618024AEA001 Page 7 of 33 π/4DQPSK/LCH π/4DQPSK/MCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2A2EE-SWB130 Report No.: LCS210618024AEA001 Page 8 of 33 π/4DQPSK/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2A2EE-SWB130 Report No.: LCS210618024AEA001 Page 9 of 33 A.3 Carrier Frequency Separation Mode Channel. Carrier Frequency Separation [MHz] Limit [MHz] Verdict GFSK LCH 0.963 0.631 PASS MCH 0.812 0.631 PASS HCH 0.672 0.631 PASS π/4DQPSK LCH 1.008 0.860 PASS MCH 0.862 0.860 PASS HCH 1.206 0.860 PASS Test Graphs GFSK/LCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2A2EE-SWB130 Report No.: LCS210618024AEA001 Page 10 of 33 GFSK/MCH GFSK/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2A2EE-SWB130 Report No.: LCS210618024AEA001 Page 11 of 33 π/4DQPSK/LCH π/4DQPSK/MCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2A2EE-SWB130 Report No.: LCS210618024AEA001 Page 12 of 33 π/4DQPSK/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2A2EE-SWB130 Report No.: LCS210618024AEA001 Page 13 of 33 A.4 Hopping Channel Number Mode Channel. Number of Hopping Channel [N]Limit [N] Verdict GFSK Hop 79 >=15 PASS π/4DQPSK Hop 79 >=15 PASS Test Graphs GFSK/Hop π/4DQPSK/Hop SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2A2EE-SWB130 Report No.: LCS210618024AEA001 Page 14 of 33 A.5 Dwell Time Mode Packet Channel Burst Width [ms/hop/ch] Total Hops[hop*ch] Dwell Time[s] Limit [s]Verdict GFSK DH5 LCH 2.89 106.7 0.308 0.4 PASS DH5 MCH 2.89 106.7 0.308 0.4 PASS DH5 HCH 2.89 106.7 0.308 0.4 PASS π/4DQPSK 2DH5 LCH 2.89 106.7 0.307 0.4 PASS 2DH5 MCH 2.89 106.7 0.307 0.4 PASS 2DH5 HCH 2.89 106.7 0.307 0.4 PASS Test Graphs GFSK_DH5/LCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2A2EE-SWB130 Report No.: LCS210618024AEA001 Page 15 of 33 GFSK_DH5/MCH GFSK_DH5/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2A2EE-SWB130 Report No.: LCS210618024AEA001 Page 16 of 33 π/4DQPSK _2DH5/LCH π/4DQPSK _2DH5/MCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2A2EE-SWB130 Report No.: LCS210618024AEA001 Page 17 of 33 π/4DQPSK _2DH5/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2A2EE-SWB130 Report No.: LCS210618024AEA001 Page 18 of 33 A.6 RF Conducted Spurious Emissions Mode Channel Pref [dBm] Max. Level [dBm] Limit [dBm] Verdict GFSK LCH -2.376 -38.274 -22.376 PASS MCH 0.868 -37.945 -19.132 PASS HCH 0.48 -38.382 -19.520 PASS π/4DQPSK LCH -3.121 -38.409 -23.121 PASS MCH 0.246 -37.859 -19.754 PASS HCH -0.241 -38.065 -20.241 PASS GFSK_LCH_Graphs Pref SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2A2EE-SWB130 Report No.: LCS210618024AEA001 Page 19 of 33 Puw SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2A2EE-SWB130 Report No.: LCS210618024AEA001 Page 20 of 33 GFSK_MCH_Graphs Pref Puw SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2A2EE-SWB130 Report No.: LCS210618024AEA001 Page 21 of 33 GFSK_HCH_Graphs Pref Puw SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2A2EE-SWB130 Report No.: LCS210618024AEA001 Page 22 of 33 π/4DQPSK_LCH_Graphs Pref Puw SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2A2EE-SWB130 Report No.: LCS210618024AEA001 Page 23 of 33 π/4DQPSK_MCH_Graphs Pref Puw SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2A2EE-SWB130 Report No.: LCS210618024AEA001 Page 24 of 33 π/4DQPSK_HCH_Graphs Pref Puw SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2A2EE-SWB130 Report No.: LCS210618024AEA001 Page 25 of 33 A.7 Band-edge for RF Conducted Emissions Mode Channel Carrier Frequency [MHz] Carrier Power [dBm] Frequency Hopping Max Spurious Level [dBm] Limit [dBm] Verdict GFSK LCH 2402 -2.454 Off -49.578 -22.45 PASS -0.198 On -50.031-20.2 PASS HCH 2480 0.539 Off -49.150 -19.46 PASS 1.055 On -49.187-18.95 PASS π/4DQPSK LCH 2402 -2.380 Off -49.240 -22.38 PASS -0.685 On -49.050-20.69 PASS HCH 2480 0.389 Off -49.216 -19.61 PASS 0.807 On -48.160-19.19 PASS SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2A2EE-SWB130 Report No.: LCS210618024AEA001 Page 26 of 33 Test Graphs GFSK/LCH/No Hop GFSK/LCH/Hop SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2A2EE-SWB130 Report No.: LCS210618024AEA001 Page 27 of 33 GFSK/HCH/No Hop GFSK/HCH/Hop SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2A2EE-SWB130 Report No.: LCS210618024AEA00…

Text truncated - open the document above for the full version.

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2A2EE-SWB130 _______________________________________________________________________________________________ This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 1 of 1 Test Setup Photos of the EUT Test Setup Photo(s) of Radiated Emissions Measurement Fig. 1 Fig. 2 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2A2EE-SWB130 _______________________________________________________________________________________________ This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 2 of 2 Test Setup Photo(s) of Conducted Emissions Measurement Fig. 3
