2A2F5NEXR5GOWiFiX NEXR5GO WiFi Router

WIFIX NEX5GO ROUTER – USER MANUAL WiFiX NEXR5GO User Manual Page | 1 This User Manual provides the basics for configuring the WiFiX NEXR5GO router with the WiFiX firmware. In order to obtain the best results, avoid using WiFi to setup the router since you cannot make changes to the WiFi while logged into the router via its WiFi. Equally important, NEVER use the WiFi when updating a router’s firmware. 1. Connect an Ethernet cable from one of the router’s “LAN” ports to the network port on a PC (or Laptop). 2. Plug the 12 Volt power adapter into the electrical wall socket and insert the power connector into the router. The router will then begin its inital powering up process which, on first power up, may take a minute or two to complete. Left Clicking the Network/WiFi Icon on the PC’s lower (right hand) tool bar will show the completion of the initiation process when it changes from “Identifying...” to “Connected”. 3. Open a web browser and type in the routers IP address of 192.168.1.1 and hit enter. Our WiFiX firmware includes WireGuard (VPN) which requires https as opposed http. Therefore, a non private warning may be displayed since the router produces a “self-signed” https security certificate which is completely normal and safe. Different web browsers may display this warning a little differently. In Google Chrome, click on the Advanced button and click on the Proceed to 192.168.1.1 WIFIX NEX5GO ROUTER – USER MANUAL WiFiX NEXR5GO User Manual Page | 2 4. The login console should now appear with the user name of “root”. There is no password set on a new router and/or fresh install of WiFiX firmware so it should be left blank. Click the LOGIN button: 5. Once logged into the router, the Local Time and Time Zone needs to be set. Go to SYSTEM > SYSTEM and click on SYNC WITH BROWSER. Next, select the proper Time Zone from the drop down list then SAVE & APPLY (which must ALWAYS be done for ANY change to a firmware configuration to take effect). WIFIX NEX5GO ROUTER – USER MANUAL WiFiX NEXR5GO User Manual Page | 3 6. Next, go to SYSTEM > ADMINISTRATION > ROUTER PASSWORD and enter your password that is required to access the router’s login console. Then, SAVE & APPLY: 7. To modify the WiFi settings go to NETWORK > WIRELESS select the EDIT button on the WiFi interface (2.4GHz and/or 5GHz) to be modified. This will allow changing the WiFi name (ESSID) and/or WiFi password. WIFIX NEX5GO ROUTER – USER MANUAL WiFiX NEXR5GO User Manual Page | 4 8. On the lower screen GENERAL SETUP tab, modify the WiFiX broadcasting name to whatever name is desired: 9. Click on the WIRELESS SECURITY tab and enter the password (Key) to access the WiFi. Clicking on the icon next to the Key will display the password that was entered. Once completed with all setting, click SAVE & APPLY WIFIX NEX5GO ROUTER – USER MANUAL WiFiX NEXR5GO User Manual Page | 5 10. The above steps are for a general setup of the WiFi. The WiFi Mode, Channels, Width and Power may be manually configured from its default settings. This includes the ability to lock the WiFi to a specifically channel or, by using the Auto channel selection option. 11. To lock the WiFi to a specific Channel, Go to NETWORK > WIRELESS > DEVICE CONFIGURATION > GENERAL SETUP, and select the preferred Channel from the drop-down list. Then, SAVE & APPLY. 12. Repeat Steps 8 through 11 to EDIT the other WiFi Interface as shown in Step 7. 13. After all of the settings are configured, we recommend rebooting the router. Allow the router a few minutes to boot up, stabilize and apply its new configurations. 14. One of the router’s features is the ability to Reset the Firmware to its default settings. This is useful if some of the changes adversely affected the router’s functionality or performance. This reset returns the firmware to its original (default) configuration and removes the password, WiFi and others settings. 15. Go to SYSTEM > BACKUP / FLASH FIRMARE > RESTORE < RESET TO DEFAULTS and click PERFORM RESET: WIFIX NEX5GO ROUTER – USER MANUAL WiFiX NEXR5GO User Manual Page | 6 16. If ever the occasion the WiFiX firmware becomes unstable or corrupt, reloading the WiFiX firmware may be recommended. Go to SYSTEM > BACKUP / FLASH FIRMWARE and CHOOSE FILE to the firmware’s location downloaded to PC and FLASH IMAGE. MAKE SURE the Keep Settings box is UNCHECKED: FCCCaution Thisdevicecomplieswithpart15oftheFCCRules.Operationissubjecttothe followingtwoconditions:(1)Thisdevicemaynotcauseharmfulinterference,and(2) thisdevicemustacceptanyinterferencereceived,includinginterferencethatmay causeundesiredoperation. AnyChangesormodificationsnotexpresslyapprovedbythepartyresponsiblefor compliancecouldvoidtheuser'sauthoritytooperatetheequipment. Note:ThisequipmenthasbeentestedandfoundtocomplywiththelimitsforaClass Bdigitaldevice,pursuanttopart15oftheFCCRules.Theselimitsaredesignedto providereasonableprotectionagainstharmfulinterferenceinaresidentialinstallation. Thisequipmentgeneratesusesandcanradiateradiofrequencyenergyand,ifnot installedandusedinaccordancewiththeinstructions,maycauseharmfulinterference toradiocommunications.However,thereisnoguaranteethatinterferencewillnot occurinaparticularinstallation.Ifthisequipmentdoescauseharmfulinterferenceto radioortelevisionreception,whichcanbedeterminedbyturningtheequipmentoff andon,theuserisencouragedtotrytocorrecttheinterferencebyoneormoreofthe followingmeasures: -Reorientorrelocatethereceivingantenna. -Increasetheseparationbetweentheequipmentandreceiver. -Connecttheequipmentintoanoutletonacircuitdifferentfromthattowhichthe receiverisconnected. -Consultthedealeroranexperiencedradio/TVtechnicianforhelp. ThisequipmentcomplieswithFCCradiationexposurelimitssetforthforan uncontrolledenvironment.Thisequipmentshouldbeinstalledandoperatedwith minimumdistance20cmbetweentheradiator&yourbody.

FCC Software Configuration Control Declaration Rev1.1 NetSolution.Shop, LLC FCC Software Configuration Control Declaration Date: 2021/06/25 Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 USA Attn: OET Dept. Product/ Model Number: Regarding FCC Country Code Selection guidelines identified in KDB 594280 D01 Software Configuration Control v02r01. “All applications for equipment authorization for transmitters that can have radio parameters, or other technical parameters, reported to the Commission set by software must have an attestation indicating that no third party will have software, or configuration control, to program the device out of compliance of the technical rules under which it has been certified.” We declare that no third party will have software, or configuration control, to program the device out of compliance of the technical rules under which it has been certified. Name: Richard Jones Date: 2021/06/25 Title: President Signatureof applicant:

NetSolution.Shop, LLC Agent Authorization Company: NetSolution.Shop, LLC Address: 226 East Gay St #460, Lebanon, TN 37087, United States of America Product Name: WiFiX NEXR5GO WiFi Router Model Number(s): NEXR5GO Trademark: WiFiX NEXR5GO FCC ID: 2A2F5NEXR5GO We authorize MiCOM Labs Inc., 575 Boulder Court, Pleasanton, California 94566, USA, to act on our behalf on all matters concerning the certification of above named equipment. We declare that MiCOM Labs Inc. is allowed to forward all information related to the approval and certification of equipment to the regulatory agencies as required and to discuss any issues concerning the approval application. Any and all acts carried out by MiCOM Labs on our behalf shall have the same effect as acts of our own. Signature: Date: 2021/06/25 Name: Richard Jones Title: President Company: NetSolution.Shop, LLC

NetSolution.Shop, LLC Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 USA Date: 2021/06/25 Subject; Request for Confidentiality FCC ID: 2A2F5NEXR5GO To Whom It May Concern, Pursuant to the provisions of the Commission’s rules Title 47 Sections §0.457 and §0.459, we are requesting the Commission to withhold the following attachment(s) as confidential documents from public disclosure indefinitely. These documents contain detailed system and equipment descriptions and are considered as proprietary information in operation of the equipment. The public disclosure of these documents might be harmful to our company and would give competitors an unfair advantage in the market. Schematic Diagram Block Diagram Operational Description SOFTWARE SECURITY REQUIREMENTS FOR U-NII DEVICES In additional to above mentioned documents, in order to comply with the marketing regulations in Title 47 CFR §2.803 and the importation rules in Title 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices, we request Short Term Confidentiality of the following attachment(s); User Manual For 45 days, pursuant to Public Notice DA 04-1705. OR For 180 days pursuantto KDB 726920 D01. It is our understanding that all measurement test reports, FCC ID label format and correspondence during the certification review process cannot be granted as confidential documents and this information will be available for public review once the grant of equipment authorization is issued. Sincerely, Signature: Name: Richard Jones Title: President

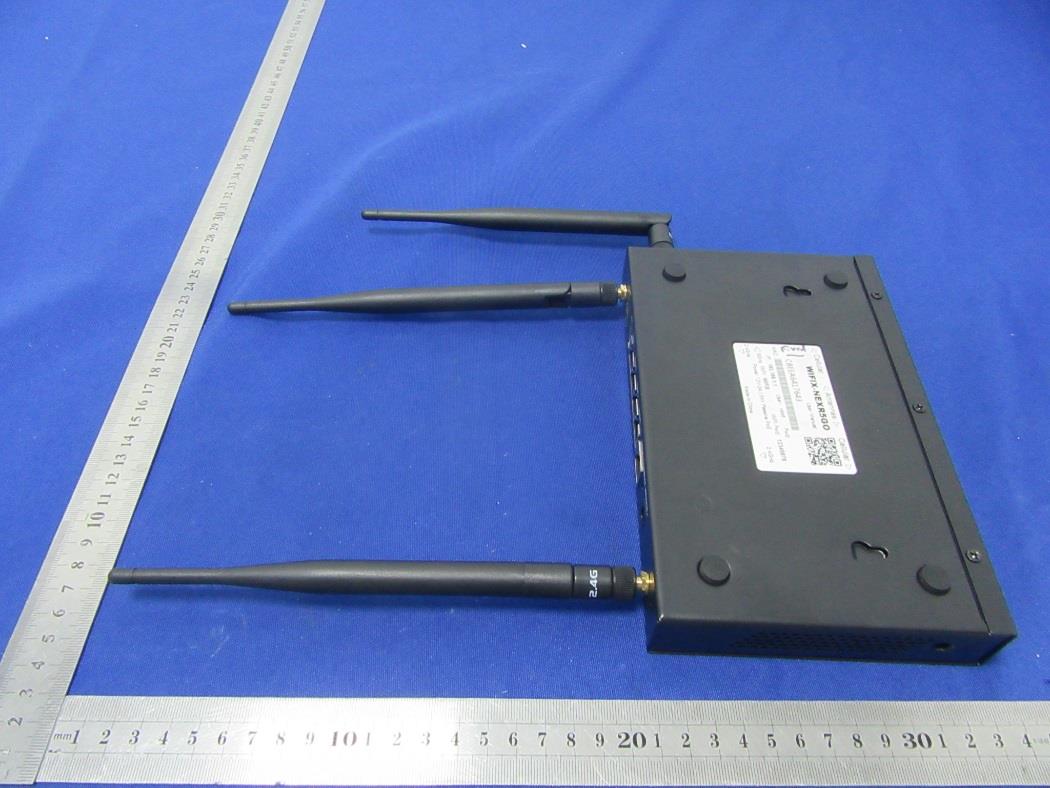

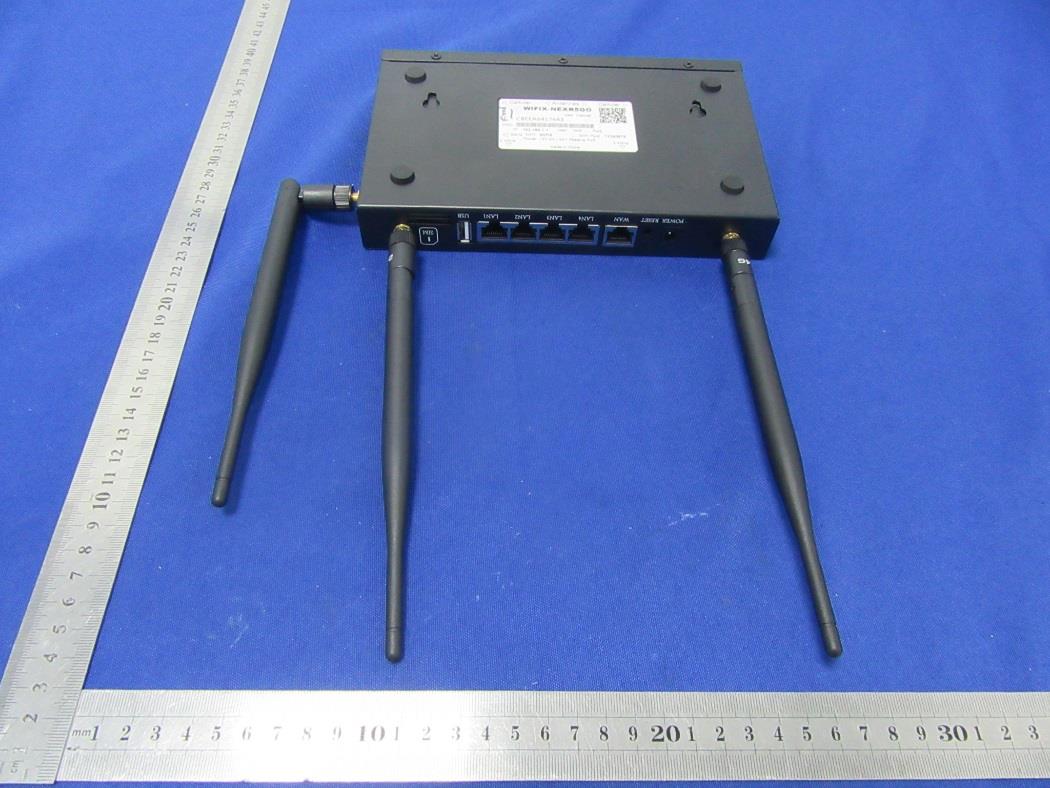

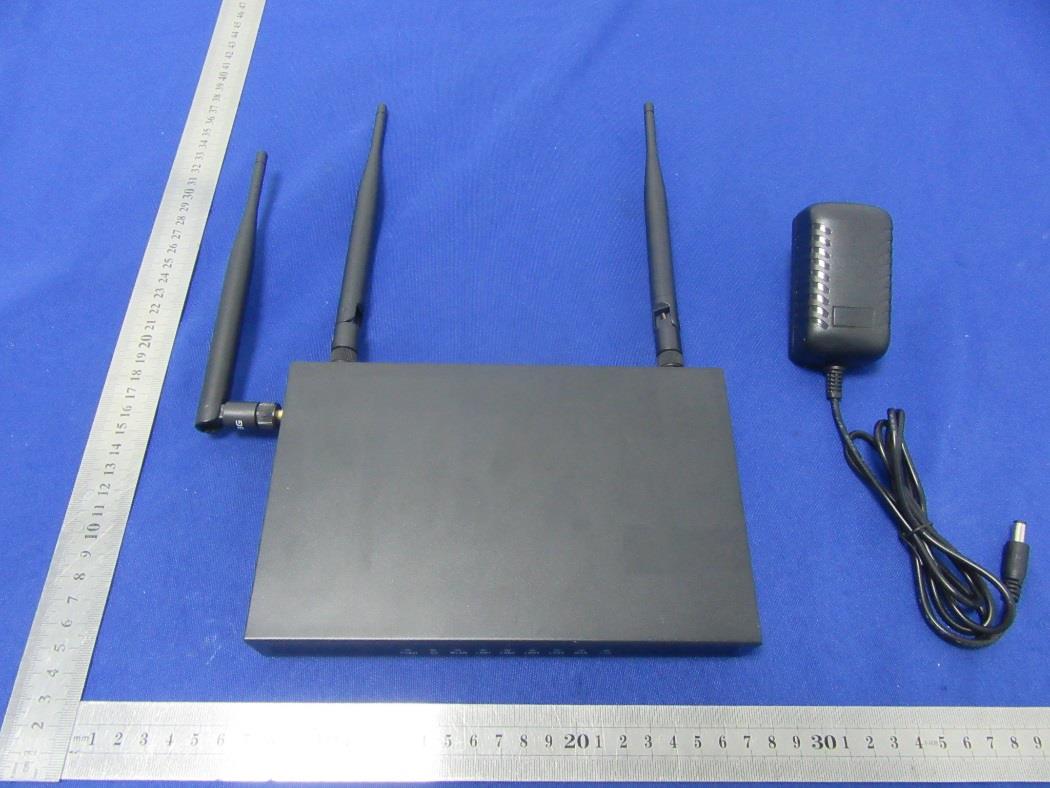

External Photos 5g Antenna 2.4g Antenna

40*20mm Label Location FCC ID: 2A2F5NEXR5GO This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:(1)This device may not cause harmful interfer ence, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Internal Photos

FCC §15.247 (i), §2.1091 – RF Exposure FCC ID: 2A2F5NEXR5GO Applied procedures / limit According to FCC §15.247(i) and §1.1307(b)(1), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. Limits for Occupational / Controlled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm 2 ) Averaging Time |E| 2 ,|H| 2 or S (minutes) 0.3-3.0 614 1.63 (100)* 6 3.0-30 1842 / f 4.89 / f (900 / f)* 6 30-300 61.4 0.163 1.0 6 300-1500 F/300 6 1500-100,000 5 6 Note: ƒ is frequency in MHz * = Power density limit is applicable at frequencies greater than 100 MHz Limits for General Population / Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm 2 ) Averaging Time |E| 2 ,|H| 2 or S (minutes) 0.3-1.34 614 1.63 (100)* 30 1.34-30 824/f 2.19/f (180/f)* 30 30-300 27.5 0.073 0.2 30 300-1500 F/1500 30 1500-100,000 1.0 30 Note: f = frequency in MHz * = Plane-wave equivalent power density MPE PREDICTION Predication of MPE limit at a given distance, Equation from OET Bulletin 65, Edition 97-01 Where: S = power density P = power input to antenna G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the center of radiation of the antenna, R=0.2m TEST RESULTS For the Max simultaneous transmission MPE Tune up Produce power Maximu m peak output power (dBm) Output power to antenna (mW) Antenna Gain (numeric) Power Density (S) (mW/ cm2) Limit (mW/ cm2) Result 802.11 n20 20±1 21 125.89 1.58 (2dBi) 0.03958 1 Pass 802.11 U- NII-1 18±1 19 79.43 1.58 (2dBi) 0.02497 1 Pass 802.11 U-NII-3 18±1 19 79.43 1.58 (2dBi) 0.02497 1 Pass Evaluation mode Power Density/Limit Sum of the MPE rate Limit Result 802.11 b/g/n 0.03958 0.06455 1 Pass 802.11 U- NII-1 0.02497

No.：BCTC/RF-EMC-005 Page: 1 of 85 Edition：A.3 TEST REPORT Shenzhen BCTC Testing Co., Ltd. Report No.: BCTC2104032613-2E Applicant: NetSolution.Shop, LLC Product Name: WiFiX NEXR5GO WiFi Router Model/Type reference: NEXR5GO Tested Date: 2021-06-03 to 2021-06-18 Issued Date: 2021-06-21 Report No.: BCTC2104032613-2E No.：BCTC/RF-EMC-005 Page: 2 of 85 Edition：A.3 FCC ID: 2A2F5NEXR5GO The test report is effective only with both signature and speciali zed stamp.This result(s) shown in this report refer only to the sample(s ) tested. Without written approval of Shenzhen BCTC Testing Co., Ltd, this report can’t be reproduced except in full.The tested sample(s) and the sample information are provided by the client. Product Name: WiFiX NEXR5GO WiFi Router Trademark: WiFiX NEXR5GO Model/Type Ref.: NEXR5GO Prepared For: NetSolution.Shop, LLC Address: 226 East Gay St #460, Lebanon, TN 37087, United States of America Manufacturer: SHX-TECH LIMITED Address: Face A., Floor4, Building 2, Jinjun Industrial Park, Yangwu Industrial Zone, Dalingshan Town, Dongguan City, GuangDong Province, China Prepared By: Shenzhen BCTC Testing Co., Ltd. Address: 1-2/F., Building B, Pengzhou Industrial Park, No.158, Fuyuan 1st Road, Tangwei, Fuhai Subdistrict, Bao'an District, Shenzhen, Guangdong, China Sample Received Date: 2021-06-03 Sample tested Date: 2021-06-03 to 2021-06-18 Issue Date: 2021-06-212021-07-08 Report No.: BCTC2104032613-2E Test Standards FCC Part15 15.407 ANSI C63.10-2013 KDB 662911 D01 v02r01 KDB 789033 D02 v02r01 Test Results PASS Tested by: Approved by: Eric Yang/Project Handler Zero Zhou/Reviewer Report No.: BCTC2104032613-2E No.：BCTC/RF-EMC-005 Page: 3 of 85 Edition：A.3 TABLE OF CONTENT Test Report Declaration Page 1. VERSION ...................................................... 5 2. TEST SUMMARY ................................................ 6 3. MEASUREMENT UNCERTAINTY ................................... 7 4. PRODUCT INFORMATION AND TEST SETUP ........................ 8 4.1 Product Information .....................................................8 4.2 Test Setup Configuration ................................................9 4.3 Support Equipment .....................................................9 4.4 Channel List ..........................................................10 4.5 Test Mode ............................................................11 4.6 table of parameters of text software setting ................................11 5. TEST FACILITY AND TEST INSTRUMENT USED ..................... 12 5.1 Test Facility ...........................................................12 5.2 Test Instrument Used ..................................................12 6. CONDUCTED EMISSIONS ....................................... 14 6.1 Block Diagram Of Test Setup............................................14 6.2 Limit .................................................................14 6.3 Test procedure ........................................................14 6.4 EUT operating Conditions...............................................14 6.5 Test Result ...........................................................15 7. RADIATED EMISSIONS ......................................... 17 7.1 Block Diagram Of Test Setup............................................17 7.2 Limit .................................................................18 7.3 Test procedure ........................................................19 7.4 EUT operating Conditions...............................................20 7.5 Test Result ...........................................................21 8. POWER SPECTRAL DENSITY TEST ............................... 30 8.1 Block Diagram Of Test Setup............................................30 8.2 Limit .................................................................30 8.3 Test procedure ........................................................31 8.4 EUT operating Conditions...............................................31 8.5 Test Result ...........................................................32 9. 26DB & 6DB & 99% EMISSION BANDWIDTH ........................ 38 9.1 Block Diagram Of Test Setup............................................38 9.2 Limit .................................................................38 9.3 Test procedure ........................................................38 9.4 EUT operating Conditions...............................................39 9.5 Test Result ...........................................................39 10. MAXIMUM CONDUCTED OUTPUT POWER ......................... 53 10.1 Block Diagram Of Test Setup...........................................53 Report No.: BCTC2104032613-2E No.：BCTC/RF-EMC-005 Page: 4 of 85 Edition：A.3 10.2 Limit ................................................................53 10.3 Test procedure .......................................................53 10.4 EUT operating Conditions..............................................54 10.5 Test Result ..........................................................55 11. OUT OF BAND EMISSIONS ...................................... 57 11.1 Block Diagram Of Test Setup...........................................57 11.2 Limit ................................................................57 11.3 Test procedure .......................................................57 11.4 EUT operating Conditions..............................................57 11.5 Test Result ..........................................................58 12. SPURIOUS RF CONDUCTED EMISSIONS........................... 64 12.1 Block Diagram Of Test Setup...........................................64 12.2 Limit ................................................................64 12.3 Test procedure .......................................................64 12.4 Test Result ..........................................................65 13. FREQUENCY STABILITY MEASUREMENT .......................... 74 14. ANTENNA REQUIREMENT ......................…

Text truncated - open the document above for the full version.

Report No.: BCTC2104032613-2E No.：BCTC/RF-EMC-005 Page: 58 of 85 Edition：A.3 11.5 Test Result Temperature： 26 °C Relative Humidity： 54% Pressure： 101kPa Test Voltage ： AC 120V/60Hz 5.180~5.240 GHz (802.11a) Band Edge, Left Side (802.11a) Band Edge, Right Side Report No.: BCTC2104032613-2E No.：BCTC/RF-EMC-005 Page: 59 of 85 Edition：A.3 5.180~5.240 GHz (802.11n20) Band Edge, Left Side (802.11n20) Band Edge, Right Side Report No.: BCTC2104032613-2E No.：BCTC/RF-EMC-005 Page: 60 of 85 Edition：A.3 5.180~5.240 GHz (802.11n40) Band Edge, Left Side (802.11n40) Band Edge, Right Side Report No.: BCTC2104032613-2E No.：BCTC/RF-EMC-005 Page: 61 of 85 Edition：A.3 5.745~5.825 GHz (802.11a) Band Edge, Left Side (802.11a) Band Edge, Right Side Report No.: BCTC2104032613-2E No.：BCTC/RF-EMC-005 Page: 62 of 85 Edition：A.3 5.745~5.825 GHz (802.11n20) Band Edge, Left Side (802.11n20) Band Edge, Right Side Report No.: BCTC2104032613-2E No.：BCTC/RF-EMC-005 Page: 63 of 85 Edition：A.3 5.745~5.825 GHz (802.11n40) Band Edge, Left Side (802.11n40) Band Edge, Right Side Report No.: BCTC2104032613-2E No.：BCTC/RF-EMC-005 Page: 64 of 85 Edition：A.3 12. SPURIOUS RF CONDUCTED EMISSIONS 12.1 Block Diagram Of Test Setup 12.2 Limit Undesirable emission limits. Except as shown in paragraph (b)(7) of this section, the maximum emissions outside of the frequency bands of operation shall be attenuated in accordance with the following limits: (1)For transmitters operating in the 5.15-5.25 GHz band: All emissions outside of the 5.15-5.35 GHz band shall not exceed an e.i.r.p. of −27 dBm/MHz. (2)For transmitters operating in the 5.725-5.85 GHz band(i) All emissions shall be limited to a level of −27 dBm/MHz at 75 MHz or more above or below the band edge increasing linearly to 10 dBm/MHz at 25 MHz above or below the band edge, and from 25 MHz above or below the band edge increasing linearly to a level of 15.6 dBm/MHz at 5 MHz above or below the band edge, and from 5 MHz above or below the band edge increasing linearly to a level of 27 dBm/MHz at the band edge.. 12.3 Test procedure 1. Check the calibration of the measuring instrument using either an internal calibrator or a known signal from an external generator. 2. Position the EUT without connection to measurement instrument. Turn on the EUT and connect its antenna terminal to measurement instrument via a low loss cable. Then set it to any one measured frequency within its operating range, and make sure the instrument is operated in its linear range. 3. Set RBW of spectrum analyzer to 1 MHz with a convenient frequency span. 4. Measure the highest amplitude appearing on spectral display and set it as a reference level. Plot the graph with marking the highest point and edge frequency. 5. Repeat above procedures until all measured frequencies were complete. Report No.: BCTC2104032613-2E No.：BCTC/RF-EMC-005 Page: 65 of 85 Edition：A.3 12.4 Test Result Remark: The measurement frequency range is from 9KHz to the 10th harmonic of the fundamental frequency. The lowest, middle and highest channels are tested to verify the spurious emissions and bandege measurement data. About:26.5GHz-40GHz, The amplitude of spurious emissions which are attenuated by more than 20dB below the permissible value has no need to be reported. Report No.: BCTC2104032613-2E No.：BCTC/RF-EMC-005 Page: 66 of 85 Edition：A.3 5.1G Test Plot 802.11a on channel 36 802.11a on channel 40 802.11a on channel 36 802.11a on channel 40 802.11a on channel 36 802.11a on channel 40 Report No.: BCTC2104032613-2E No.：BCTC/RF-EMC-005 Page: 67 of 85 Edition：A.3 Test Plot 802.11a on channel 48 802.11n20 on channel 36 802.11a on channel 48 802.11n20 on channel 36 802.11a on channel 48 802.11n20 on channel 36 Report No.: BCTC2104032613-2E No.：BCTC/RF-EMC-005 Page: 68 of 85 Edition：A.3 Test Plot 802.11n20 on channel 40 802.11n20 on channel 48 802.11n20 on channel 40 802.11n20 on channel 48 802.11n20 on channel 40 802.11n20 on channel 48 Report No.: BCTC2104032613-2E No.：BCTC/RF-EMC-005 Page: 69 of 85 Edition：A.3 Test Plot 802.11n40 on channel 38 802.11n40 on channel 46 802.11n40 on channel 38 802.11n40 on channel 46 802.11n40 on channel 38 802.11n40 on channel 46 Report No.: BCTC2104032613-2E No.：BCTC/RF-EMC-005 Page: 70 of 85 Edition：A.3 5.8G Test Plot 802.11a on channel 149 802.11a on channel 157 802.11a on channel 149 802.11a on channel 157 802.11a on channel 149 802.11a on channel 157 Report No.: BCTC2104032613-2E No.：BCTC/RF-EMC-005 Page: 71 of 85 Edition：A.3 Test Plot 802.11a on channel 165 802.11n20 on channel 149 802.11a on channel 165 802.11n20 on channel 149 802.11a on channel 165 802.11n20 on channel 149 Report No.: BCTC2104032613-2E No.：BCTC/RF-EMC-005 Page: 72 of 85 Edition：A.3 Test Plot 802.11n20 on channel 157 802.11n20 on channel 165 802.11n20 on channel 157 802.11n20 on channel 165 802.11n20 on channel 157 802.11n20 on channel 165

Report No.: BCTC2104032613-2E No.：BCTC/RF-EMC-005 Page: 73 of 85 Edition：A.3 Test Plot 802.11n40 on channel 151 802.11n40 on channel 159 802.11n40 on channel 151 802.11n40 on channel 159 802.11n40 on channel 151 802.11n40 on channel 159 Report No.: BCTC2104032613-2E No.：BCTC/RF-EMC-005 Page: 74 of 85 Edition：A.3 13. FREQUENCY STABILITY MEASUREMENT 13.1 LIMIT Manufactures of U-NII devices are responsible for ensuring frequency stability such that an emission is maintained within the band of operation under all conditions of normal operation as specified in the user’s manual. The transmitter center frequency tolerance shall be ± 20 ppm maximum for the 5 GHz band (IEEE802.11n specification). 13.2 TEST PROCEDURES 1. The transmitter output (antenna port) was connected to the spectrum analyzer. 2. EUT have transmitted absence of modulation signal and fixed channelize. 3. Set the spectrum analyzer span to view the entire absence of modulation emissions bandwidth. 4. Set RBW = 10 kHz, VBW = 10 kHz with peak detector and maxhold settings. 5. fc is declaring of channel frequency. Then the frequency error formula is (fc-f)/fc × 106 ppm and the limit is less than ±20ppm (IEEE 802.11nspecification). 6. The test extreme voltage is to change the primary supply voltage from 85 to 115 percent of the nominal value 7. Extreme temperature is -20°C~70°C. 13.3 TEST SETUP LAYOUT 13.4 EUT OPERATION DURING TEST The EUT was programmed to be in continuously un-modulation transmitting mode. 13.5 TEST RESULTS Report No.: BCTC2104032613-2E No.：BCTC/RF-EMC-005 Page: 75 of 85 Edition：A.3 Temperature： 26 °C Relative Humidity： 54% Pressure： 101kPa Test Voltage ： AC 120V/60Hz Test Mode ： TX Frequency U-NII-1 (5180-5240MHz) Voltage vs. Frequency Stability V nom (V)120.005180.0048351800.00480.9325 V max (V)138.005180.0068651800.00691.3252 V min (V)102.005180.0110851800.01112.1381 Limits ±20ppm Result Complies T nom (°C) 20 ffc Max. Deviation (MHz) Max. Deviation (ppm) TEST CONDITIONS Reference Frequency：5180MHz Temperature vs. Frequency Stability T (°C)-205180.0126951800.01272.4501 T (°C)-105180.0120051800.01202.3163 T (°C)05180.0020851800.00210.4010 T (°C)105180.0073251800.00731.4139 T (°C)205180.0030351800.00300.5849 T (°C)305180.0114851800.01152.2164 T (°C)405180.0120351800.01202.3222 T (°C)505180.0004751800.00050.0903 T (°C)605180.0007851800.00080.1508 T (°C)705180.0006551800.00060.1254 Limits ±20ppm Result Complies V nom (V) 120 ffc Max. Deviation (MHz) Max. Deviation (ppm) TEST CONDITIONS Reference Frequency：5180MHz Report No.: BCTC2104032613-2E No.：BCTC/RF-EMC-005 Page: 76 of 85 Edition：A.3 Voltage vs. Frequency Stability V nom (V)120.005200.0032852000.00330.6299 V max (V)138.005200.00182 5200 0.00180.3496 V min (V)102.005200.00110 5200 0.00110.2107 ffc Max. Deviation (MHz) Max. Deviation (ppm) TEST CONDITIONS Reference Frequency：5200MHz Limits ±20ppm Result Complies T nom (°C) 20 Temperature vs. Frequency Stability T (°C)-205200.0086152000.00861.6559 T (°C)-105200.01150 5200 0.01152.2112 T (°C)05200.00157 5200 0.00160.3011 T (°C)105200.00592 5200 0.00591.1376 T (°C)205200.00541 5200 0.00541.0395 T (°C)305200.01087 5200 0.01092.0896 T (°C)405200.00869 5200 0.00871.6709 T (°C)505200.00629 5200 0.00631.2091 T (°C)605200.01276 5200 0.01282.4529 T (°C)705200.00933 5200 0.00931.7937 Limits ±20ppm Result Complies V nom (V) 120 ffc Max. Deviation (MHz) Max. Deviation (ppm) TEST CONDITIONS Reference Frequency：5200MHz Report No.: BCTC2104032613-2E No.：BCTC/RF-EMC-005 Page: 77 of 85 Edition：A.3 Voltage vs. Frequency Stability V nom (V)120.005240.0089252400.00891.7032 V max (V)138.005240.0128452400.01282.4500 V min (V)102.005240.0076452400.00761.4584 ffc Max. Deviation (MHz) Max. Deviation (ppm) TEST CONDITIONS Reference Frequency：5240MHz Limits ±20ppm Result Complies T nom (°C) 20 Temperature vs. Frequency Stability T (°C)-205240.0100752400.01011.9224 T (°C)-105240.0114752400.01152.1892 T (°C)05240.0096452400.00961.8392 T (°C)105240.0062452400.00621.1912 T (°C)205240.0098352400.00981.8767 T (°C)305240.0125652400.01262.3979 T (°C)405240.0112052400.01122.1371 T (°C)505240.0077452400.00771.4767 T (°C)605240.0014652400.00150.2778 T (°C)705240.0049552400.00490.9444 Limits ±20ppm Result Complies V nom (V) 120 ffc Max. Deviation (MHz) Max. Deviation (ppm) TEST CONDITIONS Reference Frequency：5240MHz Report No.: BCTC2104032613-2E No.：BCTC/RF-EMC-005 Page: 78 of 85 Edition：A.3 Temperature： 26 °C Relative Humidity： 54% Pressure： 101kPa Test Voltage ： AC 120V/60Hz Hzst Mode ： TX Frequency(5745-5825MHz) Voltage vs. Frequency Stability V nom (V)120.005745.0019257450.001920.3342 V max (V)138.005745.01019 5745 0.010191.7736 V min (V)102.005745.00436 5745 0.004360.7581 ffc Max. Deviation (MHz) Max. Deviation (ppm) TEST CONDITIONS Reference Frequency：5745MHz Limits ±20ppm Result Complies T nom (°C) 20 Temperature vs. Frequency Stability T (°C)-205745.0075857450.007581.3186 T (°C)-105745.0069357450.006931.2070 T (°C)05745.0038857450.003880.6761 T (°C)105745.0022157450.002210.3843 T (°C)205745.0000557450.000050.0079 T (°C)305745.0072657450.007261.2635 T (°C)405745.0033257450.003320.5786 T (°C)505745.0083457450.008341.4521 T (°C)605745.0011357450.001130.1969 T (°C)705745.0107757450.010771.8743 Limits ±20ppm Result Complies V nom (V) 120 ffc Max. Deviation (MHz) Max. Deviation (ppm) TEST CONDITIONS Reference Frequency：5745MHz Report No.: BCTC2104032613-2E No.：BCTC/RF-EMC-005 Page: 79 of 85 Edition：A.3 Voltage vs. Frequency Stability V nom (V)120.005785.0041657850.004160.7196 V max (V)138.005785.00982 5785 0.009821.6980 V min (V)102.005785.01231 5785 0.012312.1285 Result Complies T nom (°C) 20 ffc Max. Deviation (MHz) Max. Deviation (ppm) TEST CONDITIONS Reference Frequency：5785MHz Limits ±20ppm Temperature vs. Frequency Stability T (°C)-205785.0063057850.006301.0894 T (°C)-105785.00095 5785 0.000950.1647 T (°C)05785.00980 5785 0.009801.6948 T (°C)105785.00585 5785 0.005851.0120 T (°C)205785.00368 5785 0.003680.6358 T (°C)305785.00709 5785 0.007091.…

Text truncated - open the document above for the full version.

Conducted Emission Radiated Measurement Photos
