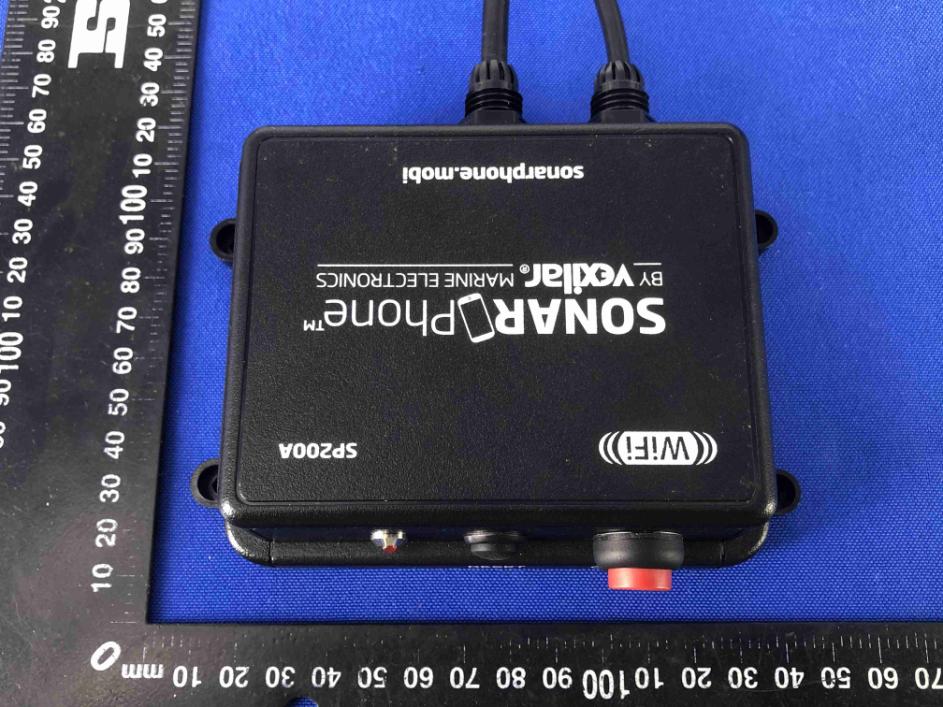

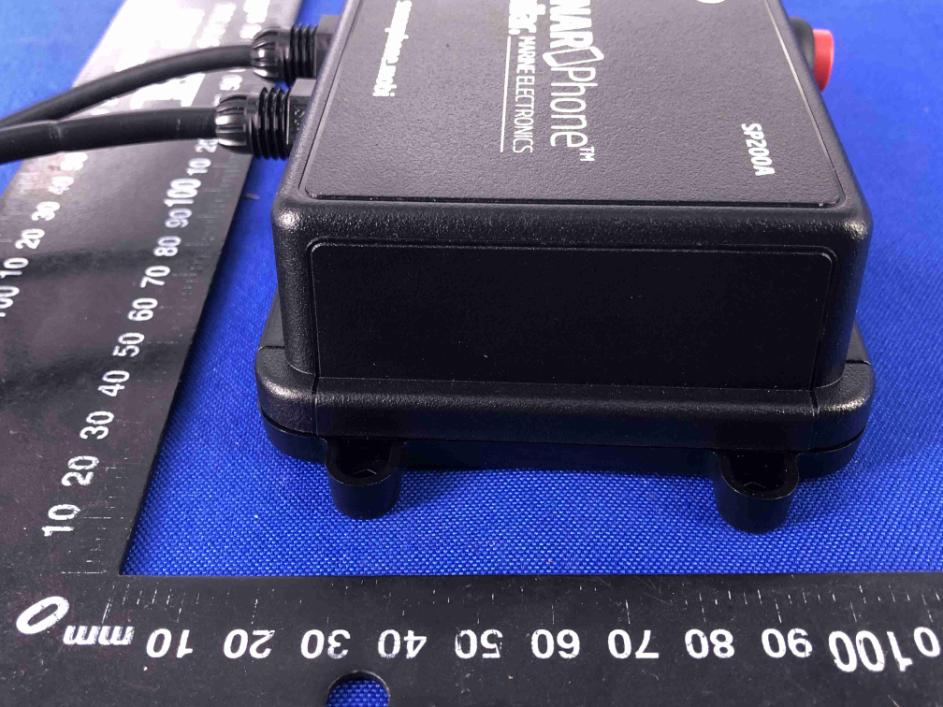

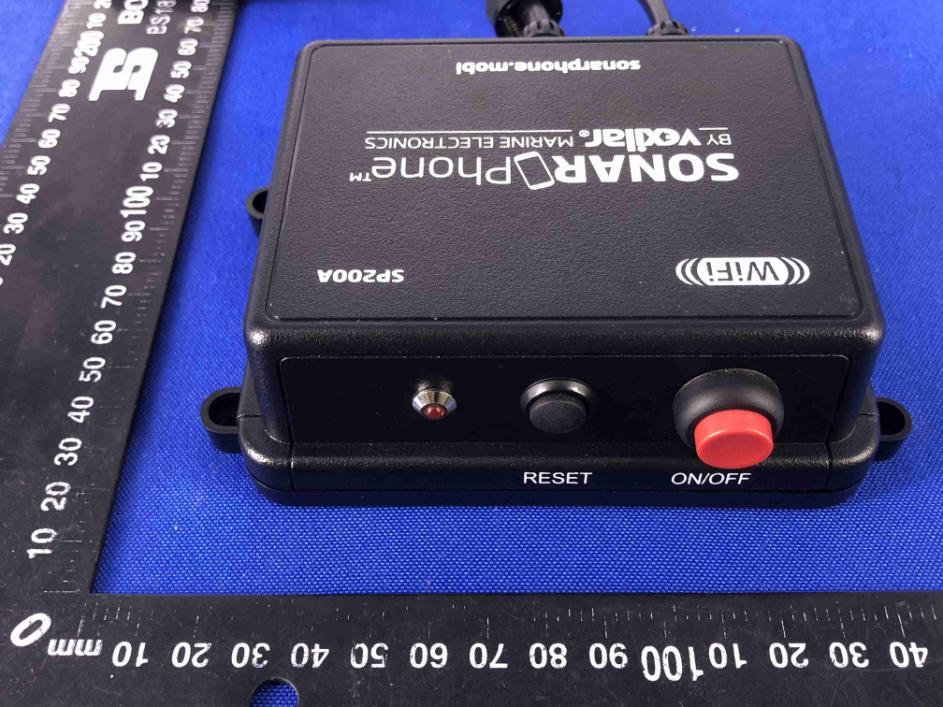

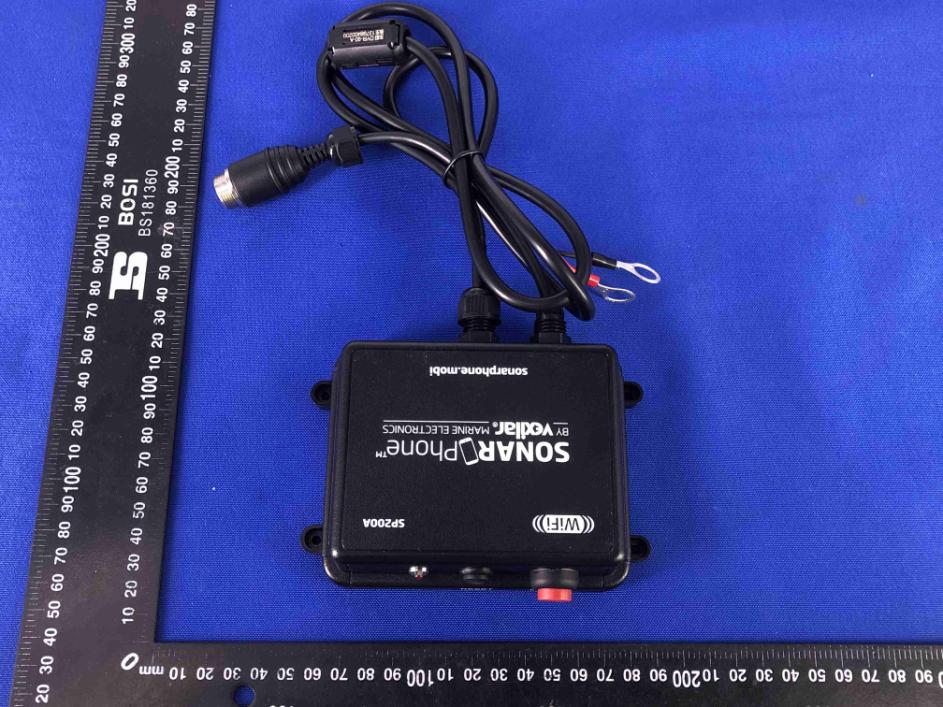

Page 1 of 4 Appendix B: Photographs of EUT Product: Fish Finder Model: SP200A External Photos Page 2 of 4 Page 3 of 4 Page 4 of 4

LabelArtworkandLocation Model:SP200A Label: Size:L*W=50*25mm FishFinder Model:SP200A FCCID:2A2FP-SP200A Thisdevicecomplieswithpart15oftheFCC rules.Operationissubjecttothefollowingtwo conditions(1)thisdevicemaynotcauseharmful interference,and(2)thisdevicemustacceptany interferencereceived,includinginterferencethat maycauseundesiredoperation. Location

Page 1 of 4 Appendix B: Photographs of EUT Product: Fish Finder Model: SP200A Internal Photos Page 2 of 4 Antenna Page 3 of 4 Page 4 of 4

Maximum Permissible Exposure Applicable Standard According to §1.1307(b), systems operating under the provisions of this section shall be operated in a manner that ensure that the public is not exposed to radio frequency energy level in excess of the Commission’s guideline. Remark: 1) The maximum output power for antenna is 15.76dBm (37.67mW) at 2462MHz, 2dBi antenna gain(with 1.58 numeric antenna gain.) 2) For mobile or fixed location transmitters, no SAR consideration applied. The minimum separation generally be used is at least 20cm, even if the calculation indicate that the MPE distance would be lesser. Maximum Permissible Exposure output power= 37.67mW Numeric Antenna gain= 1.58 Substituting the MPE safe distance using d=20cm into above equation. Yields: S=0.000199*P*G Where P=Power in mW G=Numeric antenna gain S=Power density in mW/cm 2 Power density= 0.011844mW/cm 2 (For mobile or fixed location transmitters, the maximum power density is 1.0 mW/cm 2 even if the calculation indicates that the power density would be larger.)

Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com TEST REPORT FCC ID. ............................ : 2A2FP-SP200A Test Report No. ............... : TCT210622E022 Date of issue ................... : Jul. 27, 2021 Testing laboratory .......... : SHENZHEN TONGCE TESTING LAB Testing location/ address: TCT Testing Industrial Park Fuqiao 5th Industrial Zone, Fuhai Street, Bao'an District Shenzhen, Guangdong, 518103, People's Republic of China Applicant's name ............ : Shenzhen Phiradar Technology Co., Ltd. Address ........................... : Room 412, Meiying Songbai Industrial Zone, Yanluo Street, BaoAn District, Shenzhen, Guangdong, China Manufacturer's name ... : Shenzhen Phiradar Technology Co., Ltd. Address ........................... : Room 412, Meiying Songbai Industrial Zone, Yanluo Street, BaoAn District, Shenzhen, Guangdong, China Standard(s) ..................... : FCC CFR Title 47 Part 15 Subpart C Section 15.247 FCC KDB 558074 D01 15.247 Meas Guidance v05r02 ANSI C63.10:2013 Test item description ..... : Fish Finder Trade Mark ...................... : N/A Model/Type reference..... : SP200A Rating(s).......................... : DC 12 V Date of receipt of test item ......................................... : Jun. 22, 2021 Date (s) of performance of test ................................... : See dates for each test case Tested by (+signature) ... : Brave Zeng Check by (+signature) .... : Beryl Zhao Approved by (+signature): Tomsin General disclaimer: This report shall not be reproduced except in full, without the written approval of SHENZHEN TONGCE TESTING LAB. This document may be altered or revised by SHENZHEN TONGCE TESTING LAB personnel only, and shall be noted in the revision section of the document. The test results in the report only apply to the tested sample. Report No.: TCT210622E022 Page 2 of 71 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com Table of Contents 1. General Product Information .................................................................. 3 1.1. EUT description ..................................................................................................... 3 1.2. Model(s) list ............................................................................................................ 3 1.3. Operation Frequency ............................................................................................ 4 2. Test Result Summary .............................................................................. 5 3. General Information ................................................................................. 6 3.1. Test environment and mode ................................................................................. 6 3.2. Description of Support Units ................................................................................ 7 4. Facilities and Accreditations .................................................................. 8 4.1. Facilities ................................................................................................................. 8 4.2. Location ................................................................................................................. 8 4.3. Measurement Uncertainty ..................................................................................... 8 5. Test Results and Measurement Data ..................................................... 9 5.1. Antenna requirement ............................................................................................ 9 5.2. Conducted Emission ........................................................................................... 10 5.3. Maximum Conducted (Average) Output Power ................................................ 11 5.4. Emission Bandwidth ........................................................................................... 12 5.5. Power Spectral Density ....................................................................................... 13 5.6. Conducted Band Edge and Spurious Emission Measurement ....................... 14 5.7. Radiated Spurious Emission Measurement ...................................................... 16 Appendix A: Test Result of Conducted Test Appendix B: Photographs of Test Setup Appendix C: Photographs of EUT Report No.: TCT210622E022 Page 3 of 71 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com 1. General Product Information 1.1. EUT description Test item description ........... : Fish Finder Model/Type reference........... : SP200A Sample Number....................: TCT210622E022-0101 Operation Frequency ........... : 2412MHz~2462MHz (802.11b/802.11g/802.11n(HT20)) Channel Separation .............. : 5MHz Number of Channel .............. : 11 for 802.11b/802.11g/802.11n(HT20) Modulation Technology ....... : 802.11b: Direct Sequence Spread Spectrum (DSSS) 802.11g/802.11n: Orthogonal Frequency Division Multiplexing(OFDM) Data speed ............................ : 802.11b: 1Mbps, 2Mbps, 5.5Mbps, 11Mbps 802.11g: 6Mbps, 9Mbps, 12Mbps, 18Mbps, 24Mbps, 36Mbps, 48Mbps, 54Mbps 802.11n: Up to 150Mbps Antenna Type ........................ : Internal Antenna Antenna Gain ........................ : 2dBi Rating(s)................................ : DC 12 V Remark .................................. : / Note: The antenna gain listed in this report is provided by applicant, and the test laboratory is not responsible for this parameter. 1.2. Model(s) list None. Report No.: TCT210622E022 Page 4 of 71 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com 1.3. Operation Frequency For 802.11b/g/n(HT20) Channel Frequency Channel Frequency Channel Frequency Channel Frequency 1 2412MHz 4 2427MHz 7 2442MHz 10 2457MHz 2 2417MHz 5 2432MHz 8 2447MHz 11 2462MHz 3 2422MHz 6 2437MHz 9 2452MHz -- -- Note: In section 15.31(m), regards to the operating frequency range over 10 MHz, the…

Text truncated - open the document above for the full version.

Report No.: TCT210622E022 Page 51 of 71 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com 11B_Ant1_2462_0~Reference 11B_Ant1_2462_30~1000 11B_Ant1_2462_1000~26500 Report No.: TCT210622E022 Page 52 of 71 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com 11G_Ant1_2412_0~Reference 11G_Ant1_2412_30~1000 11G_Ant1_2412_1000~26500 Report No.: TCT210622E022 Page 53 of 71 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com 11G_Ant1_2437_0~Reference 11G_Ant1_2437_30~1000 11G_Ant1_2437_1000~26500 Report No.: TCT210622E022 Page 54 of 71 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com 11G_Ant1_2462_0~Reference 11G_Ant1_2462_30~1000 11G_Ant1_2462_1000~26500 Report No.: TCT210622E022 Page 55 of 71 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com 11N20SISO_Ant1_2412_0~Reference 11N20SISO_Ant1_2412_30~1000 11N20SISO_Ant1_2412_1000~26500 Report No.: TCT210622E022 Page 56 of 71 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com 11N20SISO_Ant1_2437_0~Reference 11N20SISO_Ant1_2437_30~1000 11N20SISO_Ant1_2437_1000~26500 Report No.: TCT210622E022 Page 57 of 71 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com 11N20SISO_Ant1_2462_0~Reference 11N20SISO_Ant1_2462_30~1000 11N20SISO_Ant1_2462_1000~26500 Report No.: TCT210622E022 Page 58 of 71 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com Report No.: TCT210622E022 Page 59 of 71 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com Duty Cycle Test Result Test Mode Antenna Channel Transmission Duration [ms] Transmission Period [ms] Duty Cycle [%] Limit Verdict 11B Ant1 2412 50.00 50.00 100.00 --- PASS 2437 50.00 50.00 100.00 --- PASS 2462 50.00 50.00 100.00 --- PASS 11G Ant1 2412 50.00 50.00 100.00 --- PASS 2437 50.00 50.00 100.00 --- PASS 2462 50.00 50.00 100.00 --- PASS 11N20SISO Ant1 2412 50.00 50.00 100.00 --- PASS 2437 50.00 50.00 100.00 --- PASS 2462 50.00 50.00 100.00 --- PASS Test Graphs 11B_Ant1_2412 11B_Ant1_2437 11B_Ant1_2462 Report No.: TCT210622E022 Page 60 of 71 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com 11G_Ant1_2412 11G_Ant1_2437 11G_Ant1_2462 Report No.: TCT210622E022 Page 61 of 71 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com 11N20SISO_Ant1_2412 11N20SISO_Ant1_2437 11N20SISO_Ant1_2462 Report No.: TCT210622E022 Page 62 of 71 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com Report No.: TCT210622E022 Page 63 of 71 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com Appendix B: Photographs of Test Setup Product: Fish Finder Model: SP200A Radiated Emission Report No.: TCT210622E022 Page 64 of 71 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com Appendix C: Photographs of EUT Product: Fish Finder Model: SP200A External Photos Report No.: TCT210622E022 Page 65 of 71 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com Report No.: TCT210622E022 Page 66 of 71 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com Report No.: TCT210622E022 Page 67 of 71 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com Report No.: TCT210622E022 Page 68 of 71 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com Product: Fish Finder Model: SP200A Internal Photos Report No.: TCT210622E022 Page 69 of 71 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com Report No.: TCT210622E022 Page 70 of 71 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com Report No.: TCT210622E022 Page 71 of 71 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com *****END OF REPORT*****

Page 1 of 1 Appendix B: Photographs of Test Setup Product: Fish Finder Model: SP200A Radiated Emission
