2A2GL-T1B-TTBSmart Door Lock

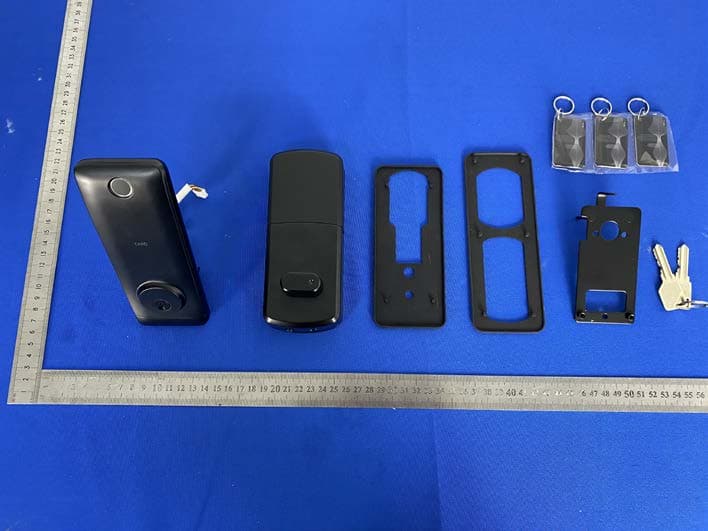

SpecialAttention: 1.Mechanicalkeyspleasekeepoutdoor,justincasekeyslockindoors. 2.Pleasereplaceforthebatterywhenlowwattagealarm. 3.Readingthismanualcarefullybeforeinstallation,andkeepitforfuturereference. SmartLock T1-TTB UserManual 1 1.Introduction 1.1.Lockstructure 1.2.PackingList Checkthefollowingdrawingtocheckwhetherthepackagecontainsalltheparts NONameQt y NONameQt y 1FrontPane19M4*30mmScrewStubs: forFrontPanelLower （ Need2 ） 3 2BackPanel110M4*40mmScrewStubs: forFrontPanelUpper（Need1） 3 3Mortise:Latch111MortiseScrews:25*4mm (ForWoodenDoor) 4 4Card312MortiseScrews:10*5 (ForAluminumDoor) 4 5MechanicalKey213 M4*12mmScrews ForFixingBackPanel 2 6WaterproofRubber Plate 214M4*30mmScrewfor DoorThickness35-50mm 3 7 UserManual 115M4*50mmScrewfor DoorThickness50-65mm 2 8Strike&StrikeBox1+ 1 2 1.3.Specifications 1.4.Initialization Suitablefor Models T1 DoorsApplicable Aluminumdoor Woodendoor MaterialsHandle ： ZincAlloy WorkingVoltage 6V/4xAABatteries LockWeight 2.0KG DoorThicknesstoFit 35-60mm UnlockingWay Bluetooth Fingerprint(option) Password Card Mechanicalkey DataCapacity Fingerprint ： 200 Password：150 Card ： 200 Color Silver Black WorkingTemperature -10 °C -55 °C LowWattage Alarm Lessthan4.8VWorkingHumidity0-95% Longpresstheresetbuttonontheback ofthefrontpanelforabout3s,input “000#”,theinitializationissuccessful whenthebuzzershortbeeptwice. ResetButton 3 2.Installation 2.1Confirmopeningdirection SetTheLeftOpenSetTheRightOpen 1 Spindlealways keephorizontal 2 Deadboltalways keeppullin 3 Whatisleftopen? Thiswecalled "leftopen"(show asimage) 4 Changeto "L"or“R”position inthePCBof backpanel 5 Deadboltknob Attention： Anyofaboveisimproperset,willcauseproblem！！！ 4 2.2.InstallationDiagram Step1InstallMortise Step2InstallScrewsCasingandWaterRubber Plate Step3InstallFrontPanelStep4FixedFrontPanelandWaterRubber Plate Step5ConnectingFrontandBackPanelsStep6FixedBackPanel Step7InstallBatteriesStep8Coverthebatterybox Spindlealways keephorizontal Thedeadbolt alwayskeep PULLIN 5 3.Operation 3.1.Registration 3.2.Connectlocktothephone 1)pleasescantheQRcodetodownloadtheapp 2)YoucanalsosearchforTTLockintheAPPstore(GooglePlay)todownload 4)Registeranewaccount(phonenumberoremail)orloginwithanexisting account. 5)Touchthelockscreentolight,click"+AddLock” 6)Thelocknearbywillappearonthephonescreen,Click"+" 7)Re-namethelock 8)Thelockaddedsuccessfully 3.3.Addlocks TTLocksupportsmultipletypesoflockdevices.Thelockneedstobeaddedby theappafterenteringtheaddmode.Generally,alockthathasnotbeenadded,as longasthelockkeyboardistouched,itwillentertheaddmode.Thedefault passwordis123456ifnotaddedbythephone H11 Thesoftware(iOSversion)canbe downloadedfromtheappstore,andtheAndroid versioncanbedownloadedfromtheapplication storeofGoogleplay,Yingyongbao,Baidu,Ali, 360,Huawei,andXiaomi. TTlockuserscanregistertheaccountby mobilephoneandEmailwhichcurrently support200countriesandregionsonthe world.Theverificationcodewillbesent touser’smobilephoneoremail,andthe registrationwillbesuccessfulafterthe verification. 6 3.4.UserManagement 3.4.1.Bluetoothmanagement MakesurethereisnoproblemwithBluetoothcommunication.Afterconnectingthe phonetothedoorlockasabove,Click""tounlock.(thephoneiswithin 5metersfromthedoorlock) 3.4.2.SettingPasscode Passcodesarealsoawaytounlock.Afterenteringthepasscodeonthelockedkeyboard, presstheunlockbuttoninthelowerrightcornertounlock.Passcodesaredividedinto permanent,time-limited,single,clear,cycle,andcustom.(YoucansharethePasscodeto otheruserviaWeChat、SMS、Email、Messenger、WhatsApp) 3.4.3.Sende-Key Clickonthe""asshowninfigure,youcansendtheeKeytootherusersof TTlocktoauthorizetheunlock(thereceivermustbedownloadtheAPPandsetup anaccount)→Selecte-keyformat(Timed,permanent,One-time,Recurring)→ Enterrecipient'saccountofTTlock,setthenameandeffectivetimeoftheeKey,Can choosetoallowremoteunlockingordisallowing,authorizedadministratorornot authorized,asshowninfigure → Send → Therecipient'saccounthasBluetooth unlockpermission 7 3.4.4.Addcard SupportsopeningdoorsthroughvariousICcards.BeforeanICcardisusedto openthedoor,itneedstobeaddedfirst.Theaddingprocessneedstobeperform edbytheappbesidethelock.ThevalidityperiodoftheICcanbeset,itcanbeper manent,oritcanbelimitedintime. 3.4.5.Addfingerprint Thepremisethatafingerprintcanbeusedtoopenadooristhatitneedstobe addedfirst.TheaddingprocessneedstobeperformedbytheAPPbesidethelock. Thefingerprintexpirationdatacanbeset,itcanbepermanent,oritcanbelimited. Aftersetting,youcanmodifyitsvalidityperiod. 3.4.6.e-Keymanagement Click““Themanagercandeleteekey,resetekey,sendandadjustthe ekey,meanwhilehecansearchthelockrecord. 3.4.7.Passcodemanagement Click"".Allgeneratedpasswordscanbeviewedandmanagedinthe passwordmanagementmodule.Thisincludesapasswordchange,password deletion,passwordreset,andpasswordunlockrecord. 3.4.8.Unlockrecords Click""youcanqueryyourunlockrecordasshowninfigure 8 3.5.Gatewaymanagement(Optional) TheTTlockisdirectlyconnectedviaBluetooth,thatiswhyitisnotattackedby thenetwork.ThegatewayisabridgebetweensmartlocksandhomeWIFI networks.Throughthegateway,theusercanremotelyviewandcalibratethelock clock,readtheunlockrecord.Meanwhile,itcanremotelydeleteandmodifythe password. 3.5.1.AddGateway 3.6.ElectronicLockingButton Longpresstheelectronicanti-lockbutton,when itprompts"Operationsuccessful",itmeansthat thedoorislocked.Itcanonlybeunlockedby theadministratorapporbyturningthe indoorknob.Otherunlockingmethodsare invalid. 9 4.FAQ 1)Howtoreadoperationrecords?IntheRecordsofthemaininterface.. 2)Whycan’tIunlockitafteropenthe passagemode Youneedtoperformanunlockverificationin anymethod,thanthepassagemodewilltake effect. 3)WhatisthepurposeofAutoLockYoucansethowlongtolockafterunlocking 4 ） Afterinstallation,touchsensing keyboard,screennorespond a)Inthiscase,firstcheckthatthepositive andnegativeelectrodesofthebattery havebeeninstalledupsidedown,whether thebatteryhasenoughpower b)Removethebackpanelandseeifit's connected. c)Toeliminatetheabovesituation,youneed toremovethelock,checkwhetherthe wiresofthelockbodyaresqueezed,a…

Text truncated - open the document above for the full version.

Date: Jun.26.2021 Equipment Autorisation Division Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 FCC ID: 2A2GL-T1B-TTB Product Name: Smart Door Lock Request for Confidentiality Pursuant to Sections 0.457 and 0.459 of the commission’s rules, we hereby request that the following documents be held confidential: (List here the documents for which you are seeking confidentiality – for example ...) • Schematics • Block diagram • Operation description These materials contain trade secrets and proprietary information and are not customarily released to the public. The public disclosure of this information might be harmful to the company and provide unjustified benefits to our competitors. <Signature> Name: YE JIANQIU Title: general manager Company: Guangzhou Weshine Electronic Technology Co., Ltd.

Date: Jun.26.2021 Federal Communications Commission Authorization & Evaluation Division 7345 Oakland Mills Road Columbia, Maryland 21046 RE: LETTER OF AGENT AUTHORIZATION To Whom It May Concern: We, the undersigned, hereby authorize Compliance Testing, LLC to act on our behalf in all matters relating to application for equipment authorization, including the signing of all documents relating to these matters. We also hereby certify that no party to the application authorized hereunder is subject to the denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C.853(a). Sincerely, <Signature> Name: YE JIANQIU Title: general manager Company: Guangzhou Weshine Electronic Technology Co., Ltd.

Date: Jun.26.2021 Federal Communications Commission Authorization & Evaluation Division 7345 Oakland Mills Road Columbia, Maryland 21046 Authority to Act as Agent On our behalf, I appoint Shenzhen CTB Testing Technology Co., Ltd. Add: Floor 1&2, Building A, No. 26 of Xinhe Road, Xinqiao Community, Xinqiao Street, Baoan District, Shenzhen, Guangdong, China to act as our agent in the preparation of this application for equipment certification. I certify that submitted documents properly describe the device or system for which equipment certification is sought. I also certify that each unit manufactured, imported or marketed, as defined in the Federal Communications Commission’s regulations will have affixed to it a label identical to that submitted for approval with this application. For instances where our authorized agent signs the application for certification on our behalf, I acknowledge that all responsibility for complying with the terms and conditions for certification, still resides with Guangzhou Weshine Electronic Technology Co., Ltd. Add: Room 1708, No. 173, Middle Longkou Road, Tianhe District, Guangzhou, China <Signature> Name: YE JIANQIU Title: general manager Company: Guangzhou Weshine Electronic Technology Co., Ltd.

Guangzhou Weshine Electronic Technology Co., Ltd. Model Difference Product description: Smart Door Lock Model name: T1B-TTB, T1A-TTB, T1A-TYB, T1A-TYW, T1A-TYZ, T1B-TYB, T1B- TYW, T1B-TYZ, T1A, T1B Trade Name: SLOCKREVO FCC ID: 2A2GL-T1B-TTB All the model are the same circuit and RF module, only for model name. Regards Sincerely Client’s signature: Client’s name / title : YE JIANQIU (general manager) Contact information / address: Room 1708, No. 173, Middle Longkou Road, Tianhe District, Guangzhou, China

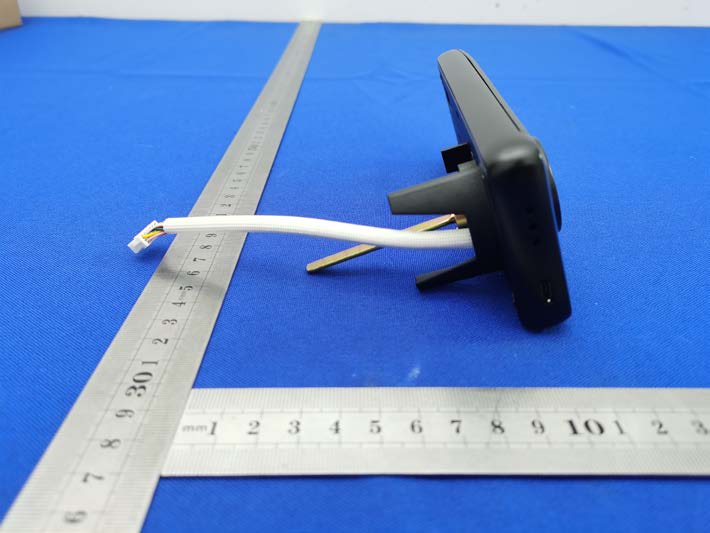

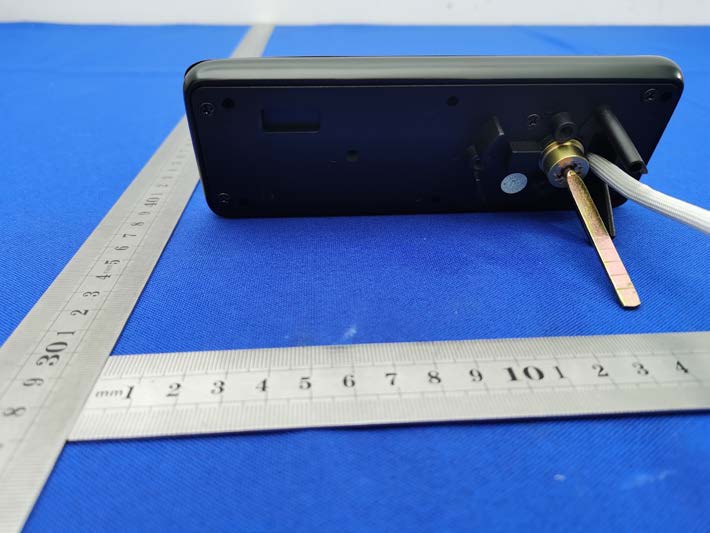

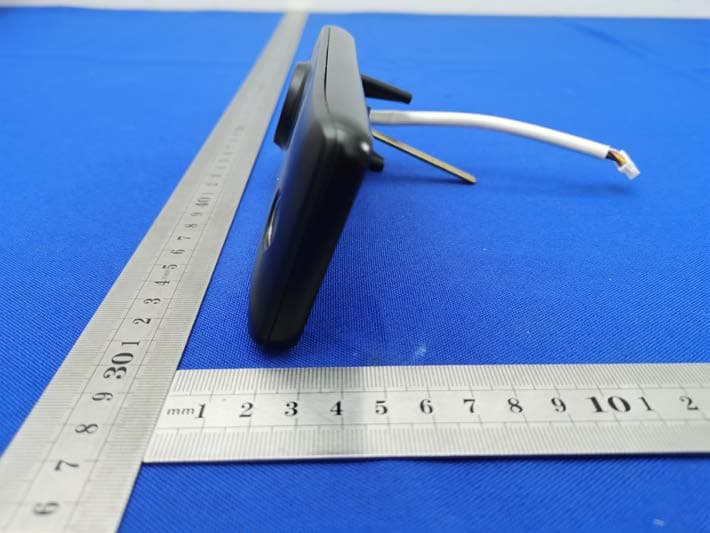

External Photos

Model: T1B-TTB FCC ID: 2A2GL-T1B-TTB Label Location

Internal Photos ANT

Shenzhen CTB Testing Co., Ltd. FCC ID: 2A2GL-T1B-TTB Portable device According to §15.247(e)(i) and §1.1307(b)(1), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. According to KDB447498 D01 General RF Exposure Guidance V06 The 1-g SAR and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)]·[√f(GHZ)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR, where: • f(GHZ) is the RF channel transmit frequency in GHz • Power and distance are rounded to the nearest mW and mm before calculation • The result is rounded to one decimal place for comparison When the minimum test separation distance is < 5 mm, a distance of 5 mm is applied to determine SAR test exclusion. BT: 2.402-3.7110.43-3±1-2.000.63<50.195583.00YES 2.441-3.6620.43-3±1-2.000.63<50.197163.00YES 2.480-3.9580.40-3±1-2.000.63<50.198733.00YES GFSK Conclusion: For the max result : 0. 19873≤ FCC Limit 3.0 for 1g SAR.

Shenzhen CTB Testing Technology Co., Ltd. Report No.: CTB210616015RFX Report Tel: 4008-707-283Web: http://www.ctb-lab.netPage 1 of 36 TEST REPORT Compiled by: Reviewed by: Approved by: Arron Liu Bin Mei Rita Xiao / Director The test report is effective only with both signature and specialized stamp. This result(s) shown in this report refer only to the sample(s) tested. Without written approval of Shenzhen CTB Testing Technology Co., Ltd. this report can’t be reproduced except in full. The tested sample(s) and the sample information are provided by the client. Product Name: Smart Door Lock FCC ID: 2A2GL-T1B-TTB Trademark: SLOCKREVO Model Number: T1B-TTB, T1A-TTB, T1A-TYB, T1A-TYW, T1A-TYZ, T1B-TYB, T1B-TYW, T1B-TYZ, T1A, T1B Prepared For: Guangzhou Weshine Electronic Technology Co., Ltd. Address: Room 1708, No. 173, Middle Longkou Road, Tianhe District, Guangzhou, China Manufacturer: Guangzhou Weshine Electronic Technology Co., Ltd. Address: Room 1708, No. 173, Middle Longkou Road, Tianhe District, Guangzhou, China Prepared By: Shenzhen CTB Testing Technology Co., Ltd. Address: Floor 1&2, Building A, No. 26 of Xinhe Road, Xinqiao Street, Baoan District, Shenzhen China Sample Received Date: Jun. 15, 2021 Sample tested Date: Jun. 15, 2021 to Jun. 18, 2021 Issue Date: Jun. 18, 2021 Report No.: CTB210618042RFX Te s t Standards FCC Part15.247 ANSI C63.10:2013 Test Results PASS Remark: This is Bluetooth radio test report. Shenzhen CTB Testing Technology Co., Ltd. Report No.: CTB210616015RFX Report Tel: 4008-707-283 Web: http://www.ctb-lab.net Page 2 of 36 TABLE OF CONTENT Test Report Declaration Page 1. VERSION............................................................ 4 2. TEST SUMMARY ..................................................... 5 3. MEASUREMENT UNCERTAINTY ....................................... 6 4. PRODUCT INFORMATION AND TEST SETUP ........................... 7 4.1 Product Information ..................................................... 7 4.2 Test Setup Configuration ................................................ 7 4.3 Support Equipment ..................................................... 7 4.4 Channel List ........................................................... 8 4.5 Test Mode ............................................................. 8 4.6 Test Environment ....................................................... 8 5. TEST FACILITY AND TEST INSTRUMENT USED ......................... 9 5.1 Test Facility ............................................................ 9 5.2 Test Instrument Used ................................................... 9 6. AC POWER LINE CONDUCTED EMISSION .............................. 11 6.1 Block Diagram Of Test Setup............................................ 11 6.2 Limit ................................................................. 11 6.3 Test procedure ........................................................ 11 6.4 Test Result ........................................................... 13 7. RADIATED SPURIOUS EMISSION ..................................... 15 7.1 Block Diagram Of Test Setup............................................ 15 7.2 Limit ................................................................. 15 7.3 Test procedure ........................................................ 16 7.4 Test Result ........................................................... 17 8. BAND EDGE AND RF COUNDUCTED SPURIOUS EMISSIONS ............ 24 8.1 Block Diagram Of Test Setup............................................ 24 8.2 Limit ................................................................. 24 8.3 Test procedure ........................................................ 24 8.4 Test Result ........................................................... 25 9. COUDUCTED PEAK OUTPUT POWER ................................. 27 9.1 Block Diagram Of Test Setup............................................ 27 9.2 Limit ................................................................. 27 9.3 Test procedure ........................................................ 27 9.4 Test Result ........................................................... 28 10. 6DB OCCUPIED BANDWIDTH ........................................ 30 10.1 Block Diagram Of Test Setup .......................................... 30 10.2 Limit ................................................................ 30 10.3 Test procedure ....................................................... 30 10.4 Test Result .......................................................... 30 11. POWER SPECTRAL DENSITY ........................................ 32 11.1 Block Diagram Of Test Setup .......................................... 32 11.2 Limit ................................................................ 32 Shenzhen CTB Testing Technology Co., Ltd. Report No.: CTB210616015RFX Report Tel: 4008-707-283 Web: http://www.ctb-lab.net Page 3 of 36 11.3 Test procedure ....................................................... 32 11.4 Test Result .......................................................... 32 12. ANTENNA REQUIREMENT ........................................... 34 13. EUT TEST SETUP PHOTOGRAPHS ................................... 35 (Note: N/A means not applicable) Shenzhen CTB Testing Technology Co., Ltd. Report No.: CTB210616015RFX Report Tel: 4008-707-283 Web: http://www.ctb-lab.net Page 4 of 36 1. VERSION Report N o. Issue Date Description Approved CTB210618042FX Jun. 18, 2021 Original Valid Shenzhen CTB Testing Technology Co., Ltd. Report No.: CTB210616015RFX Report Tel: 4008-707-283 Web: http://www.ctb-lab.net Page 5 of 36 2. TEST SUMMARY The Product has been tested according to the following specifications: Test Item Test Requirement Test method Result AC Power Line Conducted Emission 47 CFR Part 15 Subpart C Section 15.207 ANSI C63.10-2013 PAS S Radiated Spurious emissions 47 CFR Part 15 Subpart C Section 15.205/15.209 ANSI C63.10-2013 PAS S Band edge and RF Conducted Spurious Emissions 47 CFR Part 15 Subpart C …
