2A2GT-PTM-710KWireless Power Transmitter

USER MANUAL PTM-710K Specification - Input voltage/current: DC 12V 2A - Output Watt: 10W - Frequency: 111 ~ 205 kHz - Charging efficiency ≥ 70% - Operation Temperature: -30°C ~ 60°C Features - Compatible with wireless fast charging Devices - Over Current, Over Voltage, High Temperature and Short circuit Protection - FOD (Foreign Object Detection) function Caution - No metal object between wireless charger and Devices - Please do not use water or chemical substances to clean the device. - Please only use a dry cloth - Do not cover the products during charging - Thick Protective Case >3mm or a case includes magnetic or metallic material, may not allow proper charging Function - Do not place any credit card on the charging devices How to Charge Your devices 1. Find wireless charging location on the dashboard and check there is any foreign objects on the charging area. 2. Remove and clean if there is foreign objects on the charging area 3. Place your device on the charging area and start charging automatically Need Help? Email address : [email protected] Tel : +82-2-6949-0139 Fax : +82-31-624-4323 #1025, 220, Bugwang-ro, Bucheon-si, Gyeonggi- do, Republic of Korea Declaration of confirmation FCC Compliance Statement This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC Interference Statement This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense. FCC Caution Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. FCC Radiation Exposure Statement This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20 cm between the radiator and your body. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. Industry Canada Statement This device complies with RSS-247 of the Industry Canada Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Ce dispositif est conforme à la norme CNR- 247 d’Industrie Canada applicable aux appareils radio exempts de licence. Son fonctionnement est sujet aux deux conditions suivantes: (1) le dispositif ne doit pas produire de brouillage préjudiciable, et (2) ce dispositif doit accepter tout brouillage reçu, y compris un brouillage susceptible de provoquer un fonctionnement indésirable. Industry Canada Radiation Exposure Statement This equipment complies with IC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20 cm between the radiator & your body. Déclaration d’exposition aux radiations Cet équipement est conforme aux limites d’exposition aux rayonnements IC établies pour un environnement non con trôlé. Cet équipement doit être installé et utilisé avec un minimum de 20 cm de distance entre la source de rayonnement et votre corps. FCC Label Model name: PTM-710K FCC ID: 2A2GT-PTM-710K IC ID : 30014-PTM710K Manufacturer: POWERLABS CO., LTD.

Attestation Statements Date: February 14, 2023 TO: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046, USA RE: Attestation Statements Part 2.911(d)(7) request for 2A2GT-PTM-710K TOVIS CO., LTD., the undersigned, hereby authorize Tovis North America to act as our designated U.S. agent for service of process, TOVIS CO., LTD. accepts to maintain an agent for no less than one year after the grantee has terminated all marketing and importation or the conclusion of any Commission-related proceeding involving the equipment. Tovis North America accepts the responsibility to act as designated U.S. agent for service of process, provides an agent for no less than one year after the grantee has terminated all marketing and importation or the conclusion of any Commission-related proceeding involving the equipment. Applicant Information： Company name: TOVIS CO., LTD. Contact Name: Jong Han Lee Address: 92, Gaetbeol-ro, Yeonsu-gu, Incheon, South Korea Telephone No: +82-10-3448-3642 Email: [email protected] U.S. Agent Information: Company Name: Tovis North America Address: 3301 W Martin Ave Ste F Las Vegas, NV 89118 Contact Name: James Kim Telephone No: 725-251-2972 Email: [email protected] FRN Number: 0033438094 Applicant Signature: Agent Signature: (if the agent is different from the applicant) Applicant printed name: Jong Han Lee Agent printed name: James Kim

TOVIS CO., LTD. Date: February 14, 2023 Eurofins Electrical and Electronic Testing NA, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 RE: Attestation Statements Part 2.911(d)(5)(i) request for 2A2GT-PTM-710K [TOVIS CO., LTD.] (“the applicant”) certifies that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. Sincerely, (Applicant signature) (Applicant printed name) Jong Han Lee TOVIS CO., LTD. Date: February 14, 2023 Eurofins Electrical and Electronic Testing NA, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 RE: Attestation Statements Part 2.911(d)(5)(ii) request for 2A2GT-PTM-710K [TOVIS CO., LTD.] (“the applicant”) certifies that, as of the date of the filing of the application, the applicant is not identified on the Covered List as an entity producing “covered” equipment. Sincerely, (Applicant signature) (Applicant printed name) Jong Han Lee

TOVIS CO., LTD. 92, Gaetbeol-ro, Yeonsu-Gu, Incheon, South Korea Date: January 18, 2023 Eurofins Electrical and Electronic Testing NA, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 RE: CONFIDENTIALITY REQUEST FOR (Wireless Power Transmitter / PTM- 710K / 2A2GT-PTM-710K) To Whom It May Concern: This letter serves as an official request for confidentiality under sections 0.457 and 0.459 of CFR 47. We have requested that the (below list) required to be submitted with this application be permanently withheld from public review. Permanent Confidential Request -. Schematics -. Block Diagram -. Operational Description SPECIFY REASON FOR REQUEST (i.e. the above documents are company proprietary information that could never get into the possession of your competition). Please contact me if there is any information you may need. Sincerely, Jong Han, Lee / Deputy General Manager

TOVIS CO., LTD. 92, Gaetbeol-ro, Yeonsu-Gu, Incheon, South Korea Date: January 18, 2023 Eurofins Electrical and Electronic Testing NA, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 RE: CONFIDENTIALITY REQUEST FOR (Wireless Power Transmitter / PTM- 710K / 2A2GT-PTM-710K) To Whom It May Concern: This letter serves as an official request for confidentiality under sections 0.457 and 0.459 of CFR 47. We have requested that the (below list) required to be submitted with this application be short-term Confidentiality for a period of 180 days after grant is issued. Short-Term Confidential Request -. External Photos -. Internal Photos -. Test set-up photo -. User Manual SPECIFY REASON FOR REQUEST (i.e. These documents contain detailed system and equipment descriptions and related information about the product, which we considers to be proprietary, confidential, and a custom design and otherwise, would not release to the general public. Since this design is a basis from which future technological products will evolve, we feel that this information would be of benefit to our competitors, and that the disclosure of the information in these documents would give our competitors an unfair advantage in the market. Please contact me if there is any information you may need. Sincerely, Jong Han, Lee / Deputy General Manager

TOVIS CO., LTD. 92, Gaetbeol-ro, Yeonsu-Gu, Incheon, South Korea Date: January 18, 2023 Eurofins Electrical and Electronic Testing NA, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 RE: LETTER OF AGENT AUTHORIZATION To Whom It May Concern: We, the undersigned, hereby authorize Ms. Hyowon Jeong/Staff of Eurofins KCTL Co., Ltd to act on our behalf in all matters relating to application for equipment authorization, including the signing of all documents relating to these matters. We also hereby certify that no party to the application authorized hereunder is subject to the denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C.853(a). This agreement expires one year from the current date. Sincerely, Jong Han, Lee / Deputy General Manager

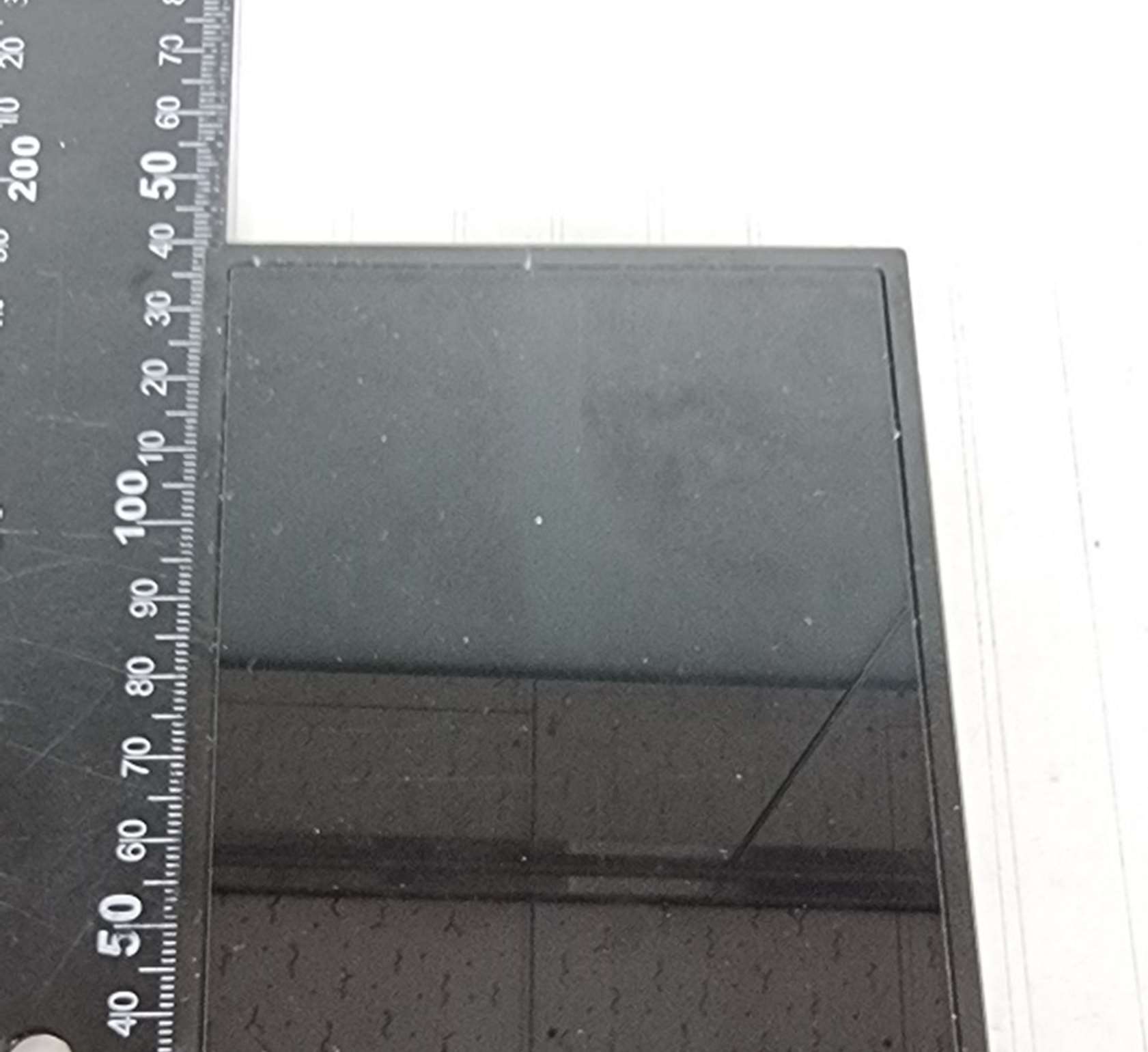

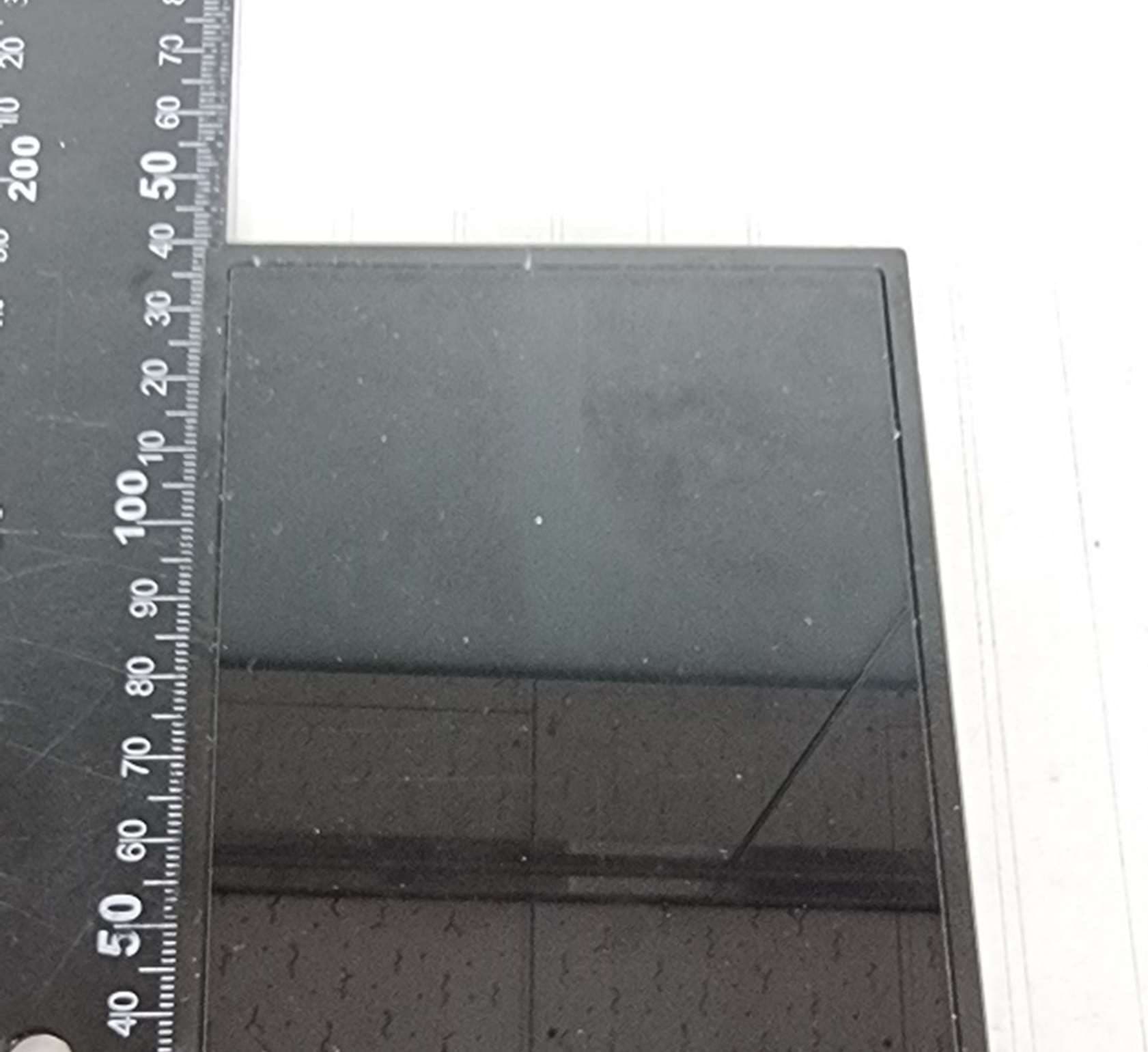

This test report shall not be reproduced, except in full, without the written approval External photos of EUT This test report shall not be reproduced, except in full, without the written approval This test report shall not be reproduced, except in full, without the written approval

1 Confidential ! Bottom Label Information * PTM-710K 1. Apply Manufacture Product 2. Attaching Location [Bottom View] Model : PTM-710K FCC ID : 2A2GT-PTM-710K IC : 30014-PTM710K POWERLABS CO., LTD.

This test report shall not be reproduced, except in full, without the written approval Internal photos of EUT This test report shall not be reproduced, except in full, without the written approval Coil Antenna

PTM Series COIL ASS’Y KWANGEUN ELECTRONICS Ver 0.0 CUSTOMER POWER CAST PART NO MATERIAL USTC WIRE (COPPER WIRE) MODEL PTM- 7 1 0 K COIL D A T E 2022-01-17 - LIST KWANG EUN ELECTRONICS 1. IMPROVE LIST2. DWG3. INSPECTION SPEC4. PROCESS MANAGEMENT PLAN5. OUTGOING INSPECTION REPORT 6. PACKING SPEC7. MATERIAL LIST8. MANUFACTURING PROCESS9. STORAGE SPEC 1. I MPROVE LIST Page 02 DATE IMPROVE IMPROVE CAUSE REV 22/01/17 NEW DESIGN 0.0 KWANG EUN ELECTRONICS 2. DWG [ASS’Y] Page 02 KWANG EUN ELECTRONICS 2. DWG [COIL] Page 02 KWANG EUN ELECTRONICS 2. DWG [FERRITE] Page 02 KWANG EUN ELECTRONICS 2. DWG [EVA] Page 02 KWANG EUN ELECTRONICS 2. DWG [DOUBLE ADHESIVE] Page 02 KWANG EUN ELECTRONICS 3. INSPECTION SPEC Page 03 KWANG EUN ELECTRONICS 4 . PROCESS MANAGEMENT PLAN Page 04 KWANG EUN ELECTRONICS Process M/C, Eqpt, Tool Flxture, Analysis Reference Description Materials Method Document Copper Wire Receving Inspection spec 0.08*105 USTC Receiving Inspection Spec Sheet One/Lot Coil Tape Maker, Model Yellow / 8mm Visual One/Lot Double Adhesive Receving Inspection sepc Φ 42.5*0.1T Eva Receving Inspection sepc Φ 40*2.2T Ferrite Receving Inspection sepc Φ 47*0.95T Bar Solder Maker, Model HSE 09 B20 Visual One/Lot Wire 0.08*105 USTC Lable Before Work Turns 10 Display Before Work Temp 400 °C ± 50 °C Digital Thermometer One/12hr Thickness Max 1.2 Vernier Calipers Two/2hr Inner Diameter 20.5 ±0.5 External Diameter 43.0 ±0.5 Inductance 40.0 ±0.5 Resistance 6.3 ±0.63 VIETNAM : SYE VINA Visual Two/2hr Temp 450 °C ±50 Panel One/6hr Length 3.5 ±0.5 Gono Jig Two/2hr Dipping Length 3.5 ±0.5 Lead Wire Length 10.5 ±1.2 Visual Inspection Appearamce Dent,Damage, Fiber,Tape Visual Inspection sheet EYE The Whole P/I Sheet PM KE-PC-06 Inner Packing Tray, Lable Pack spec sheet Visual The Wh ole P/I Sheet PM Appearamce Dent,Damage, Fiber,Tape Visual Inspection sheet EYE INNER DIAMETER 20.5 ±0.5 EXTERNAL DIAMETER 43.0 ±0.5 EXTERNAL DIAMETER 47.0 ±0.5 LEAD WIRE WIDTH 10 ±0.5 LEAD WIRE LENGTH 10.5 ±1.2 TIN LENTGH 3.5 ±0.5 TOTAL THICKNESS MAX 4.5 EXTERNAL DIAMETER 40.0 ±0.5 INDUCTANCE 6.3 ±0.63 RESISTANCE MAX 65 Out Box Packing Tray Paper BOX Lable Operation manual Same Sample Visual Two/4hr P/I Sheet PM KE-PC-04 Wire Location Operation manual Same Sample Visual Two/4 hr P/I Sheet PM KE-PC-03 Operation manual Same Sample Visual Two/4hr P/I Sheet PM KE-PC-02 Ass'y Ferrite Ferrite Operation manual Same Sample Visual Two/4hr P/I Sheet PM KE-PC-04KE-PC-01 L.C.R Meter 100khz 1v Three/4hr Visual Two/4hr P/I Sheet PM HZGY-02 P/I Sheet PM 3D Visoin Two/6hr CHINA : KWANGEUN ELECTRONICS Operation / Flow Key Control Parameters Specification Inspection Method InspectionFrequency Who Receiving Inspection R/I Sheet IQC HZGY-01 Receiving Inspection Spec Sheet One/Lot Operation manual Same Sample Diameter KE-PC-05 P/I Sheet PM KE-PC-05KE-PC-05 PM P/I Sheet PM P/I Sheet The Whole Operation manual Same Sample Visual Two/4hr Coil Winding Winding M/C Winding Tape Yellow Tape/ Tape Dispenser Cutting wire Dipping Jig / Cutting M/C Attach D/A for Coil Double Adhesive / Ass'y Jig Pressing for Ass'y Press M/C PM KE-PC-08 MIL-STD-105D AQL0.065 GII N=10 C=0 O/I Sheet OQC KE-PC-07 P/I Sheet Lead wire Dipping Lead wire dipping Inspection JIG Lead Wire Inspection Attach Eva for Ass'y Eva / Ass'y Jig Gono jig P/I Sheet PM KE-PC-04 Vernier Calipers 3D Visoin Vernier Calipers Lead Wire Length Gono Jig Two/4hr Out Box Packing Visual Outgoing Inspection 10.5 ±1.2 m Ω -Hightester, LCR METER A W20 W80 D W150 C W130 W30 B W90 W110 W40W60W70W50 5 . OUTGOING INSPECTION REPORT Page 05 KWANG EUN ELECTRONICS 6. PACKING SPEC Page 06 KWANG EUN ELECTRONICS PRODUCT TAG Q'T ETC INNER PACKING 1Hall 1 EA 1Tray 20 EA 1Box 600 EA 3 Set Size Material Tray 300*340*15 P.p Out Box 380*270*150 Paper PJT NAME POWELL Rx Part Code AM313010007-POWELLPart Name POWELL Coil Spec 0.30mm X 14Turns Quantity 6,000 EA LOT NO. 2020-06-30-01 LIQUIDATION NO. WPT-POWELL-AMSP-XXXX 7. MATERIAL LIST Page 08 KWANG EUN ELECTRONICS COMPANY MODEL CODE NATION CITY 1) GTWILL COPPER WIRE 0.08x105 USTC CHINA HUI ZHOU 2) LT MATERIAL SOLDER BAR HSE-09 KOREA AN SEONG 3) KELI FERRITE PC95/KC33 CHINA HUI ZHOU 4) 赜 冠 DOUBLE ADHESIVE 7982 CHINA GUANG ZHOU 5) 永棋塑 謝 有 ꁷ 公司 EVA 2.0T CHINA SHEN ZHEN 6) Yahua Sticking Tape Co., Ltd. TAPE CT280 CHINA HUI ZHOU LIST 8. MANUFACTURING PROCESS Page 09 [ 惠州光殷电子】 No.1 Guantai road, South Disrict, HuiZhou Digital In dustry Park, HuiZhou City, GuangDong Province, Chin a KWANG EUN ELECTRONICS ReceivingInspection WERE HOUSESTORAGE WINDING COIL WINDING TAPE Attach D/A for Coil WIRE LOCATION ASS'Y FERRITE Pressing for Ass'y[DIPPING]CUTTING WIRE [DIPPING] [DIPPING]INSPECTION Attach Eva for ass'y APPEARAMCEINSPECTION INNERPACKING OUTGOINGINSPECTION SHIPPING A 30 50 60 70 Shippi ng B Receipt Inspection Process Process Storage Shipping Process Control Point Flow Direction F/ProofProcess Special Characteristic Process Important Process Special Process SPC Process Capability Process E 80 C 40 90 100 WIRE SOLDER FERRITE EVA D/A DHESIVE TAPE WIRE COIL TAPE D/ADHESIVE FERRITE 120 140 F 9. STORAGE SPEC [Warehouse] Page 10 Temp Humidity DATE MAXIUM DATE 25 °C ± 20 °C ~85% 180 Day 365 Day KWANG EUN ELECTRONICS

verify No.606197214690 Eurofins KCTL Co.,Ltd. 65, Sinwon-ro, Yeongtong-gu, Suwon-si, Gyeonggi-do, 16677, Korea TEL: 82-31-285-0894 FAX: 82-505-299-8311 www.kctl.co.kr Report No.: KR23-SRF0062-A Page (2) of (19) KCTL-TIR001-003/7 (220705) KP22-06758 REPORT REVISION HISTORY Date Revision Page No 2023-02-15 Originally issued - 2023-02-22 Revised frequency 4, 5 This report shall not be reproduced except in full, without the written approval of Eurofins KCTL Co.,Ltd. This document may be altered or revised by Eurofins KCTL Co.,Ltd. personnel only, and shall be noted in the revision section of the document. Any alteration of this document not carried out by Eurofins KCTL Co.,Ltd. will constitute fraud and shall nullify the document. This test report is a general report that does not use the KOLAS accreditation mark and is not related to KS Q ISO/IEC 17025 and KOLAS accreditation. Note. The report No. KR23-SRF0062 is superseded by the report No. KR23-SRF0062-A. General remarks for test reports Statement concerning the uncertainty of the measurement systems used for the tests (may be required by the product standard or client) Internal procedure used for type testing through which traceability of the measuring uncertainty has been established: Procedure number, issue date and title: Calculations leading to the reported values are on file with the testing laboratory that conducted the testing. Statement not required by the standard or client used for type testing Eurofins KCTL Co.,Ltd. 65, Sinwon-ro, Yeongtong-gu, Suwon-si, Gyeonggi-do, 16677, Korea TEL: 82-31-285-0894 FAX: 82-505-299-8311 www.kctl.co.kr Report No.: KR23-SRF0062-A Page (3) of (19) KCTL-TIR001-003/7 (220705) KP22-06758 CONTENTS 1. General information .................................................................................................................................. 4 2. Device information .................................................................................................................................... 4 2.1. Companion device information ..................................................................................................... 5 2.2. Frequency/channel operations ..................................................................................................... 5 2.3. Worst-Case configuration and mode ......................................................................................... 5 2.4. Normal and extreme test conditions ........................................................................................... 5 3. Antenna requirement ............................................................................................................................... 6 4. Summary of tests ...................................................................................................................................... 7 5. Measurement uncertainty ...................................................................................................................... 7 6. Classification of WPT Devices ............................................................................................................. 8 7. Test results ................................................................................................................................................... 9 7.1. Field Strength of Fundamental and Spurious Emission ..................................................... 9 7.2. 20㏈ Bandwidth & Occupied Bandwidth ............................................................................... 15 7.3. AC Conducted emission .............................................................................................................. 17 8. Measurement equipment .................................................................................................................... 19 Eurofins KCTL Co.,Ltd. 65, Sinwon-ro, Yeongtong-gu, Suwon-si, Gyeonggi-do, 16677, Korea TEL: 82-31-285-0894 FAX: 82-505-299-8311 www.kctl.co.kr Report No.: KR23-SRF0062-A Page (4) of (19) KCTL-TIR001-003/7 (220705) KP22-06758 1. General information Client : TOVIS CO., LTD. Address : 92, Gaetbeol-ro, Yeonsu-Gu, Incheon, South Korea Manufacturer : POWERLABS CO., LTD. Address : #1025, 220, Bugwang-ro, Bucheon-si, Gyeonggi-do, Republic of Korea Laboratory : Eurofins KCTL Co.,Ltd. Address : 65, Sinwon-ro, Yeongtong-gu, Suwon-si, Gyeonggi-do, 16677, Korea Accreditations : FCC Site Designation No: KR0040, FCC Site Registration No: 687132 VCCI Registration No. : R-20080, G-20078, C-20059, T-20056 CAB Identifier: KR0040 ISED Number: 8035A KOLAS No.: KT231 2. Device information Equipment under test : Wireless Charger Model : PTM-710K Modulation technique : ASK Frequency range : 111 ㎑ ~ 205 ㎑ (WPT) Power source : DC 12 V Antenna specification : Coil Antenna Software version : V0.8 Hardware version : V0.2 Test device serial No. : 0001 Operation temperature : -30 °C ~ 45 °C Eurofins KCTL Co.,Ltd. 65, Sinwon-ro, Yeongtong-gu, Suwon-si, Gyeonggi-do, 16677, Korea TEL: 82-31-285-0894 FAX: 82-505-299-8311 www.kctl.co.kr Report No.: KR23-SRF0062-A Page (5) of (19) KCTL-TIR001-003/7 (220705) KP22-06758 2.1. Companion device information Equipment Manufacturer Model Serial No. Phone Google Pixel6 Pro N/A 2.2. Frequency/channel operations This device contains the following capabilities: WPT Frequency (㎑) 111 ~ 205 Table 2.2.1. WPT System 2.3. Worst-Case configuration and mode Test Case Description 1 Charging from EUT to Phone (<10% Power Charging, Fast charging mode) 2 Charging from EUT to Phone (50~55% Power Charging, Fast charging mode) 3 Charging from EUT to Phone (90~95% Power Charging, Fast charging mode) According to current client device’s battery level, test results are different. Because the test result were worst when the battery level was below 10%, tests were performed when the battery level was below 10%.(Client device) Test results of case 1 is worst, so this test report described test case 1. 2.4. Normal and ext…
