2A2I7-DW-C01EMINI PC Computer

CPU Intel® Alderlake-N N100 系统 支持 Windows11、10/Linux 内存 1*DDR4 SO-DIMM (Max 32G) M.2 SSD 1*M.2 2280 SSD Slot HDD 2.5 寸 HDD (可选) 显示接口 1*HDMI / 1*DP 1*TYPE-C (可选) Wifi 模组 M.2 2230 WIFI5 IO 1*USB2.0 4*USB3.2 LAN 1*10/100/1000M LAN TF 卡槽 x 1(可选) *默认无 音频接口 1 x 2-Audio Connectors (Audio&Mic) 电源 DC 12V/2.5∽4A CPU Intel® Alderlake-N N100 OS Support Windows11、10/Linux Memory 1*DDR4 SO-DIMM (Max 32G) M.2 SSD 1*M.2 2280 SSD Slot HDD 2.5 ́ HDD ( optional ) Display 1*HDMI / 1*DP 1*TYPE-C ( optional ) Wireless M.2 2230 WIFI5 IO 1*USB2.0 4*USB3.2 LAN 1*10/100/1000M LAN TF Card x 1 ( optional ) *Default n/a Audio 1 x 2-Audio Connectors (Audio&Mic) DC 12V/2.5∽4A FCC Warning Statement Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: ‐‐ Reorient or relocate the receiving antenna. ‐‐ Increase the separation between the equipment and receiver. ‐‐ Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. ‐‐ Consult the dealer or an experienced radio/TV technician for help. FCC Radiation Exposure Statement The antennas used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co‐located for operating in conjunction with any other antenna or transmitter. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2)This device must accept any interference received, including interference that may cause undesired operation.

(Shenzhen Shuangshengda Technology Co.,Ltd) (2024.6.25) Eurofins Electrical and Electronic Testing NA, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 RE: Attestation Statements Part 2.911(d)(5)(i) request for (FCC ID: 2A2I7-DW-C01E) [Shenzhen Shuangshengda Technology Co.,Ltd] (“the applicant”) certifies that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. Sincerely, (Applicant signature) (Applicant printed name) Xiang Ren Bo (Shenzhen Shuangshengda Technology Co.,Ltd) (2024.6.25) Eurofins Electrical and Electronic Testing NA, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 RE: Attestation Statements Part 2.911(d)(5)(ii) request for (FCC ID: 2A2I7-DW-C01E) [Shenzhen Shuangshengda Technology Co.,Ltd] (“the applicant”) certifies that, as of the date of the filing of the application, the applicant is not identified on the Covered List as an entity producing “covered” equipment. Sincerely, (Applicant signature) (Applicant printed name) Xiang Ren Bo

Shenzhen Shuangshengda Technology Co.,Ltd 2024.6.25 Eurofins Electrical and Electronic Testing NA, Inc. 914 W. Patapsco Avenue Baltimore, MD 21230 USA RE: LETTER OF AGENT AUTHORIZATION To Whom It May Concern: We, the undersigned, hereby authorize Shenzhen BCTC Testing Co., Ltd to act on our behalf in all matters relating to application for equipment authorization, including the signing of all documents relating to these matters. We also hereby certify that no party to the application authorized hereunder is subject to the denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C.853(a). This agreement expires one year from the current date. Sincerely, Client’s signature: Client’s name / title : Xiang Ren Bo / Product manager Contact information / address: 209 Room, Building A, HuangJinShan111 street, Bantian Town, Longgang District, Shenzhen, China

Shenzhen Shuangshengda Technology Co.,Ltd Model Difference 2024/6/25 EUT NAME: MINI PC Computer Trademark: N/A MODEL: DW-C01E DW-C01B, DW-C01D, DW-C02, DW-DW-MR74, DW-M09-A, BE-R7HS, BE-F3, BE- F4, BE-F5, BE-F6, BE-F7, BE-F8, DW-C04A, DW-M03, DW-M04, DW-M05-A, DW- M05-D, DW-M08, DW-M08-A, DW-M09, DW-M10 FCC ID: 2A2I7-DW-C01E All the models are the same circuit and RF module, except model names and appearance of the color. Regards Sincerely Client’s signature: Client’s name / title : Xiang Ren Bo / Manager Contact information / address: 209 Room, Building A, HuangJinShan111 street, Bantian Town, Longgang District, Shenzhen, China

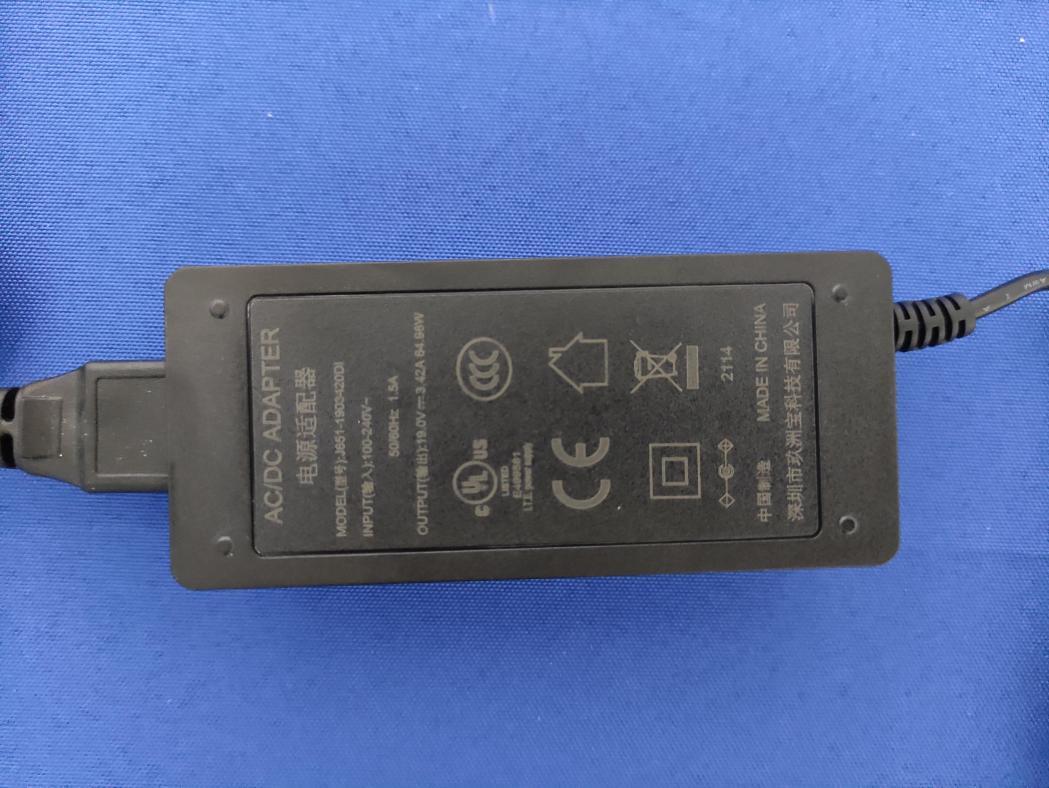

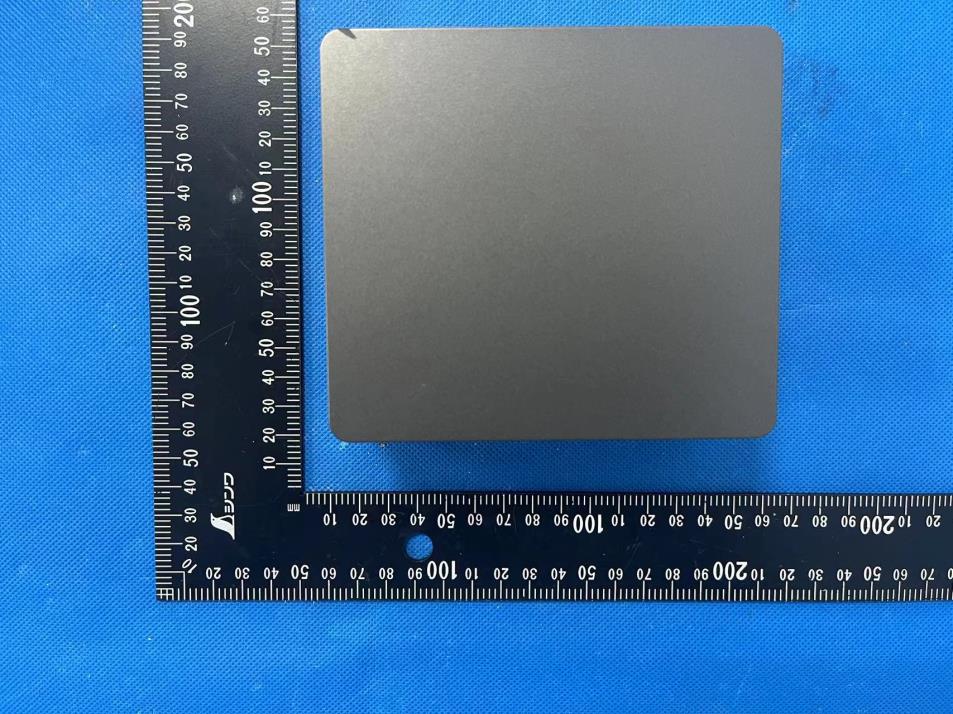

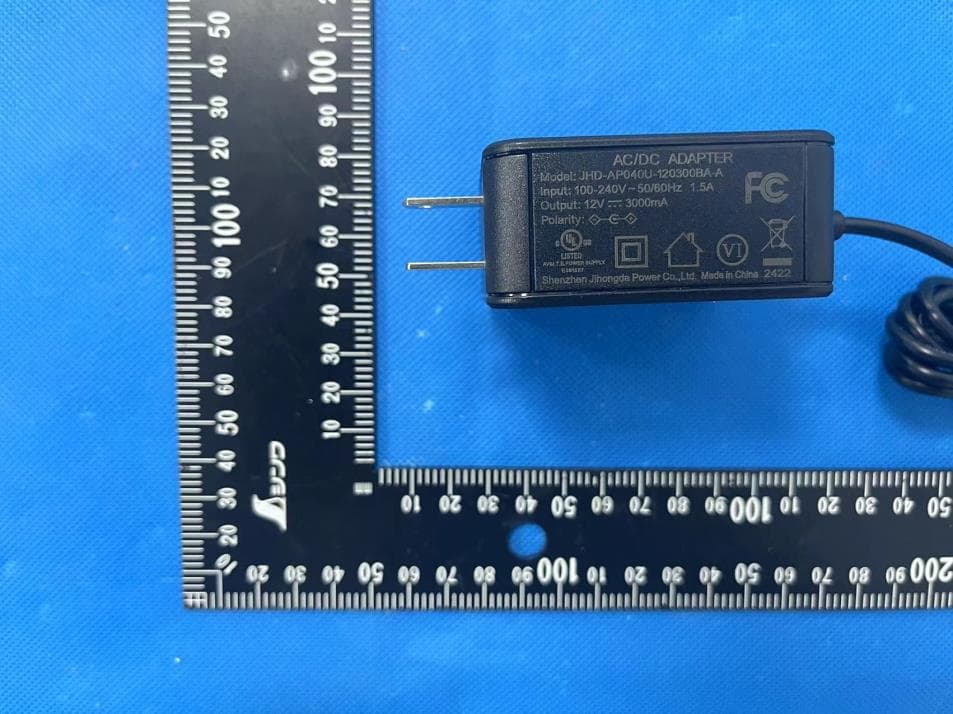

External Photos

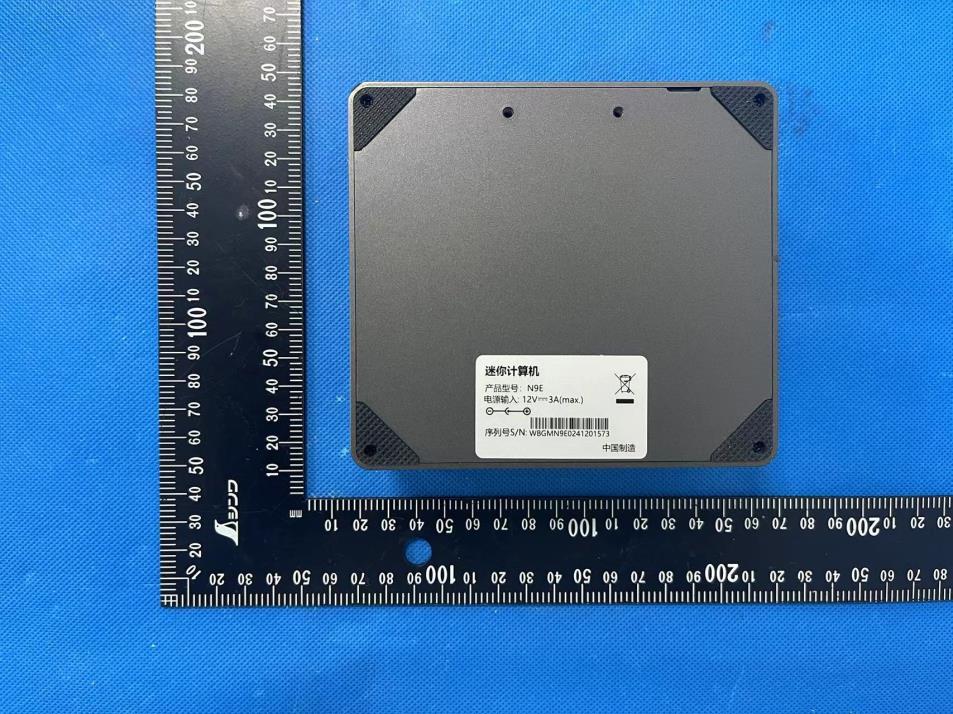

Label & label location FCC ID: 2A2I7-DW-C01E This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1)This device may not cause harmful interference, and (2)This device must accept any interference received, including interference that may cause undesired operation.

Internal Photos BLE/2.4GWIFI/5G WIFI Antenna B 2.4GWIFI/5G WIFI Antenna A

FCC §15.247 (i), §2.1091 – RF Exposure FCC ID: 2A2I7-DW-C01E Applied procedures / limit According to FCC §15.247(i) and §1.1307(b)(1), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. Limits for Occupational / Controlled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm 2 ) Averaging Time |E| 2 ,|H| 2 or S (minutes) 0.3-3.0 614 1.63 (100)* 6 3.0-30 1842 / f 4.89 / f (900 / f)* 6 30-300 61.4 0.163 1.0 6 300-1500 F/300 6 1500-100,000 5 6 Note: ƒ is frequency in MHz * = Power density limit is applicable at frequencies greater than 100 MHz Limits for General Population / Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm 2 ) Averaging Time |E| 2 ,|H| 2 or S (minutes) 0.3-1.34 614 1.63 (100)* 30 1.34-30 824/f 2.19/f (180/f)* 30 30-300 27.5 0.073 0.2 30 300-1500 F/1500 30 1500-100,000 1.0 30 Note: f = frequency in MHz * = Plane-wave equivalent power density MPE PREDICTION Predication of MPE limit at a given distance, Equation from OET Bulletin 65, Edition 97-01 Where: S = power density P = power input to antenna G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the center of radiation of the antenna, R=0.2m TEST RESULTS Mode Tune up Produce power Maximum peak output power (dBm) Output power to antenna (mW) Antenna Gain (numeric) Power Density (S) (mW/ cm2) Limit (mW/ cm2) Result 2.4G WIFI 12±1 13 19.953 2.19 (3.4dBi) 0.00869 1 Pass 5.1G WIFI 13±1 14 25.119 2.46 (3.91dBi) 0.01229 1 Pass 5.8G WIFI 12±1 13 19.953 2.67 (4.26dBi) 0.01334 1 Pass BLE 1±1 2 1.585 2.19 (3.4dBi) 0.00069 1 Pass The BLE, 2.4G WIFI, 5.1G WIFI, 5.8G WIFI can transmit at the same time. So the worst simultaneous transmitting consideration: The ratio=0.00869/1+0.01229/1+0.01334/1+0.00069/1=0.03501≤ 1.0 Conclusion: For the all Power Density≤ 1.0, compliance with FCC's RF Exposure

ADD：东莞市大朗镇巷尾管理区聚祥一路26号仕研工业园TELL：0769-23076959WEB：WWW.SEYARF.COM 规格承认书 SPECIFICATION FOR APPROVAL 客户 CUSTOMER: 客户料号 CUSTOMER NO: 品名 PART NAME: WIFI-N9N PRO ANTENNA 供方料号 SUPPLIER NO: SY-W90PE2347B175C-L01 送样日期Date: 2023.05.09送样数量Q’TY: PCS 客户确认CUSTOMER APPROVED BY APPROVALCHIEFSUPERVISOR 供方确认SUPPLIER SIGNATURE APPROVALCHECKDESIGN JammyJerryPatrick Rev.A ADD：东莞市大朗镇巷尾管理区聚祥一路26号仕研工业园TELL：0769-23076959WEB：WWW.SEYARF.COM 承认书项目表 NO. 内容 （Contents） 页数 （Number of Page） 页码 （Page Code） 1承认书封面（Spec Cover）11 2承认书项目表（Spec Item ）12 3产品图片（Product Pictures）13 4 产品规格描述（Product specification describes） 14 5工程成品图（Drawing）15 6网络测试（Network Test）46-9 ADD：东莞市大朗镇巷尾管理区聚祥一路26号仕研工业园TELL：0769-23076959WEB：WWW.SEYARF.COM 产品图片 ADD：东莞市大朗镇巷尾管理区聚祥一路26号仕研工业园TELL：0769-23076959WEB：WWW.SEYARF.COM Electrical Properties Frequency 2400-2500;5150-5850MHz Impedance 50 Ohm Nominal Return Loss≤-10 dB VSWR≤2.0 Gain2-3dBi PolarizationLinear Polarization Physical Properties Antenna MaterialFPC Cable TypeФ1.13 CABLE Working Temp.-20~ +70 ̊C Cable ColorBLACK 产品规格概述 1 2 E 4 3 DATE:2023-05-09 TITLE SCALE: 1/1 DRAWED S.H P/NO TOLERANCE UNLESS OTHERWISE SPECIFIED ANGLES ±0.5°X.X ±0.5X.XX ±0.2 UNIT:mm SHEET: 1/1 CHECKED APPROVED SIZE A4 PART NO CUSTOMER XX. ±5.0X. ±2.0 6 7 8 A 5 4 2 3 1 A B B BECD 8 7 6 4 5 Jammy SY-W90PE2347B175C-L01 Patrick Jerry BB BCD RoHS DONGGUAN SEYA ELECTRONIC COMMUNICATION CO.,LTD 东 莞 市 仕 研 电 子 通 讯 有 限 公 司 SEYA REV. CONTENT DATE A 首次发行 2023-05-09 WIFI-R ANTENNA FOR N9N PRO 重点： 1.裁线尺寸：175.0mm 2. 为重点检验尺寸3.天线整体外观不可损伤，不可有破损、脏 污、毛边、掉漆露铜、虚焊、假焊等现象； 2 NO. 1 Finished Q'ty 天线 FPC ，附黑油， SIZE:33.0*20.0*T0.1mm Name 1PC1PC FPC10515A-SY2347 3 1PC Ø1.13mm Coaxial Cable 同轴线（黑色） L=17 5 .0mm COA11301B TER10010A.P01 MHF-4L 端子 Ø1.13mm Coaxial Cable 专用 MHF-4L STRIPPING DIM'S 1.1 0.5 0.8 FPC STRIPPING DIM'S 1.0 1.5 2.0 备注： 网络测试： 测试频段： 2400-2500;5150-5850MHz VSWR:2.0MAX GAIN:2-3dBi 1 Ø1.13Cable Color:Black 175.0±3.0 3 2 2.3±0.15 20.0±0.3 28.0±0.3 8.0 5.0 6.67 SEYA SY2347 V2.0 4 导电泡棉( 黑色 )L 14.0*W5.0*T6.0mm 14 5.0 6 14.0 5.0 6.0 导电胶 导电泡棉 ( 黑色 ) 4 4 1PC EVA10XXXA 导电泡棉(黑色)L 14.0*W5.0*T6.0mm ADD：东莞市大朗镇巷尾管理区聚祥一路26号仕研工业园TELL：0769-23076959WEB：WWW.SEYARF.COM 网络测试 ADD：东莞市大朗镇巷尾管理区聚祥一路26号仕研工业园TELL：0769-23076959WEB：WWW.SEYARF.COM 6 ADD：东莞市大朗镇巷尾管理区聚祥一路26号仕研工业园TELL：0769-23076959WEB：WWW.SEYARF.COM ADD：东莞市大朗镇巷尾管理区聚祥一路26号仕研工业园TELL：0769-23076959WEB：WWW.SEYARF.COM 8 Freq (MHz) Effi(%)Gain (dBi) 240055.291.21 245056.301.70 250053.482.39 515050.663.74 525053.943.91 535049.412.25 550052.753.47 565054.403.68 575057.393.42 585055.363.13 802.11b 11M CHTRPTIS 112.14-80.74 612.51-81.54 1111.58-81.05 802.11a 54M 3611.54-70.54 14911.57-70.42 16110.57-70.45

ADD：东莞市大朗镇巷尾管理区聚祥一路26号仕研工业园TELL：0769-23076959WEB：WWW.SEYARF.COM 规格承认书 SPECIFICATION FOR APPROVAL 客户 CUSTOMER: 客户料号 CUSTOMER NO: 品名 PART NAME: WIFI-N9N PRO ANTENNA 供方料号 SUPPLIER NO: SY-W90PE2347G230C-L01 送样日期Date: 2023.05.09送样数量Q’TY: PCS 客户确认CUSTOMER APPROVED BY APPROVALCHIEFSUPERVISOR 供方确认SUPPLIER SIGNATURE APPROVALCHECKDESIGN JammyJerryPatrick Rev.A ADD：东莞市大朗镇巷尾管理区聚祥一路26号仕研工业园TELL：0769-23076959WEB：WWW.SEYARF.COM 承认书项目表 NO. 内容 （Contents） 页数 （Number of Page） 页码 （Page Code） 1承认书封面（Spec Cover）11 2承认书项目表（Spec Item ）12 3产品图片（Product Pictures）13 4 产品规格描述（Product specification describes） 14 5工程成品图（Drawing）15 6网络测试（Network Test）46-9 ADD：东莞市大朗镇巷尾管理区聚祥一路26号仕研工业园TELL：0769-23076959WEB：WWW.SEYARF.COM 产品图片 ADD：东莞市大朗镇巷尾管理区聚祥一路26号仕研工业园TELL：0769-23076959WEB：WWW.SEYARF.COM Electrical Properties Frequency 2400-2500;5150-5850MHz Impedance 50 Ohm Nominal Return Loss≤-10 dB VSWR≤2.0 Gain2-3dBi PolarizationLinear Polarization Physical Properties Antenna MaterialFPC Cable TypeФ1.13 CABLE Working Temp.-20~ +70 ̊C Cable ColorGRAY 产品规格概述 1 2 E 4 3 DATE:2023-05-08 TITLE SCALE: 1/1 DRAWED S.H P/NO TOLERANCE UNLESS OTHERWISE SPECIFIED ANGLES ±0.5°X.X ±0.5X.XX ±0.2 UNIT:mm SHEET: 1/1 CHECKED APPROVED SIZE A4 PART NO CUSTOMER XX. ±5.0X. ±2.0 6 7 8 A 5 4 2 3 1 A B B BECD 8 7 6 4 5 Jammy SY-W90PE2347G230C-L01 Patrick Jerry BB BCD RoHS DONGGUAN SEYA ELECTRONIC COMMUNICATION CO.,LTD 东 莞 市 仕 研 电 子 通 讯 有 限 公 司 SEYA REV. CONTENT DATE A 首次发行 2023-05-09 WIFI-L ANTENNA FOR N9N PRO 重点： 1. 裁线尺寸：2 30 .0mm 2. 为重点检验尺寸 3. 天线整体外观不可损伤，不可有破损、脏 污、毛边、掉漆露铜、虚焊、假焊等现象； 2 NO. 1 Finished Q'ty 天线 FPC ，附黑油， SIZE: 28 .0*20.0*T0.1mm Name 1PC1PC FPC10515A-SY2347 3 1PC Ø1.13mm Coaxial Cable 同轴线（灰色） L=240.0mm COA11301A TER10010A.P01 MHF-4L 端子 Ø1.13mm Coaxial Cable 专用 1 Ø1.13Cable Color:Gray 230.0±3.0 3 2 MHF-4L STRIPPING DIM'S 1.1 0.5 0.8 FPC STRIPPING DIM'S 1.0 1.5 2.0 备注： 网络测试： 测试频段： 2400-2500;5150-5850MHz VSWR:2.0MAX GAIN:2-3dBi 2.3±0.15 20.0±0.3 28.0±0.3 8.0 5.0 6.67 SEYA SY2347 V2.0 4 4 1PC EVA10XXXA 导电泡棉(黑色)L 14.0*W5.0*T6.0mm 导电泡棉( 黑色 )L 14.0*W5.0*T6.0mm 14 5.0 6 14.0 5.0 6.0 导电胶 导电泡棉 ( 黑色 ) 4 ADD：东莞市大朗镇巷尾管理区聚祥一路26号仕研工业园TELL：0769-23076959WEB：WWW.SEYARF.COM 网络测试 ADD：东莞市大朗镇巷尾管理区聚祥一路26号仕研工业园TELL：0769-23076959WEB：WWW.SEYARF.COM 6 ADD：东莞市大朗镇巷尾管理区聚祥一路26号仕研工业园TELL：0769-23076959WEB：WWW.SEYARF.COM 7 ADD：东莞市大朗镇巷尾管理区聚祥一路26号仕研工业园TELL：0769-23076959WEB：WWW.SEYARF.COM 8 Freq (MHz) Effi(%)Gain (dBi) 240056.883.37 245058.133.40 250057.983.25 515052.682.65 525051.672.21 535053.482.71 550052.262.14 565054.363.69 575056.784.26 585055.253.42 802.11b 11M CHTRPTIS 112.14-80.74 612.51-81.54 1111.58-81.05 802.11a 54M 3611.54-70.54 14911.57-70.42 16110.57-70.45

No.：BCTC/RF-EMC-005 Page: 1 of 46 Edition：B.2 TEST REPORT Shenzhen BCTC Testing Co., Ltd. Report No.: BCTC2405328119-1E Applicant: Shenzhen Shuangshengda Technology Co.,Ltd Product Name: MINI PC Computer Test Model: DW-C01E Tested Date: 2024-05-27 to 2024-06-13 Issued Date: 2024-06-13 Report No.: BCTC2405328119-1E No.：BCTC/RF-EMC-005 Page: 2 of 46 Edition：B.2 FCC ID: 2A2I7-DW-C01E The test report is effective only with both signature and specialized stamp. This result(s) shown in this report refer only to the sample(s) tested. Without written approval of Shenzhen BCTC Testing Co., Ltd, this report can’t be reproduced except in full. The tested sample(s) and the sample information are provided by the client. Product Name: MINI PC Computer Trademark: N/A Model/Type reference: DW-C01E DW-C01B, DW-C01D, DW-C02, DW-DW-MR74, DW-M09-A, BE-R7HS, BE-F3, BE-F4, BE-F5, BE-F6, BE-F7, BE-F8, DW-C04A, DW-M03, DW-M04, DW-M05-A, DW-M05-D, DW-M08, DW-M08-A, DW-M09, DW-M10 Prepared For: Shenzhen Shuangshengda Technology Co.,Ltd Address: 209 Room, Building A, HuangJinShan111 street, Bantian Town, Longgang District, Shenzhen, China Manufacturer: Shenzhen Shuangshengda Technology Co.,Ltd Address: 209 Room, Building A, HuangJinShan111 street, Bantian Town, Longgang District, Shenzhen, China Prepared By: Shenzhen BCTC Testing Co., Ltd. Address: 1-2/F., Building B, Pengzhou Industrial Park, No.158, Fuyuan 1st Road, Zhancheng, Fuhai Subdistrict, Bao'an District, Shenzhen, Guangdong, China Sample Received Date: 2024-05-27 Sample tested Date: 2024-05-27 to 2024-06-13 Issue Date: 2024-06-13 Report No.: BCTC2405328119-1E Test Standards: FCC Part15.247 ANSI C63.10-2013 Test Results: PASS Remark: This is Bluetooth BLE radio test report. Tested by: Approved by: Shanshan. Zhang / Project Handler Zero Zhou/Reviewer Report No.: BCTC2405328119-1E No.：BCTC/RF-EMC-005 Page: 3 of 46 Edition：B.2 Table Of Content Test Report Declaration Page 1. Version .................................................................................................................. 5 2. Test Summary ....................................................................................................... 6 3. Measurement Uncertainty ..................................................................................... 7 4. Product Information And Test Setup ..................................................................... 8 4.1 Product Information ............................................................................................... 8 4.2 Test Setup Configuration ...................................................................................... 8 4.4 Channel List .......................................................................................................... 9 4.5 Test Mode ........................................................................................................... 10 4.6 Table Of Parameters Of Text Software Setting ................................................... 10 5. Test Facility And Test Instrument Used ............................................................... 11 5.1 Test Facility ......................................................................................................... 11 5.2 Test Instrument Used .......................................................................................... 11 6. Conducted Emissions .......................................................................................... 13 6.1 Block Diagram Of Test Setup .............................................................................. 13 6.2 Limit .................................................................................................................... 13 6.3 Test Procedure ................................................................................................... 13 6.4 EUT Operating Conditions .................................................................................. 13 6.5 Test Result .......................................................................................................... 14 7. Radiated Emissions ............................................................................................. 16 7.1 Block Diagram Of Test Setup .............................................................................. 16 7.2 Limit .................................................................................................................... 17 7.3 Test Procedure ................................................................................................... 18 7.4 EUT Operating Conditions .................................................................................. 19 7.5 Test Result .......................................................................................................... 19 8. Radiated Band Emission Measurement And Restricted Bands Of Operation ..... 23 8.1 Block Diagram Of Test Setup .............................................................................. 23 8.2 Limit .................................................................................................................... 23 8.3 Test Procedure ................................................................................................... 24 8.4 EUT operating Conditions ................................................................................... 24 8.5 Test Result .......................................................................................................... 25 9. Power Spectral Density Test ............................................................................... 26 9.1 Block Diagram Of Test Setup .............................................................................. 26 9.2 Limit .................................................................................................................... 26 9.3 Test Procedure ................................................................................................... 26 9.4 EUT Operating Con…

Text truncated - open the document above for the full version.

No.：BCTC/RF-EMC-005 Page: 1 of 77 Edition：B.2 TEST REPORT Shenzhen BCTC Testing Co., Ltd. Report No.: BCTC2405328119-2E Applicant: Shenzhen Shuangshengda Technology Co.,Ltd Product Name: MINI PC Computer Test Model: DW-C01E Tested Date: 2024-05-27 to 2024-06-13 Issued Date: 2024-06-13 Report No.: BCTC2405328119-2E No.：BCTC/RF-EMC-005 Page: 2 of 77 Edition：B.2 FCC ID: 2A2I7-DW-C01E The test report is effective only with both signature and specialized stamp. This result(s) shown in this report refer only to the sample(s) tested. Without written approval of Shenzhen BCTC Testing Co., Ltd, this report can’t be reproduced except in full. The tested sample(s) and the sample information are provided by the client. Product Name: MINI PC Computer Trademark: N/A Model/Type reference: DW-C01E DW-C01B, DW-C01D, DW-C02, DW-DW-MR74, DW-M09-A, BE-R7HS, BE-F3, BE-F4, BE-F5, BE-F6, BE-F7, BE-F8, DW-C04A, DW-M03, DW-M04, DW-M05-A, DW-M05-D, DW-M08, DW-M08-A, DW-M09, DW-M10 Prepared For: Shenzhen Shuangshengda Technology Co.,Ltd Address: 209 Room, Building A, HuangJinShan111 street, Bantian Town, Longgang District, Shenzhen, China Manufacturer: Shenzhen Shuangshengda Technology Co.,Ltd Address: 209 Room, Building A, HuangJinShan111 street, Bantian Town, Longgang District, Shenzhen, China Prepared By: Shenzhen BCTC Testing Co., Ltd. Address: 1-2/F., Building B, Pengzhou Industrial Park, No.158, Fuyuan 1st Road, Zhancheng, Fuhai Subdistrict, Bao'an District, Shenzhen, Guangdong, China Sample Received Date: 2024-05-27 Sample tested Date: 2024-05-27 to 2024-06-13 Issue Date: 2024-06-13 Report No.: BCTC2405328119-2E Test Standards: FCC Part15.247 ANSI C63.10-2013 Test Results: PASS Remark: This is WIFI-2.4GHz band radio test report. Tested by: Approved by: Shanshan. Zhang / Project Handler Zero Zhou/Reviewer Report No.: BCTC2405328119-2E No.：BCTC/RF-EMC-005 Page: 3 of 77 Edition：B.2 Table Of Content Test Report Declaration Page 1. Version .................................................................................................................. 5 2. Test Summary ....................................................................................................... 6 3. Measurement Uncertainty ..................................................................................... 7 4. Product Information And Test Setup ..................................................................... 8 4.1 Product Information ............................................................................................... 8 4.2 Test Setup Configuration ...................................................................................... 8 4.3 Support Equipment ............................................................................................... 9 4.4 Channel List .......................................................................................................... 9 4.5 Test Mode ........................................................................................................... 10 4.6 Table Of Parameters Of Text Software Setting ................................................... 11 4.7 Antenna ............................................................................................................... 11 5. Test Facility And Test Instrument Used ............................................................... 12 5.1 Test Facility ......................................................................................................... 12 5.2 Test Instrument Used .......................................................................................... 12 6. Conducted Emissions .......................................................................................... 14 6.1 Block Diagram Of Test Setup .............................................................................. 14 6.2 Limit .................................................................................................................... 14 6.3 Test procedure .................................................................................................... 14 6.4 EUT operating Conditions ................................................................................... 14 6.5 Test Result .......................................................................................................... 15 7. Radiated Emissions ............................................................................................. 17 7.1 Block Diagram Of Test Setup .............................................................................. 17 7.2 Limit .................................................................................................................... 18 7.3 Test procedure .................................................................................................... 19 7.4 EUT Operating Conditions .................................................................................. 20 7.5 Test Result .......................................................................................................... 20 8. Radiated Band Emission Measurement And Restricted Bands Of Operation ..... 27 8.1 Block Diagram Of Test Setup .............................................................................. 27 8.2 Limit .................................................................................................................... 27 8.3 Test procedure .................................................................................................... 28 8.4 EUT Operating Conditions .................................................................................. 28 8.5 Test Result .......................................................................................................... 29 9. Power Spectral Density Test ............................................................................... 31 9.1 Block Diagram Of Test Setup .............................................................................. 31 9.2 Limit ..........…

Text truncated - open the document above for the full version.

Report No.: BCTC2405328119-2E No.：BCTC/RF-EMC-005 Page: 41 of 77 Edition：B.2 Note: A(B) Represent the value of antenna A and B, The worst data is Antenna A, only shown Antenna A Plot. Test Graphs -6dB Bandwidth NVNT b 2412MHz -6dB Bandwidth NVNT b 2437MHz Report No.: BCTC2405328119-2E No.：BCTC/RF-EMC-005 Page: 42 of 77 Edition：B.2 -6dB Bandwidth NVNT b 2462MHz -6dB Bandwidth NVNT g 2412MHz Report No.: BCTC2405328119-2E No.：BCTC/RF-EMC-005 Page: 43 of 77 Edition：B.2 -6dB Bandwidth NVNT g 2437MHz -6dB Bandwidth NVNT g 2462MHz Report No.: BCTC2405328119-2E No.：BCTC/RF-EMC-005 Page: 44 of 77 Edition：B.2 -6dB Bandwidth NVNT n20 2412MHz -6dB Bandwidth NVNT n20 2437MHz Report No.: BCTC2405328119-2E No.：BCTC/RF-EMC-005 Page: 45 of 77 Edition：B.2 -6dB Bandwidth NVNT n20 2462MHz -6dB Bandwidth NVNT n40 2422MHz Report No.: BCTC2405328119-2E No.：BCTC/RF-EMC-005 Page: 46 of 77 Edition：B.2 -6dB Bandwidth NVNT n40 2437MHz -6dB Bandwidth NVNT n40 2452MHz Report No.: BCTC2405328119-2E No.：BCTC/RF-EMC-005 Page: 47 of 77 Edition：B.2 11. Peak Output Power Test 11.1 Block Diagram Of Test Setup 11.2 Limit FCC Part15 (15.247) , Subpart C Section Test Item Limit Frequency Range (MHz) Result 15.247(b)(3) Peak Output Power 1 watt or 30dBm 2400-2483.5 PASS 11.3 Test Procedure a. The EUT was directly connected to the Power meter 11.4 EUT Operating Conditions The EUT tested system was configured as the statements of 4.6 Unless otherwise a special operating condition is specified in the follows during the testing. Note: Power Spectral Density(dBm)=Reading+Cable Loss Report No.: BCTC2405328119-2E No.：BCTC/RF-EMC-005 Page: 48 of 77 Edition：B.2 11.5 Test Result Temperature: 26 °C Relative Humidity: 54% Pressure: 101KPa Test Voltage: AC 120V/60HZ Condition Mode Frequency (MHz) Maximum Conducted Output Power(PK) (dBm) Total Power Conducted Output Power(PK) (dBm) Limit (dBm) Ant A Ant B NVNT b 2412 11.94 11.15 / 30 NVNT b 2437 11.24 11.06 / 30 NVNT b 2462 10.65 10.44 / 30 NVNT g 2412 10.58 10.54 / 30 NVNT g 2437 10.22 10.17 / 30 NVNT g 2462 9.73 9.67 / 30 NVNT n20 2412 9.4 9.52 12.47 30 NVNT n20 2437 9.05 9.14 12.11 30 NVNT n20 2462 8.55 8.65 11.61 30 NVNT n40 2422 8.5 8.66 11.59 30 NVNT n40 2437 8.25 8.35 11.31 30 NVNT n40 2452 8.1 8.08 11.10 30 Report No.: BCTC2405328119-2E No.：BCTC/RF-EMC-005 Page: 49 of 77 Edition：B.2 12. 100 kHz Bandwidth Of Frequency Band Edge 12.1 Block Diagram Of Test Setup 12.2 Limit In any 100 kHz bandwidth outside the frequency band in which the spread spectrum intentional radiator is operating, the radio frequency power that is produced by the intentional radiator shall be at least 20 dB below that in the 100 kHz bandwidth within the band that contains the highest level of the desired power, based on either an RF conducted or a radiated measurement. 12.3 Test Procedure Using the following spectrum analyzer setting: a) Set the RBW = 100KHz. b) Set the VBW = 300KHz. c) Sweep time = auto couple. d) Detector function = peak. e) Trace mode = max hold. f) Allow trace to fully stabilize.. 12.4 EUT Operating Conditions The EUT tested system was configured as the statements of 4.6 Unless otherwise a special operating condition is specified in the follows during the testing. Note: Power Spectral Density(dBm)=Reading+Cable Loss Report No.: BCTC2405328119-2E No.：BCTC/RF-EMC-005 Page: 50 of 77 Edition：B.2 12.5 Test Result Note: A(B) Represent the value of antenna A and B, The worst data is Antenna A, only shown Antenna A Plot. Test Graphs Band Edge NVNT b 2412MHz Band Edge NVNT b 2412MHz Emission Report No.: BCTC2405328119-2E No.：BCTC/RF-EMC-005 Page: 51 of 77 Edition：B.2 Band Edge NVNT b 2462MHz Band Edge NVNT b 2462MHz Emission Report No.: BCTC2405328119-2E No.：BCTC/RF-EMC-005 Page: 52 of 77 Edition：B.2 Band Edge NVNT g 2412MHz Band Edge NVNT g 2412MHz Emission Report No.: BCTC2405328119-2E No.：BCTC/RF-EMC-005 Page: 53 of 77 Edition：B.2 Band Edge NVNT g 2462MHz Band Edge NVNT g 2462MHz Emission Report No.: BCTC2405328119-2E No.：BCTC/RF-EMC-005 Page: 54 of 77 Edition：B.2 Band Edge NVNT n20 2412MHz Band Edge NVNT n20 2412MHz Emission Report No.: BCTC2405328119-2E No.：BCTC/RF-EMC-005 Page: 55 of 77 Edition：B.2 Band Edge NVNT n20 2462MHz Band Edge NVNT n20 2462MHz Emission Report No.: BCTC2405328119-2E No.：BCTC/RF-EMC-005 Page: 56 of 77 Edition：B.2 Band Edge NVNT n40 2422MHz Band Edge NVNT n40 2422MHz Emission Report No.: BCTC2405328119-2E No.：BCTC/RF-EMC-005 Page: 57 of 77 Edition：B.2 Band Edge NVNT n40 2452MHz Band Edge NVNT n40 2452MHz Emission Report No.: BCTC2405328119-2E No.：BCTC/RF-EMC-005 Page: 58 of 77 Edition：B.2 Test Graphs Tx. Spurious NVNT b 2412MHz Tx. Spurious NVNT b 2412MHz Emission Report No.: BCTC2405328119-2E No.：BCTC/RF-EMC-005 Page: 59 of 77 Edition：B.2 Tx. Spurious NVNT b 2437MHz Tx. Spurious NVNT b 2437MHz Emission Report No.: BCTC2405328119-2E No.：BCTC/RF-EMC-005 Page: 60 of 77 Edition：B.2 Tx. Spurious NVNT b 2462MHz Tx. Spurious NVNT b 2462MHz Emission Report No.: BCTC2405328119-2E No.：BCTC/RF-EMC-005 Page: 61 of 77 Edition：B.2 Tx. Spurious NVNT g 2412MHz Tx. Spurious NVNT g 2412MHz Emission Report No.: BCTC2405328119-2E No.：BCTC/RF-EMC-005 Page: 6…
