2A2JS-WC910Wireless Charger
GUANGDONG ARTMU TECHNOLOGY CO., LIMITED
Click to zoom
Application Details
- Equipment Class
- DCD - Part 15 Low Power Transmitter Below 1705 kHz
- Date of Grant
- Jul 28, 2021
- Application Purpose
- Original Equipment
- Date of Application
- Jul 28, 2021
- Equipment Note
- Wireless Charger
- Frequency Range
- 0.11000000 - 0.20500000
- Country
- China
Documents & Files
Document Text
Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.
Users Manual
Productinstructions Pleasereadthismanualbeforeusingtheproducttoachieveasafeand gooduserexperience. Thereisaslightgapbetweentheproductpictureonthemanualandthe actualproduct,pleaserefertotheactualproduct. Productspecifications Model:WC910 Input:5V/2-3Aor9V/1.67-2.4Aor12V/1.5-2A Output:5Wor7.5Wor10Wor15W Safetyprecautions Pleasebesuretoreadthefollowingsafetyprecautionsbeforeusingthe product. Don’ttouchtheproductwithwethandstoavoidelectricshock. Don’tdroptheproductorsubjectittosevereimpact. Don’tallowconductiveforeignobjects(liquid,dust,metalpowder)to entertheoutputholeorinsidetheproduct. Don’tdroporhittheproductvigorously. Keepawayfromblankets,sheets,latex,carpetsandother combustiblematerialswhenoperatingtheproduct. Pleasenotethatuse,awayfromtheblankets,sheets,latex,carpets andothercombustiblematerials. Iftheproductismodified,thereisapeculiarsmellduringuseorthe temperatureisabnormal,pleasestopusingitimmediately. FCCRequirement changesormodificationsnotexpresslyapprovedbythepartyresponsiblefor compliancecouldvoidtheuser’sauthoritytooperatetheequipment. ThisdevicecomplieswithPart15oftheFCCRules.Operationissubjecttothe followingtwoconditions: (1)thisdevicemaynotcauseharmfulinterference,and (2)thisdevicemustacceptanyinterferencereceived,includinginterferencethat maycauseundesiredoperation. Note:Thisequipmenthasbeentestedandfoundtocomplywiththelimitsfora ClassBdigitaldevice,pursuanttoPart15oftheFCCRules.Theselimitsare designedtoprovidereasonableprotectionagainstharmfulinterferenceina residentialinstallation.Thisequipmentgenerates,uses,andcanradiateradio frequencyenergy,andifnotinstalledandusedinaccordancewiththeinstructions, maycauseharmfulinterferencetoradiocommunications.However,thereisno guaranteethatinterferencewillnotoccurinaparticularinstallation.Ifthis equipmentdoescauseharmfulinterferencetoradioortelevisionreception,which canbedeterminedbyturningtheequipmentoffandon,theuserisencouragedto trytocorrecttheinterferencebyoneormoreofthefollowingmeasures: –Reorientorrelocatethereceivingantenna. –Increasetheseparationbetweentheequipmentandreceiver. –Connecttheequipmentintoanoutletonacircuitdifferentfromthattowhichthe receiverisconnected. –Consultthedealeroranexperiencedradio/TVtechnicianforhelp.

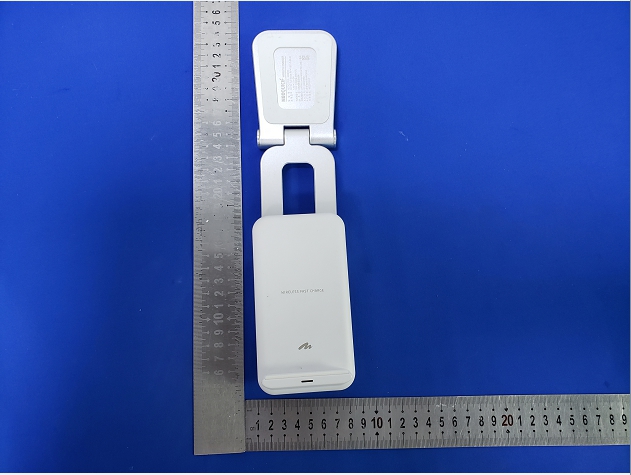

External Photos
FCCID:2A2JS-WC910 FCCID:2A2JS-WC910

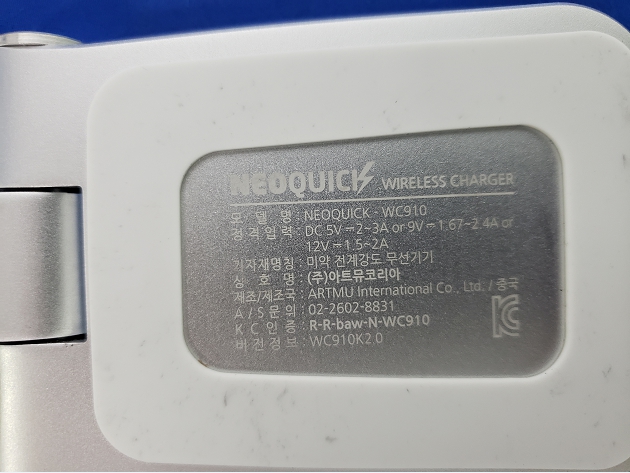

ID Label/Location Info
SIZE:40*25mm Itwilloverwritetheexistinglabelintheformofanewlabel MODEL:WC910 FCCID:2A2JS-WC910 Input:5V/2-3A,9V/1.67A-2.4A,12V/1.5-2A Output:5W,7.5W,10W,15W

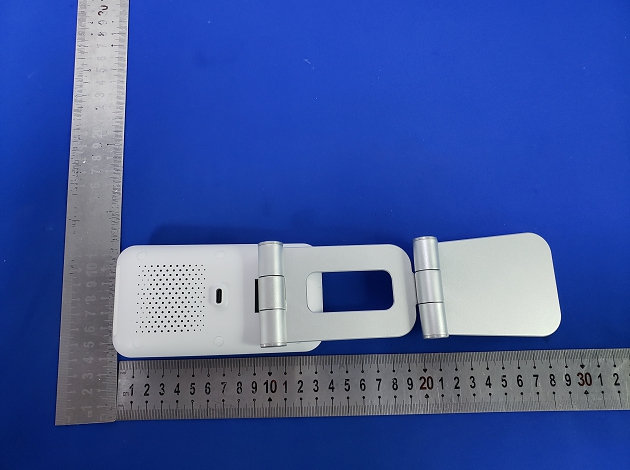

Internal Photos
FCCID:2A2JS-WC910 FCCID:2A2JS-WC910
RF Exposure Info
ShenzhenHuaxiaTestingTechnologyCo.,Ltd 1F.,BlockAofTongshengTechnologyBuilding,HuahuiRoad,DalangStreet,LonghuaDistrict, Shenzhen,China Telephone:+86-755-26648640 Fax:+86-755-26648637 Website:www.cqa-cert.com ReportTemplateVersion:V04 ReportTemplateRevisionDate:2018-07-06 RFExposureEvaluationReport Thetestreportiseffectiveonlywithbothsignatureandspecializedstamp,Theresult(s)showninthisreportreferonlytothesample(s) tested.WithoutwrittenapprovalofCQA,thisreportcan’tbereproducedexceptinfull. ReportNo.: CQASZ20210600876E-02 Applicant:GUANGDONGARTMUTECHNOLOGYCO.,LIMITED AddressofApplicant:Room301,43th,YanhedongThirdroad,Huanzhulizone,ChangpingTown, Dongguan,Guangdongprovice,China EquipmentUnderTest(EUT): Product:WirelessCharger ModelNo.:WC910,WC110,WC310,WC510,WC610,WC710,WC810 TestModelNo.:WC910 BrandName:N/A FCCID:2A2JS-WC910 Standards:47CFRPart1.1307 47CFRPart1.1310 KDB680106D01RFExposureWirelessChargingBaseAppv03 DateofReceipt:2021-6-16 DateofTest:2021-6-16to2021-7-14 DateofIssue:2021-7-20 TestResult:PASS* *Intheconfigurationtested,theEUTcompliedwiththestandardsspecifiedabove TestedBy: (LewisZhou) ReviewedBy: (TimoLei) ApprovedBy: (JackAi) ShenzhenHuaxiaTestingTechnologyCo.,Ltd ReportNo.:CQASZ20210600876E-02 Page:2of10 1Version RevisionHistoryOfReport ReportNo.Version Description IssueDate CQASZ20210600876E-02Rev.01 Initialreport 2021-7-20 ShenzhenHuaxiaTestingTechnologyCo.,Ltd ReportNo.:CQASZ20210600876E-02 Page:3of10 2Contents Page 1VERSION.............................................................................................................................................................................2 2CONTENTS.........................................................................................................................................................................3 ..................................................................................................................................................................................................3 3GENERALINFORMATION..............................................................................................................................................4 3.1CLIENTINFORMATION....................................................................................................................................................4 3.2GENERALDESCRIPTIONOFEUT....................................................................................................................................4 3.3PRODUCTSPECIFICATIONSUBJECTIVETOTHISSTANDARD...........................................................................................4 3.4TESTENVIRONMENT......................................................................................................................................................5 3.5DESCRIPTIONOFSUPPORTUNITS...................................................................................................................................5 3.6TESTLOCATION..............................................................................................................................................................6 3.7TESTFACILITY...............................................................................................................................................................6 3.8EQUIPMENTLIST............................................................................................................................................................6 4RFEXPOSUREEVALUATION.......................................................................................................................................7 4.1RFEXPOSURECOMPLIANCEREQUIREMENT..................................................................................................................7 4.1.1Limits....................................................................................................................................................................7 4.1.2TestProcedure...................................................................................................................................................7 4.1.3TestSetup...........................................................................................................................................................8 4.1.4TestResults........................................................................................................................................................8 APPENDIXA:PHOTOGRAPHSOFTESTSETUP......................................................................................................10 ShenzhenHuaxiaTestingTechnologyCo.,Ltd ReportNo.:CQASZ20210600876E-02 Page:4of10 3GeneralInformation 3.1ClientInformation Applicant:GUANGDONGARTMUTECHNOLOGYCO.,LIMITED AddressofApplicant:Room301,43th,YanhedongThirdroad,Huanzhulizone,ChangpingTown, Dongguan,Guangdongprovice,China Manufacturer:GUANGDONGARTMUTECHNOLOGYCO.,LIMITED AddressofManufacturer:Room301,43th,YanhedongThirdroad,Huanzhulizone,ChangpingTown, Dongguan,Guangdongprovice,China Factory:GUANGDONGARTMUTECHNOLOGYCO.,LIMITED AddressofFactory:Room301,43th,YanhedongThirdroad,Huanzhulizone,ChangpingTown, Dongguan,Guangdongprovice,China 3.2GeneralDescriptionofEUT ProductName: WirelessCharger ModelNo.: WC910,WC110,WC310,WC510,WC610,WC710,WC810 TestModelNo.: WC910 BrandName: N/A HardwareVersion: V4.0 SoftwareVersion: WC910 EUTPowerSupply: Input:5V/2-3A,9V/1.67A-2.4A,12V/1.5-2A 3.3ProductSpecificationsubjectivetothisstandard EquipmentCategory:Non-ISMfrequency OperationFrequencyrange:110kHz~205kHz ModulationType:ASK AntennaType:Inductioncoil AntennaGain:0dBi Power:Ouput:15W(Max) Note: 1.Insection15.31(m),regardstotheoperatingfrequencyrangeless1MHz. ShenzhenHuaxiaTestingTechnologyCo.,Ltd ReportNo.:CQASZ20210600876E-02 Page:5of10 3.4TestEnvironment OperatingEnvironment: Temperature: 25.5 C Humidity:53%RH AtmosphericPressure:1009mbar TestMode: Modea:WirelessoutputModeat5W Modeb:WirelessoutputMod…
Text truncated - open the document above for the full version.
Test Report
ShenzhenHuaxiaTestingTechnologyCo.,Ltd 1F.,BlockAofTongshengTechnologyBuilding,HuahuiRoad,DalangStreet,LonghuaDistrict, Shenzhen,China Telephone:+86-755-26648640 Fax:+86-755-26648637 Website:www.cqa-cert.com ReportTemplateVersion:V04 ReportTemplateRevisionDate:2018-07-06 TestReport Thetestreportiseffectiveonlywithbothsignatureandspecializedstamp,Theresult(s)showninthisreportreferonly tothesample(s)tested.WithoutwrittenapprovalofCQA,thisreportcan’tbereproducedexceptinfull. ReportNo.:CQASZ20210600876E-01 Applicant:GUANGDONGARTMUTECHNOLOGYCO.,LIMITED AddressofApplicant:Room301,43th,YanhedongThirdroad,Huanzhulizone,ChangpingTown, Dongguan,Guangdongprovice,China EquipmentUnderTest(EUT): Product:WirelessCharger ModelNo.:WC910,WC110,WC310,WC510,WC610,WC710,WC810 TestModelNo.:WC910 BrandName:N/A FCCID:2A2JS-WC910 Standards:47CFRPart15,SubpartC DateofReceipt:2021-6-16 DateofTest:2021-6-16to2021-7-14 DateofIssue:2021-7-20 TestResult:PASS* *Intheconfigurationtested,theEUTcompliedwiththestandardsspecifiedabove TestedBy: (LewisZhou) ReviewedBy: (TimoLei) ApprovedBy: (JackAi) ShenzhenHuaxiaTestingTechnologyCo.,Ltd ReportNo.:CQASZ20210600876E-01 Page: 2 of 25 1Version RevisionHistoryOfReport ReportNo.Version Description IssueDate CQASZ20210600876E-01Rev.01 Initialreport 2021-7-20 ShenzhenHuaxiaTestingTechnologyCo.,Ltd ReportNo.:CQASZ20210600876E-01 Page: 3 of 25 2TestSummary TestItemTestRequirementTestmethodResult AntennaRequirement 47CFRPart15,SubpartCSection 15.203 ANSIC63.102013PASS ACPowerLine Conducted Emission 47CFRPart15,SubpartCSection 15.207 ANSIC63.102013PASS 20dBOccupied Bandwidth 47CFRPart15,SubpartCSection 15.215 ANSIC63.102013PASS RadiatedEmission, RadiatedSpurious Emissions 47CFRPart15,SubpartCSection 15.209 ANSIC63.102013PASS ShenzhenHuaxiaTestingTechnologyCo.,Ltd ReportNo.:CQASZ20210600876E-01 Page: 4 of 25 3Contents Page 1VERSION..........................................................................................................................................................................2 2TESTSUMMARY............................................................................................................................................................3 3CONTENTS......................................................................................................................................................................4 4GENERALINFORMATION...........................................................................................................................................5 4.1CLIENTINFORMATION.................................................................................................................................................5 4.2GENERALDESCRIPTIONOFEUT.................................................................................................................................5 4.3PRODUCTSPECIFICATIONSUBJECTIVETOTHISSTANDARD.........................................................................................5 4.4TESTENVIRONMENT....................................................................................................................................................6 4.5DESCRIPTIONOFSUPPORTUNITS................................................................................................................................6 4.6STATEMENTOFTHEMEASUREMENTUNCERTAINTY....................................................................................................7 4.7TESTLOCATION...........................................................................................................................................................7 4.8TESTFACILITY.............................................................................................................................................................7 4.9DEVIATIONFROMSTANDARDS....................................................................................................................................7 4.10OTHERINFORMATIONREQUESTEDBYTHECUSTOMER............................................................................................7 4.11EQUIPMENTLIST........................................................................................................................................................8 5TESTRESULTSANDMEASUREMENTDATA........................................................................................................9 5.1ANTENNAREQUIREMENT............................................................................................................................................9 5.2CONDUCTEDEMISSIONS............................................................................................................................................10 5.320DBOCCUPYBANDWIDTH......................................................................................................................................13 5.4RADIATEDSPURIOUSEMISSION&RESTRICTEDBANDS............................................................................................15 5.4.1SpuriousEmissions.......................................................................................................................................15 6PHOTOGRAPHS-EUTTESTSETUP......................................................................................................................20 6.1RADIATEDEMISSION.................................................................................................................................................20 6.2CONDUCTEDEMISSION..............................................................................................................................................21 7PHOTOGRAPHS-EUTCONSTRUCTIONALDETAILS.......................................................................................22 ShenzhenHuaxiaTestingTechnologyCo.,Ltd ReportNo.:CQASZ20210600876E-01 Page: 5 of 25 4GeneralInformation 4.1ClientInformation Applicant:GUANGDONGARTMUTECHNOLOGYCO.,LIMITED AddressofApplicant:R…
Text truncated - open the document above for the full version.
Test Setup Photos
FCCID:2A2JS-WC910 9kHz~30MHz: 30MHz~1GHz: FCCID:2A2JS-WC910 1.1ConductedEmission
Contact Information
Applicant
Aaron Chen(Engineering)
Test Firm
Shenzhen Huaxia Testing Technology Co., LtdJack Ai
[email protected]+8613902988375
Technical Specifications
| # | Rule Parts | Frequency Range | Power Output |
|---|---|---|---|
| 1 | 15C | 0.11 MHz - 0.205 MHz | - |
