2A2JV-STAGE023All in One karaoke party Box

K1 User Manual PMN:All in One karaoke party Box HVIN:Stage PartyFree,PartyFree S1 Dearcustomer, ThankyouforpurchasingtheoutdoorBluetoothspeakerDash4.Toensure correctoperation,pleasereadthisusermanualcarefullybeforeoperation. ImportantSafetyInstructions ◆Donotusethespeakerinspecialcoldandhotenvironments. ◆Pleaseavoidthespeakerdroppingorhittingwithahardobject,itmaycauseother hardwaredamage. ◆Takecarewhenchargingthespeaker,excessiveprolongedchargingwilldamagethe batterylifetime.Chargethespeakertofullcapacitywhenusingforthefirsttime. ◆Whenbatterylow,theindicatorlightwillflashandvoiceprompt“batterylow”,please chargespeakerintime. ◆Ifdoesnotusethisspeakerforlongtime,pleasechargeatleastoncewithinonemonth, inordertopreventthelithiumbatteryfromcausinganddamagingbecauseofexcessive consumption. ◆Adjustthevolumetoappropriateleveltoavoiddisturbingothers. Features ●Bluetooth5.0stereomusic ●Aux-in Workastheexternalspeakerbyconnectingtotheaudiosourceofcomputer,mobile, PSP/MP3/MP4etc. ●USBFlashDiskMusicplaying SupportMP3/WAV/WMA/FLAC/APEmusicformat,capacityupto32G ●Withvoicecancelingfunctioncaneliminatevocalinsongs,andturnsongsinto backingtracks ●EQeffectadjustment(normal-bass-treble) ●FMRadio ●Voiceguide Thespeakerwillprompttheworkingmodeandstatusforeasyoperation. ●Supportone2.4GwirelessMicrophone ●SupportCrystalglasslightshow,withdifferentlightthemes ●With2Microphonesoundmodes:Speechandkaraoke ●Withbatterycapacitydisplay TechnicalData BluetoothVersion:V5.0（MVsiliconBP1064L2） RMSOutput：30W Voltage：DC5V2A AuxIn：3.5mm FrequencyResponse:75Hz-20KHz Driver:1x108mm4Ωsubwooferdriver+1x36mm6Ωtweeterdriver Speakerbuilt-inBattery:7.4V4000mAh SpeakerChargingTime:4hours@5V3A SpeakerWorkingTime:5hoursat100%volume SpeakerWaterResistance:IPX5 SpeakerSize:170.4x161x216.2mm SpeakerNetWeight:1750g Microphonebuilt-inBattery:3.7V1200mAh MicrophoneSensitivity:-54DB MicrophoneFrequencyRange:70HZ-20KHZ MicrophoneSize:202*45mm MicrophoneNetWeight:160g MicrophoneChargingTime:3hours@5V1A MicrophoneWorkingTime:35hours Chargingjack:USBC PackageContents BluetoothKaraokeSpeaker,WirelessMicrophone,Type-cCable,UserManual SlotandKeys 1. Shortpress:Switchthelightingmode Longpress:turnoff/onlightingeffect 2. Shortpress:Suppress/Restorethevocalinmusic Longpress:Canmakethemusicplayingvolumelowerautomaticallyandemphasizethe vocal.(UnderMicrophonepairingmode) Note:theabovefunctionsonlyworkswhenthespeakerpairedwiththeincluded wirelessMicrophone. 3.Wirelessmicrophoneindicator 4. Shortpress:Turnon/offwirelessmicrophoneconnection 5.EQmodeIndicator(Base-Treble-Normal) 6. Shortpress:SwitchtheEQmode 7.BluetoothIndicator 8. Shortpress:EntertheBluetoothmode Longpressfor2s:DisconnectedthecurrentpairedBluetoothdevice Shortpresstwice:CleartheBluetoothpairingmemory Note:Ifthespeakerclearthebluetoothpairingmemory,whenthedeviceneedto repairwiththespeaker,youneedtoignoretheDash4onyourdeviceandstartthe re-searchingtheDash4forpairing. 9.Batterycapacityindicator 10. Anticlockwiserotation:Decreasevolume Clockwiserotation:Increasevolume 11. Longpress:Poweron/off 12. Shortpress:Modeswitching(Bluetooth/FMmode/Auxiliaryin/USBmode) 13. Shortpress:Previoustrack/FMchannel 14. Shortpress:Play/Pause Longpress:scanandsavetheFMchannel 15. Longpress:Nexttrack//FMchannel 16.(USB-CChargingport) 17.(USBport) 18.(AUXinport) 19.(Headphoneport) 20.(6.5mmWiredmicrophoneport) Longpress:Poweron/off Shortpress:ChangetheMicrophone’sworkingmode(Speech/Karaoke); /:Shortpress:Increase/decreasethevolumeoftheMicrophone OperationInstructions Poweron/off: 1.Longpressthebuttontopoweron/offthespeaker,thebatteryindicator willlightup. 2. ThedefaultworkingmodeisBluetoothmode.Defaultworkingvolumearound 30%. BluetoothMode: 1.ShortpressthebuttontoentertheBluetoothmodeandthespeakerwillprompt “Bluetooth”, and Bluetoothindicatorwillflashinblue. 2.TurnontheBluetoothfunctionofyourmobiledevice.SearchforBluetooth devicesandconnectto"Dash4".Whenconnected,thespeakerwillpromptand theBluetoothindicatorwillconstantlylightinblue. 3. Pleaseturnonyourphone’smusicplayer,andspeakerwillplaytheselected music. 4.ThespeakerwillpairwiththelatestBluetoothdeviceautomaticallywhendevices areinthepairingrange.Longpressthebuttontodisconnectthecurrent Bluetoothconnection.Thespeakerwillprompt“Devicepairing”.Thenother Bluetoothdevicescanfindandpairwiththespeaker. USBMusicMode: 1.InserttheUSBdeviceintothespeaker. 2.ShortpressthebuttontoentertheUSBmodeandthespeakerwillprompt “USBMode”.ThespeakerwillplaytheUSBmusicdirectly. Note:ThespeakersupportsaUSBFlashDiskwithamaximumcapacityof32GB. SupportedaudioformatsareMP3,WMA,WAV,APE,FLAC. AUXInMode: 1.Usea3.5mmaudiocable(included)toconnectthespeakertoanaudiosource (PC,MP3/MP4,mobilephone). 2.ShortpressthebuttontoenterAuxinmodeandthespeakerwillprompt “ Auxiliaryin ”.Thespeakerwillplaythemusicfromtheaudiosource. FMRadio 1.ShortpressthebuttontoentertheFMRadiomodeandthespeakerwill prompt“FMmode”.Longpressthebuttonfor3secondstoautomatically scantheFMchannels. 2.Shortpressthe/buttonstoswitchtotheprevious/nextchannel. Karaokemode 1.ShortpressthebuttontoentertheKaraokemodeandthebutton indicatorwillflashingreen. 2.LongpresstheWirelessmicrophone’sbuttontopoweronthemicandits indicatorwillflashinwhite.Themicrophoneisautomaticallyconnectedtothe speaker.Whenconnected,thespeakerwillprompt“ding”andthebutton indicatorwillconstantlylightingreen.Andthewirelessmicrophone’sindicatorwill constantlylightinwhite. Suppress/RestorethevocalofthePlayingMusic 1.Shortpressthebuttontosuppressvocalinthesong,andturnsongsinto backingtracks,andthespeakerwillprompt“voicecanceling”.Similarly,Shortpress thebuttontorestoresongasitisandandthespeakerwillprompt“voice back”. HeadphoneMode 1.PoweronthemicrophoneandconnectitwithyourdeviceviaBluetooth. 2.Insertthe3.5mmheadphonestotheheadphonesport. 3.Turnonthekaraoke/musicapplicationsonyourdeviceandstartyoursingingor recording. NOTE: Theaudioandyoursingingwillplaythroughtheheadphonesinsteadofmicrophonein thismode.Enjoyyourprivatesingingtime. LightMode&EQ: 1.Shortpressthebuttontoswitc…

Text truncated - open the document above for the full version.

{ SHENZHEN COOLME INNOVATION TECHNOLOGY CO., LTD} { Room 901, WeiBaisheng Building Longgang Dist, Shenzhen} Federal Communic ations Commission Authorization and Evaluation Division Equipment Authorization B「anch 7 435 Oakland Mi lls Road Colum bia, MD21046 {2023-8-24} USA MEIHUA TRADING INC { SHENZHEN COOLME INNOVATION TECHNOLOGY CO., LTD } acknowledges their consent lo「 the f ol lowing contact located in the United States to act as th ei 「a gent lo「 seivice of processfo「 the equ ip me nt lo「Which autho「ization i s sought (FCC ID: 2A2JV-STAGE023) Name and company of U.S. agent: Physical U .S. address of agent: FRN of U .S. agent: Email adctess of U.S. agent: { USA MEIHUA TRAD I NG INC } { 5379 Pine Valley Ct Boulde「 CO 80301 Un�ed States } { 0033406 1 66 } { mei hua今trading今[email protected]} { USA MEIH UA TRADING INC} acknowledges their o b ligation to accept service of process on behaW of { SHENZHEN COOLME INNOVATION TECHNOLOGY CO., LTD). { SHENZHEN COOLME INNOVATION TECHNOLOGY co., LTD } W�h the FRN [0028307999] acce戊sits ob ligation to maintain an agent fo「 seivice of process in the United States fo「 no less than one yea「afte「eithe「 the grantee has pe「manentlyterm i nated all ma「ketingand importation of the applicable equipment within the U.S., 0「 the conclusion of any Commission-related administrative o 「judicial proceeding involving the equipment, whichever is late「 By signing this lo「m, we confi「mthe above and that we a「e awa「eof the application「eQUi「e ments listed unde「§ 2 .911( d)[l ) The information p「ovidedin this letter is based on the 「efe「enced「ule parts ofTitle 4 7 of the CFR as well as KDB 986446 D01 An expi「ation date lo「 thislette「does not exist. In case the U.S . agent changes, the grantee is obligated to notify the FCC within 30 days via the granting TCB 8 A ' O , C X P)二6 · i •• ol! V SO li•puujSP Si nce飞 ly , 穴亿U穴， C 各 � Signature { ahead}{ xia} { ma n age} { SHENZHENCOOLME INNOVATION TECHNOLOGY CO., LTD } Signatu「e {Harl ey Quinn} { manage } USA MEIHUA TRADING INC

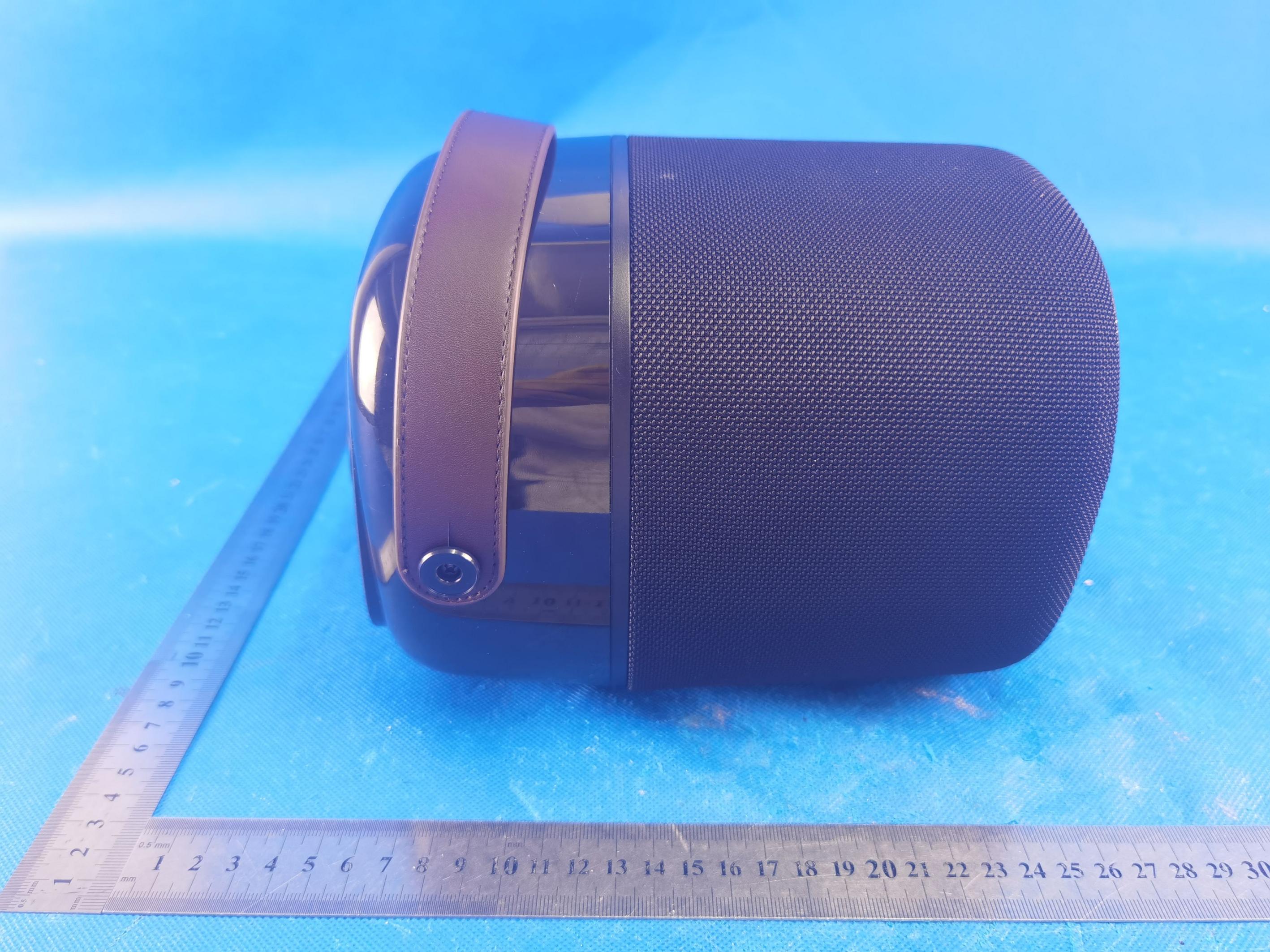

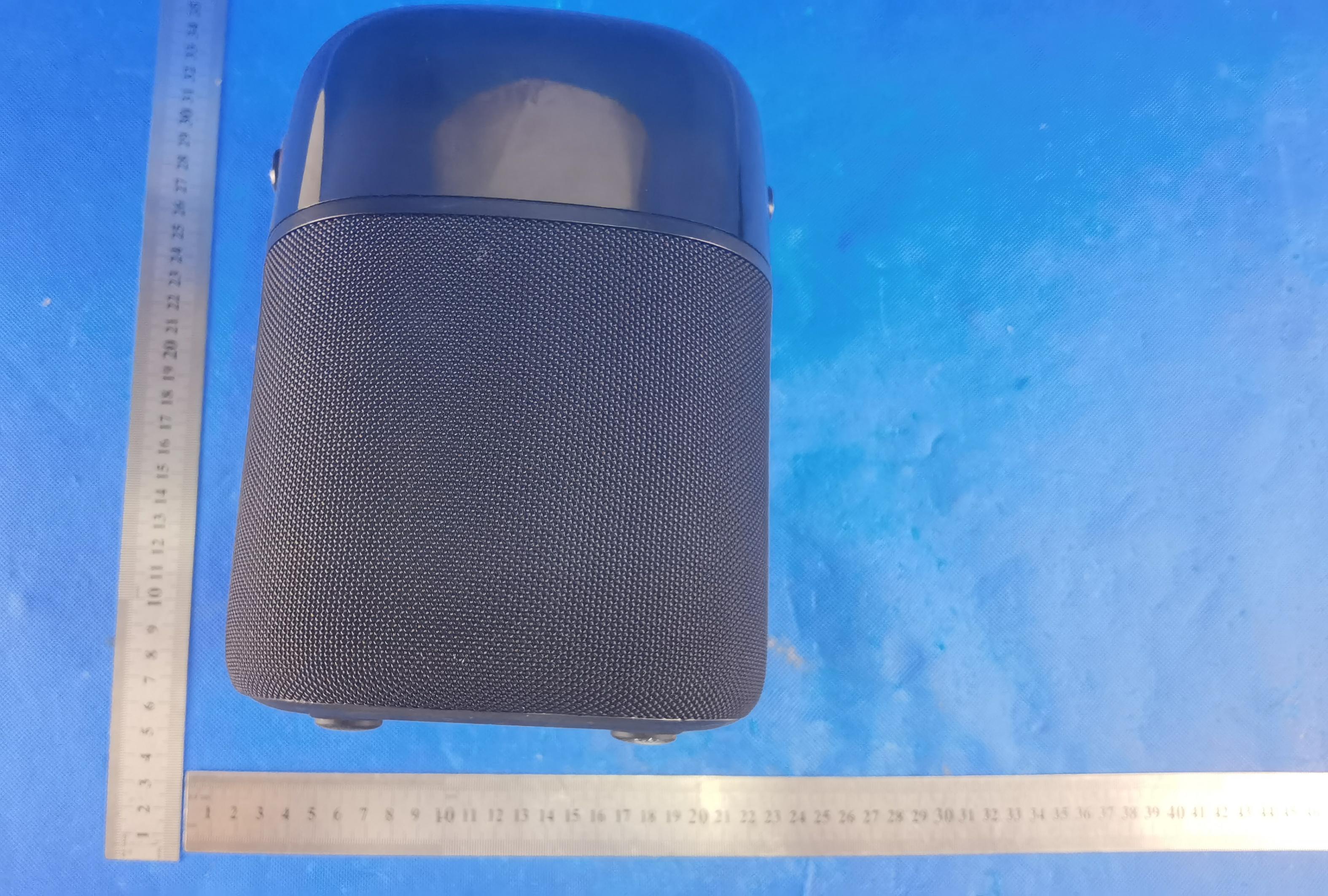

Page1of4FCCID:2A2JV-STAGE023 DongguanYaxu(AiT)TechnologyLimited No.22,Jinqianling3rdStreet,Jitigang, Huangjiang,Dongguan,Guangdong,China. ExternalPhotos StagePartyFree: Photo1 Photo2 Page2of4FCCID:2A2JV-STAGE023 DongguanYaxu(AiT)TechnologyLimited No.22,Jinqianling3rdStreet,Jitigang, Huangjiang,Dongguan,Guangdong,China. Photo3 Photo4 Page3of4FCCID:2A2JV-STAGE023 DongguanYaxu(AiT)TechnologyLimited No.22,Jinqianling3rdStreet,Jitigang, Huangjiang,Dongguan,Guangdong,China. Photo5 Photo6 Page4of4FCCID:2A2JV-STAGE023 DongguanYaxu(AiT)TechnologyLimited No.22,Jinqianling3rdStreet,Jitigang, Huangjiang,Dongguan,Guangdong,China. Photo7 Photo8 ------End------

Label FCC ID :2A2JV-STAGE023 Product Name:All in One karaoke party Box HVIN/Model:Stage PartyFree

Page1of6FCCID:2A2JV-STAGE023 DongguanYaxu(AiT)TechnologyLimited No.22,Jinqianling3rdStreet,Jitigang, Huangjiang,Dongguan,Guangdong,China. ExternalPhotos StagePartyFree: Photo1 Photo2 Page2of6FCCID:2A2JV-STAGE023 DongguanYaxu(AiT)TechnologyLimited No.22,Jinqianling3rdStreet,Jitigang, Huangjiang,Dongguan,Guangdong,China. Photo3 Photo4 Page3of6FCCID:2A2JV-STAGE023 DongguanYaxu(AiT)TechnologyLimited No.22,Jinqianling3rdStreet,Jitigang, Huangjiang,Dongguan,Guangdong,China. Photo5 Photo6 Page4of6FCCID:2A2JV-STAGE023 DongguanYaxu(AiT)TechnologyLimited No.22,Jinqianling3rdStreet,Jitigang, Huangjiang,Dongguan,Guangdong,China. Photo7 Photo8 Page5of6FCCID:2A2JV-STAGE023 DongguanYaxu(AiT)TechnologyLimited No.22,Jinqianling3rdStreet,Jitigang, Huangjiang,Dongguan,Guangdong,China. Photo9 Photo10 . RXANT. Page6of6FCCID:2A2JV-STAGE023 DongguanYaxu(AiT)TechnologyLimited No.22,Jinqianling3rdStreet,Jitigang, Huangjiang,Dongguan,Guangdong,China. Photo11 . ------End------ ANT.

RFExposureevaluation FCCID:2A2JV-STAGE023 1.1.ApplicableStandard Accordingto§1.1307(b)(1),systemsoperatingundertheprovisionsofthissectionshallbeoperatedina mannerthatensuresthatthepublicisnotexposedtoradiofrequencyenergylevelinexcessofthe Commission’sguidelines. Accordingto§1.1310and§2.1093RFexposurerequirement KDB447498v06:MobileandPortableDevicesRFExposureProceduresandEquipmentAuthorization Policies 1.2.Requirement AccordingtoKDB447498D01GeneralRFExposureGuidancev06Section4.3.1StandaloneSARtest exclusionconsiderations:“UnlessspecificallyrequiredbythepublishedRFexposureKDBprocedures, standalone1-gheadorbodyand10-gextremitySARevaluationforgeneralpopulationexposureconditions, bymeasurementornumericalsimulation,isnotrequiredwhenthecorrespondingSARTestExclusion Thresholdcondition,listedbelow,issatisfied.Thesetestexclusionconditionsarebasedonsource-based time-averagedmaximumconductedoutputpoweroftheRFchannelrequiringevaluation,adjustedfortune-up tolerance,andtheminimumtestseparationdistancerequiredfortheexposureconditions.22Theminimum testseparationdistanceisdeterminedbythesmallestdistancefromtheantennaandradiatingstructuresor outersurfaceofthedevice,accordingtothehostformfactor,exposureconditionsandplatformrequirements, toanypartofthebodyorextremityofauserorbystander(see5)ofsection4.1).ToqualifyforSARtest exclusion,thetestseparationdistancesappliedmustbefullyexplainedandjustifiedbytheoperating configurationsandexposureconditionsofthetransmitterandapplicablehostplatformrequirements,typically intheSARmeasurementorSARanalysisreport,accordingtotherequiredpublishedRFexposureKDB procedures.WhennootherRFexposuretestingorreportingisrequired,astatementofjustificationand compliancemustbeincludedintheequipmentapproval,inlieuoftheSARreport,toqualifyfortheSARtest exclusion.Whenrequired,thedevicespecificconditionsdescribedintheotherpublishedRFexposureKDB proceduresmustbesatisfiedbeforeapplyingtheseSARtestexclusionprovisions;forexample,handheldPTT two-wayradios,handsets,laptops&tabletsetc.23“ [(max.powerofchannel,includingtune-uptolerance,mW)/(min.testseparationdistance,mm)] · [√f(GHz)] ≤3.0for1-gSARand≤7.5for10-gextremitySAR,where: • f(GHz)istheRFchanneltransmitfrequencyinGHz • PoweranddistanceareroundedtothenearestmWandmmbeforecalculation •Theresultisroundedtoonedecimalplaceforcomparison •3.0and7.5arereferredtoasthenumericthresholdsinthestep2below Thetestexclusionsareapplicableonlywhentheminimumtestseparationdistanceis ≤ 50mmandfor transmissionfrequenciesbetween100MHzand6GHz.Whentheminimumtestseparationdistanceis < 5 mm,adistanceof5mmaccordingto5)insection4.1isappliedtodetermineSARtestexclusion. 1.3.Manufacturingtolerance Frequency (MHz) GFSK 240224412480 Target(dBm)-4.01-2.84-2.9 Tolerance ± (dB) 1.01.01.0 Frequency (MHz) π/4DQPSK 240224412480 Target(dBm)-0.810.080.17 Tolerance ± (dB) 1.01.01.0 Frequency (MHz) 8DPSK 240224412480 Target(dBm)-1.130.720.24 Tolerance±(dB)1.01.01.0 Page2of2 2.EvaluationResult EvaluationResults Band/Modef(GHz) Antenna Distance (mm) RFoutputpower (includingtune-up tolerance) SARTest Exclusion Threshold SARTest Exclusion dBmmW BT2.551.721.48610.46<3.0Yes 3.Conclusion ThemeasurementresultscomplywiththeFCCLimitper47CFR2.1093fortheuncontrolledRFExposure andSARExclusionThresholdperKDB447498v06 .....................EndofReport.........................

Page1of38ReportNo.:AIT23080203FW1 DongguanYaxu(AiT)TechnologyLimited No.22,Jinqianling3rdStreet,Jitigang, Huangjiang,Dongguan,Guangdong,China. TESTREPORT ClientInformation: Applicant: SHENZHENCOOLMEINNOVATIONTECHNOLOGYCO.,LTD Applicantadd.: Room901,WeiBaiShengBuilding,LonggangDist,ShenzhenChina Manufacturer:SHENZHENCOOLMEINNOVATIONTECHNOLOGYCO.,LTD Manufactureradd.: Room901,WeiBaiShengBuilding,LonggangDist,ShenzhenChina ProductInformation: ProductName: AllinOnekaraokepartyBox ModelNo.:StagePartyFree,PartyFreeS1,PartyFreeS2 BrandName:N/A FCCID: 2A2JV-STAGE023 Applicablestandards : FCCCFRTitle47Part15SubpartCSection15.247 PreparedBy: DongguanYaxu(AiT)TechnologyLimited No.22,Jinqianling3rdStreet,Jitigang,Huangjiang,Dongguan, Guangdong,China Tel.:+86-769-82020499Fax.:+86-769-82020495 DateofReceipt:2023.08.02DateofTest:2023.08.03~2023.08.04 DateofIssue:2023.08.04TestResult:Pass ThisdevicedescribedabovehasbeentestedbyDongguanYaxu(AiT)TechnologyLimitedandthe testresultsshowthattheequipmentundertest(EUT)isincompliancewiththeFCCrequirements. Anditisapplicableonlytothetestedsampleidentifiedinthereport. Note:Thisreportshallnotbereproducedexceptinfull,withoutthewrittenapprovalofDongguan Yaxu(AiT)TechnologyLimited,thisdocumentmaybealteredorrevisedbyDongguanYaxu(AiT) TechnologyLimited,personalonly,andshallbenotedintherevisionofthedocument.Thistest reportmustnotbeusedbytheclienttoclaimproductendorsement. Reviewedby:Approvedby: SimbaHuangSeal.chen Page2of38ReportNo.:AIT23080203FW1 DongguanYaxu(AiT)TechnologyLimited No.22,Jinqianling3rdStreet,Jitigang, Huangjiang,Dongguan,Guangdong,China. 1Contents Page COVERPAGE 1CONTENTS...........................................................................................................................................................................2 2TESTSUMMARY.................................................................................................................................................................4 2.1StatementoftheMeasurementUncertainty........................................................................................4 2.2MeasurementUncertainty....................................................................................................................4 3TESTFACILITY....................................................................................................................................................................5 3.1Deviationfromstandard.......................................................................................................................5 3.2Abnormalitiesfromstandardconditions...............................................................................................5 3.3TestLocation.........................................................................................................................................5 4GENERALINFORMATION................................................................................................................................................6 4.1Testfrequencies...................................................................................................................................7 4.2EUTPeripheralList..............................................................................................................................8 4.3TestPeripheralList...............................................................................................................................8 4.4TESTMETHODOLOGY.......................................................................................................................9 4.5DescriptionofTestModes..................................................................................................................10 5EQUIPMENTUSEDDURINGTEST...............................................................................................................................11 6TESTRESULTSANDMEASUREMENTDATA..........................................................................................................12 6.1Antennarequirement..........................................................................................................................12 6.2PeakPowerMeasurement.................................................................................................................13 6.3FrequencySeparationand20dBBandwidth....................................................................................15 6.4NumberofHoppingFrequency..........................................................................................................17 6.5TimeofOccupancy(DwellTime).......................................................................................................18 6.6ConductedSpuriousEmissionsandBandEdgesTest.....................................................................20 6.7Restrict-bandBand-edgeMeasurements..........................................................................................22 6.8RadiatedEmissionsMeasurement....................................................................................................24 6.9ConductedEmissions.........................................................................................................................34 6.10Pseudorandomfrequencyhoppingsequence.................................................................................37 7TESTSETUPPHOTOGRAPHSOFEUT......................................................................................................................38 8EXTERNALPHOTOGRAPHSOFEUT.........................................................................................................................38 9INTERNALPHOTOGRAPHSOFEUT..........................................................................................................................38 Page3of38ReportNo.:AIT23080203FW1 DongguanYaxu(AiT)TechnologyLimited No.22,Jinqianling3rdStreet,Jitigang, Huangjiang,Dongguan,Guangdong,China. RevisionHistory RevisionIs…

Text truncated - open the document above for the full version.

Inverted F Antenna Specification Summary ITEMANT SPEC Model Name 2.4G ANT HorizontalVertical 2400MHz 2400MHz2500MHz2400MHz2400MHz 2500MHz Center Frequency -1.73-0.84-0.68-6.15-3.70-2.32 MAX. Gain -0.68 PolarizationHorizontal and Vertical Azimuth Beam Pattern Omni-directional Impedance50 Ohm Antenna Length 38.20mm Manufacture ZHUHAI JIELI TECHNOLOGY CO.,LTD Antenna Photo & Length (mm) Horizontal: 2400 MHz 2450 MHz 2500 MHz Power (dBm) Max: 0 Min: -40 Scale: 5/div Gain(dBi) Frequency (MHz) MaxMinAvg 2400-1.73178-30.0815-8.48713 2450-0.845801-38.5605-7.88012 2500-0.685586-24.0318-6.79139 Vertical: 2400 MHz 2450 MHz 2500 MHz Power (dBm) Max: 0 Min: -30 Scale: 5/div Gain(dBi) Frequency (MHz) MaxMinAvg 2400-6.1530-24.1420-13.0295 2450-3.7054-26.5836-10.6700 2500-2.32122-30.4301-9.70536 ANT Test Labs：Attestation of Global Compliance Co., Ltd.

DongguanYaxu(AiT)TechnologyLimited ReportNo.:AIT23080203FW1 FCCID:2A2JV- STAGE023 Page1of58 AppendixA RFTestDataforBR_EDR(ConductedMeasurement) ProductName:AllinOnekaraokepartyBox TradeMark:N/A TestModel:StagePartyFree EnvironmentalConditions Temperature:25°C RelativeHumidity:53% ATMPressure:101Kpa TestEngineer:SimbaHuang Supervisedby:SealChen DongguanYaxu(AiT)TechnologyLimited ReportNo.:AIT23080203FW1 FCCID:2A2JV- STAGE023 Page2of58 Contents Page COVERPAGE 1DutyCycle........................................................................................................................................................................................3 1.1TestResult............................................................................................................................................................................3 1.2TestGraphs...........................................................................................................................................................................4 2MaximumConductedPeakOutputPower........................................................................................................................................6 2.1TestResult............................................................................................................................................................................6 2.2TestGraphs...........................................................................................................................................................................7 320dBBandwidth..............................................................................................................................................................................12 3.1TestResult..........................................................................................................................................................................12 3.2TestGraphs.........................................................................................................................................................................13 4CarrierFrequencySeparation.........................................................................................................................................................18 4.1TestResult..........................................................................................................................................................................18 4.2TestGraphs.........................................................................................................................................................................19 5HoppingChannelNumber...............................................................................................................................................................21 5.1TestResult..........................................................................................................................................................................21 5.2TestGraphs.........................................................................................................................................................................22 6DwellTime......................................................................................................................................................................................24 6.1TestResult..........................................................................................................................................................................24 6.2TestGraphs.........................................................................................................................................................................25 7RFConductedSpuriousEmissions.................................................................................................................................................28 7.1TestResult..........................................................................................................................................................................28 7.2TestGraphs.........................................................................................................................................................................29 8Band-edgeforRFConductedEmissions........................................................................................................................................38 8.1TestResult..........................................................................................................................................................................38 8.2TestGraphs.........................................................................................................................................................................39 9Restrict-bandband-edgemeasurements........................................................................................................................................51 9.1TestResult..........................................................................................................................................................................51 9.2TestGraphs.........................................................................................................................................................................53 DongguanYaxu(AiT)TechnologyLimited ReportNo.:AIT23080203FW1 FCCID:2A2JV- STAGE023 Page3of58 1 . DutyCycle 1.1TestResult Mode Frequency (MHz) DutyCycle (%) 1/T (kHz) 1-DH1244131.22.63 2-DH12441322.56 3-DH12441322.63 DongguanYaxu(AiT)TechnologyLimited ReportNo.:AIT23080203FW1 FCCID:2A2JV- STAGE023 Page4of58 1.2TestGraphs TestGraphs 1-DH12441MHz 2-DH12441MHz DongguanYaxu(AiT)TechnologyLimited ReportNo.:AIT23080203FW1 FCCID:2A2JV- STAGE023 Page5of58 3-DH12441MHz DongguanYaxu(AiT)TechnologyLimited ReportNo.:AIT23080203FW1 FCCID:2A2JV- STAGE023 Page6of58…

Text truncated - open the document above for the full version.

DongguanYaxu(AiT)TechnologyLimited ReportNo.:AIT23080203FW1 FCCID:2A2JV- STAGE023 Page37of58 8DPSK_HCH_Graphs Pref Puw DongguanYaxu(AiT)TechnologyLimited ReportNo.:AIT23080203FW1 FCCID:2A2JV- STAGE023 Page38of58 8Band-edgeforRFConductedEmissions 8.1TestResult Mode Channe l Carrier Frequency [MHz] Frequenc yHopping MaxSpurious Level[dBc] Limit [dBc] Verdict GFSK LCH2402 Off-50.1-20Pass On-49.95-20Pass HCH2480 Off-51.31-20Pass On-53.04-20Pass π/4DQPSK LCH2402 Off-51.01-20Pass On-49.74-20Pass HCH2480 Off-45.2-20Pass On-44.61-20Pass 8DPSK LCH2402 Off-51.94-20Pass On-50.53-20Pass HCH2480 Off-51.43-20Pass On-50.17-20Pass DongguanYaxu(AiT)TechnologyLimited ReportNo.:AIT23080203FW1 FCCID:2A2JV- STAGE023 Page39of58 8.2TestGraphs TestGraphs Pref GFSK/LCH/NoHop DongguanYaxu(AiT)TechnologyLimited ReportNo.:AIT23080203FW1 FCCID:2A2JV- STAGE023 Page40of58 Ref GFSK/LCH/Hop DongguanYaxu(AiT)TechnologyLimited ReportNo.:AIT23080203FW1 FCCID:2A2JV- STAGE023 Page41of58 Ref GFSK/HCH/NoHop DongguanYaxu(AiT)TechnologyLimited ReportNo.:AIT23080203FW1 FCCID:2A2JV- STAGE023 Page42of58 Ref. GFSK/HCH/Hop DongguanYaxu(AiT)TechnologyLimited ReportNo.:AIT23080203FW1 FCCID:2A2JV- STAGE023 Page43of58 Ref π/4DQPSK/LCH/No Hop DongguanYaxu(AiT)TechnologyLimited ReportNo.:AIT23080203FW1 FCCID:2A2JV- STAGE023 Page44of58 Ref π/4DQPSK/LCH/Hop DongguanYaxu(AiT)TechnologyLimited ReportNo.:AIT23080203FW1 FCCID:2A2JV- STAGE023 Page45of58 Ref π/4DQPSK/HCH/No Hop DongguanYaxu(AiT)TechnologyLimited ReportNo.:AIT23080203FW1 FCCID:2A2JV- STAGE023 Page46of58 Ref π/4DQPSK/HCH/Hop DongguanYaxu(AiT)TechnologyLimited ReportNo.:AIT23080203FW1 FCCID:2A2JV- STAGE023 Page47of58 Ref 8DPSK/LCH/NoHop DongguanYaxu(AiT)TechnologyLimited ReportNo.:AIT23080203FW1 FCCID:2A2JV- STAGE023 Page48of58 Ref 8DPSK/LCH/Hop DongguanYaxu(AiT)TechnologyLimited ReportNo.:AIT23080203FW1 FCCID:2A2JV- STAGE023 Page49of58 Ref 8DPSK/HCH/NoHop DongguanYaxu(AiT)TechnologyLimited ReportNo.:AIT23080203FW1 FCCID:2A2JV- STAGE023 Page50of58 Ref 8DPSK/HCH/Hop DongguanYaxu(AiT)TechnologyLimited ReportNo.:AIT23080203FW1 FCCID:2A2JV- STAGE023 Page51of58 9Restrict-bandband-edgemeasurements 9.1TestResult Test Mode HoppingFreq. Power [dBm] Gain E [dBuV/m] Detector Limit [dBuV/m] Verdict GFSK Off2310.0-50.6246.63PEAK74Pass Off2310.0-58.24238.99AV54Pass Off2343.504-46.38250.85PEAK74Pass Off2340.816-55.84241.39AV54Pass Off2390.0-49.12248.11PEAK74Pass Off2390.0-58.51238.72AV54Pass Off2483.5-48.94248.29PEAK74Pass Off2483.5-57.37239.86AV54Pass Off2487.448-45.74251.49PEAK74Pass Off2487.592-57.17240.06AV54Pass Off2500.0-50.91246.32PEAK74Pass Off2500.0-57.69239.54AV54Pass π/4DQPSK Off2310.0-50.09247.14PEAK74Pass Off2310.0-58.18239.05AV54Pass Off2353.872-45.61251.62PEAK74Pass Off2339.376-56.05241.18AV54Pass Off2390.0-49.04248.19PEAK74Pass Off2390.0-58.08239.15AV54Pass Off2483.5-49.55247.68PEAK74Pass Off2483.5-56.61240.62AV54Pass Off2487.424-45.16252.07PEAK74Pass Off2484.424-56.21241.02AV54Pass Off2500.0-50.03247.2PEAK74Pass Off2500.0-57.89239.34AV54Pass 8DPSK Off2310.0-47.08250.15PEAK74Pass Off2310.0-57.9239.33AV54Pass Off2339.856-46.32250.91PEAK74Pass Off2340.048-56.08241.15AV54Pass Off2390.0-50.2247.03PEAK74Pass DongguanYaxu(AiT)TechnologyLimited ReportNo.:AIT23080203FW1 FCCID:2A2JV- STAGE023 Page52of58 Off2390.0-58.34238.89AV54Pass Off2483.5-47.1250.13PEAK74Pass Off2483.5-56.31240.92AV54Pass Off2487.352-46.31250.92PEAK74Pass Off2484.232-56.12241.11AV54Pass Off2500.0-48.16249.07PEAK74Pass Off2500.0-58.19239.04AV54Pass DongguanYaxu(AiT)TechnologyLimited ReportNo.:AIT23080203FW1 FCCID:2A2JV- STAGE023 Page53of58 9.2TestGraphs Restrict-bandband-edgemeasurements_HoppingOff_GFSK_PEAK(LowChannel) Restrict-bandband-edgemeasurements_HoppingOff_GFSK_Average(LowChannel) DongguanYaxu(AiT)TechnologyLimited ReportNo.:AIT23080203FW1 FCCID:2A2JV- STAGE023 Page54of58 Restrict-bandband-edgemeasurements_HoppingOff_GFSK_PEAK(HighChannel) Restrict-bandband-edgemeasurements_HoppingOff_GFSK_Average(HighChannel) DongguanYaxu(AiT)TechnologyLimited ReportNo.:AIT23080203FW1 FCCID:2A2JV- STAGE023 Page55of58 Restrict-bandband-edgemeasurements_HoppingOff_…

Text truncated - open the document above for the full version.
