MCMP1021 FCC WarningThis device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:o Reorient or relocate the receiving antenna.o Increase the separation between the equipment and receiver.o Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.o Consult the dealer or an experienced radio/TV technician for help.Radiation Exposure Statement This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator and your body.:DUQLQJ)RU*EDQGLQGRRUXVHRQO\ ISED Statement English: This device complies with Industry Canada licenseÿexempt RSS standard(s). Operation is subject to the following two conditions: (1) This device may not cause interference, and (2) This device must accept any interference, including interference that may cause undesired operation of the device. The digital apparatus complies with Canadian CAN ICESÿ3 (B)/NMBÿ3(B).Radiation Exposure StatementThis equipment complies with Canada radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body. French: Le présentappareilestconforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de licence. L'exploitationestautorisée aux deux conditions suivantes: (1) l'appareil ne doit pas produire de brouillage, et (2) l'utilisateur de l'appareildoit accepter tout brouillageradioélectriquesubi, mêmesi le brouillageest susceptible d'encompromettre le fonctionnement.Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada.  Déclaration d'exposition aux radiationsCet équipement est conforme Canada limites d'exposition aux radiations dans un environnement non contr?lé. Cet équipement doit être installé et utilisé à distance minimum de 20cm entre le radiateur et votre corps.$YHUWLVVHPHQW3RXUXQHXWLOLVDWLRQHQLQWpULHXUVXUODEDQGH *XQLTXHPHQW

FCC Software Configuration Control Declaration Rev1.1 Mandoe Media Pty Ltd FCC Software Configuration Control Declaration Date: August 05, 2021 Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 USA Attn: OET Dept. Product Name: MCMP1021 Model Number: MCMP1021 Regarding FCC Country Code Selection guidelines identified in KDB 594280 D01 Software Configuration Control v02r01. “All applications for equipment authorization for transmitters that can have radio parameters, or other technical parameters, reported to the Commission set by software must have an attestation indicating that no third party will have software, or configuration control, to program the device out of compliance of the technical rules under which it has been certified.” We declare that no third party will have software, or configuration control, to program the device out of compliance of the technical rules under which it has been certified. Signature: Date: 2021-08-05 Name: Evan Baxter Title: CTO Company: Mandoe Media Pty Ltd

Mandoe Media Pty Ltd Agent Authorization Company: Mandoe Media Pty Ltd Address: 1901/31 Market St, Sydney, NSW, 2000, Australia Product Name: MCMP1021 Trade Mark: N/A Model Number(s): MCMP1021 FCC ID: 2A2KG-MCMP1021 We authorize MiCOM Labs Inc., 575 Boulder Court, Pleasanton, California 94566, USA, to act on our behalf on all matters concerning the certification of above named equipment. We declare that MiCOM Labs Inc. is allowed to forward all information related to the approval and certification of equipment to the regulatory agencies as required and to discuss any issues concerning the approval application. Any and all acts carried out by MiCOM Labs on our behalf shall have the same effect as acts of our own. Signature: Date: 2021-08-05 Name: Evan Baxter Title: CTO Company: Mandoe Media Pty Ltd

Mandoe Media Pty Ltd Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 USA Date: 2021-08-05 Subject; Request for Confidentiality FCC ID: 2A2KG-MCMP1021 To Whom It May Concern, Pursuant to the provisions of the Commission’s rules Title 47 Sections §0.457 and §0.459, we are requesting the Commission to withhold the following attachment(s) as confidential documents from public disclosure indefinitely. These documents contain detailed system and equipment descriptions and are considered as proprietary information in operation of the equipment. The public disclosure of these documents might be harmful to our company and would give competitors an unfair advantage in the market. Schematic Diagram Block Diagram Operational Description Software Security Requirements For U-NII Devices In additional to above mentioned documents, in order to comply with the marketing regulations in Title 47 CFR §2.803 and the importation rules in Title 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices, we request Short Term Confidentiality of the following attachment(s); External Photos Test Setup Photos Internal Photos User Manual For 45 days, pursuant to Public Notice DA 04-1705. OR For 180 days pursuant to KDB 726920 D01. It is our understanding that all measurement test reports, FCC ID label format and correspondence during the certification review process cannot be granted as confidential documents and this information will be available for public review once the grant of equipment authorization is issued. Sincerely, Signature: Name: Evan Baxter Title: CTO

Shenzhen LCS Compliance Testing Laboratory Ltd. FCC ID: 2A2KG-MCMP1021 IC: 27510-MCMP1021 _____________________________________________________________________________________________________ This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 1 of 1 LABEL AND LOCATION (Size: L4cm x 3cm) Label Location MCMP1021 Model: MCMP1021 FCC ID: 2A2KG-MCMP1021 IC: 27510-MCMP1021 Input: 5.0V2.5A This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

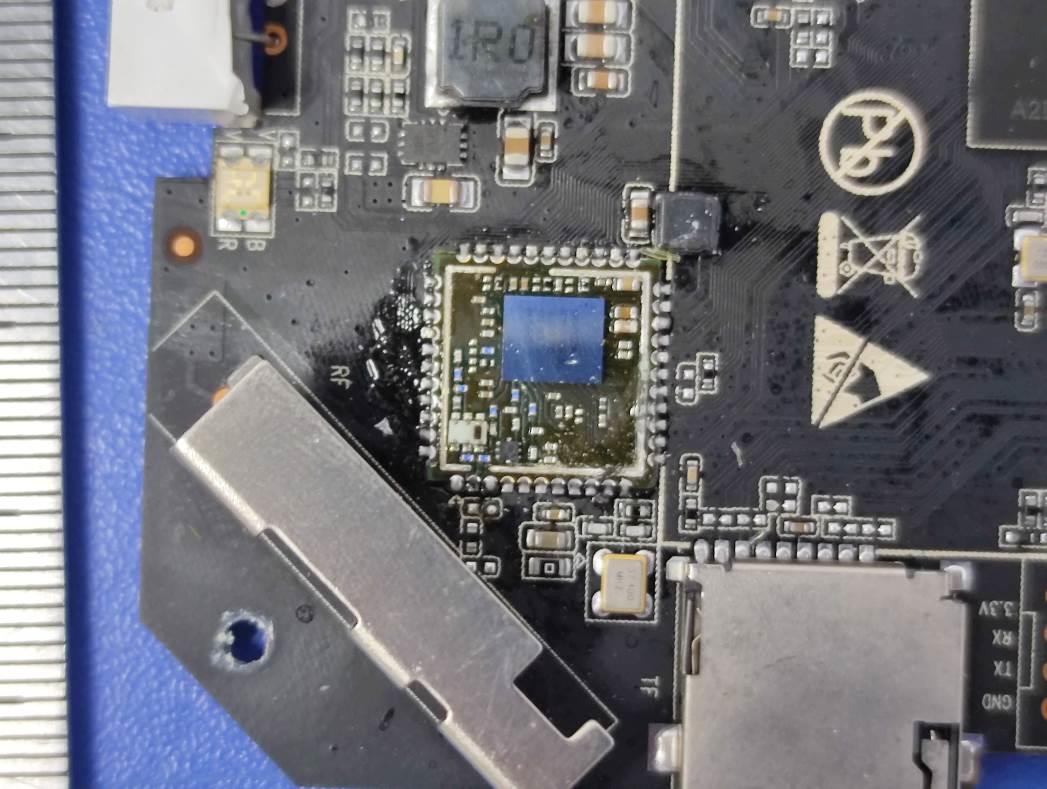

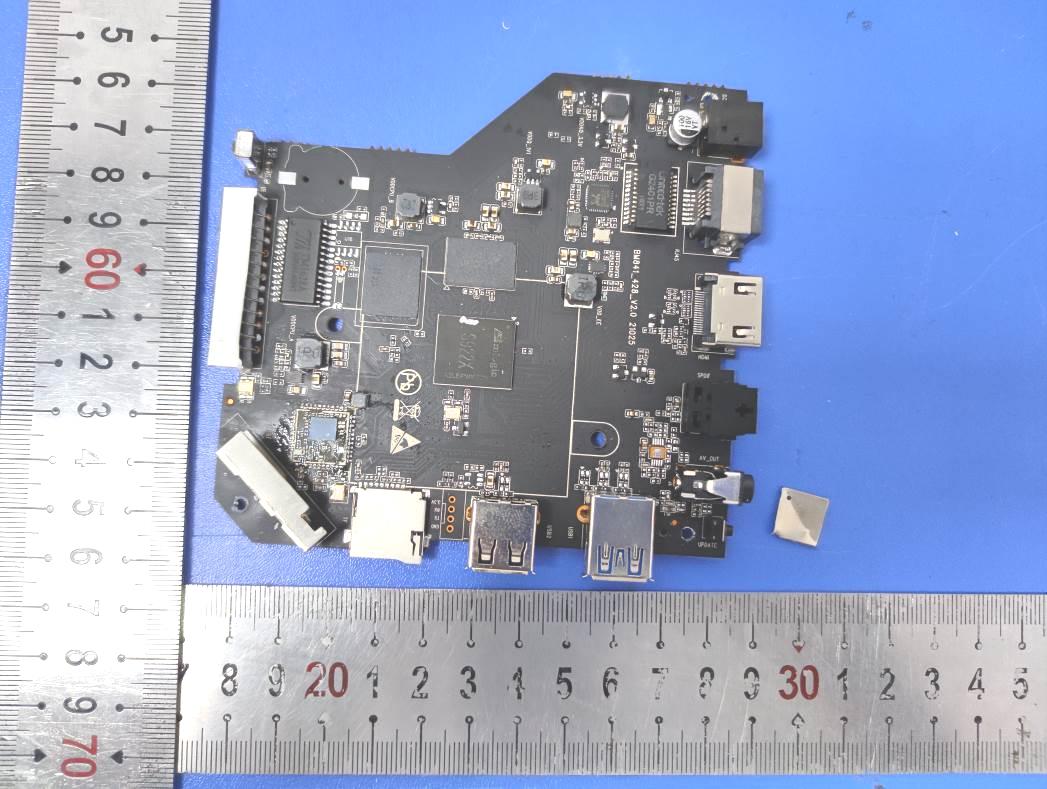

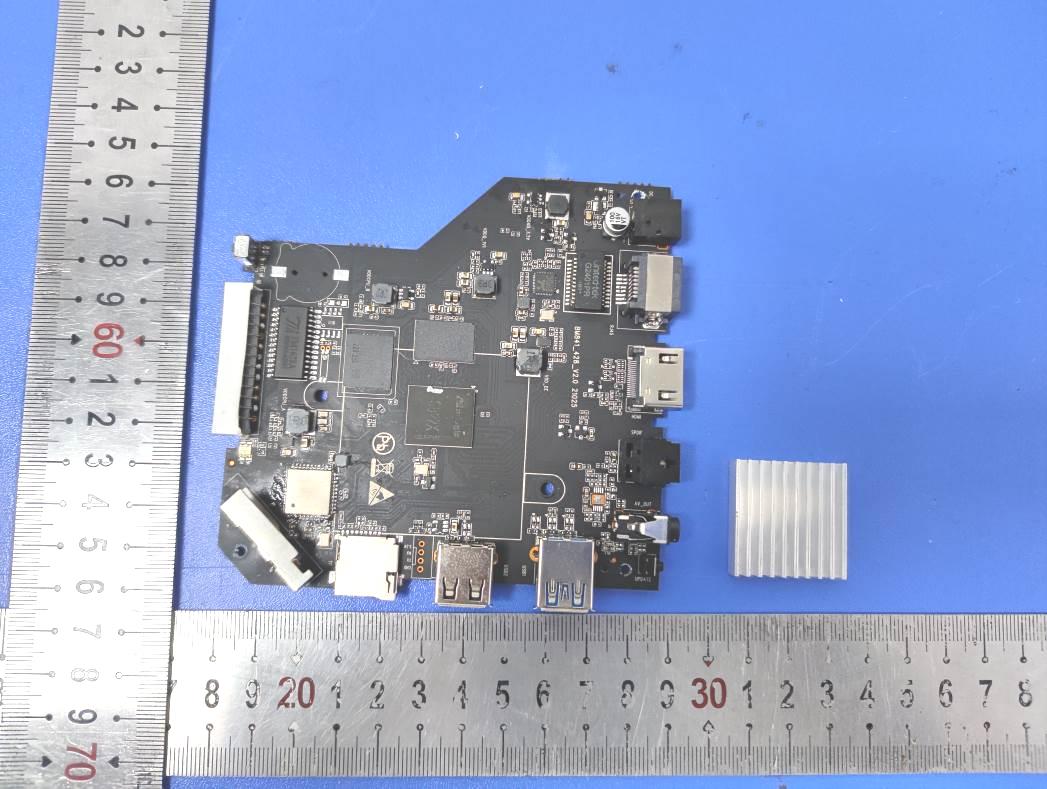

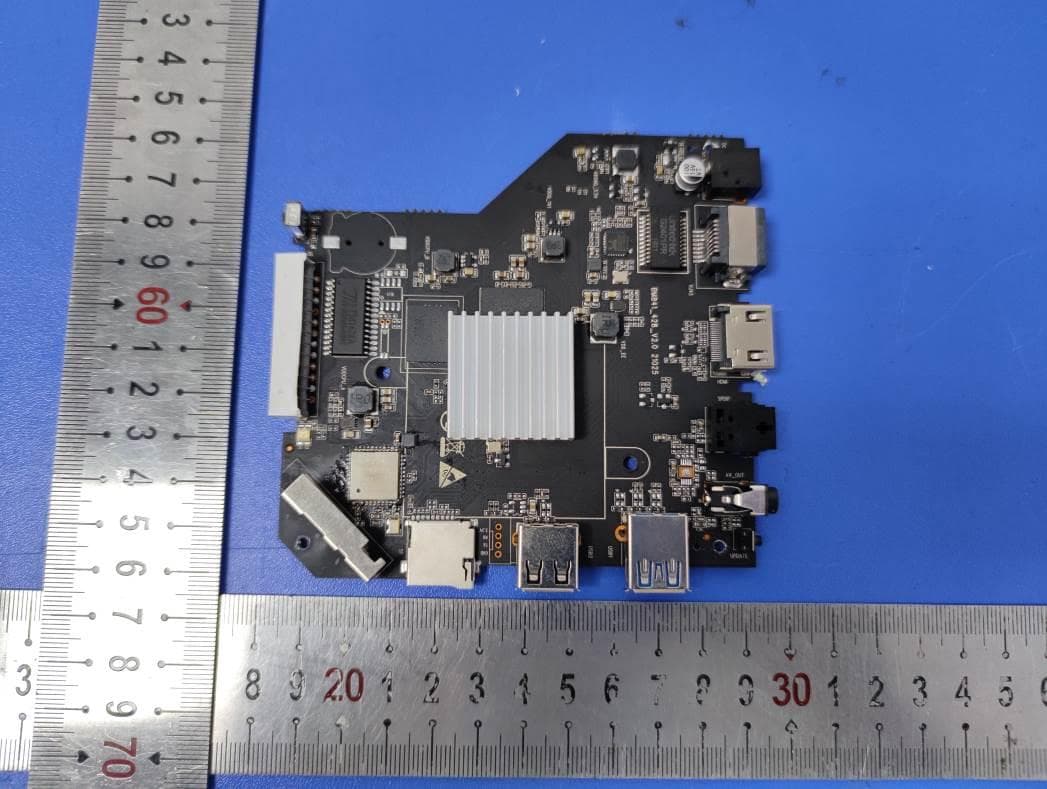

Shenzhen LCS Compliance Testing Laboratory Ltd. FCC ID: 2A2KG-MCMP1021 IC: 27510-MCMP1021 Internal Photos of EUT Fig.1 Fig.2 Shenzhen LCS Compliance Testing Laboratory Ltd. FCC ID: 2A2KG-MCMP1021 IC: 27510-MCMP1021 Fig.3 Fig.4 Shenzhen LCS Compliance Testing Laboratory Ltd. FCC ID: 2A2KG-MCMP1021 IC: 27510-MCMP1021 Fig.5 Fig.6 ANTENNA Shenzhen LCS Compliance Testing Laboratory Ltd. FCC ID: 2A2KG-MCMP1021 IC: 27510-MCMP1021 Fig.7

Shenzhen LCS Compliance Testing Laboratory Ltd. FCC ID: 2A2KG-MCMP1021 This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 1 of 9 Maximum Permissible Exposure Report 1. Product Information EUT : MCMP1021 Test Model : MCMP1021 Power Supply : Input: 5.0V2.5A For AC Adapter Input: 100-240V~, 50/60Hz, 0.4A Max Adapter Output: 5.0V2.5A, 12.5W Hardware Version : YB841 Software Version : A.0 Bluetooth : Frequency Range : 2402MHz ~ 2480MHz Channel Number : 79 channels for Bluetooth V4.1(DSS) 40 channels for Bluetooth V4.1(DTS) Channel Spacing : 1MHz for Bluetooth V4.1 (DSS) 2MHz for Bluetooth V4.1 (DTS) Modulation Type : GFSK, π/4-DQPSK, 8-DPSK for Bluetooth V4.1(DSS) GFSK for Bluetooth V4.1(DTS) Bluetooth Version : V4.1 Antenna Description : Internal Antenna, 3.0dBi (max.) WIFI(2.4G Band) : Frequency Range : 2412 – 2462 MHz Channel Spacing : 11 Channels for 20MHz bandwidth (2412~2462MHz) Channel Number : 5MHz Modulation Type : IEEE 802.11b: DSSS (CCK, DQPSK, DBPSK) IEEE 802.11g: OFDM (64QAM, 16QAM, QPSK, BPSK) IEEE 802.11n: OFDM (64QAM, 16QAM,QPSK,BPSK) Antenna Description : Internal Antenna, 3.0dBi (max.) WIFI 5GWLAN (U-NI-1) : Frequency Range : 5180MHz-5240MHz Channel Number : 4 channels for 20MHz bandwidth (5180-5240MHz) 2 channels for 40MHz bandwidth (5190~5230MHz) 1 channels for 80MHz bandwidth (5210MHz) Modulation Type : IEEE 802.11a/n/ac: OFDM (64QAM, 16QAM, QPSK, BPSK) Antenna Description : Internal Antenna, 3.0dBi (max.) WIFI 5GWLAN (U-NI-2A) : Frequency Range : 5260MHz-5320MHz Channel Number : 4 channels for 20MHz bandwidth (5260-5320MHz) 2 channels for 40MHz bandwidth (5270~5310MHz) 1 channels for 80MHz bandwidth (5290MHz) Modulation Type : IEEE 802.11a/n/ac: OFDM (64QAM, 16QAM, QPSK, BPSK) Antenna Description : Internal Antenna, 3.0dBi (max.) WIFI 5GWLAN (U-NI-2C) : Frequency Range : 5500MHz-5700MHz Shenzhen LCS Compliance Testing Laboratory Ltd. FCC ID: 2A2KG-MCMP1021 This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 2 of 9 Channel Number : 11 channels for 20MHz bandwidth (5500-5700MHz) 5 channels for 40MHz bandwidth (5510~5670MHz) 1 channels for 80MHz bandwidth (5530MHz) Modulation Type : IEEE 802.11a/n/ac: OFDM (64QAM, 16QAM, QPSK, BPSK) Antenna Description : Internal Antenna, 3.0dBi (max.) WIFI 5GWLAN (U-NI-3) : Frequency Range : 5745MHz-5825MHz Channel Number : 5 channels for 20MHz bandwidth (5745-5825MHz) 2 channels for 40MHz bandwidth (5755~5795MHz) 1 channels for 80MHz bandwidth (5775MHz) Modulation Type : IEEE 802.11a/n/ac: OFDM (64QAM, 16QAM, QPSK, BPSK) Antenna Description : Internal Antenna, 3.0dBi (max.) DFS Operation Mode : Master Client with Radar detection capability Client without radar detection capability Exposure category General population/uncontrolled environment EUT Type Production Unit Device Type Mobile Device 2. Evaluation Method Systems operating under the provisions of FCC 47 CFR section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. In accordance with 47 CFR FCC Part 2 Subpart J, section 2.1091 this device has been defined as mobile device whereby a distance of 0.2m normally can be maintained between the user and the device, and below RF Permissible Exposure limit shall comply with. In accordance with KDB447498D01 for Simultaneous transmission MPE test exclusion applies when the sum of the MPE ratios for all simultaneous transmitting antennas incorporated in a host device, based on the calculated/estimated, numerically modelled or measured field strengths or power density, is ≤ 1.0. The MPE ratio of each antenna is determined at the minimum test separation distance required by the operating configurations and exposure conditions of the host device, according to the ratio of field strengths or power density to MPE limit, at the test frequency. Either the maximum peak or spatially averaged results from measurements or numerical simulations may be used to determine the MPE ratios. Spatial averaging does not apply when MPE is estimated using simple calculations based on far-field plane-wave equivalent conditions. The antenna installation and operating requirements for the host device must meet the minimum test separation distances required by all antennas, in both standalone and simultaneous transmission operations, to satisfy compliance. 3. Limit 3. 1 Refer Evaluation Method ANSI C95.1–2019: IEEE Standard for Safety Levels with Respect to Human Exposure to Electric, Magnetic, and Electromagnetic Fields, 0 Hz to 300 GHz FCC KDB publication 447498 D01 General 1 RF Exposure Guidance v06: Mobile and Portable Devices RF Exposure Procedures and Equipment Authorization Policies. FCC CFR 47 part1 1.1310: Radiofrequency radiation exposure limits. FCC CFR 47 part2 2.1091: Radiofrequency radiation exposure evaluation: mobile devices. 3. 2 Limit Limits for Maximum Permissible Exposure (MPE)/Controlled Exposure Frequency Range(MHz) Electric Field Strength(V/m) Magnetic Field Strength(A/m) Power Density (mW/cm²) Averaging Time (minute) Limits for Occupational/Controlled Exposure 0.3 – 3.0 3.0 – 30 30 – 300 300 – 1500 1500 – 100,000 614 1842/f 61.4 / / 1.63 4.89/f 0.163 / / (100) * (900/f 2 )* 1.0 f/300 5 6 6 6 6 6 Limits for Maximum Permissible Exposure (MPE)/Uncontrolled Exposure Frequency Electric Field Magnetic Field Power Density Averaging Time Shenzhen LCS Compliance Testing Laboratory Ltd. FCC ID: 2A2KG-MCMP1021 This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 3 of 9 Range(MHz) Strength(V/m) Strength(A/m) (mW/cm²) (minute) Limits for Occupational/Uncontrolled Exposure 0.3 – 3.0 3.0 – 30 30 – 300 300 – 1500 1500 – 100,000 614 824/f 27.5 / / 1.63 2.19/f 0.073 / / (100) * (180/f 2 )* 0.2 f/1500 1.0 30 30 30 30 30 …

Text truncated - open the document above for the full version.

Shenzhen LCS Compliance Testing Laboratory Ltd. FCC ID: 2A2KG-MCMP1021 IC: 27510-MCMP1021 Appendix D RF Test Data for 5.2GWIFI&5.3GWIFI&5.5GWIFI (Conducted Measurement) Product Name: MCMP1021 Trade Mark: N/A Test Model: MCMP1021 Environmental Conditions Temperature: 23.6  C Relative Humidity: 52.7% ATM Pressure: 100.0 kPa Test Engineer: Kay Hu Supervised by: Li Huan Shenzhen LCS Compliance Testing Laboratory Ltd. FCC ID: 2A2KG-MCMP1021 IC: 27510-MCMP1021 D.1 Emission Bandwidth Test Result Test Mode Antenna Channel 26db EBW [MHz] FL[MHz] FH[MHz] Limit[MHz] Verdict 11A Ant1 5180 19.880 5170.000 5189.880 --- PASS 5200 19.960 5189.960 5209.920 --- PASS 5240 19.880 5230.040 5249.920 --- PASS 5260 19.880 5250.080 5269.960 --- PASS 5280 19.680 5270.200 5289.880 --- PASS 5320 20.040 5309.960 5330.000 --- PASS 5500 19.800 5490.080 5509.880 --- PASS 5580 20.280 5569.680 5589.960 --- PASS 5700 20.040 5689.840 5709.880 --- PASS 11N20SISO Ant1 5180 20.040 5170.000 5190.040 --- PASS 5200 19.920 5190.040 5209.960 --- PASS 5240 20.400 5230.040 5250.440 --- PASS 5260 20.040 5250.000 5270.040 --- PASS 5280 20.120 5270.000 5290.120 --- PASS 5320 19.880 5310.040 5329.920 --- PASS 5500 21.960 5489.880 5511.840 --- PASS 5580 26.920 5567.960 5594.880 --- PASS 5700 29.120 5685.000 5714.120 --- PASS 11N40SISO Ant1 5190 40.240 5169.920 5210.160 --- PASS 5230 40.320 5209.680 5250.000 --- PASS 5270 40.000 5249.920 5289.920 --- PASS 5310 40.160 5289.920 5330.080 --- PASS 5510 42.320 5490.000 5532.320 --- PASS 5550 47.600 5528.480 5576.080 --- PASS 5670 50.960 5645.520 5696.480 --- PASS 11AC20SISO Ant1 5180 19.960 5169.920 5189.880 --- PASS 5200 20.200 5189.920 5210.120 --- PASS 5240 20.000 5229.920 5249.920 --- PASS 5260 19.880 5250.080 5269.960 --- PASS 5280 19.960 5269.960 5289.920 --- PASS 5320 19.800 5310.120 5329.920 --- PASS 5500 20.240 5490.000 5510.240 --- PASS 5580 20.560 5569.760 5590.320 --- PASS 5700 34.680 5681.840 5716.520 --- PASS 11AC40SISO Ant1 5190 40.640 5169.920 5210.560 --- PASS 5230 40.240 5209.840 5250.080 --- PASS 5270 40.000 5250.000 5290.000 --- PASS Shenzhen LCS Compliance Testing Laboratory Ltd. FCC ID: 2A2KG-MCMP1021 IC: 27510-MCMP1021 5310 40.240 5289.760 5330.000 --- PASS 5510 44.240 5485.840 5530.080 --- PASS 5550 50.960 5521.200 5572.160 --- PASS 5670 53.760 5639.760 5693.520 --- PASS 11AC80SISO Ant1 5210 81.600 5169.520 5251.120 --- PASS 5290 82.400 5249.840 5332.240 --- PASS 5530 81.280 5489.360 5570.640 --- PASS Shenzhen LCS Compliance Testing Laboratory Ltd. FCC ID: 2A2KG-MCMP1021 IC: 27510-MCMP1021 Test Graphs 11A_Ant1_5180 11A_Ant1_5200 11A_Ant1_5240 Shenzhen LCS Compliance Testing Laboratory Ltd. FCC ID: 2A2KG-MCMP1021 IC: 27510-MCMP1021 11A_Ant1_5260 11A_Ant1_5280 Shenzhen LCS Compliance Testing Laboratory Ltd. FCC ID: 2A2KG-MCMP1021 IC: 27510-MCMP1021 11A_Ant1_5320 11A_Ant1_5500 11A_Ant1_5580 Shenzhen LCS Compliance Testing Laboratory Ltd. FCC ID: 2A2KG-MCMP1021 IC: 27510-MCMP1021 11A_Ant1_5700 11N20SISO_Ant1_5180 Shenzhen LCS Compliance Testing Laboratory Ltd. FCC ID: 2A2KG-MCMP1021 IC: 27510-MCMP1021 11N20SISO_Ant1_5200 11N20SISO_Ant1_5240 11N20SISO_Ant1_5260 Shenzhen LCS Compliance Testing Laboratory Ltd. FCC ID: 2A2KG-MCMP1021 IC: 27510-MCMP1021 11N20SISO_Ant1_5280 11N20SISO_Ant1_5320 Shenzhen LCS Compliance Testing Laboratory Ltd. FCC ID: 2A2KG-MCMP1021 IC: 27510-MCMP1021 11N20SISO_Ant1_5500 11N20SISO_Ant1_5580 11N20SISO_Ant1_5700 Shenzhen LCS Compliance Testing Laboratory Ltd. FCC ID: 2A2KG-MCMP1021 IC: 27510-MCMP1021 11N40SISO_Ant1_5190 11N40SISO_Ant1_5230 Shenzhen LCS Compliance Testing Laboratory Ltd. FCC ID: 2A2KG-MCMP1021 IC: 27510-MCMP1021 11N40SISO_Ant1_5270 11N40SISO_Ant1_5310 11N40SISO_Ant1_5510 Shenzhen LCS Compliance Testing Laboratory Ltd. FCC ID: 2A2KG-MCMP1021 IC: 27510-MCMP1021 11N40SISO_Ant1_5550 11N40SISO_Ant1_5670 Shenzhen LCS Compliance Testing Laboratory Ltd. FCC ID: 2A2KG-MCMP1021 IC: 27510-MCMP1021 11AC20SISO_Ant1_5180 11AC20SISO_Ant1_5200 11AC20SISO_Ant1_5240 Shenzhen LCS Compliance Testing Laboratory Ltd. FCC ID: 2A2KG-MCMP1021 IC: 27510-MCMP1021 11AC20SISO_Ant1_5260 11AC20SISO_Ant1_5280 Shenzhen LCS Compliance Testing Laboratory Ltd. FCC ID: 2A2KG-MCMP1021 IC: 27510-MCMP1021 11AC20SISO_Ant1_5320 11AC20SISO_Ant1_5500 11AC20SISO_Ant1_5580 Shenzhen LCS Compliance Testing Laboratory Ltd. FCC ID: 2A2KG-MCMP1021 IC: 27510-MCMP1021 11AC20SISO_Ant1_5700 11AC40SISO_Ant1_5190 Shenzhen LCS Compliance Testing Laboratory Ltd. FCC ID: 2A2KG-MCMP1021 IC: 27510-MCMP1021 11AC40SISO_Ant1_5230 11AC40SISO_Ant1_5270 11AC40SISO_Ant1_5310 Shenzhen LCS Compliance Testing Laboratory Ltd. FCC ID: 2A2KG-MCMP1021 IC: 27510-MCMP1021 11AC40SISO_Ant1_5510 11AC40SISO_Ant1_5550 Shenzhen LCS Compliance Testing Laboratory Ltd. FCC ID: 2A2KG-MCMP1021 IC: 27510-MCMP1021 11AC40SISO_Ant1_5670 11AC80SISO_Ant1_5210 11AC80SISO_Ant1_5290 Shenzhen LCS Compliance Testing Laboratory Ltd. FCC ID: 2A2KG-MCMP1021 IC: 27510-MCMP1021 11AC80SISO_Ant1_5530 Shenzhen LCS Compliance Testing Laboratory Ltd. FCC ID: 2A2KG-MCMP1021 IC: 27510-MCMP1021 D.2 Occupied channel bandwidth Test Result Test Mode Antenna Channel OCB [MHz] FL[MHz] FH[MHz] Limit[MHz] Verdict 11A Ant1 5180 17.297 5171.301 5188.598 --- PASS 5200 17.406 5191.267 5208.673 --- PASS 5240 17.223 5231.377 5248.600 --- PASS 5260 17.197 5251.355 5268.552 --- PASS 5280 17.270 5271.312 5288.582 --- PASS 5320 17.470 5311.214 5328.684 --- PASS 5500 17.270 5491.319 5508.589 --- PASS 5580 17.345 5571.275 5588.620 --- PASS 5700 17.419 5691.233 5708.652 --- PASS 11N20SISO Ant1 5180 17.955 5171.029 5188.984 --- PASS 5200 17.805 5191.119 5208.924 --- PASS 5240 17.811 5231.108 5248.919 --- PASS 5260 17.807 5251.104 5268.911 --- PASS 5280 17.820 5271.106 5288.926 --- PASS 5320 17.805 5311.109 5328.914 --- PASS 5500 17.885 5491.100 5508.985 --- PASS 5580 17.960 5571.053 5589.013 --- PASS 5700 18.138 5690.959 5709.097 --- PASS 11N40SISO Ant1 5190 36.298 5171.937 5208.235 --- PASS 5230 36.238 5211.943 5248.181 --- PASS 5270 36.291 5251.924 5288.215 --- PA…

Text truncated - open the document above for the full version.

Shenzhen LCS Compliance Testing Laboratory Ltd. FCC ID: 2A2KG-MCMP1021 IC: 27510-MCMP1021 11AC40SISO_Ant1_5670 11AC80SISO_Ant1_5210 11AC80SISO_Ant1_5290 Shenzhen LCS Compliance Testing Laboratory Ltd. FCC ID: 2A2KG-MCMP1021 IC: 27510-MCMP1021 11AC80SISO_Ant1_5530 Shenzhen LCS Compliance Testing Laboratory Ltd. FCC ID: 2A2KG-MCMP1021 IC: 27510-MCMP1021 D.5: Emissions in Restricted Bands Test Result Test Mode Antenna ChName Channel Detector Freq [MHz] EIRP [dBm] Limit [dBm] Verdict 11A Ant1 Low 5180 AV 4500.000 -50.09 ≤-41.20 PASS AV 5102.000 -47.82 ≤-41.20 PASS AV 5150.000 -47.94 ≤-41.20 PASS Peak 4500.000 -45.73 ≤-21.20 PASS Peak 5049.500 -39.06 ≤-21.20 PASS Peak 5150.000 -43.07 ≤-21.20 PASS High 5320 AV 5350.000 -48.14 ≤-41.20 PASS AV 5398.080 -47.91 ≤-41.20 PASS AV 5460.000 -48.7 ≤-41.20 PASS Peak 5350.000 -43.95 ≤-21.20 PASS Peak 5366.560 -38.56 ≤-21.20 PASS Peak 5460.000 -44.5 ≤-21.20 PASS Low 5500 AV 5460.000 -48.13 ≤-41.20 PASS AV 5469.260 -47.93 ≤-41.20 PASS AV 5470.000 -47.94 ≤-41.20 PASS Peak 5460.000 -41.93 ≤-21.20 PASS Peak 5465.120 -39.77 ≤-21.20 PASS Peak 5470.000 -42.72 ≤-21.20 PASS High 5700 AV 5725.000 -47.24 ≤-41.20 PASS AV 5726.000 -46.05 ≤-41.20 PASS AV 5735.000 -47.5 ≤-41.20 PASS Peak 5725.000 -42.16 ≤-21.20 PASS Peak 5727.200 -38.5 ≤-21.20 PASS Peak 5735.000 -41.29 ≤-21.20 PASS 11N20SIS O Ant1 Low 5180 Peak 4500.000 -44.1 ≤-21.20 PASS Peak 4870.300 -38.64 ≤-21.20 PASS Peak 5150.000 -43.72 ≤-21.20 PASS High 5320 AV 5350.000 -47.03 ≤-41.20 PASS AV 5350.080 -47.03 ≤-41.20 PASS AV 5460.000 -48.67 ≤-41.20 PASS Peak 5350.000 -42.74 ≤-21.20 PASS Peak 5398.880 -38.1 ≤-21.20 PASS Peak 5460.000 -43.67 ≤-21.20 PASS Low 5500 AV 5460.000 -48.24 ≤-41.20 PASS AV 5469.980 -47.17 ≤-41.20 PASS AV 5470.000 -47.17 ≤-41.20 PASS Peak 5460.000 -41.9 ≤-21.20 PASS Shenzhen LCS Compliance Testing Laboratory Ltd. FCC ID: 2A2KG-MCMP1021 IC: 27510-MCMP1021 Peak 5465.960 -37.1 ≤-21.20 PASS Peak 5470.000 -40.49 ≤-21.20 PASS High 5700 AV 5725.000 -42.71 ≤-41.20 PASS AV 5725.040 -42.76 ≤-41.20 PASS AV 5735.000 -46.27 ≤-41.20 PASS Peak 5725.000 -39.48 ≤-21.20 PASS Peak 5727.440 -33.77 ≤-21.20 PASS Peak 5735.000 -38.99 ≤-21.20 PASS 11N40SIS O Ant1 Low 5190 AV 4500.000 -49.96 ≤-41.20 PASS AV 5149.600 -43.23 ≤-41.20 PASS AV 5150.000 -42.78 ≤-41.20 PASS Peak 4500.000 -44.81 ≤-21.20 PASS Peak 5143.300 -37.09 ≤-21.20 PASS Peak 5150.000 -37.36 ≤-21.20 PASS High 5310 AV 5350.000 -43.42 ≤-41.20 PASS AV 5350.080 -43.42 ≤-41.20 PASS AV 5460.000 -48.57 ≤-41.20 PASS Peak 5350.000 -37.54 ≤-21.20 PASS Peak 5350.400 -34.56 ≤-21.20 PASS Peak 5460.000 -41.34 ≤-21.20 PASS Low 5510 AV 5460.000 -45.49 ≤-41.20 PASS AV 5469.950 -42.71 ≤-41.20 PASS AV 5470.000 -42.68 ≤-41.20 PASS Peak 5460.000 -39.38 ≤-21.20 PASS Peak 5468.480 -34.3 ≤-21.20 PASS Peak 5470.000 -39.03 ≤-21.20 PASS High 5670 AV 5725.000 -45.07 ≤-41.20 PASS AV 5735.000 -46.18 ≤-41.20 PASS Peak 5725.000 -38.76 ≤-21.20 PASS Peak 5728.000 -36.78 ≤-21.20 PASS Peak 5735.000 -39.92 ≤-21.20 PASS 11AC20SI SO Ant1 Low 5180 AV 4500.000 -50.04 ≤-41.20 PASS AV 5149.600 -47.45 ≤-41.20 PASS AV 5150.000 -47.31 ≤-41.20 PASS Peak 4500.000 -43.27 ≤-21.20 PASS Peak 4847.900 -38.59 ≤-21.20 PASS Peak 5150.000 -42.42 ≤-21.20 PASS High 5320 AV 5350.000 -47.95 ≤-41.20 PASS AV 5350.080 -47.95 ≤-41.20 PASS AV 5460.000 -48.64 ≤-41.20 PASS Peak 5350.000 -42.12 ≤-21.20 PASS Peak 5362.560 -37.86 ≤-21.20 PASS Peak 5460.000 -42.85 ≤-21.20 PASS Shenzhen LCS Compliance Testing Laboratory Ltd. FCC ID: 2A2KG-MCMP1021 IC: 27510-MCMP1021 Low 5500 AV 5460.000 -48.32 ≤-41.20 PASS AV 5469.980 -47.68 ≤-41.20 PASS AV 5470.000 -47.68 ≤-41.20 PASS Peak 5460.000 -43.59 ≤-21.20 PASS Peak 5469.140 -37.67 ≤-21.20 PASS Peak 5470.000 -40.67 ≤-21.20 PASS High 5700 AV 5725.000 -42.97 ≤-41.20 PASS AV 5725.040 -43 ≤-41.20 PASS AV 5735.000 -46.39 ≤-41.20 PASS Peak 5725.000 -39.16 ≤-21.20 PASS Peak 5725.220 -34.95 ≤-21.20 PASS Peak 5735.000 -39.47 ≤-21.20 PASS 11AC40SI SO Ant1 Low 5190 Peak 4500.000 -42.28 ≤-21.20 PASS Peak 5050.200 -38.01 ≤-21.20 PASS Peak 5150.000 -40.5 ≤-21.20 PASS High 5310 AV 5350.000 -43.06 ≤-41.20 PASS AV 5350.080 -43.06 ≤-41.20 PASS AV 5460.000 -48.55 ≤-41.20 PASS Peak 5350.000 -36.3 ≤-21.20 PASS Peak 5351.520 -35.15 ≤-21.20 PASS Peak 5460.000 -43.73 ≤-21.20 PASS Low 5510 AV 5460.000 -45.73 ≤-41.20 PASS AV 5469.950 -42.67 ≤-41.20 PASS AV 5470.000 -42.66 ≤-41.20 PASS Peak 5460.000 -40 ≤-21.20 PASS Peak 5467.290 -35.09 ≤-21.20 PASS Peak 5470.000 -35.31 ≤-21.20 PASS High 5670 AV 5725.000 -46.59 ≤-41.20 PASS AV 5735.000 -47.04 ≤-41.20 PASS Peak 5725.000 -42.95 ≤-21.20 PASS Peak 5732.100 -37.88 ≤-21.20 PASS Peak 5735.000 -41.15 ≤-21.20 PASS 11AC80SI SO Ant1 Low 5210 AV 4500.000 -49.93 ≤-41.20 PASS AV 5148.000 -44.02 ≤-41.20 PASS AV 5150.000 -43.92 ≤-41.20 PASS Peak 4500.000 -45.37 ≤-21.20 PASS Peak 5148.000 -34.84 ≤-21.20 PASS Peak 5150.000 -37.33 ≤-21.20 PASS High 5290 AV 5350.000 -46.15 ≤-41.20 PASS AV 5352.800 -46.11 ≤-41.20 PASS AV 5460.000 -48.65 ≤-41.20 PASS Peak 5350.000 -42.66 ≤-21.20 PASS Peak 5353.600 -36.04 ≤-21.20 PASS Shenzhen LCS Compliance Testing Laboratory Ltd. FCC ID: 2A2KG-MCMP1021 IC: 27510-MCMP1021 Peak 5460.000 -43.51 ≤-21.20 PASS Low 5530 AV 5460.000 -43.96 ≤-41.20 PASS AV 5469.890 -43.11 ≤-41.20 PASS AV 5470.000 -43.07 ≤-41.20 PASS Peak 5460.000 -36.53 ≤-21.20 PASS Peak 5468.980 -30.44 ≤-21.20 PASS Peak 5470.000 -34.55 ≤-21.20 PASS Note： 1. The Antenna Gain is compensated in the graph. 2. For transmitters operating in 5150-5350 GHz band and 5470-5725 GHz band: The limit in dBm for average detector is conversion from 54dBuV/m, according to 15.209(a). The limit in dBm for peak detector is 20dB above the limit of average detector in dBm. Shenzhen LCS Compliance Testing Laboratory Ltd. FCC ID: 2A2KG-MCMP1021 IC: 27510-MCMP1021 Test Graphs 11A_Ant1_Low_5180_AV 11A_Ant1_Low_5180_Peak 11A_Ant1_High_5320_AV Shenzhen LCS Compliance Testing Laboratory Ltd. FCC ID: 2A2KG-MCMP1021 IC: 27510-MCMP1021 11A_Ant1_High_5320_Peak 11A_Ant1_Low_5500_AV Shenzhen LCS Compliance Testing Laboratory…

Text truncated - open the document above for the full version.

Shenzhen LCS Compliance Testing Laboratory Ltd. FCC ID: 2A2KG-MCMP1021 IC: 27510-MCMP1021 Appendix E RF Test Data for 5.8G WIFI (Conducted Measurement) Product Name: MCMP1021 Trade Mark: N/A Test Model: MCMP1021 Environmental Conditions Temperature: 23.6  C Relative Humidity: 52.7% ATM Pressure: 100.0 kPa Test Engineer: Kay Hu Supervised by: Li Huan Shenzhen LCS Compliance Testing Laboratory Ltd. FCC ID: 2A2KG-MCMP1021 IC: 27510-MCMP1021 E.1 Occupied channel bandwidth Test Result Test Mode Antenna Channel OCB [MHz] FL[MHz] FH[MHz] Limit[MHz] Verdict 11A Ant1 5745 17.300 5736.293 5753.593 --- PASS 5785 17.429 5776.271 5793.700 --- PASS 5825 17.450 5816.203 5833.653 --- PASS 11N20SISO Ant1 5745 17.852 5736.087 5753.939 --- PASS 5785 18.033 5776.015 5794.048 --- PASS 5825 17.976 5816.002 5833.978 --- PASS 11N40SISO Ant1 5755 36.841 5736.583 5773.424 --- PASS 5795 36.620 5776.700 5813.320 --- PASS 11AC20SISO Ant1 5745 18.081 5735.973 5754.054 --- PASS 5785 18.034 5776.004 5794.038 --- PASS 5825 17.999 5815.990 5833.989 --- PASS 11AC40SISO Ant1 5755 36.556 5736.742 5773.298 --- PASS 5795 36.766 5776.629 5813.395 --- PASS 11AC80SISO Ant1 5775 76.685 5737.360 5814.045 --- PASS Shenzhen LCS Compliance Testing Laboratory Ltd. FCC ID: 2A2KG-MCMP1021 IC: 27510-MCMP1021 Test Graphs 11A_Ant1_5745 11A_Ant1_5785 11A_Ant1_5825 Shenzhen LCS Compliance Testing Laboratory Ltd. FCC ID: 2A2KG-MCMP1021 IC: 27510-MCMP1021 11N20SISO_Ant1_5745 11N20SISO_Ant1_5785 Shenzhen LCS Compliance Testing Laboratory Ltd. FCC ID: 2A2KG-MCMP1021 IC: 27510-MCMP1021 11N20SISO_Ant1_5825 11N40SISO_Ant1_5755 11N40SISO_Ant1_5795 Shenzhen LCS Compliance Testing Laboratory Ltd. FCC ID: 2A2KG-MCMP1021 IC: 27510-MCMP1021 11AC20SISO_Ant1_5745 11AC20SISO_Ant1_5785 Shenzhen LCS Compliance Testing Laboratory Ltd. FCC ID: 2A2KG-MCMP1021 IC: 27510-MCMP1021 11AC20SISO_Ant1_5825 11AC40SISO_Ant1_5755 11AC40SISO_Ant1_5795 Shenzhen LCS Compliance Testing Laboratory Ltd. FCC ID: 2A2KG-MCMP1021 IC: 27510-MCMP1021 11AC80SISO_Ant1_5775 Shenzhen LCS Compliance Testing Laboratory Ltd. FCC ID: 2A2KG-MCMP1021 IC: 27510-MCMP1021 E.2 Min emission bandwidth Test Result Test Mode Antenna Channel 6db EBW [MHz] FL[MHz] FH[MHz] Limit[MHz] Verdict 11A Ant1 5745 16.640 5736.680 5753.320 0.5 PASS 5785 16.680 5776.640 5793.320 0.5 PASS 5825 16.680 5816.640 5833.320 0.5 PASS 11N20SISO Ant1 5745 17.680 5736.160 5753.840 0.5 PASS 5785 17.680 5776.160 5793.840 0.5 PASS 5825 17.680 5816.160 5833.840 0.5 PASS 11N40SISO Ant1 5755 36.480 5736.760 5773.240 0.5 PASS 5795 36.480 5776.760 5813.240 0.5 PASS 11AC20SISO Ant1 5745 17.680 5736.160 5753.840 0.5 PASS 5785 17.680 5776.160 5793.840 0.5 PASS 5825 17.680 5816.160 5833.840 0.5 PASS 11AC40SISO Ant1 5755 36.480 5736.760 5773.240 0.5 PASS 5795 36.480 5776.760 5813.240 0.5 PASS 11AC80SISO Ant1 5775 63.200 5747.480 5810.680 0.5 PASS Shenzhen LCS Compliance Testing Laboratory Ltd. FCC ID: 2A2KG-MCMP1021 IC: 27510-MCMP1021 Test Graphs 11A_Ant1_5745 11A_Ant1_5785 11A_Ant1_5825 Shenzhen LCS Compliance Testing Laboratory Ltd. FCC ID: 2A2KG-MCMP1021 IC: 27510-MCMP1021 11N20SISO_Ant1_5745 11N20SISO_Ant1_5785 Shenzhen LCS Compliance Testing Laboratory Ltd. FCC ID: 2A2KG-MCMP1021 IC: 27510-MCMP1021 11N20SISO_Ant1_5825 11N40SISO_Ant1_5755 11N40SISO_Ant1_5795 Shenzhen LCS Compliance Testing Laboratory Ltd. FCC ID: 2A2KG-MCMP1021 IC: 27510-MCMP1021 11AC20SISO_Ant1_5745 11AC20SISO_Ant1_5785 Shenzhen LCS Compliance Testing Laboratory Ltd. FCC ID: 2A2KG-MCMP1021 IC: 27510-MCMP1021 11AC20SISO_Ant1_5825 11AC40SISO_Ant1_5755 11AC40SISO_Ant1_5795 Shenzhen LCS Compliance Testing Laboratory Ltd. FCC ID: 2A2KG-MCMP1021 IC: 27510-MCMP1021 11AC80SISO_Ant1_5775 Shenzhen LCS Compliance Testing Laboratory Ltd. FCC ID: 2A2KG-MCMP1021 IC: 27510-MCMP1021 E.3 Maximum conducted output power Test Result Test Mode Antenna Channel Power [dBm] Limit [dBm] EIRP [dBm] Limit [dBm] Verdict 11A Ant1 5745 11.11 ≤30 --- --- PASS 5785 11.21 ≤30 --- --- PASS 5825 11.54 ≤30 --- --- PASS 11N20SISO Ant1 5745 10.91 ≤30 --- --- PASS 5785 11.07 ≤30 --- --- PA…
