2A2LO-G5TV BOX

Highlights Key Features Android 9.0 OS. CPU: Amlogic S905X2, Quad-Core ARM Cortex-A53, 18.400 DMIPS. GPU: Penta-Core Mali-450 Up to 850Mhz. RAM: 2GB/4GB DDR. ROM: 16GB/32GB/64GB EMMC. Ethernet Network: RJ45 IEEE 802.3 10/100M. 2.4G WIFI IEEE802.11 a/b/g/n Support Decoder format: 4K 75pfs /VP9 Video decoder, H.265/H.264 video decoder, 1080P other video decoders (VC-1, MPEG-1/2/4, VP6/8). Support HD 2.0 out. USB host: 1*High speed USB 3.0, 1*USB 2.0, with maximum output current of 800mA/5V. HDR: HDR10 and HLG modes. 3D: 3D video formats. Software upgrade via USB and OTA. G5: RAM 4G+ROM 64G EMMC, Built-in WIFI 2.4G English USER MANUAL G5 1.Mains supply: 100-240V AC 50/60Hz,Operate the unit only under the power source specified in "Specifications". 2.OVERLOADING: Do not overload wall outlet, extension cord or adapter as this may result in fire or electric shock. 3.LIQUIDS: Keep liquids away from the STB. The apparatus should not be exposed to dripping or splashing and no objects filled with liquids, such as vases, shall be placed on the apparatus. 4.CLEANING: Disconnect the STB from the wall outlet before cleaning. Use a light damp cloth (no solvents) to dust the STB. 5.VENTILATION: The slots on top of the STB must be left uncovered to allow proper airflow to the unit. Do not stand the STB on soft furnishings or carpets. Do not expose the STB to direct sunlight or do not place it near a heater. Do not stack electronic equipment on top of the STB. 6.ATTACHMENTS: Do not use any attachments that are not recom- mended as these may cause hazard or damage the STB. 7.CONNECTION TO THE SATELLITE DISH LNB: Disconnect the STB from the mains before connecting or disconnecting the cable from the satellite dish. FAILURE TO DO SO CAN DAMAGE THE LNB. 8.CONNECTION TO THE TV: Disconnect the STB from the mains before connecting or disconnecting the cable from the satellite dish. FAILURE TO DO SO CAN DAMAGE THE TV. 9.EARTHING: The LNB cable MUST BE EARTHED to the system earth for the satellite dish. Unplug the apparatus during lightning storms or when unused for long periods of time. 10.LOCATION: Place the STB indoors in order not to expose to lightening, rain or sunlight. SAFETY INSTRUCTIONS This STB has been manufactured to satisfy the international safety standards. Please read the following safety precautions carefully. 11.WARNING: For the terminals marked with symbol of " "may be of sufficient magnitude to constitute a risk of electric shock. The external wiring connected to the terminals requires installation by an instructed person or the used of ready-made leads or cords. Explanation of symbol, marking, signal lamp or similar means indicate that apparatus is completely disconnected from the mains. This equipment is a Class Il or double insulated electrical appliance. It has been designed in such a way that it does not require a safety connection to electrical earth. This lightning flash with arrowhead symbol within an equilateral triangle is intended to alert the user to the presence of non-insulated “dangerous voltage “within the product's enclosure that may be of sufficient magnitude to constitute a risk of electric shock. Warning: To reduce the risk of electric shock, do not remove cover (or back) as there are no user-serviceable parts inside. Refer servicing to qualified personnel. The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and mainte- nance instructions in the literature accompanying the appliance. 12. Correct Disposal of this product. This marking indicates that this product should not be disposed with other household wastes throughout the EU. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsi- bly to promote the sustainable reuse of material resources. To return your used device, please use the return and collection systems or contact the retailer where the product was purchased. They can take this product for environmental safe recycling. Environment Tempera- ture: 0~35C. Warning: This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Changes or modifications not expressly approved by the party responsi- ble for compliance could void the user's authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: --Reorient or relocate the receiving antenna. --Increase the separation between the equipment and receiver. --Connect the equipment into an outlet on a circuit different. from that to which the receiver is connected. --Consult the dealer or an experienced radio/TV technician for help. NOTE: This device and its antenna(s) must not be co-located or operation in conjunction with any other antenna or transmitter RF Exposure Statement To maintain compliance with FCC’s RF Exposure guidelines, This equipment should be installed and operated with minimum distance of 20cm the radiator your body. This device and its antenna(s) must not be co-located or operation in conjunction with any other ante…

Text truncated - open the document above for the full version.

Co m Ad d Dist Pr o Mo d Pr o We act We an d issu our Sig Na m Title Com mpany: She dress: 1601 trict, Shenz oduct Name del Numbe oduct Desc authorize M on our beha declare tha d certificatio ues concern behalf shal nature: me: e: mpany: Shen enZhen YuL 1, Galaxy W hen, China e: TV BOX er(s): G5, R ription: T V MiCOM Lab alf on all ma at MiCOM L n of equipm ning the app ll have the s Jiang Ta o Engineer ShenZhen Zhen YuLe Agen Le Technol World F Buid AX2100 V BOX bs Inc., 575 atters conce Labs Inc. is ment to the r proval applic same effect o n YuLe Tec e Technolo nt Auth ogy Develo ding, No. 1 Y Boulder Co erning the c allowed to f regulatory a cation. Any t as acts of chnology D ogy Develo horizat opment Co., Yabao Roa ourt, Pleasa certification forward all i agencies as and all acts our own. Developme opment Co. tion ,ltd ad, Bantian anton, Califo of above na information s required a s carried ou Date: nt Co.,ltd .,ltd street, Long ornia 94566 amed equip related to t nd to discu ut by MiCOM Aug. 25, 2 ggang 6, USA, to pment. the approva ss any M Labs on 2021 al

Office o Federa 7435 O Columb USA Subjec t FCC ID To Wh o Pursua are req u docume These d propriet might b It is ou r corresp docume authoriz Sincer e Signat u Name: Title: E n of Engineeri l Communic Oakland Mills bia, MD 210 t; Request f D: 2A2LO-G om It May C nt to the pro uesting the ents from pu documents tary informa be harmful to Schema Block D Parts Lis Operatio Tune-up r understand pondence du ents and thi zation is iss ely, ure: Jiang Tao ngineer ShenZh ing Techno cations Com s Road 046 for Confiden G5 Concern, ovisions of t Commissio ublic disclos contain det ation in ope o our comp atic Diagram iagram st onal Descri p Procedure ding that all uring the ce s informatio sued. hen YuLe T logy mmission ntiality the Commis on to withho sure indefin tailed syste ration of th e any and wo m ption e l measurem ertification re on will be av Technology ssion’s rule old the follow nitely. m and equi e equipmen ould give co ment test rep eview proce vailable for y Developm s Title 47 S wing attach pment desc nt. The publ ompetitors a ports, FCC ess cannot public revi e ment Co.,ltd Sections §0. hment(s) as criptions an ic disclosu r an unfair ad ID label for be granted ew once the d Date: Aug. 457 and §0 confidentia d are consi re of these d vantage in mat and as confide n e grant of eq . 25, 2021 0.459, we al dered as documents the market . ntial quipment .

Model Difference Declaration To Whom It May Concern, We, ShenZhen YuLe Technology Development Co.,ltd(TV BOX) Trademark:GTMEDIA, raxxio; Model Number:G5, RAX2100;All model’s the function, software and electric circuit are the same, only with a product color, appearanc e and model named different. Test sample model: G5 Please contact me if you have any question. Name: Jiang Tao Date: Aug. 25, 2021 Title: Engineer Signature of applicant:

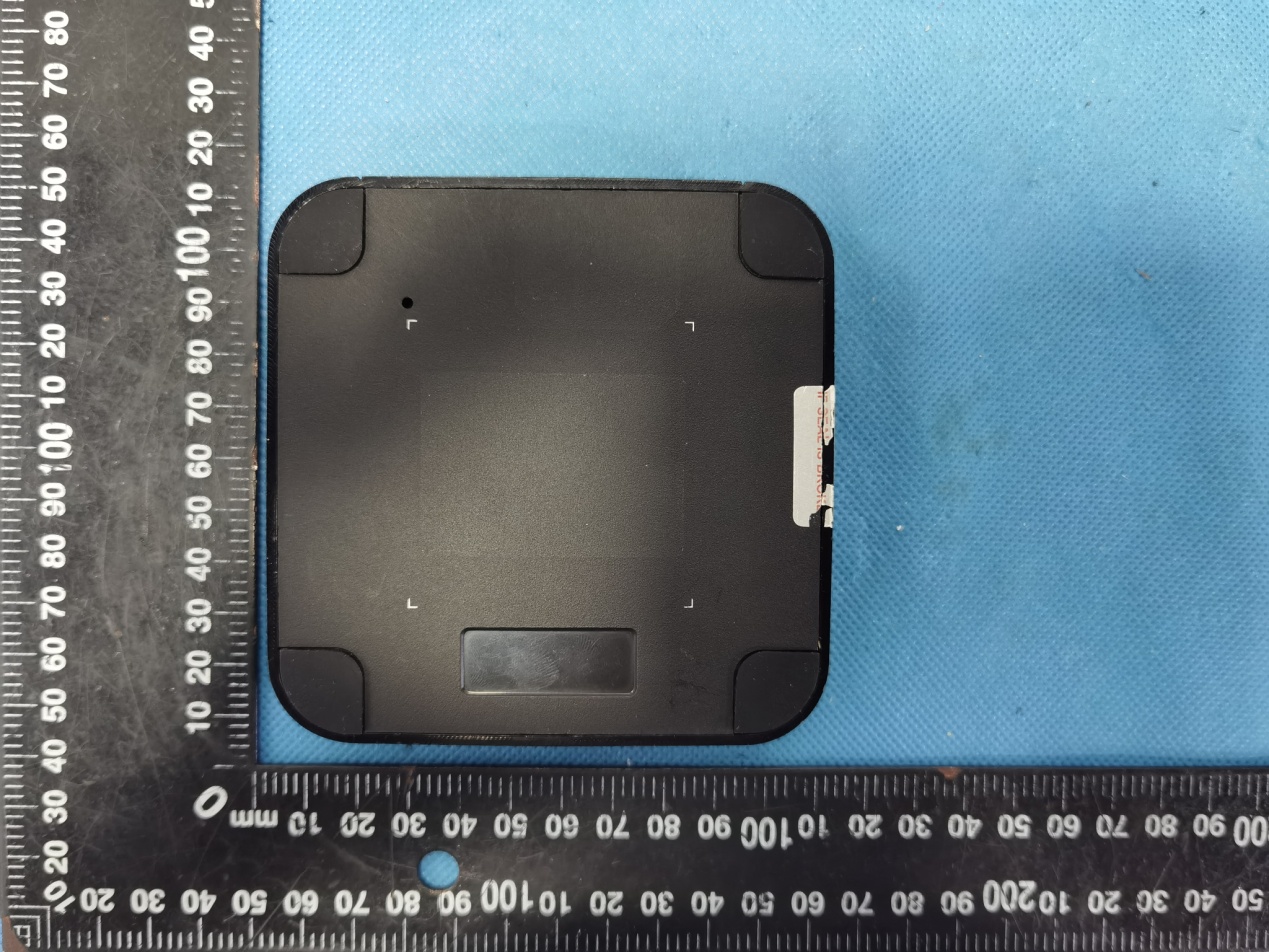

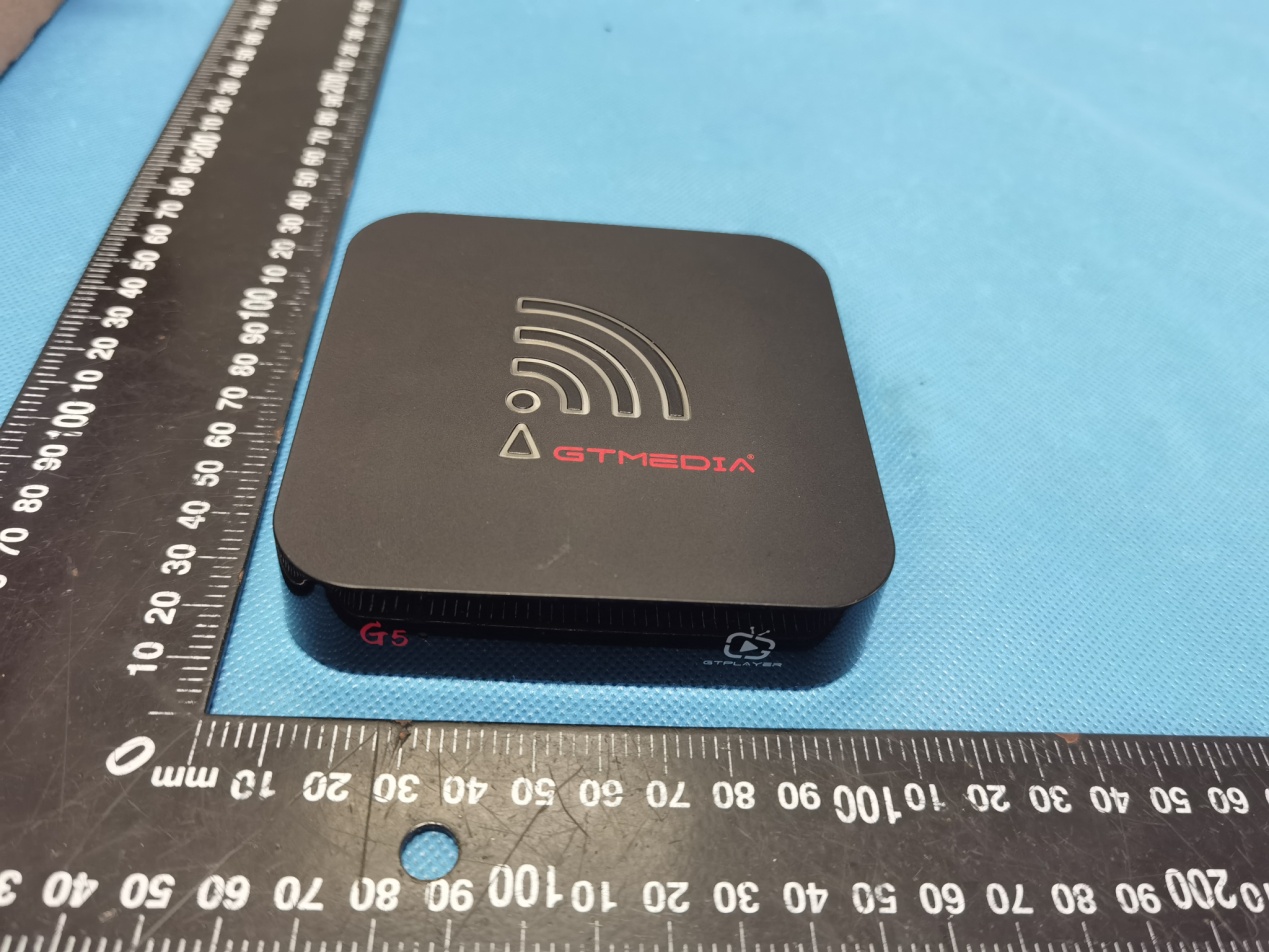

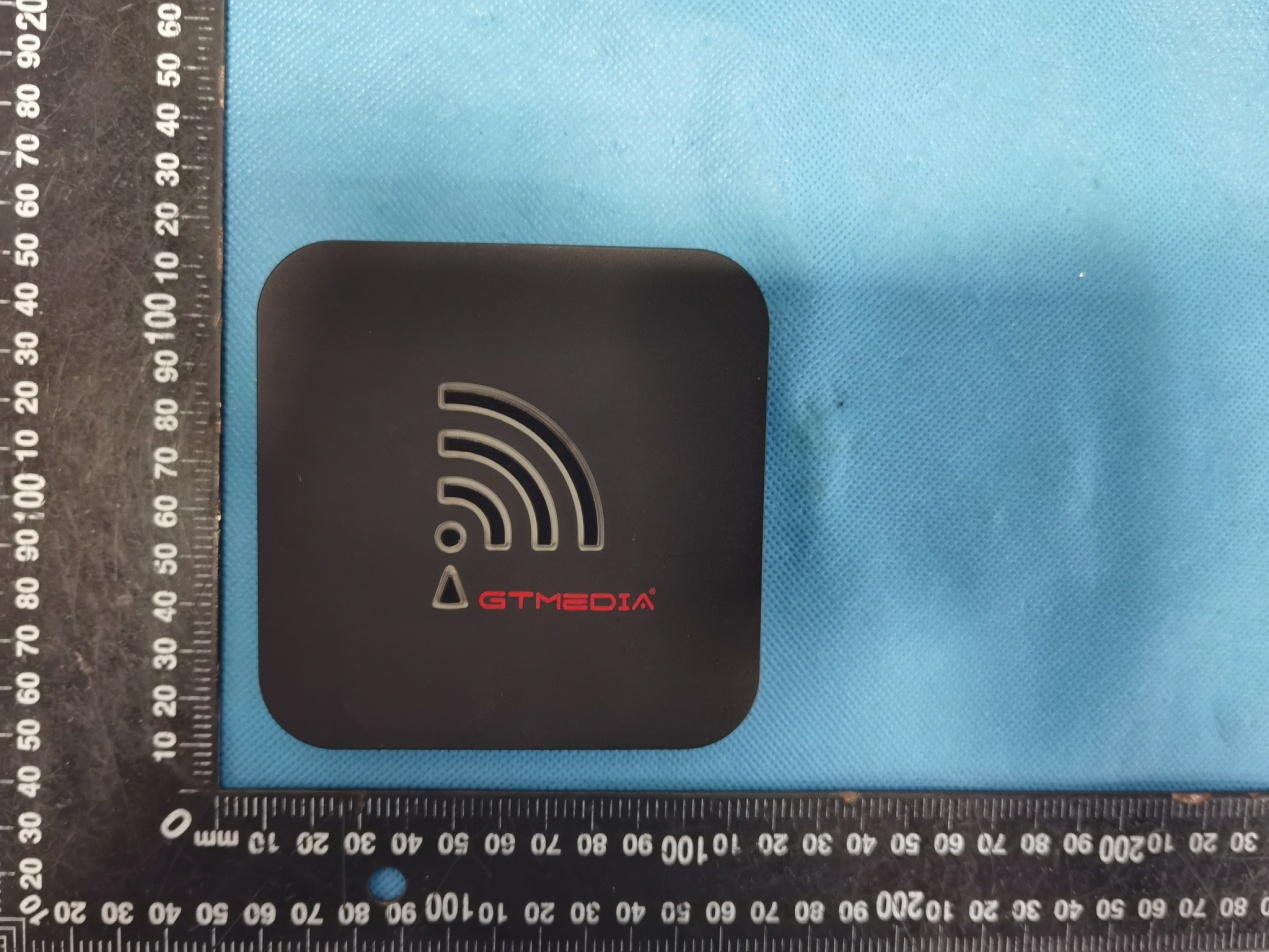

Annex A External Photos Report No.: HK2106111866‐E Page 1 of 5 Report No.: HK2106111866‐E Page 2 of 5 Report No.: HK2106111866‐E Page 3 of 5 Report No.: HK2106111866‐E Page 4 of 5 Report No.: HK2106111866‐E Page 5 of 5 Serial No

FCC ID LABEL: Label Location FCC ID: 2A2LO-G5

Annex B Internal Photos Report No.: HK2106111866‐E Page 1 of 4 Report No.: HK2106111866‐E Page 2 of 4 Report No.: HK2106111866‐E Page 3 of 4 Antenna Report No.: HK2106111866‐E Page 4 of 4

MPE ESTIMATION FCC ID: 2A2LO-G5 1, Limit for General Population/ Uncontrolled Exposures Frequency Power density (mW/ cm 2 ) Averaging time(minutes) 300MHz----1.5GHz F/1500 30 1.5GHz---100GHz 1.0 30 Note: F= Frequency in MHz 2, Estimation Result Mode Frequency (MHz) Max PK Output power(dBm) Tune Up Power(dBm) Max Tune Up power(mW) Antenna Gain(dBi) Antenna Gain (linear) MPE ( mW/cm²) 2.4G WiFi 2412 12.96 12±1(13) 19.95 2 1.5849 0.00629 Note: Note: The estimation distance is 20cm Note: PK Output power= conducted power. Conducted power see the test report HK2106111866-E, antenna gain=2dBi when the minimum test separation distance is >20 cm, a distance of 20 cm is applied to determine RF Exposure test exclusion. The test exclusion threshold is 0.00629 mW/cm² which is< 1.0mW/cm², RF Exposure testing is not required. -------The End-------

Page 1 of 70 Report No.: HK2106111866-E FCC TEST REPORT Test report On Behalf of ShenZhen YuLe Technology Development Co.,ltd For TV BOX Model No.: G5, RAX2100 FCC ID: 2A2LO-G5 Prepared for : ShenZhen YuLe Technology Development Co.,ltd 1601, Galaxy World F Buiding, No. 1 Yabao Road, Bantian street, Longgang District, Shenzhen, China Prepared By : Shenzhen HUAK Testing Technology Co., Ltd. 1-2/F., Building B2, Junfeng Zhongcheng Zhizao Innovation Park, Heping, Fuhai Street, Bao’an District, Shenzhen, Guangdong, China Date of Test: Jul. 27, 2021 ~ Aug. 13, 2021 Date of Report: Aug. 13, 2021 Report Number: HK2106111866-E Applicant’ Address ... Manufact u Address ... Product d Trade Mar Product n a Model and Standard s This public Shenzhen the materi a assume lia due to its p Date of Te Date (s) of Date of Is s Test Result ’s name .... .................. ure's Name .................. escription k: ame ............. /or type refe s ................ cation may HUAK Te s al. Shenzhe ability for da placement a est .............. performan c sue ............. t ................. Te s Te c Aut TES ............. : ............. : e ............ : ............. : ................: erence : ............. : be reprodu c sting Techno en HUAK T amages res and context .................. ce of tests .. .................. .................. sting Engine chnical Man thorized Sig Page ST RESU ShenZhen 1601, Gal Longgang Shenzhen 601A, com Nankeng Shenzhe n GTMEDI A TV BOX G5, RAX 2 FCC Rule ANSI C63 ced in whol ology Co., L Testing Tech sulting from t. .. .. Jul. 27, 2 0 ..Aug. 13, 2 .. Pass eer : nager : gnatory : 2 of 70 ULT CER n YuLe Tech laxy World g District, S n Jiti Multim mprehensiv community n, China A, raxxio 2100 es and Regu 3.10: 2013 le or in part Ltd. is ackn hnology Co m the reade 021 ~ Aug. 2021 RTIFICAT hnology De F Buiding, N henzhen, C media Techn ve building, y, Ban tian s ulations Par t for non-co nowledged a ., Ltd. takes er's interpre 13, 2021 (Gary Qi a (Eden H u (Jason Zh o Repor TION evelopment No. 1 Yabao China nology Co., Nankeng s e street, Long rt 15 Subpar mmercial p as copyrigh s no respon etation of th an) u) ou) rt No.: HK2 Co.,ltd o Road, Ba Ltd econd indus gang Distric rt C Section urposes as ht owner an nsibility for he reproduc 106111866-E ntian street strial zone, ct, n 15.247 long as th e nd source o and will no ced materia E t, e of ot al Page 3 of 70 Report No.: HK2106111866-E TABLE OF CONTENTS 1. Test Result Summary ............................................................................... 5 1.1. TEST PROCEDURES AND RESULTS ............................................................................................... 5 1.2. TEST FACILITY .................................................................................................................................. 5 1.3. MEASUREMENT UNCERTAINTY ............................................................................................................... 6 2. EUT Description ........................................................................................ 7 2.1. GENERAL DESCRIPTION OF EUT ................................................................................................... 7 2.2. OPERATION OF EUT DURING TESTING .................................................................................................... 8 2.3. DESCRIPTION OF TEST SETUP ....................................................................................................... 9 3. Genera Information ................................................................................. 10 3.1. TEST ENVIRONMENT AND MODE ............................................................................................................ 10 3.2. DESCRIPTION OF SUPPORT UNITS ........................................................................................................ 12 4. Test Results and Measurement Data .................................................... 13 4.1. CONDUCTED EMISSION ........................................................................................................................ 13 4.2. TEST RESULT ...................................................................................................................................... 15 4.3. MAXIMUM CONDUCTED OUTPUT POWER .............................................................................................. 17 4.4. EMISSION BANDWIDTH ......................................................................................................................... 19 4.5. POWER SPECTRAL DENSITY ................................................................................................................ 25 4.6. CONDUCTED BAND EDGE AND SPURIOUS EMISSION MEASUREMENT ..................................................... 31 4.7. RADIATED SPURIOUS EMISSION MEASUREMENT ................................................................................... 41 4.8. ANTENNA REQUIREMENT ............................................................................................................. 67 4.9. PHOTOGRAPH OF TEST ................................................................................................................. 68 4.10. PHOTOS OF THE EUT ..................................................................................................................... 70 Page 4 of 70 Report No.: HK2106111866-E ** Modified History ** Revision Description Issued Data Remark Revision 1.0 Initial Test Report Release Aug. 13, 2021 Jason Zhou Page 5 of 70 Report No.: HK2106111866-E 1. Test Result Summary 1.1. TEST PROCEDURES AND RESULTS Requirement CFR 47 Section Result Antenna requirement §15.203 PASS AC Power Line Conducted Emission §15.207 PASS Conducted Peak Output Power §15.247 (b)(3) PASS 6dB Emission Bandwidth §15.247 (a)(2) PASS Power Spectral Density §15.247 (e) PASS Band Edge §15.247(d) PASS Spurious Emission §15.205/§15.209 PASS Note: 1. PASS: Test item me…

Text truncated - open the document above for the full version.

Test Model：G5 Radiated Emission
