2A2MNHCD-1235L1CONController

HEBEI HUACHUANGDA TECHNOLOGY CO.LTD HCD-1235L1CON CONTROLLER INSTRUCTION The electronic board is used for kid car, and controls kid car to move forward,move back, swing. Also,can adjust speed accordingly. Power by battery to drive motor, turn via motor too. 1 use right adapter to recharge the battery, keep the value 12 voltage output.And keep away from children when recharging. 2 Pay attention to the color wire to connect, take care of positive pole and negative pole. Bus line,jumpers connected correctly. 3 Do not dip into water, in case of short circuit. 4 Do not expose the board under rainy and sun. 5 Press the button power firstly,the car is stand by. Press Rock button, the kid car swing from time to time, until the button is switched to run. 6 Under the run status,step on the pedal to accelerate,loose to decrease speed. At the same time, pull the rocking bar to forward or back. 7 From the acousto-optic wire, the board can receive blue tooth signal in 2.4G frequency, and operate the kid car to move. That means, the remote control box can undertake, and cell phone can undertake via APP too. FCC Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. Caution: Any changes or modifications to this device not explicitly approved by manufacturer could void your authority to operate this equipment. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. RF Exposure Information This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator and your body.

CONFIDENTIALITY REQUEST for Certification Service in USA Federal Communication Commission Equipment Authorization Division, Application Processing Branch 7435 Oakland Mills Road Columbia, MD 21046 Date:< 2021-8-24> Pursuant to Paragraphs §0.457 and 0.459 of the Commission’s Rules (47 C.F.R.) and Section §552(b)(4) of the Freedom of Information Act, we requests confidentiality for the following products: FCC ID Model name 2A2MNHCD-1235L1CON HCD-1235L1CON For the product stated above, we request that the following information be held confidential; Exhibits Long-Term Confidentiality Short-Term Confidentiality Short-Term Confidentiality Days External Photos Internal Photos Block Diagram Schematics Test Setup Photos User’s Manual Parts List Tune Up Operational Descriptions The long-term confidentiality exhibits contain our trade secrets and proprietary information that could be of benefit to our competitors. The short-term confidentiality on the basis of ensuring that business sensitive information remains confidential until the actual marketing of our new device. If you have any questions, please feel free to contact me at the address shown below. Sincerely, Name/Title： Meihua Tan/Manager Company: HEBEI HUACHUANGDA TECHNOLOGY CO., LTD Address: Southeast corner of the intersection of Maosui Street and Shaofeng Road,Xinxing Park,Jize County, Handan City, Hebei Province China Phone: 13902563678 Fax: N/A E-Mail: [email protected]

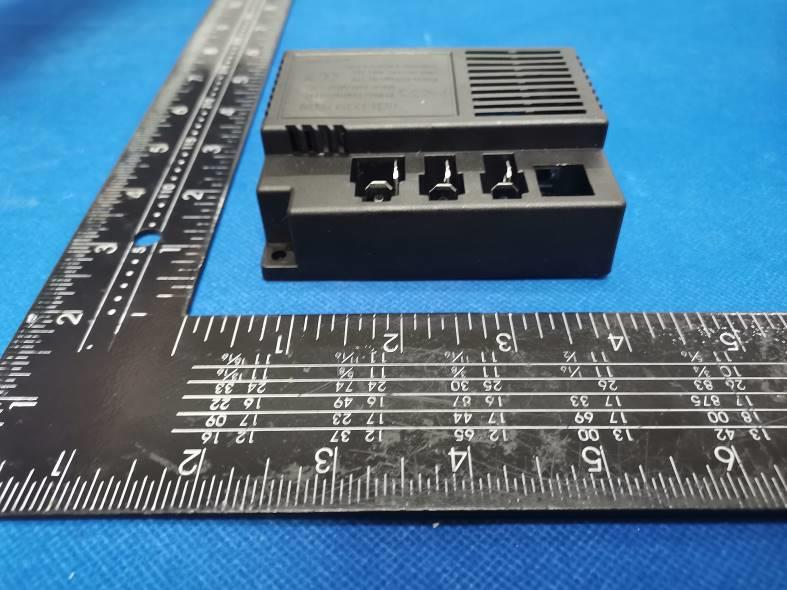

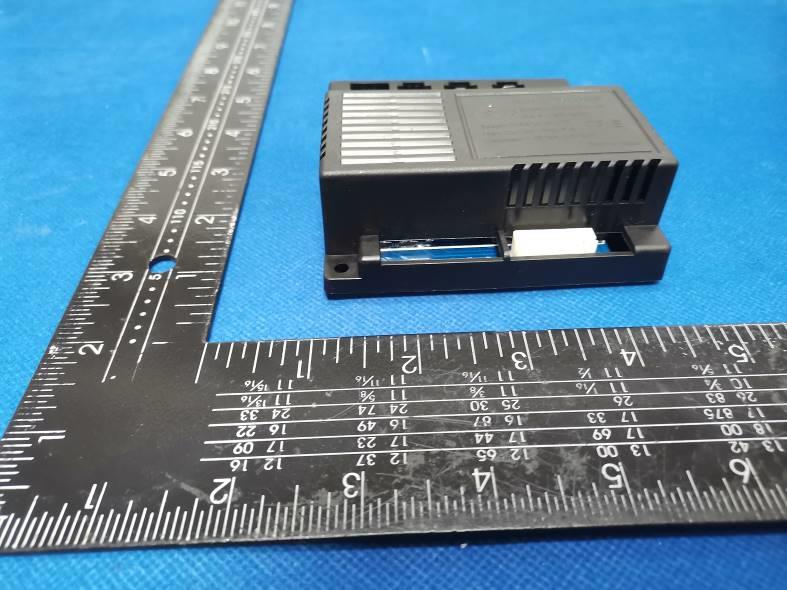

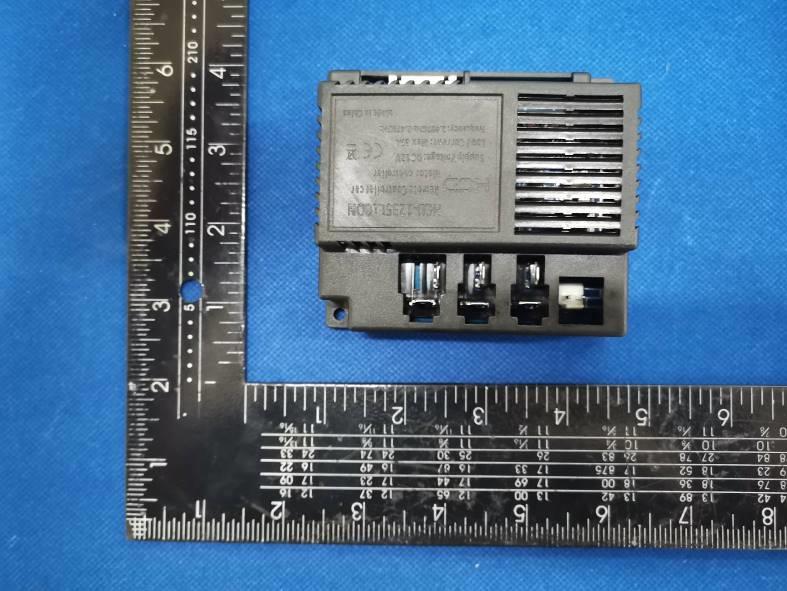

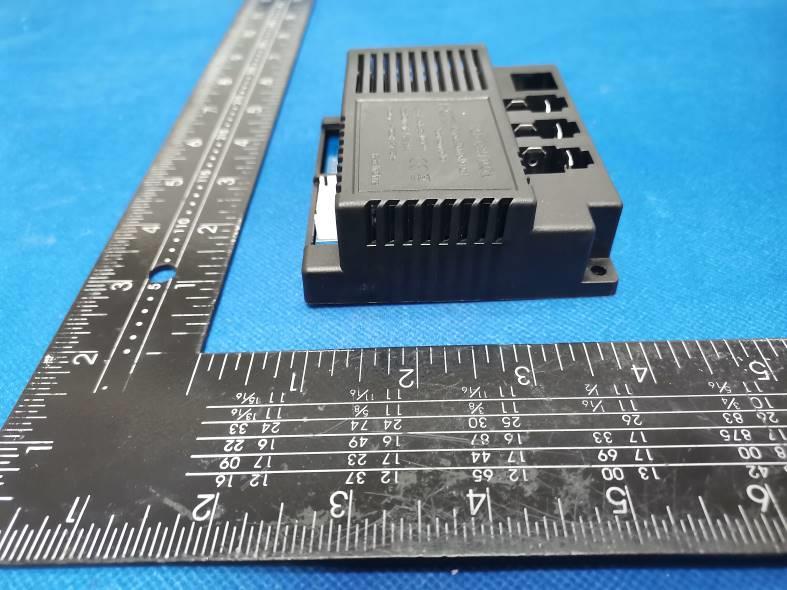

FCC ID: 2A2MNHCD-1235L1CON External Photos of the EUT FCC ID: 2A2MNHCD-1235L1CON

FCC ID: 2A2MNHCD-1235L1CON Label and Location Size: L: 2.0cm*W: 2.0cm Label and Location Controller Model No.: HCD-1235L1CON FCC ID : 2A2MNHCD-1235L1CON This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

FCC ID: 2A2MNHCD-1235L1CON Internal Photos of the EUT Antenna FCC ID: 2A2MNHCD-1235L1CON

RF Exposure evaluation FCC ID: 2A2MNHCD-1235L1CON Exposure category: General population/uncontrolled environment EUT Type: Production Unit Device Type: Mobile Device 1. Reference According to §1.1307(b)(1), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. According to §1.1310 and §2.1091 RF exposure is calculated. KDB447498 D01: Mobile and Portable Devices RF Exposure Procedures and Equipment Authorization Policies 2. Limit Limits for Maximum Permissible Exposure (MPE)/Controlled Exposure Frequency Range(MHz) Electric Field Strength(V/m) Magnetic Field Strength(A/m) Power Density (mW/cm²) Averaging Time (minute) Limits for Occupational/Controlled Exposure 0.3 – 3.0 3.0 – 30 30 – 300 300 – 1500 1500 – 100,000 614 1842/f 61.4 / / 1.63 4.89/f 0.163 / / (100) * (900/f 2 )* 1.0 f/300 5 6 6 6 6 6 Limits for Maximum Permissible Exposure (MPE)/Uncontrolled Exposure Frequency Range(MHz) Electric Field Strength(V/m) Magnetic Field Strength(A/m) Power Density (mW/cm²) Averaging Time (minute) Limits for Occupational/Controlled Exposure 0.3 – 3.0 3.0 – 30 30 – 300 300 – 1500 1500 – 100,000 614 824/f 27.5 / / 1.63 2.19/f 0.073 / / (100) * (180/f 2 )* 0.2 f/1500 1.0 30 30 30 30 30 F=frequency in MHz *=Plane-wave equivalent power density 3. MPE Calculation Method Predication of MPE limit at a given distance Equation from page 18 of OET Bulletin 65, Edition 97-01 S=PG/4πR² Where: S=power density P=power input to antenna G=power gain of the antenna in the direction of interest relative to an isotropic radiator R=distance to the center of radiation of the antenna 4. Antenna Information HCD-1215L1CON can only use antennas certificated as follows provided by manufacturer; Antenna No. Model No. of antenna: Type of antenna: Gain of the antenna (Max.) Frequency range: BT / PCB ANT 0.00dBi for 2400-2500MHz; 5. Manufacturing Tolerance BLE GFSK(Peak) Channel Channel 00 Channel 19 Channel 39 Target (dBm) -5.0 -6.0 -6.0 Tolerance ±(dB) 1.0 1.0 1.0 6. Standalone MPE Result As declared by the Applicant, the EUT is a wireless device used in a fix application, at least 20 cm from any body part of the user or nearby persons; from the maximum EUT RF output power, the minimum separation distance, r =20cm, as well as the gain of the used antenna is 0.0dBi, the RF power density can be obtained. Modulation Type Output power Antenna Gain (dBi) Antenna Gain (linear) MPE (mW/cm 2 ) MPE Limits (mW/cm 2 ) dBm mW BLE -4.0 0.3981 0.0 1.000 0.0001 1.0000 7. Conclusion The measurement results comply with the FCC Limit per 47 CFR 2.1091 for the uncontrolled RF Exposure of mobile device. ----------------THE END OF REPORT---------------

Shenzhen Global Test Service Co.,Ltd. No.7-101 and 8A-104, Building 7 and 8, DCC Cultural and Creative Garden, No.98, Pingxin North Road, Shangmugu Community, Pinghu Street, Longgang District, Shenzhen, Guangdong FCC PART 15 SUBPART C TEST REPORT FCC PART 15.247 Report Reference No. ..................... : FCC ID. ............................................ : GTS20210824008-1-1 2A2MNHCD-1235L1CON Compiled by ( position+printed name+signature) .. : File administrators Jimmy Wang Supervised by ( position+printed name+signature) .. : Test Engineer Aaron Tan Approved by ( position+printed name+signature) .. : Manager Jason Hu Date of issue ..................................... : Aug. 24, 2021 Representative Laboratory Name .: Shenzhen Global Test Service Co., Ltd. Address ............................................ : No.7-101 and 8A-104, Building 7 and 8, DCC Cultural and Creative Garden, No.98, Pingxin North Road, Shangmugu Community, Pinghu Street, Longgang District, Shenzhen, Guangdong Applicant’s name ............................ : HEBEI HUACHUANGDA TECHNOLOGY CO., LTD Address ............................................ : Southeast corner of the intersection of Maosui Street and Shaofeng Road, Xinxing Park, Jize County, Handan City, Hebei Province,China Test specification ...........................: Standard ........................................... : FCC Part 15.247 Shenzhen Global Test Service Co.,Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen Global Test Service Co.,Ltd. is acknowledged as copyright owner and source of the material. Shenzhen Global Test Service Co.,Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Test item description .....................: Controller Trade Mark ....................................... : Manufacturer .................................... : HEBEI HUACHUANGDA TECHNOLOGY CO., LTD Model/Type reference....................... : HCD-1235L1CON Listed Models .................................. : N/A Modulation ....................................... : GFSK Frequency .......................................... From 2402MHz to 2480MHz Ratings ............................................. : DC 12.0V From External circuit Result................................................ : PASS Report No.: GTS20210824008-1-1 Page 2 of 34 T E S T R E P O R T Equipment under Test : Controller Model /Type : HCD-1235L1CON Listed Models : N/A Applicant : HEBEI HUACHUANGDA TECHNOLOGY CO., LTD Address : Southeast corner of the intersection of Maosui Street and Shaofeng Road, Xinxing Park, Jize County, Handan City, Hebei Province,China Manufacturer : HEBEI HUACHUANGDA TECHNOLOGY CO., LTD Address : Southeast corner of the intersection of Maosui Street and Shaofeng Road, Xinxing Park, Jize County, Handan City, Hebei Province,China Test Result: PASS The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Report No.: GTS20210824008-1-1 Page 3 of 34 Contents 1 T E S T S T A N D A R D S ................................................................. 4 2 S U M M A R Y ............................................................................ 5 2.1 General Remarks 5 2.2 Product Description 5 2.3 Equipment Under Test 5 2.4 Short description of the Equipment under Test (EUT) 5 2.5 EUT operation mode 6 2.6 Block Diagram of Test Setup 6 2.7 Related Submittal(s) / Grant (s) 6 2.8 Modifications 6 3 T E S T E N V I R O N M E N T .............................................................. 7 3.1 Address of the test laboratory 7 3.2 Test Facility 7 3.3 Environmental conditions 7 3.4 Summary of measurement results 8 3.5 Statement of the measurement uncertainty 8 3.6 Equipments Used during the Test 9 4 T E S T C O N D I T I O N S A N D R E S U L T S ........................................... 10 4.1 AC Power Conducted Emission 10 4.2 Radiated Emissions and Band Edge 13 4.3 Maximum Peak Output Power 19 4.4 Power Spectral Density 20 4.5 6dB Bandwidth 22 4.6 Out-of-band Emissions 24 4.7 Antenna Requirement 29 5 T E S T S E T U P P H O T O S O F T H E E U T ......................................... 30 6 P H O T O S O F T H E E U T ........................................................... 31 Report No.: GTS20210824008-1-1 Page 4 of 34 1 T E S T S T A N D A R D S The tests were performed according to following standards: FCC Rules Part 15.247: Frequency Hopping, Direct Spread Spectrum and Hybrid Systems that are in operation within the bands of 902-928 MHz, 2400-2483.5 MHz, and 5725-5850 MHz. ANSI C63.10-2013: American National Standard for Testing Unlicensed Wireless Devices KDB558074 D01 V05r02: Guidance for Performing Compliance Measurements on Digital Transmission Systems (DTS) Operating Under §15.247 Report No.: GTS20210824008-1-1 Page 5 of 34 2 S U M M A R Y 2.1 General Remarks Date of receipt of test sample : Jul. 22, 2021 Testing commenced on : Jul. 22, 2021 Testing concluded on : Aug. 24, 2021 2.2 Product Description Product Description: Controller Model/Type reference: HCD-1235L1CON Power supply: DC 12.0V From External circuit Testing sample ID： GTS20210824008-1-1-1#(Engineer sample), GTS20210824008-1-1-2#(Normal sample) Adapter information (Auxiliary test supplied by test Lab） : Model:MSA-C1500IC120-18S-CN Input:AC100-240V-50/60Hz，0.6A Output:DC 12.0V,1500mA Software version: V1.0 Hardware version: V1.0 Bluetooth BLE Supported type: Bluetooth low Energy Modulation: GFSK Operation frequency: 2402MHz to 2480MHz Channel number: 40 Channel separation: 2 MHz Antenna type: PCB antenna Antenna gain: 0.0 dBi 2.3 Equipment Under Test Power supply system utilised Power supply voltage : ○ 230V / 50 Hz ○ 120V / 60Hz ○ 12 V DC ○ 24 V DC ● Other (specified in blank below) DC 12.0…

Text truncated - open the document above for the full version.

FCC ID: 2A2MNHCD-1235L1CON Test Setup Photos of the EUT
