ZXQ-Q2 Wireless Earphone Remark: the button function may be different due to different mobile reset. War ning Long time listening with high volume may impact our hearing, please adjust the volume to suitable level. To prot ect your hearring please adjust the volume in your player to 50% level, after connecting then adjust to the suitabale volume level you prefer. Please take care of the conditions around you when you using the earphone. Don’t take any action that will make acident to you or others Don’t use it when driving a motor vehicle. Don’t put the batter y in water or liquid. Don’t put the batter y in high temperature or fire. Put it out of the reach of children. Introduction Thank you for purchasing ZXQ wireless earphone. Please read this operation manual before use it. Safty information 1. Please follow this instuction when you use this product. 2. Please be careful of the sharp edge on the package. 3. Don’t try to disassemble the product by yourself. 4. Don’t use any chemical liquid to the product. 5. Don’t use it in dangerous conditions. Contents 1 x wireless earphone 1 x micro USB cable 2 x pairs silicon eartips Pr oduct introduction 1. Vol+ (quick press)/Nect track (press and hold) 2. MFB button(Play/pause, answer/reject call) 3. Vol-(quick press/Previous track(press and hold) 4 LED and microphone 5 USB port 123 4 5 Charging The earphons was built-in with rechargeable batter y. Please recharge it before use. The LED turn to Red when charging, and turn to blue when full charged. Please use the cable included in the package, charging voltage not over 5.5V. Notice： 1. It takes about 2 hours t o fully charge the earphone 2. When the product is in charging mode, please don’t use it. Pairing （1）Earphone under power off mode. （2）Press the MFB button about 3 seconds until the LED light blink with red and blue. （3）Tap on the Bluetooth on your mobile, search Bluetooth devices, select model ZXQ-Q2 and confirm connect, the LED turn to Blue and will with a voice “ Du”. If the pairing not success in 3 minutes, the LED will turn to Blue and blink quickly. Need to repeat the paring as above st eps 1~3. LED indicator Earphone status LED light S tandby Blue Charging Red Fully charged Blue Low batter y Red light blink(Dudu sound) Batter y run off Shut off User Manual Specifications: BT version: V5.0 Operation distance: 10m Battery: 3.7V/130mAh Charging rate: 5V/1A Charging port: Micro USB Frequency range: 2.4GHz-2.48GHz Charging time: about 2 hours Music playing time: about 10hours (50% volume) Talk time: about 10 hours (50% volume) Driver: 14.2mm Frequency: 20-20kHz Sensitivity: 97+/-3dB This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -- Reorient or relocate the receiving antenna. -- Increase the separation between the equipment and receiver. -- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -- Consult the dealer or an experienced radio/TV technician for help. Warning: changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment

Modeldifferencedeclarationletter DifferencesDescription WeJSYTechnology(Shenzhen)Co.,Ltdstate: Product：Wirelessearphone ModelName： ZXQ-Q2,ZXQ-Q1,ZXQ-Q1S,ZXQ-Q3,ZXQ-Q5S, ZXQ-Q6,ZXQ-Q7,ZXQ-Q8,ZXQ-Q9,ZXQ-Q10, ZXQ-Q12 Theaboveproductwithsamecircuit,PCBlayout,electricalparts,materialsand wiringstructures,Appearanceshape,thematerialsofdecorativeaccessoriesis same,onlydifferentcolor. Signatory Date:02-03-2022 <Signature> Name：ZhangXiang Title：manager Company：JSYTechnology(Shenzhen)Co.,Ltd Address:No.2Building,ZhenyeRd,TangxiayongVillage,Yanluostreet,BaoanDistrict,Shenzhen, Guangdong,China

C5266091_X8_Ed.1 1/1 LetterofAuthorization JSYTechnology(Shenzhen)Co.,Ltd Company:JSYTechnology(Shenzhen)Co.,Ltd Address:No.2Building,ZhenyeRd,TangxiayongVillage,Yanluostreet,Baoan District,Shenzhen,Guangdong,China ProductName:Wirelessearphone ModelNumber:ZXQ-Q2,ZXQ-Q1,ZXQ-Q1S,ZXQ-Q3,ZXQ-Q5S,ZXQ-Q6, ZXQ-Q7,ZXQ-Q8,ZXQ-Q9,ZXQ-Q10,ZXQ-Q12 FCCIdentifier:2A2N7-ZXQ-Q2 WeauthorizeLGAITechnologicalCenterS.A.,RondadelaFontdelCarme,s/n, 08193Bellaterra,Spain,toactonourbehalfonallmattersconcerningthe abovenamedequipment. AnyindividualwithinLGAITechnologicalCenterS.A.isauthorizedtoactonour behalfandtakeactionontheapplication. WedeclarethatauthorizeLGAITechnologicalCenterS.A.,RondadelaFontdel Carme,s/n,08193Bellaterra,Spain,isallowedtoforwardallinformation relatedtotheapprovalprojecttotheFederalCommunicationCommissionand todiscussanyissuesconcerningtheapprovalapplication.Anyandallacts carriedoutbyLGAITechnologicalCenterS.A.onourbehalfshallhavethe sameeffectasactsofourown. Name:ZhangXiangDate:02Mar,2022 Title:manager Signatureofapplicant:

C5266091_X10_Ed.2 1/1 JSYTechnology(Shenzhen)Co.,Ltd OfficeofEngineeringTechnology FederalCommunicationsCommission 7435OaklandMillsRoad Columbia,MD21046 Date:02Mar,2022 Subject:RequestforConfidentiality FCCID:2A2N7-ZXQ-Q2 ToWhomItMayConcern, PursuanttotheprovisionsofSections0.457and0.459ofCommission'srules (47CFR0.457,0.459),wearerequestingtheCommissiontowithholdthefollowing attachment(s)asconfidentialdocumentfrompublicdisclosure. ExhibitsLong-Term Confidentiality Short-Term Confidentiality NOTE2 IDLabel/LocationNoNo AttestationStatementNoNo ExternalPhotosNo ☐ BlockDiagram ☒☐ Schematics ☒☐ TestReportNoNo TestSetupPhotosNo ☐ User’sManual ☐ NOTE 1 ☐ InternalPhotos ☐ NOTE 1 ☐ PartsList/TuneUp ☐☐ RFExposureInfoNoNo OperationalDescription ☒☐ CoverLetter(s)NoNo SDRSoftware/SecurityInfo ☐ No NOTE1:Long-TermConfidentialitymaybepermittedunderspecialconditions(SeeII.LONG-TERMCONFIDENTIALITY,Section3of KDB726920,uselastinforce) NOTE2:Short-TermConfidentialitycanberequestedforamaximumof180daysfromthedateofthegrant. Abovementioneddocumentcontainsdetailedsystemandequipmentdescriptionare consideredasproprietaryinformationinoperationoftheequipment.Thepublic disclosureofabovedocumentsmightbeharmfultoourcompanyandwouldgive competitoranunfairadvantageinthemarket. Incaseofshort-termConfidentiality,theapplicantrequeststheexhibitsselected abovearewithheldfrompublicviewforaperiodof______daysfromthedateofthe GrantofEquipmentAuthorizationandpriortomarketing. Itisourunderstandingthatallmeasurementtestreports,FCCIDlabelformatand correspondentduringcertificationreviewprocesscannotbegrantedasconfidential documentsandthoseinformationwillbeavailableforpublicreviewoncethegrantof equipmentauthorizationisissued. C5266091_X10_Ed.2 1/1 Sincerely, Signature: Name:ZhangXiang Title:manager

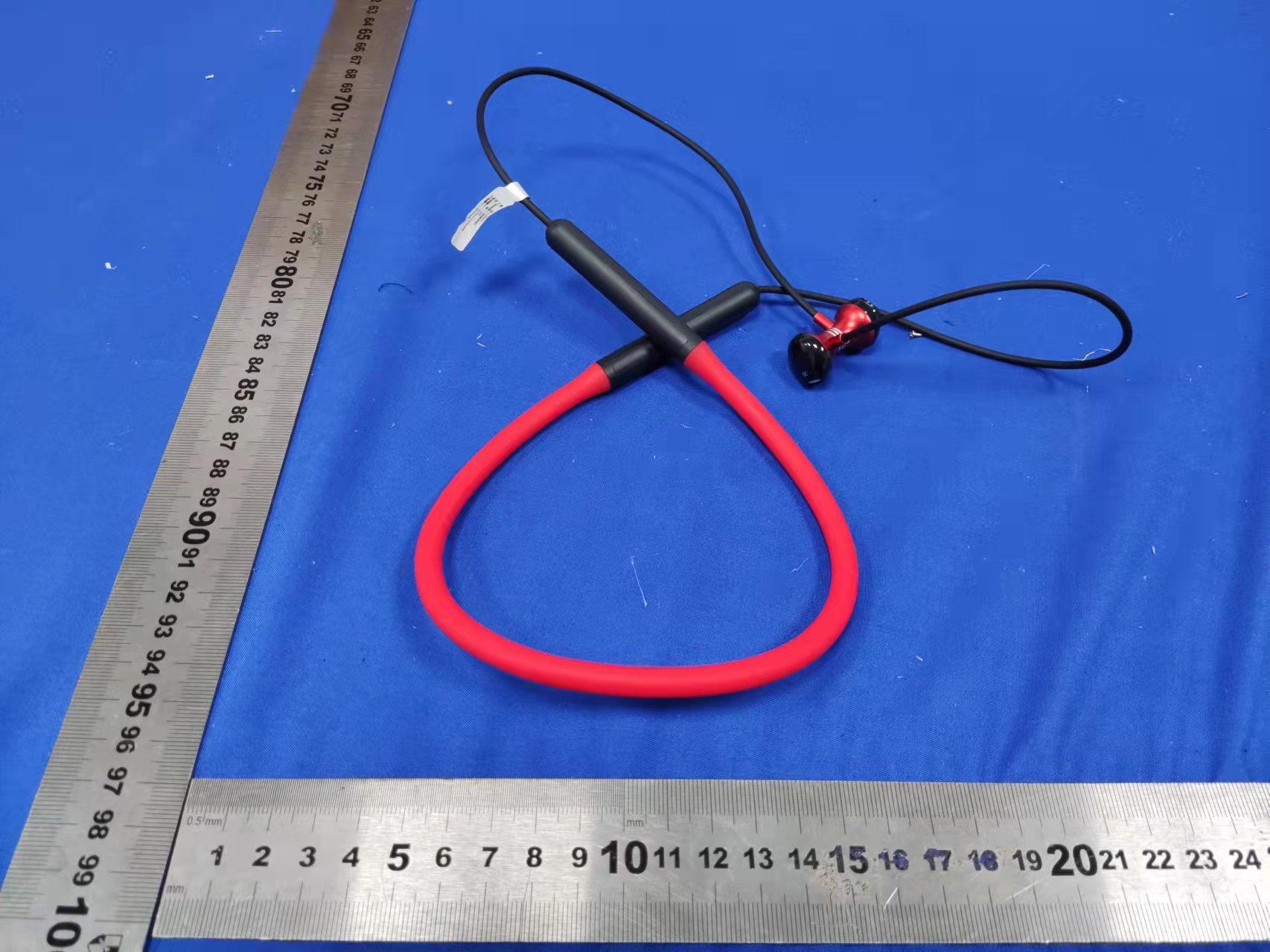

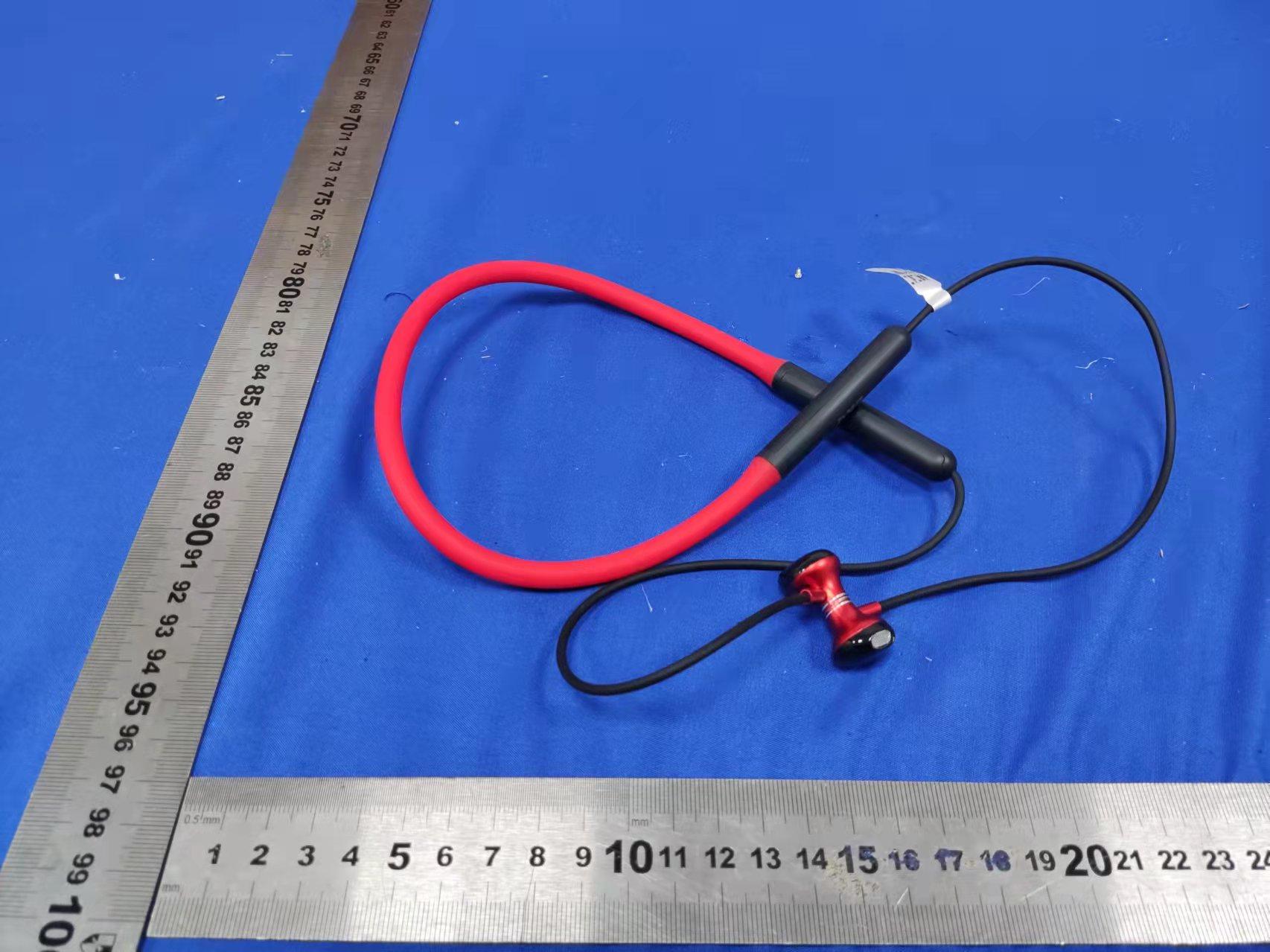

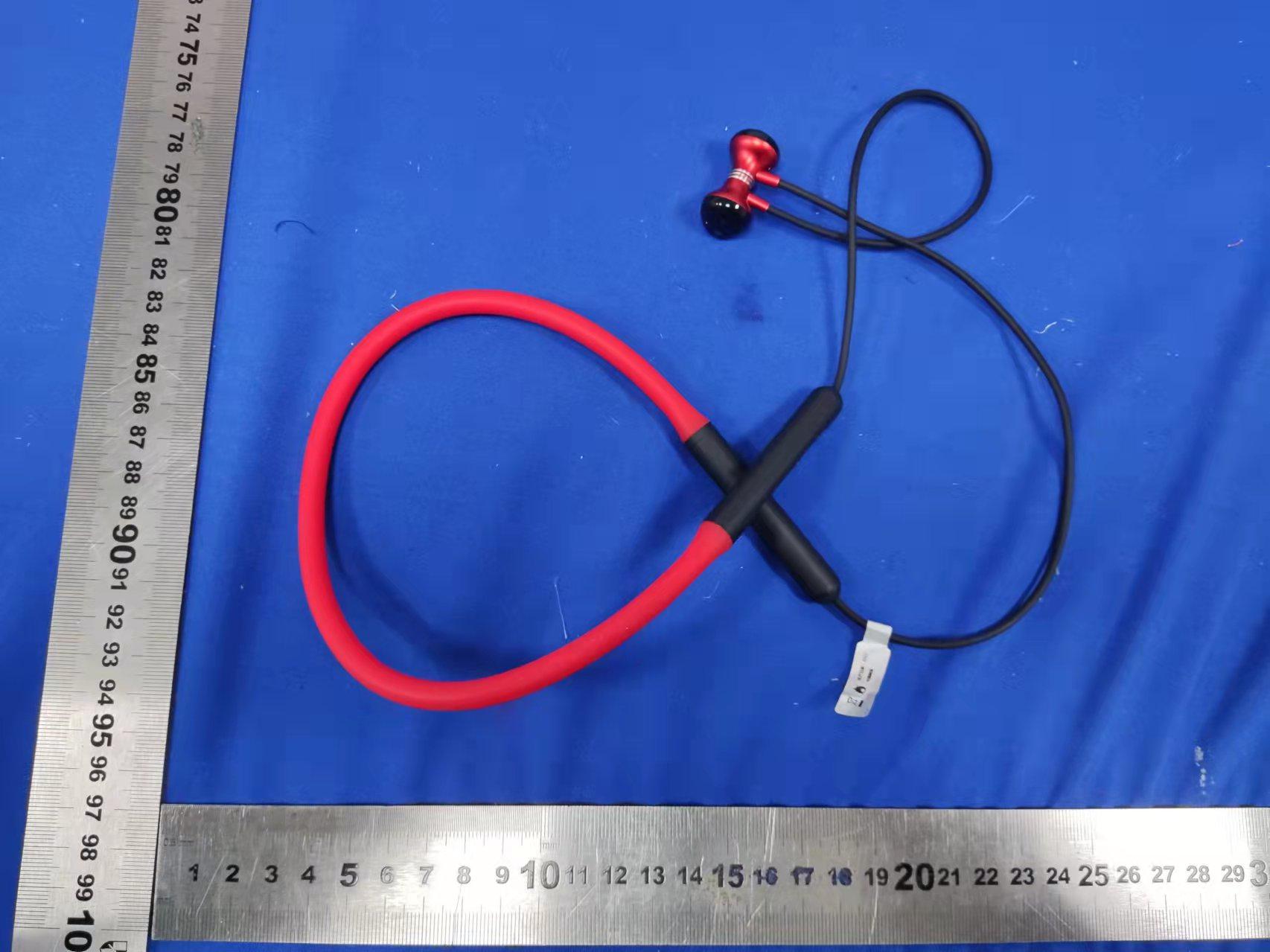

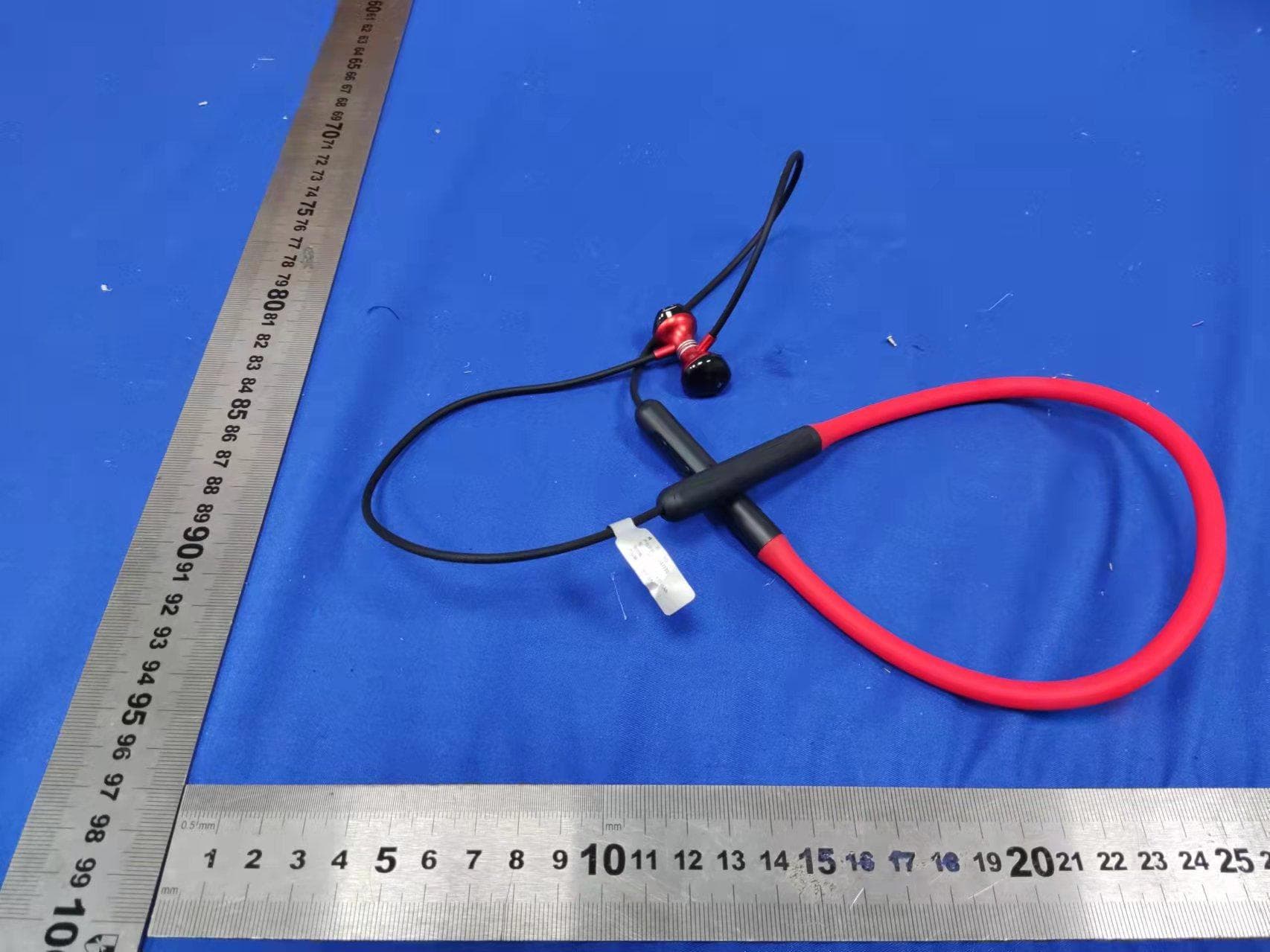

Page1of3ReportNo.:FCS202202126 Externalphotos Photo1 Photo2 Page2of3ReportNo.:FCS202202126 Photo3 Photo4 Page3of3ReportNo.:FCS202202126 Photo5 Photo6

LabelandLabelLocation FCCID:2A2N7-ZXQ-Q2 L*W:10mm*5mm labelandWhitefont

Page1of2ReportNo.:FCS202202126 Internalphotos Photo1 Photo2 ANT Page2of2ReportNo.:FCS202202126 Photo3 Photo4

FCCTestReport ReportNo:FCS202202126W01 Issuedfor Applicant: JSYTechnology(Shenzhen)Co.,Ltd Address: No.2Building,ZhenyeRd,TangxiayongVillage,Yanluo street,BaoanDistrict,Shenzhen,Guangdong,China ProductName: Wirelessearphone BrandName: N/A ModelName: ZXQ-Q2 SeriesModel: ZXQ-Q1,ZXQ-Q1S,ZXQ-Q3,ZXQ-Q5S,ZXQ-Q6,ZXQ-Q7, ZXQ-Q8,ZXQ-Q9,ZXQ-Q10,ZXQ-Q12 FCCID: 2A2N7-ZXQ-Q2 IssuedBy:FluxComplianceServiceLaboratory Add:Room105FloorBaohaoTechnologyBuilding1NO.15GongyeWestRoadHi-Tech Industrial,SongshanlakeDongguan Tel:769-27280901Fax:769-27280901http://www.fcs-lab.com Page2of31ReportNo.:FCS202202126W01 FluxComplianceServiceLaboratory Room105FloorBaohaoTechnologyBuilding1NO.15GongyeWestRoadHi-TechIndustrial,SongshanlakeDongguan Tel:769-27280901Fax:769-27280901http://www.fcs-lab.com TESTRESULTCERTIFICATION Applicant’sName......................:JSYTechnology(Shenzhen)Co.,Ltd Address......................................: No.2Building,ZhenyeRd,TangxiayongVillage,Yanluo street,BaoanDistrict,Shenzhen,Guangdong,China Manufacture'sName ................ :JSYTechnology(Shenzhen)Co.,Ltd Address ...................................... : No.2Building,ZhenyeRd,TangxiayongVillage,Yanluo street,BaoanDistrict,Shenzhen,Guangdong,China ProductDescription ProductName...........................:Wirelessearphone BrandName ............................. :N/A ModelName..............................:ZXQ-Q2 SeriesModel..............................: ZXQ-Q1,ZXQ-Q1S,ZXQ-Q3,ZXQ-Q5S,ZXQ-Q6,ZXQ-Q7, ZXQ-Q8,ZXQ-Q9,ZXQ-Q10,ZXQ-Q12 TestStandards .......................... :FCCRulesandRegulationsPart15SubpartC,Section249 TestProcedure..........................:ANSIC63.10:2013 ThisdevicedescribedabovehasbeentestedFCS,thetestresultsshowthattheequipmentundertest (EUT)isincompliancewiththeFCCrequirements.Anditisapplicableonlytothetestedsample identifiedinthereport. Thisreportshallnotbereproducedexceptinfull,withoutthewrittenapprovalofFCS,thisdocument maybealteredorrevisedbyFCS,personalonly,andshallbenotedintherevisionofthedocument.. DateofTest..................................: Date(s)ofperformanceoftests . :23Feb.2022~27Feb.2022 DateofIssue ................................. :27Feb.2022 TestResult ..................................... :Pass Testedby: (ScottShen) Reviewedby : (DukeQian) Approvedby: (JackWang) Page3of31ReportNo.:FCS202202126W01 FluxComplianceServiceLaboratory Room105FloorBaohaoTechnologyBuilding1NO.15GongyeWestRoadHi-TechIndustrial,SongshanlakeDongguan Tel:769-27280901Fax:769-27280901http://www.fcs-lab.com TableofContentsPage 1.SUMMARYOFTESTRESULTS5 1.1TESTFACTORY6 1.2MEASUREMENTUNCERTAINTY6 2.GENERALINFORMATION7 2.1GENERALDESCRIPTIONOFTHEEUT7 2.2DESCRIPTIONOFTHETESTMODES9 2.3DESCRIPTIONOFNECESSARYACCESSORIESANDSUPPORTUNITS10 2.4EQUIPMENTSLIST11 3CONDUCTEDEMISSIONMEASUREMENT12 3.1LIMIT12 3.2TESTPROCEDURE12 3.3TESTSETUP13 3.4TESTRESULTS14 4.RADIATEDEMISSIONMEASUREMENT16 4.1LIMIT16 4.2TESTPROCEDURE17 4.3TESTSETUP18 4.4TESTRESULTS19 5.BANDEDGETEST25 5.1LIMIT25 5.2TESTPROCEDURE25 5.3TESTSETUP26 5.4TESTRESULTS27 6.20DBBANDWIDTHTEST28 6.1LIMIT28 6.2TESTPROCEDURE28 6.3TESTSETUP28 6.4TESTRESULTS29 7.ANTENNAREQUIREMENT31 7.1STANDARDREQUIREMENT31 7.2EUTANTENNA31 Page4of31ReportNo.:FCS202202126W01 FluxComplianceServiceLaboratory Room105FloorBaohaoTechnologyBuilding1NO.15GongyeWestRoadHi-TechIndustrial,SongshanlakeDongguan Tel:769-27280901Fax:769-27280901http://www.fcs-lab.com RevisionHistory Rev.IssueDateEffectPageContents 0027Feb.2022AllInitialIssue Page5of31ReportNo.:FCS202202126W01 FluxComplianceServiceLaboratory Room105FloorBaohaoTechnologyBuilding1NO.15GongyeWestRoadHi-TechIndustrial,SongshanlakeDongguan Tel:769-27280901Fax:769-27280901http://www.fcs-lab.com 1.SUMMARYOFTESTRESULTS FCCPart15.249,SubpartC Standard Section TestItemJudgmentRemark 15.207ConductedEmissionPASS-- 15.205(a),15.209(a), 15.249(a),15.249(c) RadiatedSpuriousEmissionPASS-- 15.209FieldstrengthoffundamentalPASS 15.249(d)BandEdgeEmissionPASS-- 15.215(c)20dBBandwidthPASS-- 15.203AntennaRequirementPASS-- NOTE: (1)”N/A”denotestestisnotapplicableinthisTestReport (2)AlltestsareaccordingtoANSIC63.10-2013 Page6of31ReportNo.:FCS202202126W01 FluxComplianceServiceLaboratory Room105FloorBaohaoTechnologyBuilding1NO.15GongyeWestRoadHi-TechIndustrial,SongshanlakeDongguan Tel:769-27280901Fax:769-27280901http://www.fcs-lab.com 1.1TESTFACTORY CompanyName:FluxComplianceServiceLaboratory Address: Room105FloorBaohaoTechnologyBuilding1NO.15Gongye WestRoadHi-TechIndustrial,SongshanlakeDongguan Telephone:+86-769-27280901 Fax:+86-769-27280901 FCCTestFirmRegistrationNumber:514908 Designationnumber:CN0127 A2LAaccreditationnumber：5545.01 1.2MEASUREMENTUNCERTAINTY Thereporteduncertaintyofmeasurementy±U,whereexpendeduncertaintyUisbasedona standarduncertaintymultipliedbyacoveragefactorofk=2,providingalevelofconfidenceof approximately95%. No.ItemUncertainty 1RFoutputpower,conducted±0.71dB 2UnwantedEmissions,conducted±2.98dB 3ConductedEmission(9KHz-150KHz) ±4.13dB 4ConductedEmission(150KHz-30MHz) ±4.74dB 5Allemissions,radiated(<1G)30MHz-1000MHz ±3.2dB 6Allemissions,radiated(1GHz-18GHz) ±3.66dB 7Allemissions,radiated(18GHz-40GHz) ±4.31dB Page 7 of 31Report No.:FCS202202126W01 Flux Compliance Service Laboratory Room 105 Floor Bao hao Technology Building 1 NO.15 Gong ye West Road Hi-Tech Industrial, Song shan lake Dongguan Tel: 769-27280901 Fax:769-27280901 http://www.fcs-lab.com 2. GENERAL INFORMATION 2.1 GENERAL DESCRIPTION OF THE EUT Product Name Wireless earphone Trade Name N/A Model Name ZXQ-Q2 Series Model ZXQ-Q1,ZXQ-Q1S,ZXQ-Q3,ZXQ-Q5S,ZXQ-Q6, ZXQ-Q7,ZXQ-Q8,ZXQ-Q9,ZXQ-Q10,ZXQ-Q12 Model Difference The above product with same circuit, PCB layout, electrical parts, materials and wiring structures, Appearance shape, the materials of decorative accessories is same, only different color. Channel List Please refer to the Note 2. BT Frequency:2402-2480MHz Modulation: GFSK Data rate: 1Mbps Channel number: 79CH Power SupplyDC 5V/1A BatteryDC 3.7V Hardware version numberV1.0 Software version numberV1.0 Con…

Text truncated - open the document above for the full version.

Page1of2ReportNo.:FCS202202126 Blow1GHzforradiatedemissiontestsetup Above1GHzforradiatedemissiontestsetup Page2of2ReportNo.:FCS202202126 Conductedemissiontestsetup
