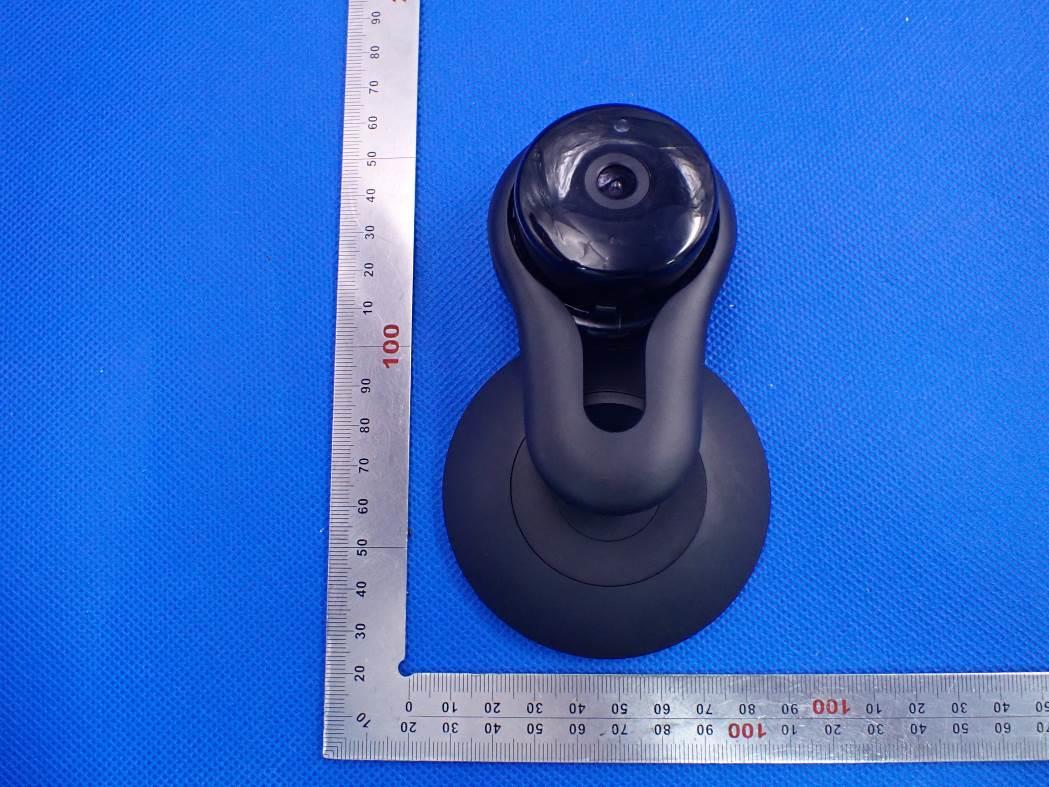

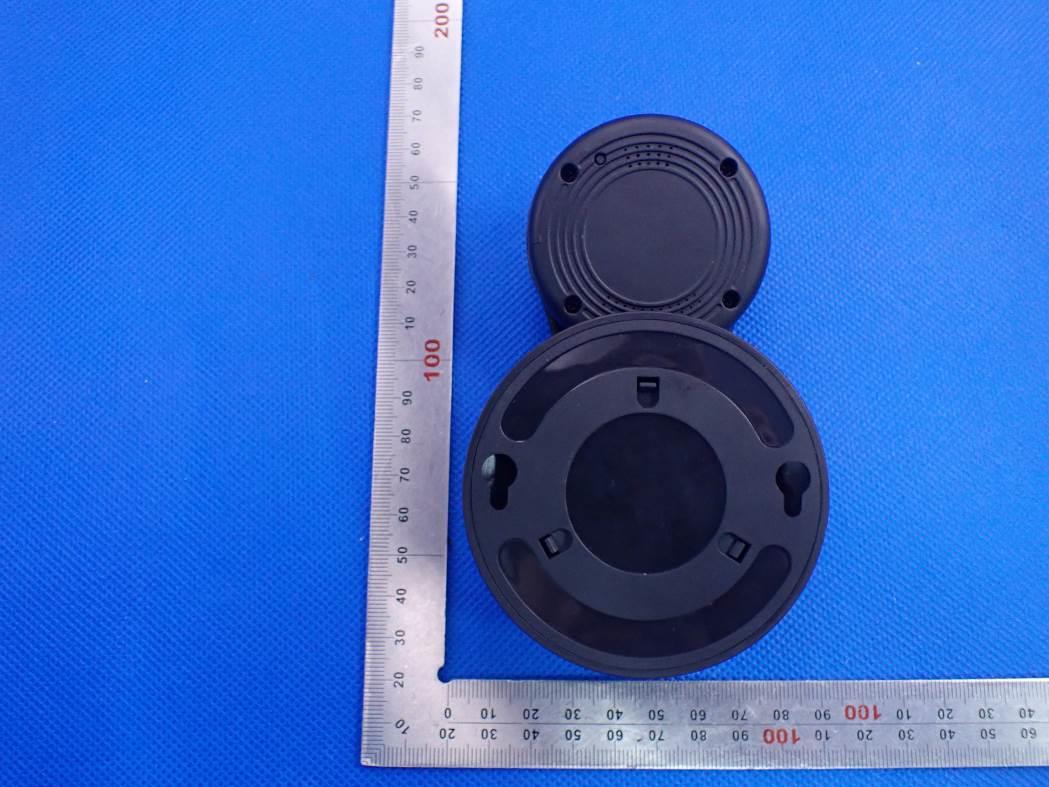

External Photos ALL VIEW OF EUT OUTSIDE VIEW-1 OF EUT OUTSIDE VIEW-2 OF EUT OUTSIDE VIEW-3 OF EUT OUTSIDE VIEW-4 OF EUT OUTSIDE VIEW-5 OF EUT OUTSIDE VIEW-6 OF EUT OUTSIDE VIEW-7 OF EUT OUTSIDE VIEW-8 OF EUT

FCC ID Label Location 10mm*20mm FCC ID: 2A2NF-GFC-HD-A

Internal Photos OPEN VIEW-1 OF EUT INTERNAL VIEW-1 OF EUT INTERNAL VIEW-2 OF EUT INTERNAL VIEW-3 OF EUT INTERNAL VIEW-4 OF EUT INTERNAL VIEW-5 OF EUT INTERNAL VIEW-6 OF EUT INTERNAL VIEW-7 OF EUT Antenna VIEW OF ADAPTER ----END OF REPORT----

RF EXPOSURE EVALUATION 1. PRODUCT INFORMATION Product Description Wireless Security Camera Model Name GFC-HD FCC ID 2A2NF-GFC-HD-A 2. EVALUATION METHOD AND LIMIT Human exposure to RF emissions from mobile devices (47 CFR §2.1091) may be evaluated based on the MPE limits adopted by the FCC for electric and magnetic field strength and/or power density, as appropriate, since exposures are assumed to occur at distances of 20 cm or more from persons. LIMITS FOR GENERAL POPULATION / UNCONTROLLED EXPOSURE Frequency Range (MHz) E-field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/cm 2 ) Averaging Time |E| 2 , |H| 2 or S (Minutes) 0.3 -- 1.34 614 1.63 (100)* 30 1.34 -- 30 824/f 2.19/f (180/f 2 )* 30 30 -- 300 27.5 0.073 0.2 30 300 -- 1500 -- -- f/1500 30 1500 -- 100,000 -- -- 1.0 30 *Note: 1. f= Frequency in MHz * Plane-wave Equivalent Power Density 2. The averaging time for General Population/Uncontrolled exposure to fixed transmitters is not applicable for mobile and portable transmitters. See 47 CFR §§2.1091 and 2.1093 on source-based time-averaging requirement for mobile and portable transmitters. S=PG/4πR² Where: S=power density P=power input to antenna G=power gain of the antenna in the direction of interest relative to an isotropic radiator R=distance to the center of radiation of the antenna CALCULATION A minimum test separation distance ≥ 20 cm is required between the antenna and radiating structures of the device and nearby persons to apply mobile device exposure limits. The distance must be at least 20 cm and fully supported by the operating and installation configurations of the transmitter and its antenna(s), according to the source-based time-averaged maximum power requirements of § 2.1091(d)(2). In cases where cable losses or other attenuations are applied to determine compliance, the most conservative operating configurations and exposure conditions must be evaluated. 2.4G WIFI: Antenna Gain=1dBi (Numeric 1.26), π=3.14 Frequency Output Power Output Power Power Density Power Density Limit MHz dBm mW mW/cm 2 mW/cm 2 2462 14.65 29.17 0.007 1

Dongguan address：Building 79, New Sun Industrial City, Lincun Community, Tangxia Town, Dongguan City Hangzhou address：Room 106, Building 3, Letong Science and Technology Park, No.500, Qiuyi Road, Binjiang District, Hangzhou Tel：0769-81777126 Fax：0769-81777126 http：www.ubuant.com SPECIFICATION FOR APPROVAL CUSTOMER NAME: 1931085 Ontario Ltd PRODUCT NAME: Internal Antenna CUSTOMER P/N: UB01NJ2D651A UB P/N: UB01NJ2D651A REV: A MANUFACTURER SIGNATURE CUSTOMER SIGNATURE CHECKED BY: Allen APPROVED BY: DATE: 2021/04/27 Contents ltemDescription 1.---------------------------------------------------------------Specification sheet 2.---------------------------------------------------------------Finished drawing 3.---------------------------------------------------------------Test report 4.-----------------------------------------------------Antenna installation diagram 1.Specification sheet: Product main technical parameters Main technical specifications Frequency Range (MHZ) 2400-2500 Impedance(Ω) 50 Gain(dBi) 1.45 VSWR ≤1.92 Polarization Linear Connector Type DIP Physical Properties Antenna Base Hardware Operating Temp -20°C~+50°C Storage Temp -20°C~+50°C 2. Finished drawing： 3. Test report(Only prototype test report) 3.1：Network analyzer test report 3.2:Darkroom 2D、3D Raditation Pattern(Complete machine data) 3.2.1 Efficiency and gain Frequency (MHz)Efficiency (%)Peak Gain / dB 2400 52.881.3 2450 52.421.45 2500 51.521.07 3.2.2 Active test report (5715JCB) (5073JCB) 3.2.2 Matching circuit (5715JCB) (5073JCB) 3.2.3 2D/3D Field pattern diagram 2400MHz 2450MHz 2500MHz Phi 0 2D图 Phi 90 2D图 Theta 90 2D图 4. Antenna installation diagram： 天线位置

Page 1 of 89 Report No.: AGC00008210801FE05 FCC ID : 2A2NF-GFC-HD-A APPLICATION PURPOSE : Original Equipment PRODUCT DESIGNATION : Wireless Security Camera BRAND NAME : N/A MODEL NAME : GFC-HD APPLICANT : 1931085 Ontario Ltd DATE OF ISSUE : Aug. 23, 2022 STANDARD(S) TEST PROCEDURE(S) : FCC Part 15.247 REPORT VERSION : V1.0 Attestation of Global Compliance (Shenzhen) Co., Ltd FCC Test Report Report No.: AGC00008210801FE05 Page 2 of 89 REPORT REVISE RECORD Report Version Revise Time Issued Date Valid Version Notes V1.0 / Aug. 23, 2022 Valid Initial Release Report No.: AGC00008210801FE05 Page 3 of 89 TABLE OF CONTENTS 1. VERIFICATION OF CONFORMITY .................................................................................................................. 5 2. GENERAL INFORMATION .............................................................................................................................. 6 2.1. PRODUCT DESCRIPTION ........................................................................................................................ 6 2.2. TABLE OF CARRIER FREQUENCYS ....................................................................................................... 6 2.3. IEEE 802.11N MODULATION SCHEME .................................................................................................... 7 2.4. RELATED SUBMITTAL(S) / GRANT (S) .................................................................................................... 7 2.5. TEST METHODOLOGY ............................................................................................................................. 7 2.6. SPECIAL ACCESSORIES ......................................................................................................................... 7 2.7. EQUIPMENT MODIFICATIONS ................................................................................................................. 7 2.8. ANTENNA REQUIREMENT....................................................................................................................... 8 3. MEASUREMENT UNCERTAINTY ................................................................................................................... 9 4. DESCRIPTION OF TEST MODES ................................................................................................................. 10 5. SYSTEM TEST CONFIGURATION ................................................................................................................ 11 5.1. CONFIGURATION OF EUT SYSTEM ...................................................................................................... 11 5.2. EQUIPMENT USED IN EUT SYSTEM ..................................................................................................... 11 5.3. SUMMARY OF TEST RESULTS .............................................................................................................. 11 6. TEST FACILITY .............................................................................................................................................. 12 7. OUTPUT POWER ........................................................................................................................................... 13 7.1. MEASUREMENT PROCEDURE ............................................................................................................. 13 7.2. TEST SET-UP (BLOCK DIAGRAM OF CONFIGURATION) .................................................................... 13 7.3. LIMITS AND MEASUREMENT RESULT .................................................................................................. 14 8. BANDWIDTH .................................................................................................................................................. 15 8.1. MEASUREMENT PROCEDURE ............................................................................................................. 15 8.2. TEST SET-UP (BLOCK DIAGRAM OF CONFIGURATION) .................................................................... 15 8.3. LIMITS AND MEASUREMENT RESULTS ............................................................................................... 16 9. CONDUCTED SPURIOUS EMISSION........................................................................................................... 29 9.1. MEASUREMENT PROCEDURE ............................................................................................................. 29 9.2. TEST SET-UP (BLOCK DIAGRAM OF CONFIGURATION) .................................................................... 29 9.3. MEASUREMENT EQUIPMENT USEDJN ................................................................................................ 29 9.4. LIMITS AND MEASUREMENT RESULT .................................................................................................. 29 Report No.: AGC00008210801FE05 Page 4 of 89 10. MAXIMUM CONDUCTED OUTPUT POWER SPECTRAL DENSITY ........................................................ 44 10.1 MEASUREMENT PROCEDURE ............................................................................................................ 44 10.2 TEST SET-UP (BLOCK DIAGRAM OF CONFIGURATION) ................................................................... 44 10.3 MEASUREMENT EQUIPMENT USED ................................................................................................... 44 10.4 LIMITS AND MEASUREMENT RESULT ................................................................................................. 44 11. RADIATED EMISSION ................................................................................................................................. 51 11.1. MEASUREMENT PROCEDURE............................................................................................................ 51 11.2. TEST SETUP ...............................................................................................................…

Text truncated - open the document above for the full version.

Report No.: AGC00008210801FE05 Page 58 of 89 EUT Wireless Security Camera Model Name GFC-HD Temperature 25°C Relative Humidity 60% Pressure 960hPa Test Voltage Normal Voltage Test Mode 802.11b with date rate 1 2462MHz Antenna Horizontal FrequencyMeter ReadingFactorEmission LevelLimitsMargin (MHz)(dBμV)(dB)(dBμV/m)(dBμV/m)(dB) 4924.00054.360.2254.5874-19.42 peak 4924.00043.240.2243.4654-10.54 AVG 7386.00049.282.6451.9274-22.08 peak 7386.00040.052.6442.6954-11.31 AVG Remark: Factor = Antenna Factor + Cable Loss – Pre-amplifier. Value Type EUT Wireless Security Camera Model Name GFC-HD Temperature 25°C Relative Humidity 60% Pressure 960hPa Test Voltage Normal Voltage Test Mode 802.11b with date rate 1 2462MHz Antenna Vertical FrequencyMeter ReadingFactorEmission LevelLimitsMargin (MHz)(dBμV)(dB)(dBμV/m)(dBμV/m)(dB) 4924.00056.140.2256.3674-17.64 peak 4924.00045.130.2245.3554-8.65 AVG 7386.00051.072.6453.7174-20.29 peak 7386.00042.352.6444.9954-9.01 AVG Remark: Factor = Antenna Factor + Cable Loss – Pre-amplifier. Value Type RESULT: PASS Note: The amplitude of other spurious emissions from 1G to 25 GHz which are attenuated more than 20 dB below the permissible value need not be reported. Factor = Antenna Factor + Cable loss - Amplifier gain, Margin=Level-Limit. The “Factor” value can be calculated automatically by software of measurement system. All test modes had been pre-tested. The 802.11b mode is the worst case and recorded in the report. Report No.: AGC00008210801FE05 Page 59 of 89 Test result for band edge emission at restricted bands EUT Wireless Security Camera Model Name GFC-HD Temperature 25°C Relative Humidity 60% Pressure 960hPa Test Voltage Normal Voltage Test Mode 802.11b with data rate 1 2412MHz Antenna Horizontal Test Graph for Peak Measurement Test Graph for Average Measurement RESULT: PASS Report No.: AGC00008210801FE05 Page 60 of 89 EUT Wireless Security Camera Model Name GFC-HD Temperature 25°C Relative Humidity 60% Pressure 960hPa Test Voltage Normal Voltage Test Mode 802.11b with data rate 1 2412MHz Antenna Vertical Test Graph for Peak Measurement Test Graph for Average Measurement RESULT: PASS Report No.: AGC00008210801FE05 Page 61 of 89 EUT Wireless Security Camera Model Name GFC-HD Temperature 25°C Relative Humidity 60% Pressure 960hPa Test Voltage Normal Voltage Test Mode 802.11b with data rate 1 2462MHz Antenna Horizontal Test Graph for Peak Measurement Test Graph for Average Measurement RESULT: PASS Report No.: AGC00008210801FE05 Page 62 of 89 EUT Wireless Security Camera Model Name GFC-HD Temperature 25°C Relative Humidity 60% Pressure 960hPa Test Voltage Normal Voltage Test Mode 802.11b with data rate 1 2462MHz Antenna Vertical Test Graph for Peak Measurement Test Graph for Average Measurement RESULT: PASS Report No.: AGC00008210801FE05 Page 63 of 89 EUT Wireless Security Camera Model Name GFC-HD Temperature 25°C Relative Humidity 60% Pressure 960hPa Test Voltage Normal Voltage Test Mode 802.11g with data rate 6 2412MHz Antenna Horizontal Test Graph for Peak Measurement Test Graph for Average Measurement RESULT: PASS Report No.: AGC00008210801FE05 Page 64 of 89 EUT Wireless Security Camera Model Name GFC-HD Temperature 25°C Relative Humidity 60% Pressure 960hPa Test Voltage Normal Voltage Test Mode 802.11g with data rate 6 2412MHz Antenna Vertical Test Graph for Peak Measurement Test Graph for Average Measurement RESULT: PASS Report No.: AGC00008210801FE05 Page 65 of 89 EUT Wireless Security Camera Model Name GFC-HD Temperature 25°C Relative Humidity 60% Pressure 960hPa Test Voltage Normal Voltage Test Mode 802.11g with data rate 6 2462MHz Antenna Horizontal Test Graph for Peak Measurement Test Graph for Average Measurement RESULT: PASS Report No.: AGC00008210801FE05 Page 66 of 89 EUT Wireless Security Camera Model Name GFC-HD Temperature 25°C Relative Humidity 60% Pressure 960hPa Test Voltage Normal Voltage Test Mode 802.11g with data rate 6 2462MHz Antenna Vertical Test Graph for Peak Measurement Test Graph for Average Measurement RESULT: PASS Report No.: AGC00008210801FE05 Page 67 of 89 EUT Wireless Security Camera Model Name GFC-HD Temperature 25°C Relative Humidity 60% Pressure 960hPa Test Voltage Normal Voltage Test Mode 802.11n20 with data rate 6.5 2412MHz Antenna Horizontal Test Graph for Peak Measurement Test Graph for Average Measurement RESULT: PASS Report No.: AGC00008210801FE05 Page 68 of 89 EUT Wireless Security Camera Model Name GFC-HD Temperature 25°C Relative Humidity 60% Pressure 960hPa Test Voltage Normal Voltage Test Mode 802.11n20 with data rate 6.5 2412MHz Antenna Vertical Test Graph for Peak Measurement Test Graph for Average Measurement RESULT: PASS Report No.: AGC00008210801FE05 Page 69 of 89 EUT Wireless Security Camera Model Name GFC-HD Temperature 25°C Relative Humidity 60% Pressure 960hPa Test Voltage Normal Voltage Test Mode 802.11n20 with data rate 6.5 2462MHz Antenna Horizontal Test Graph for Peak Measurement Test Graph for Average Measurement RESULT: PASS Report No.: AGC00008210801FE05 Page 70 of 89 EUT Wireless Security Camera Model Name GFC-HD Temperature 25°C Relative Humidity 60% Pressure 960hPa Test Voltage Normal Voltage Test Mode 802.11n20 with data rate 6.5 2462MHz Antenna Vertical Test Graph for Peak Measurement Test Graph for Average Measurement RESULT: PASS Report No.: AGC00008210801FE05 Page 71 of 89 EUT Wireless Security Camera Model Name GFC-HD Temperature 25°C Relative Humidity 60% Pressure 960hPa Test Voltage Normal Voltage Test Mode 802.11n40 with data rate 13.5 2422MHz Antenna Horizontal Test Graph for Peak Measurement Test Graph for Average Measurement RESULT: PASS Report No.: AGC00008210801FE05 Page 72 of 89 EUT Wireless Security Camera Model Name GFC-HD Temperature 25°C Relative Humidity 60% Pressure 960hPa Test Voltage Normal Voltage Test Mode 802.11n40 with data rate 13.5 2422MHz Antenna Vertical Test Graph for Peak Measurement Test Graph for Average Measurement RESULT: PASS Report No.: AGC00008210801FE05 P…
