2A2NI-T30IT Camera

IT camera This equipment is only used for legal monitoring scenarios, please do not use illegally, otherwise the company will not be responsible for the legal liabilities arising. Note: all contents are subject to those in the APP 【1】Turn on/off night vision Click to enter the device video screen, click the light icon under the video Select night vision, select infrared on/infrared off 【2】 sing in 【3】Device page When entering the APP for the first time, click "＋" above or “Add device" below, and then select the device to scan the QR code and pair network. A prompt will pop up to show the device type and then select the type to pair Click to enter and check whether the indicator light is flashing red, and then click to start the connection Enter the correct Wi-Fi hotspot and password and click Next 【2】 Turn on/off the work indicator 【3】 Turn on/off motion detection Set/click to turn on/off motion detection 【4】 View motion detection records You can view the detection records 【3】 After adding, select the card number and package to be purchased on the order page, and select the payment method to pay 【4】 Click "My", find order management and click to enter to view the details of the purchased cloud storage package and traffic card package 【4】 Click to open the wake-up setting/find the wake- up mode under the list, clickAfter that, three options will pop up, click to enable the option to wake up the alarm，At this time, the device's alarm/wakeup setting is successful 【1】 All permissions to be reminded when downloading the app must be turned on. 【1】 The factory is not restored, the blue light and red light alternately flash quickly 【2】 Reset is complete, blue light and red light is off 【3】 The reset is successful, the network is to be configured, the blue light is off, and the red light flashes slowly 【4】 The network is not configured, the blue light is off, and the red light is always on 【2】 It is recommended to restore the factory settings before configuring the new camera. 【1】 After the camera is powered on, press and hold the reset button for about 8 seconds. When the indicator light turns to blue light off and red light flashes slowly, the device successfully restores the factory settings. 【2】 Before setting up the camera, please plug it in and turn it on, and set it within the range of the router’s strong Wi-Fi signal. 【3】 The memory card needs to be inserted when the camera is turned off (the memory card format needs to be FAT32 ) 【4】 It is normal that the mobile phone cannot access the Internet after connecting to the camera's hotspot. The camera's hotspot is only to help connect and watch the pictures taken by the camera at close range. Method to restore factory settings: On the homepage device, click the two-point more icon to open, and click motion detection 【2】 If there is no contact in the list, click "Add contact" to enter the "Add contact" list. Input the mobile phone number, fill in the user name and select the permission to share with the contact, and click share to share the device successfully Click to enter the device video screen, click the settings icon in the upper right corner, and click alarm 【1】 After adding a device, click the more icon on the right side of the device on the homepage/open and click to share the device 【3】 After the device is successfully shared, click " Permission management" to change the permissions to the device. After canceling sharing, it will become a sharing state and can be shared with other friends again 【1】 Open the APP and click "My", find service recommendation and click "4G traffic card package" 【2】 Click "Add card number" in the top right corner of the order page, enter card number and click "Complete 【2】 Enter the order confirmation page, select the packageto be purchased, click "Confirm", then select the device to conduct the purchase, and click "Pay now" to complete the payment 【1】 Open the APP and click "My", find service recommendation and click cloud storage Click to enter the video screen of the device, click " More settings" in the upper right corner, find the indicator light, and click to turn it on/off Please use the email to log in (the permission of the APP reminder must be allowed, otherwise you can connect There will be problems) Instructions Device network Setting/device descriptionSharing equipmentAttentionProduct warranty terms Indicator light description Cloud storage/data card package Page description Automatic wake-up power saving mode 1 8 12 13 9 10 11 4 5 2 3 6 7 1 Time display 2 Switch to night vision mode 3 sound 4 Start/pause 5 PTZ control (only available on certain devices) 6 Take pictures 7 Walkie-talkie mode (only available on certain devices) 8 More settings 9 Device settings 10 Definition switching 11 Full screen mode 12 Video playback (only available on certain devices) 13 Video recording 4 6 1 2 2 5 3 1 2 1 2 3 3 4 5 1 3 4 6 7 8 1 2 3 2 3 1 2 4 1 2 3 4 5 6 7 8 10 9 1 2 3 4 5 6 【5】 The configuration network is abnormal, the blue light flashes quickly and the red light is always on 【6】 When configuring the network, the blue light flashes quickly and the red light is off 【7】 The network is configured successfully, the blue light is always on and the red light is off 【8】 During the equipment upgrade, the blue light flashes slowly (interval 0.5 seconds) and the red light is always on Dear users: During the warranty period, the company will provide free repairs for any faults caused by the quality of the product itself under normal use： 【1】 The warranty period of this product is one year from the date of purchase (subject to the valid proof of purchase) 【2】 The following situations do not belong to the scope of free maintenance services： 【3】 If the returned product does not comply with the terms of this warranty, if repair is required, the company will charge the corresponding fee.； 【4】The after-sales service after the warranty period, we will charge the corresponding maintenance cost and replacement parts cost a…

Text truncated - open the document above for the full version.

Shenzhen Xuanyuanxing Electronic Technology Co., Ltd. Agent Authorization Company: Shenzhen Xuanyuanxing Electronic Technology Co., Ltd. Address: Room 1308, Jinhua Building, Dalang Street, Longhua District, Shenzhen City, Guangdong Province, China Product Name: IT Camera Trade Mark: / Model Numbers: T30, T20, T13, S20, 06S, X5, L82, L83, L85, L10, L30, L93, S93, S93A, T40 FCC ID: 2A2NI-T30 We authorize MiCOM Labs Inc., 575 Boulder Court, Pleasanton, California 94566, USA, to act on our behalf on all matters concerning the certification of above named equipment. We declare that MiCOM Labs Inc. is allowed to forward all information related to the approval and certification of equipment to the regulatory agencies as required and to discuss any issues concerning the approval application. Any and all acts carried out by MiCOM Labs on our behalf shall have the same effect as acts of our own. Signature: Date: 2021-07-28 Name: shoufeng Huang Title: General manager Company: Shenzhen Xuanyuanxing Electronic Technology Co., Ltd.

Shenzhen Xuanyuanxing Electronic Technology Co., Ltd. Add: Room 1308, Jinhua Building, Dalang Street, Longhua District, Shenzhen City, Guangdong Province, China Tel: 075583320563 Fax: 075583320563 Date: 2021-07-28 Dear Sir/Madam, We, Shenzhen Xuanyuanxing Electronic Technology Co., Ltd. Hereby declares the following statement , PCB board, circuit, structure and internal of these model(s) are the same, Only model number is different for these models: Product name: IT Camera Models No.: T30, T20, T13, S20, 06S, X5, L82, L83, L85, L10, L30, L93, S93, S93A, T40 Sincerely, Client’s name / title : shoufeng Huang / General manager Contact information / address: Room 1308, Jinhua Building, Dalang Street, Longhua District, Shenzhen City, Guangdong Province, China Tel: 075583320563 Fax: 075583320563 E-Mail: [email protected]

Shenzhen Xuanyuanxing Electronic Technology Co., Ltd. Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 USA Date: 2021-07-28 Subject; Request for Confidentiality FCC ID: 2A2NI-T30 To Whom It May Concern, Pursuant to the provisions of the Commission’s rules Title 47 Sections §0.457 and §0.459, we are requesting the Commission to withhold the following attachment(s) as confidential documents from public disclosure indefinitely. These documents contain detailed system and equipment descriptions and are considered as proprietary information in operation of the equipment. The public disclosure of these documents might be harmful to our company and would give competitors an unfair advantage in the market. Schematic Diagram Block Diagram Operational Description In additional to above mentioned documents, in order to comply with the marketing regulations in Title 47 CFR §2.803 and the importation rules in Title 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices, we request Short Term Confidentiality of the following attachment(s); External Photos Test Setup Photos Internal Photos User Manual For 45 days, pursuant to Public Notice DA 04-1705. OR For 180 days pursuant to KDB 726920 D01. It is our understanding that all measurement test reports, FCC ID label format and correspondence during the certification review process cannot be granted as confidential documents and this information will be available for public review once the grant of equipment authorization is issued. Sincerely, Signature: Name: shoufeng Huang Title: General manager

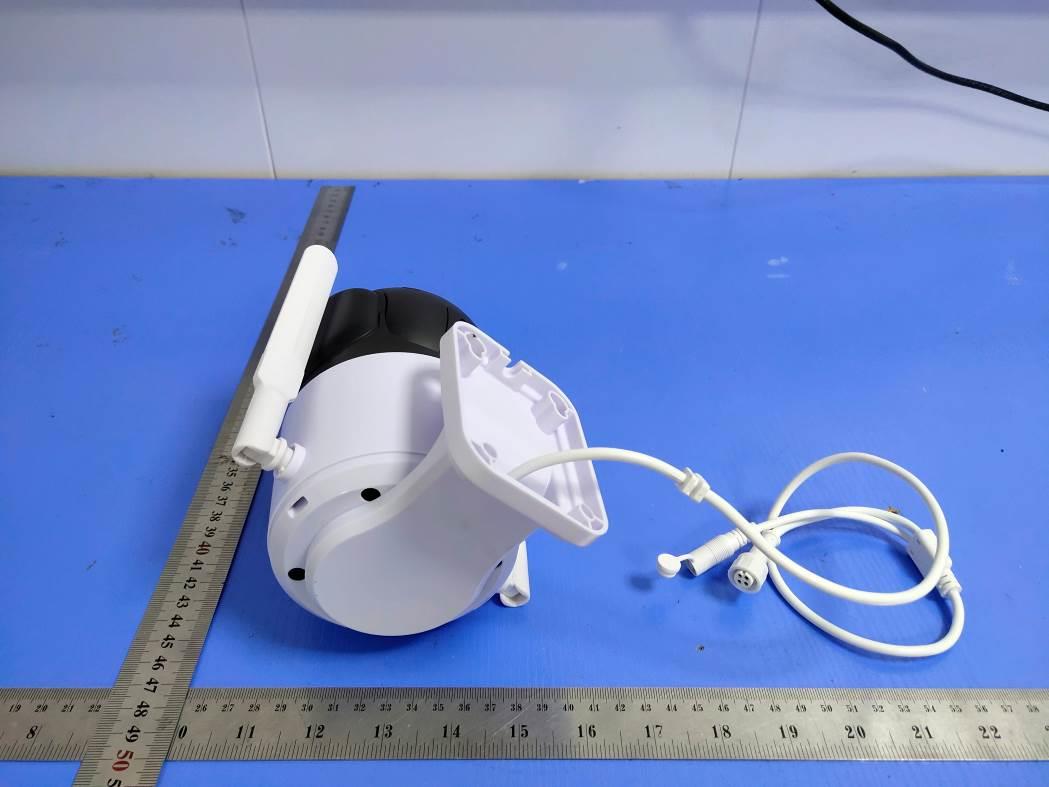

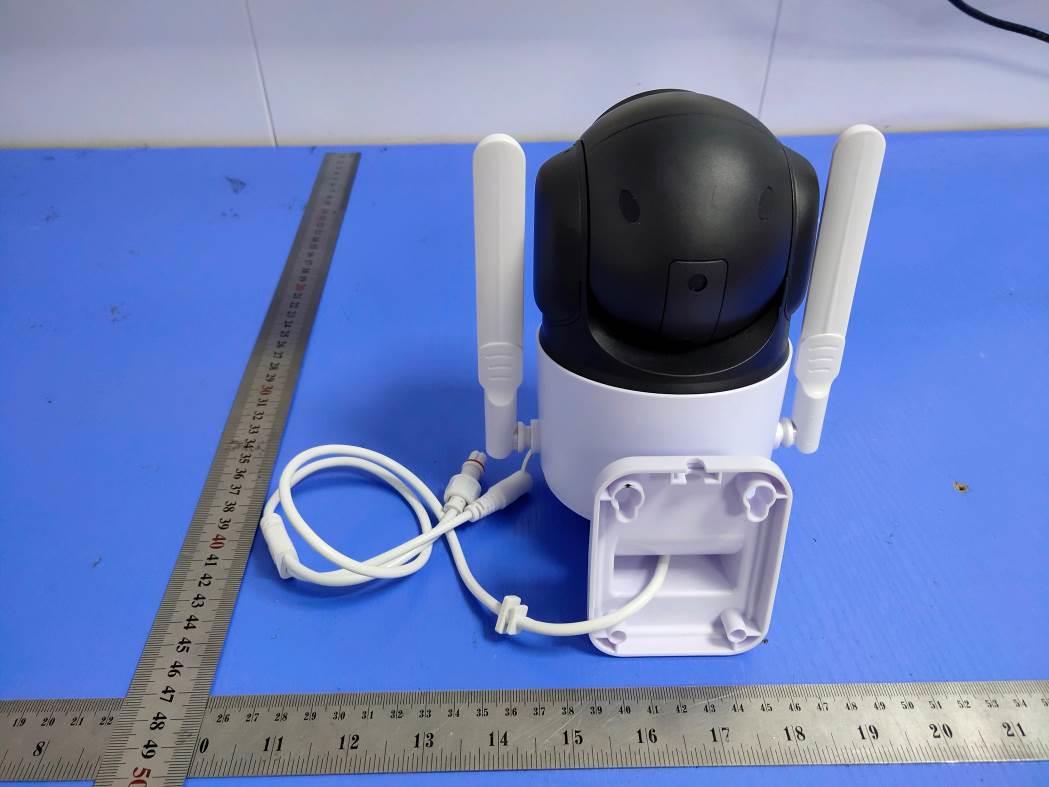

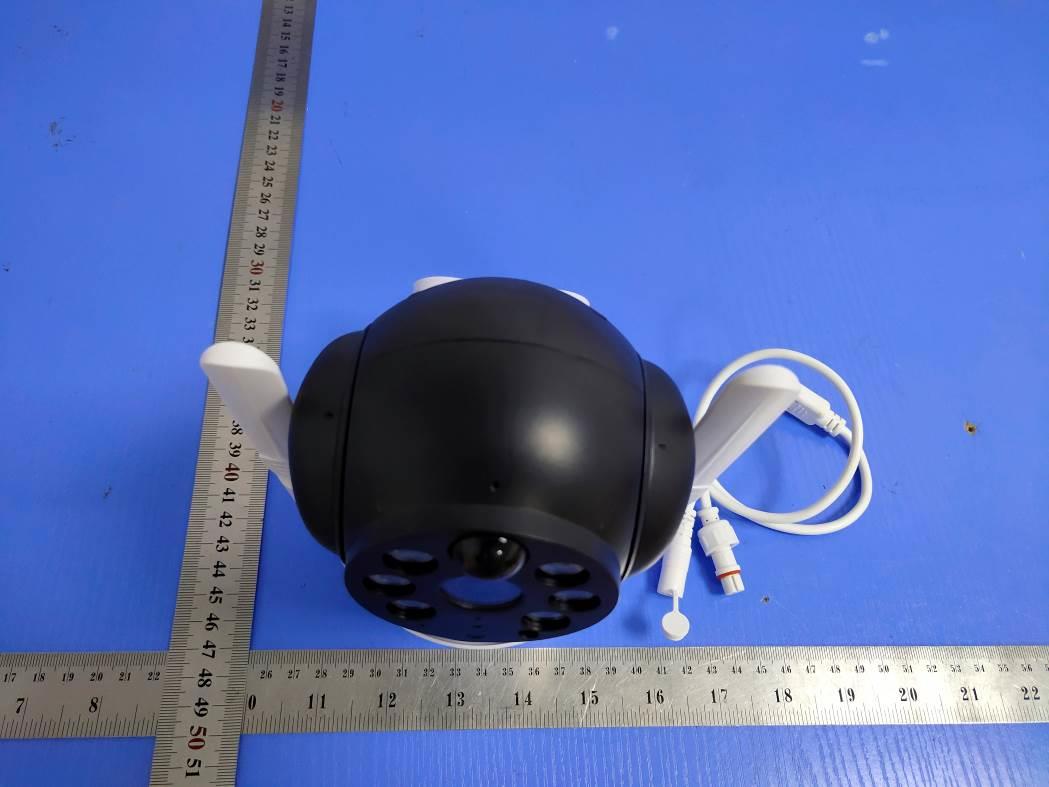

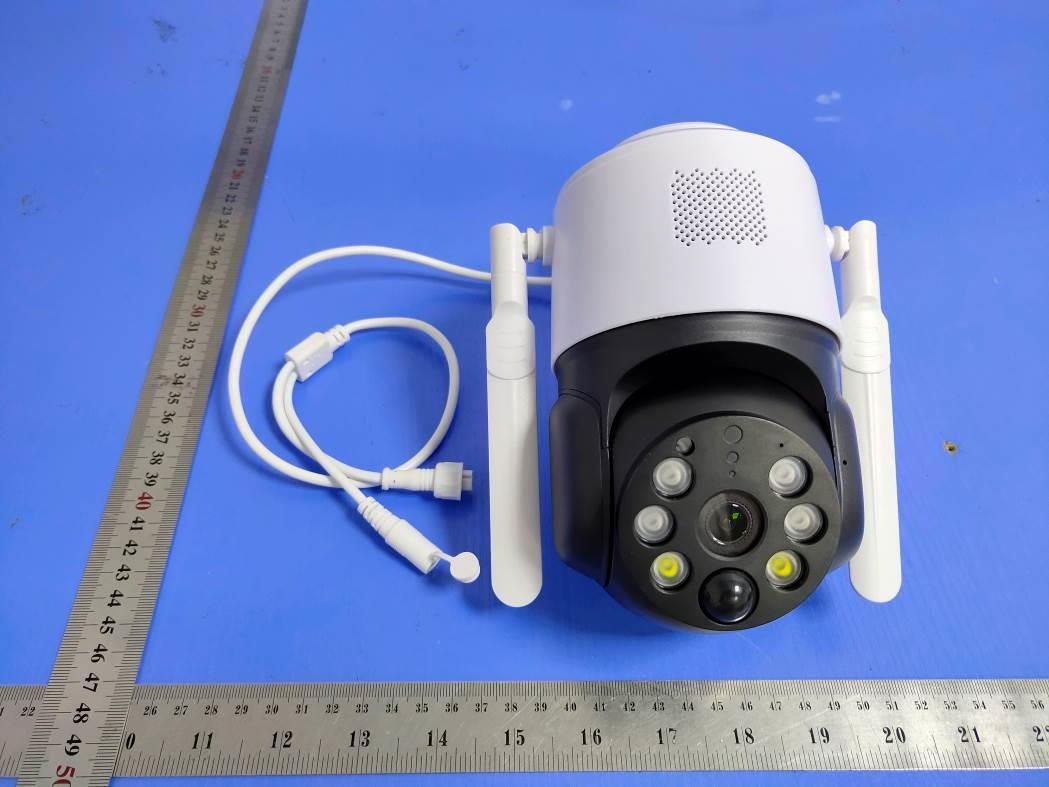

Shenzhen LCS Compliance Testing Laboratory Ltd. FCC ID: 2A2NI-T30 Appendix E for External Photos of EUT Fig.1 Fig.2 2.4G WIFI ANT This ANT is vacant. Shenzhen LCS Compliance Testing Laboratory Ltd. FCC ID: 2A2NI-T30 Fig.3 Fig.4 Shenzhen LCS Compliance Testing Laboratory Ltd. FCC ID: 2A2NI-T30 Fig.5 Fig.6 Shenzhen LCS Compliance Testing Laboratory Ltd. FCC ID: 2A2NI-T30 Fig.7 Fig.8

Shenzhen LCS Compliance Testing Laboratory Ltd. FCC ID: 2A2NI-T30 _____________________________________________________________________________________________________ This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 1 of 1 LABEL AND LOCATION (Size: L3.0cm x 2.0cm) Label Location IT Camera Model: T30 FCC ID: 2A2NI-T30 Caution:This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Shenzhen LCS Compliance Testing Laboratory Ltd. FCC ID: 2A2NI-T30 Appendix D for Internal Photos of EUT Fig.1 Fig.2 Shenzhen LCS Compliance Testing Laboratory Ltd. FCC ID: 2A2NI-T30 Fig.3 Fig.4 Shenzhen LCS Compliance Testing Laboratory Ltd. FCC ID: 2A2NI-T30 Fig.5 Fig.6 Shenzhen LCS Compliance Testing Laboratory Ltd. FCC ID: 2A2NI-T30 Fig. 7 Fig. 8 Shenzhen LCS Compliance Testing Laboratory Ltd. FCC ID: 2A2NI-T30 Fig. 9 Fig. 10 Shenzhen LCS Compliance Testing Laboratory Ltd. FCC ID: 2A2NI-T30 Fig. 11 Fig. 12 Shenzhen LCS Compliance Testing Laboratory Ltd. FCC ID: 2A2NI-T30 Fig. 13 Fig. 14 Shenzhen LCS Compliance Testing Laboratory Ltd. FCC ID: 2A2NI-T30 Fig. 15 Fig. 16 Shenzhen LCS Compliance Testing Laboratory Ltd. FCC ID: 2A2NI-T30 Fig. 17 Fig. 18

Shenzhen LCS Compliance Testing Laboratory Ltd. FCC ID: 2A2NI-T30 This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 1 of 4 FCC RF Exposure Evaluation 1. Product Information FCC ID 2A2NI-T30 Product name IT Camera Model number T30 Additional Model T20, T13, S20, 06S, X5, L82, L83, L85, L10, L30, L93, S93, S93A, T40 Model Declaration PCB board, structure and internal of these model(s) are the same, So no additional models were tested. Power supply Input: DC 5V DC 3.7V by Rechargeable Li-ion Battery, 2000mAh Modulation Type GFSK for Bluetooth V5.0(DTS) IEEE 802.11b: DSSS(CCK,DQPSK,DBPSK); IEEE 802.11g/n: OFDM(64QAM, 16QAM, QPSK, BPSK) Antenna Type Internal Antenna Antenna Gain 0dBi(Max.) Hardware version / Software version / FCC Operation frequency 2412MHz-2462MHz Exposure category General population/uncontrolled environment EUT Type Production Unit Device Type Mobile Devices 2. Evaluation Method Systems operating under the provisions of FCC 47 CFR section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. In accordance with 47 CFR FCC Part 2 Subpart J, section 2.1091 this device has been defined as mobile device whereby a distance of 0.2m normally can be maintained between the user and the device, and below RF Permissible Exposure limit shall comply with. In accordance with KDB447498D01 for Simultaneous transmission MPE test exclusion applies when the sum of the MPE ratios for all simultaneous transmitting antennas incorporated in a host device, based on the calculated/estimated, numerically modelled or measured field strengths or power density, is ≤ 1.0. The MPE ratio of each antenna is determined at the minimum test separation distance required by the operating configurations and exposure conditions of the host device, according to the ratio of field strengths or power density to MPE limit, at the test frequency. Either the maximum peak or spatially averaged results from measurements or numerical simulations may be used to determine the MPE ratios. Spatial averaging does not apply when MPE is estimated using simple calculations based on far-field plane-wave equivalent conditions. The antenna installation and operating requirements for the host device must meet the minimum test separation distances required by all antennas, in both standalone and simultaneous transmission operations, to satisfy compliance. Shenzhen LCS Compliance Testing Laboratory Ltd. FCC ID: 2A2NI-T30 This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 2 of 4 3. Limit 3. 1 Refer Evaluation Method ANSI C95.1–1999: IEEE Standard for Safety Levels with Respect to Human Exposure to Radio Frequency Electromagnetic Fields, 3 kHz to 300 GHz. FCC KDB publication 447498 D01 General 1 RF Exposure Guidance v06: Mobile and Portable Devices RF Exposure Procedures and Equipment Authorization Policies. FCC CFR 47 part1 1.1310: Radiofrequency radiation exposure limits. FCC CFR 47 part2 2.1091: Radiofrequency radiation exposure evaluation: mobile devices 3. 2 Limit Limits for Maximum Permissible Exposure (MPE)/Controlled Exposure Frequency Range(MHz) Electric Field Strength(V/m) Magnetic Field Strength(A/m) Power Density (mW/cm²) Averaging Time (minute) Limits for Occupational/Controlled Exposure 0.3 – 3.0 3.0 – 30 30 – 300 300 – 1500 1500 – 100,000 614 1842/f 61.4 / / 1.63 4.89/f 0.163 / / (100) * (900/f 2 )* 1.0 f/300 5 6 6 6 6 6 Limits for Maximum Permissible Exposure (MPE)/Uncontrolled Exposure Frequency Range(MHz) Electric Field Strength(V/m) Magnetic Field Strength(A/m) Power Density (mW/cm²) Averaging Time (minute) Limits for Occupational/Controlled Exposure 0.3 – 3.0 3.0 – 30 30 – 300 300 – 1500 1500 – 100,000 614 824/f 27.5 / / 1.63 2.19/f 0.073 / / (100) * (180/f 2 )* 0.2 f/1500 1.0 30 30 30 30 30 F=frequency in MHz *=Plane-wave equivalent power density 4. MPE Calculation Method Predication of MPE limit at a given distance Equation from page 18 of OET Bulletin 65, Edition 97-01 S=PG/4πR² Where: S=power density P=power input to antenna G=power gain of the antenna in the direction of interest relative to an isotropic radiator R=distance to the center of radiation of the antenna 5. Antenna Information Artemis Antenna can only use antennas certificated as follows provided by manufacturer; Internal Identification Antenna type and antenna number Operate frequency band Maximum antenna gain Note Antenna External Antenna 2400MHz-2500MHz 0dBi WIFI Antenna Shenzhen LCS Compliance Testing Laboratory Ltd. FCC ID: 2A2NI-T30 This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 3 of 4 6. Conducted Power <2.4GWLAN Max Conducted Power > Mode Channel Frequency(MHz) Max Conducted Power (dBm) IEEE 802.11b 1 2412 11.50 6 2437 12.41 11 2462 12.76 IEEE 802.11g 1 2412 11.90 6 2437 12.32 11 2462 11.40 IEEE 802.11n HT20 1 2412 11.86 6 2437 12.20 11 2462 11.31 IEEE 802.11n HT40 3 2422 11.43 6 2437 11.64 9 2452 11.60 7. Manufacturing Tolerance <2.4G WIFI> 11B (Peak) Channel Channel 1 Channel 6 Channel 11 Target (dBm) 12.0 13.0 13.0 Tolerance ±(dB) 1.0 1.0 1.0 11G (Peak) Channel Channel 1 Channel 6 Channel 11 Target (dBm) 12.0 12.0 11.0 Tolerance ±(dB) 1.0 1.0 1.0 11N20SISO (Peak) Channel Channel 1 Channel 6 Channel 11 Target (dBm) 12.0 12.0 11.0 Tolerance ±(dB) 1.0 1.0 1.0 11N40SISO (Peak) Channel Channel 3 Channel 6 Channel 9 Target (dBm) 11.0 12.0 12.0 Tolerance ±(dB) 1.0 1.0 1.0 Shenzhen LCS Compliance Testing Laboratory Ltd. FCC ID: 2A2NI-T30 This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 4 of 4 8. Measurement Results 8.1 Standalone MPE As declared by the Applicant, the EUT is a wireless device used in a fix applica…

Text truncated - open the document above for the full version.

Shenzhen LCS Compliance Testing Laboratory Ltd. FCC ID: 2A2NI-T30 Report No.: LCS 210628026AEA Appendix A RF Test Data for 2.4G WIFI (Conducted Measurement) Product Name: IT Camera Test Model: T30 Environmental Conditions Temperature: 21 .6 C Relative Humidity: 52.7% AT M Pressure: 100.0 kPa Test Engineer: Carl Fu Supervised by: Li Huan A.1 Duty Cycle Test Result TestMode Channel Transmission Duration [ ms] Transmission Period [ms] Duty Cycle [%] Limit Verdict 11B 2412 50.00 50.00 100.00 --- PASS 2437 50.00 50.00 100.00 --- PASS 2462 50.00 50.00 100.00 --- PASS 11G 2412 50.00 50.00 100.00 --- PASS 2437 50.00 50.00 100.00 --- PASS 2462 50.00 50.00 100.00 --- PASS 11N20SISO 2412 50.00 50.00 100.00 --- PASS 2437 50.00 50.00 100.00 --- PASS 2462 50.00 50.00 100.00 --- PASS 11N40SISO 2422 50.00 50.00 100.00 --- PASS 2437 50.00 50.00 100.00 --- PASS 2452 50.00 50.00 100.00 --- PASS Shenzhen LCS Compliance Testing Laboratory Ltd. FCC ID: 2A2NI-T30 Report No.: LCS 210628026AEA Test Graphs 11B_Ant1_2412 11B_Ant1_2437 11B_Ant1_2462 Shenzhen LCS Compliance Testing Laboratory Ltd. FCC ID: 2A2NI-T30 Report No.: LCS 210628026AEA 11G_Ant1_2412 11G_Ant1_2437 Shenzhen LCS Compliance Testing Laboratory Ltd. FCC ID: 2A2NI-T30 Report No.: LCS 210628026AEA 11G_Ant1_2462 11N20SISO_Ant1_2412 11N20SISO_Ant1_2437 Shenzhen LCS Compliance Testing Laboratory Ltd. FCC ID: 2A2NI-T30 Report No.: LCS 210628026AEA 11N20SISO_Ant1_2462 11N40SISO_Ant1_2422 Shenzhen LCS Compliance Testing Laboratory Ltd. FCC ID: 2A2NI-T30 Report No.: LCS 210628026AEA 11N40SISO_Ant1_2437 11N40SISO_Ant1_2452 Shenzhen LCS Compliance Testing Laboratory Ltd. FCC ID: 2A2NI-T30 Report No.: LCS 210628026AEA A.2 Maximum conducted output power Test Result TestMode Channel Result[dBm] Limit[dBm] Verdict 11B 2412 11.50 ≤30 PASS 2437 12.41 ≤30 PASS 2462 12.76 ≤30 PASS 11G 2412 11.90 ≤30 PASS 2437 12.32 ≤30 PASS 2462 11.40 ≤30 PASS 11N20SISO 2412 11.86 ≤30 PASS 2437 12.20 ≤30 PASS 2462 11.31 ≤30 PASS 11N40SISO 2422 11.43 ≤30 PASS 2437 11.64 ≤30 PASS 2452 11.60 ≤30 PASS Shenzhen LCS Compliance Testing Laboratory Ltd. FCC ID: 2A2NI-T30 Report No.: LCS 210628026AEA A.3 Maximum power spectral density Test Result TestMode Channel Meas.Level [dBm/10kHz] Convert Factor Result [dBm/3kHz] Limit [dBm/3kHz] Verdict 11B 2412 -15.51 -5.23 -20.74 ≤8 PASS 2437 -14.59 -5.23 -19.82 ≤8 PASS 2462 -14.32 -5.23 -19.55 ≤8 PASS 11G 2412 -16.05 -5.23 -21.28 ≤8 PASS 2437 -15.35 -5.23 -20.58 ≤8 PASS 2462 -16.00 -5.23 -21.23 ≤8 PASS 11N20SISO 2412 -15.62 -5.23 -20.85 ≤8 PASS 2437 -15.54 -5.23 -20.77 ≤8 PASS 2462 -16.37 -5.23 -21.6 ≤8 PASS 11N40SISO 2422 -20.20 -5.23 -25.43 ≤8 PASS 2437 -18.30 -5.23 -23.53 ≤8 PASS 2452 -18.71 -5.23 -23.94 ≤8 PASS ***Note: The Convert Factor = 10*log(3KHz/10KHz) = -5.23 Shenzhen LCS Compliance Testing Laboratory Ltd. FCC ID: 2A2NI-T30 Report No.: LCS 210628026AEA Test Graphs 11B_Ant1_2412 11B_Ant1_2437 11B_Ant1_2462 Shenzhen LCS Compliance Testing Laboratory Ltd. FCC ID: 2A2NI-T30 Report No.: LCS 210628026AEA 11G_Ant1_2412 11G_Ant1_2437 Shenzhen LCS Compliance Testing Laboratory Ltd. FCC ID: 2A2NI-T30 Report No.: LCS 210628026AEA 11G_Ant1_2462 11N20SISO_Ant1_2412 11N20SISO_Ant1_2437 Shenzhen LCS Compliance Testing Laboratory Ltd. FCC ID: 2A2NI-T30 Report No.: LCS 210628026AEA 11N20SISO_Ant1_2462 11N40SISO_Ant1_2422 Shenzhen LCS Compliance Testing Laboratory Ltd. FCC ID: 2A2NI-T30 Report No.: LCS 210628026AEA 11N40SISO_Ant1_2437 11N40SISO_Ant1_2452 Shenzhen LCS Compliance Testing Laboratory Ltd. FCC ID: 2A2NI-T30 Report No.: LCS 210628026AEA A.4: 6dB Bandwidth Test Result TestMode Antenna Channel 6dB Bandwidth [MHz] Limit[MHz] Verdict 11B Ant1 2412 9.200 0.5 PASS 2437 9.320 0.5 PASS 2462 9.560 0.5 PASS 11G Ant1 2412 16.640 0.5 PASS 2437 16.440 0.5 PASS 2462 16.240 0.5 PASS 11N20SISO Ant1 2412 17.680 0.5 PASS 2437 17.680 0.5 PASS 2462 17.360 0.5 PASS 11N40SISO Ant1 2422 36.400 0.5 PASS 2437 35.840 0.5 PASS 2452 35.360 0.5 PASS Shenzhen LCS Compliance Testing Laboratory Ltd. FCC ID: 2A2NI-T30 Report No.: LCS 210628026AEA Test Graphs 11B_Ant1_2412 11B_Ant1_2437 11B_Ant1_2462 Shenzhen LCS Compliance Testing Laboratory Ltd. FCC ID: 2A2NI-T30 Report No.: LCS 210628026AEA 11G_Ant1_2412 11G_Ant1_2437 Shenzhen LCS Compliance Testing Laboratory Ltd. FCC ID: 2A2NI-T30 Report No.: LCS 210628026AEA 11G_Ant1_2462 11N20SISO_Ant1_2412 11N20SISO_Ant1_2437 Shenzhen LCS Compliance Testing Laboratory Ltd. FCC ID: 2A2NI-T30 Report No.: LCS 210628026AEA 11N20SISO_Ant1_2462 11N40SISO_Ant1_2422 Shenzhen LCS Compliance Testing Laboratory Ltd. FCC ID: 2A2NI-T30 Report No.: LCS 210628026AEA 11N40SISO_Ant1_2437 11N40SISO_Ant1_2452 Shenzhen LCS Compliance Testing Laboratory Ltd. FCC ID: 2A2NI-T30 Report No.: LCS 210628026AEA A.5 Conducted Spurious Emission Test Result TestMode Antenna Channel FreqRange [Mhz] RefLevel [dBm] Result [dBm] Limit [dBm] Verdict 11B Ant1 2412 Reference 1.47 1.47 --- PASS 30~1000 1.47 -61.8 ≤-18.53 PASS 1000~26500 1.47 -47.55 ≤-18.53 PASS 2437 Reference 2.39 2.39 --- PASS 30~1000 2.39 -61.73 ≤-17.61 PASS 1000~26500 2.39 -46.95 ≤-17.61 PASS 2462 Reference 2.77 2.77 --- PASS 30~1000 2.77 -62.23 ≤-17.24 PASS 1000~26500 2.77 -46.46 ≤-17.24 PASS 11G Ant1 2412 Reference -1.73 -1.73 --- PASS 30~1000 -1.73 -61.54 ≤-21.73 PASS 1000~26500 -1.73 -46.86 ≤-21.73 PASS 2437 Reference -1.20 -1.20 --- PASS 30~1000 -1.20 -60.11 ≤-21.2 PASS 1000~26500 -1.20 -47.63 ≤-21.2 PASS 2462 Reference -1.89 -1.89 --- PASS 30~1000 -1.89 -60.64 ≤-21.89 PASS 1000~26500 -1.89 -47.02 ≤-21.89 PASS 11N20SISO Ant1 2412 Reference -1.18 -1.18 --- PASS 30~1000 -1.18 -60.56 ≤-21.18 PASS 1000~26500 -1.18 -47.81 ≤-21.18 PASS 2437 Reference -1.23 -1.23 --- PASS 30~1000 -1.23 -61.27 ≤-21.23 PASS 1000~26500 -1.23 -47.29 ≤-21.23 PASS 2462 Reference -1.41 -1.41 --- PASS 30~1000 -1.41 -61.69 ≤-21.41 PASS 1000~26500 -1.41 -47.67 ≤-21.41 PASS 11N40SISO Ant1 2422 Reference -5.69 -5.69 --- PASS 30~1000 -5.69 -56.91 ≤-25.69 PASS 1000~26500 -5.69 -48 ≤-25.69 PASS 2437 Reference -4.76 -4.76 --- PASS 30~1000 …

Text truncated - open the document above for the full version.

Shenzhen LCS Compliance Testing Laboratory Ltd. FCC ID: 2A2NI-T30 Report No.: LCS210628026AEA This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 1 of 33 FCC TEST REPORT For Shenzhen Xuanyuanxing Electronic Technology Co., Ltd. IT Camera Test Model: T30 Additional Model No.: Please Refer to Page 6 Prepared for : Shenzhen Xuanyuanxing Electronic Technology Co., Ltd. Address : Room 1308, Jinhua Building, Dalang Street, Longhua District, Shenzhen City, Guangdong Province, China Prepared by : Shenzhen LCS Compliance Testing Laboratory Ltd. Address : 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel : (+86)755-82591330 Fax : (+86)755-82591332 Web : www.LCS-cert.com Mail : [email protected] Date of receipt of test sample : July 01, 2021 Number of tested samples : 2 Sample No. ： 210628026A-1, 210628026A-2 Serial number : Prototype Date of Test : July 01, 2021 ~ July 08, 2021 Date of Report : July 13, 2021 Shenzhen LCS Compliance Testing Laboratory Ltd. FCC ID: 2A2NI-T30 Report No.: LCS210628026AEA This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 2 of 33 FCC TEST REPORT FCC CFR 47 PART 15 C (15.247) Report Reference No. ................. : LCS210628026AEA Date of Issue ................................... : July 13, 2021 Testing Laboratory Name ............. : Shenzhen LCS Compliance Testing Laboratory Ltd. Address ........................................... : 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Testing Location/ Procedure ........... : Full application of Harmonised standards ■ Partial application of Harmonised standards □ Other standard testing method □ Applicant’s Name .......................... : Shenzhen Xuanyuanxing Electronic Technology Co., Ltd. Address ........................................... : Room 1308, Jinhua Building, Dalang Street, Longhua District, Shenzhen City, Guangdong Province, China Test Specification Standard .......................................... : FCC CFR 47 PART 15 C (15.247) Test Report Form No. ................... : LCSEMC-1.0 TRF Originator ................................ : Shenzhen LCS Compliance Testing Laboratory Ltd. Master TRF ..................................... : Dated 2011-03 Shenzhen LCS Compliance Testing Laboratory Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen LCS Compliance Testing Laboratory Ltd. is acknowledged as copyright owner and source of the material. Shenzhen LCS Compliance Testing Laboratory Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. EUT Description. ........................... : IT Camera Trade Mark ...................................... : N/A Model/ Type reference .................... : T30 Ratings ............................................ : Input: DC 5V DC 3.7V by Rechargeable Li-ion Battery, 2000mAh Result ............................................ : Positive Compiled by: Supervised by: Approved by: Jin Wang / Administrator Linda He / Technique principal Gavin Liang/ Manager Shenzhen LCS Compliance Testing Laboratory Ltd. FCC ID: 2A2NI-T30 Report No.: LCS210628026AEA This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 3 of 33 FCC -- TEST REPORT Test Result Positive The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Test Report No. : LCS210628026AEA July 13, 2021 Date of issue Test Model.............................. : T30 EUT......................................... : IT Camera Applicant............................... : Shenzhen Xuanyuanxing Electronic Technology Co., Ltd. Address................................... : Room 1308, Jinhua Building, Dalang Street, Longhua District, Shenzhen City, Guangdong Province, China Telephone............................... : / Fax.......................................... : / Manufacturer......................... : Shenzhen Xuanyuanxing Electronic Technology Co., Ltd. Address................................... : Room 1308, Jinhua Building, Dalang Street, Longhua District, Shenzhen City, Guangdong Province, China Telephone............................... : / Fax.......................................... : / Factory................................... : Shenzhen Xuanyuanxing Electronic Technology Co., Ltd. Address................................... : Room 1308, Jinhua Building, Dalang Street, Longhua District, Shenzhen City, Guangdong Province, China Telephone............................... : / Fax.......................................... : / Shenzhen LCS Compliance Testing Laboratory Ltd. FCC ID: 2A2NI-T30 Report No.: LCS210628026AEA This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 4 of 33 Revision History Revision Issue Date Revisions Revised By 000 July 13, 2021 Initial Issue Gavin Liang Shenzhen LCS Compliance Testing Laboratory Ltd. FCC ID: 2A2NI-T30 Report No.: LCS210628026AEA This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 5 of 33 TABLE OF CONTENTS 1. GENERAL INFORMATION .................................................................................................................................... 6 1.1. DESCRIPTION OF DEVICE (EUT) ........................................................................................................................ 6 1.2. HOST…

Text truncated - open the document above for the full version.

Shenzhen LCS Compliance Testing Laboratory Ltd. FCC ID: 2A2NI-T30 _______________________________________________________________________________________________ This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 1 of 1 Test Setup Photos of the EUT Radiated Emissions Fig. 1 Fig. 2
