2A2P5-OHR753Over-Ear Headphones

OHR753 Over-Ear Headphones User Manual Product structure diagram Tips: Gently place the headband over your head and position the ear cups to fully cover your ears. Adjust the headband's length and the angle of the ear cups to a comfortable fit. 1 2 3 4 5 英语English 1. Charging Port 2. Volume + 3. Play/Pause 4. Volume - 5. power button Preface Thank you for purchasing an Acer product. For best results, please read this manual carefully before use. Sw itch on/off Switch on: Press and hold the Power button for 3 seconds to turn on the headphones. Switch off: Press and hold the Power button for 5 seconds to turn off the headphones. Connection Operation W ireless Connection: Open the W ireless Settings page of Settings to search and operate. Answ er/hang up Incoming call: Press the Power button once to answer the call. During a call: Press the Power button once to end the call. Power button In music mode: Press the Play/Pause button once to play/pause. Press the Power button four times to switch modes. Volume control Volume Up: Click the "+" button once. Volume Down: Click the "-" button once. Previous track: Press and hold the "-" button for 1 second. Next track: Press and hold the "+" button for 1 second. Refuse to answer the phone W hen receiving a call: Press and hold the Power button for 2 seconds to reject the call. Special mode Double-click the Play/Paus e button to turn on/off ANC (Noise Cancelling) mode. 英语English Preface Thank you for purchasing an Acer product. For best results, please read this manual carefully before use. Wireless headphone parameters： Operating Frequency Band : 20Hz-20KHz Maximum Radio-Frequency Power : 2.56 dBm Safety Instructions： 1. Before first use, pleas e fully charge the product. 2. This product is not a toy. Children under 12 years old must use it under adult supervision. 3. Pleas e use 5V/1A chargers with official safety certification from regular manufacturers. Do not use high-voltage fast chargers to avoid product damage. 4. Charge in a safe environment. Unplug the charging cable promptly after the charging case is fully charged to prevent battery damage from overcharging. The charging case adopts a Type-C charging port. 5. This product contains a lithium battery. If left unused for a long time, charge it at least once a month. 6. W hen using the product via Bluetooth, adjust the headphone volume to an appropriate level to prevent permanent hearing damage caused by long-term high- volume use. 7. This product contains magnetic materials. Keep it away from devices with strong magnetic or electric fields such as microwave ovens and refrigerators during use and storage. 8. Before cleaning and maintenance, stop using the product, close all applications, and disconnect all connections and cables from other devic es. 9. Dispose of waste electronic products in accordance with local regulations. Do not discard electronic equipment, components or batteries with domestic garbage. 英语English Vorwort Vielen Dank für den Kauf eines Acer-Produkts. Lesen Sie dieses Handbuch vor der Verwendung bitte sorgfältig durch, um optimale Ergebnisse zu erzielen. Ein-/Ausschalten Einschalten: Halten Sie die Ein-/Austaste 3 Sekunden lang gedrückt, um die Kopfhörer einzuschalten. Ausschalten: Halten Sie die Ein-/Austaste 5 Sekunden lang gedrückt, um die Kopfhörer auszuschalten. Verbindungsvorgang Drahtlose Verbindung: Öffnen Sie die Seite mit den Drahtloseinstellungen in den Einstellungen, um zu suchen und den Vorgang durchzuführen. Anruf annehmen/beenden Eingehender Anruf: Drücken Sie einmal die Ein-/Austaste, um den Anruf anzunehmen. W ährend eines Anrufs: Drücken Sie einmal die Ein-/Austaste, um den Anruf zu beenden. Ein-/Austaste Im Musikmodus: Drücken Sie einmal die W iedergabe-/Pausetaste, um wiederzugeben/anzuhalten. Drücken Sie viermal die Ein-/Austaste, um Modi zu wechseln. Lautstärkeregelung Lauter: Klicken Sie einmal die „+“-Taste. Leiser: Klicken Sie einmal die „-“-Taste. Vorheriger Titel: Halten Sie die „-“-Taste 1 Sekunde lang gedrückt. Nächster Titel: Halten Sie die „+“-Taste 1 Sekunde lang gedrückt. Anruf ablehnen Bei eingehendem Anruf: Halten Sie die Ein-/Austaste 2 Sekunden lang gedrückt, um den Anruf abzulehnen. Sonderfunktion Doppelklicken Sie die W iedergabe-/Pausetaste, um den ANC-Modus (Geräuschunterdrückung) ein- und auszuschalten. 德语Deutsch Vorwort Vielen Dank, dass Sie sich für ein Produkt von Acer entschieden haben. Um eine optimale Leistung zu gewährleisten, lesen Sie bitte diese Anleitung vor der Verwendung sorgfältig durch. Parameter des Wireless-Kopfhörers: Betriebsfrequenzband: 20Hz-20KHz Maximale Hochfrequenzleistung: 2.56 dBm Sicherheitsanweisungen 德语Deutsch 1. Bitte laden Sie das Produkt vor der ersten Verwendung vollständig auf. 2. Dieses Produkt ist kein Spielzeug. Kinder unter 12 Jahren dürfen es nur unter Aufsicht eines Erwachsenen verwenden. 3. Verwenden Sie nur 5V/ 1A-Ladegeräte mit Sicherheitszertifizierung regulärer Hersteller. Vermeiden Sie Hochspannungs-Schnellladegeräte, um Schäden am Produkt zu verhindern. 4. Laden Sie das Gerät in einer sicheren Umgebung. Ziehen Sie das Ladekabel sofort heraus, wenn die Ladebox vollständig geladen ist, um eine Beschädigung des Akkus durch Dauerladen zu vermeiden. Die Ladebox ist mit einem Type-C-Anschluss ausgestattet. 5. Dieses Produkt enthält einen Lithium-Akku. Bei längerer Nichtverwendung laden Sie es mindestens einmal monatlich auf. 6. Stellen Sie bei Bluetooth-Verbindung eine angemessene Lautstärke ein, um Hörschäden durch dauerhaft hohe Lautstärke zu vermeiden. 7. Dieses Produkt enthält magnetische Materialien. Halten Sie es während Nutzung und Aufbewahrung von Geräten mit starkem Magnet-oder Elektrofeld wie Mikrowellen und Kühlschränken fern. 8. Vor Reinigung und Wartung beenden Sie die Nutzung, schließen Sie alle Anwendungen und trennen Sie alle Verbindungen und Kabel zu anderen Geräten. 9. Entsorgen Sie Altgeräte gemäß örtlichen Gesetzen. Werfen Sie Elektrogeräte, Bauteile und Batterien nicht…

Text truncated - open the document above for the full version.

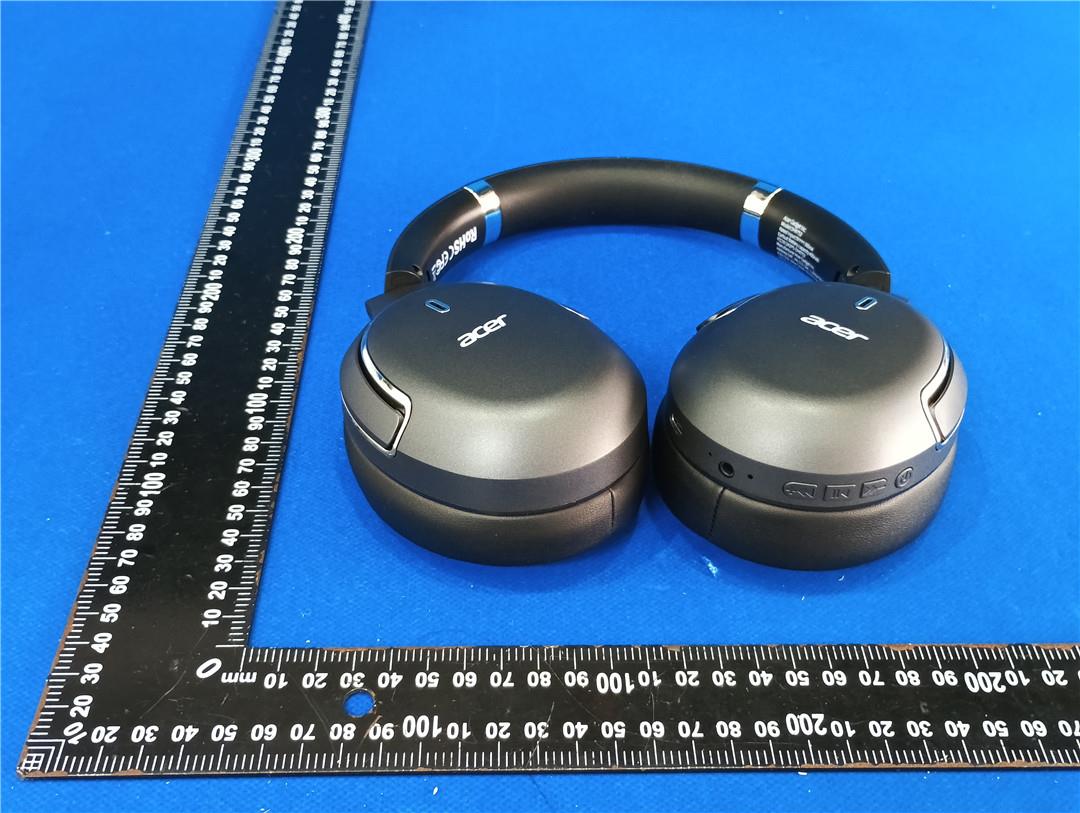

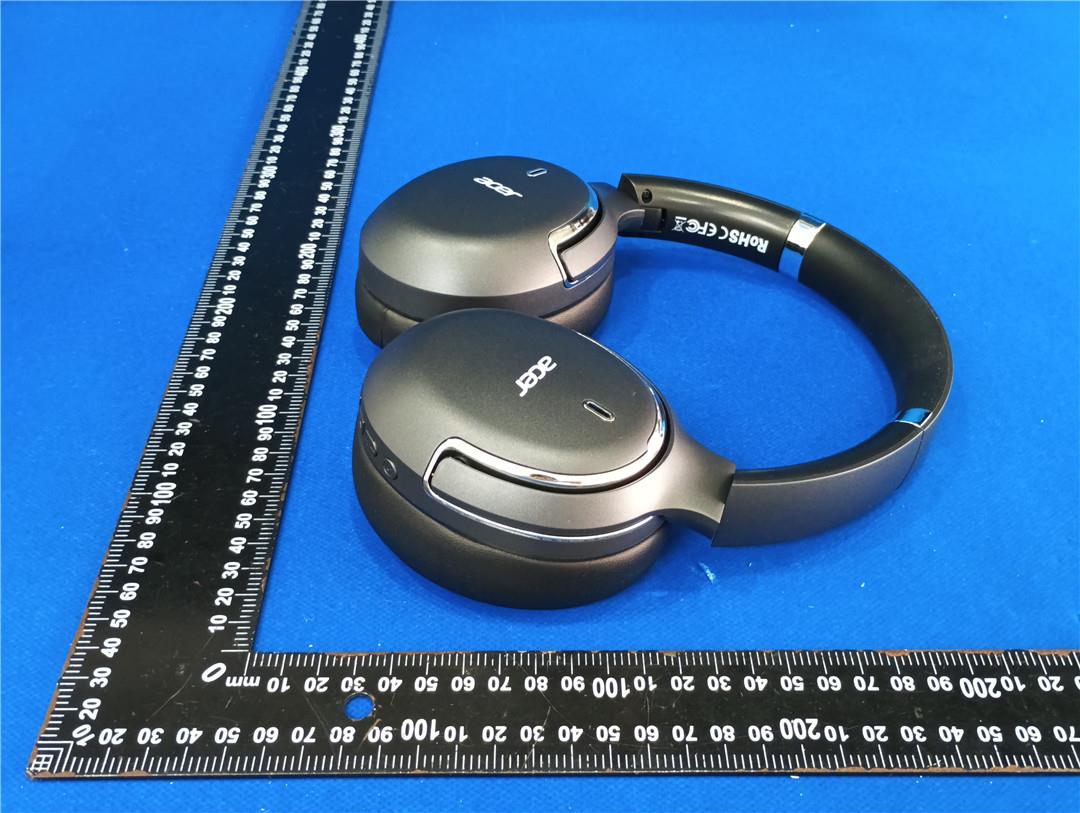

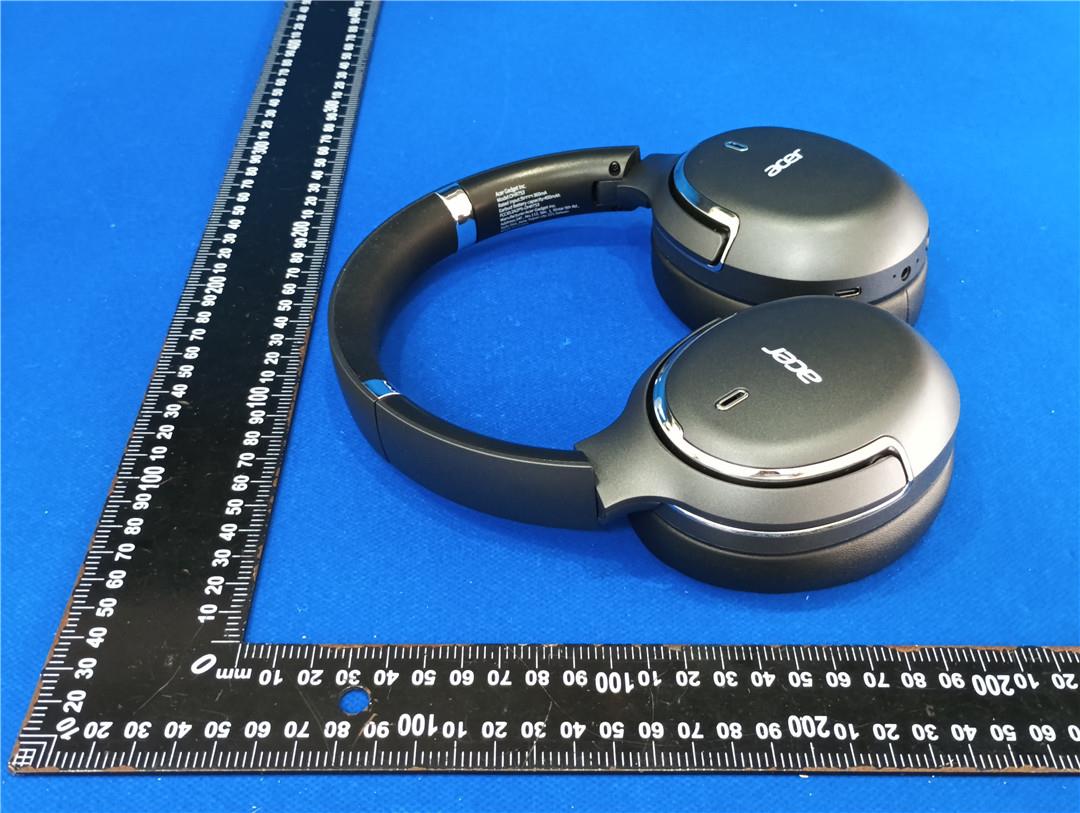

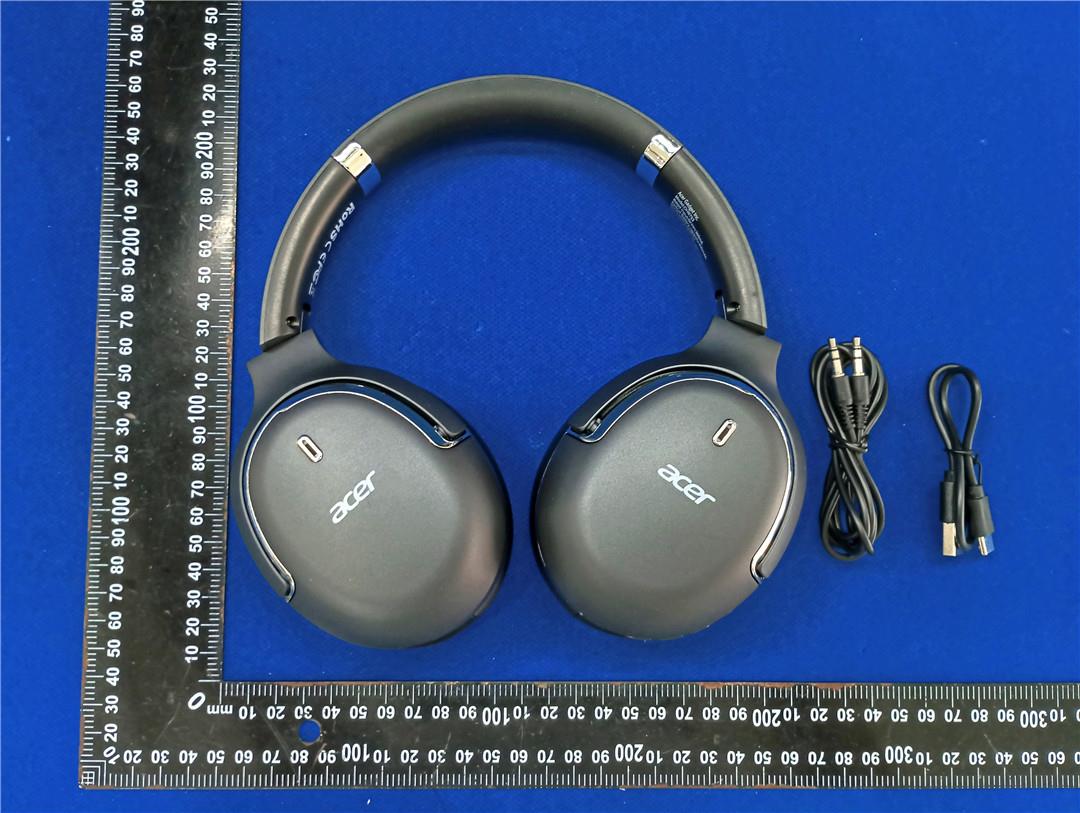

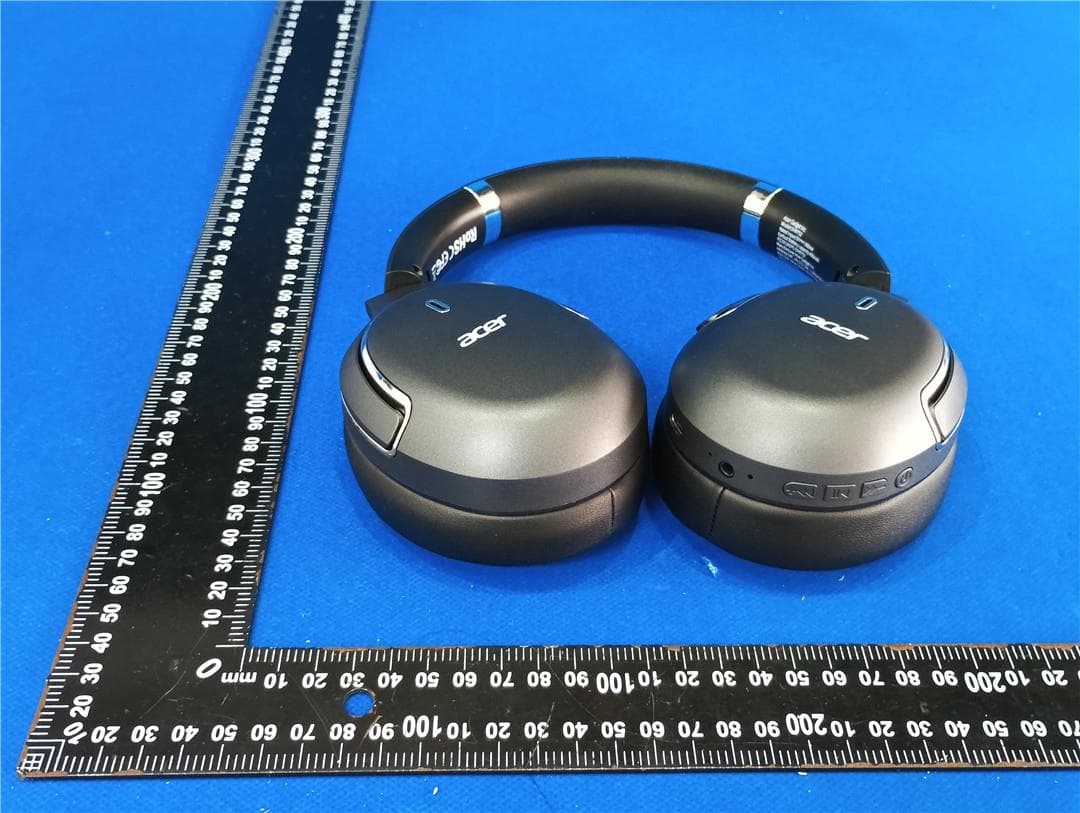

Shenzhen HTT Technology Co., Ltd. Report No.: HTT202607222 Shenzhen HTT Technology Co.,Ltd. Tel: 0755-23595200 Fax: 0755-23595201 1F, Building B, Huafeng International Robotics Industrial Park,Hangcheng Road, Nanchang Community, Xixiang Street, Bao'an District, Guangdong Province, Shenzhen, China Page 1 of 4 Product Name: Over-Ear Headphones Model No.: OHR753 EUT Constructional Details External Photo Report No.: HTT202607222 Shenzhen HTT Technology Co.,Ltd. Tel: 0755-23595200 Fax: 0755-23595201 1F, Building B, Huafeng International Robotics Industrial Park,Hangcheng Road, Nanchang Community, Xixiang Street, Bao'an District, Guangdong Province, Shenzhen, China Page 2 of 4 Report No.: HTT202607222 Shenzhen HTT Technology Co.,Ltd. Tel: 0755-23595200 Fax: 0755-23595201 1F, Building B, Huafeng International Robotics Industrial Park,Hangcheng Road, Nanchang Community, Xixiang Street, Bao'an District, Guangdong Province, Shenzhen, China Page 3 of 4 Report No.: HTT202607222 Shenzhen HTT Technology Co.,Ltd. Tel: 0755-23595200 Fax: 0755-23595201 1F, Building B, Huafeng International Robotics Industrial Park,Hangcheng Road, Nanchang Community, Xixiang Street, Bao'an District, Guangdong Province, Shenzhen, China Page 4 of 4 ------End------

Label and Location Size: L: 2.0cm*W: 1.0cm Label and Location FCC ID : 2A2P5-OHR753

Shenzhen HTT Technology Co., Ltd. Report No.: HTT202607222 Shenzhen HTT Technology Co.,Ltd. Tel: 0755-23595200 Fax: 0755-23595201 1F, Building B, Huafeng International Robotics Industrial Park,Hangcheng Road, Nanchang Community, Xixiang Street, Bao'an District, Guangdong Province, Shenzhen, China Page 1 of 2 Product Name: Over-Ear Headphones Model No.: OHR753 EUT Constructional Details Internal Photo Report No.: HTT202607222 Shenzhen HTT Technology Co.,Ltd. Tel: 0755-23595200 Fax: 0755-23595201 1F, Building B, Huafeng International Robotics Industrial Park,Hangcheng Road, Nanchang Community, Xixiang Street, Bao'an District, Guangdong Province, Shenzhen, China Page 2 of 2 ------End------ ANTENNA

Shenzhen HTT Technology Co., Ltd. Shenzhen HTT Technology Co.,Ltd. Tel: 0755-23595200 Fax: 0755-23595201 1F, Building B, Huafeng International Robotics Industrial Park, Hangcheng Road,Nanchang Community, Xixiang Street, Bao'an District, Shenzhen, Guangdong, China Page 1 of 8 RF Exposure evaluation Report Reference No. ..................... : FCC ID............................................. : HTT202607222F02 2A2P5-OHR753 Compiled by ( position+printed name+signature) . : File administrators Heber He Supervised by ( position+printed name+signature) . : Project Engineer Bruce Zhu Approved by ( position+printed name+signature) . : RF Manager Kevin Yang Date of issue .................................... : Jul. 13, 2026 Testing Laboratory Name .............. : Shenzhen HTT Technology Co.,Ltd. Address ............................................ : 1F, Building B, Huafeng International Robotics Industrial Park, Hangcheng Road,Nanchang Community, Xixiang Street, Bao’an District, Shenzhen, Guangdong, China Applicant’s name ............................ : Acer Gadget Inc. Address ............................................ : 24F., No.112, Sec. 1, Xintai 5th Rd., Xizhi Dist., New Taipei city 221, Taiwan Standard ........................................... : 47CFR §1.1310 47CFR §2.1093 KDB447498 D01 General RF Exposure Guidance v06 Shenzhen HTT Technology Co.,Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen HTT Technology Co.,Ltd. is acknowledged as copyright owner and source of the material. Shenzhen HTT Technology Co.,Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Test item description ..................... : Over-Ear Headphones Manufacturer .................................... : Acer Gadget Inc. Trade Mark ........................................ Acer Model/Type reference ...................... : OHR753 Rating ............................................... : DC 3.7V From Battery and DC 5V From External Circuit Result ............................................... : PASS Report No.: HTT202607222F02 Page 2 of 8 Shenzhen HTT Technology Co.,Ltd. Tel: 0755-23595200 Fax: 0755-23595201 1F, Building B, Huafeng International Robotics Industrial Park, Hangcheng Road,Nanchang Community, Xixiang Street, Bao'an District, Shenzhen, Guangdong, China Page 2 of 8 T E S T R E P O R T Equipment under Test : Over-Ear Headphones Model /Type : OHR753 Listed Models : N/A Applicant : Acer Gadget Inc. Address : 24F., No.112, Sec. 1, Xintai 5th Rd., Xizhi Dist., New Taipei city 221, Taiwan Manufacturer : Acer Gadget Inc. Address : 24F., No.112, Sec. 1, Xintai 5th Rd., Xizhi Dist., New Taipei city 221, Taiwan Test Result: PASS The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Report No.: HTT202607222F02 Page 3 of 8 Shenzhen HTT Technology Co.,Ltd. Tel: 0755-23595200 Fax: 0755-23595201 1F, Building B, Huafeng International Robotics Industrial Park, Hangcheng Road,Nanchang Community, Xixiang Street, Bao'an District, Shenzhen, Guangdong, China Page 3 of 8 Contents 1 T E S T S T A N D A R D S ................................................... 4 2 S U M M A R Y .............................................................. 5 2.1 General Remarks 5 2.2 Product Description 5 2.3 Special Accessories 5 2.4 Modifications 5 3 T E S T E N V I R O N M E N T 6 3.1 Address of the test laboratory 6 3.2 Test Facility 6 3.3 Statement of the measurement uncertainty 6 4 T E S T L I M I T 7 4.1 Requirement 7 4.2 Conducted Power Results 8 4.3 Manufacturing tolerance 8 4.4 Evaluation Result 8 4.5 Simultaneous Transmission for SAR Exclusion 8 5 C O N C L U S I O N 8 Report No.: HTT202607222F02 Page 4 of 8 Shenzhen HTT Technology Co.,Ltd. Tel: 0755-23595200 Fax: 0755-23595201 1F, Building B, Huafeng International Robotics Industrial Park, Hangcheng Road,Nanchang Community, Xixiang Street, Bao'an District, Shenzhen, Guangdong, China Page 4 of 8 1 T E S T S T A N D A R D S The tests were performed according to following standards: ANSI C95.1–1999: IEEE Standard for Safety Levels with Respect to Human Exposure to Radio Frequency Electromagnetic Fields, 3 kHz to 300 GHz. FCC KDB 447498 D01 General RF Exposure Guidance v06: Mobile and Portable Device, RF Exposure, Equipment Authorization Procedures. FCC CFR 47 part1 1.1310: Radiofrequency radiation exposure limits. FCC CFR 47 part2 2.1093: Radiofrequency radiation exposure evaluation: portable devices Report No.: HTT202607222F02 Page 5 of 8 Shenzhen HTT Technology Co.,Ltd. Tel: 0755-23595200 Fax: 0755-23595201 1F, Building B, Huafeng International Robotics Industrial Park, Hangcheng Road,Nanchang Community, Xixiang Street, Bao'an District, Shenzhen, Guangdong, China Page 5 of 8 2 S U M M A R Y 2.1 General Remarks Date of receipt of test sample : Jul. 06, 2026 Testing commenced on : Jul. 06, 2026 Testing concluded on : Jul. 13, 2026 2.2 Product Description Product description: Over-Ear Headphones Model/Type reference: OHR753 Power supply: DC 3.7V From Battery and DC 5V From External Circuit Adapter Information (Auxiliary test provided by the lab): Model: GS-0500200 Input: AC100-240V, 50/60Hz, 0.3A max Output: DC 5V, 2A Testing sample ID： HTT202607222-1# (Engineer sample) HTT202607222-2# (Normal sample) Hardware version: / Software version: / Bluetooth : Supported Type: Bluetooth BR/EDR Modulation: GFSK, π/4DQPSK Operation frequency: 2402MHz~2480MHz Channel number: 79 Channel separation: 1MHz Antenna type: PCB Antenna Antenna gain: 2.92 dBi 2.3 Special Accessories The following is the EUT test of the auxiliary equipment provided by the laboratory: Description Manufacturer Model Technical Parameters Certificate Provided by / / / / / / 2.4 Modifications No modifications were…

Text truncated - open the document above for the full version.

2.4G-2.48G频段板载PIFA天线测试报告 2.4G-2.48GInvertedFAntennaSpecification SPECIFICATIONS Frequency（MHz）2400-2480 PeakGain（dBi）2.92 AverageGain（dBi）＞-3 VSWR＜1.6 Impedance（Ω）50Ω AntennaTypePlannarInvertedFAntennaonboard PolarizationLinear ManufactureZHUHAIJIELITECHNOLOGYCO.,LTD Address: No.333KexingRoad,NanpingSciencePark,XiangzhouDistrict, Zhuhai TestequipmentHWA-TECH AntennaPhoto&Length(mm) 天线无源S参数： AntennapassiveS-parameters: 驻波比（ VSWR ）、回波损耗（ ReturnLoss ）及史密斯圆图（ Smith ） 天线效率及增益： Antennaefficiencyandgain ： Frequency（MHz）Gain（dBi）Effciency（%）AverageGain（dBi）Efficiency（dB） 24002.9272.20%-1.14-1.41 24101.9561.36%-2.05-2.12 24202.0061.00%-1.98-2.15 24300.8047.29%-3.09-3.25 24400.1240.82%-3.87-3.89 24500.9748.41%-3.08-3.15 24601.2853.80%-2.81-2.69 24701.2951.75%-2.98-2.86 24801.7958.79%-2.45-2.31 Average1.4655.05%-2.61-2.65 Peak2.9272.20%-1.14-1.41 天线2440MHz2D-ThetaPattern 天线2440MHz2D-PhiPattern 天线2440MHz3D-TotalPattern

1 Appendix RF Test Data for BT Company: : Acer Gadget Inc. EUT : Over-Ear Headphones FCC ID: : 2A2P5-OHR753 Model Number : OHR753 Report No. : HTT202607222F01 Reviewed By : Heber He 2 1. Duty Cycle 1.1 Test Result 1.1.1 Ant1 Ant1 Mode TX Type Frequency (MHz) Packet Type T_on (ms) Period (ms) Duty Cycle (%) Duty Cycle Correction Factor (dB) Max. DC Variation (%) GFSK SISO 2402 DH5 2.896 3.749 77.25 1.12 0.03 2441 DH5 2.897 3.750 77.25 1.12 0.03 2480 DH5 2.897 3.750 77.25 1.12 0.03 Pi/4DQPSK SISO 2402 2DH5 2.904 3.751 77.42 1.11 0.03 2441 2DH5 2.903 3.750 77.41 1.11 0.01 2480 2DH5 2.903 3.749 77.43 1.11 0.04 3 1.2 Test Graph 1.2.1 Ant1 GFSK_DH5_LCH_2402MHz_Ant1_NTNV GFSK_DH5_MCH_2441MHz_Ant1_NTNV 4 GFSK_DH5_HCH_2480MHz_Ant1_NTNV Pi/4DQPSK_2DH5_LCH_2402MHz_Ant1_NTNV 5 Pi/4DQPSK_2DH5_MCH_2441MHz_Ant1_NTNV Pi/4DQPSK_2DH5_HCH_2480MHz_Ant1_NTNV 6 2. Bandwidth 2.1 Test Result 2.1.1 OBW Mode TX Type Frequency (MHz) Packet Type ANT 99% Occupied Bandwidth (MHz) Verdict Result Limit GFSK SISO 2402 DH5 1 0.859 / Pass 2441 DH5 1 0.856 / Pass 2480 DH5 1 0.861 / Pass Pi/4DQPSK SISO 2402 2DH5 1 1.198 / Pass 2441 2DH5 1 1.187 / Pass 2480 2DH5 1 1.185 / Pass 2.1.2 20dB BW Mode TX Type Frequency (MHz) Packet Type ANT 20dB Bandwidth (MHz) Verdict Result Limit GFSK SISO 2402 DH5 1 0.879 / Pass 2441 DH5 1 0.922 / Pass 2480 DH5 1 0.922 / Pass Pi/4DQPSK SISO 2402 2DH5 1 1.304 / Pass 2441 2DH5 1 1.257 / Pass 2480 2DH5 1 1.259 / Pass 7 2.2 Test Graph 2.2.1 OBW GFSK_DH5_LCH_2402MHz_Ant1_NTNV GFSK_DH5_MCH_2441MHz_Ant1_NTNV 8 GFSK_DH5_HCH_2480MHz_Ant1_NTNV Pi/4DQPSK_2DH5_LCH_2402MHz_Ant1_NTNV 9 Pi/4DQPSK_2DH5_MCH_2441MHz_Ant1_NTNV Pi/4DQPSK_2DH5_HCH_2480MHz_Ant1_NTNV 10 2.2.2 20dB BW GFSK_DH5_LCH_2402MHz_Ant1_NTNV GFSK_DH5_MCH_2441MHz_Ant1_NTNV 11 GFSK_DH5_HCH_2480MHz_Ant1_NTNV Pi/4DQPSK_2DH5_LCH_2402MHz_Ant1_NTNV 12 Pi/4DQPSK_2DH5_MCH_2441MHz_Ant1_NTNV Pi/4DQPSK_2DH5_HCH_2480MHz_Ant1_NTNV 13 3. Maximum Conducted Output Power 3.1 Test Result 3.1.1 Power Mode TX Type Frequency (MHz) Packet Type Maximum Peak Conducted Output Power (dBm) Verdict ANT1 Limit GFSK SISO 2402 DH5 3.03 <=30 Pass 2441 DH5 3.38 <=30 Pass 2480 DH5 2.93 <=30 Pass Pi/4DQPSK SISO 2402 2DH5 3.92 <=20.97 Pass 2441 2DH5 4.28 <=20.97 Pass 2480 2DH5 3.84 <=20.97 Pass 14 4. Carrier Frequency Separation 4.1 Test Result 4.1.1 Ant1 Ant1 Mode TX Type Frequency (MHz) Packet Type Channel Separation (MHz) 20dB Bandwidth (MHz) Limit (MHz) Verdict GFSK SISO HOPP DH5 0.998 0.922 >=0.922 Pass Pi/4DQPSK SISO HOPP 2DH5 0.998 1.304 >=0.869 Pass 15 4.2 Test Graph 4.2.1 Ant1 GFSK_DH5_HOPP_Ant1_NTNV Pi/4DQPSK_2DH5_HOPP_Ant1_NTNV 16 5. Number of Hopping Frequencies 5.1 Test Result 5.1.1 HoppNum Mode TX Type Frequency (MHz) Packet Type Num of Hopping Frequencies Verdict ANT1 Limit GFSK SISO HOPP DH5 79 >=15 Pass Pi/4DQPSK SISO HOPP 2DH5 79 >=15 Pass 17 5.2 Test Graph 5.2.1 HoppNum GFSK_DH5_HOPP_Ant1_NTNV Pi/4DQPSK_2DH5_HOPP_Ant1_NTNV 18 6. Time of Occupancy (Dwell Time) 6.1 Test Result 6.1.1 Ant1 Ant1 Mode TX Type Frequency (MHz) Packet Type Duration of Single Pulse (ms) Observation Period (s) Num of Pulse in Observation Period Dwell Time (ms) Limit (ms) Verdict GFSK SISO HOPP DH1 0.392 31.600 320 125.440 <=400 Pass DH3 1.654 31.600 156 258.024 <=400 Pass DH5 2.902 31.600 106 307.612 <=400 Pass Pi/4DQPSK SISO HOPP 2DH1 0.404 31.600 320 129.280 <=400 Pass 2DH3 1.660 31.600 145 240.700 <=400 Pass 2DH5 2.908 31.600 105 305.340 <=400 Pass 19 6.2 Test Graph 6.2.1 Ant1 GFSK_DH1_HOPP_Ant1_NTNV GFSK_DH1_HOPP_Ant1_NTNV 20 GFSK_DH3_HOPP_Ant1_NTNV GFSK_DH3_HOPP_Ant1_NTNV 21 GFSK_DH5_HOPP_Ant1_NTNV GFSK_DH5_HOPP_Ant1_NTNV 22 Pi/4DQPSK_2DH1_HOPP_Ant1_NTNV Pi/4DQPSK_2DH1_HOPP_Ant1_NTNV 23 Pi/4DQPSK_2DH3_HOPP_Ant1_NTNV Pi/4DQPSK_2DH3_HOPP_Ant1_NTNV 24 Pi/4DQPSK_2DH5_HOPP_Ant1_NTNV Pi/4DQPSK_2DH5_HOPP_Ant1_NTNV 25 7. Unwanted Emissions In Non-restricted Frequency Bands 7.1 Test Result 7.1.1 Ref Mode TX Type Frequency (MHz) Packet Type ANT Level of Reference (dBm) GFSK SISO 2402 DH5 1 2.76 2441 DH5 1 3.20 2480 DH5 1 2.69 HOPP DH5 1 3.24 3.24 Pi/4DQPSK SISO 2402 2DH5 1 2.90 2441 2DH5 1 3.21 2480 2DH5 1 2.76 HOPP 2DH5 1 3.48 3.48 7.1.2 CSE Mode TX Type Frequency (MHz) Packet Type ANT Level of Reference (dBm) Limit (dBm) Verdict GFSK SISO 2402 DH5 1 2.76 -17.24 Pass 2441 DH5 1 3.20 -16.80 Pass 2480 DH5 1 2.69 -17.31 Pass HOPP DH5 1 3.24 -16.76 Pass 3.24 -16.76 Pass Pi/4DQPSK SISO 2402 2DH5 1 2.90 -17.10 Pass 2441 2DH5 1 3.21 -16.79 Pass 2480 2DH5 1 2.76 -17.24 Pass HOPP 2DH5 1 3.48 -16.52 Pass 3.48 -16.52 Pass 26 7.2 Test Graph 7.2.1 Ref GFSK_DH5_LCH_2402MHz_Ant1_NTNV GFSK_DH5_MCH_2441MHz_Ant1_NTNV 27 GFSK_DH5_HCH_2480MHz_Ant1_NTNV GFSK_DH5_HOPP_Ant1_NTNV 28 GFSK_DH5_HOPP_Ant1_NTNV Pi/4DQPSK_2DH5_LCH_2402MHz_Ant1_NTNV 29 Pi/4DQPSK_2DH5_MCH_2441MHz_Ant1_NTNV Pi/4DQPSK_2DH5_HCH_2480MHz_Ant1_NTNV 30 Pi/4DQPSK_2DH5_HOPP_Ant1_NTNV Pi/4DQPSK_2DH5_HOPP_Ant1_NTNV 31 7.2.2 CSE GFSK_DH5_LCH_2402MHz_Ant1_NTNV GFSK_DH5_LCH_2402MHz_Ant1_NTNV 32 GFSK_DH5_MCH_2441MHz_Ant1_NTNV GFSK_DH5_HCH_2480MHz_Ant1_NTNV 33 GFSK_DH5_HCH_2480MHz_Ant1_NTNV GFSK_DH5_HOPP_Ant1_NTNV 34 GFSK_DH5_HOPP_Ant1_NTNV Pi/4DQPSK_2DH5_LCH_2402MHz_Ant1_NTNV 35 Pi/4DQPSK_2DH5_LCH_2402MHz_Ant1_NTNV Pi/4DQPSK_2DH5_MCH_2441MHz_Ant1_NTNV 36 Pi/4DQPSK_2DH5_HCH_2480MHz_Ant1_NTNV Pi/4DQPSK_2DH5_HCH_2480MHz_Ant1_NTNV 37 Pi/4DQPSK_2DH5_HOPP_Ant1_NTNV Pi/4DQPSK_2DH5_HOPP_Ant1_NTNV

Shenzhen HTT Technology Co., Ltd. Shenzhen HTT Technology Co.,Ltd. Tel: 0755-23595200 Fax: 0755-23595201 1F, Building B, Huafeng International Robotics Industrial Park, Hangcheng Road,Nanchang Community, Xixiang Street, Bao'an District, Shenzhen, Guangdong, China FCC PART 15 SUBPART C TEST REPORT FCC PART 15.247 Report Reference No. .................... : FCC ID. ........................................... : HTT202607222F01 2A2P5-OHR753 Compiled by ( position+printed name+signature) . : File administrators Heber He Supervised by ( position+printed name+signature) . : Project Engineer Bruce Zhu Approved by ( position+printed name+signature) . : RF Manager Kevin Yang Date of issue .................................... : Jul. 13, 2026 Testing Laboratory Name .............. : Shenzhen HTT Technology Co.,Ltd. Address ............................................ : 1F, Building B, Huafeng International Robotics Industrial Park, Hangcheng Road,Nanchang Community, Xixiang Street, Bao’an District, Shenzhen, Guangdong, China Applicant’s name ........................... : Acer Gadget Inc. Address ............................................ : 24F., No.112, Sec. 1, Xintai 5th Rd., Xizhi Dist., New Taipei city 221, Taiwan Test specification ........................... : Standard ........................................... : FCC Part 15.247 Shenzhen HTT Technology Co.,Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen HTT Technology Co.,Ltd. is acknowledged as copyright owner and source of the material. Shenzhen HTT Technology Co.,Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Test item description ..................... : Over-Ear Headphones Trade Mark ....................................... : Acer Manufacturer .................................. : Acer Gadget Inc. Model/Type reference ...................... : OHR753 Listed Models ................................... : N/A Modulation ....................................... : GFSK, Π/4DQPSK Frequency ......................................... From 2402MHz to 2480MHz Ratings ............................................. : DC 3.7V From Battery and DC 5V From External Circuit Result ............................................... : PASS Report No.: HTT202607222F01 Page 2 of 37 Shenzhen HTT Technology Co.,Ltd. Tel: 0755-23595200 Fax: 0755-23595201 1F, Building B, Huafeng International Robotics Industrial Park, Hangcheng Road,Nanchang Community, Xixiang Street, Bao'an District, Shenzhen, Guangdong, China T E S T R E P O R T Equipment under Test : Over-Ear Headphones Model /Type : OHR753 Listed Models : N/A Applicant : Acer Gadget Inc. Address : 24F., No.112, Sec. 1, Xintai 5th Rd., Xizhi Dist., New Taipei city 221, Taiwan Manufacturer : Acer Gadget Inc. Address : 24F., No.112, Sec. 1, Xintai 5th Rd., Xizhi Dist., New Taipei city 221, Taiwan Test Result: PASS The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Report No.: HTT202607222F01 Page 3 of 37 Shenzhen HTT Technology Co.,Ltd. Tel: 0755-23595200 Fax: 0755-23595201 1F, Building B, Huafeng International Robotics Industrial Park, Hangcheng Road,Nanchang Community, Xixiang Street, Bao'an District, Shenzhen, Guangdong, China Contents 1 TEST STANDARDS .......................................................................................................................................... 4 2 SUMMARY ........................................................................................................................................................ 5 2.1 General Remarks .................................................................................................................................... 5 2.2 Product Description ................................................................................................................................. 5 2.3 Equipment Under Test ............................................................................................................................ 5 2.4 Short description of the Equipment under Test (EUT) ............................................................................ 5 2.5 EUT configuration .................................................................................................................................... 6 2.6 EUT operation mode ............................................................................................................................... 6 2.7 Block Diagram of Test Setup .................................................................................................................. 6 2.8 Related Submittal(s) / Grant (s) .............................................................................................................. 6 2.9 Modifications ........................................................................................................................................... 6 3 TEST ENVIRONMENT ...................................................................................................................................... 7 3.1 Address of the test laboratory ................................................................................................................. 7 3.2 Test Facility ............................................................................................................................................. 7 3.3 Environmental conditions ........................................................................................................................ 7 3.4 Summary of measurement results .......................................................................................................... 8 3.5 Statement of the measurement uncertainty ...…

Text truncated - open the document above for the full version.

Shenzhen HTT Technology Co., Ltd. Report No.: HTT202607222 Shenzhen HTT Technology Co.,Ltd. Tel: 0755-23595200 Fax: 0755-23595201 1F, Building B, Huafeng International Robotics Industrial Park,Hangcheng Road, Nanchang Community, Xixiang Street, Bao'an District, Guangdong Province, Shenzhen, China Page 1 of 2 Product Name: Over-Ear Headphones Model No.: OHR753 Test Setup Photo Radiated Emission Report No.: HTT202607222 Shenzhen HTT Technology Co.,Ltd. Tel: 0755-23595200 Fax: 0755-23595201 1F, Building B, Huafeng International Robotics Industrial Park,Hangcheng Road, Nanchang Community, Xixiang Street, Bao'an District, Guangdong Province, Shenzhen, China Page 2 of 2 Conducted Emission RF Test ------End------
