2A2P5-OHR819In-Ear Earbuds (TWS)

OHR819 In-Ear Earbuds (TWS) User Manual Product structure diagram 1. Function Key(Touch) 2. Earbud LED indicator 3. Charging case 4. Charging port 3 1 2 Tips: Gently place the earphones into the external ear canal and adjust the earphones after insertion Adjust the wearing angle to a comfortable angle. 4 英语English Preface Thank you for purchasing an Acer product. For the best experience, please read this manual carefully before use. Power On / Off Power On: Press and hold the touch key for 3 seconds to turn on the earbuds. Power Off: Press and hold the touch key for 5 seconds to turn off the earbuds in standby or playback mode. Connection Wireless Connection: Go to the Wireless Settings page on your device to search and connect. Answer / End Calls W hen receiving an incoming call or during a call, single-tap the touch key on either earbud to answer or end the call. Play / Pause W hen connected or playing music, single-tap the touch key on either earbud to play or pause audio. Volume Control During calls or music playback:Double-tap the left touch key: Decrease volume Double-tap the right touch key: Increase volume Track Switching During music playback:Triple-tap the left touch key: Previous track Triple-tap the right touch key: Next track Reject Incoming Calls When a call comes in, press and hold the touch key on either earbud for 2 seconds to reject the call. Special Modes Siri: Press and hold the touch key for 2 seconds in standby mode. Game Mode: Quadruple-tap either earbud in standby or playback mode. 英语English Preface Thank you for purchasing an Acer product. For best results, please read this manual carefully before use. Wireless headphone parameters： Operating Frequency Band : 50Hz-20KHz Maximum Radio-Frequency Power : 3.25 dBm Safety Instructions： 1. Before first use, pleas e fully charge the product. 2. This product is not a toy. Children under 12 years old must use it under adult supervision. 3. Pleas e use 5V/1A chargers with official safety certification from regular manufacturers. Do not use high-voltage fast chargers to avoid product damage. 4. Charge in a safe environment. Unplug the charging cable promptly after the charging case is fully charged to prevent battery damage from overcharging. The charging case adopts a Type-C charging port. 5. This product contains a lithium battery. If left unused for a long time, charge it at least once a month. 6. W hen using the product via Bluetooth, adjust the headphone volume to an appropriate level to prevent permanent hearing damage caused by long-term high- volume use. 7. This product contains magnetic materials. Keep it away from devices with strong magnetic or electric fields such as microwave ovens and refrigerators during use and storage. 8. Before cleaning and maintenance, stop using the product, close all applications, and disconnect all connections and cables from other devic es. 9. Dispose of waste electronic products in accordance with local regulations. Do not discard electronic equipment, components or batteries with domestic garbage. 英语English Vorwort Vielen Dank für den Kauf eines Acer-Produkts. Lesen Sie dieses Handbuch vor der Verwendung sorgfältig durch, um ein optimales Erlebnis zu gewährleisten. Ein-/Ausschalten Einschalten: Halten Sie die Touchtaste 3 Sekunden lang gedrückt, um die Ohrhörer einzuschalten. Ausschalten: Halten Sie die Touchtaste im Standby- oder Wiedergabemodus 5 Sekunden lang gedrückt, um die Ohrhörer auszuschalten. Verbindung Drahtlose Verbindung: Gehen Sie auf die Drahtlos-Einstellungen Ihres Geräts, um nach den Ohrhörern zu suchen und sie zu verbinden. Annehmen/Beenden von Anrufen Tippen Sie bei eingehenden Anrufen oder während eines Anrufs einmal auf die Touchtaste eines beliebigen Ohrhörers, um den Anruf anzunehmen oder zu beenden. Wiedergabe/Pause Tippen Sie bei bestehender Verbindung oder laufender Musikwiedergabe einmal auf die Touchtaste eines beliebigen Ohrhörers, um die Audiowiedergabe zu starten oder zu pausieren. Lautstärkeregelung Während Anrufen oder Musikwiedergabe:Zweimal tippen auf linke Touchtaste: Lautstärke verringernZweimal tippen auf rechte Touchtaste: Lautstärke erhöhen Titelwechsel Während Musikwiedergabe:Dreimal tippen auf linke Touchtaste: Vorheriger TitelDreimal tippen auf rechte Touchtaste: Nächster Titel Ablehnen von Anrufen Halten Sie bei eingehenden Anrufen die Touchtaste eines beliebigen Ohrhörers 2 Sekunden lang gedrückt, um den Anruf abzulehnen. Spezielle Modi Siri: Halten Sie die Touchtaste im Standby-Modus 2 Sekunden lang gedrückt. Spielmodus: Viermal tippen auf einen beliebigen Ohrhörer im Standby- oder Wiedergabemodus. 德语Deutsch Vorwort Vielen Dank, dass Sie sich für ein Produkt von Acer entschieden haben. Um eine optimale Leistung zu gewährleisten, lesen Sie bitte diese Anleitung vor der Verwendung sorgfältig durch. Parameter des Wireless-Kopfhörers: Betriebsfrequenzband: 50Hz-20KHz Maximale Hochfrequenzleistung: 3.25 dBm Sicherheitsanweisungen 德语Deutsch 1. Bitte laden Sie das Produkt vor der ersten Verwendung vollständig auf. 2. Dieses Produkt ist kein Spielzeug. Kinder unter 12 Jahren dürfen es nur unter Aufsicht eines Erwachsenen verwenden. 3. Verwenden Sie nur 5V/ 1A-Ladegeräte mit Sicherheitszertifizierung regulärer Hersteller. Vermeiden Sie Hochspannungs-Schnellladegeräte, um Schäden am Produkt zu verhindern. 4. Laden Sie das Gerät in einer sicheren Umgebung. Ziehen Sie das Ladekabel sofort heraus, wenn die Ladebox vollständig geladen ist, um eine Beschädigung des Akkus durch Dauerladen zu vermeiden. Die Ladebox ist mit einem Type-C-Anschluss ausgestattet. 5. Dieses Produkt enthält einen Lithium-Akku. Bei längerer Nichtverwendung laden Sie es mindestens einmal monatlich auf. 6. Stellen Sie bei Bluetooth-Verbindung eine angemessene Lautstärke ein, um Hörschäden durch dauerhaft hohe Lautstärke zu vermeiden. 7. Dieses Produkt enthält magnetische Materialien. Halten Sie es während Nutzung und Aufbewahrung von Geräten mit starkem Magnet-oder Elektrofeld wi…

Text truncated - open the document above for the full version.

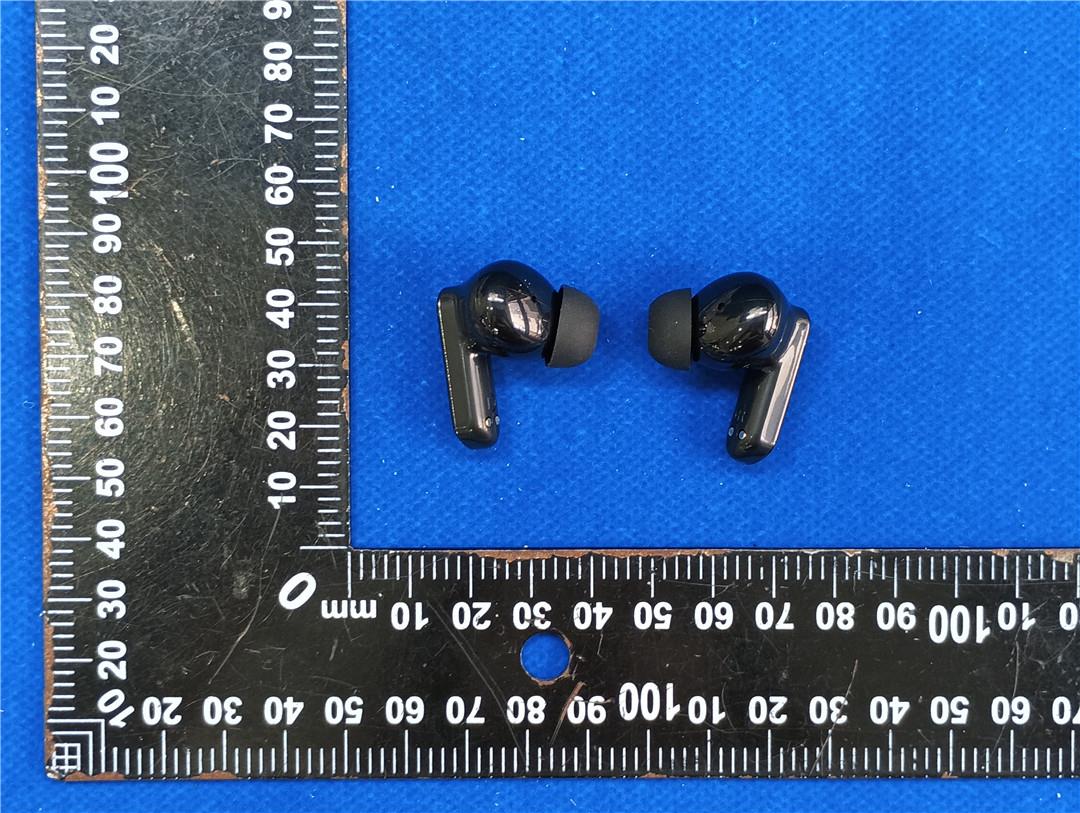

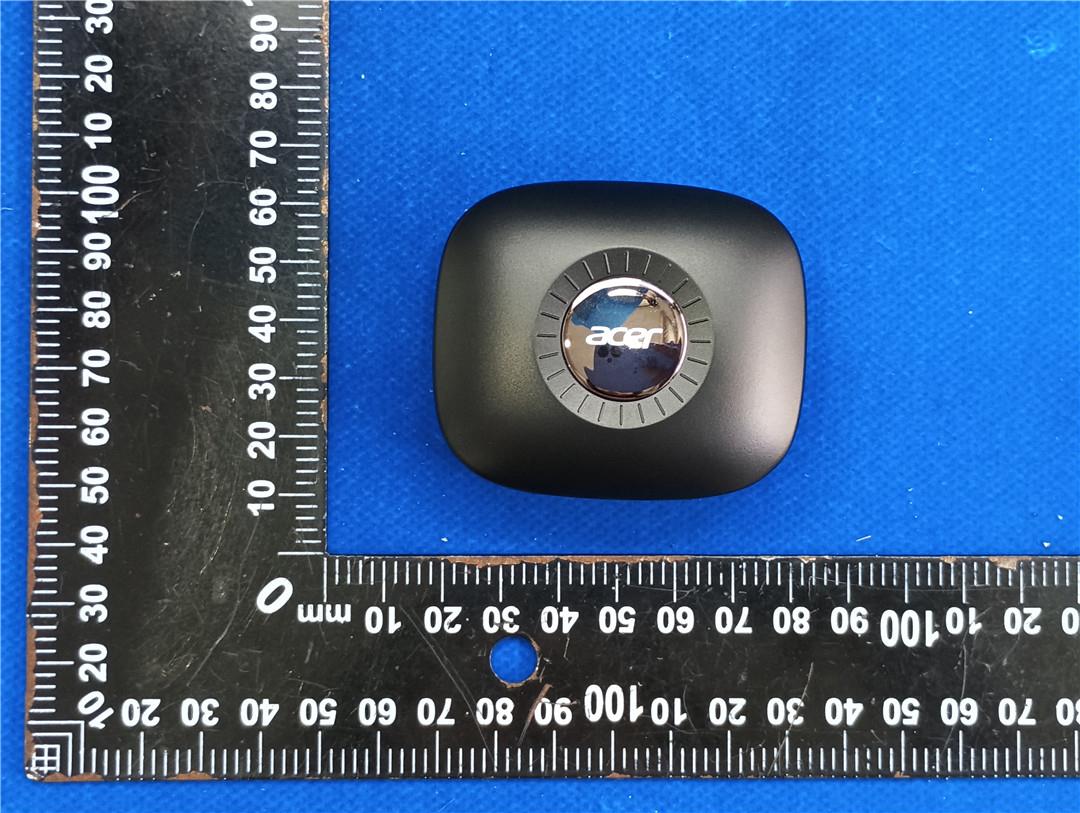

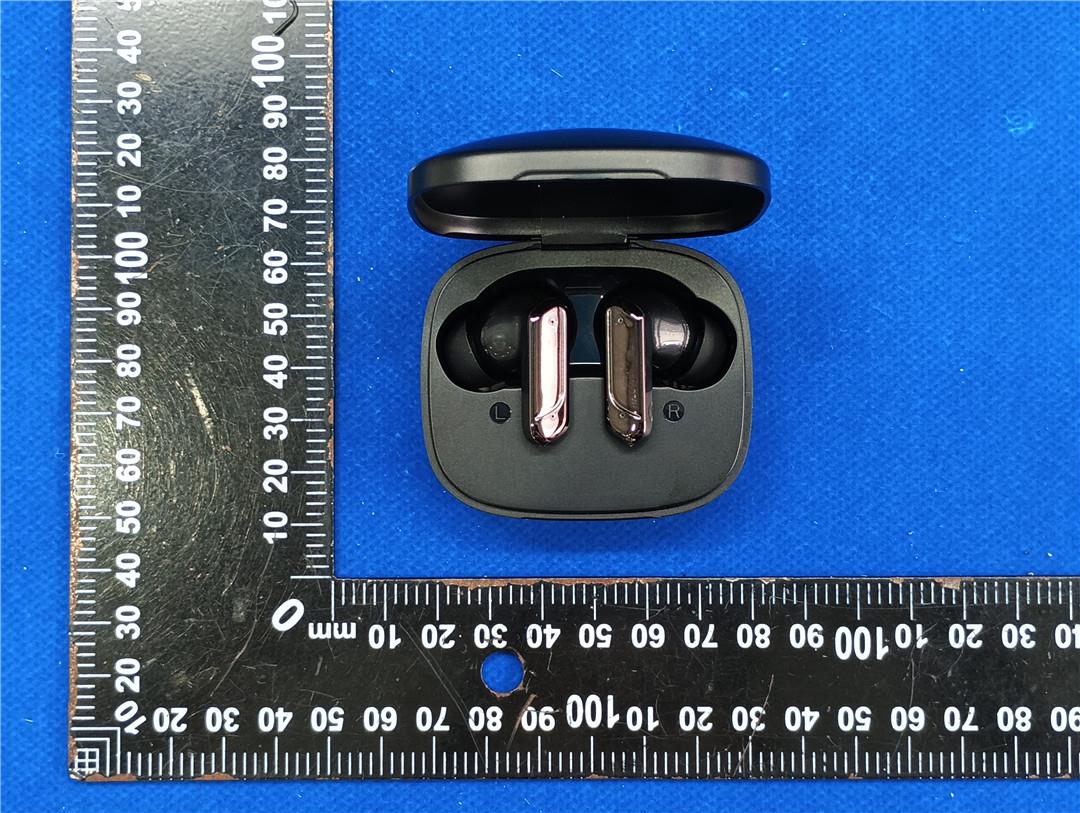

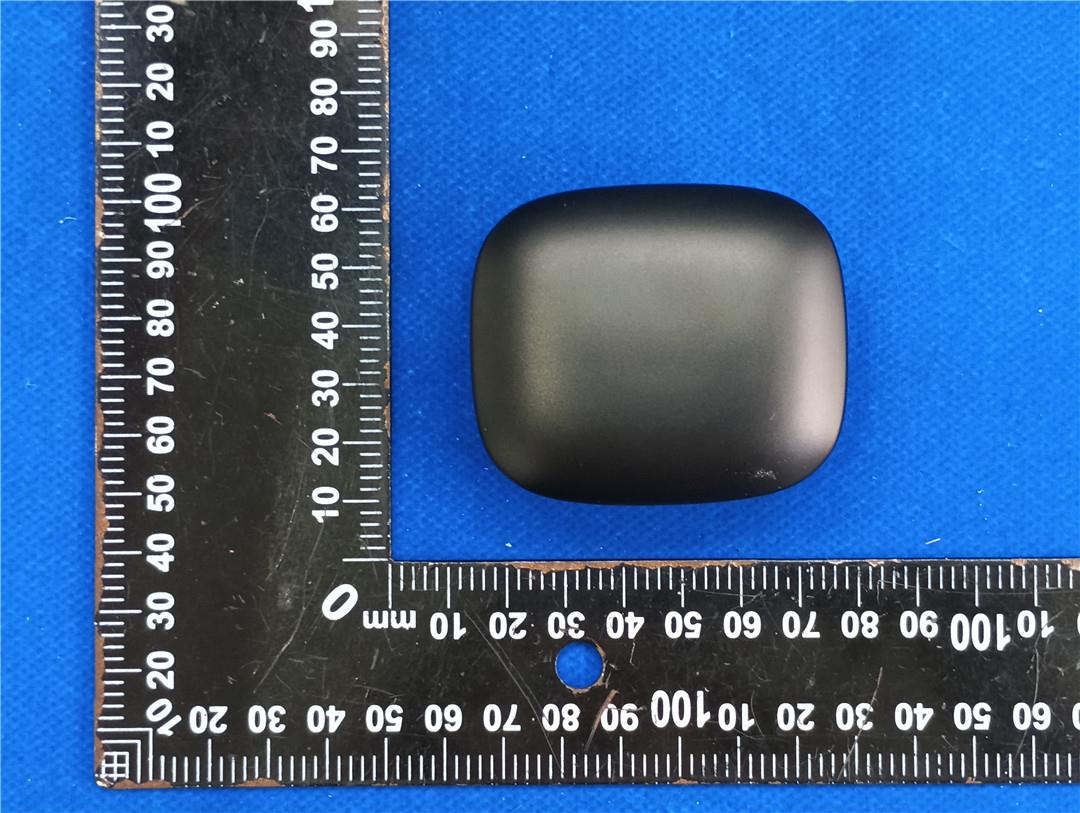

Shenzhen HTT Technology Co., Ltd. Report No.: HTT202607225 Shenzhen HTT Technology Co.,Ltd. Tel: 0755-23595200 Fax: 0755-23595201 1F, Building B, Huafeng International Robotics Industrial Park,Hangcheng Road, Nanchang Community, Xixiang Street, Bao'an District, Guangdong Province, Shenzhen, China Page 1 of 8 Product Name: In-Ear Earbuds (TWS) Model No.: OHR819 EUT Constructional Details External Photo Report No.: HTT202607225 Shenzhen HTT Technology Co.,Ltd. Tel: 0755-23595200 Fax: 0755-23595201 1F, Building B, Huafeng International Robotics Industrial Park,Hangcheng Road, Nanchang Community, Xixiang Street, Bao'an District, Guangdong Province, Shenzhen, China Page 2 of 8 Report No.: HTT202607225 Shenzhen HTT Technology Co.,Ltd. Tel: 0755-23595200 Fax: 0755-23595201 1F, Building B, Huafeng International Robotics Industrial Park,Hangcheng Road, Nanchang Community, Xixiang Street, Bao'an District, Guangdong Province, Shenzhen, China Page 3 of 8 Report No.: HTT202607225 Shenzhen HTT Technology Co.,Ltd. Tel: 0755-23595200 Fax: 0755-23595201 1F, Building B, Huafeng International Robotics Industrial Park,Hangcheng Road, Nanchang Community, Xixiang Street, Bao'an District, Guangdong Province, Shenzhen, China Page 4 of 8 Report No.: HTT202607225 Shenzhen HTT Technology Co.,Ltd. Tel: 0755-23595200 Fax: 0755-23595201 1F, Building B, Huafeng International Robotics Industrial Park,Hangcheng Road, Nanchang Community, Xixiang Street, Bao'an District, Guangdong Province, Shenzhen, China Page 5 of 8 Report No.: HTT202607225 Shenzhen HTT Technology Co.,Ltd. Tel: 0755-23595200 Fax: 0755-23595201 1F, Building B, Huafeng International Robotics Industrial Park,Hangcheng Road, Nanchang Community, Xixiang Street, Bao'an District, Guangdong Province, Shenzhen, China Page 6 of 8 Report No.: HTT202607225 Shenzhen HTT Technology Co.,Ltd. Tel: 0755-23595200 Fax: 0755-23595201 1F, Building B, Huafeng International Robotics Industrial Park,Hangcheng Road, Nanchang Community, Xixiang Street, Bao'an District, Guangdong Province, Shenzhen, China Page 7 of 8 Report No.: HTT202607225 Shenzhen HTT Technology Co.,Ltd. Tel: 0755-23595200 Fax: 0755-23595201 1F, Building B, Huafeng International Robotics Industrial Park,Hangcheng Road, Nanchang Community, Xixiang Street, Bao'an District, Guangdong Province, Shenzhen, China Page 8 of 8 ------End------

Label and Location Size: L: 1.0cm*W: 0.2cm Label and Location FCC ID : 2A2P5-OHR819

Shenzhen HTT Technology Co., Ltd. Report No.: HTT202607225 Shenzhen HTT Technology Co.,Ltd. Tel: 0755-23595200 Fax: 0755-23595201 1F, Building B, Huafeng International Robotics Industrial Park,Hangcheng Road, Nanchang Community, Xixiang Street, Bao'an District, Guangdong Province, Shenzhen, China Page 1 of 6 Product Name: In-Ear Earbuds (TWS) Model No.: OHR819 Internal Photos of the EUT Left side Photo Report No.: HTT202607225 Shenzhen HTT Technology Co.,Ltd. Tel: 0755-23595200 Fax: 0755-23595201 1F, Building B, Huafeng International Robotics Industrial Park,Hangcheng Road, Nanchang Community, Xixiang Street, Bao'an District, Guangdong Province, Shenzhen, China Page 2 of 6 Report No.: HTT202607225 Shenzhen HTT Technology Co.,Ltd. Tel: 0755-23595200 Fax: 0755-23595201 1F, Building B, Huafeng International Robotics Industrial Park,Hangcheng Road, Nanchang Community, Xixiang Street, Bao'an District, Guangdong Province, Shenzhen, China Page 3 of 6 Report No.: HTT202607225 Shenzhen HTT Technology Co.,Ltd. Tel: 0755-23595200 Fax: 0755-23595201 1F, Building B, Huafeng International Robotics Industrial Park,Hangcheng Road, Nanchang Community, Xixiang Street, Bao'an District, Guangdong Province, Shenzhen, China Page 4 of 6 Right side Photo Report No.: HTT202607225 Shenzhen HTT Technology Co.,Ltd. Tel: 0755-23595200 Fax: 0755-23595201 1F, Building B, Huafeng International Robotics Industrial Park,Hangcheng Road, Nanchang Community, Xixiang Street, Bao'an District, Guangdong Province, Shenzhen, China Page 5 of 6 Report No.: HTT202607225 Shenzhen HTT Technology Co.,Ltd. Tel: 0755-23595200 Fax: 0755-23595201 1F, Building B, Huafeng International Robotics Industrial Park,Hangcheng Road, Nanchang Community, Xixiang Street, Bao'an District, Guangdong Province, Shenzhen, China Page 6 of 6 ------End------

Shenzhen HTT Technology Co., Ltd. Shenzhen HTT Technology Co.,Ltd. Tel: 0755-23595200 Fax: 0755-23595201 1F, Building B, Huafeng International Robotics Industrial Park, Hangcheng Road,Nanchang Community, Xixiang Street, Bao'an District, Shenzhen, Guangdong, China Page 1 of 8 RF Exposure evaluation Report Reference No. ..................... : FCC ID............................................. : HTT202607225F02 2A2P5-OHR819 Compiled by ( position+printed name+signature) . : File administrators Heber He Supervised by ( position+printed name+signature) . : Project Engineer Bruce Zhu Approved by ( position+printed name+signature) . : RF Manager Kevin Yang Date of issue .................................... : Jul. 13, 2026 Testing Laboratory Name .............. : Shenzhen HTT Technology Co.,Ltd. Address ............................................ : 1F, Building B, Huafeng International Robotics Industrial Park, Hangcheng Road,Nanchang Community, Xixiang Street, Bao’an District, Shenzhen, Guangdong, China Applicant’s name ............................ : Acer Gadget Inc. Address ............................................ : 24F., No.112, Sec. 1, Xintai 5th Rd., Xizhi Dist., New Taipei city 221, Taiwan Standard ........................................... : 47CFR §1.1310 47CFR §2.1093 KDB447498 D01 General RF Exposure Guidance v06 Shenzhen HTT Technology Co.,Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen HTT Technology Co.,Ltd. is acknowledged as copyright owner and source of the material. Shenzhen HTT Technology Co.,Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Test item description ..................... : In-Ear Earbuds (TWS) Manufacturer .................................... : Acer Gadget Inc. Trade Mark ........................................ Acer Model/Type reference ...................... : OHR819 Rating ............................................... : Headphone battery capacity:3.7V/30mAh (polymer battery) Charging bin battery capacity:3.7V/230mAh (polymer battery) Charging interface :USB Type-C Result ............................................... : PASS Report No.: HTT202607225F02 Page 2 of 8 Shenzhen HTT Technology Co.,Ltd. Tel: 0755-23595200 Fax: 0755-23595201 1F, Building B, Huafeng International Robotics Industrial Park, Hangcheng Road,Nanchang Community, Xixiang Street, Bao'an District, Shenzhen, Guangdong, China Page 2 of 8 T E S T R E P O R T Equipment under Test : In-Ear Earbuds (TWS) Model /Type : OHR819 Listed Models : N/A Applicant : Acer Gadget Inc. Address : 24F., No.112, Sec. 1, Xintai 5th Rd., Xizhi Dist., New Taipei city 221, Taiwan Manufacturer : Acer Gadget Inc. Address : 24F., No.112, Sec. 1, Xintai 5th Rd., Xizhi Dist., New Taipei city 221, Taiwan Test Result: PASS The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Report No.: HTT202607225F02 Page 3 of 8 Shenzhen HTT Technology Co.,Ltd. Tel: 0755-23595200 Fax: 0755-23595201 1F, Building B, Huafeng International Robotics Industrial Park, Hangcheng Road,Nanchang Community, Xixiang Street, Bao'an District, Shenzhen, Guangdong, China Page 3 of 8 Contents 1 T E S T S T A N D A R D S ................................................... 4 2 S U M M A R Y .............................................................. 5 2.1 General Remarks 5 2.2 Product Description 5 2.3 Special Accessories 5 2.4 Modifications 5 3 T E S T E N V I R O N M E N T 6 3.1 Address of the test laboratory 6 3.2 Test Facility 6 3.3 Statement of the measurement uncertainty 6 4 T E S T L I M I T 7 4.1 Requirement 7 4.2 Conducted Power Results 8 4.3 Manufacturing tolerance 8 4.4 Evaluation Result 8 4.5 Simultaneous Transmission for SAR Exclusion 8 5 C O N C L U S I O N 8 Report No.: HTT202607225F02 Page 4 of 8 Shenzhen HTT Technology Co.,Ltd. Tel: 0755-23595200 Fax: 0755-23595201 1F, Building B, Huafeng International Robotics Industrial Park, Hangcheng Road,Nanchang Community, Xixiang Street, Bao'an District, Shenzhen, Guangdong, China Page 4 of 8 1 T E S T S T A N D A R D S The tests were performed according to following standards: ANSI C95.1–1999: IEEE Standard for Safety Levels with Respect to Human Exposure to Radio Frequency Electromagnetic Fields, 3 kHz to 300 GHz. FCC KDB 447498 D01 General RF Exposure Guidance v06: Mobile and Portable Device, RF Exposure, Equipment Authorization Procedures. FCC CFR 47 part1 1.1310: Radiofrequency radiation exposure limits. FCC CFR 47 part2 2.1093: Radiofrequency radiation exposure evaluation: portable devices Report No.: HTT202607225F02 Page 5 of 8 Shenzhen HTT Technology Co.,Ltd. Tel: 0755-23595200 Fax: 0755-23595201 1F, Building B, Huafeng International Robotics Industrial Park, Hangcheng Road,Nanchang Community, Xixiang Street, Bao'an District, Shenzhen, Guangdong, China Page 5 of 8 2 S U M M A R Y 2.1 General Remarks Date of receipt of test sample : Jul. 06, 2026 Testing commenced on : Jul. 06, 2026 Testing concluded on : Jul. 13, 2026 2.2 Product Description Product description: In-Ear Earbuds (TWS) Model/Type reference: OHR819 Power supply: Headphone battery capacity:3.7V/30mAh (polymer battery) Charging bin battery capacity:3.7V/230mAh (polymer battery) Charging interface :USB Type-C Adapter Information (Auxiliary test provided by the lab): Model: GS-0500200 Input: AC100-240V, 50/60Hz, 0.3A max Output: DC 5V, 2A Testing sample ID： HTT202607225-1# (Engineer sample) HTT202607225-2# (Normal sample) Hardware version: / Software version: / Bluetooth : Supported Type: Bluetooth BR/EDR Modulation: GFSK, π/4DQPSK Operation frequency: 2402MHz~2480MHz Channel number: 79 Channel separation: 1MHz Antenna type: Chip Antenna Antenna gain: 2.70 dBi 2.3 Special Accessories The following is the…

Text truncated - open the document above for the full version.

2.4GHz2012ChipAntenna:RANT0805F245S5 _ Application: WLAN,802.11b/g,Bluetooth,WLAN,etc... Features SMD,highreliability,ultraImpact,Omni-directional... PartnumberInformation RANT0805F245S5 (A)(B)(C)(D)(E)(F) ElectricalSpecification DimensionandTerminalConfiguration No.TerminalName 1Feeding/GNG 2GND/Feeding (A)ProductTypeChipAntenna (B)SizeCode 1.6x0.8mm( ± 0.1mm) (C)MaterialHighKmaterial (D)Frequency2.4~2.5GHz (E)FeedingmodePIFA&SingleFeeding (F)AntennatypeType=5 WorkingFrequencyRange2400~2500MHz Bandwidth120MHz(Min.) PeakGain2.7dBi(Typ.) Impedance50Ohm Returnloss10dB(Min) PolarizationLinear AzimuthBeamwidthOmni-directional OperationTemperature(°C)-40~85°C ResistancetoSolderingHeats 10sec.(@280°C) TerminationNi/Au(Leadless) Dimension(mm) L 2.00±0.10 W 1.20±0.10 T 0.45±0.10 咏成 國 際 科 技 有限 公 司 電 話 : 1 35305 7 6606 RAINIn t e rn a t i o n a lT ec hn o l o gy C o . , L t d . TEL : 1 35305 7 6606 Add:Room 707, Building F, Tongan Zhichuangyuan, xixiang street, Baoan District, Shenzhen. 2.4GHz2012ChipAntenna:RANT0805F245S5 _ 1 EvaluationBoardReference PCBDimensionUnit:mm ReturnLoss&Radiation 0805footprint (ANT) 0805footprint (ANT) 0805footprint (ANT) 0805footprint (ANT) 0805footprint (ANT) 0805footprint (ANT) 0805footprint (ANT) 0805footprint (ANT) 2.4GHz2012ChipAntenna:RANT0805F245S5 _ 2.4GHz2012ChipAntenna:RANT0805F245S5 _ TapingSpecifications ReelandTapingSpecification ReelSpecification TYPESIZEABCD 16087”4K/Reel 4.0±0.5 4.0±213.5±0.5178±2 TappingSpecification PackagingTypeABWEFGHTψDP PaperType1608 1.90±0.203.50±0.208.0±0.201.75±0.103.5±0.054.0±0.102.0±0.050.75±0.10 1.50±0.10 4.0±0.1 2.4GHz2012ChipAntenna:RANT0805F245S5 _ ReliabilityTable TestItemProcedure Requirements CeramicType Remark (Reference) Electrical Characterization Fulfilltheelectrical specification UserSpec. Thermal Shock 1.Preconditioning: 50±10°C/1hr,thenkeepfor24±1hrsatroomtemp. 2.Initialmeasure:Spec:referInitialspec. 3.Rapidchangeoftemperaturetest: -30°Cto+85°C;100cycles; 15minutesatLowercategorytemperature; 15minutesatUppercategorytemperature. NoVisibleDamage. Fulfilltheelectrical specification. MIL-STD-202 107 Temperature Cycling 1.Initialmeasure:Spec:referInitialspec. 2.100Cycles(-30°Cto+85°C),SoakMode=1(2Cycle/hours). 3.Measurementat24±2Hoursaftertestcondition. NoVisibleDamage. Fulfilltheelectrical specification. JESD22 JA104 HighTemperature Exposure 1.Initialmeasure:Spec:referInitialspec. 2.Unpowered;500hours@T=+85°C. 3.Measurementat24±2hoursaftertest. NoVisibleDamage. Fulfilltheelectrical specification. MIL-STD-202 108 LowTemperature Storage 1.Initialmeasure:Spec:referInitialspec. 2.Unpowered:500hours@T=-30°C. 3.Measurementat24±2hoursaftertest. NoVisibleDamage. Fulfilltheelectrical specification. MIL-STD-202 108 Solderability (SMDBottomSide) Dippingmethod: a.Temperature:235±5°C b.Dippingtime:3±0.5s Thesoldershouldcover over95%ofthecritical areaofbottomside. IEC60384-21/22 4.10 SolderingHeat Resistance (RSH) Preheatingtemperature:150±10°C. Preheatingtime:1~2min. Soldertemperature:260±5°C. Dippingtime:5±0.5s NoVisibleDamage.IEC60384-21/22 4.10 Vibration5g'sfor20min.,12cycleseachof3orientations Note:Use8"X5"PCB.031"thick7securepointson,onelong sideand2securepointsatcornersofoppositesides.Parts mountedwithin2"fromanysecurepoint.Testfrom10-2000 Hz. NoVisibleDamage.MIL-STD-202 Method204 Mechanical Shock Threeshocksineachdirectionshallbeappliedalongthethree mutuallyperpendicularaxesofthetestspecimen(18shocks) Peakvalue:1,500g’s Duration:0.5ms Velocitychange:15.4ft/s Waveform:Half-sine NoVisibleDamage.MIL-STD-202 Method213 Humidity Bias 1.Humidity:85%R.H.,Temperature:85±2°C. 2.Time:500±24hours. 3.Measurementat24±2hrsaftertestcondition. NoVisibleDamage. Fulfilltheelectrical specification. MIL-STD-202 Method106 2.4GHz2012ChipAntenna:RANT0805F245S5 _ Board Flex (SMD) 1.Mountingmethod: IR-Reflow.PCBSize(L:100×W:40×T:1.6mm) 2.Applytheloadindirectionofthearrowuntilbendingreaches 2mm. NoVisibleDamage.AEC-Q200 005 AdhesionForceof1.8Kgfor60seconds.NoVisibleDamage Magnificationof20Xor greatermaybeemployed forinspectionofthe mechanicalintegrityofthe devicebodyterminalsand body/terminaljunction. AEC-Q200 006 Physical Dimension Anyapplicablemethodusingx10magnification,micrometers, calipers,gauges,contourprojectors,orothermeasuring equipment,capableofdeterminingtheactualspecimen dimensions. Inaccordancewith specification. JESD22 JB100 RevisionHistory RevisionDateContent 12019/03/01NewDatasheet 22020/02/22Add2Dradiationcharacteristic

1 Appendix RF Test Data for BT Company: : Acer Gadget Inc. EUT : In-Ear Earbuds (TWS) FCC ID: : 2A2P5-OHR819 Model Number : OHR819 Report No. : HTT202607225F01 Reviewed By : Heber He 2 1. Duty Cycle 1.1 Test Result 1.1.1 Ant1 Ant1 Mode TX Type Frequency (MHz) Packet Type T_on (ms) Period (ms) Duty Cycle (%) Duty Cycle Correction Factor (dB) Max. DC Variation (%) GFSK SISO 2402 DH5 2.885 3.749 76.95 1.14 0.01 2441 DH5 2.886 3.750 76.96 1.14 0.01 2480 DH5 2.885 3.749 76.95 1.14 0.01 Pi/4DQPSK SISO 2402 2DH5 2.892 3.751 77.10 1.13 0.03 2441 2DH5 2.891 3.750 77.09 1.13 0.03 2480 2DH5 2.891 3.750 77.09 1.13 0.04 3 1.2 Test Graph 1.2.1 Ant1 GFSK_DH5_LCH_2402MHz_Ant1_NTNV GFSK_DH5_MCH_2441MHz_Ant1_NTNV 4 GFSK_DH5_HCH_2480MHz_Ant1_NTNV Pi/4DQPSK_2DH5_LCH_2402MHz_Ant1_NTNV 5 Pi/4DQPSK_2DH5_MCH_2441MHz_Ant1_NTNV Pi/4DQPSK_2DH5_HCH_2480MHz_Ant1_NTNV 6 2. Bandwidth 2.1 Test Result 2.1.1 OBW Mode TX Type Frequency (MHz) Packet Type ANT 99% Occupied Bandwidth (MHz) Verdict Result Limit GFSK SISO 2402 DH5 1 0.857 / Pass 2441 DH5 1 0.855 / Pass 2480 DH5 1 0.859 / Pass Pi/4DQPSK SISO 2402 2DH5 1 1.181 / Pass 2441 2DH5 1 1.182 / Pass 2480 2DH5 1 1.190 / Pass 2.1.2 20dB BW Mode TX Type Frequency (MHz) Packet Type ANT 20dB Bandwidth (MHz) Verdict Result Limit GFSK SISO 2402 DH5 1 0.920 / Pass 2441 DH5 1 0.920 / Pass 2480 DH5 1 0.923 / Pass Pi/4DQPSK SISO 2402 2DH5 1 1.303 / Pass 2441 2DH5 1 1.311 / Pass 2480 2DH5 1 1.263 / Pass 7 2.2 Test Graph 2.2.1 OBW GFSK_DH5_LCH_2402MHz_Ant1_NTNV GFSK_DH5_MCH_2441MHz_Ant1_NTNV 8 GFSK_DH5_HCH_2480MHz_Ant1_NTNV Pi/4DQPSK_2DH5_LCH_2402MHz_Ant1_NTNV 9 Pi/4DQPSK_2DH5_MCH_2441MHz_Ant1_NTNV Pi/4DQPSK_2DH5_HCH_2480MHz_Ant1_NTNV 10 2.2.2 20dB BW GFSK_DH5_LCH_2402MHz_Ant1_NTNV GFSK_DH5_MCH_2441MHz_Ant1_NTNV 11 GFSK_DH5_HCH_2480MHz_Ant1_NTNV Pi/4DQPSK_2DH5_LCH_2402MHz_Ant1_NTNV 12 Pi/4DQPSK_2DH5_MCH_2441MHz_Ant1_NTNV Pi/4DQPSK_2DH5_HCH_2480MHz_Ant1_NTNV 13 3. Maximum Conducted Output Power 3.1 Test Result 3.1.1 Power Mode TX Type Frequency (MHz) Packet Type Maximum Peak Conducted Output Power (dBm) Verdict ANT1 Limit GFSK SISO 2402 DH5 2.69 <=30 Pass 2441 DH5 2.78 <=30 Pass 2480 DH5 2.77 <=30 Pass Pi/4DQPSK SISO 2402 2DH5 3.57 <=20.97 Pass 2441 2DH5 3.72 <=20.97 Pass 2480 2DH5 3.71 <=20.97 Pass 14 4. Carrier Frequency Separation 4.1 Test Result 4.1.1 Ant1 Ant1 Mode TX Type Frequency (MHz) Packet Type Channel Separation (MHz) 20dB Bandwidth (MHz) Limit (MHz) Verdict GFSK SISO HOPP DH5 1.010 0.923 >=0.923 Pass Pi/4DQPSK SISO HOPP 2DH5 1.008 1.311 >=0.874 Pass 15 4.2 Test Graph 4.2.1 Ant1 GFSK_DH5_HOPP_Ant1_NTNV Pi/4DQPSK_2DH5_HOPP_Ant1_NTNV 16 5. Number of Hopping Frequencies 5.1 Test Result 5.1.1 HoppNum Mode TX Type Frequency (MHz) Packet Type Num of Hopping Frequencies Verdict ANT1 Limit GFSK SISO HOPP DH5 79 >=15 Pass Pi/4DQPSK SISO HOPP 2DH5 79 >=15 Pass 17 5.2 Test Graph 5.2.1 HoppNum GFSK_DH5_HOPP_Ant1_NTNV Pi/4DQPSK_2DH5_HOPP_Ant1_NTNV 18 6. Time of Occupancy (Dwell Time) 6.1 Test Result 6.1.1 Ant1 Ant1 Mode TX Type Frequency (MHz) Packet Type Duration of Single Pulse (ms) Observation Period (s) Num of Pulse in Observation Period Dwell Time (ms) Limit (ms) Verdict GFSK SISO HOPP DH1 0.380 31.600 320 121.600 <=400 Pass DH3 1.636 31.600 159 260.124 <=400 Pass DH5 2.888 31.600 110 317.680 <=400 Pass Pi/4DQPSK SISO HOPP 2DH1 0.390 31.600 319 124.410 <=400 Pass 2DH3 1.642 31.600 160 262.720 <=400 Pass 2DH5 2.894 31.600 107 309.658 <=400 Pass 19 6.2 Test Graph 6.2.1 Ant1 GFSK_DH1_HOPP_Ant1_NTNV GFSK_DH1_HOPP_Ant1_NTNV 20 GFSK_DH3_HOPP_Ant1_NTNV GFSK_DH3_HOPP_Ant1_NTNV 21 GFSK_DH5_HOPP_Ant1_NTNV GFSK_DH5_HOPP_Ant1_NTNV 22 Pi/4DQPSK_2DH1_HOPP_Ant1_NTNV Pi/4DQPSK_2DH1_HOPP_Ant1_NTNV 23 Pi/4DQPSK_2DH3_HOPP_Ant1_NTNV Pi/4DQPSK_2DH3_HOPP_Ant1_NTNV 24 Pi/4DQPSK_2DH5_HOPP_Ant1_NTNV Pi/4DQPSK_2DH5_HOPP_Ant1_NTNV 25 7. Unwanted Emissions In Non-restricted Frequency Bands 7.1 Test Result 7.1.1 Ref Mode TX Type Frequency (MHz) Packet Type ANT Level of Reference (dBm) GFSK SISO 2402 DH5 1 2.55 2441 DH5 1 2.53 2480 DH5 1 2.64 HOPP DH5 1 2.69 2.69 Pi/4DQPSK SISO 2402 2DH5 1 2.55 2441 2DH5 1 2.68 2480 2DH5 1 2.71 HOPP 2DH5 1 2.75 2.75 7.1.2 CSE Mode TX Type Frequency (MHz) Packet Type ANT Level of Reference (dBm) Limit (dBm) Verdict GFSK SISO 2402 DH5 1 2.55 -17.45 Pass 2441 DH5 1 2.53 -17.47 Pass 2480 DH5 1 2.64 -17.36 Pass HOPP DH5 1 2.69 -17.31 Pass 2.69 -17.31 Pass Pi/4DQPSK SISO 2402 2DH5 1 2.55 -17.45 Pass 2441 2DH5 1 2.68 -17.32 Pass 2480 2DH5 1 2.71 -17.29 Pass HOPP 2DH5 1 2.75 -17.25 Pass 2.75 -17.25 Pass 26 7.2 Test Graph 7.2.1 Ref GFSK_DH5_LCH_2402MHz_Ant1_NTNV GFSK_DH5_MCH_2441MHz_Ant1_NTNV 27 GFSK_DH5_HCH_2480MHz_Ant1_NTNV GFSK_DH5_HOPP_Ant1_NTNV 28 GFSK_DH5_HOPP_Ant1_NTNV Pi/4DQPSK_2DH5_LCH_2402MHz_Ant1_NTNV 29 Pi/4DQPSK_2DH5_MCH_2441MHz_Ant1_NTNV Pi/4DQPSK_2DH5_HCH_2480MHz_Ant1_NTNV 30 Pi/4DQPSK_2DH5_HOPP_Ant1_NTNV Pi/4DQPSK_2DH5_HOPP_Ant1_NTNV 31 7.2.2 CSE GFSK_DH5_LCH_2402MHz_Ant1_NTNV GFSK_DH5_LCH_2402MHz_Ant1_NTNV 32 GFSK_DH5_MCH_2441MHz_Ant1_NTNV GFSK_DH5_HCH_2480MHz_Ant1_NTNV 33 GFSK_DH5_HCH_2480MHz_Ant1_NTNV GFSK_DH5_HOPP_Ant1_NTNV 34 GFSK_DH5_HOPP_Ant1_NTNV Pi/4DQPSK_2DH5_LCH_2402MHz_Ant1_NTNV 35 Pi/4DQPSK_2DH5_LCH_2402MHz_Ant1_NTNV Pi/4DQPSK_2DH5_MCH_2441MHz_Ant1_NTNV 36 Pi/4DQPSK_2DH5_HCH_2480MHz_Ant1_NTNV Pi/4DQPSK_2DH5_HCH_2480MHz_Ant1_NTNV 37 Pi/4DQPSK_2DH5_HOPP_Ant1_NTNV Pi/4DQPSK_2DH5_HOPP_Ant1_NTNV

Shenzhen HTT Technology Co., Ltd. Shenzhen HTT Technology Co.,Ltd. Tel: 0755-23595200 Fax: 0755-23595201 1F, Building B, Huafeng International Robotics Industrial Park, Hangcheng Road,Nanchang Community, Xixiang Street, Bao'an District, Shenzhen, Guangdong, China FCC PART 15 SUBPART C TEST REPORT FCC PART 15.247 Report Reference No. .................... : FCC ID. ........................................... : HTT202607225F01 2A2P5-OHR819 Compiled by ( position+printed name+signature) . : File administrators Heber He Supervised by ( position+printed name+signature) . : Project Engineer Bruce Zhu Approved by ( position+printed name+signature) . : RF Manager Kevin Yang Date of issue .................................... : Jul. 13, 2026 Testing Laboratory Name .............. : Shenzhen HTT Technology Co.,Ltd. Address ............................................ : 1F, Building B, Huafeng International Robotics Industrial Park, Hangcheng Road,Nanchang Community, Xixiang Street, Bao’an District, Shenzhen, Guangdong, China Applicant’s name ........................... : Acer Gadget Inc. Address ............................................ : 24F., No.112, Sec. 1, Xintai 5th Rd., Xizhi Dist., New Taipei city 221, Taiwan Test specification ........................... : Standard ........................................... : FCC Part 15.247 Shenzhen HTT Technology Co.,Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen HTT Technology Co.,Ltd. is acknowledged as copyright owner and source of the material. Shenzhen HTT Technology Co.,Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Test item description ..................... : In-Ear Earbuds (TWS) Trade Mark ....................................... : Acer Manufacturer .................................. : Acer Gadget Inc. Model/Type reference ...................... : OHR819 Listed Models ................................... : N/A Modulation ....................................... : GFSK, Π/4DQPSK Frequency ......................................... From 2402MHz to 2480MHz Ratings ............................................. : Headphone battery capacity:3.7V/30mAh (polymer battery) Charging bin battery capacity:3.7V/230mAh (polymer battery) Charging interface :USB Type-C Result ............................................... : PASS Report No.: HTT202607225F01 Page 2 of 45 Shenzhen HTT Technology Co.,Ltd. Tel: 0755-23595200 Fax: 0755-23595201 1F, Building B, Huafeng International Robotics Industrial Park, Hangcheng Road,Nanchang Community, Xixiang Street, Bao'an District, Shenzhen, Guangdong, China T E S T R E P O R T Equipment under Test : In-Ear Earbuds (TWS) Model /Type : OHR819 Listed Models : N/A Applicant : Acer Gadget Inc. Address : 24F., No.112, Sec. 1, Xintai 5th Rd., Xizhi Dist., New Taipei city 221, Taiwan Manufacturer : Acer Gadget Inc. Address : 24F., No.112, Sec. 1, Xintai 5th Rd., Xizhi Dist., New Taipei city 221, Taiwan Test Result: PASS The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Report No.: HTT202607225F01 Page 3 of 45 Shenzhen HTT Technology Co.,Ltd. Tel: 0755-23595200 Fax: 0755-23595201 1F, Building B, Huafeng International Robotics Industrial Park, Hangcheng Road,Nanchang Community, Xixiang Street, Bao'an District, Shenzhen, Guangdong, China Contents 1 TEST STANDARDS .......................................................................................................................................... 4 2 SUMMARY ........................................................................................................................................................ 5 2.1 General Remarks ................................…

Text truncated - open the document above for the full version.
