2A2Q2-MA015000mAh Wireless Power bank

IN MOTION FCC COMPLIANCE This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: 54 3 1. Wireless Charging Surface 2. Power Check Button 3. Lightning Input 4. USB-C Input / Output 5. LED Indicator IMPORTANT SAFETY INSTRUCTIONS -SAVE THESE INSTRUCTIONS Please read all safety information and operating instructions prior to using this battery product. Improper use of the product could result in excess heat, fire, explosion, electric shock, toxic fumes or other injury or damage. 1. Do not place or store the product in any high temperature environment, including intense sunlight or heat. Do not place the product in a fire. 2.Be cautious of any excessive drops, bumps, abrasions, or other impacts to the product. 3.Do not disassemble the product. Do not attempt to repair or modify the product in any manner. Do not try to replace any parts of the product. 4.Do not expose the product to moisture or submerge it in a liquid. Keep the product battery dry at all times. 5. Do not attempt to charge the product using any other method except as described in this manual. Only use the included cable to charge the product. 6.The product is intended for use by adults. The product should only be used by minors when under proper adult trained supervision. The product should never be used by small children. 7. If you find that your product is not functioning properly, or if the product is emitting excessive heat, odor, deformed in any way, broken, cut, experiencing or demonstrating some abnormal phenomenon, stop using it immediately. 8. When planning for extended storage of the product, first charge it for one hour. 9.Do not use the product while in any potentially explosive atmosphere. Sparks in such areas could cause an explosion or fire, resulting in serious injury or even death. 1 0. If you choose to dispose of the product, dispose of the battery in an appropriate manner following all federal and state regulations. Since the product contains electronic components and a battery, it cannot thrown away with normal household waste. with USB- C port or ; remaining battery Power Bank Recharge Insert the USB-C connector of the charging cable provided into the USB-C port of the power bank and insert the other end to a power supply Insert a Lightning cable (not included) to the IP input port of the power bank and insert the other end to a power supply. Wireless Charging Other wireless charging supported device can also be charged wirelessly however they will not be attracted to each other. To have a better charging performance, please remove the case of your device before charging. Wired Charging Insert a USB-C connector of a charging cable into the USB-C port of the power bank and connect the other end to your device. The power bank supports wireless and wired charging simultaneously. Battery Indicator Press the power check button to check the capacity. 4 lights on, indicating the remaining battery capacity is around 75-1000/o 3 lights on, indicating the remaining battery capacity is around 50-750/o 2 lights on, indicating the remaining battery capacity is around 25-500/o 1 light on, indicating the remaining battery capacity is around 1 0-250/o 1st light flashing, indicating the remaining battery capacity is under 1 09!o．Power bank needs recharging. Technical Specification: •Capacity: 5000mAh •Lightning Input: DC 5V / 2.1 A • USB-C Input: DC 5V / 3A, DC 9V /2A, DC 12V / 1.5A •Wireless Output: 5W, 7.5W, 1 OW, 15W Max. •USB-C Output: DC 5V /3A, DC 9V / 2A, DC 1 2V /1.5A 1 BW Max. •Size: 93. 7 x 63. 7 x 14.6mm (3. 7 x 2.5 x 0.6 in)[LxWxH] • Weight: 116 g (4.1 oz) •Cable length: 0.25m (1 0 in.) 1.This device may not cause harmful interference, and 2. This device must accept any interference received, including interference that may cause undesired operation. WARNING: Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: •Reorient or relocate the receiving antenna •Increase the separation between the equipment and receiver •Connect the equipment into an outlet on a circuit different from that to which the receiver is connected •Consult the dealer or an experienced radio / TV technician for help The device has been evaluated to meet general RF exposure requirement. The device can be used in portable exposure condition without restriction. 1 Phone is a trademark of Apple Inc., registered 1n the U.S. and other countries. lnMotion and this product, are not affiliated with, or endo rsed by Apple Inc. Colors and c ontent may vary. Please retain this information for future reference. IMEG LLC 3755 W Sunset Rd Suite A, Las Vegas, NV 89118 Produced in China 岱庉

-TaisonsInternationalCo.- TheinformationprovidedinthisletterisbasedonthereferencedrulepartsofTitle47oftheCFRaswellasKDB986446D01. Anexpirationdateforthisletterdoesnotexist.IncasetheU.S.agentchanges,thegranteeisobligatedtonotifytheFCCwithin30daysvia thegrantingTCB. FederalCommunicationsCommission AuthorizationandEvaluationDivision EquipmentAuthorizationBranch 7435OaklandMillsRoad Columbia,MD21046 5/5/23 U.S.AgentDesignation [TaisonsInternationalCo.]acknowledgestheirconsentforthefollowingcontactlocatedinthe UnitedStatestoactastheiragentforserviceofprocessfortheequipmentforwhichauthorizationis sought(FCCID:[2A2Q2-MA01]): NameandcompanyofU.S.agent:MarshallRetailGroup|InMotion PhysicalU.S.addressofagent:3755WestSunsetRoad,LasVegas,NEVADA,89118,USA FRNofU.S.agent:0033568718 EmailaddressofU.S.agent:[email protected] [MarshallRetailGroup|InMotion]acknowledgestheirobligationtoacceptserviceofprocesson behalfof[TaisonsInternationalCo.]. [TaisonsInternationalCo.]withtheFRN[0031204464]acceptsitsobligationtomaintainanagent forserviceofprocessintheUnitedStatesfornolessthanoneyearaftereitherthegranteehas permanentlyterminatedallmarketingandimportationoftheapplicableequipmentwithintheU.S.,or theconclusionofanyCommission-relatedadministrativeorjudicialproceedinginvolvingthe equipment,whicheverislater. Bysigningthisform,weconfirmtheaboveandthatweareawareoftheapplicationrequirements listedunder§2.911(d)(7). Sincerely, Signature [LongChen] [SalesManager] [TaisonsInternationalCo.] 4 8 _ [ m o d e l ] U S _ A g e n t _ 2 . 9 1 1 ( d ) ( 7 ) - U , V 0 4 -TaisonsInternationalCo.- TheinformationprovidedinthisletterisbasedonthereferencedrulepartsofTitle47oftheCFRaswellasKDB986446D01. Anexpirationdateforthisletterdoesnotexist.IncasetheU.S.agentchanges,thegranteeisobligatedtonotifytheFCCwithin30daysvia thegrantingTCB. Signature [PaulNavarro] [SeniorBuyer] [MarshallRetailGroup|InMotion]

-TaisonsInternationalCo.- TheinformationprovidedinthisletterisbasedonthereferencedrulepartsofTitle47oftheCFRaswellasKDB986446D01. FederalCommunicationsCommission AuthorizationandEvaluationDivision EquipmentAuthorizationBranch 7435OaklandMillsRoad Columbia,MD21046 4/27/23 Towhomitmayconcern: We,[TaisonsInternationalCo.],herebycertifythattheequipmentforwhichauthorizationissought (FCCID:[2A2Q2-MA01])isnot“covered”equipmentprohibitedfromreceivinganequipment authorizationpursuantto§2.903oftheFCCrules. Wealsocertifythat,asofthedateofthefilingoftheapplication,wearenotidentifiedontheCovered List(https://www.fcc.gov/supplychain/coveredlist)asanentityproducing“covered”equipment. Bysigningthisform,weconfirmtheaboveandthatweareawareoftheapplicationrequirements listedunder§2.911(b)and(d)(5)and(6). Sincerely, Signature [LongChen] [SalesManager] [TaisonsInternationalCo.] 6 2 _ [ m o d e l ] C o v e r e d E q u _ 2 . 9 1 1 ( d ) ( 5 ) ( i ) a n d ( i i ) - U , V 0 2

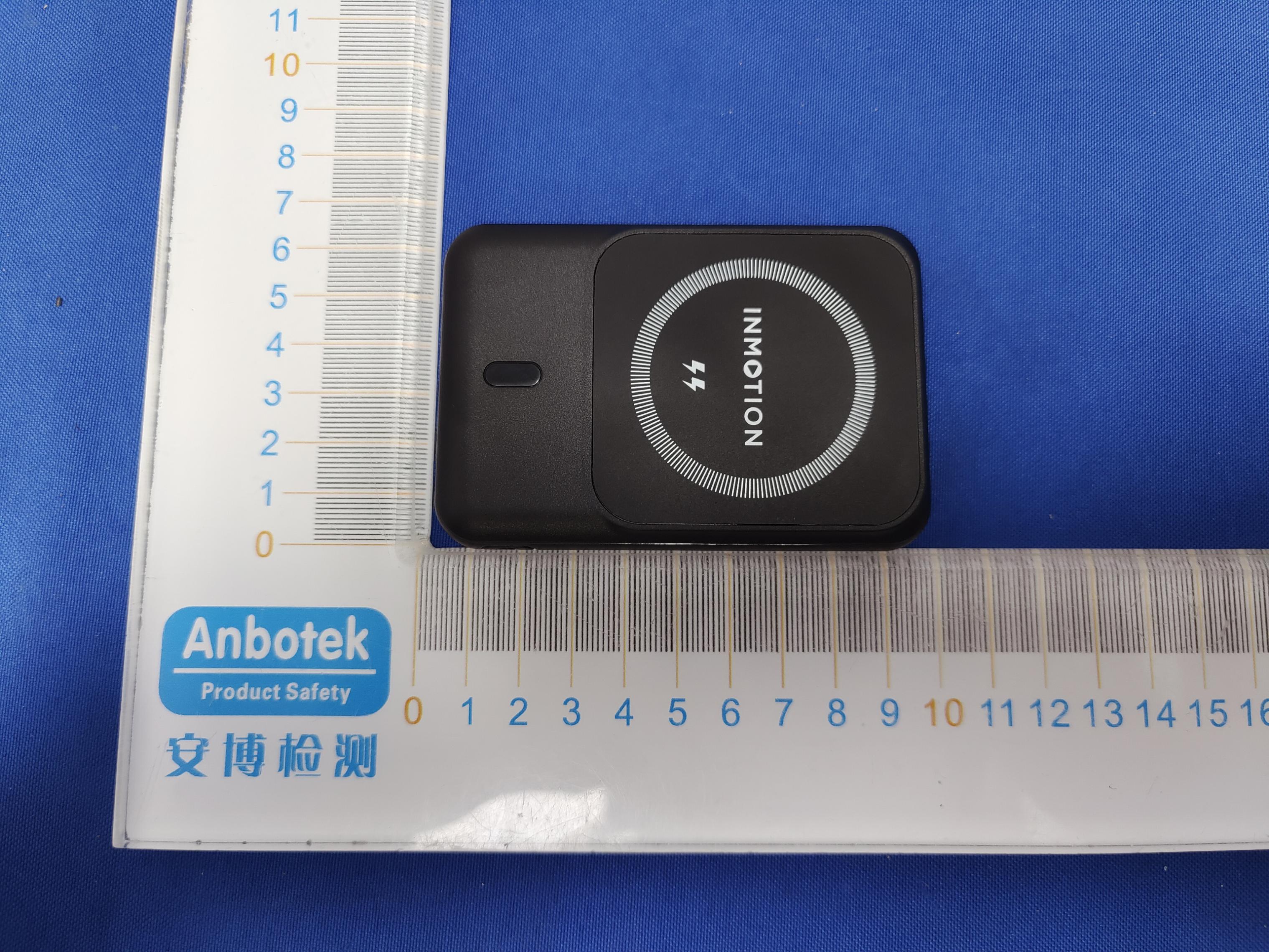

Code:AB-RF-05-b ExternalPhotograph Code:AB-RF-05-b Code:AB-RF-05-b Code:AB-RF-05-b

LabelLocationOnEUT Label ProductName:5000mAhWirelessPowerbank ModelNo.:MA01 FCCID:2A2Q2-MA01 ThisdevicecomplieswithPart15oftheFCCRules.Operationis subjecttothefollowingtwoconditions: (1)Thisdevicemaynotcauseharmfulinterference,and (2) Thisdevicemustacceptanyinterferencereceived,including interferencethatmaycauseundesiredoperation.

Code:AB-RF-05-b InternalPhotograph ANT Code:AB-RF-05-b

version01 TaisonsInternationalCo. DeclarationconcerningAntennaSpecification Itisherebydeclaredthattheproduct ModelNo.:MA01,3389843 FCCID:2A2Q2-MA01 fulfillstherequirementinFCCtestrelatingtotheantennatype. ThedevicespecifiedaboveconfirmstotheFCCrecommendationsfor internal antennatype(s) describedbelow: ModelNo.ofantenna:N/A Typeofantenna:InductiveloopcoilAntenna Gainoftheantenna:0dBi Frequencyrange:125KHz Themountingoftheantennaisfixedtotheradiomoduleandnootherantennashouldbeused. Companyname:TaisonsInternationalCo. Address:6Bldg,GaoXinJianIndustrialzone,HePingvillage,Fuyongtown,Bao'an district,Shenzhen,518000,China City:Shenzhen ZIP/Postalcode:518000 Country:China Place:Date:4/27/2023 Signature:

Shenzhen Chenxing Electronic Technology Co., LTD 第 1 company name ：Shenzhen Chenxing Electronic Technology Co., LTD factory address ：Floor 5, Building 1, Xinkecheng Science and Technology Industrial Park, 51 Dabao Road, Xin 'an Street, Bao 'an District, Shenzhen City 页 PRODUCTSPECIFICATION FOR APPROVAL ： PARTNo CUSTOMER A11 transmitting coil PRODUCTNAME . PRODUCTSPEC magnetic sheet：41.5*5.3*0.8 double-groove coil ：0.08*24P*2*10Ts/ 30mm inductance value：6.3uH± 10% Common double-sided adhesive DATE 2023/4/10 VERSION REV1.0 Revision ModiiedContent Principle Date REV Note 1.0 first publishXueLei 2023-04-10 PREPARED BYCHECKEDBYAPPROVED BY LiXiaoyunZhouXiaojuXueLei Authorizedsignature& companychop Attached is the product specification, if you have any questions, please timely feedback to us, thank you! Shenzhen Chenxing Electronic Technology Co., LTD 第 2 C F 页 SPECIFICATION 一、Product size 38±1 41.5± 0.5 D i s c d i a m e t e r A mm mm 20.5± 0.5 mm <2 mm 30mm± 3mm 3.0±1 mm 5±0.3 mm 0.8±0.05m m cloth insertion Circular L slot sheet S / Shenzhen Chenxing Electronic Technology Co., LTD 第 3 Company name：Shenzhen Chenxing Electronic Technology Co., LTD Factory address：Floor 5, Building 1, Xinkecheng Science and Technology Industrial Park, 51 Dabao Road, Xin 'an Street, Bao 'an District, Shenzhen City 页 二、Schematic diagram 三、Winding parameter TERMINALWIRETurnsWindingDirection SF10T silk-covered wire 0.08*24P* 2 sCCW 四、Electrical specification： TEMPERATURE:25±10°C, RELATIVEHUMIDITY:65±20% ITEMTERMINALSPECIFICATIONTESTFREQUENCY IND TESTEQUIPMENTS .S-F 6.3uH±10% 100KHz/1.0VLCZMETER1062B

ReportNo.:18220WC30051602FCCID:2A2Q2-MA01Page1of10 Code:AB-RF-05-b FCCTestReport Applicant:TaisonsInternationalCo. Address: 6Bldg,GaoXinJianIndustrialzone,HePing village,Fuyongtown,Bao'andistrict, Shenzhen,518000,China ProductName:5000mAhWirelessPowerbank ReportDate:May05,2023 ShenzhenAnbotekComplianceLaboratoryLimited ReportNo.:18220WC30051602FCCID:2A2Q2-MA01Page2of10 Code:AB-RF-05-b Contents 1.GeneralInformation...........................................................................................................................................5 1.1.ClientInformation....................................................................................................................................5 1.2.DescriptionofDevice(EUT)..................................................................................................................5 1.3.AuxiliaryEquipmentUsedDuringTest................................................................................................6 1.4.TestEquipmentList.................................................................................................................................6 1.5.MeasurementUncertainty.....................................................................................................................6 1.6.DescriptionofTestFacility.....................................................................................................................6 2.MeasurementandResult..................................................................................................................................7 2.1.Requirements...........................................................................................................................................7 2.2.TestSetup.................................................................................................................................................8 2.3.TestProcedure.........................................................................................................................................8 2.4.TestResult................................................................................................................................................8 APPENDIXI--TESTSETUPPHOTOGRAPH................................................................................................10 APPENDIXII--EXTERNALPHOTOGRAPH..................................................................................................10 APPENDIXIII--INTERNALPHOTOGRAPH..................................................................................................10 ReportNo.:18220WC30051602FCCID:2A2Q2-MA01Page3of10 Code:AB-RF-05-b TESTREPORT Applicant:TaisonsInternationalCo. Manufacturer:TaisonsInternationalCo. ProductName:5000mAhWirelessPowerbank ModelNo.:MA01,3389843 TradeMark:INMOTION Rating(s): Input:lightning:5V⎓2.1A Type-C:5V⎓3A,9V⎓2A,12V⎓1.5A Type-COutput:5V⎓3A,9V⎓2A,12V⎓1.5A WirelessOutput:15W/10W/7.5W/5W Capacity:DC3.7V,5000mAh(18.5Wh) TestStandard(s): FCCPart1.1310,1.1307(b) TestMethod(s): KDB680106D01RFExposureWirelessChargingAppsv03 ThedevicedescribedaboveistestedbyShenzhenAnbotekComplianceLaboratoryLimitedto determinethemaximumemissionlevelsemanatingfromthedeviceandtheseverelevelsofthedevice canendureanditsperformancecriterion.Themeasurementresultsarecontainedinthistestreportand ShenzhenAnbotekComplianceLaboratoryLimitedisassumedfullofresponsibilityfortheaccuracy andcompletenessofthesemeasurements.Also,thisreportshowsthattheEUT(EquipmentUnder Test)istechnicallycompliantwiththeFCCPart1.1307&KDB680106D01requirements. Thisreportappliestoabovetestedsampleonlyandshallnotbereproducedinpartwithoutwritten approvalofShenzhenAnbotekComplianceLaboratoryLimited. DateofReceipt Mar.30,2023 DateofTest Mar.30~Apr.12,2023 PreparedBy (NianxiuChen) Approved&AuthorizedSigner (KingkongJin) ReportNo.:18220WC30051602FCCID:2A2Q2-MA01Page4of10 Code:AB-RF-05-b RevisionHistory ReportVersionDescriptionIssuedDate R00OriginalIssue.May05,2023 ReportNo.:18220WC30051602FCCID:2A2Q2-MA01Page5of10 Code:AB-RF-05-b 1.GeneralInformation 1.1.ClientInformation Applicant:TaisonsInternationalCo. Address: 6Bldg,GaoXinJianIndustrialzone,HePingvillage,Fuyongtown,Bao'an district,Shenzhen,518000,China Manufacturer:TaisonsInternationalCo. Address: 6Bldg,GaoXinJianIndustrialzone,HePingvillage,Fuyongtown,Bao'an district,Shenzhen,518000,China Factory:TaisonsInternationalCo. Address: 6Bldg,GaoXinJianIndustrialzone,HePingvillage,Fuyongtown,Bao'an district,Shenzhen,518000,China 1.2.DescriptionofDevice(EUT) ProductName:5000mAhWirelessPowerbank ModelNo.: MA01,3389843 (Note:Allsamplesarethesameexceptthemodelnumberandappearance color,soweprepare"MA01"fortestonly.) TradeMark:INMOTION TestPowerSupply:DC3.7Vbatteryinside TestSampleNo.:1-2-1(NormalSample),1-2-2(EngineeringSample) Adapter:N/A RFSpecification OperationFrequency:125kHz ModulationType:FSK AntennaType:InductiveloopcoilAntenna AntennaGain(Peak):0dBi(Providedbycustomer) Remark:1)Foramoredetailedfeaturesdescription,pleaserefertothemanufacturer’sspecifications ortheUser’sManual. ReportNo.:18220WC30051602FCCID:2A2Q2-MA01Page6of10 Code:AB-RF-05-b 1.3.AuxiliaryEquipmentUsedDuringTest DescriptionRating(s) MobilePhoneiPhone12 1.4.TestEquipmentList ItemEquipmentManufacturerModelNo.SerialNo.LastCal.Cal.Interval 1 Electricand Magneticfield Analyzer NARDAEHP-200A180ZX10202Oct.17,20221Year 1.5.MeasurementUncertainty MagneticFieldReading(A/m):+/-0.04282(A/m) ElectricFieldReading(V/m):+/-0.03679(V/m) 1.6.DescriptionofTestFacility Thetestfacilityisrecognized,certified,oraccreditedbythefollowingorganizations: FCC-RegistrationNo.:184111 ShenzhenAnbotekComplianceLaboratoryLimited,EMCLaboratoryhasbeenregisteredandfully describedinareportfiledwiththe(FCC)FederalCommunicationsCommission.Theacceptanceletter fromtheFCCismaintainedinourfiles.RegistrationNo.184111. ISED-RegistrationNo.:8058A ShenzhenAnbotekComplianceLaboratoryLimited,EMCLaboratoryhasbeenregisteredandfully describedinareportfiledwit…

Text truncated - open the document above for the full version.

ReportNo.:18220WC30051601FCCID:2A2Q2-MA01Page1of21 Code:AB-RF-05-b FCCTestReport Applicant:TaisonsInternationalCo. Address: 6Bldg,GaoXinJianIndustrialzone,HePing village,Fuyongtown,Bao'andistrict, Shenzhen,518000,China ProductName:5000mAhWirelessPowerbank ReportDate:May05,2023 ShenzhenAnbotekComplianceLaboratoryLimited ReportNo.:18220WC30051601FCCID:2A2Q2-MA01Page2of21 Code:AB-RF-05-b Contents 1.GeneralInformation............................................................................................................................................5 1.1.ClientInformation....................................................................................................................................5 1.2.DescriptionofDevice(EUT)..................................................................................................................5 1.3.AuxiliaryEquipmentUsedDuringTest.................................................................................................6 1.4.DescriptionofTestModes......................................................................................................................6 1.5.DescriptionOfTestSetup......................................................................................................................7 1.6.TestEquipmentList.................................................................................................................................8 1.7.MeasurementUncertainty......................................................................................................................9 1.8.DescriptionofTestFacility.....................................................................................................................9 2.SummaryofTestResults.................................................................................................................................10 3.ConductedEmissionTest................................................................................................................................11 3.1.TestStandardandLimit........................................................................................................................11 3.2.TestSetup...............................................................................................................................................11 3.3.TestProcedure.......................................................................................................................................11 3.4.TestData.................................................................................................................................................11 4.RadiationSpuriousEmission..........................................................................................................................14 4.1.TestStandardandLimit........................................................................................................................14 4.2.TestSetup...............................................................................................................................................14 4.3.TestProcedure.......................................................................................................................................15 4.4.TestData.................................................................................................................................................15 5.AntennaRequirement......................................................................................................................................20 5.1.TestStandardandRequirement.........................................................................................................20 5.2.AntennaConnectedConstruction.......................................................................................................20 APPENDIXI--TESTSETUPPHOTOGRAPH................................................................................................21 APPENDIXII--EXTERNALPHOTOGRAPH..................................................................................................21 APPENDIXIII--INTERNALPHOTOGRAPH...................................................................................................21 ReportNo.:18220WC30051601FCCID:2A2Q2-MA01Page3of21 Code:AB-RF-05-b TESTREPORT Applicant:TaisonsInternationalCo. Manufacturer:TaisonsInternationalCo. ProductName:5000mAhWirelessPowerbank ModelNo.:MA01,3389843 TradeMark:INMOTION Rating(s): Input:lightning:5V⎓2.1A Type-C:5V⎓3A,9V⎓2A,12V⎓1.5A Type-COutput:5V⎓3A,9V⎓2A,12V⎓1.5A WirelessOutput:15W/10W/7.5W/5W Capacity:DC3.7V,5000mAh(18.5Wh) TestStandard(s): FCCPart15SubpartC,Paragraph15.209 TestMethod(s): ANSIC63.10:2020 ThedevicedescribedaboveistestedbyShenzhenAnbotekComplianceLaboratoryLimitedto determinethemaximumemissionlevelsemanatingfromthedeviceandtheseverelevelsofthedevice canendureanditsperformancecriterion.Themeasurementresultsarecontainedinthistestreportand ShenzhenAnbotekComplianceLaboratoryLimitedisassumedfullofresponsibilityfortheaccuracy andcompletenessofthesemeasurements.Also,thisreportshowsthattheEUT(EquipmentUnder Test)istechnicallycompliantwiththeFCCPart15SubpartCrequirements. Thisreportappliestoabovetestedsampleonlyandshallnotbereproducedinpartwithoutwritten approvalofShenzhenAnbotekComplianceLaboratoryLimited. DateofReceiptMar.30,2023 DateofTestMar.30~Apr.12,2023 PreparedBy (NianxiuChen) Approved&AuthorizedSigner (KingkongJin) ReportNo.:18220WC30051601FCCID:2A2Q2-MA01Page4of21 Code:AB-RF-05-b RevisionHistory ReportVersionDescriptionIssuedDate R00OriginalIssue.May05,2023 ReportNo.:18220WC30051601FCCID:2A2Q2-MA01Page5of21 Code:AB-RF-05-b 1.GeneralInformation 1.1.ClientInformation Applicant:TaisonsInternationalCo. Address: 6Bldg,GaoXinJianIndustrialzone,HePingvillage,Fuyongtown,Bao'an district,Shenzhen,518000,China Manufacturer:TaisonsInternationalCo. Address: 6Bldg,GaoXinJianIndustrialzone,HePingvillage,Fuyongtown,Bao'an district,Shenzhen,518000,Chin…

Text truncated - open the document above for the full version.

Code:AB-RF-05-b TestSetupPhotograph Code:AB-RF-05-b Code:AB-RF-05-b

Code:AB-RF-05-b TestSetupPhotograph PhotoofConductedEmissionMeasurement PhotoofRadiationEmissionTest Code:AB-RF-05-b
