＾ 会 Smart XMcosv + Spotlights User Manual Download Free APP: 玉严 因 困 XMcosy+ XMcosy Can't connect? Need help? Email:[email protected] INTRODUCTION Thanks for choosing XMCOSY+ Low Voltage Outdoor Spotlights Please read the user manual carefully and keep it for future reference. SAFETY INSTRUCTIONS Read and follow all safety instructions before installing the low voltage outdoor spotlights. •Sockets used to power outdoor spotlights should comply with all national and local electrical codes. If you are unsure of compliance requirements, please consult your local electrician. •Do not use in water. Please connect power cords in deep together and tighten the protective cover. Especially for the interface at the end, please be sure to put on the protective cover. Keep the plug and socket dry. •Please keep children away from these lights •Keep lights away from flammables and fire sources •Avoid placing the lights near potentially dangerous sources. DO NOT EXCEED RATED CAPACITY. FCC Warning Statement Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: ‐‐ Reorient or relocate the receiving antenna. ‐‐ Increase the separation between the equipment and receiver. ‐‐ Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. ‐‐ Consult the dealer or an experienced radio/TV technician for help. FCC Radiation Exposure Statement The antennas used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co‐located for operating in conjunction with any other antenna or transmitter. CONTENT Specifications Package Contents Assemble Adjustable Spotlights Button Function Introduction Service & Warranty APP Download & Registration 1235678 Distribution Network & APP Connection ·············· 11 APP Functions Alexa Pairing Instruction 59 11 Google Assistant Pairing Instruction -24 Troubleshooting Contact 27 28 SPECIFICATIONS Brand XMCOSY+ Model YJ-312-4-5D Dimension 4.92" W• 22.13"-30.71" H (Contains 6.5" Stake) Total Length 48FT(14.6M) Weight 3.7 KGS Material Aluminum + Stainless steel +PC Light Source COB Luminous Flux 300 Lumens/EA Color Temperature 2700K Warm White + RGB Head Rotating Angle 105 ° Input Voltage 120V AC, 50/60Hz Output Voltage 12V DC Max.3A Wattage 6W/EA Max.Of Connections 36 Wattage Controlled By Button/APP Control Dlmmable YES 1 PACKAGE CONTENTS r 1 忔壮 旦 旦 斗 1. Outdoor Spotlights* 4 2. Aluminum Ground Stake * 4 3. 8.2FT Light Cable* 4 4.13.1 FT Extension Power Cable * 1 5.36W Power Adapter* 1 6. User Manual * 1 Notes. After unpacking, please check the product accessories. If there are any missing or damaged accessories, please contact us as soon as possible, and our customer service team will solve it in time. [email protected] 2 ASSEMBLE Step-1 ＿ Connect the light pole and ground stake. Step-2 Connect the light cables in turn. 1. Align the positioning point. 斗斗 •�,o,,..,o, 立 Notes: 1. If the connecto,s a,e not al;gned, the cola, of the spotnghts w;11 be a;tte,ent a, be ;ncons;stent w;th the cola, se!Ung ;n the APP. 2. w;thout the wate,p,oof cove,, the nght cable may subme,ge ;n wate,, whkh wUI cause a short d,cu;t_ - 立 2. T;ghten connectors. 罕:::�:ver ASSEMBLE Step-3 Connect the installed spotlights and the light cables in tum. 闷� O L O L O L Step-4 1. Connect the extension power cable to the light cable & power adapter. 2. Plug the power adapter into the power outlet. ADJUSTABLE SPOTLIGHTS Handle screw 一， Rotating Head Each spotlight can be freely ad丿usted within 105". Rotate the handle screw to adjust the direction of the lamp head You can adjust the lighting effects you want according to the needs of the scene Note: Beware of screws falling out. ． Extendable Pole Rotat i ng to loosen the connecto「 allows the pole to be extended 3 4 5 BUTTON FUNCTION INTRODUCTION Button Function Introduction: 1. Long press - Enter the APP connection & network mode Long press the button for 5S, the light flashes quickly , and the product enters the distribution network mode (When the product is used for the first time, it will automatically enter the network distribution state after connecting to the power supply, without p「essing any buttons.) 2. Short press - ON/OFF & Change scene modes 8 modes(4 kinds of warm white and 4 kinds of color light) Short pressing the button, the mode changes in turn as follows • ON(Gorgeous) •Goodnight • Reading • Working • Leisure • Grassland • Colorlul • Dazzling • Gorgeous • OFF For more scene modes and functions of the product, please connect to the XMcosy APP. Satisfied? 6 SERVICE & WARRANTY Thank you for your support of XMCOSY+I XMCOSY+ provides a regular 1-Year Warranty. 它）Not Satisfied? If there is any problem with our product while using, Please Contact [email protected] We will provide you with a 100% Satisfied Solution! Q We are glad that you didn't encounter any problems with our low voltage outdoor spotlights. XMCOSY+ is committed to providing better products and services. Please feel free to contact us if you have any problems with the product. Scan to email 7 APP DOWNLOAD & REGIST…

Text truncated - open the document above for the full version.

< Yuyao Yunjin Electrical Appliance Co., Ltd > Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD21046 Date: Nov. 14, 2022 Subject; Request for Long Term Confidentiality FCC ID: 2A2QEYJ-36-4SD To Whom It May Concern, Pursuant to the provisions of the Commission’s rules Title 47 Sections §0.457 and §0.459, we are requesting the Commission to withhold the following attachment(s) as confidential documents from public disclosure indefinitely. These documents contain detailed system and equipment descriptions and are considered as proprietary information in operation of the equipment. The public disclosure of these documents might be harmful to our company and would give competitors an unfair advantage in the market. Schematic Diagram Block Diagram Parts List Operational Description Tune-up Procedure It is our understanding that all measurement test reports, FCC ID label format and correspondence during the certification review process cannot be granted as confidential documents and this information will be available for public review once the grant of equipment authorization is issued. Sincerely, Signature: Name: ChangRan Luo Title: Engineer

Yuyao Yunjin Electrical Appliance Co., Ltd Letter of Authorization Company: Yuyao Yunjin Electrical Appliance Co., Ltd Address: No.5 Gongji Road ,Simen Town,Yuyao,Ningbo,Zhejiang,China Product name: Spotlights Trade name: Model name: YJ-36-4-SD, YJ-36-2-SD, YJ-36-6-SD, YJ-312-2-SD, YJ-312-4-SD, YJ-312-6-SD, YJ36C-2-SD, YJ36C-4-SD, YJ36C-6-SD FCC Identifier: 2A2QEYJ-36-4SD We authorize MiCOM LabsInc, 575 Boulder Court, Pleasanton, California 94566, USA, to act on our behalf on all matters concerning the above named equipment. Any individual within MiCOM Labs is authorized to act on our behalf and take action on the application. We declare that MiCOM LabsInc, 575 Boulder Court, Pleasanton, California 94566, USA, is allowed to forward all information related to the approval project to the Federal Communication Commission and to discuss any issues concerning the approval application. Any and all acts carried out by MiCOM Labs on our behalf shall have the same effect as acts of our own. Name: ChangRan Luo Date: Nov. 14, 2022 Title: Engineer Signature of applicant:

Model Difference Declaration To Whom It May Concern, We, Yuyao Yunjin Electrical Appliance Co., Ltd Product name: Spotlights Trade name: Model name: YJ-36-4-SD, YJ-36-2-SD, YJ-36-6-SD, YJ-312-2-SD, YJ-312-4-SD, YJ-312-6-SD, YJ36C-2-SD, YJ36C-4-SD, YJ36C-6-SD All model’s the function, software and electric circuit are the same, only with a product color and model named different. Test sample model: YJ-36-4-SD. Please contact me if you have any question. Name: ChangRan Luo Date: Nov. 14, 2022 Title: Engineer Signature of applicant:

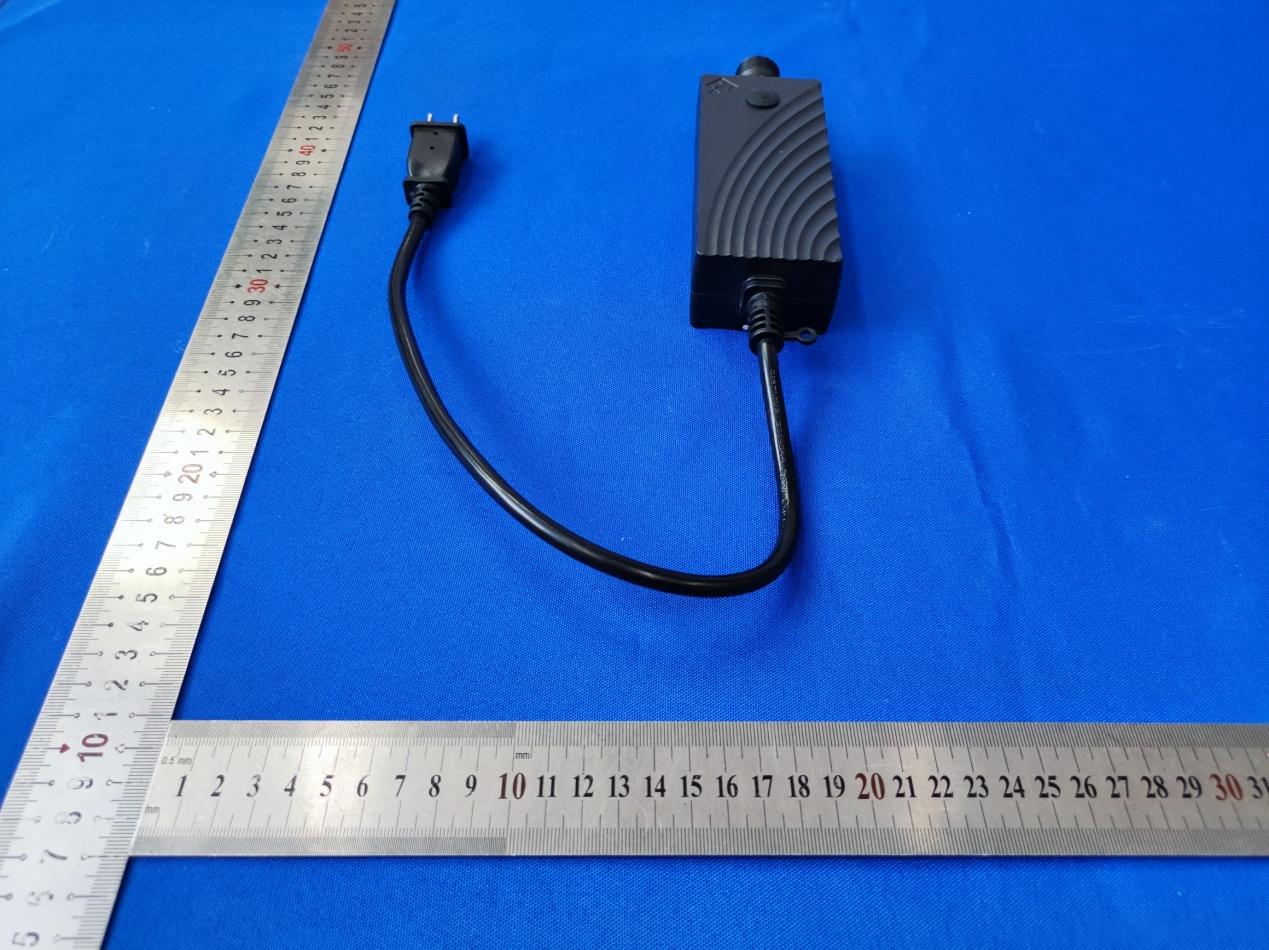

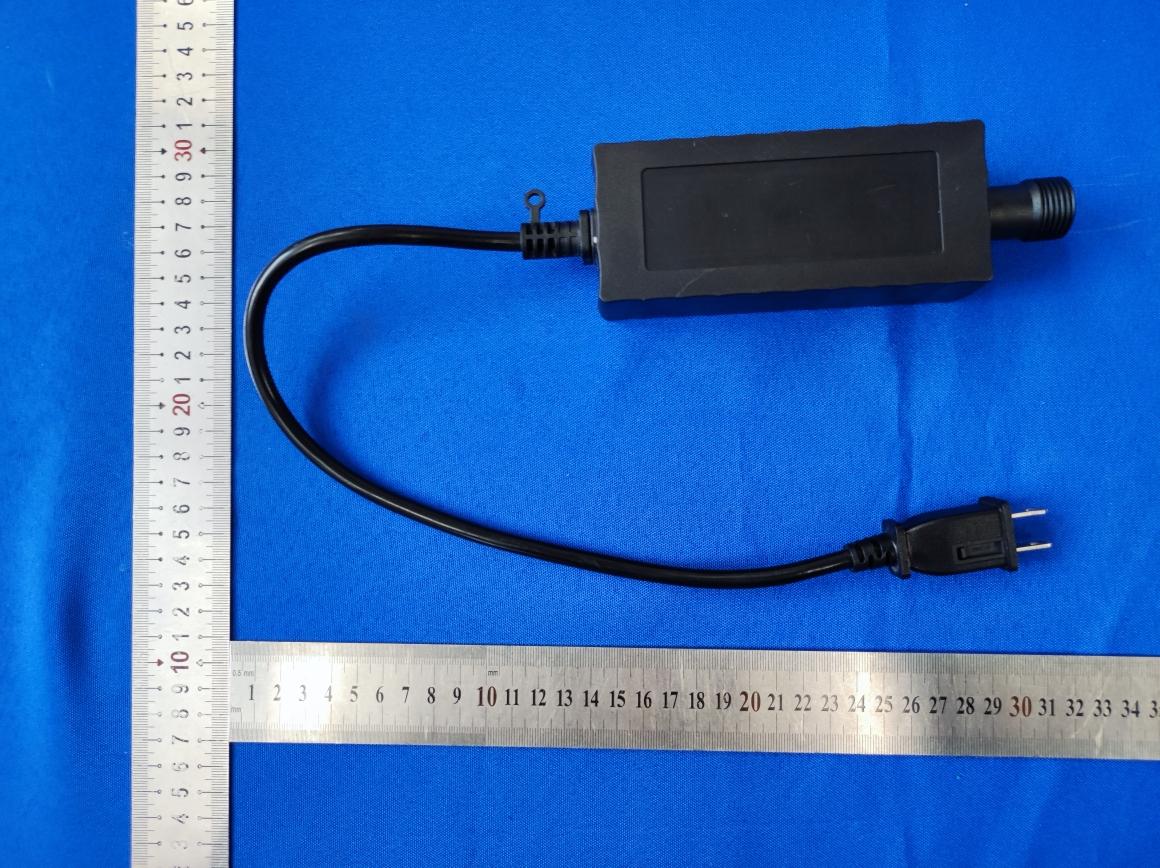

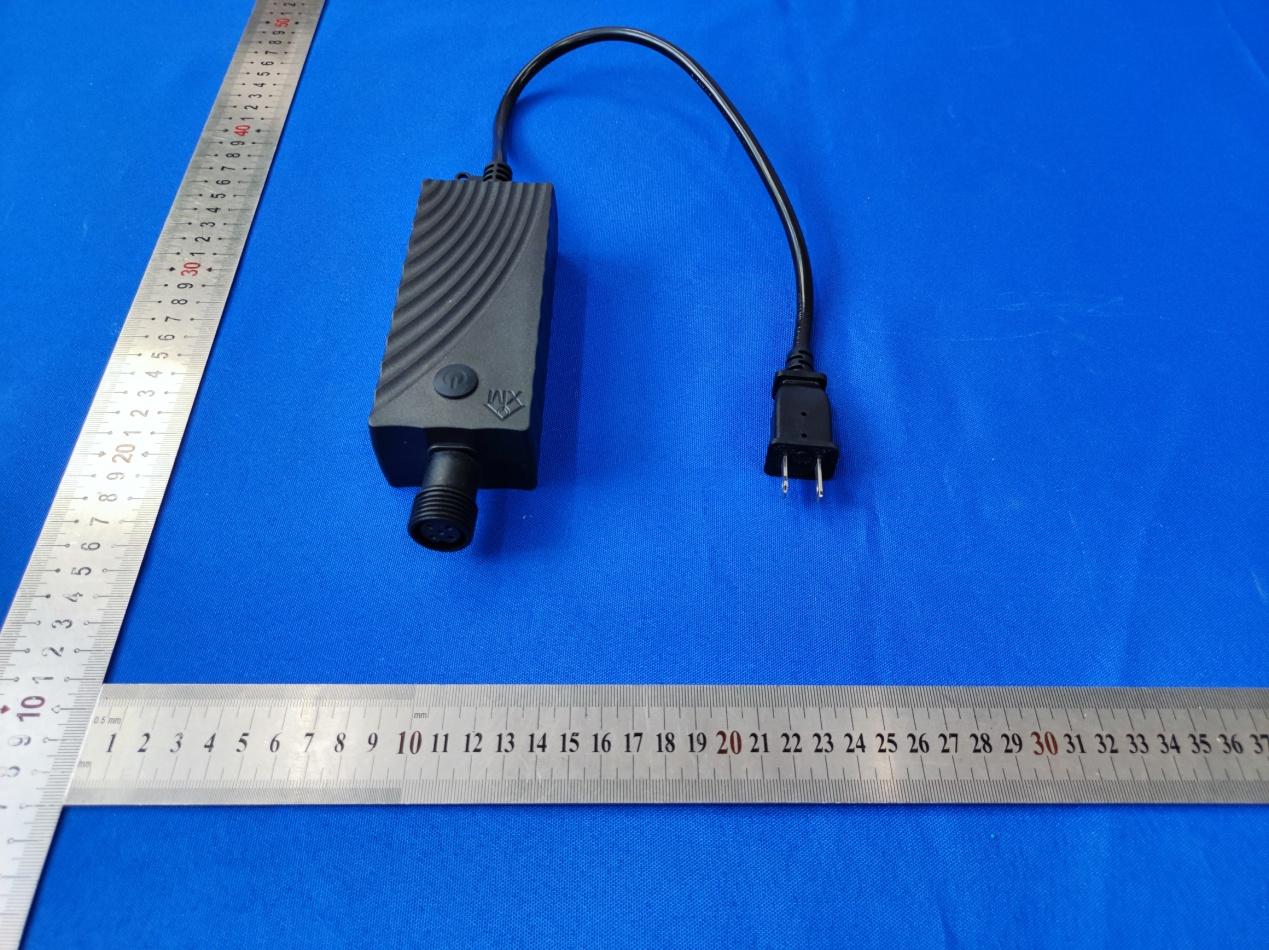

Model: YJ-36-4-SD Model: YJ-36-4-SD Model: YJ-36-4-SD Model: YJ-36-4-SD

FCC ID LABEL: Label Location: FCC ID: 2A2QEYJ-36-4SD Product Name: Spotlights Model Name: YJ-36-4-SD This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1)This device may not cause harmful interference, and (2)This device must accept any interference received, including interference that may cause undesired operation. Long: 3cm Width: 2cm

Model: YJ-36-4-SD Model: YJ-36-4-SD Model: YJ-36-4-SD Model: YJ-36-4-SD Model: YJ-36-4-SD PCB Antenna

RF EXPOSURE EVALUATION 1.PRODUCT INFORMATION Product Spotlights Main Model YJ-36-4-SD FCC ID 2A2QEYJ-36-4SD 2.EVALUATION METHOD AND LIMIT Human exposure to RF emissions from mobile devices (47 CFR §2.1091) may be evaluated based on the MPE limits adopted by the FCC for electric and magnetic field strength and/or power density, as appropriate, since exposures are assumed to occur at distances of 20 cm or more from persons. LIMITS FOR GENERAL POPULATION / UNCONTROLLED EXPOSURE Frequency Range (MHz) E-field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/cm 2 ) Averaging Time |E| 2 , |H| 2 or S (Minutes) 0.3 -- 1.34 614 1.63 (100)* 30 1.34 -- 30 824/f 2.19/f (180/f 2 )* 30 30 -- 300 27.5 0.073 0.2 30 300 -- 1500 -- -- f/1500 30 1500 -- 100,000 -- -- 1.0 30 *Note: 1. f= Frequency in MHz * Plane-wave Equivalent Power Density 2. The averaging time for General Population/Uncontrolled exposure to fixed transmitters is not applicable for mobile and portable transmitters. See 47 CFR §§2.1091 and 2.1093 on source-based time-averaging requirement for mobile and portable transmitters. S=PG/4πR² Where: S=power density P=power input to antenna G=power gain of the antenna in the direction of interest relative to an isotropic radiator R=distance to the center of radiation of the antenna 3. CALCULATION A minimum test separation distance ≥ 20 cm is required between the antenna and radiating structures of the device and nearby persons to apply mobile device exposure limits. The distance must be at least 20 cm and fully supported by the operating and installation configurations of the transmitter and its antenna(s), according to the source-based time-averaged maximum power requirements of § 2.1091(d)(2). In cases where cable losses or other attenuations are applied to determine compliance, the most conservative operating configurations and exposure conditions must be evaluated. Mode Max PK Output Power (dBm) Tune Up Power (dBm) Max Tune UpPower (mW) Power Density (mW/cm 2 ) Power Density Limit (mW/cm²) 11b 17.21 17±1(18) 63.10 0.020892 1 11g 16.97 17±1(18) 63.10 0.020892 1 11n/HT20 15.75 16±1(17) 50.12 0.016594 1 11n/HT40 14.52 15±1(16) 39.81 0.013181 1 Note: The estimation distance is 20cm. Antenna Gain=2.21dBi (linear: 1.6634), π=3.14 Note: PK output power=conducted power. Conducted power see the test report UNIA22101104ER-61, antenna gain=2.21dBi. ------The End------

CBU Antenna test report Product Name: CBU Antenna Type: PCB antenna Writer: Yinhua Zhang Maximum Gain：2.21dBi Efficiency:32.96% CBU Antenna test report Version 1.0.0 Date：2020-11-24 NO：0000000001 Antenna Test Report Global Intelligent Platform CBU Antenna test report Content 1. General Description ................................................................................ 3 2. Technical Information ............................................................................. 3 3. Test Standards ......................................................................................... 3 4. Test Item .................................................................................................. 4 5. Test Photo ................................................................................................ 4 Appendix A S11/VSWR ............................................................................. 5 Appendix B Gain and Efficiency ................................................................ 6 Appendix C Radiation Pattern(1D and 3D) ................................................ 7 Appendix D Test Setup Photo ..................................................................... 9 Appendix E EUT Photo .............................................. 错误!未定义书签。 CBU Antenna test report 1.General Description EUT Name CBU Antenna Wireless type WIFI Antenna Type PCB antenna Dimensions Appendix A 2.Technical Information Frequency Range 2400MHz~2500MHz Test Frequency 2400,2410......2500MHz 3.Test Standards Identity Document Title IEEE 149-1979 IEEE Standard Test Procedures for Antennas CBU Antenna test report 4. Test Item Report Section Description Appendix B S11/VSWR Appendix C Gain and Efficiency Appendix D Radiation Pattern（1D and 3D） 5. Test Photo Report Section Description Appendix E Test Setup Photo CBU Antenna test report Appendix A Antenna Dimension Appendix B S11/VSWR Frequency (MHz) 240024502500 Return Loss-8.73-11.76-11.21 mm mm CBU Antenna test report VSWR 2.16 1.71 1.77 Appendix C Gain and Efficiency Frequency (MHz) Efficiency(%) Gain（dBi） 2400 32.36% 2.11 2410 32.3% 2.18 2420 32.1% 2.21 2430 32.4% 2.06 2440 32.9% 2.07 2450 30.9% 1.91 2460 30.8% 2.04 2470 30.7% 2.09 2480 31.6% 1.98 2490 30.6% 1.91 2500 30.5% 1.03 CBU Antenna test report Appendix D Radiation Pattern(1D and 3D) CBU Antenna test report CBU Antenna test report Appendix E Test Setup Photo

Page 1 of 76 Report No.: UNIA22101104ER-61 FCC RADIO TEST REPORT FCC ID: 2A2QEYJ-36-4SD Sample： Spotlights Trade Name： Main Model： YJ-36-4-SD Additional Model： YJ-36-2-SD, YJ-36-6-SD, YJ-312-2-SD, YJ-312-4-SD, YJ-312-6-SD, YJ36C-2-SD, YJ36C-4-SD, YJ36C-6-SD Report No.： UNIA22101104ER-61 Prepared for Yuyao Yunjin Electrical Appliance Co., Ltd No.5 Gongji Road ,Simen Town,Yuyao,Ningbo,Zhejiang,China Prepared by Shenzhen United Testing Technology Co., Ltd. 2F, Annex Bldg, Jiahuangyuan Tech Park, #365 Baotian 1 Rd, Tiegang Community, Xixiang Str, Bao'an District, Shenzhen, China Page 2 of 76 Report No.: UNIA22101104ER-61 TEST RESULT CERTIFICATION Applicant .............................. : Yuyao Yunjin Electrical Appliance Co., Ltd Address ................................. : No.5 Gongji Road ,Simen Town,Yuyao,Ningbo,Zhejiang,China Manufacturer ........................ : Yuyao Yunjin Electrical Appliance Co., Ltd Address ................................. : No.5 Gongji Road ,Simen Town,Yuyao,Ningbo,Zhejiang,China Product description Product ....................................... : Spotlights Trade Name ........................... : Model Name .......................... : YJ-36-4-SD, YJ-36-2-SD, YJ-36-6-SD, YJ-312-2-SD, YJ-312-4-SD, YJ-312-6-SD, YJ36C-2-SD, YJ36C-4-SD, YJ36C-6-SD Test Methods ........................ : FCC Rules and Regulations Part 15 Subpart C Section 15.247 ANSI C63.10: 2013 This device described above has been tested by Shenzhen United Testing Technology Co., Ltd., and the test results show that the equipment under test (EUT) is in compliance with the FCC requirements. And it is applicable only to the tested sample identified in the report. This report shall not be reproduced except in full, without the written approval of UNI, this document may be altered or revised by Shenzhen United Testing Technology Co., Ltd., personnel only, and shall be noted in the revision of the document. Date of Test ........................................... : Date (s) of performance of tests ............. : Oct. 11, 2022 ~ Oct. 24, 2022 Date of Issue .......................................... : Nov. 14, 2022 Test Result.............................................. : Pass Prepared by: Kahn yang/Supervisor Reviewer: Kelly Cheng/Supervisor Approved & Authorized Signer: Liuze/Manager Page 3 of 76 Report No.: UNIA22101104ER-61 Table of Contents Page 1 TEST SUMMARY ........................................................................................................ 5 1.1 TEST PROCEDURES AND RESULTS .......................................................................... 5 1.2 TEST FACILITY ............................................................................................................ 6 1.3 MEASUREMENT UNCERTAINTY ................................................................................ 7 1.4 ENVIRONMENTAL CONDITIONS ................................................................................ 7 2 GENERAL INFORMATION ......................................................................................... 8 2.1 GENERAL DESCRIPTION OF EUT .............................................................................. 8 2.2 CARRIER FREQUENCY OF CHANNELS ..................................................................... 9 2.3 TEST MODE ............................................................................................................... 10 2.4 DESCRIPTION OF THE TEST MODES ...................................................................... 10 2.5 TEST SETUP .............................................................................................................. 11 2.6 DESCRIPTION TEST PERIPHERAL AND EUT PERIPHERAL ................................... 11 2.7 MEASUREMENT INSTRUMENTS LIST ..................................................................... 12 3 CONDUCTED EMISSION ......................................................................................... 13 3.1 TESTLIMIT .................................................................................................................. 13 3.2 TEST SETUP .............................................................................................................. 13 3.3 TEST PROCEDURE ................................................................................................... 14 3.4 TEST RESULT ............................................................................................................ 14 4 RADIATED EMISSION .............................................................................................. 17 4.1 TESTLIMIT .................................................................................................................. 17 4.2 TEST SETUP .............................................................................................................. 18 4.3 TEST PROCEDURE ................................................................................................... 19 4.4 TEST RESULT ............................................................................................................ 19 5 OCCUPIED BANDWIDTH ......................................................................................... 42 5.1 TESTLIMIT .................................................................................................................. 42 5.2 TEST PROCEDURE ................................................................................................... 42 5.3 EQUIPMENT USED .................................................................................................... 42 5.4 TEST RESULT ............................................................................................................ 42 6 POWER SPECTRAL DENSITY ................................................................................ 51 6.1 TESTLIMIT .................................................................................................................. 51 6.2 TEST PROCEDURE ........…

Text truncated - open the document above for the full version.

Model: YJ-36-4-SD Radiated Emission test Model: YJ-36-4-SD Conducted Emission test
