2A2RGAZPG-RF2000DGRF Gaming Earphone (USB Dongle)

�. Before using, thoroughly read the safety precautions and use the product exactly as described. �. After going through the manual, make sure to store it where the user could read it anytime. �. Any error in spelling or incorrect information in the manual may be revised by AZLA Corp. www.azla.co.kr   DG Manual �. Read all guidelines. �. Keep this guideline document with you. �. Take notice of all precautions. �. Follow all the usage instructions. �. Do not keep or use this device near water. �. Gently clean this device with a dry cloth. �. Install the device under the manufacturer’s instructions. �. Only use attachments and components specified by the manufacturer. �. Do not charge the device during thundery weather. ��. Turn the device off if it’s not being used for a long time. ��. Inquire all services to a qualified customer service staff only. In the case of the following situations, the device must be serviced : �) Damaged power cords or plugs �) Liquid spilled on the device �) Item dropped on the device �) Item exposed to rain or moisture �) Device malfunctioning or shown to be damaged ��. Do not expose the device close to places that are splashing with water or any other liquid. ��. Do not place hazardous items near the device (ex: candles, a glass of water, etc.) ��. The device must not be exposed to heavy heat such as sunlight or fire. ��. Do not use the device near electromagnetic items (microwaves, etc.) Read all precautions and have them correctly understood before usage. Warranty will be voided if the product is damaged for not following the instructions. Caution Caution ● Do not voluntarily change, disassemble, or fix the device. ● Keep the device away from excessive heat or inflammable objects. ● It is hazardous to change the battery voluntarily. ● Using non-standard chargers could cause defects or malfunctions. ● Be careful not to let infants swallow small components from the product. ● Seek advice from the doctor prior to usage for those that are transplanted with medical instruments. ● Do not handle the device with excessive force. ● For your health, do not use the device with excessive volume or time. Prolonged usage could cause permanent damage to your hearings. ● For safety, adjust your volume to medium before making any sound test. ● If disposing of the product, please follow the measures that are environmentally friendly. ● Do not place the device near flame, heat, or direct sunlight. ● Do not attach other components to the device other than the included accessories. Warning ● Do not remove the case of the device. ● Do not apply lubricant to any part of the device. ● Do not place the device under other electronics. ● Do not drop the device from high places. ● Do not let the device touch water, alcohol, benzene, lubricant, etc. ● Keep the device away from places that are humid or dusty. ● Do not place the device under items that are heavy or potentially explosive. ● This device is NOT waterproof. ● Keep the device away from moisture during usage. ● Do not consume the battery. ● The device must be kept out of reach of children. ● If necessary, seek advice from doctors regarding additional safety instructions (hearing aid users, etc.) ● Stay away from listening to excessive volume. It could cause permanent damage to your hearings or the device. ● Turn down the volume of the device before connecting to the sound source. ● In case of frequent or longer usage, stay away from high volumes at all costs. Listening to loud noises could cause permanent hearing loss. What’s inside AZPG-RF���� Carrying Case XELASTEC (SS, MS, ML) SednaEarfit Short Eartips USB charging cableUSB dongle Extension cableUSB C to USB �.� Adapter AZPG-RF����DG AZPG-RF���� What’s inside Volume control button Power button MIC Mute button LED Light Charging port LED status indicator MIC Unit L/R MIC Mute button ON : press once (hear a tone) OFF : press once at ON status (hear a tone) Power button ON : Press & Hold OFF : OFF: Press & Hold at ON status LED status indicator Power status Power ON Blue light twinkle Power OFF Red light twinkle for � secs Charging Status While Charging Red Complete Charging Green Battery Status � - ��% Red �� - ��% Blue �� - ���% Green MIC Mute buttonPower button LED status indicator Test every size of eartips before usage. Your speech should sound noticeably smaller if a certain size is suitable for you. If not, try again with another size (there are no left and right sides for the eartips). Eartips How to exchange the tips �. Hold the rim of the eartip with two fingers and gently push to one side. (Do not pull the edge of the eartip as it may cause damages) �. Place the new eartip on top of the earphone nozzle. Push in the eartip with the thumb. �. Fasten the eartip to the earphone nozzle by rotating or adjusting accordingly Gaming Performance Edition How to store and manage �. Prepare warm or room temperature water. Place the eartip on top of your palm and gently stroke with the other hand to remove any dust or pollutant. �. Gently wipe off the eartip with alcohol-free wet tissues or others. �. Once after cleaning, let the eartip dry naturally. �. Keep in mind that Xelastec has possibilities of deformation in shape due to its materials. (Notice: If severely deformed, please purchase a new set and have it replaced) ※ Make sure to remove the earphone from your ears before setup or making changes to the settings. Getting started �. (Default recommendation) Insert the USB dongle extension cord to the USB port on the PC. �. Turn the device on. Getting AZPG-RF���� started ※ On your first connection to the PC, the operating system will automatically install the driver needed for AZPG-RF����. Once the driver is installed and loaded, we recommend rebooting the PC before operation. ※ AZPG-RF���� is designed to be usable within a distance of ��m from the wireless transmitter. However, the length of the extension may get shorter due to other wireless installation or obstacle…

Text truncated - open the document above for the full version.

AZLA Inc 3F, 332, Hyoryeong-ro, Seocho-gu, Seoul, Republic of Korea Date: November 25, 2021 Federal Communications Commission 7435 Oakland Mills Road Columbia MD 21048 c.c. MOVON Test Lab Co., Ltd 498-2, Geumeo-ro, Pogok-eup, Cheoin-gu, Gyeonggi-do, South Korea FCC ID Number: 2A2RGAZPG-RF2000DG Product Title/Model: RF Gaming Earphone (USB Dongle) / AZPG-RF2000DG To whom it may concern: I, the undersigned, hereby authorize MOVON Test Lab Co., Ltd. and hereafter referred to as MOVON Test Lab Co., Ltd. to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by MOVON Test Lab Co., Ltd. on our behalf shall have the same effect as acts of our own. I, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). In authorizing MOVON Test Lab Co., Ltd. as our agent, we still recognize that we are responsible to: a) comply with the relevant provisions of the certification program; b) make all necessary arrangements for the conduct of the evaluation, including provision for examining documentation and access to all areas, records (including internal audit reports) and personnel for the purposes of evaluation (e.g. testing, inspection, assessment, surveillance, reassessment) and resolution of complaints; c) make claims regarding certification only in respect of the scope for which certification has been granted; d) do not use our product certification in such a manner as to bring the Certification Division into disrepute and not make any statement regarding our product certification which the Certification Division may consider misleading or unauthorized; e) upon suspension or cancellation of certification, discontinue use of all advertising matter that contains any reference thereto and return any certification documents as required by the Certification Division; f) use certification only to indicate the products are certified as being in conformity with specified standards; g) endeavor to ensure that no certificate or report nor any part thereof is used in a misleading manner; h) ensure that any reference to our product certification in communication media such as documents, brochures or advertising, complies with the requirements of the Certification Division; i) keep a record of all complaints made known to the us relating to the product’s compliance with requirements of the relevant standard and to make these records available to the Certification Division when requested; j) take appropriate action with respect to such complaints and any deficiencies found in products or services that affect compliance with the requirements for certification; k) document the actions taken. This authorization is valid until further written notice from the applicant. Sincerely, kyungjin Hong / Chief Research Engineer

AZLA Inc 3F, 332, Hyoryeong-ro, Seocho-gu, Seoul, Republic of Korea CONFIDENTIALITY REQUEST Federal Communication Commission Equipment Authorization Division, Application Processing Branch 7435 Oakland Mills Road Columbia, MD 21048 November 25, 2021 TO WHOM IT MAY CONCERN Pursuant to Paragraphs §0.457 and 0.459 of the Commission’s Rules (47 C.F.R.) and Section §552(b)(4) of the Freedom of Information Act, AZLA Inc. requests confidentiality for the following products: FCC ID Number Product Title/Model 2A2RGAZPG-RF2000DG RF Gaming Earphone (USB Dongle) / AZPG-RF2000DG The following exhibits contain trade secrets and proprietary information that could be of benefit to our competitors regarding the design of our product. This material is not customarily available to the general public and we request that it be withheld from public inspection. We request that the following information submitted be held permanent confidential treatment. Permanent Confidential Request -. Schematics -. Block Diagram -. Operational Description -. Antenna specification We also hereby request Short-Term Confidentiality for 180 days after the grant as outlined in Public Notice DA 04-1705. This provision will give temporary confidentiality of commercially sensitive information prior to product release. Short-Term Confidential Request -. External Photos -. Internal Photos -. Test set-up photo -. User Manual If you have any questions, please feel free to contact me at the address shown below. Sincerely, kyungjin Hong / Chief Research Engineer

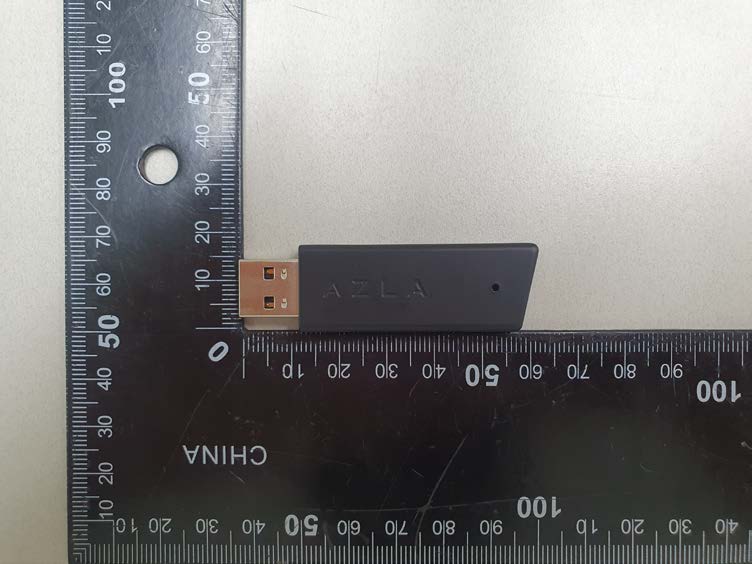

http://www.kctl.co.kr This test report shall not be reproduced, except in full, without the written approval External photos of EUT http://www.kctl.co.kr This test report shall not be reproduced, except in full, without the written approval http://www.kctl.co.kr This test report shall not be reproduced, except in full, without the written approval

[Label Info. & Location]

http://www.kctl.co.kr This test report shall not be reproduced, except in full, without the written approval Internal photos of EUT Wire Antenna http://www.kctl.co.kr This test report shall not be reproduced, except in full, without the written approval

http://www.kctl.co.kr FCC ID: 2A2RGAZPG-RF2000DG This test report shall not be reproduced, except in full, without the written approval * RF Exposure 1. Regulation According to the KDB 447498 D01 V06, the following RF exposure evaluation shall to demonstrate RF exposure compliance. Unless specifically required by the published RF exposure KDB procedures, standalone 1-g head or body and 10-g extremity SAR evaluation for general population exposure conditions, by measurement or numerical simulation, is not required when the corresponding SAR Test Exclusion Threshold condition(s), listed below, is (are) satisfied. These test exclusion conditions are based on source-based time-averaged maximum conducted output power of the RF channel requiring evaluation, adjusted for tune-up tolerance, and the minimum test separation distance required for the exposure conditions. The minimum test separation distance defined in 4.1 f) is determined by the smallest distance from the antenna and radiating structures or outer surface of the device, according to the host form factor, exposure conditions and platform requirements, to any part of the body or extremity of a user or bystander. To qualify for SAR test exclusion, the test separation distances applied must be fully explained and justified, typically in the SAR measurement or SAR analysis report, by the operating configurations and exposure conditions of the transmitter and applicable host platform requirements, according to the required published RF exposure KDB procedures. When no other RF exposure testing or reporting are required, a statement of justification and compliance must be included in the equipment approval, in lieu of the SAR report, to qualify for SAR test exclusion. When required, the device specific conditions described in the other published RF exposure KDB procedures must be satisfied before applying these SAR test exclusion provisions; for example, handheld PTT two-way radios, handsets, laptops and tablets, etc. a) For 100 ㎒ to 6 ㎓ and test separation distances ≤ 50 ㎜, the 1-g and 10-g SAR test exclusion thresholds are determined by the following: [(max. power of channel, including tune-up tolerance, ㎽) / (min. test separation distance, ㎜)] · [√f(㎓)] ≤ 3.0 for 1-g SAR, and ≤ 7.5 for 10-g extremity SAR,30 where ● f(㎓) is the RF channel transmit frequency in ㎓ ● Power and distance are rounded to the nearest ㎽ and mm before calculation ● The result is rounded to one decimal place for comparison ● The values 3.0 and 7.5 are referred to as numeric thresholds in step b) below The test exclusions are applicable only when the minimum test separation distance is ≤ 50 ㎜, and for transmission frequencies between 100 ㎒ and 6 ㎓. When the minimum test separation distance is < 5 ㎜, a distance of 5 ㎜ according to 4.1 f) is applied to determine SAR test exclusion. b) For 100 ㎒ to 6 ㎓ and test separation distances > 50 ㎜, the 1-g and 10-g SAR test exclusion thresholds are determined by the following (also illustrated in Appendix B): 1) {[Power allowed at numeric threshold for 50 ㎜ in step a)] + [(test separation distance – 50 ㎜)·(f(㎒)/150)]} ㎽, for 100 ㎒ to 1500 ㎒ 2) {[Power allowed at numeric threshold for 50 ㎜ in step a)] + [(test separation distance – 50 ㎜)·10]} ㎽, for > 1500 ㎒ and ≤ 6 ㎓ c) For frequencies below 100 ㎒, the following may be considered for SAR test exclusion (also illustrated http://www.kctl.co.kr FCC ID: 2A2RGAZPG-RF2000DG This test report shall not be reproduced, except in full, without the written approval in Appendix C): 1) For test separation distances > 50 ㎜ and < 200 ㎜, the power threshold at the corresponding test separation distance at 100 ㎒ in step b) is multiplied by [1 + log(100/f(㎒))] 2) For test separation distances ≤ 50 ㎜, the power threshold determined by the equation in c) 1) for 50 ㎜ and 100 ㎒ is multiplied by ½ 3) SAR measurement procedures are not established below 100 ㎒. When SAR test exclusion cannot be applied, a KDB inquiry is required to determine SAR evaluation requirements for any SAR test results below 100 ㎒ to be acceptable. 2. Result 2-1. Calculation Result of RF Exposure Test frequency [㎒] Max. tune-up Power [㏈m] Conducted output power [㎽/] Min. test separation distance [㎜] SAR test exclusion thresholds ≤ 7.5 for 10-g SAR 2.404 4.00 2.51 5.00 0.78 2.432 4.00 2.51 5.00 0.78 2.460 4.00 2.51 5.00 0.79 Note: 1. SAR test exclusion thresholds = [(max. power of channel, including tune-up tolerance, ㎽)/(min. test separation distance, ㎜)] · [√f(㎓)] = [(2.51)/(5)] · [√2.404] = 0.78 = [(2.51)/(5)] · [√2.432] = 0.78 = [(2.51)/(5)] · [√2.460] = 0.79 3. Target power and tolerance, Max tuneup power Mode Target power [㏈m] Tolerance [㏈] Max tuneup power [㏈m] Measured average Power [㏈m] Shaped_8FSK 2 404 ㎒ -14.00 ±1.00 4.00 3.92 Shaped_8FSK 2 432 ㎒ -16.00 ±1.00 4.00 3.23 Shaped_8FSK 2 460 ㎒ -19.00 ±1.00 4.00 2.36 4. RF Exposure Compliance Issue Therefore, EUT is not required the SAR Evaluation.

verify No.475300403069 KCTL Inc. 65, Sinwon-ro, Yeongtong-gu, Suwon-si, Gyeonggi-do, 16677, Korea TEL: 82-31-285-0894 FAX: 82-505-299-8311 www.kctl.co.kr Report No.: KR21-SRF0267 Page (2) of (34) KCTL-TIR001-003/5 KP21-04017 REPORT REVISION HISTORY Date Revision Page No 2021-12-08 Originally issued - This report shall not be reproduced except in full, without the written approval of KCTL Inc. This document may be altered or revised by KCTL Inc. personnel only, and shall be noted in the revision section of the document. Any alteration of this document not carried out by KCTL Inc. will constitute fraud and shall nullify the document. This test report is a general report that does not use the KOLAS accreditation mark and is not related to KS Q ISO/IEC 17025 and KOLAS accreditation. General remarks for test reports Statement concerning the uncertainty of the measurement systems used for the tests (may be required by the product standard or client) Internal procedure used for type testing through which traceability of the measuring uncertainty has been established: Procedure number, issue date and title: Calculations leading to the reported values are on file with the testing laboratory that conducted the testing. Statement not required by the standard or client used for type testing KCTL Inc. 65, Sinwon-ro, Yeongtong-gu, Suwon-si, Gyeonggi-do, 16677, Korea TEL: 82-31-285-0894 FAX: 82-505-299-8311 www.kctl.co.kr Report No.: KR21-SRF0267 Page (3) of (34) KCTL-TIR001-003/5 KP21-04017 CONTENTS 1. General information ......................................................................................................4 2. Device information ........................................................................................................4 2.1. Accessory information ............................................................................................4 2.2. Frequency/channel operations................................................................................5 2.3. Duty Cycle Factor ...................................................................................................6 3. Antenna requirement .................................................................................................6 4. Summary of tests ..........................................................................................................7 5. Measurement uncertainty .............................................................................................8 6. Measurement results explanation example ..................................................................9 7. Test results ................................................................................................................. 10 7.1. Maximum Peak Output Power .............................................................................. 10 7.2. Peak Power Spectral Density ............................................................................... 13 7.3. 6 ㏈ Bandwidth(DTS Channel Bandwidth) .......................................................... 15 7.4. Spurious Emission, Band Edge and Restricted bands .......................................... 17 7.5. Conducted Spurious Emission .............................................................................. 30 7.6. AC Conducted Emission ....................................................................................... 32 8. Measurement equipment ............................................................................................ 34 KCTL Inc. 65, Sinwon-ro, Yeongtong-gu, Suwon-si, Gyeonggi-do, 16677, Korea TEL: 82-31-285-0894 FAX: 82-505-299-8311 www.kctl.co.kr Report No.: KR21-SRF0267 Page (4) of (34) KCTL-TIR001-003/5 KP21-04017 1. General information Client : AZLA Inc Address : 3F, 332, Hyoryeong-ro, Seocho-gu, Seoul, Republic of Korea Manufacturer : AZLA Inc Address : 3F, 332, Hyoryeong-ro, Seocho-gu, Seoul, Republic of Korea Laboratory : KCTL Inc. Address : 65, Sinwon-ro, Yeongtong-gu, Suwon-si, Gyeonggi-do, 16677, Korea Accreditations : FCC Site Designation No: KR0040, FCC Site Registration No: 687132 VCCI Registration No. : R-20080, G-20078, C-20059, T-20056 CAB Identifier: KR0040, ISED Number: 8035A KOLAS No.: KT231 2. Device information Equipment under test : RF Gaming Earphone (USB Dongle) Model : AZPG-RF2000DG Modulation technique : Shaped_8FSK Number of channels : 15 ch Frequency range : 2 404 ㎒ ~ 2 460 ㎒ Power source : DC 5 V Antenna specification : Copper Antenna Antenna gain : 2.3 ㏈i Software version : 1.0 Hardware version : 1.0 Operation temperature : -20 °C ~ 50 °C 2.1. Accessory information Equipment Manufacturer Model Serial No. Power source N/A - - - - KCTL Inc. 65, Sinwon-ro, Yeongtong-gu, Suwon-si, Gyeonggi-do, 16677, Korea TEL: 82-31-285-0894 FAX: 82-505-299-8311 www.kctl.co.kr Report No.: KR21-SRF0267 Page (5) of (34) KCTL-TIR001-003/5 KP21-04017 2. 2. Frequency/channel operations This device contains the following capabilities: Shaped_8FSK Ch. Frequency (㎒) 01 2 404 . . . . 08 2 432 . . . . 15 2 460 Table 2.2.1 Shaped_8FSK KCTL Inc. 65, Sinwon-ro, Yeongtong-gu, Suwon-si, Gyeonggi-do, 16677, Korea TEL: 82-31-285-0894 FAX: 82-505-299-8311 www.kctl.co.kr Report No.: KR21-SRF0267 Page (6) of (34) KCTL-TIR001-003/5 KP21-04017 2. 3. Duty Cycle Factor Test mode Period (㎳) T On time (㎳) Duty cycle Duty Cycle Factor (㏈) (Linear) (%) Shaped_8FSK 1.000 1.000 0.100 100 0.00 Notes. 1. Duty cycle (Linear) = T on time / Period 2. DCF(Duty cycle factor) = 10log(1/duty cycle) 3. DCF is not compensated to average result if the duty cycle is more than 98% Shaped_8FSK 3. Antenna requirement Requirement of FCC part section 15.203: An intentional radiator shall be designed to ensure that no antenna other than that furnished by the responsible party shall be used with the device. The use of a permanently attached antenna or of an antenna that uses a unique coupling to the intentional radiator shall be considered sufficient to comply with the provisions …

Text truncated - open the document above for the full version.

http://www.kctl.co.kr This test report shall not be reproduced, except in full, without the written approval Test setup photos - Below 30 ㎒ (9 ㎑ ~ 30 ㎒) - Below 1 ㎓ (30 ㎒ ~ 1 ㎓) http://www.kctl.co.kr This test report shall not be reproduced, except in full, without the written approval - Above 1 ㎓ (1 ㎓ ~ 18 ㎓) - Above 1 ㎓ (18 ㎓ ~ 40 ㎓) http://www.kctl.co.kr This test report shall not be reproduced, except in full, without the written approval - Conducted Emission
