2A2X5-ADBMZ001Curtain Robot

ADBMZ001 Productusermanual ProductOverview Therollershutterrobotisaninnovativesmarthomedevicethatcanconvert traditionalrollershuttersinyourhomeintosmartones.Itfeatureseasyinstallation withouttheneedtoreplaceexistingshutters.AdoptingtheZigBeeprotocoland connectingtomobileappsviaaZigBeegateway,itenablesyoutoeffortlesslycontrol theliftingandloweringofrollershutters.Equippedwithabuilt-intimerfunction,it allowscustomizedopeningandclosingschedules,supportingremotecontroland automatedoperation.Itaddscomfortandamoderntouchtoyourhomelife,letting youenjoytheconvenienceofsmartliving. Appinstallation SmartLifeisamobileplatformusedtocontrolsmartdevices.Youcansearchfor "SmartLife"inthemobileappstoretoinstalltheapp. Devicecharging Werecommendusinga5V/1ApoweradapterwithaType-Cchargingcableto chargetheproduct. Devicepairing WhenpairingyourrollingshutterrobotwithyourAPPaccount,youneedtoresetthe device.Pleasepressandholdtheresetbuttonfor5secondsuntilthebluelightstarts flashing,atwhichpointthedeviceisalreadyinapairingstate. Tapthe"+"iconatthetoprightcornerintheapp,thenclickthe"AddDevice"button. Inthe"DiscoverDevices"section,select"CurtainRobot"andclick"Add".Followthe on-screeninstructionstocompletethedevicepairing Equipmentinstallation Preparationwork: Preparetoolsandmaterials • Rollershutterrobotequipment •Screwdriver(ifrequired) • Screwsandotherfixtures(usuallyprovidedwithequipment) •Mobilephone(forconfiguration) • Bluetoothgateway(forremotecontrol) Step1:Checkequipmentandaccessories Unboxinginspection:Openthepackagingandconfirmthatallcomponentsare complete,includingthemainbodyoftherollingshutterrobot,screws,foamandother accessories. Step2:Preparetheinstallationlocation 1.Cleanthesurface:Ensurethattheinstallationsurfaceiscleananddust-freeto bettersecuretheequipment. 2.Connectthedrivingwheelandthebeadchain:Determinetheinstallation positionoftherollingshutterrobot,connecttheproductdrivingwheelandthebead, ensuretightconnection,andavoidslidingorloosening. Step3:Fixtherollingshutterrobotandstartphonecalibration Securetherollershutterrobotandstartphonecalibration:Usetheincludedscrews orotherfixingaccessoriestosecurelyinstalltherollershutterrobotonthewallor otherselectedlocation. Afterinstallation,opentheapplicationandfollowthepromptstoinitializeand calibratethedevicetoensurethattherollingshutterrobotcanaccuratelycontrolthe openingandclosingoftherollingshutter. Equipmentcontrol Rollershuttercalibration Beforeusingtherollingshutterrobot,pleasecalibratetherollingshutterrobot throughthefollowingsteps: 1.Afterenteringtheequipmentpanel,click"MotionCalibration". 2.Accordingtotheprompt,pulltherollershuttertothehalf-openstateandclick "Next". 3. Accordingtothepage,clickthe"Openbutton"inthefiguretoperformthe directiontest. 4. Afterconfirmingtherotationdirection,click"Next"accordingtothepage prompts. 5.Clickthe"Openbutton",andwhentheshutterisfullyopen,clickthe"End button"torecordthestartingpositioninformation. 6.Clickthe"Startbutton"whentherollershutteriscompletelyclosed,clickthe "Endbutton"torecordtheendpositiontocompletethecalibration. Actiontriggered Afterenteringtheequipmentpanel,clicktheenableicon,andtherollingshutterrobot willmoveinthedirectionofopeningtherollingshutter;clickthecloseicon,andthe rollingshutterrobotwillmoveinthedirectionofclosingtherollingshutter.Ifthe signalisgood,theactionwillbetriggeredwithin3seconds.Ifyouneedtoadjustthe rollingshuttertoanyposition,youcanslideupanddownthroughtherollingshutter picturetoanypositionyouwanttoreach. Scenecontrol(remoteneedstobeusedinconjunctionwithgateway) Aftercompletingtherollershuttercalibrationwork,theopeningorclosingoftheroller shuttercanberemotelyorindividuallycontrolledthroughthefollowingsteps: 1.ClicktheplussignintheupperrightcorneroftheTuyaSmartAPP 2. ClickCreateScene. 3. Clicktoexecutewithoneclick. 4. SelectAddTaskintheExecuteTaskbox. 5.Selectcontrolofasingledeviceinthetaskselectionbox,selecttherolling shutterrobottobecontrolled,andselecton/offundercontrol 6.Repeatstep5toaddtherollingshutterrobotontheotherside. 7.Createanameforone-clickexecution,suchasrollingshutterfullopen,rolling shutterfullclose,etc. Warning Thisproductisnotwaterproof.Itcontainsbatteries,soitisprohibitedtouseinhumid andhigh-temperatureenvironments.Donotobstructthemovementofthecurtain robotduringoperation.Otherwise,itmaycausedamagetotheinternalmechanical structureanddamagetothemotorinsidetherobot. Specificationparameters Dimensions:209x52x38mm Weight:249g Batterytype:3.7Vlithiumbattery2000mAh Chargingport:Type-C Wirelessprotocol:Zigbee Workingtemperature:0C~45C/32°F~113°F Workinghumidity::0~95%RH,non-condensing PowerInput：DC5V/1A Packagecontent:1rollerblindrobot,2×screws,2×foamstickers FCC Warnning: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection againstharmful interference in a residential installation. This equipment generates, uses and can radiateradio frequency energy and, if not installed and used in accordance with the instructions, maycause harmful interference to radio communications. However, there is no guarantee thatinterference will not occur in a particular installation. If this equipment does cause harmfulinterference to radio or television reception, which can be determined by turning the equipmentoff and on, the user is encouraged to try to correct the interference by one or more of thefollowing measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. Caution: Any changes or modifications to this device not explicitly approved by manufacturer could void your authority to operate this equipment. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (…

Text truncated - open the document above for the full version.

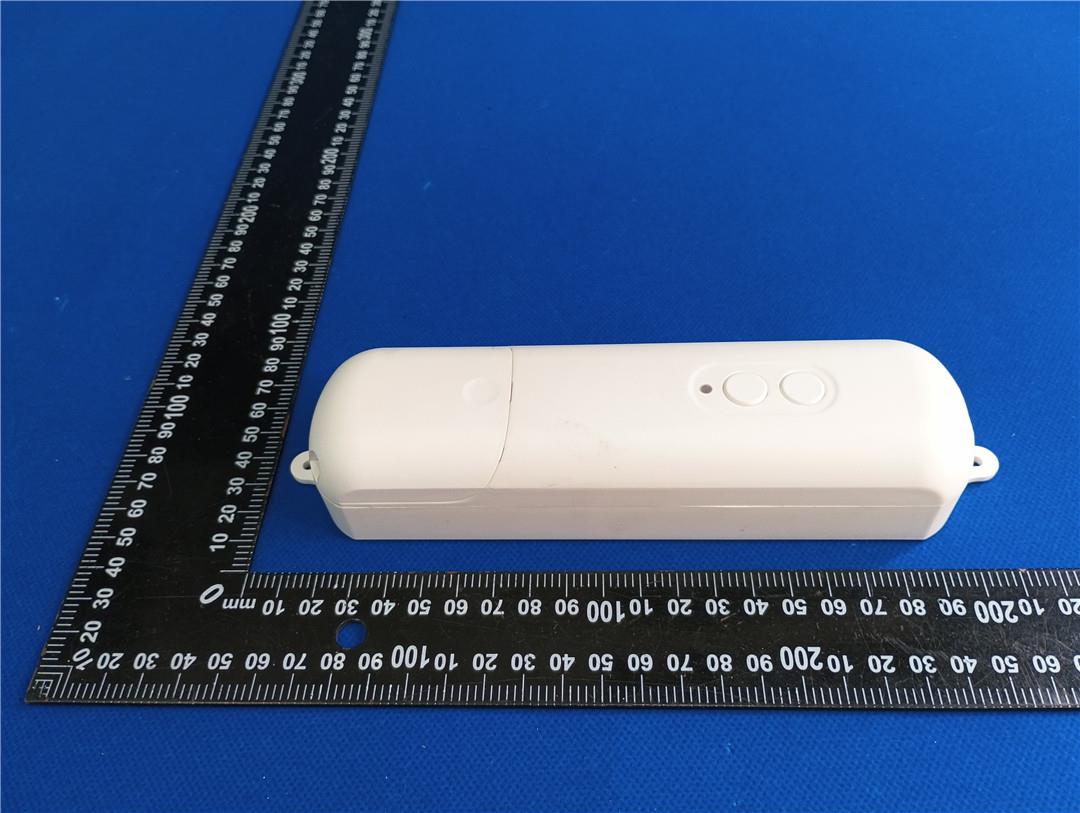

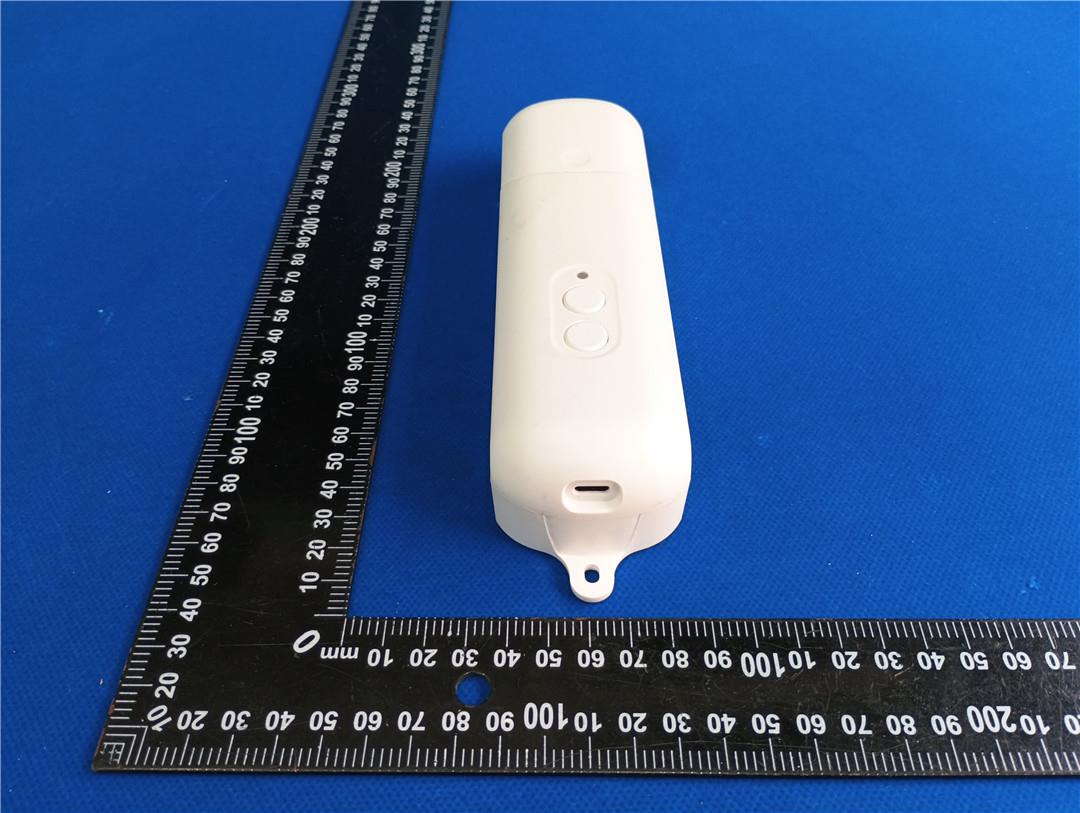

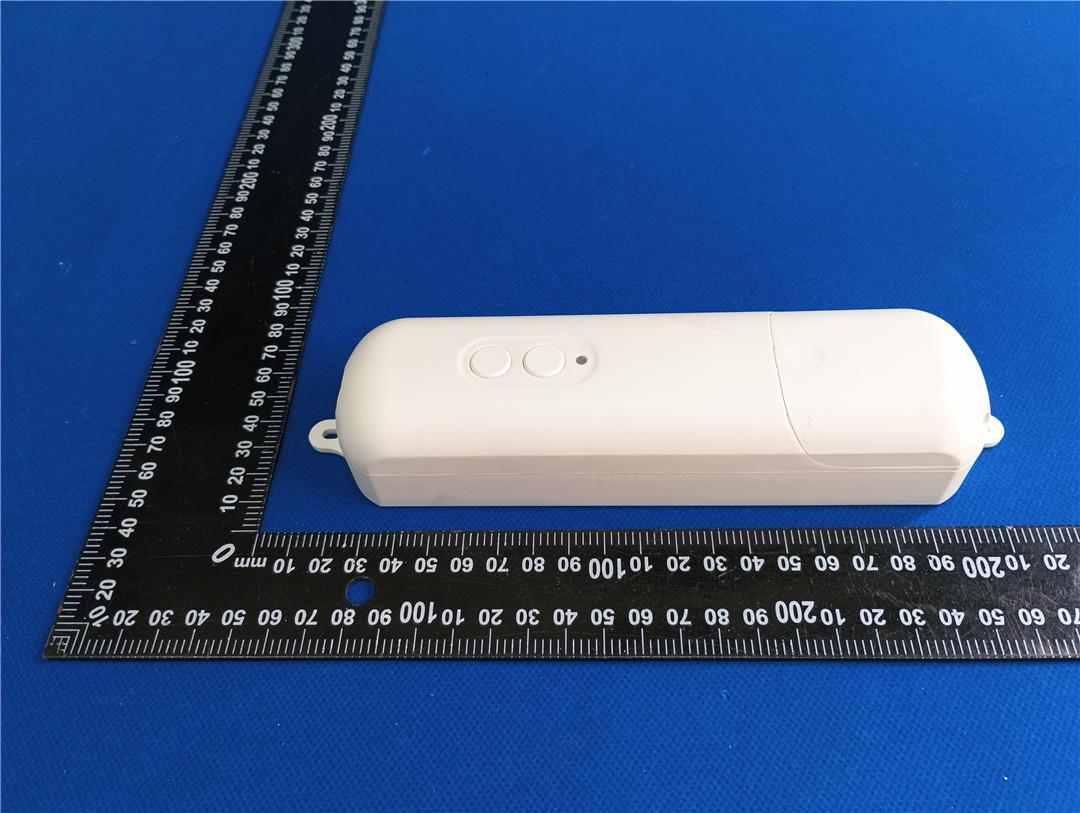

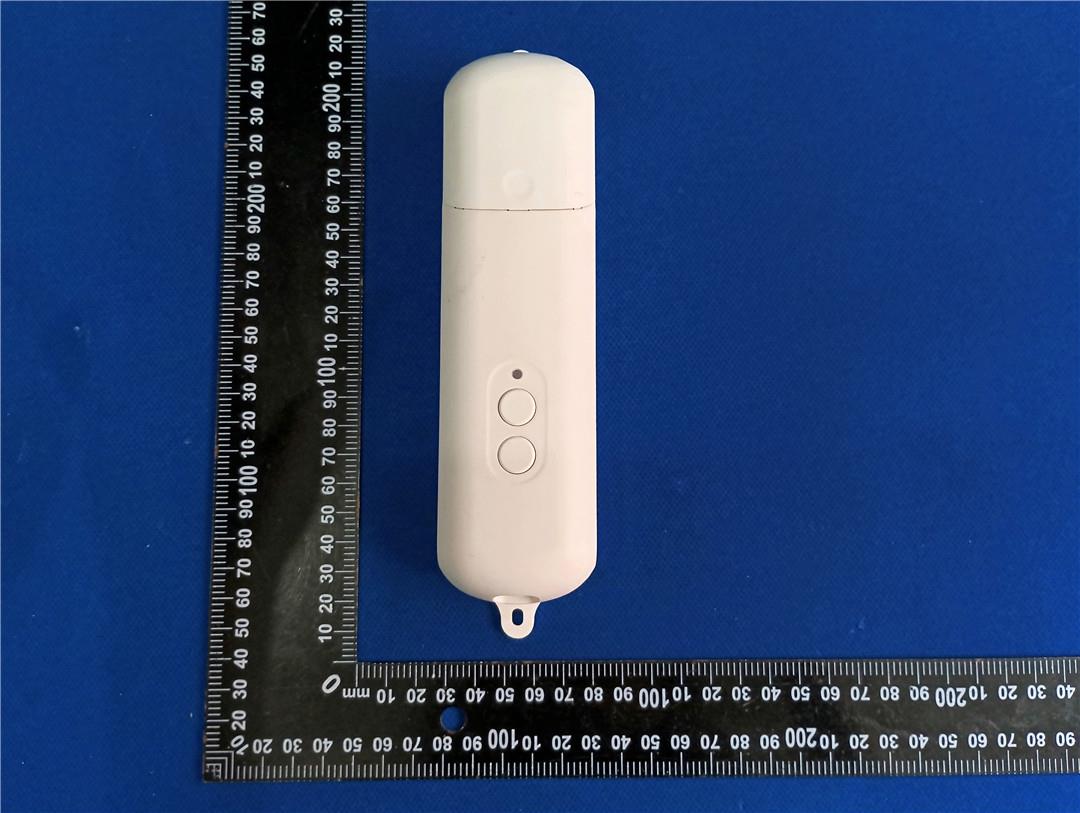

Shenzhen HTT Technology Co., Ltd. Report No.: HTT202603942 Shenzhen HTT Technology Co.,Ltd. Tel: 0755-23595200 Fax: 0755-23595201 1F, Building B, Huafeng International Robotics Industrial Park,Hangcheng Road, Nanchang Community, Xixiang Street, Bao'an District, Guangdong Province, Shenzhen, China Page 1 of 3 Product Name: Curtain Robot Model No.: ADBMZ001 EUT Constructional Details External Photo Report No.: HTT202603942 Shenzhen HTT Technology Co.,Ltd. Tel: 0755-23595200 Fax: 0755-23595201 1F, Building B, Huafeng International Robotics Industrial Park,Hangcheng Road, Nanchang Community, Xixiang Street, Bao'an District, Guangdong Province, Shenzhen, China Page 2 of 3 Report No.: HTT202603942 Shenzhen HTT Technology Co.,Ltd. Tel: 0755-23595200 Fax: 0755-23595201 1F, Building B, Huafeng International Robotics Industrial Park,Hangcheng Road, Nanchang Community, Xixiang Street, Bao'an District, Guangdong Province, Shenzhen, China Page 3 of 3 ------End------

Label and Location Size: L: 3.0cm*W: 2.0cm Label and Location FCC ID : 2A2X5-ADBMZ001

Shenzhen HTT Technology Co., Ltd. Report No.: HTT202603942 Shenzhen HTT Technology Co.,Ltd. Tel: 0755-23595200 Fax: 0755-23595201 1F, Building B, Huafeng International Robotics Industrial Park,Hangcheng Road, Nanchang Community, Xixiang Street, Bao'an District, Guangdong Province, Shenzhen, China Page 1 of 3 Product Name: Curtain Robot Model No.: ADBMZ001 EUT Constructional Details Internal Photo Report No.: HTT202603942 Shenzhen HTT Technology Co.,Ltd. Tel: 0755-23595200 Fax: 0755-23595201 1F, Building B, Huafeng International Robotics Industrial Park,Hangcheng Road, Nanchang Community, Xixiang Street, Bao'an District, Guangdong Province, Shenzhen, China Page 2 of 3 Report No.: HTT202603942 Shenzhen HTT Technology Co.,Ltd. Tel: 0755-23595200 Fax: 0755-23595201 1F, Building B, Huafeng International Robotics Industrial Park,Hangcheng Road, Nanchang Community, Xixiang Street, Bao'an District, Guangdong Province, Shenzhen, China Page 3 of 3 ------End------ ANTENNA

Shenzhen HTT Technology Co., Ltd. Shenzhen HTT Technology Co.,Ltd. Tel: 0755-23595200 Fax: 0755-23595201 1F, Building B, Huafeng International Robotics Industrial Park, Hangcheng Road,Nanchang Community, Xixiang Street, Bao'an District, Shenzhen, Guangdong, China Page 1 of 9 RF Exposure MPE Report Reference No. ..................... : FCC ID............................................. : HTT202603942F02 2A2X5-ADBMZ001 Compiled by ( position+printed name+signature) . : File administrators Supervised by ( position+printed name+signature) . : Project Engineer Approved by ( position+printed name+signature) . : RF Manager Date of issue .................................... : Mar. 31, 2026 Testing Laboratory Name .............. : Shenzhen HTT Technology Co.,Ltd. Address............................................ : 1F, Building B, Huafeng International Robotics Industrial Park, Hangcheng Road,Nanchang Community, Xixiang Street, Bao’an District, Shenzhen, Guangdong, China Applicant’s name ............................ : Hangzhou Adaprox Intelligent Technology Co., Ltd. Address............................................ : Room 606, 6th Floor, Building A, Yanxiang Science and Technology Building, No. 333 Jianghong Road, Changhe Street, Binjiang District, Hangzhou Standard ........................................... : 47CFR §1.1310 47CFR §2.1091 KDB447498 D01 General RF Exposure Guidance v06 Shenzhen HTT Technology Co.,Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen HTT Technology Co.,Ltd. is acknowledged as copyright owner and source of the material. Shenzhen HTT Technology Co.,Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Test item description ..................... : Curtain Robot Manufacturer .................................... : Hangzhou Adaprox Intelligent Technology Co., Ltd. Trade Mark ........................................ ADAPROX Model/Type reference ...................... : ADBMZ001 Rating ............................................... : DC 3.7V From Battery and DC 5V From External Circuit Result ............................................... : PASS Report No.: HTT202603942F02 Page 2 of 9 Shenzhen HTT Technology Co.,Ltd. Tel: 0755-23595200 Fax: 0755-23595201 1F, Building B, Huafeng International Robotics Industrial Park, Hangcheng Road,Nanchang Community, Xixiang Street, Bao'an District, Shenzhen, Guangdong, China Page 2 of 9 T E S T R E P O R T Equipment under Test : Curtain Robot Model /Type : ADBMZ001 Listed Models : ADBMB001, MADBMB001 Model difference : The PCB board, circuit, structure and internal of these models are the same, Only model number is different for these model. Applicant : Hangzhou Adaprox Intelligent Technology Co., Ltd. Address : Room 606, 6th Floor, Building A, Yanxiang Science and Technology Building, No. 333 Jianghong Road, Changhe Street, Binjiang District, Hangzhou Manufacturer : Hangzhou Adaprox Intelligent Technology Co., Ltd. Address : Room 606, 6th Floor, Building A, Yanxiang Science and Technology Building, No. 333 Jianghong Road, Changhe Street, Binjiang District, Hangzhou Test Result: PASS The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Report No.: HTT202603942F02 Page 3 of 9 Shenzhen HTT Technology Co.,Ltd. Tel: 0755-23595200 Fax: 0755-23595201 1F, Building B, Huafeng International Robotics Industrial Park, Hangcheng Road,Nanchang Community, Xixiang Street, Bao'an District, Shenzhen, Guangdong, China Page 3 of 9 Contents 1 T E S T S T A N D A R D S ................................................... 4 2 S U M M A R Y .............................................................. 5 2.1 General Remarks 5 2.2 Product Description 5 2.3 Special Accessories 5 2.4 Modifications 5 3 T E S T E N V I R O N M E N T 6 3.1 Address of the test laboratory 6 3.2 Test Facility 6 3.3 Statement of the measurement uncertainty 6 4 T E S T L I M I T 8 4.1 Requirement 8 4.2 MPE Calculation Method 8 4.3 Conducted Power Results 8 4.4 Manufacturing tolerance 9 4.5 Standalone MPE Result 9 4.6 Simultaneous Transmission for MPE Result 9 5 C O N C L U S I O N .......................................................... 9 Report No.: HTT202603942F02 Page 4 of 9 Shenzhen HTT Technology Co.,Ltd. Tel: 0755-23595200 Fax: 0755-23595201 1F, Building B, Huafeng International Robotics Industrial Park, Hangcheng Road,Nanchang Community, Xixiang Street, Bao'an District, Shenzhen, Guangdong, China Page 4 of 9 1 T E S T S T A N D A R D S The tests were performed according to following standards: ANSI C95.1–1999: IEEE Standard for Safety Levels with Respect to Human Exposure to Radio Frequency Electromagnetic Fields, 3 kHz to 300 GHz. FCC KDB 447498 D01 General RF Exposure Guidance v06: Mobile and Portable Device, RF Exposure, Equipment Authorization Procedures. FCC CFR 47 part1 1.1310: Radiofrequency radiation exposure limits. FCC CFR 47 part2 2.1091: Radiofrequency radiation exposure evaluation: mobile devices Report No.: HTT202603942F02 Page 5 of 9 Shenzhen HTT Technology Co.,Ltd. Tel: 0755-23595200 Fax: 0755-23595201 1F, Building B, Huafeng International Robotics Industrial Park, Hangcheng Road,Nanchang Community, Xixiang Street, Bao'an District, Shenzhen, Guangdong, China Page 5 of 9 2 S U M M A R Y 2.1 General Remarks Date of receipt of test sample : Mar. 23, 2026 Testing commenced on : Mar. 23, 2026 Testing concluded on : Mar. 31, 2026 2.2 Product Description Name of EUT Curtain Robot Model Number ADBMZ001 Power Rating DC 3.7V From Battery and DC 5V From External Circuit Sample ID: HTT202603942-1# (Engineer sample) HTT202603942-2# (Normal sample) Operation frequency 2405-2480MHz Modulation OQPSK Antenna Type PCB Antenna Antenna Gain 1.50 dBi 2.3 Special Ac…

Text truncated - open the document above for the full version.

1. Antenna Description: Antenna type PCB antenna Model ADBMZ001 Frequency range 2400-2500MHz Manufacturer Hangzhou Adaprox Intelligent Technology Co., Ltd. Address Room 606, 6th Floor, Building A, Yanxiang Science and Technology Building, No. 333 Jianghong Road, Changhe Street, Binjiang District, Hangzhou ANT Peak Gain 1.50 dBi 2. Antenna Photo: 3. Test Equipment & Conditions 3.1 Test instrument VSWR is tested using Agilent E5071B connected to a hand mechanism, and the status is free space. 3.2 Test environment and methods 4．Antenna Radiation Pattern 2400MHz 2450MHz 2500MHz

1 Appendix RF Test Data for ZIGBEE Company: : Hangzhou Adaprox Intelligent Technology Co., Ltd. EUT : Curtain Robot FCC ID : 2A2X5-ADBMZ001 Model Number : ADBMZ001 Report No. : HTT202603942F01 Reviewed By : Heber He 2 1. Duty Cycle 1.1 Test Result 1.1.1 Ant1 Ant1 Mode TX Type Frequency (MHz) T_on (ms) Period (ms) Duty Cycle (%) Duty Cycle Correction Factor (dB) Max. DC Variation (%) Zigbee SISO 2405 100.000 100.000 100.00 0.00 0.00 2440 100.000 100.000 100.00 0.00 0.00 2480 100.000 100.000 100.00 0.00 0.00 3 1.2 Test Graph 1.2.1 Ant1 Zigbee_LCH_2405MHz_Ant1_NTNV Zigbee_MCH_2440MHz_Ant1_NTNV 4 Zigbee_HCH_2480MHz_Ant1_NTNV 5 2. Bandwidth 2.1 Test Result 2.1.1 OBW Mode TX Type Frequency (MHz) ANT 99% Occupied Bandwidth (MHz) Verdict Result Limit Zigbee SISO 2405 1 2.333 / Pass 2440 1 2.334 / Pass 2480 1 2.314 / Pass 2.1.2 6dB BW Mode TX Type Frequency (MHz) ANT 6dB Bandwidth (MHz) Verdict Result Limit Zigbee SISO 2405 1 1.566 >=0.5 Pass 2440 1 1.489 >=0.5 Pass 2480 1 1.521 >=0.5 Pass 6 2.2 Test Graph 2.2.1 OBW Zigbee_LCH_2405MHz_Ant1_NTNV Zigbee_MCH_2440MHz_Ant1_NTNV 7 Zigbee_HCH_2480MHz_Ant1_NTNV 8 2.2.2 6dB BW Zigbee_LCH_2405MHz_Ant1_NTNV Zigbee_MCH_2440MHz_Ant1_NTNV 9 Zigbee_HCH_2480MHz_Ant1_NTNV 10 3. Maximum Conducted Output Power 3.1 Test Result 3.1.1 Power Mode TX Type Frequency (MHz) Maximum Peak Conducted Output Power (dBm) Verdict ANT1 Limit Zigbee SISO 2405 2.42 <=30 Pass 2440 1.67 <=30 Pass 2480 1.94 <=30 Pass 11 4. Maximum Power Spectral Density 4.1 Test Result 4.1.1 PSD Mode TX Type Frequency (MHz) Maximum PSD (dBm) Verdict ANT1 Limit Zigbee SISO 2405 0.54 <=8 Pass 2440 -0.35 <=8 Pass 2480 -0.16 <=8 Pass 12 4.2 Test Graph 4.2.1 PSD Zigbee_LCH_2405MHz_Ant1_NTNV Zigbee_MCH_2440MHz_Ant1_NTNV 13 Zigbee_HCH_2480MHz_Ant1_NTNV 14 5. Unwanted Emissions In Non-restricted Frequency Bands 5.1 Test Result 5.1.1 Ref Mode TX Type Frequency (MHz) ANT Level of Reference (dBm) Zigbee SISO 2405 1 1.95 2440 1 -0.46 2480 1 0.00 5.1.2 CSE Mode TX Type Frequency (MHz) ANT Level of Reference (dBm) Limit (dBm) Verdict Zigbee SISO 2405 1 1.95 -18.05 Pass 2440 1 -0.46 -20.46 Pass 2480 1 0.00 -20.00 Pass 15 5.2 Test Graph 5.2.1 Ref Zigbee_LCH_2405MHz_Ant1_NTNV Zigbee_MCH_2440MHz_Ant1_NTNV 16 Zigbee_HCH_2480MHz_Ant1_NTNV 17 5.2.2 CSE Zigbee_LCH_2405MHz_Ant1_NTNV Zigbee_LCH_2405MHz_Ant1_NTNV 18 Zigbee_MCH_2440MHz_Ant1_NTNV Zigbee_HCH_2480MHz_Ant1_NTNV 19 Zigbee_HCH_2480MHz_Ant1_NTNV

Shenzhen HTT Technology Co., Ltd. Report No.: HTT202603942F01 Page 1 of 31 FCC PART 15 SUBPART C TEST REPORT FCC PART 15.247 Report Reference No. ..................... : FCC ID. ........................................... : HTT202603942F01 2A2X5-ADBMZ001 Compiled by ( position+printed name+signature) .. : File administrators Supervised by ( position+printed name+signature) .. : Project Engineer Approved by ( position+printed name+signature) .. : RF Manager Date of issue ..................................... : Mar. 31, 2026 Testing Laboratory Name .............. : Shenzhen HTT Technology Co.,Ltd. Address ............................................ : 1F, Building B, Huafeng International Robotics Industrial Park, Hangcheng Road,Nanchang Community, Xixiang Street, Bao’an District, Shenzhen, Guangdong, China Applicant’s name ............................ : Hangzhou Adaprox Intelligent Technology Co., Ltd. Address ............................................ : Room 606, 6th Floor, Building A, Yanxiang Science and Technology Building, No. 333 Jianghong Road, Changhe Street, Binjiang District, Hangzhou Test specification ...........................: Standard ........................................... : FCC Part 15.247 Shenzhen HTT Technology Co.,Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen HTT Technology Co.,Ltd. is acknowledged as copyright owner and source of the material. Shenzhen HTT Technology Co.,Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Equipment description ................... : Curtain Robot Trade Mark ....................................... : ADAPROX Manufacturer .................................... : Hangzhou Adaprox Intelligent Technology Co., Ltd. Model/Type reference....................... : ADBMZ001 Listed Models .................................. : ADBMB001, MADBMB001 Modulation ....................................... : OQPSK Frequency .......................................... 2405-2480MHz Ratings ............................................. : DC 3.7V From Battery and DC 5V From External Circuit Result................................................ : PASS Report No.: HTT202603942F01 Page 2 of 31 T E S T R E P O R T Equipment under Test : Curtain Robot Model /Type : ADBMZ001 Listed Models : ADBMB001, MADBMB001 Model difference : The PCB board, circuit, structure and internal of these models are the same, Only model number is different for these model. Applicant : Hangzhou Adaprox Intelligent Technology Co., Ltd. Address : Room 606, 6th Floor, Building A, Yanxiang Science and Technology Building, No. 333 Jianghong Road, Changhe Street, Binjiang District, Hangzhou Manufacturer : Hangzhou Adaprox Intelligent Technology Co., Ltd. Address : Room 606, 6th Floor, Building A, Yanxiang Science and Technology Building, No. 333 Jianghong Road, Changhe Street, Binjiang District, Hangzhou Test Result: PASS The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Report No.: HTT202603942F01 Page 3 of 31 Contents 1 T E S T S T A N D A R D S .................................................................. 4 2 S U M M A R Y ............................................................................. 5 2.1 General Remarks 5 2.2 Product Description* 5 2.3 Equipment Under Test 5 2.4 Short description of the Equipment under Test (EUT) 5 2.5 EUT operation mode 6 2.6 Block Diagram of Test Setup 6 2.7 Related Submittal(s) / Grant (s) 6 2.8 Modifications 6 3 T E S T E N V I R O N M E N T ............................................................... 7 3.1 Address of the test laboratory 7 3.2 Test Facility 7 3.3 Environmental conditions 7 3.4 Summary of measurement results 8 3.5 Statement of the measurement uncertainty 8 3.6 Equipments Used during the Test 9 4 T E S T C O N D I T I O N S A N D R E S U L T S ............................................ 10 4.1 AC Power Conducted Emission 10 4.2 Radiated Emissions and Band Edge 13 4.3 Maximum Peak Output Power 20 4.4 Power Spectral Density 21 4.5 6dB Bandwidth 22 4.6 Out-of-band Emissions 23 4.7 Antenna Requirement 24 T E S T S E T U P P H O T O S O F T H E E U T ................................................... 25 5 P H O T O S O F T H E E U T ............................................................. 27 Report No.: HTT202603942F01 Page 4 of 31 1 T E S T S T A N D A R D S The tests were performed according to following standards: FCC Rules Part 15.247: Frequency Hopping, Direct Spread Spectrum and Hybrid Systems that are in operation within the bands of 902-928 MHz, 2400-2483.5 MHz, and 5725-5850 MHz. ANSI C63.10-2020+Cor. 1-2023+C63.10a-2024 + Errata to C63.10a-2024: American National Standard for Testing Unlicensed Wireless Devices KDB558074 D01 V05r02: Guidance for Performing Compliance Measurements on Digital Transmission Systems (DTS) Operating Under §15.247 Report No.: HTT202603942F01 Page 5 of 31 2 S U M M A R Y 2.1 General Remarks Date of receipt of test sample : Mar. 23, 2026 Testing commenced on : Mar. 23, 2026 Testing concluded on : Mar. 31, 2026 2.2 Product Description* Name of EUT Curtain Robot Model Number ADBMZ001 Power Rating DC 3.7V From Battery and DC 5V From External Circuit Adapter Information (Auxiliary test provided by the lab): Model: GS-0500200 Input: AC100-240V, 50/60Hz, 0.3A max Output: DC 5V, 2A Sample ID: HTT202603942-1# (Engineer sample) HTT202603942-2# (Normal sample) Operation frequency 2405-2480MHz Modulation OQPSK Antenna Type PCB Antenna Antenna Gain 1.50 dBi 2.3 Equipment Under Test Power supply system utilised Power supply voltage : ○ 230V / 50 Hz ○ 120V / 60Hz ○ 12 V DC ○ 24 V DC ● Other (specified in blank below) DC 3.7V From Battery and DC 5V From External Circuit 2.4 Short de…

Text truncated - open the document above for the full version.

Shenzhen HTT Technology Co., Ltd. Report No.: HTT202603942 Shenzhen HTT Technology Co.,Ltd. Tel: 0755-23595200 Fax: 0755-23595201 1F, Building B, Huafeng International Robotics Industrial Park,Hangcheng Road, Nanchang Community, Xixiang Street, Bao'an District, Guangdong Province, Shenzhen, China Page 1 of 2 Product Name: Curtain Robot Model No.: ADBMZ001 Test Setup Photo Radiated Emission Report No.: HTT202603942 Shenzhen HTT Technology Co.,Ltd. Tel: 0755-23595200 Fax: 0755-23595201 1F, Building B, Huafeng International Robotics Industrial Park,Hangcheng Road, Nanchang Community, Xixiang Street, Bao'an District, Guangdong Province, Shenzhen, China Page 2 of 2 Conducted Emission RF TEST ------End------
