2A2XV-886TRemote Control Transmitter

RSL wireless remote control Model: RSL886TA with bracket Operating elements Upper button- ON Down button- OFF Inserting/replacing battery 1. Remove the battery compartment lid from the back of the remote control. 2. Insert one round cell battery, type CR2032, into the battery recess. The positive pole should face upward (see the “+” imprint on the battery). Push the battery all the way into the battery recess. 3. Close the battery compartment. The battery must be replaced when the remote control’s range decreases noticeably or when the indicator lamp no longer lights when a button is pushed. Key functions • Two control key: upper = ON/ down = OFF. • Use the upper key to turn ON receiver. • Use the down key to turn OFF receiver. The indicator lamp lights up each time a key is pressed. The remote control can control an unlimited number of compatible plugs. Technical data Battery type ..............................CR2032 Number of channels .................1 channel Transmission frequency............433.92 MHz Transmission range ..................max. 150ft (in open area) Dimensions (W x H x D) ........... remote 35 x 66x 12 mm, bracket 70 x 114x 7 mm Notice Do not ingest battery, Chemical Burn Hazard This product contains a coin / button cell battery. If the coin / button cell battery is swallowed, it can cause severe internal burns in just 2 hours and can lead to death. Keep new and used batteries away from children. If the battery compartment does not close securely, stop using the product and keep it away from children. If you think batteries might have been swallowed or placed inside any part of the body, seek immediate medical attention. FCC statement This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation This device has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This device generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this device does cause harmful interference to radio or television reception, which can be determined by turning the device off and on, the user is encouraged to try to correct the interference by one or more of the following measures: --Reorient or relocate the receiving antenna. --Increase the separation between the device and receiver. --Connect the device into an outlet on a circuit different from that to which the receiver is connected. --Consult the dealer or an experienced radio/TV technician for help Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment

RSL wireless remote control Model: RSL886TB with bracket Operating elements Left button- ON Right button- OFF Inserting/replacing battery 1. Remove the battery compartment lid from the back of the remote control. 2. Insert one round cell battery, type CR2032, into the battery recess. The positive pole should face upward (see the “+” imprint on the battery). Push the battery all the way into the battery recess. 3. Close the battery compartment. The battery must be replaced when the remote control’s range decreases noticeably or when the indicator lamp no longer lights when a button is pushed. Key functions • The control keys are arranged in two columns: left column = ON/ right column = OFF. • Use the upper four keys on the left column to activate channels 1 to 4 individually. • Use the upper four keys on the right column to deactivate channels 1 to 4 individually. The indicator lamp lights up each time a key is pressed. The remote control can control an unlimited number of compatible plugs. Technical data Battery type ..............................CR2032 Number of channels .................4 channel Transmission frequency............433.92 MHz Transmission range ..................max. 150ft (in open area) Dimensions (W x H x D) ........... remote 35 x 66x 12 mm, bracket 70 x 114x 7 mm Notice Do not ingest battery, Chemical Burn Hazard This product contains a coin / button cell battery. If the coin / button cell battery is swallowed, it can cause severe internal burns in just 2 hours and can lead to death. Keep new and used batteries away from children. If the battery compartment does not close securely, stop using the product and keep it away from children. If you think batteries might have been swallowed or placed inside any part of the body, seek immediate medical attention. FCC statement This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation This device has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This device generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this device does cause harmful interference to radio or television reception, which can be determined by turning the device off and on, the user is encouraged to try to correct the interference by one or more of the following measures: --Reorient or relocate the receiving antenna. --Increase the separation between the device and receiver. --Connect the device into an outlet on a circuit different from that to which the receiver is connected. --Consult the dealer or an experienced radio/TV technician for help Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment

RSL wireless remote control Model: RSL886TC with bracket Operating elements Left button- ON Right button- OFF Inserting/replacing battery 1. Remove the battery compartment lid from the back of the remote control. 2. Insert one round cell battery, type CR2032, into the battery recess. The positive pole should face upward (see the “+” imprint on the battery). Push the battery all the way into the battery recess. 3. Close the battery compartment. The battery must be replaced when the remote control’s range decreases noticeably or when the indicator lamp no longer lights when a button is pushed. Key functions • The control keys are arranged in two columns: left column = ON/ right column = OFF. • Use the upper four keys on the left column to activate channels 1 to 3 individually. • Use the upper four keys on the right column to deactivate channels 1 to 3 individually. • Use the lower key ALL ON on the left column to activate channels 1 to 3 simultaneously. • Use the lower key ALL OFF on the right column to deactivate channels 1 to 3 simultaneously. The indicator lamp lights up each time a key is pressed. The remote control can control an unlimited number of compatible plugs. Technical data Battery type ..............................CR2032 Number of channels .................3 channel+All ON/All OFF Transmission frequency............433.92 MHz Transmission range ..................max. 150ft (in open area) Dimensions (W x H x D) ........... remote 35 x 66x 12 mm, bracket 70 x 114x 7 mm Notice Do not ingest battery, Chemical Burn Hazard This product contains a coin / button cell battery. If the coin / button cell battery is swallowed, it can cause severe internal burns in just 2 hours and can lead to death. Keep new and used batteries away from children. If the battery compartment does not close securely, stop using the product and keep it away from children. If you think batteries might have been swallowed or placed inside any part of the body, seek immediate medical attention. FCC statement This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation This device has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This device generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this device does cause harmful interference to radio or television reception, which can be determined by turning the device off and on, the user is encouraged to try to correct the interference by one or more of the following measures: --Reorient or relocate the receiving antenna. --Increase the separation between the device and receiver. --Connect the device into an outlet on a circuit different from that to which the receiver is connected. --Consult the dealer or an experienced radio/TV technician for help Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment

Ningbo Free Trade Zone Rising Sun Electrical Co., Ltd. Covered Equipment Certification Attestation Letter 8/31/2023 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 USA ATTN.: Reviewing Engineer FCC ID: 2A2XV-886T Ningbo Free Trade Zone Rising Sun Electrical Co., Ltd. (“the applicant”) certifies that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. Note: If the equipment for which the applicant seeks authorization is produced by any of the entities identified on the current Covered List, the applicant should include an explanation on why the equipment is not “covered” equipment. Ningbo Free Trade Zone Rising Sun Electrical Co., Ltd. (“the applicant”) certifies that, as of the date of the filing of the application, the applicant is not identified on the Covered List as an entity producing “covered” equipment. Signed: Printed name: Cao wenzhong Title: General Manager Company Name: Ningbo Free Trade Zone Rising Sun Electrical Co.,Ltd Date: 8/31/2023

Ningbo Free Trade Zone Rising Sun Electrical Co., Ltd. * the applicant must designate a contact located in the United States for purposes of acting as the applicant’s agent for service of process, regardless of whether the applicant is a domestic or foreign entity. An applicant located in the United States may designate itself as the agent for service of process. U.S. Agent Designation for Service of Process - Certification Attestation Letter 8/31/2023 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 USA ATTN.: Reviewing Engineer FCC ID: 2A2XV-886T FRN of Grantee: 0031287105 Per section 2.911(d)(7) of the FCC rules, Ningbo Free Trade Zone Rising Sun Electrical Co., Ltd. (“the applicant”) certifies that the equipment for which authorization is sought is designated to the following U.S. agent* for service of process: Company Name: Stariver Consulting Company FCC Registration Number (FRN): 0033400433 Company Address: 2363 James St #1098 Syracuse, NY 13206, USA Agent Name: Chong He Agent Email Address: [email protected] The above contact person accepts the obligation for service of process. The applicant accepts to maintain an agent for no less than one year after the grantee has terminated all marketing and importation or the conclusion of any Commission-related proceeding involving the equipment. Applicant Signed: Agent Signed: Signed: Signed: Printed name: Cao wenzhong Printed name: Chong He Title: General Manager Title: Manager Company Name: Ningbo Free Trade Zone Company Name: Stariver Consulting Company Rising Sun Electrical Co.,Ltd Date: 8/31/2023 Date: 9/4/2023

September 4, 2023 Federal Communications Commission Authorization & Evaluation Division 7345 Oakland Mills Road Columbia, Maryland 21046 Authority to Act as Agent On our behalf, I appoint Shenzhen Timeway Testing Laboratories/ Zone C, 1st Floor, Block B, Jun Xiang Da Building, Zhongshan Park Road West, Tong Le Village, Nanshan District, Shenzhen, China (Name of Agent company name and address) to act as our agent in the preparation of this application for equipment certification. I certify that submitted documents properly describe the device or system for which equipment certification is sought. I also certify that each unit manufactured, imported or marketed, as defined in the Federal Communications Commission’s regulations will have affixed to it a label identical to that submitted for approval with this application. For instances where our authorized agent signs the application for certification on our behalf, I acknowledge that all responsibility for complying with the terms and conditions for certification, still resides with Ningbo Free Trade Zone Rising Sun Electrical Co.,Ltd./ No.17, Chuanye 1 Road, West Part of Free Trade Zone, Ningbo, China Dated this: September 4, 2023 Agency agreement expiration date: 12 Months By: Cao wenzhong Signature Printed Title: Manager On behalf of: Ningbo Free Trade Zone Rising Sun Electrical Co.,Ltd. Tel No: 0574-27687231

September 4, 2023 Equipment Autorisation Division Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 FCC ID: 2A2XV-886T Product Name: Remote Control Transmitter Request for Confidentiality Pursuant to Sections 0.457 and 0.459 of the commissions rules, we hereby request that the following documents be held confidential: • Schematics • Block diagram • Operation description These materials contain trade secrets and proprietary information and are not customarily released to the public. The public disclosure of this information might be harmful to the company and provide unjustified benefits to our competitors. Dated this: September 4, 2023 Agency agreement expiration date: 12 Months By: Cao wenzhong Signature Printed Title: Manager On behalf of: Ningbo Free Trade Zone Rising Sun Electrical Co.,Ltd. Tel No: 0574-27687231

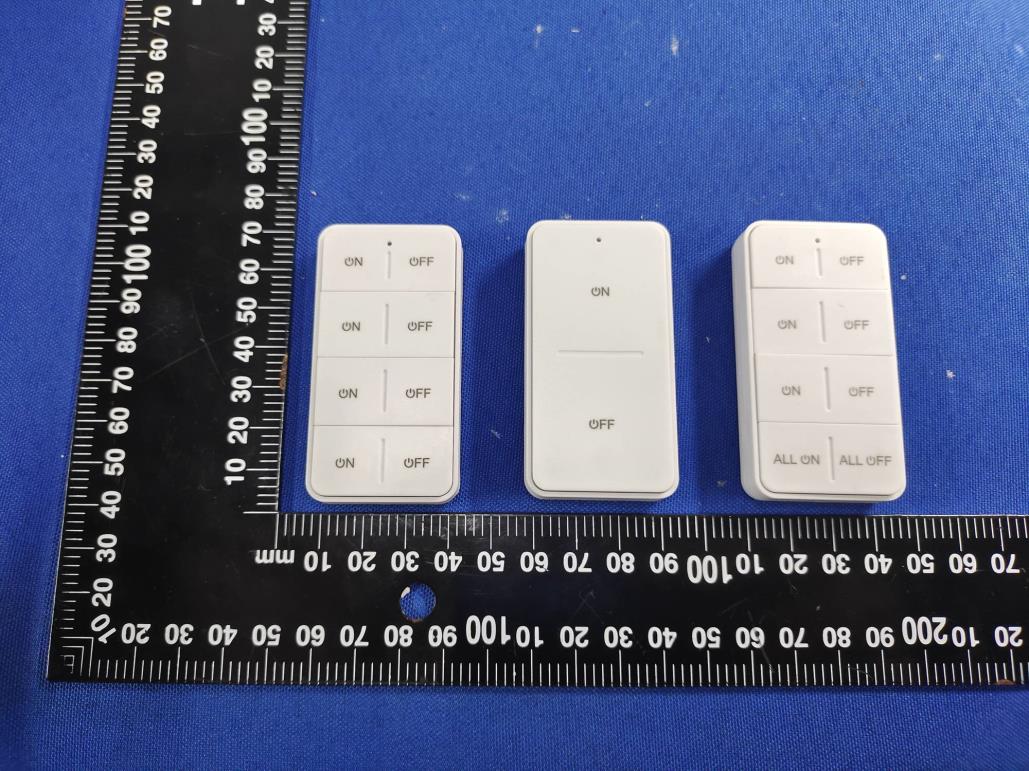

Ningbo Free Trade Zone Rising Sun Electrical Co.,Ltd. Statement We Ningbo Free Trade Zone Rising Sun Electrical Co.,Ltd. Hereby Declare that The product Remote Control Transmitter, models no. RSL886TA, RSL886TB, RSL886TC are all identical in interior structure, electrical circuits and components, and only the number of key buttons are different. RSL886TA has two key buttons RSL886TB has eight key buttons RSL886TC has eight key buttons Your assistance on this matter is highly appreciated. Yours sincerely, Signature: Company Name: Ningbo Free Trade Zone Rising Sun Electrical Co.,Ltd.

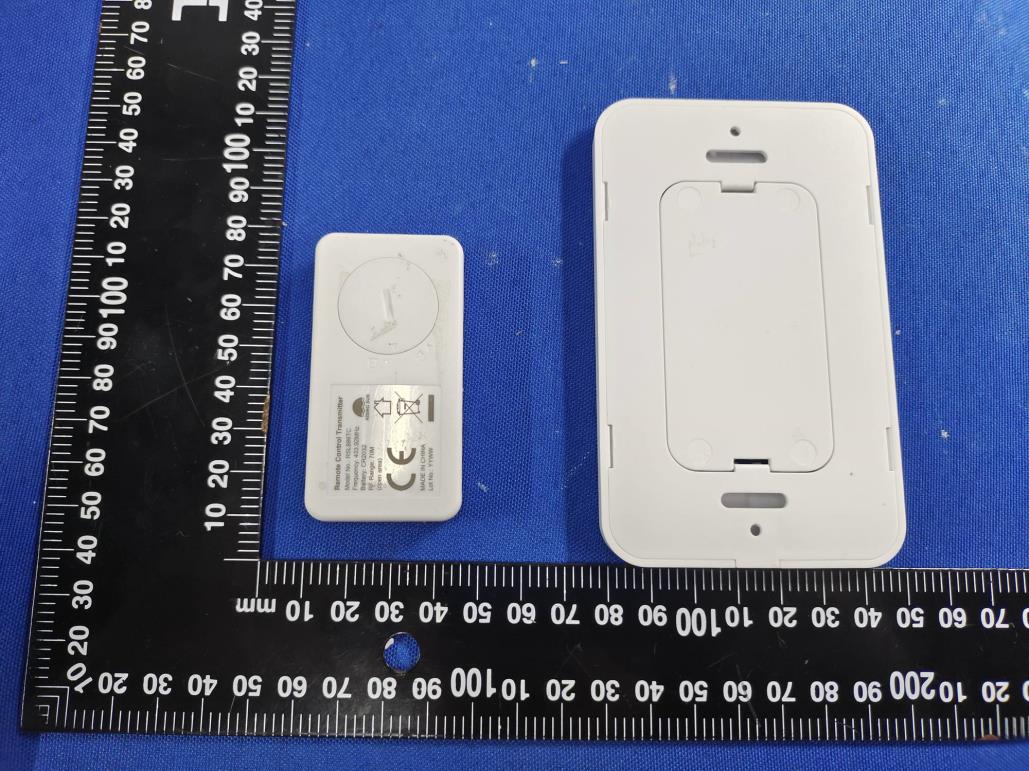

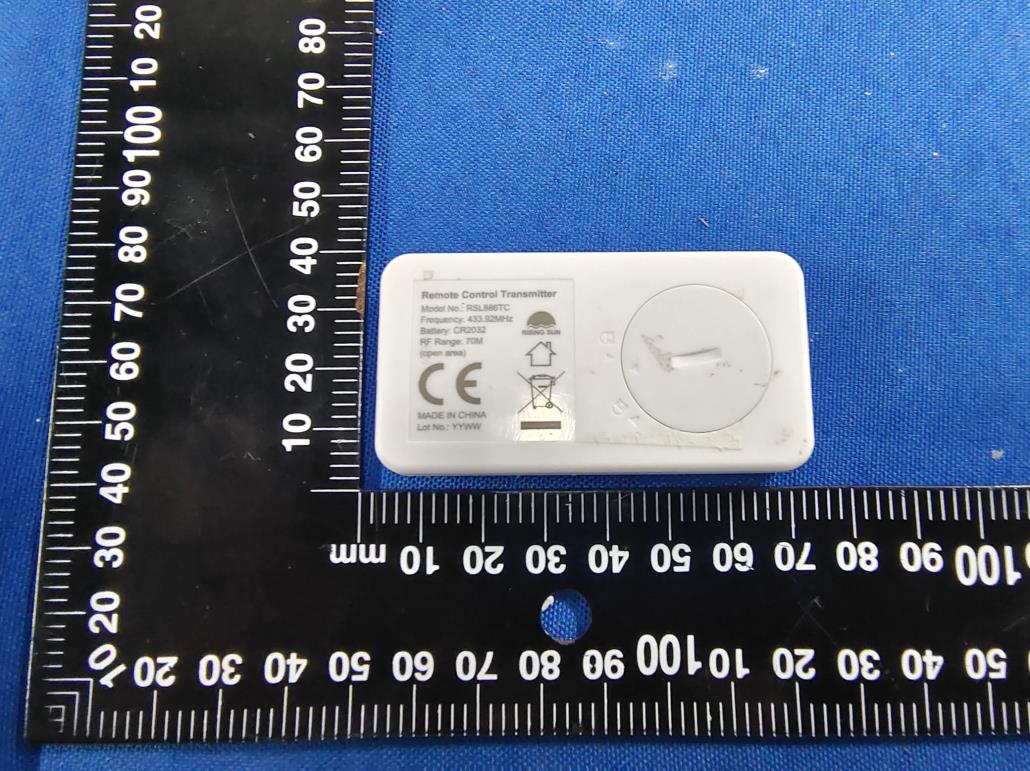

Label Location

RF Exposure evaluation According to 447498 D04 Interim General RF Exposure Guidance v01 eirp = pt x gt = (EXd) 2 /30 where: pt = transmitter output power in watts, gt = numeric gain of the transmitting antenna (unitless), E = electric field strength in V/m, --- 10 ((dBuV/m)/20) /10 6 d = measurement distance in meters (m)---3m Sopt = (EXd) 2 /30 x gt Ant gain =0.8dBi so Ant numeric gain= 1.02 Field strength =86.88dBμV/m @[email protected] So Pt={ [10 (86.88/20) /10 6 x3] 2 /(30x1.02)}x1000 mW = 0.14mW <23.1657mW Then SAR evaluation is not required

Report No.: TW2307335E Applicant: Ningbo Free Trade Zone Rising Sun Electrical Co.,Ltd. Product: Remote Control Transmitter Model No.: RSL886TA, RSL886TB, RSL886TC Trademark: Risingsun Test Standards: FCC Part 15 Subpart C, Paragraph 15.231 Test result: It is herewith confirmed and found to comply with the requirements set up by ANSI C63.4&FCC Part 15 Subpart C, Paragraph 15.231 for the evaluation of electromagnetic compatibility Approved By Terry Tang Manager Dated: August 11, 2023 Results appearing herein relate only to the sample tested The technical reports is issued errors and omissions exempt and is subject to withdrawal at SHENZHEN TIMEWAY TESTING LABORATORIES Zone C, 1st Floor, Block B, Jun Xiang Da Building, Zhongshan Park Road West, Tong Le Village, Nanshan District, Shenzhen, China Tel (755) 83448688, Fax (755) 83442996, E-Mail:[email protected] Report No: TW2307335E Page 2 of 33 Date: 2023-08-11 The report refers only to the sample tested and does not apply to the bulk. This report is issued in confidence to the client and it will be strictly treated as such by the SHENZHEN TIMEWAY TESTING LABORATORIES. It may not be reproduced rather in its entirety or in part and it may not be used for adverting. The client to whom the report is issued may, however, show or send it . or a certified copy there of prepared by the SHENZHEN TIMEWAY TESTING LABORATORIES. to his customer. Supplier or others persons directly concerned. SHENZHEN TIMEWAY TESTING LABORATORIES. will not, without the consent of the client enter into any discussion of correspondence with any third party concerning the contents of the report. In the event of the improper use of the report. The SHENZHEN TIMEWAY TESTING LABORATORIES. reserves the rights to withdraw it and to adopt any other remedies which may be appropriate. Special Statement： The testing quality ability of our laboratory meet with "Quality Law of People's Republic of China" Clause 19. The testing quality system of our laboratory meet with ISO/IEC-17025 requirements, which is approved by CNAS. This approval result is accepted by MRA of APLAC. Our test facility is recognized, certified, or accredited by the following organizations: CNAS-LAB Code: L2292 The EMC Laboratory has been assessed and in compliance with CNAS-CL01 accreditation criteria for testing Laboratories (identical to ISO/IEC 17025:2017 General Requirements) for the Competence of testing Laboratories. FCC-Registration No.: 744189 The EMC Laboratory has been registered and fully described in a report filed with the (FCC) Federal Communications commission. The acceptance letter from the FCC is maintained in our files. Registration No.: 744189. Industry Canada (IC) —Registration No.:5205A The EMC Laboratory has been registered by Certification and Engineering Bureau of Industry Canada for radio equipment testing with Registration No.: 5205A. A2LA (Certification Number:5013.01) The EMC Laboratory has been accredited by the American Association for Laboratory Accreditation (A2LA). Certification Number:5013.01 CAB identifier: CN0033 Report No: TW2307335E Page 3 of 33 Date: 2023-08-11 The report refers only to the sample tested and does not apply to the bulk. This report is issued in confidence to the client and it will be strictly treated as such by the SHENZHEN TIMEWAY TESTING LABORATORIES. It may not be reproduced rather in its entirety or in part and it may not be used for adverting. The client to whom the report is issued may, however, show or send it . or a certified copy there of prepared by the SHENZHEN TIMEWAY TESTING LABORATORIES. to his customer. Supplier or others persons directly concerned. SHENZHEN TIMEWAY TESTING LABORATORIES. will not, without the consent of the client enter into any discussion of correspondence with any third party concerning the contents of the report. In the event of the improper use of the report. The SHENZHEN TIMEWAY TESTING LABORATORIES. reserves the rights to withdraw it and to adopt any other remedies which may be appropriate. Test Report Conclusion Content 1.0 General Details ................................................................................................ 4 1.1 Test Lab Details................................................................................................ 4 1.2 Applicant Details.............................................................................................. 4 1.3 Description of EUT ........................................................................................... 4 1.4 Submitted Sample.............................................................................................. 4 1.5 Test Duration.................................................................................................... 4 1.6 Test Uncertainty................................................................................................. 5 1.7 Test By.......................................................................................................... 5 2.0 List of Measurement Equipment.......................................................................... 5 3.0 Technical Details............................................................................................. 6 3.1 Summary of Test Results..................................................................................... 6 3.2 Test Standards.................................................................................................. 6 4.0 EUT Modification............................................................................................. 6 5.0 Power Line Conducted Emission Test................................................................... 7 5.1 Schematics of the Test........................................................................................ 7 5.2 Test Method and Test Procedure............................................................................. 7 5.3 Configuration of the EUT...........................................…

Text truncated - open the document above for the full version.

Antenna Information: Manufacturer: Ningbo Free Trade Zone Rising Sun Electrical Co.,Ltd. Model: RSL886 Dimensions: (unit: mm) Photo:

Radiated Emission Test Setup:
