2A2Y8-FORZA60BIILED Bi-color Spot Light

Usermanual 1、ModelandProductname:Forza60BIILEDBi-colorSpotLight 2、Technicaldata: Input:AC100-240V50/60Hz Output:DC15V/6AMax.90W ColorTemperature:2700-6500KCRI:95TLCI:98 3、DetailedDescription 1）LCDscreen:Fordisplayingthedata. 2）Leftknob:ForadjustingtheDIMandscrollingthroughdifferentselections. 3）DCinlet:DCpowerinputsocket. 4）MODEbutton:ForswitchingbetweenEFFECTmode,CCTmodeandMENU. 5）Rightknob:ForselectingoptionsandadjustingthecolortemperatureunderCCTmode. 6）Powerswitch:Forswitchingon/offthefixture. 7）DMXinlet:ForDMXinputsocket. 4、2.4GandBluetoothRemoteControl TheForza60BIIisabletoberemotelycontrolledby2.4Gremotecontroller,orbyNANLINK APPviatheWS-TB-1transmitterboxorviaBluetoothdirectly. Note: 1）2.4Gremotecontrollerandtransmitterboxaresoldseparately. 2）Thefixturesupportsthe2.4GwirelessprotocolV1.0andV2.0.PleasesetfixturetoV2.0while usingWS-RC-C1orWS-RC-C2remotecontroller.PleasesetfixturetoV1.0whileusingother remotecontrollers. 5、SafetyPrecautions 1）Pleaseopenthepackagetocheckfordamagecausedintransit,ifdamagedpleasedonotuse andcontactplaceofpurchaseormanufacturerassoonaspossible. 2）Pleasedonotuseapowercordwithdamagedinsulation,donotunplugtoohardordragthe powercorddirectly. 3）Makesurethatthepowersupplyvoltageusedmatchesthevoltagedesignatedbythelight beforeinstallation. 4）Pleaseturnthelightoffwhenitisnotinuseorbeforecleaning. 5）Pleasekeepthelightsafelystoredandawayfromchildren. 6、Notice 1）PleasetakeofftheCOBprotectivecapbeforeusing. 2）Pleasedonotlookdirectlyattheemitterwhenthelightison. 3）Pleasewait10secondstoturnoffthelightfixtureafteranyparametersettinginordertosave itforfutureuse. 4）Pleasedonotplaceanyobjectsonthelightemitterorallowliquidtoflowinsidethefixtureor theemitter. 5）Pleasedonotplacethelightfixureneartheflammablesubstanceslikealcoholorgasoline. 6）Pleasewipeoffdebrisordirtbyusingaclothwithcleanwaterorneutralcleanserwhen cleaningthelight. 7）Thefixtureshouldbeusedindryandventilatedplaceandavoidbeingusedindamp,dustyor overheatedenvironment,alsomakesurethefanandtheventsarenotblockedorobstructed. 8）Anyattempttorepairthefixturebyyourselfwillvoidwarranty,disasemblingandrepaircan onlybeallowedwhentrainedprofessionalsareinvolvedunderstrictprotocalregulatedinthis manual. 9）For optimalcoolingof the fixture,the ventsshouldnot be coveredwhenusing,or mightresult in damagingthe equipment.The temperatureon the fixturesurfaceis high whenusingfor a long time,pleasecautionto preventburnsand scalds. 7、FCC Statement Changesor modificationsnot expresslyapprovedby the partyresponsiblefor compliancecould void the user'sauthorityto operatethe equipment. This equipmenthas beentestedand foundto complywiththe limitsfor a ClassB digitaldevice, pursuantto Part 15 of the FCC Rules.Theselimitsare designedto providereasonableprotection againstharmfulinterferencein a residentialinstallation.This equipmentgeneratesusesand can radiateradiofrequencyenergyand, if not installedand usedin accordancewiththe instructions, may causeharmfulinterferenceto radiocommunications.However,thereis no guaranteethat interferencewill not occurin a particularinstallation.If this equipmentdoescauseharmful interferenceto radioor televisionreception,whichcan be determinedby turningthe equipment off and on, the user is encouragedto try to correctthe interferenceby one or moreof the followingmeasures: -- Reorientor relocatethe receivingantenna. -- Increasethe separationbetweenthe equipmentand receiver. -- Connectthe equipmentinto an outleton a circuitdifferentfromthat to whichthe receiveris connected. -- Consultthe dealeror an experiencedradio/TVtechnicianfor help This devicecomplieswithpart 15 of the FCC rules.Operationis subjectto the followingtwo conditions: 1) this devicemay not causeharmfulinterference. 2) this devicemustacceptany interferencereceived,includinginterference that may causeundesiredoperation. The device has been evaluated to meet general RF exposure requirement. The device can be used in portable exposure condition without restriction.

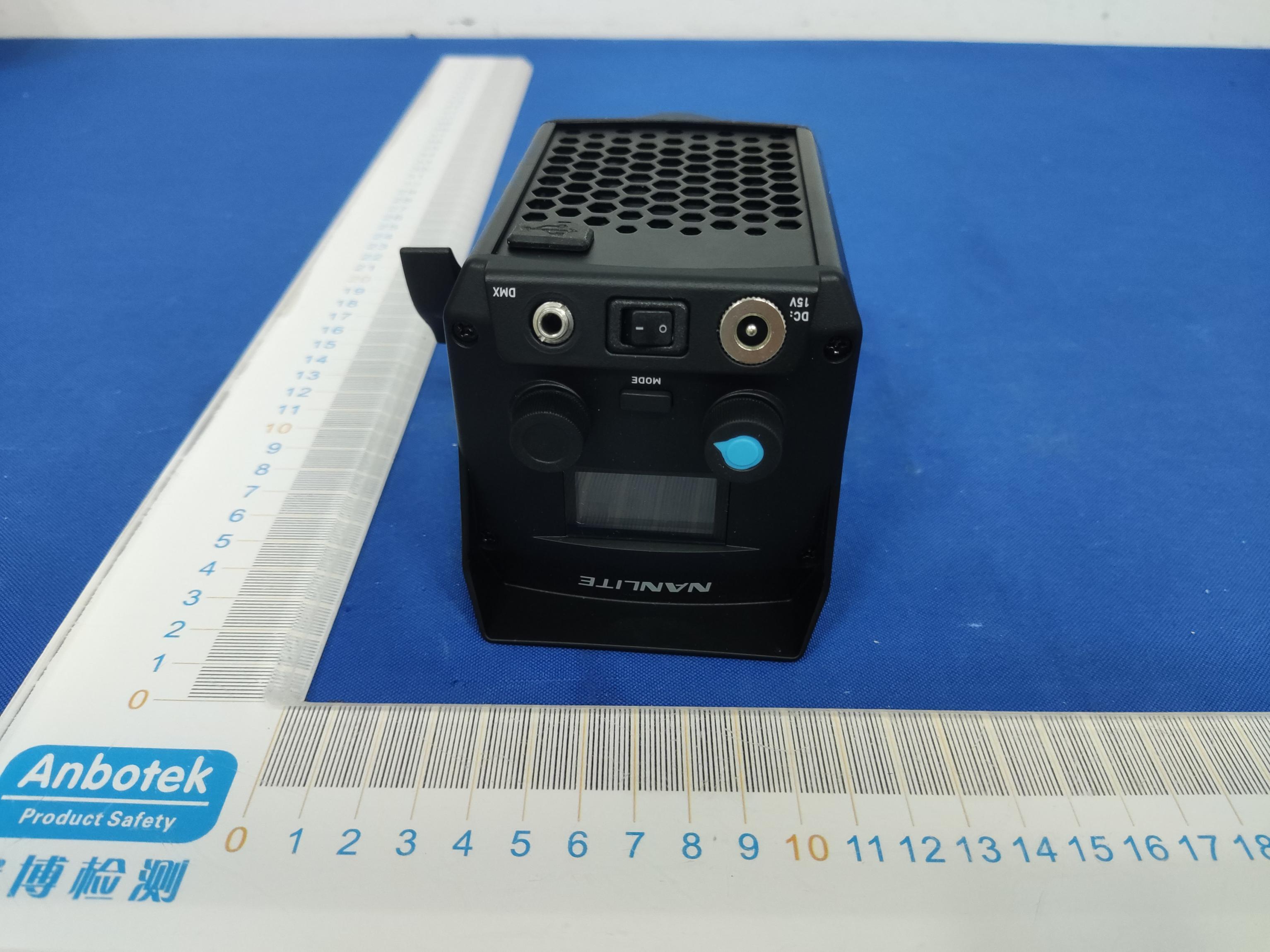

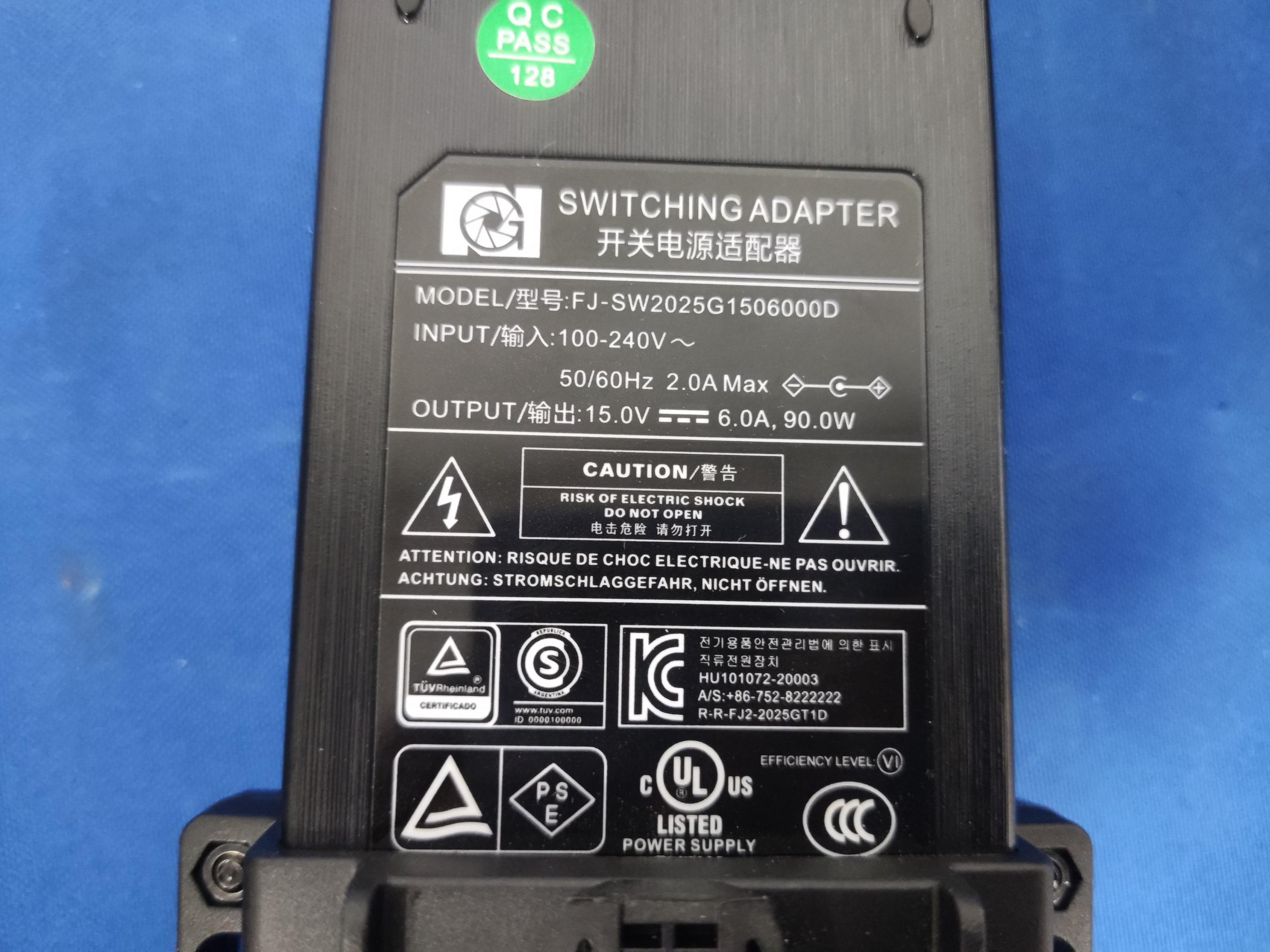

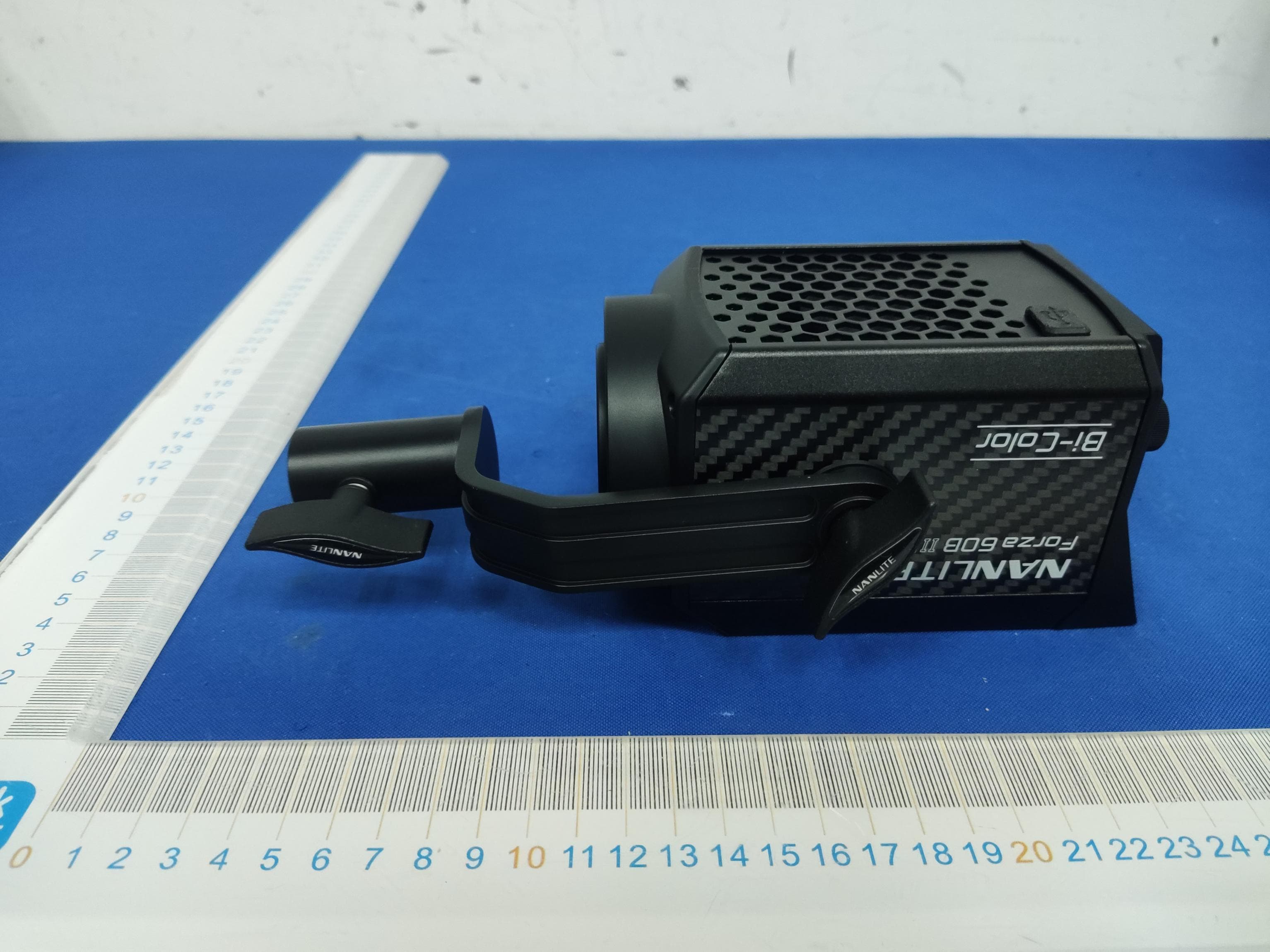

Code:AB-RF-05-b ExternalPhotograph Code:AB-RF-05-b Code:AB-RF-05-b Code:AB-RF-05-b Code:AB-RF-05-b

LabelLocationOnEUT Label ProductName:LEDBi-colorSpotLight ModelNo.:Forza60BII FCCID:2A2Y8-FORZA60BII ThisdevicecomplieswithPart15oftheFCCRules.Operationis subjecttothefollowingtwoconditions: (1)Thisdevicemaynotcauseharmfulinterference,and (2)Thisdevicemustacceptanyinterferencereceived,including interferencethatmaycauseundesiredoperation.

Code:AB-RF-05-b InternalPhotograph Code:AB-RF-05-b BLEANT2.4GANTonlyreceived Code:AB-RF-05-b Code:AB-RF-05-b

version01 GuangdongNanguangPhoto&VideoSystemsCo., Ltd DeclarationconcerningAntennaSpecification Itisherebydeclaredthattheproduct ModelNo.:Forza60BII FCCID:2A2Y8-FORZA60BII fulfillstherequirementinFCCtestrelatingtotheantennatype. ThedevicespecifiedaboveconfirmstotheFCCrecommendationsfor internal antennatype(s) describedbelow: ModelNo.ofantenna:N/A Typeofantenna:PCBantenna Gainoftheantenna:2dBi Frequencyrange:2402-2480MHzMHz Themountingoftheantennaisfixedtotheradiomoduleandnootherantennashouldbeused. Companyname:GuangdongNanguangPhoto&VideoSystemsCo.,Ltd Address:DONGLISECTION,HIGHWAY324,CHENGHAI,SHANTOUCITY, GUANGDONGPROVINCE,China City:SHANTOU ZIP/Postalcode:/ Country:China Place:SHANTOUDate:7/29/2022 Signature:

RFEXPOSUREEVALUATION FCCID:2A2Y8-FORZA60BII AccordingtoFCC1.1310:Thecriterialistedinthefollowingtableshallbeused toevaluatetheenvironmentimpactofhumanexposuretoradiofrequency(RF) Radiationasspecifiedin§1.1307(b): RoutineSARevaluationreferstothatspecificallyrequiredby§2.1093,using measurementsorcomputersimulation.WhenroutineSARevaluationisnot required,portabletransmitterswithoutputpowergreaterthantheapplicable lowthresholdrequireSARevaluationtoqualifyforTCBapproval. Result:NoStandaloneSARtestisrequired. Channel (MHz) Maximum output power (dBm) Tuneup tolerance (dBm) MaxTuneUp Power(dBm) Distance (mm) Calculation results Limit Operating Mode BLE_1M 24021.041.04 ± 12.04050.4963 GFSK24400.750.75±11.75050.4673 24800.380.38±11.38050.4333 BLE_2M 24021.191.19 ± 12.19050.5133 GFSK24400.920.92±11.92050.4863 24800.570.57±11.57050.4523

Page1of32 AppendixTestData ReportNo.:18220WC20154501TestSampleNo.:1-2-2 StartTestDate:2022.7.13FinishTestDate:2022.7.22 TestEngineer:Auditor: Temperature:24.3 °C RelativeHumidity:57.1% Pressure:1012hPa AppendixA:DTSBandwidth TestResult TestModeAntennaChannel DTSBW [MHz] FL[MHz]FH[MHz]Limit[MHz]Verdict BLE_1MAnt1 24020.6642401.6602402.324≥0.5PASS 24400.6682439.6722440.340≥0.5PASS 24800.6522479.6722480.324≥0.5PASS BLE_2MAnt1 24021.1162401.4362402.552≥0.5PASS 24401.1042439.4562440.560≥0.5PASS 24801.1282479.4442480.572≥0.5PASS Page2of32 TestGraphs BLE_1M_Ant1_2402 BLE_1M_Ant1_2440 BLE_1M_Ant1_2480 Page3of32 BLE_2M_Ant1_2402 BLE_2M_Ant1_2440 Page4of32 BLE_2M_Ant1_2480 Page5of32 AppendixB:OccupiedChannelBandwidth TestResult TestModeAntennaChannel OCB[MHz] FL[MHz]FH[MHz]Limit[MHz]Verdict BLE_1MAnt1 24021.02902401.4972402.526---PASS 24401.03272439.4892440.521---PASS 24801.02712479.4932480.520---PASS BLE_2MAnt1 24022.07372400.9842403.058---PASS 24402.09572438.9642441.060---PASS 24802.08732478.9782481.065---PASS Page6of32 TestGraphs BLE_1M_Ant1_2402 BLE_1M_Ant1_2440 BLE_1M_Ant1_2480 Page7of32 BLE_2M_Ant1_2402 BLE_2M_Ant1_2440 Page8of32 BLE_2M_Ant1_2480 Page9of32 AppendixC:Maximumconductedoutputpower TestResult TestModeAntennaChannelResult[dBm]Limit[dBm]Verdict BLE_1MAnt1 24021.04≤30PASS 24400.75≤30PASS 24800.38≤30PASS BLE_2MAnt1 24021.19≤30PASS 24400.92≤30PASS 24800.57≤30PASS Page10of32 TestGraphs BLE_1M_Ant1_2402 BLE_1M_Ant1_2440 BLE_1M_Ant1_2480 Page11of32 BLE_2M_Ant1_2402 BLE_2M_Ant1_2440 Page12of32 BLE_2M_Ant1_2480 Page13of32 AppendixD:Maximumpowerspectraldensity TestResult TestModeAntennaChannelResult[dBm/3kHz]Limit[dBm/3kHz]Verdict BLE_1MAnt1 2402-13.93≤8PASS 2440-14.22≤8PASS 2480-14.56≤8PASS BLE_2MAnt1 2402-15.16≤8PASS 2440-15.45≤8PASS 2480-15.84≤8PASS Page14of32 TestGraphs BLE_1M_Ant1_2402 BLE_1M_Ant1_2440 BLE_1M_Ant1_2480 Page15of32 BLE_2M_Ant1_2402 BLE_2M_Ant1_2440 Page16of32 BLE_2M_Ant1_2480 Page17of32 AppendixE:Bandedgemeasurements TestResult TestModeAntennaChNameChannelRefLevel[dBm]Result[dBm]Limit[dBm]Verdict BLE_1MAnt1 Low24020.40-49.2≤-19.6PASS High2480-0.32-53.88≤-20.32PASS BLE_2MAnt1 Low2402-0.06-31.02≤-20.06PASS High2480-0.66-52.4≤-20.66PASS Page18of32 TestGraphs BLE_1M_Ant1_Low_2402 BLE_1M_Ant1_High_2480 BLE_2M_Ant1_Low_2402 Page19of32 BLE_2M_Ant1_High_2480 Page20of32 AppendixF:ConductedSpuriousEmission TestResult TestModeAntennaChannel FreqRange [MHz] RefLevel [dBm] Result[dBm]Limit[dBm]Verdict BLE_1MAnt1 2402 Reference0.260.26---PASS 30~10000.26-58.39≤-19.75PASS 1000~265 00 0.26-53.99≤-19.75PASS 2440 Reference-0.05-0.05---PASS 30~1000-0.05-58.61≤-20.05PASS 1000~265 00 -0.05-53.84≤-20.05PASS 2480 Reference-0.52-0.52---PASS 30~1000-0.52-58.88≤-20.52PASS 1000~265 00 -0.52-53.98≤-20.52PASS BLE_2MAnt1 2402 Reference0.120.12---PASS 30~10000.12-58.01≤-19.88PASS 1000~265 00 0.12-54.12≤-19.88PASS 2440 Reference-0.20-0.20---PASS 30~1000-0.20-58.42≤-20.2PASS 1000~265 00 -0.20-53.74≤-20.2PASS 2480 Reference-0.53-0.53---PASS 30~1000-0.53-57.96≤-20.53PASS 1000~265 00 -0.53-53.49≤-20.53PASS Page21of32 TestGraphs BLE_1M_Ant1_2402_0~Reference BLE_1M_Ant1_2402_30~1000 BLE_1M_Ant1_2402_1000~26500 Page22of32 BLE_1M_Ant1_2440_0~Reference BLE_1M_Ant1_2440_30~1000 Page23of32 BLE_1M_Ant1_2440_1000~26500 BLE_1M_Ant1_2480_0~Reference BLE_1M_Ant1_2480_30~1000 Page24of32 BLE_1M_Ant1_2480_1000~26500 BLE_2M_Ant1_2402_0~Reference Page25of32 BLE_2M_Ant1_2402_30~1000 BLE_2M_Ant1_2402_1000~26500 BLE_2M_Ant1_2440_0~Reference Page26of32 BLE_2M_Ant1_2440_30~1000 BLE_2M_Ant1_2440_1000~26500 Page27of32 BLE_2M_Ant1_2480_0~Reference BLE_2M_Ant1_2480_30~1000 BLE_2M_Ant1_2480_1000~26500 Page28of32 Page29of32 AppendixG:DutyCycle TestResult TestModeAntennaChannel ONTime [ms] Period [ms] XDC [%] xFactor LimitVerdict BLE_1MAnt1 24020.390.63 0.619 0 61.902.08---PASS 24400.380.62 0.612 9 61.292.13---PASS 24800.380.62 0.612 9 61.292.13---PASS BLE_2MAnt1 24020.200.62 0.322 6 32.264.91---PASS 24400.200.63 0.317 5 31.754.98---PASS 24800.200.62 0.322 6 32.264.91---PASS Page30of32 TestGraphs BLE_1M_Ant1_2402 BLE_1M_Ant1_2440 BLE_1M_Ant1_2480 Page31of32 BLE_2M_Ant1_2402 BLE_2M_Ant1_2440 Page32of32 BLE_2M_Ant1_2480 ---End---

ReportNo.:18220WC20154501FCCID:2A2Y8-FORZA60BIIPage1of30 Code:AB-RF-05-b FCCTestReport ClientName: GuangdongNanguangPhoto&Video SystemsCo.,Ltd ClientAddress: DONGLISECTION,HIGHWAY324, CHENGHAI,SHANTOUCITY,GUANGDONG PROVINCE,China ProductName:LEDBi-colorSpotLight ReportDate:Jul.29,2022 ShenzhenAnbotekComplianceLaboratoryLimited ReportNo.:18220WC20154501FCCID:2A2Y8-FORZA60BIIPage2of30 Code:AB-RF-05-b Contents 1.GeneralInformation............................................................................................................................................6 1.1.ClientInformation....................................................................................................................................6 1.2.DescriptionofDevice(EUT)..................................................................................................................6 1.3.AuxiliaryEquipmentUsedDuringTest.................................................................................................7 1.4.DescriptionofTestConfiguration..........................................................................................................7 1.5.DescriptionOfTestSetup......................................................................................................................8 1.6.TestEquipmentList.................................................................................................................................9 1.7.MeasurementUncertainty....................................................................................................................10 1.8.DescriptionofTestFacility...................................................................................................................10 2.SummaryofTestResults.................................................................................................................................11 3.ConductedEmissionTest................................................................................................................................12 3.1.TestStandardandLimit........................................................................................................................12 3.2.TestSetup...............................................................................................................................................12 3.3.TestProcedure.......................................................................................................................................12 3.4.TestData.................................................................................................................................................12 4.RadiationSpuriousEmissionandBandEdge.............................................................................................15 4.1.TestStandardandLimit........................................................................................................................15 4.2.TestSetup...............................................................................................................................................15 4.3.TestProcedure.......................................................................................................................................16 4.4.TestData.................................................................................................................................................17 5.MaximumPeakOutputPowerTest...............................................................................................................25 5.1.TestStandardandLimit........................................................................................................................25 5.2.TestSetup...............................................................................................................................................25 5.3.TestProcedure.......................................................................................................................................25 5.4.TestData.................................................................................................................................................25 6.6DBOccupyBandwidthTest..........................................................................................................................26 6.1.TestStandardandLimit........................................................................................................................26 6.2.TestSetup...............................................................................................................................................26 6.3.TestProcedure.......................................................................................................................................26 6.4.TestData.................................................................................................................................................26 7.PowerSpectralDensityTest...........................................................................................................................27 7.1.TestStandardandLimit........................................................................................................................27 7.2.TestSetup...............................................................................................................................................27 7.3.TestProcedure.......................................................................................................................................27 7.4.TestData.................................................................................................................................................27 8.100kHzBandwidthofFrequencyBandEdgeRequirement......................................................................28 8.1.TestStandardandLimit........................................................................................................................28 Repo…

Text truncated - open the document above for the full version.

Code:AB-RF-05-b TestSetupPhotograph PhotoofConductedEmissionMeasurement PhotoofRadiationEmissionTest Code:AB-RF-05-b
