2A327-TP-X1Bluetooth Earphone

User Manual 1 2 3 4 5 6 7 8 9 EN-1 EN-2 EN-3 EN-4 EN-5 EN-6 EN-7 EN-8 2A327-TP-X1 EN-9 EN-10 EN-11

SymbolsLWTA Dimensions1.60±0.200.80±0.200.80±0.200.30±0.10 NumberTerminal Name ① INPUT ② NC Dimensions（Unit：mm） L w ①② T ( Side View ) ( Bottom View ) ( Top View ) A Features 1.Surface Mounted Devices with a small dimension of 1.6 x 0.8 x 0.8 mm meet future miniaturization trend. 2,Embedded and LTCC (low temperature co-fired ceramic) technology is able to integrate with system design as well as beatifying the housing of final product. 3.High stability and low tolerance. Applications 1.Bluetooth 2.Wireless LAN 3.ISM band 2.4GHz wireless applications www.surbaner.com.cn SBR Communication has possession of proprietary information provided in this report and this proprietary information shall be kept in strict confidence and not disclosed to any person or firm without the prior written consent of SBR Communication Technology. . Page 1 P/N: SURL160808 SRF08 Evaluation Board and Matching Circuits www.surbaner.com.cn SBR Communication has possession of proprietary information provided in this report and this proprietary information shall be kept in strict confidence and not disclosed to any person or firm without the prior written consent of SBR Communication Technology. . Page 2 P/N: SURL160808 SRF08 Electrical Characteristics Characteristic curve www.surbaner.com.cn SBR Communication has possession of proprietary information provided in this report and this proprietary information shall be kept in strict confidence and not disclosed to any person or firm without the prior written consent of SBR Communication Technology. . Page 3 FeatureSpecification 1 Central frequency2445MHz 2 Bandwidth>100MHz 3 Peak gain3.4dBi 4 VSWR<2 5 PolarizationLinear 6 Azimuth beamwidthOmnidirectional 7 Impedance50 Ω P/N: SURL160808 SRF08 Radiation Pattern coordinates： Y-Z Plane X-Z Plane www.surbaner.com.cn SBR Communication has possession of proprietary information provided in this report and this proprietary information shall be kept in strict confidence and not disclosed to any person or firm without the prior written consent of SBR Communication Technology. . Page 4 P/N: SURL160808 SRF08 3D Radiation Pattern www.surbaner.com.cn SBR Communication has possession of proprietary information provided in this report and this proprietary information shall be kept in strict confidence and not disclosed to any person or firm without the prior written consent of SBR Communication Technology. . Page 5 X-Y Plane Frequency 2400MHz2450MHz2500MHz Avg. gain-1.14-0.85-1.30 Peak gain23.42.5 Efficiency77%82%78% P/N: SURL160808 SRF08 Moisture Proof Temperature：40±2°C Humidity：90~95%RH Duration：500h Recovery conditions：Room temperature Recovery Time：24h (Class1) or 48h (Class2) Sol derabi li ty At least 95% of the terminal electrode is covered by new solder.Preheating conditions:80 to 120°C; 10~30s. SolderTe m p e r at u r e :2 3 5 ± 5°C Duration:2 ±0.5s , SolderTempe r atu re:24 5±5°C Du rat ion:2±0.5s Optimum Solder Amount for Reflow Soldering www.surbaner.com.cn SBR Communication has possession of proprietary information provided in this report and this proprietary information shall be kept in strict confidence and not disclosed to any person or firm without the prior written consent of SBR Communication Technology. . Page 6 Dependability Test Test Temperature: Operating Temperature Temperature Relative Humidity 25°C±3°C -25°C~+85°C 5~40°C 20~70% Too much solderCracks tend to occur due to large stress. Not enough solder Weak holding forcemay cause bad connection between the capacitor and PCB. Recommended Soldering amounts The optimal solder fillet amounts for re-flow soldering 天线厚度 以下 The optimal solder fillet amounts for wave soldering P/N: SURL160808 SRF08 Temperature Cycle Test 10±1S Applied Force: 5NDuration: 10±1S Preheating conditions: up-category temperature, 1h Recovery time: 24±1h Initial Measurement Cycling Times: 5 times, 1 cycle, 4 steps: www.surbaner.com.cn SBR Communication has possession of proprietary information provided in this report and this proprietary information shall be kept in strict confidence and not disclosed to any person or firm without the prior written consent of SBR Communication Technology. . Page 7 Resistanceto SolderingHeat Preheating80 to 120°C; 10~30s.SolderTemperature:235±5°C Duration:2±0.5s，SolderTemperature:245±5°C Duration:2±0.5s，Preheating100to200°C;10±2min. Solder Temperature: 265±5°C Duration: 10±1s Clean the capacitor with solvent and examine it with a 10X(min.) microscope. Recovery Time: 24±2h Recovery condition: Room temperature Resistance to Flexure of Substrate Test Board: Al 2 O 3 or PCBWarp: 1mm Speed: 0.5mm/sec. Unit: mm The measurement should be made with the board in the bending position. P/N: SURL160808 SRF08 www.surbaner.com.cn SBR Communication has possession of proprietary information provided in this report and this proprietary information shall be kept in strict confidence and not disclosed to any person or firm without the prior written consent of SBR Communication Technology. . Page 8 While in preheating,please keep the temperature difference between soldering temperature and surface temperature of chips as: T≤150°C. P/N: SURL160808 SRF08 Dimensions of paper taping for 0603types Reel（4000 pcs/Reel） Storage Period The guaranteed period for solderability is 6 months(Under deliver package condition).Temperature5~40°C /Relative Humidity20~70% www.surbaner.com.cn SBR Communication has possession of proprietary information provided in this report and this proprietary information shall be kept in strict confidence and not disclosed to any person or firm without the prior written consent of SBR Communication Technology. . Page 9 P/N: SURL160808 SRF08 Unit：mm

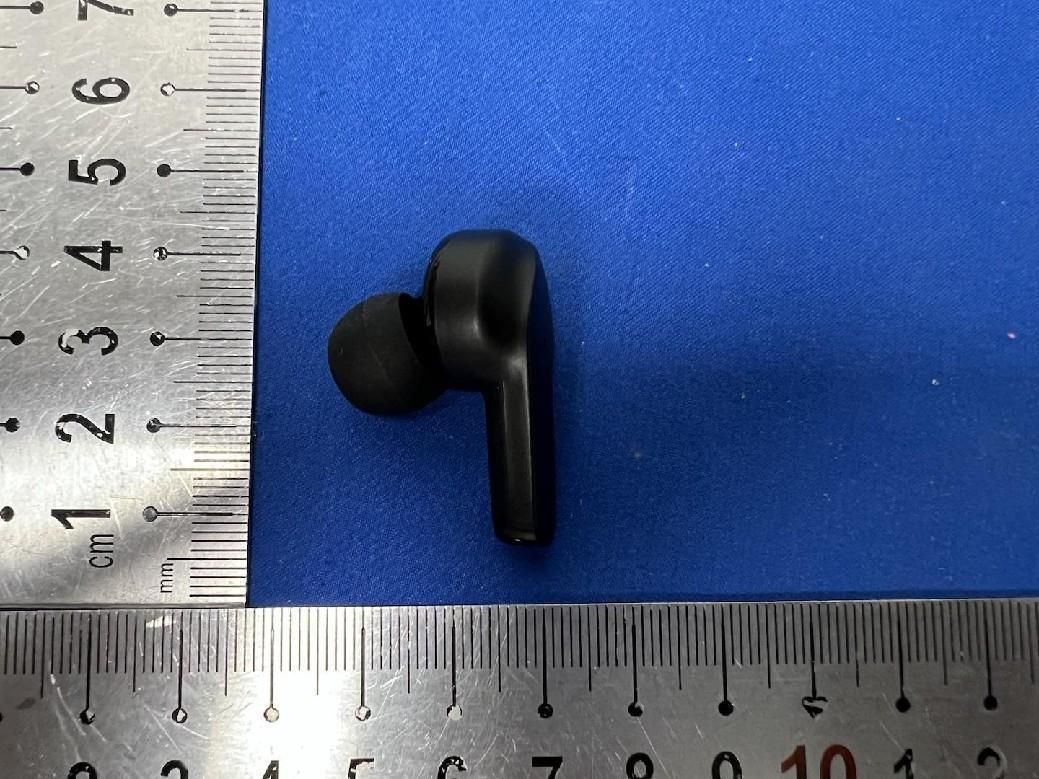

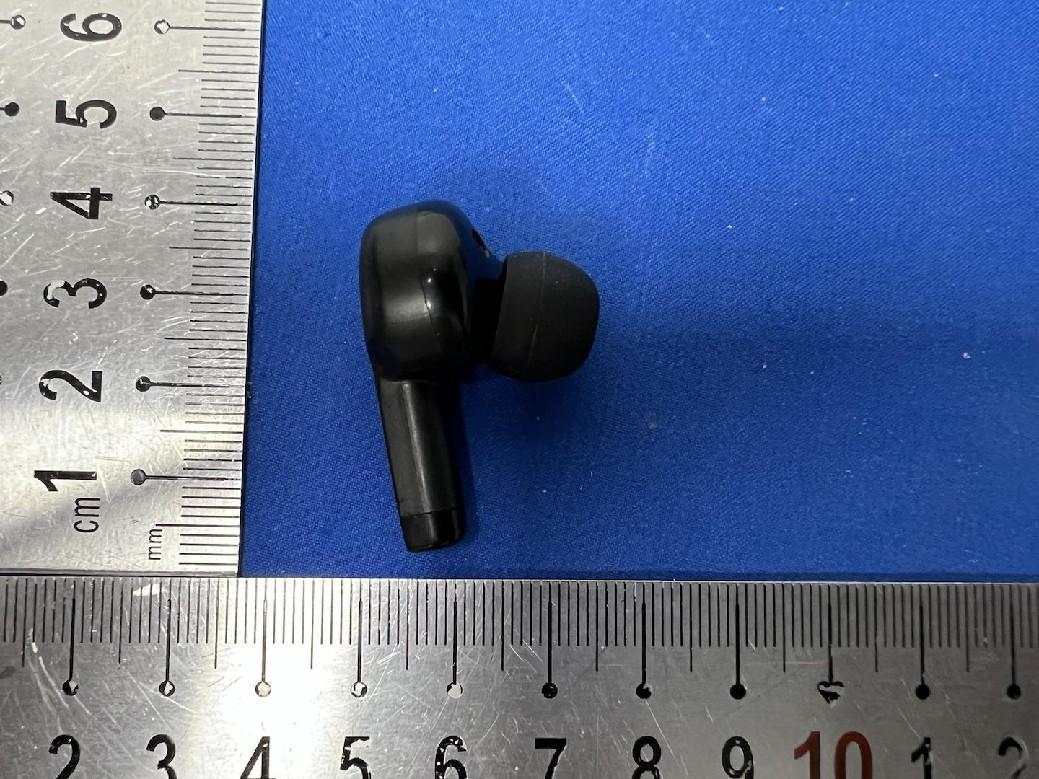

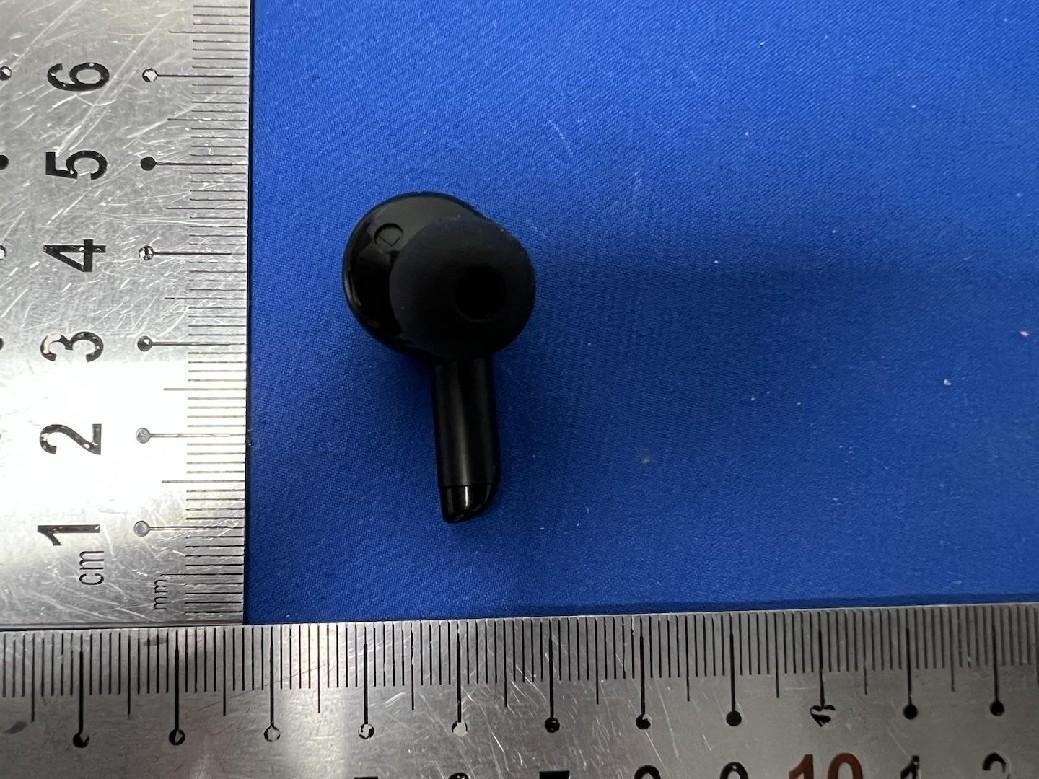

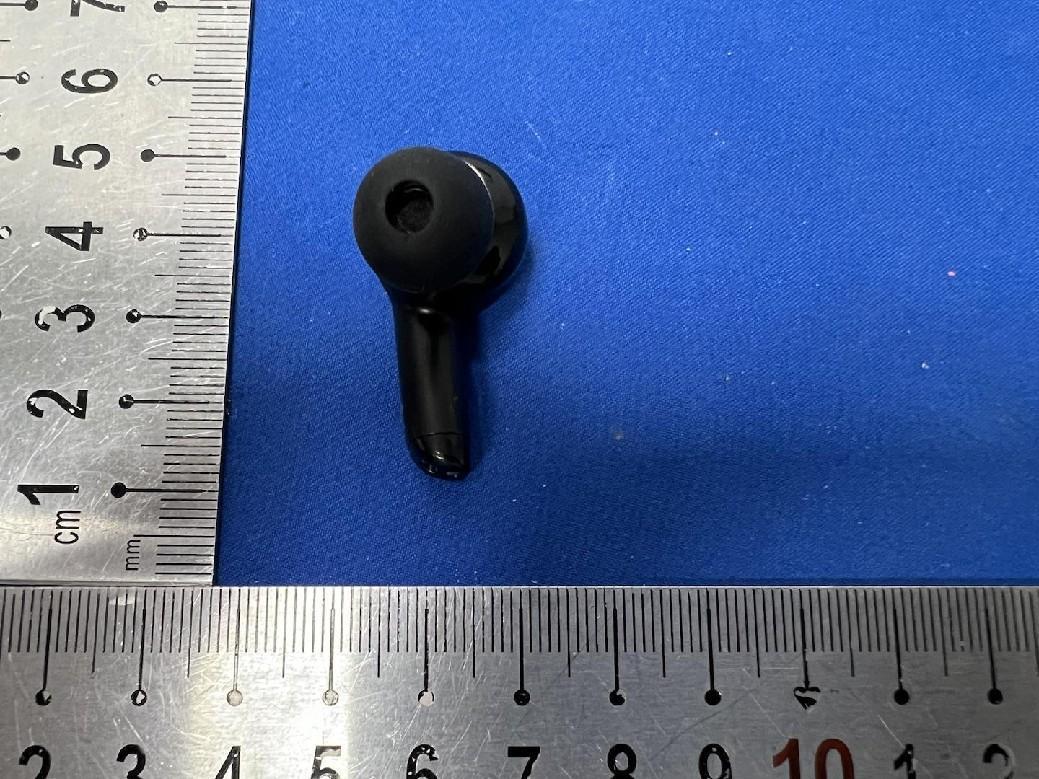

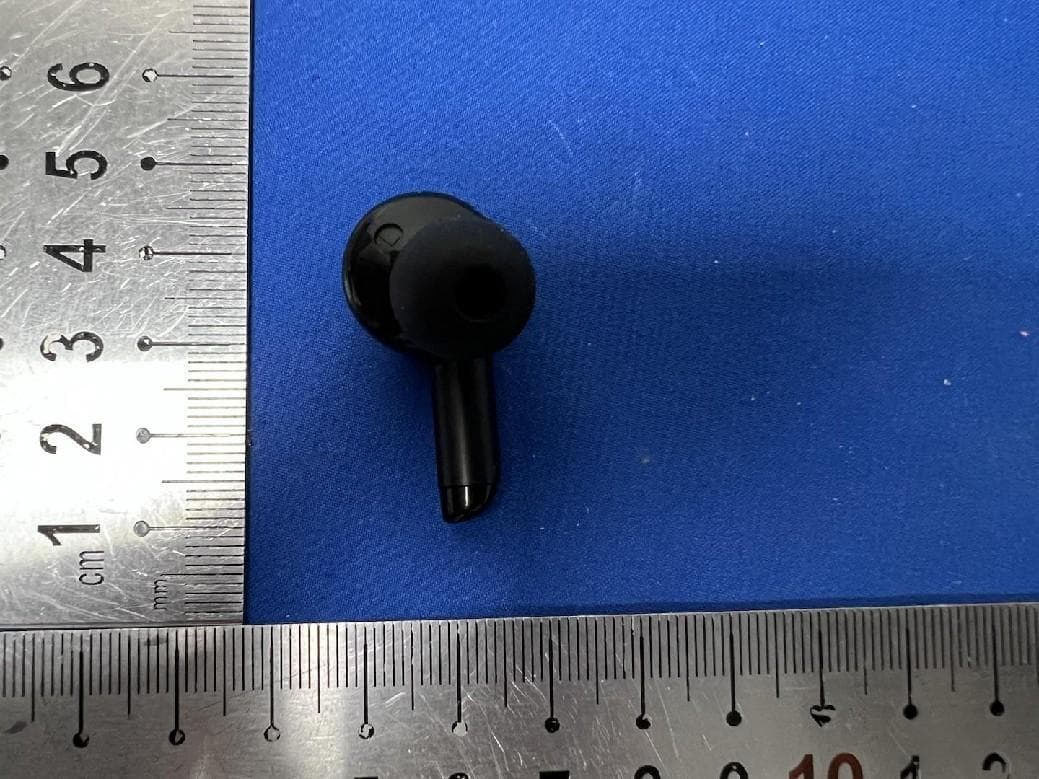

Externalphotos

Internalphotos

ShenzhenHuaxiaTestingTechnologyCo.,Ltd 1F.,BlockAofTongshengTechnologyBuilding,HuahuiRoad,DalangStreet,LonghuaDistrict, Shenzhen,China Telephone:+86-755-26648640 Fax:+86-755-26648637 Website:www.cqa-cert.com ReportTemplateVersion:V05 ReportTemplateRevisionDate:2021-11-03 RFExposureEvaluationReport Thetestreportiseffectiveonlywithbothsignatureandspecializedstamp,Theresult(s)showninthisreportreferonlyto thesample(s)tested.WithoutwrittenapprovalofCQA,thisreportcan’tbereproducedexceptinfull. ReportNo.:CQASZ20220901703E-02 Applicant: ShenzhenThreePeachesTechnologyCo.,Ltd AddressofApplicant: Rm507,Building1,BaoxingZhihuiCity,No.650,ZhoushiRd,Zhongwu Community,HangchengStreet,BaoanDistrict,Shenzhen,China EquipmentUnderTest(EUT): EUTName:TWSBluetoothEarphone ModelNo.:TP-X1 TestModelNo.:TP-X1 BrandName: FCCID:2A327-TP-X1 Standards: 47CFRPart1.1307 47CFRPart2.1093 KDB447498D04InterimGeneralRFExposureGuidancev01 DateofReceipt:2022-9-30 DateofTest: 2022-9-30to2022-10-14 DateofIssue:2022-12-09 TestResult:PASS* *Intheconfigurationtested,theEUTcompliedwiththestandardsspecifiedabove. TestedBy: (LewisZhou) ReviewedBy: (TimoLei) ApprovedBy: (JackAi) ShenzhenHuaxiaTestingTechnologyCo.,Ltd. ReportNo.:CQASZ20220901703E-02 Page:2of7 1Version RevisionHistoryOfReport ReportNo.Version Description IssueDate CQASZ20220901703E-02Rev.01 Initialreport 2022-12-09 ShenzhenHuaxiaTestingTechnologyCo.,Ltd. ReportNo.:CQASZ20220901703E-02 Page:3of7 2Contents Page 1VERSION............................................................................................................................................................................2 2CONTENTS........................................................................................................................................................................3 3GENERALINFORMATION..............................................................................................................................................4 3.1CLIENTINFORMATION...................................................................................................................................................4 3.2GENERALDESCRIPTIONOFEUT...................................................................................................................................4 3.3GENERALDESCRIPTIONOFBT......................................................................................................................................4 4SAREVALUATION...........................................................................................................................................................5 4.1RFEXPOSURECOMPLIANCEREQUIREMENT.................................................................................................................5 4.1.1StandardRequirement......................................................................................................................................5 4.1.2Limits....................................................................................................................................................................5 4.1.3EUTRFExposureForBT................................................................................................................................7 ShenzhenHuaxiaTestingTechnologyCo.,Ltd. ReportNo.:CQASZ20220901703E-02 Page:4of7 3GeneralInformation 3.1ClientInformation Applicant: ShenzhenThreePeachesTechnologyCo.,Ltd AddressofApplicant: Rm507,Building1,BaoxingZhihuiCity,No.650,ZhoushiRd,Zhongwu Community,HangchengStreet,BaoanDistrict,Shenzhen,China Manufacturer: ShenzhenThreePeachesTechnologyCo.,Ltd AddressofManufacturer: Rm507,Building1,BaoxingZhihuiCity,No.650,ZhoushiRd,Zhongwu Community,HangchengStreet,BaoanDistrict,Shenzhen,China Factory:ShenzhenWaytronicXunjieElectronicsCo.,Ltd AddressofFactory:Room202,No.145-5,FuruiRoad,Xintiancommunity,Fuhaistreet,Baoan District,Shenzhen 3.2GeneralDescriptionofEUT ProductName: TWSBluetoothEarphone ModelNo.: TP-X1 TestModelNo.: TP-X1 TradeMark: SoftwareVersion: V1.0 HardwareVersion: V1.0 PowerSupply: ChargingBox:Li-ionbattery:DC3.7V470mAh,ChargebyDC5Vforadapter Earphone:Li-ionbattery:DC3.7V35mAh,ChargebyDC5VforCharging box 3.3GeneralDescriptionofBT OperationFrequency:2402MHz~2480MHz ModulationType:GFSK,π/4DQPSK,8DPSK TransferRate:1Mbps/2Mbps/3Mbps NumberofChannel:79 ProductType:MobilePortableFixLocation AntennaType: Chipantenna AntennaGain: 3.4dBi ShenzhenHuaxiaTestingTechnologyCo.,Ltd. ReportNo.:CQASZ20220901703E-02 Page:5of7 4SAREvaluation 4.1RFExposureComplianceRequirement 4.1.1StandardRequirement 447498D04InterimGeneralRFExposureGuidancev01 3.2.SARTestReductionGuidance SARtestreductionprocedures[Glossary]allowusingaparticularsetoftestdataasrepresentative ofother,similar,testconditions.Thismaybeappliedfordatawithindifferenttestpositions(e.g.body, head,extremity),wirelessmodes(e.g.Wi-Fi,cellular),andfrequencybands.Thistestreductionprocess providesfortheuseoftestdataforonespecificchannel,whilereferencingtothosedatafordemonstrating complianceinotherrequiredchannelsforeachtestpositionofanexposurecondition,withintheoperating modeofafrequencyband.Thisislimitedspecificallytowhenthereported1-gor10-gSARforthemid- bandorhighestoutputpowerchannelmeetsanyofthefollowingconditions. 4.1.2Limits SAR-basedthresholdsarederivedbasedonfrequency,power,andseparationdistanceoftheRF source.Theformuladefinesthethresholdsingeneralforeitheravailablemaximumtimeaveragedpoweror maximumtime-averagedERP,whicheverisgreater. IftheERPofadeviceisnoteasilydetermined,suchasforaportabledevicewithasmallform factor,theapplicantmayusetheavailablemaximumtime-averagedpowerexclusivelyifthe deviceantennaorradiatingstructuredoesnotexceedanelectricallengthofλ/4. Asfordeviceswithantennasoflengthgreaterthanλ/4wherethegainisnotwelldefined,but alwayslessthanthatofahalf-wavedipole(lengthλ/2),theavailablemaximumtime-averaged powergeneratedbythedevicemaybeusedinplaceofthemaximumtime-averagedERP,where thatvalueisnotknown. Theseparation…

Text truncated - open the document above for the full version.

ShenzhenHuaxiaTestingTechnologyCo.,Ltd. 1F.,BlockAofTongshengTechnologyBuilding,HuahuiRoad,DalangStreet,LonghuaDistrict, Shenzhen,China Telephone:+86-755-26648640 Fax:+86-755-26648637 Website:www.cqa-cert.com ReportTemplateVersion:V05 ReportTemplateRevisionDate:2021-11-03 TestReport Thetestreportiseffectiveonlywithbothsignatureandspecializedstamp,Theresult(s)showninthisreportreferonlyto thesample(s)tested.WithoutwrittenapprovalofCQA,thisreportcan’tbereproducedexceptinfull. ReportNo.:CQASZ20220901703E-01 Applicant: ShenzhenThreePeachesTechnologyCo.,Ltd AddressofApplicant: Rm507,Building1,BaoxingZhihuiCity,No.650,ZhoushiRd,Zhongwu Community,HangchengStreet,BaoanDistrict,Shenzhen,China EquipmentUnderTest(EUT): Product: TWSBluetoothEarphone ModelNo.: TP-X1 TestModelNo.:TP-X1 BrandName: FCCID: 2A327-TP-X1 Standards:47CFRPart15,SubpartC DateofReceipt:2022-9-30 DateofTest: 2022-9-30to2022-10-14 DateofIssue:2022-12-09 TestResult:PASS* *Intheconfigurationtested,theEUTcompliedwiththestandardsspecifiedabove. TestedBy: (LewisZhou) ReviewedBy: (TimoLei) ApprovedBy: (JackAi) ShenzhenHuaxiaTestingTechnologyCo.,Ltd. ReportNo.:CQASZ20220901703E-01 Page:2of94 1Version RevisionHistoryOfReport ReportNo.Version Description IssueDate CQASZ20220901703E-01Rev.01 Initialreport 2022-12-09 ShenzhenHuaxiaTestingTechnologyCo.,Ltd. ReportNo.:CQASZ20220901703E-01 Page:3of94 2TestSummary TestItemTestRequirementTestmethodResult AntennaRequirement 47CFRPart15,SubpartCSection 15.203/15.247(c) ANSIC63.10(2013)PASS ACPowerLineConducted Emission 47CFRPart15,SubpartCSection 15.207 ANSIC63.10(2013)PASS ConductedPeakOutput Power 47CFRPart15,SubpartCSection 15.247(b)(1) ANSIC63.10(2013)PASS 20dBOccupiedBandwidth 47CFRPart15,SubpartCSection 15.247(a)(1) ANSIC63.10(2013)PASS CarrierFrequencies Separation 47CFRPart15,SubpartCSection 15.247(a)(1) ANSIC63.10(2013)PASS HoppingChannelNumber 47CFRPart15,SubpartCSection 15.247(a)(1) ANSIC63.10(2013)PASS DwellTime 47CFRPart15,SubpartCSection 15.247(a)(1) ANSIC63.10(2013)PASS PseudorandomFrequency HoppingSequence 47CFRPart15,SubpartCSection 15.247(b)(4) ANSIC63.10(2013)PASS Band-edgeforRF ConductedEmissions 47CFRPart15,SubpartCSection 15.247(d) ANSIC63.10(2013)PASS RFConductedSpurious Emissions 47CFRPart15,SubpartCSection 15.247(d) ANSIC63.10(2013)PASS RadiatedSpurious emissions 47CFRPart15,SubpartCSection 15.205/15.209 ANSIC63.10(2013)PASS Restrictedbandsaround fundamentalfrequency (RadiatedEmission) 47CFRPart15,SubpartCSection 15.205/15.209 ANSIC63.10(2013)PASS ShenzhenHuaxiaTestingTechnologyCo.,Ltd. ReportNo.:CQASZ20220901703E-01 Page:4of94 3Contents Page 1VERSION..........................................................................................................................................................................2 2TESTSUMMARY............................................................................................................................................................3 3CONTENTS......................................................................................................................................................................4 4GENERALINFORMATION...........................................................................................................................................5 4.1CLIENTINFORMATION.................................................................................................................................................5 4.2GENERALDESCRIPTIONOFEUT.................................................................................................................................5 4.3ADDITIONALINSTRUCTIONS........................................................................................................................................7 4.4TESTENVIRONMENT...................................................................................................................................................8 4.5DESCRIPTIONOFSUPPORTUNITS...............................................................................................................................8 4.6STATEMENTOFTHEMEASUREMENTUNCERTAINTY....................................................................................................9 4.7TESTLOCATION........................................................................................................................................................10 4.8TESTFACILITY..........................................................................................................................................................10 4.9ABNORMALITIESFROMSTANDARDCONDITIONS......................................................................................................10 4.10OTHERINFORMATIONREQUESTEDBYTHECUSTOMER..........................................................................................10 4.11EQUIPMENTLIST.....................................................................................................................................................11 5TESTRESULTSANDMEASUREMENTDATA.....................................................................................................12 5.1ANTENNAREQUIREMENT..........................................................................................................................................12 5.2CONDUCTEDEMISSIONS............................................................................................................................................13 5.3CONDUCTEDPEAKOUTPUTPOWER.........................................................................................................................17 5.420DBOCCUPYBANDWIDTH......................................................................................................................................24 5.5CARRIERFREQUENCIESSEPARATION........................................................................................................................30 5.6HOPPINGCHANNELNUMBER......................…

Text truncated - open the document above for the full version.

ShenzhenHuaxiaTestingTechnologyCo.,Ltd. ReportNo.:CQASZ20220901703E-01 Page:61of94 DH5_Ant1_2480_1000~26500 2DH5_Ant1_2402_0~Reference ShenzhenHuaxiaTestingTechnologyCo.,Ltd. ReportNo.:CQASZ20220901703E-01 Page:62of94 2DH5_Ant1_2402_30~1000 2DH5_Ant1_2402_1000~26500 ShenzhenHuaxiaTestingTechnologyCo.,Ltd. ReportNo.:CQASZ20220901703E-01 Page:63of94 2DH5_Ant1_2441_0~Reference 2DH5_Ant1_2441_30~1000 ShenzhenHuaxiaTestingTechnologyCo.,Ltd. ReportNo.:CQASZ20220901703E-01 Page:64of94 2DH5_Ant1_2441_1000~26500 2DH5_Ant1_2480_0~Reference ShenzhenHuaxiaTestingTechnologyCo.,Ltd. ReportNo.:CQASZ20220901703E-01 Page:65of94 2DH5_Ant1_2480_30~1000 2DH5_Ant1_2480_1000~26500 ShenzhenHuaxiaTestingTechnologyCo.,Ltd. ReportNo.:CQASZ20220901703E-01 Page:66of94 3DH5_Ant1_2402_0~Reference 3DH5_Ant1_2402_30~1000 ShenzhenHuaxiaTestingTechnologyCo.,Ltd. ReportNo.:CQASZ20220901703E-01 Page:67of94 3DH5_Ant1_2402_1000~26500 3DH5_Ant1_2441_0~Reference ShenzhenHuaxiaTestingTechnologyCo.,Ltd. ReportNo.:CQASZ20220901703E-01 Page:68of94 3DH5_Ant1_2441_30~1000 3DH5_Ant1_2441_1000~26500 ShenzhenHuaxiaTestingTechnologyCo.,Ltd. ReportNo.:CQASZ20220901703E-01 Page:69of94 3DH5_Ant1_2480_0~Reference 3DH5_Ant1_2480_30~1000 ShenzhenHuaxiaTestingTechnologyCo.,Ltd. ReportNo.:CQASZ20220901703E-01 Page:70of94 3DH5_Ant1_2480_1000~26500 Remark: Pretest9kHzto25GHz,findthehighestpointwhentesting,soonlytheworstdatawereshowninthetest report.PerFCCPart15.33(a)and15.31(o),Theamplitudeofspuriousemissionsfromintentionalradiators whichareattenuatedmorethan20dBbelowthepermissiblevalueneednotbereportedunlessspecifically requiredelsewhereinthispart. ShenzhenHuaxiaTestingTechnologyCo.,Ltd. ReportNo.:CQASZ20220901703E-01 Page:71of94 5.10 OtherrequirementsFrequencyHoppingSpreadSpectrumSystem TestRequirement:47CFRPart15CSection15.247(a)(1),(h)requirement: Thesystemshallhoptochannelfrequenciesthatareselectedatthesystemhopping ratefromaPseudorandomorderedlistofhoppingfrequencies.Eachfrequencymustbeusedequally ontheaveragebyeachtransmitter.Thesystemreceiversshallhaveinputbandwidthsthatmatchthe hoppingchannelbandwidthsoftheircorrespondingtransmittersandshallshiftfrequenciesin synchronizationwiththetransmittedsignals. Frequencyhoppingspreadspectrumsystemsarenotrequiredtoemployallavailablehopping channelsduringeachtransmission.However,thesystem,consistingofboththetransmitterandthe receiver,mustbedesignedtocomplywithalloftheregulationsinthissectionshouldthe transmitterbepresentedwithacontinuousdata(orinformation)stream.Inaddition,asystem employingshorttransmissionburstsmustcomplywiththedefinitionofafrequencyhoppingsystem andmustdistributeitstransmissionsovertheminimumnumberofhoppingchannelsspecifiedin thissection. Theincorporationofintelligencewithinafrequencyhoppingspreadspectrumsystemthatpermits thesystemtorecognizeotheruserswithinthespectrumbandsothatitindividuallyand independentlychoosesandadaptsitshopsetstoavoidhoppingonoccupiedchannelsispermitted. Thecoordinationoffrequencyhoppingsystemsinanyothermannerfortheexpresspurposeof avoidingthesimultaneousoccupancyofindividualhoppingfrequenciesbymultipletransmittersis notpermitted. Complianceforsection15.247(a)(1) AccordingtoBluetoothCoreSpecification,thepseudorandomsequencemaybegeneratedinanine- stageshiftregisterwhose5thand9thstage outputsareaddedinamodulo-twoadditionstage.Andtheresultisfedbacktotheinputofthefirst stage.ThesequencebeginswiththefirstONEof9consecutiveONEs;i.e.theshiftregisterisinitialized withnineones. •Numberofshiftregisterstages:9 •Lengthofpseudo-randomsequence:2 9 -1=511bits •Longestsequenceofzeros:8(non-invertedsignal) AnexampleofPseudorandomFrequencyHoppingSequenceasfollow: Eachfrequencyusedequallyontheaveragebyeachtransmitter. AccordingtoBluetoothCoreSpecification,BluetoothreceiversaredesignedtohaveinputandIF bandwidthsthatmatchthehoppingchannelbandwidthsofanyBluetoothtransmittersandshift frequenciesinsynchronizationwiththetransmittedsignals. Complianceforsection15.247(g) AccordingtoBluetoothCoreSpecification,theBluetoothsystemtransmitsthepacketwiththe pseudorandomhoppingfrequencywithacontinuousdataandtheshortbursttransmissionfromthe Bluetoothsystemisalsotransmittedunderthefrequencyhoppingsystemwiththepseudorandom hoppingfrequencysystem. ShenzhenHuaxiaTestingTechnologyCo.,Ltd. ReportNo.:CQASZ20220901703E-01 Page:72of94 Complianceforsection15.247(h) AccordingtoBluetoothCorespecification,theBluetoothsystemincorporateswithanadaptive systemtodetectotheruserwithinthespectrumbandsothatitindividuallyandindependentlyto avoidhoppingontheoccupiedchannels. AccordingtotheBluetoothCorespecification,theBluetoothsystemisdesignednothavetheability tocoordinatedwithotherFHSSSysteminanefforttoavoidthesimultaneousoccupancyofindividual hoppingfrequenciesbymultipletransmitter. ShenzhenHuaxiaTestingTechnologyCo.,Ltd. ReportNo.:CQASZ20220901703E-01 Page:73of94 5.11 RadiatedSpuriousEmission&Restrictedbands TestRequirement:47CFRPart15CSection15.209and15.205 TestMethod:ANSIC63.10:2013 TestSite:MeasurementDistance:3m(Semi-AnechoicChamber) ReceiverSetup: FrequencyDetectorRBWVBWRemark 0.009MHz-0.090MHzPeak10kHz30kHzPeak 0.009MHz-0.090MHzAverage10kHz30kHzAverage 0.090MHz-0.110MHzQuasi-peak10kHz30kHzQuasi-peak 0.110MHz-0.490MHzPeak10kHz30kHzPeak 0.110MHz-0.490MHzAverage10kHz30kHzAverage 0.490MHz-30MHzQuasi-peak10kHz30kHzQuasi-peak 30MHz-1GHzPeak100kHz300kHzPeak Above1GHz Peak1MHz3MHzPeak Peak1MHz10HzAverage Limit: Frequency Fieldstrength (microvolt/meter) Limit (dBuV/m) Remark Measurement distance(m) 0.009MHz-0.490MHz2400/F(kHz)--300 0.490MHz-1.705MHz24000/F(kHz)--30 1.705MHz-30MHz30--30 30MHz-88MHz10040.0Quasi-peak3 88MHz-216MHz15043.5Quasi-peak3 216MHz-960MHz20046.0Quasi-peak3 960MHz-1GHz50054.0Quasi-peak3 Above1GHz50054.0Average3 Note:15.35(b),Unlessotherwisespecified,thelimitonpeakradiofrequency emissionsis20dBabovethemaximumpermittedaverageemissionlimit applicabletotheequipmentundertest.Thispeaklimitappliestothetotal peakemissionlevelradiatedbythedevice. ShenzhenHuaxiaTestingTechnologyCo.,Ltd. ReportNo.:CQASZ2022…

Text truncated - open the document above for the full version.

1Photographs-EUTTestSetup 1.1RadiatedEmission Leftear 9KHz~30MHz: 30MHz~1GHz: Above1GHz: 1.2ConductedEmission
