2A32S-LK001LK002Bluetooth Keyboard

Radiation Exposure Statement The device has been evaluated to meet general RF exposure requirement in portable exposure condition without restriction.

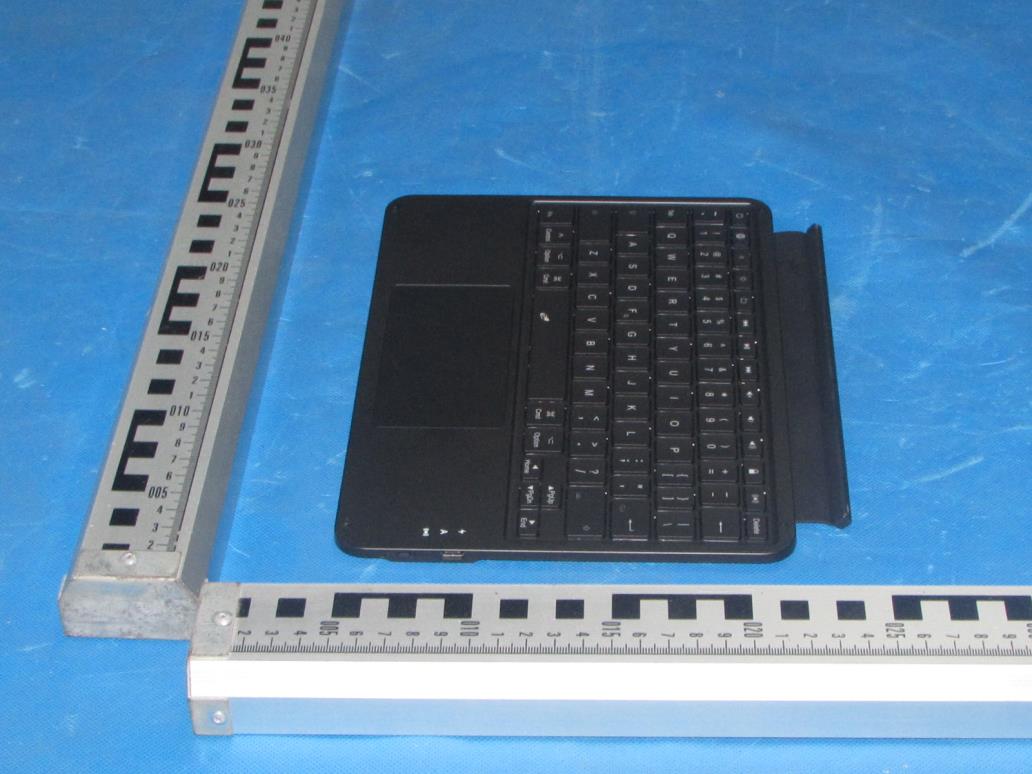

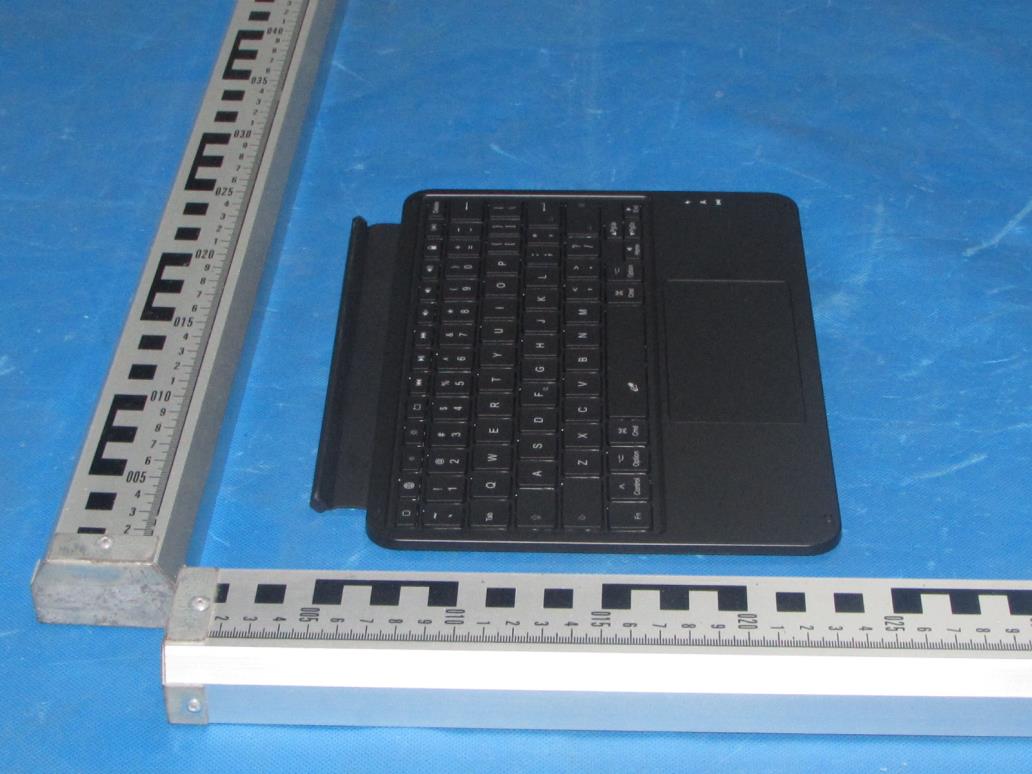

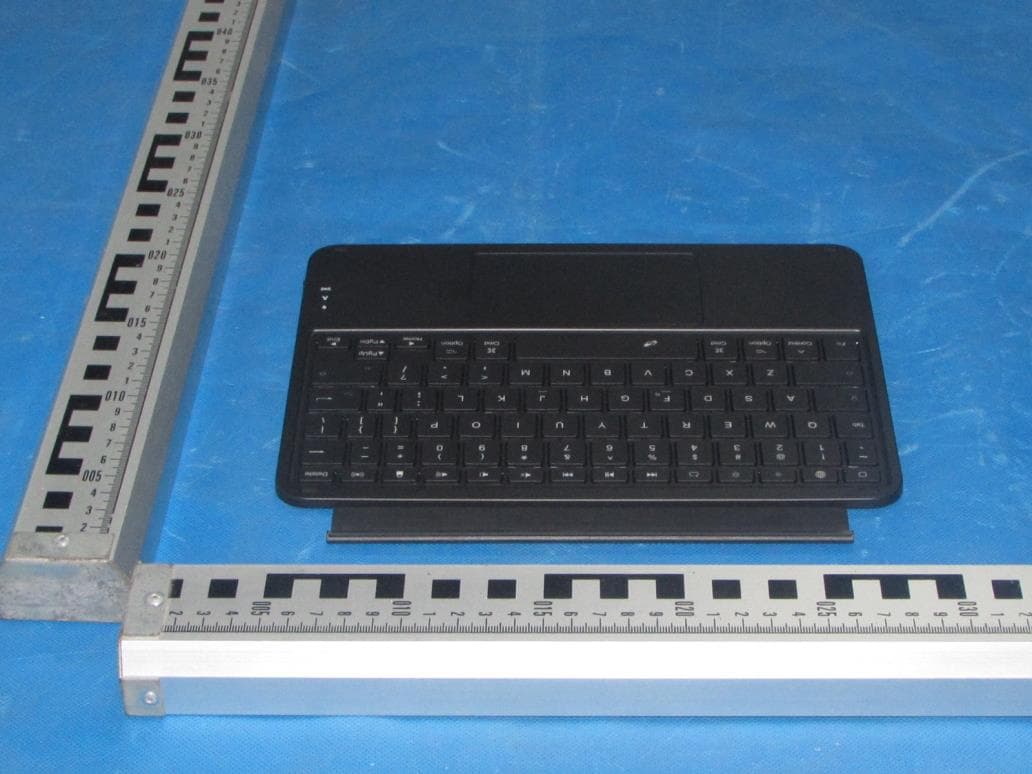

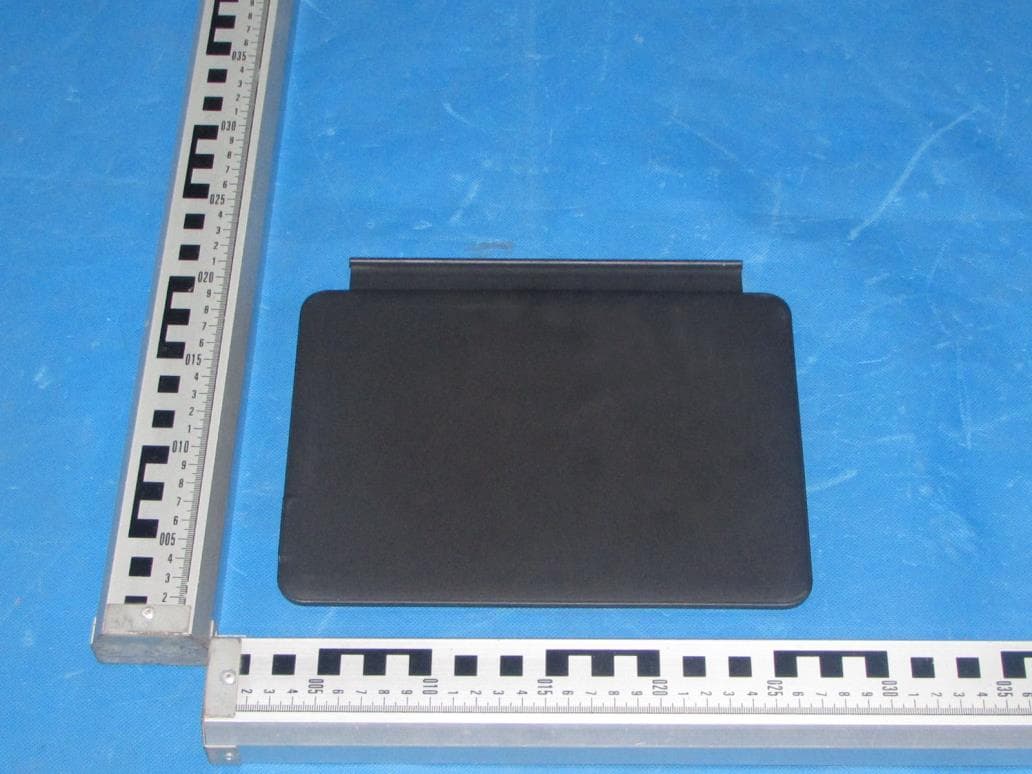

Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2A32S-LK001LK002 This report shall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd Page 1 of 4 EXTERIOR PHOTOGRAPHS OF EUT Fig.1 Fig.2 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2A32S-LK001LK002 This report shall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd Page 2 of 4 Fig.3 Fig.4 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2A32S-LK001LK002 This report shall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd Page 3 of 4 Fig.5 Fig.6 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2A32S-LK001LK002 This report shall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd Page 4 of 4 Fig.7

Label Location: FCC ID: 2A32S-LK001LK002

Shenzhen Tongzhou Testing Co.,Ltd FCC ID:2A32S-LK001LK002 This report shall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd Page 1 of 3 INTERIOR PHOTOGRAPHS OF EUT Fig.1 Fig.2 Shenzhen Tongzhou Testing Co.,Ltd FCC ID:2A32S-LK001LK002 This report shall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd Page 2 of 3 Fig.3 Fig.4 Bluetooth Antenna Shenzhen Tongzhou Testing Co.,Ltd FCC ID:2A32S-LK001LK002 This report shall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd Page 3 of 3 Fig.5 Fig.6

Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2A32S-LK001LK002 This report shall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd Page 1 of 3 RADIO FREQUENCY EXPOSURE Limit According to section B.4 of 447498 D04 Interim General RF Exposure Guidance v01 SAR-based thresholds are derived based on frequency, power, and separation distance of the RF source. The formula defines the thresholds in general for either available maximum time-averaged power or maximum time-averaged ERP, whichever is greater. If the ERP of a device is not easily determined, such as for a portable device with a small form factor, the applicant may use the available maximum time-averaged power exclusively if the device antenna or radiating structure does not exceed an electrical length of λ/4. As for devices with antennas of length greater than λ/4 where the gain is not well defined, but always less than that of a half-wave dipole (length λ/2), the available maximum time-averaged power generated by the device may be used in place of the maximum time-averaged ERP, where that value is not known. The separation distance is the smallest distance from any part of the antenna or radiating structure for all persons, during operation at the applicable ERP. In the case of mobile or portable devices, the separation distance is from the outer housing of the device where it is closest to the antenna. The SAR-based exemption formula of § 1.1307(b)(3)(i)(B), repeated here as Formula (B.2), applies for single fixed, mobile, and portable RF sources with available maximum time-averaged power or effective radiated power (ERP), whichever is greater, of less than or equal to the threshold Pth (mW). This method shall only be used at separation distances from 0.5 cm to 40 cm and at frequencies from 0.3 GHz to 6 GHz (inclusive). Pth is given by Formula (B.2). Where and f is in GHz, d is the separation distance (cm), and ERP 20cm is per Formula (B.1). Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2A32S-LK001LK002 This report shall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd Page 2 of 3 The example values shown in Table B.2 are for illustration only. Frequency (MHz) Distance (mm) 5 10 15 20 25 30 35 40 45 50 300 39 65 88 110 129 148 166 184 201 217 450 22 44 67 89 112 135 158 180 203 226 835 9 25 44 66 90 116 145 175 207 240 1900 3 12 26 44 66 92 122 157 195 236 2450 3 10 22 38 59 83 111 143 179 219 3600 2 8 18 32 49 71 96 125 158 195 5800 1 6 14 25 40 58 80 106 136 169 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2A32S-LK001LK002 This report shall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd Page 3 of 3 Conducted Power Results Test Mode Channel Frequency (MHz) Measured Peak Output Power (dBm) GFSK 00 2402 -3.57 39 2441 -2.58 78 2480 -2.54 Manufacturing tolerance GFSK (Peak) Channel Channel 0 Channel 39 Channel 78 Target (dBm) -4.0 -3.0 -3.0 Tolerance ±(dB) 1.0 1.0 1.0 Results Test Mode Channel Frequency (MHz) Max. Tune Up Power (dBm, Peak) Max. Eirp including Tune Up (dBm, Peak) Max. Eirp including Tune Up (mW, Peak) Exemption Limit (mW) GFSK 2402 -3.0 -1.13 0.77 3 2441 -2.0 -0.13 0.97 3 2480 -2.0 -0.13 0.97 3 The antenna gain of the EUT for BT is 1.87dBi(Max). the Maximum Eirp is used for Routine Evaluation Exemption according to B.4 of 447498 D04 Interim General RF Exposure Guidance v01. So, the SAR evaluation is not required.

UCI CENTER FOR RF DESI GN AND CHARACTERIZATION Report By Alfred Grau UCI CENTER FOR RF DESI GN AND CHARACTERIZATION Tested Products.• Antenna 1: integrated antenna. • Frequency = 2.402GHz. • Frequency = 2.441GHz. • Frequency = 2.480GHz. UCI CENTER FOR RF DESI GN AND CHARACTERIZATION Coordinate System Reference: Antenna 1. Top view Side view Z Y X Front view Front viewRear view SMA connector X Z Y UCI CENTER FOR RF DESI GN AND CHARACTERIZATION Radiation pattern: Antenna 1. XZ Plane at f = 2.402GHz Co-cross polarization field (dBi) Solid line: vertical polarizationDash line: horizontal polarization Total field (dBi) 0 45 90 135 180 225 270 315 0 0 -5 -5 -10 -10 -15 -15 -20 -20 -25 -25 -30 -30 -35 0 45 90 135 180 225 270 315 0 0 -5 -5 -10 -10 -15 UCI CENTER FOR RF DESI GN AND CHARACTERIZATION Radiation pattern: Antenna 1. YZ Plane at f = 2.402GHz Co-cross polarization field (dBi) Solid line: vertical polarizationDash line: horizontal polarization Total field (dBi) 0 45 90 135 180 225 270 315 0 0 -5 -5 -10 -10 -15 -15 -20 -20 -25 -25 -30 -30 -35 0 45 90 135 180 225 270 315 0 0 -5 -5 -10 -10 -15 UCI CENTER FOR RF DESI GN AND CHARACTERIZATION Radiation pattern: Antenna 1. XY Plane at f = 2.402GHz Co-cross polarization field (dBi) Solid line: vertical polarizationDash line: horizontal polarization Total field (dBi) 0 45 90 135 180 225 270 315 0 0 -5 -5 -10 -10 -15 -15 -20 -20 -25 -25 -30 -30 -35 0 45 90 135 180 225 270 315 0 0 -5 -5 -10 -10 -15 UCI CENTER FOR RF DESI GN AND CHARACTERIZATION Radiation pattern: Antenna 1. XZ Plane at f = 2.441GHz Co-cross polarization field (dBi) Solid line: vertical polarizationDash line: horizontal polarization Total field (dBi) 0 45 90 135 180 225 270 315 0 0 -5 -5 -10 -10 -15 -15 -20 -20 -25 -25 -30 -30 -35 0 45 90 135 180 225 270 315 0 0 -5 -5 -10 -10 -15 UCI CENTER FOR RF DESI GN AND CHARACTERIZATION Radiation pattern: Antenna 1. YZ Plane at f = 2.441GHz Co-cross polarization field (dBi) Solid line: vertical polarizationDash line: horizontal polarization Total field (dBi) 0 45 90 135 180 225 270 315 0 0 -5 -5 -10 -10 -15 -15 -20 -20 -25 -25 -30 -30 -35 0 45 90 135 180 225 270 315 0 0 -5 -5 -10 -10 -15 UCI CENTER FOR RF DESI GN AND CHARACTERIZATION Radiation pattern: Antenna 1. XY Plane at f = 2.441GHz Co-cross polarization field (dBi) Solid line: vertical polarizationDash line: horizontal polarization Total field (dBi) 0 45 90 135 180 225 270 315 0 0 -5 -5 -10 -10 -15 -15 -20 -20 -25 -25 -30 -30 -35 0 45 90 135 180 225 270 315 0 0 -5 -5 -10 -10 -15 UCI CENTER FOR RF DESI GN AND CHARACTERIZATION Radiation pattern: Antenna 1. XZ Plane at f = 2.480GHz Co-cross polarization field (dBi) Solid line: vertical polarizationDash line: horizontal polarization Total field (dBi) 0 45 90 135 180 225 270 315 0 0 -5 -5 -10 -10 -15 -15 -20 -20 -25 -25 -30 -30 -35 0 45 90 135 180 225 270 315 0 0 -5 -5 -10 -10 -15 UCI CENTER FOR RF DESI GN AND CHARACTERIZATION Radiation pattern: Antenna 1. YZ Plane at f = 2.480GHz Co-cross polarization field (dBi) Solid line: vertical polarizationDash line: horizontal polarization Total field (dBi) 0 45 90 135 180 225 270 315 0 0 -5 -5 -10 -10 -15 -15 -20 -20 -25 -25 -30 -30 -35 0 45 90 135 180 225 270 315 0 0 -5 -5 -10 -10 -15 UCI CENTER FOR RF DESI GN AND CHARACTERIZATION Radiation pattern: Antenna 1. XY Plane at f = 2.480GHz Co-cross polarization field (dBi) Solid line: vertical polarizationDash line: horizontal polarization Total field (dBi) 0 45 90 135 180 225 270 315 0 0 -5 -5 -10 -10 -15 -15 -20 -20 -25 -25 -30 -30 -35 0 45 90 135 180 225 270 315 0 0 -5 -5 -10 -10 -15 UCI CENTER FOR RF DESI GN AND CHARACTERIZATION Return Loss: Antenna 1 BW(-10dB) ¡ 13.48% 2 2.2 2.4 2.6 2.8 3 Frequency (GHz) -16-14-12-10 -8-6-4-2 R e t u r n L o s s ( d B ) UCI CENTER FOR RF DESI GN AND CHARACTERIZATION Measurements summary Frequency (GHz) Plane Return Loss (dB) Polarization Gain max. (dBi) θ for Gain max. φ for Gain max. Antenna 1 2.402 XZ -10.90 Vertical -7.8 290 2.402 XZ -10.90 Horizontal 0.786 182 2.402 YZ -10.90 Vertical 1.21 226 2.402 YZ -10.90 Horizontal -7.75 10 2.402 XY -10.90 Vertical -15.4 20 2.402 XY -10.90 Horizontal 0.93 180 2.441 XZ -12.20 Vertical -7.36 318 2.441 XZ -12.20 Horizontal 1.32 180 2.441 YZ -12.20 Vertical 0.981 204 2.441 YZ -12.20 Horizontal -8.23 24 2.441 XY -12.20 Vertical -14.1 -14 2.441 XY -12.20 Horizontal 1.74 180 2.48 XZ -13.80 Vertical -7.95 312 2.48 XZ -13.80 Horizontal 1.81 186 2.48 YZ -13.80 Vertical 0.204 214 2.48 YZ -13.80 Horizontal -8.38 8 2.48 XY -13.80 Vertical -15.8 12 2.48 XY -13.80 Horizontal 1.87 180

Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2A32S-LK001LK002 Report No.: TZ230604456-E Page 1 of 24 Appendix Test Data for BT(BDR/EDR) (Conducted Measurement) Product Name: Bluetooth Keyboard Trade Mark: Dracool Test Model: LK001 FCC ID: 2A32S-LK001LK002 Environmental Conditions Temperature: 22.8 C Relative Humidity: 56% ATM Pressure: 100.0 kPa Test Engineer: Anna Hu Supervised by: Hugo Chen NOTE N/A Appendix A: 20dB Emission Bandwidth Test Result TestMode Antenna Channel 20db EBW[MHz] FL[MHz] FH[MHz] Limit[MHz] Verdict DH5 Ant1 2402 0.870 2401.532 2402.402 --- --- 2441 1.044 2440.463 2441.507 --- --- 2480 0.870 2479.535 2480.405 --- --- Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2A32S-LK001LK002 Report No.: TZ230604456-E Page 2 of 24 Test Graphs DH5_Ant1_2402 DH5_Ant1_2441 DH5_Ant1_2480 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2A32S-LK001LK002 Report No.: TZ230604456-E Page 3 of 24 Appendix B: Occupied Channel Bandwidth Test Result TestMode Antenna Channel OCB [MHz] FL[MHz] FH[MHz] Limit[MHz] Verdict DH5 Ant1 2402 0.92701 2401.5363 2402.4633 --- --- 2441 0.96646 2440.5100 2441.4764 --- --- 2480 0.93778 2479.5273 2480.4651 --- --- Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2A32S-LK001LK002 Report No.: TZ230604456-E Page 4 of 24 Test Graphs DH5_Ant1_2402 DH5_Ant1_2441 DH5_Ant1_2480 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2A32S-LK001LK002 Report No.: TZ230604456-E Page 5 of 24 Appendix C: Maximum Peak conducted output power Test Result TestMode Antenna Channel Result[dBm] Limit[dBm] Verdict DH5 Ant1 2402 -3.57 ≤30 PASS 2441 -2.58 ≤30 PASS 2480 -2.54 ≤30 PASS Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2A32S-LK001LK002 Report No.: TZ230604456-E Page 6 of 24 Test Graphs DH5_Ant1_2402 DH5_Ant1_2441 DH5_Ant1_2480 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2A32S-LK001LK002 Report No.: TZ230604456-E Page 7 of 24 Appendix D: Carrier frequency separation Test Result TestMode Antenna Channel Result[MHz] Limit[MHz] Verdict DH5 Ant1 Hop 0.806 ≥0.696 PASS Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2A32S-LK001LK002 Report No.: TZ230604456-E Page 8 of 24 Test Graphs DH5_Ant1_Hop Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2A32S-LK001LK002 Report No.: TZ230604456-E Page 9 of 24 Appendix E: Time of occupancy Test Result TestMode Antenna Channel BurstWidth [ms] TotalHops [Num] Result[s] Limit[s] Verdict DH5 Ant1 Hop 2.940 130 0.382 ≤0.4 PASS Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2A32S-LK001LK002 Report No.: TZ230604456-E Page 10 of 24 Test Graphs DH5_Ant1_Hop Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2A32S-LK001LK002 Report No.: TZ230604456-E Page 11 of 24 Appendix F: Number of hopping channels Test Result TestMode Antenna Channel Result[Num] Limit[Num] Verdict DH5 Ant1 Hop 79 ≥15 PASS Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2A32S-LK001LK002 Report No.: TZ230604456-E Page 12 of 24 Test Graphs DH5_Ant1_Hop Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2A32S-LK001LK002 Report No.: TZ230604456-E Page 13 of 24 Appendix G: Band edge measurements Test Result TestMode Antenna ChName Channel RefLevel [dBm] Result [dBm] Limit [dBm] Verdict DH5 Ant1 Low 2402 -4.00 -47.31 ≤-24 PASS High 2480 -3.02 -49.43 ≤-23.02 PASS Low Hop_2402 -5.01 -50.21 ≤-25.01 PASS High Hop_2480 -3.52 -49.64 ≤-23.52 PASS Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2A32S-LK001LK002 Report No.: TZ230604456-E Page 14 of 24 Test Graphs DH5_Ant1_Low_2402 DH5_Ant1_High_2480 DH5_Ant1_Low_Hop_2402 DH5_Ant1_High_Hop_2480 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2A32S-LK001LK002 Report No.: TZ230604456-E Page 15 of 24 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2A32S-LK001LK002 Report No.: TZ230604456-E Page 16 of 24 Appendix H: Conducted Spurious Emission Test Result TestMode Antenna Channel FreqRange [MHz] RefLevel [dBm] Result [dBm] Limit [dBm] Verdict DH5 Ant1 2402 Reference -5.13 -5.13 --- PASS 30~1000 -5.13 -62.09 ≤-25.13 PASS 1000~26500 -5.13 -50.38 ≤-25.13 PASS 2441 Reference -3.87 -3.87 --- PASS 30~1000 -3.87 -61.18 ≤-23.87 PASS 1000~26500 -3.87 -50.14 ≤-23.87 PASS 2480 Reference -3.11 -3.11 --- PASS 30~1000 -3.11 -62.6 ≤-23.11 PASS 1000~26500 -3.11 -50.5 ≤-23.11 PASS Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2A32S-LK001LK002 Report No.: TZ230604456-E Page 17 of 24 Test Graphs DH5_Ant1_2402_0~Reference DH5_Ant1_2402_30~1000 DH5_Ant1_2402_1000~26500 DH5_Ant1_2441_0~Reference Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2A32S-LK001LK002 Report No.: TZ230604456-E Page 18 of 24 DH5_Ant1_2441_30~1000 DH5_Ant1_2441_1000~26500 DH5_Ant1_2480_0~Reference Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2A32S-LK001LK002 Report No.: TZ230604456-E Page 19 of 24 DH5_Ant1_2480_30~1000 DH5_Ant1_2480_1000~26500 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2A32S-LK001LK002 Report No.: TZ230604456-E Page 20 of 24 Appendix I: Duty Cycle Test Result TestMode Antenna Channel Transmission Duration [ms] Transmission Period [ms] Duty Cycle [%] 1/T[kHz] DH5 Ant1 2402 2.93 3.75 78.13 0.34 2441 2.94 3.75 78.40 0.34 2480 2.94 3.75 78.40 0.34 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2A32S-LK001LK002 Report No.: TZ230604456-E Page 21 of 24 Test Graphs DH5_Ant1_2402 DH5_Ant1_2441 DH5_Ant1_2480 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2A32S-LK001LK002 Report No.: TZ230604456-E Page 22 of 24 Appendix J: Emissions in Restricted Bands Test Result TestMode Antenna ChName Channel Detector Freq(MHz) Result(dBm) Limit(dBm) Verdict DH5 Ant1 Low 2402 AV 2310.000 -49.52 ≤-41.20 PASS AV 2389.985 -49.09 ≤-41.20 PASS AV 2390.000 -49.09 ≤-41.20 PASS Peak 2310.000 -42.95 ≤-21.20 PASS Peak 2389.670 -39.45 ≤-21.20 PASS Peak 2390.000 -41.51 ≤-21.20 PASS High 2480 AV 2483.500 -48.58 ≤-41.20 PASS AV 2498.400 -48.43 ≤-41.20 PASS AV 2500.000 -48.53 ≤-41.20 PASS Peak 2483.500 -37.41 ≤-21.20 PASS Peak 2483.520 -37.41 ≤-21.20 PASS Peak 2500.000 -40.14 ≤-21.20 PASS Note： 1. The Antenna Gain is compensated in the graph with 2dBi and Antenna Gain which is Higher. 2. The limit in dBm for average detector is conversion from 54dBuV/m, according to 15.209(a). The limit in dBm for peak detector is 20dB above the limit of aver…

Text truncated - open the document above for the full version.

Report No.: TZ230604456-E Page 1 of 35 FCC TEST REPORT Test report On Behalf of SHENZHEN WANTAIDA TECHNOLOGY DEVELOPMENT CO., Ltd For Bluetooth Keyboard Model No: LK001, LK002 FCC ID: 2A32S-LK001LK002 Prepared for : SHENZHEN WANTAIDA TECHNOLOGY DEVELOPMENT CO., Ltd 1001, Building F, Galaxy World, No.1, Yabao Road, Nankeng Community, Bantian Street, Longgang District, Shenzhen, China Prepared By : Shenzhen Tongzhou Testing Co.,Ltd 1th Floor, Building 1, Haomai High-tech Park, Huating Road 387, Dalang Street, Longhua, Shenzhen, China Date of Test: 2023/6/12–2023/6/25 Date of Report: 2023/6/26 Report Number: TZ230604456-E The test report apply only to the specific sample(s) tested under stated test conditions It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Report No.: TZ230604456-E Page 2 of 35 TEST RESULT CERTIFICATION Applicant’s name ................. : SHENZHEN WANTAIDA TECHNOLOGY DEVELOPMENT CO., Ltd Address .................................. : 1001, Building F, Galaxy World, No.1, Yabao Road, Nankeng Community, Bantian Street, Longgang District, Shenzhen, China Manufacture's Name ............ : SHENZHEN WANTAIDA TECHNOLOGY DEVELOPMENT CO., Ltd Address .................................. : 1001, Building F, Galaxy World, No.1, Yabao Road, Nankeng Community, Bantian Street, Longgang District, Shenzhen, China Product description Trade Mark ............................. : Dracool Product name ........................... : Bluetooth Keyboard Model No ................................ : LK001, LK002 Standards ............................. : FCC Rules and Regulations Part 15 Subpart C Section 15.247 ANSI C63.10: 2013 This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen Tongzhou Testing Co.,Ltd is acknowledged as copyright owner and source of the material. Shenzhen Tongzhou Testing Co.,Ltd takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Date of Test ............................. ........... : Date (s) of performance of tests ........... : 2023/6/12-2023/6/25 Date of Issue ......................................... : 2023/6/26 Test Result ............................................ : PASS Testing Engineer : (Nancy Li) Technical Manager : (Hugo Chen) Authorized Signatory : (Andy Zhang) Report No.: TZ230604456-E Page 3 of 35 Revision History Revision Issue Date Revisions Revised By 00 2023/6/26 Initial Issue Andy Zhang Report No.: TZ230604456-E Page 4 of 35 TABLE OF CONTENTS Description Page 1. GENERAL INFORMATION ................................................................................................................ 5 1.1. Description of Device (EUT) ................................................................................................................... 5 1.2 Support equipment List ................................................................................................................................ 5 1.3 EUT configuration ......................................................................................................................................... 5 The following peripheral devices and interface cables were connected during the measurement: ....... 5 1.4 External I/O Cable ........................................................................................................................................ 5 1.5 Description of Test Facility .......................................................................................................................... 6 1.6 Statement of the Measurement Uncertainty ............................................................................................. 7 1.7 Measurement Uncertainty ........................................................................................................................... 7 1.8 Description of Test Modes .......................................................................................................................... 7 2. TEST METHODOLOGY ...................................................................................................................... 8 2.1 EUT Configuration ........................................................................................................................................ 8 2.2 EUT Exercise ................................................................................................................................................ 8 2.3 General Test Procedures ............................................................................................................................ 8 2.4. Test Sample ................................................................................................................................................. 8 3. SYSTEM TEST CONFIGURATION .................................................................................................. 9 3.1 Justification .................................................................................................................................................... 9 3.2 EUT Exercise Software ............................................................................................................................... 9 3.3 Special Accessories ..................................................................................................................................... 9 3.4 Block Diagram/Schematics ......................................................................................................................... 9 3.5 Equipment Modifications ............................................................................................................................. 9 3.6 Test Setup ...........................................................................................................................…

Text truncated - open the document above for the full version.

Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2A32S-LK001LK002 This report shall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd Page 1 of 2 TEST SETUP PHOTOS OF THE EUT Radiated Emission Below 1GHz Radiated Emission Above 1GHz Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2A32S-LK001LK002 This report shall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd Page 2 of 2 Conducted Emission
