NEED HELP ? SF003 Cell phone booster Installation Guide A cell booster specially created for the young SUNFORD [email protected] 3-year manufacturer‘s warranty CATALOG Package Contents Inside Antenna Placement STEP 1: Power Up The Booster & Optimize The System Troubleshooting Safety Guidelines Specifications Warranty Mount & Point Outside Antenna Toward Nearest Cell Tower STEP 2: Preparation Route & Connect Outside Antenna To Booster STEP 3 : Route & Connect Inside Antenna To Booster STEP 3 : STEP 4: Measuring Booster Performance Light Patterns 1 2 14 16 17 19 20 21 5 10 11 13 3 Package Contents 1 Booster Loft 3L Inside Antenna Outside Antenna Power Supply Roof/Pole Mount Bracket Wall Mount Bracket 2*30 ft of 3D-FB Cables Preparation You Will Need (tools not included) Make sure the following materials are prepared and ready for your installation. NOTE: These instructions will walk you through a “soft” install process to find the optimal locations for the inside and outside antennas, then through the process of the permanent installation. 1 to 2 hours 2 people (a person to help with antenna calibration) Ladder Drill (if routing cable through wall) 1”-3” diameter existing pole for mounting Outdoor Antenna (Pole Mount can be purchased separately if needed) Recommended: Power Strip with surge protection 2 Step 1: Inside Antenna Placement Choose right position for the indoor antenna • 1 feet away from any other metallic objects • 3 feet away from any windows Place the Inside Antenna where you need the greatest signal boost and place Booster in your desired location. NOTE: Do not connect booster to power until the system is fully installed. 3 (STEP 1 cont.) Booster Placement Mount the booster • Choose a ventilated and dry place • Keep away from heat • Don't cover booster Booster will about 30 degrees Fahrenheit higher than the ambient temperature, which is a normal phenomenon. 4 Step 2: Mount & Point Outside Antenna Toward Nearest Cell Tower Pole mounting and wall mounting options are included. The pole mounting option is preferred because it will be easier to adjust to the direction of the cell tower. Attach the Mount to the Outside Antenna and use the Bracket Clamps to attach the Antenna to a pole or exhaust pipe. Make sure that the outside unit is mounted at least 3 feet away from any windows. Outdoor antenna must be installed over the roof line. NOTE: Mounting on existing roof exhaust pipe would be a good time-saver option. Watch out for power lines. 5 ①② ③ Point the Outside Antenna toward the nearest cell phone tower. To find the nearest tower, use an app such as 'Open Signal'. This is the most critical step of the installation process because it will determine the overall performance of the booster system. 6 NOTE: The Outside Antenna must be at least 40 feet (12 meters) Straight line distance or 30 feet (9 meters) horizontal 20 feet (6 meters) vertical from the Inside Antenna for best performance. Keep enough distance between outside and inside antenna The greater the separation between the Inside and Outside Antennas, the better performance you will get from the booster. 7 Select the optimal mounting location for the outside antenna 8 After identifying the area of strongest signal, choose the surface where you will mount your outside antenna. 1. The location should allow for sufficient separation between the outside antenna and inside antenna. 2. In order to better receive external signals, the outside antenna is best installed in a higher position on the house, but please pay attention to lightning protection. Antenna mutual position 9 The outside antenna should be oriented in a way that it does not “face” the inside antenna. Caution: Do not aim an outside antenna towards inside antenna. Caution: The inside antenna cannot face the outside antenna. Step 3: Route & Connect Outside Antenna To Booster Connect the white 3D-FB Cable to Outside Antenna and route cable into the home, secure the cable near the antenna. All connections should be finger tightened only. Route cable to the Booster and connect to the port labeled 'OUTSIDE'. 10 Step 3: Route & Connect Inside Antenna To Booster Connect the Inside Antenna to the 'INSIDE' port on the booster. 11 (STEP 3‐A cont.) 12 Fasten bracket to back of Inside Antenna Secure bracket to wall Drill holes Tap anchors in Mounting Inside Antenna on wall bracket sideview Wall Mounting Option Step 4: Power Up The Booster & Optimize The System Plug in the Power Supply and connect it to the nearest power outlet. NOTE: We strongly recommend using a power strip with surge protection. Outside Antenna Inside Antenna Booster Power Supply 13 Measuring Booster Performance How To Get Signal Strength As A Number iPhone® Android™ iOS 11 and later no longer displays the decibel (dBm) reading in 'Field Test Mode'. Tip: Using the dot signal strength indicator on your cell phone can assist you in finding the strongest signal direction as well as placing calls in different locations. Settings > About Phone > Status or Network > Signal Strength or Network Type and Strength (exact options/wording depends on phone model). Android: download third part APP-LTE Discovery iPhone is a registered trademark of Apple Inc. Android is a trademark of Google Inc. Dial *3001#12345#* then press Call. 1 Hold down power button until you see 'Slide to Power Off'. 2 Then release the power button. 3 Hold the Home button until your main screen appears. If you want to check 3G/1x but your iPhone is picking up 4G/ LTE signal, go to Settings>Cellular>Cellular Data Options>En_x0002_able .LTE>Select Off. After you system is set up, you can go back to the dots signal by once again dialing *3001#12345#* then pressing call. When the menu comes back up, tap “phone” in the top left corner of your phone. iPhone® iOS 11 - current 14 DID YOU KNOW a signal increase of just 3dB is 2 times the power and signal amplification! (MEASURING BOOSTER PERFORMANCE AFTER INSTALLATION cont.) Signal stren…

Text truncated - open the document above for the full version.

Shenyang Sanfeng Intelligent Technology Co., Ltd Aug. 09, 2022 Attestation for signal booster: FCC ID: 2A34B-SFZN003 Each Signal Booster certificated under FCC ID: A7V-SR14652002 is manufactured and individually tested to ensure FCC compliance: (1) Licensee consent for Fixed consumer booster has been obtained (consent be made available upon FCC/TCB request) (2) NPS and other compliance/safeguard features have been implemented (3) NPS and other compliance/safeguard features are defaulted to “ON” configuration (in operation) (4) NPS and other compliance/safeguard features cannot be field reconfigured, disabled or removed (5) This Consumer booster is not user programmable, does not need fine tuning or adjustment, does not require professional installation. (6) Future software upgrade will not cause non-compliance. Yours sincerely, Hongmeng Zhao

Shenyang Sanfeng Intelligent Technology Co., Ltd Aug 09, 2022 Subject: Tuning and Adjustment of signal booster, FCC ID: 2A34B-SFZN003 There are no external tuning adjustments, the amplifier is factory set not exceed maximum gains, power levels, and downlink dependent region (RSSI) set points as provided in the test results. Yours sincerely, Hongmeng Zhao

Shenyang Sanfeng Intelligent Technology Co., Ltd Agent Authorization Company: Shenyang Sanfeng Intelligent Technology Co., Ltd Address: No. 10-1 (1-28-12), Hunnan West Road, Hunnan District, Shenyang City, Liaoning Province, 110000 China Product Name: Cell phone booster Model Number(s): SF003 Product Description: Cell phone booster We authorize MiCOM Labs Inc., 575 Boulder Court, Pleasanton, California 94566, USA, to act on our behalf on all matters concerning the certification of above named equipment. We declare that MiCOM Labs Inc. is allowed to forward all information related to the approval and certification of equipment to the regulatory agencies as required and to discuss any issues concerning the approval application. Any and all acts carried out by MiCOM Labs on our behalf shall have the same effect as acts of our own. Signature: Date: 2022-08-09 Name: Hongmeng Zhao Title: manager Company: Shenyang Sanfeng Intelligent Technology Co., Ltd

1 Antenna Kitting Information Component Prod No. Description Gain/Loss Notes LTE-A /LTE-V 700MHz 800MH z Outdoor Antenna A-SF001 8dBi 8dBi Log Periodic Antenna (Default) A-SF002 3dBi 3dBi Omni Direct ional Antenna Outdoor Cable RG660Feet 4dB 4.3dB 60 fee t Outdoor Cable 3D-FB60Feet 4.5dB 5.4dB 60 feet (Default) Outdoor Cable 3D-FB30Feet 2.1dB 2.5dB 30 Feet Indoor Cable 3D-FB30Feet 2.1dB 2.5dB 30 Feet Indoor Cable RG630Feet 1.8dB 1.9dB 30 fee t Indoor Antenna A-SF003 8dBi 8dBi Panel Antenna A-SF004 2dBi 2dBi Whip Antenna (Default) *All equivalent antennas and cables are suitable for use with the xxx

Shenyang Sanfeng Intelligent Technology Co., Ltd Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 USA Date: 2022-08-09 Subject; Request for Confidentiality FCC ID: 2A34B-SFZN003 To Whom It May Concern, Pursuant to the provisions of the Commission’s rules Title 47 Sections §0.457 and §0.459, we are requesting the Commission to withhold the following attachment(s) as confidential documents from public disclosure indefinitely. These documents contain detailed system and equipment descriptions and are considered as proprietary information in operation of the equipment. The public disclosure of these documents might be harmful to our company and would give competitors an unfair advantage in the market. Schematic Diagram Block Diagram Parts List Operational Description Tune-up Procedure It is our understanding that all measurement test reports, FCC ID label format and correspondence during the certification review process cannot be granted as confidential documents and this information will be available for public review once the grant of equipment authorization is issued. Sincerely, Signature: Name: Hongmeng Zhao Title: manager

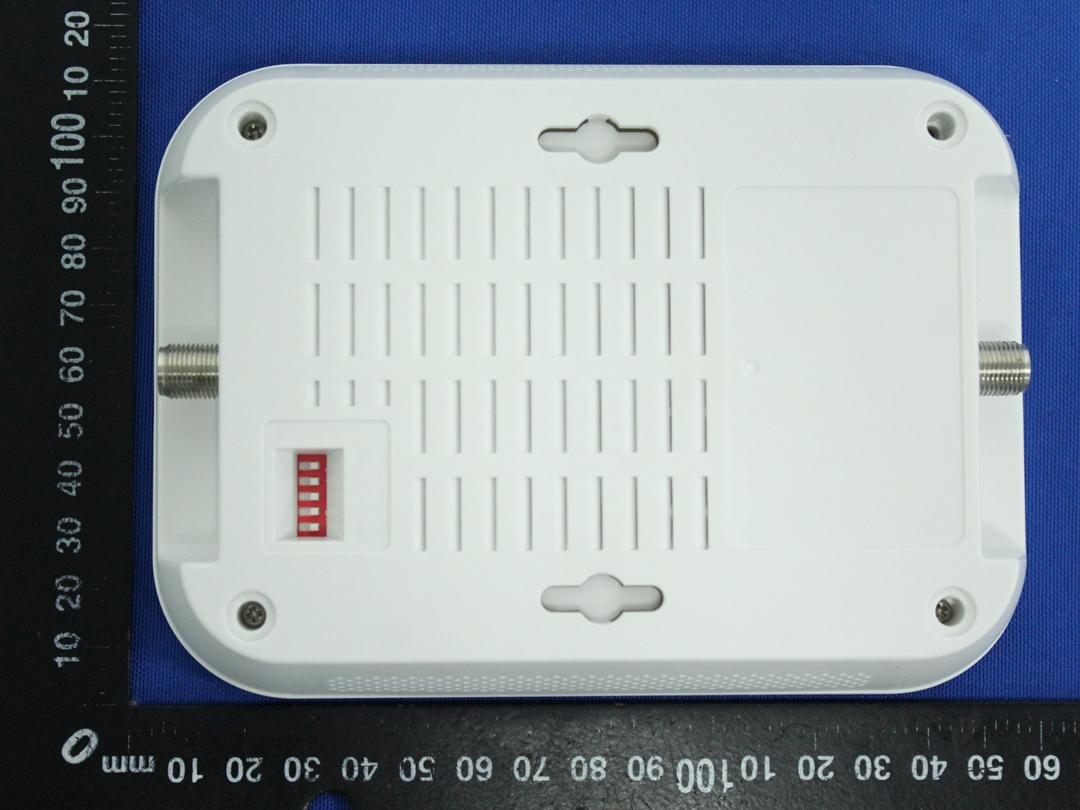

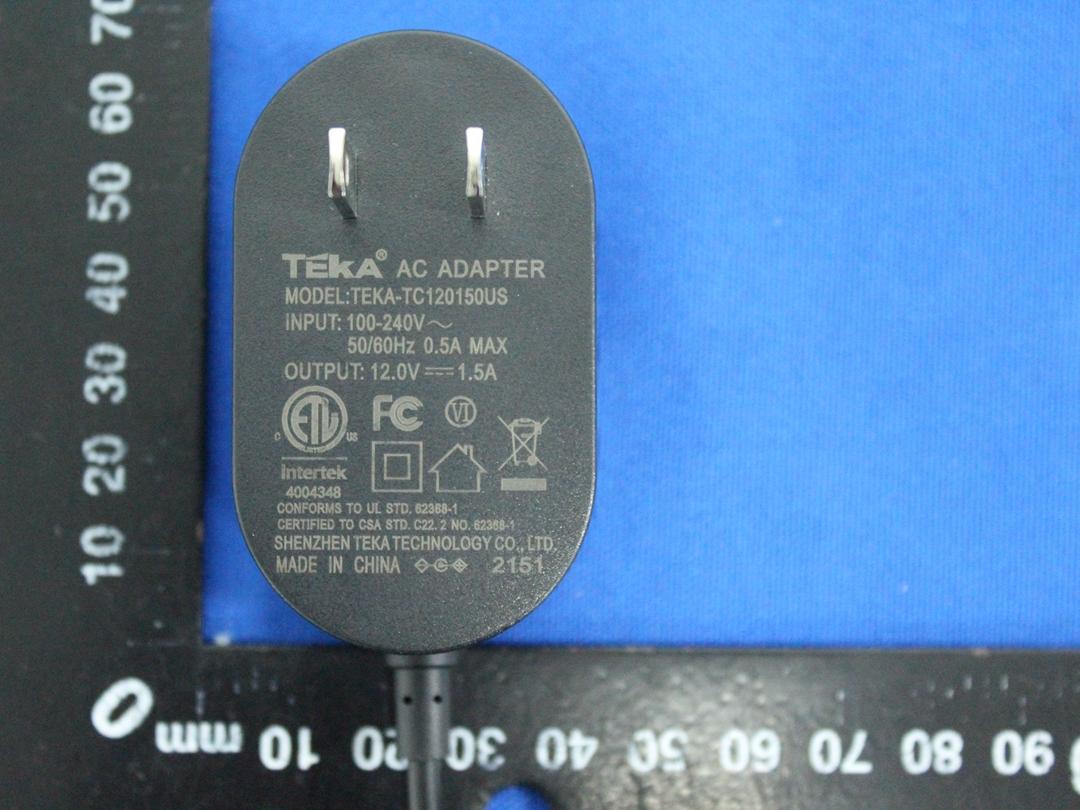

Page 1 of 4 Appendix B: Photographs of EUT Product: Cell phone booster Model: SF003 External Photos Page 2 of 4 Page 3 of 4 Page 4 of 4

Label Artwork and Location Model: SF003 Label: Size: L*W=59.6*38.6mm Location

Page 1 of 5 Appendix B: Photographs of EUT Product: Cell phone booster Model: SF003 Internal Photos Page 2 of 5 Page 3 of 5 Page 4 of 5 Page 5 of 5

Maximum Permissible Exposure(MPE) Report 1. Applicable Standard FCC Part §1.1310 2. Requirements Limits For Maximum Permissible Exposure (MPE) Frequency range (MHz) Electric field strength(V/m) Magnetic field Strength(A/m) Power density (mw/cm 2 ) Averaging time (minutes) 0.3-1.34 614 1.63 *100 30 1.34-30 824/f 2.19/f *180/f 2 30 30-300 27.5 0.0173 0.2 30 300-1,500 f/1500 30 1,500-100,000 1.0 30 3. MPE Calculation Predication of MPE limit at a given distance S = Power density (In appropriate units, e.g., mW/cm 2 ) P = Power input to the antenna ( In appropriate units, e.g., mW) G = Power gain og the antenna in the direction of interest relative to an isotropic radiator, the power gain factor, Is normally numeric gain R =Distance tp the center of radiation of the antenna(In appropriate units, e.g., cm 4. Test Result Results: PASS Operation Bands Frequency( MHz) Max. Output power(dBm) Cable loss (dB) Power to Antenna(mW) Antenna gain Isotropic Numeric UL824-869 837.45 20.40 2.5 61.66 8 6.31 UL698-716 700.63 19.68 2.1 57.28 8 6.31 UL776-787 780.75 20.16 2.1 63.97 8 6.31 DL869-894 877.90 3.35 1.9 1.40 8 6.31 DL728-746 741.20 6.48 1.8 2.94 8 6.31 DL746-757 749.87 5.84 1.8 2.54 8 6.31 Operation Bands Power (mW) Antenna gain(G) Measure Distance(cm) Power density (mW/cm 2) MPE limit (mW/cm 2) UL824-869 61.66 6.31 20 0.0774 0.56 UL698-716 57.28 6.31 20 0.0719 0.47 UL776-787 63.97 6.31 20 0.0803 0.52 DL869-894 1.40 6.31 20 0.0018 0.59 DL728-746 2.94 6.31 20 0.0037 0.49 DL746-757 2.54 6.31 20 0.0032 0.50

Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com TEST REPORT FCC ID. ............................ : 2A34B-SFZN003 Test Report No. ............... : TCT220719E018 Date of issue ................... : Aug. 05, 2022 Testing laboratory .......... : SHENZHEN TONGCE TESTING LAB Testing location/ address: 2101 & 2201, Zhenchang Factory Renshan Industrial Zone, Fuhai Subdistrict, Bao'an District, Shenzhen, Guangdong, 518103, People's Republic of China Applicant's name ............ : Shenyang Sanfeng Intelligent Technology Co., Ltd Address ........................... : No. 10-1 (1-28-12), Hunnan West Road, Hunnan District, Shenyang City, Liaoning Province, 110000 China Manufacturer's name ... : Shenyang Sanfeng Intelligent Technology Co., Ltd Address ........................... : No. 10-1 (1-28-12), Hunnan West Road, Hunnan District, Shenyang City, Liaoning Province, 110000 China Standard(s) ..................... : FCC CFR Title 47 Part 20.21 KDB935210 D03 Signal Booster Measurements v04r04 Product Name ................. : Cell phone booster Trade Mark ...................... : APlusBoost, Awwboost, Atcall Model/Type reference..... : SF003 Rating(s).......................... : Adapter Information: MODEL: TEKA-TC120150US INPUT: AC 100-240V, 50/60Hz, 0.5A MAX OUTPUT: DC 12.0V, 1.5A Date of receipt of test item ......................................... : Jul. 19, 2022 Date (s) of performance of test ................................... : Jul. 19, 2022 ~ Aug. 05, 2022 Tested by (+signature) ... : Brews XU Check by (+signature) .... : Beryl ZHAO Approved by (+signature): Tomsin General disclaimer: This report shall not be reproduced except in full, without the written approval of SHENZHEN TONGCE TESTING LAB. This document may be altered or revised by SHENZHEN TONGCE TESTING LAB personnel only, and shall be noted in the revision section of the document. The test results in the report only apply to the tested sample. Report No.: TCT220719E018 Page 2 of 152 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com Table of Contents 1. General Product Information .................................................................. 3 1.1. EUT description ..................................................................................................... 3 1.2. Model(s) list ............................................................................................................ 3 2. Test Result Summary .............................................................................. 4 3. General Information ................................................................................. 5 3.1. Test environment ................................................................................................... 5 3.2. Description of Support Units ................................................................................ 5 4. Facilities and Accreditations .................................................................. 6 4.1. Facilities ................................................................................................................. 6 4.2. Location ................................................................................................................. 6 4.3. Measurement Uncertainty ..................................................................................... 6 5. Test Results and Measurement Data ..................................................... 7 5.1. Authorized Frequency Band Verification ............................................................ 7 5.2. Maximum Power .................................................................................................. 13 5.3. Intermodulation Product ..................................................................................... 25 5.4. Out of Band Emission ......................................................................................... 33 5.5. Conducted Spurious Emission .......................................................................... 71 5.6. Noise Limits ......................................................................................................... 84 5.7. Uplink Inactivity ................................................................................................... 93 5.8. Variable Booster Gain ......................................................................................... 97 5.9. Occupied Bandwidth ......................................................................................... 103 5.10.Oscillation Detection and Mitigation ............................................................... 124 6. Radiation Spurious Emission ............................................................. 138 Appendix A: Photographs of Test Setup Appendix B: Photographs of EUT Report No.: TCT220719E018 Page 3 of 152 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com 1. General Product Information 1.1. EUT description Product Name ....................... : Cell phone booster Model/Type reference........... : SF003 Sample Number....................: TCT220719E018-0101 Operation Frequency ........... : Cellular Uplink: 824MHz - 849MHz, Downlink: 869MHz - 894MHz Lower700MHz Uplink: 698MHz - 716MHz, Downlink: 728MHz - 746MHz Upper700MHz Uplink: 776MHz - 787MHz, Downlink: 746MHz - 757MHz Signal Booster Type ............. : Fixed Consumer Signal Booster Emission Designator ........... : F9W, G7D, G7W, GXW, W7D FCC Classification ............... : B2W/Wideband Consumer Booster(CMRS) Rating(s)................................ : Adapter Information: MODEL: TEKA-TC120150US INPUT: AC 100-240V, 50/60Hz, 0.5A MAX OUTPUT: DC 12.0V, 1.5A Note: The antenna gain listed in this report is provided by applicant, and the test laboratory is not responsible for this parameter. 1.2. Model(s) list None. Report No.: TCT220719E018 Page 4 of 152 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 h…

Text truncated - open the document above for the full version.

Report No.: TCT220719E018 Page 67 of 152 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com Upper700MHz CDMA DL Left Side Pre AGC Upper700MHz CDMA DL Left Side Max. Input Report No.: TCT220719E018 Page 68 of 152 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com Upper700MHz CDMA DL Right Side Pre AGC Upper700MHz CDMA DL Right Side Max. Input Report No.: TCT220719E018 Page 69 of 152 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com Upper700MHz LTE DL Left Side Pre AGC Upper700MHz LTE DL Left Side Max. Input Report No.: TCT220719E018 Page 70 of 152 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com Upper700MHz LTE DL Right Side Pre AGC Upper700MHz LTE DL Right Side Max. Input Report No.: TCT220719E018 Page 71 of 152 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com 5.5. Conducted Spurious Emission 5.5.1. Test Specification Test Requirement: FCC Part2 Section 1051; FCC Rules Part 27 Subpart C, Section 27.53 Test Method: KDB 935210 D03 Signal Booster Measurements v04r04 Limit: -13 dBm； For equipment operating in the frequency bands 746-7 56 MHz and 777-787 MHz, The power of any unwanted emissions in any 6.25 kHz bandwidth for all frequencies between 763-775 MHz and 793-806 MHz shall be attenuated below the transmitter power, P (dBW), by at least: (i) 76 + 10 log10 p (watts), dB, for base and fixed equipment, and (ii) 65 + 10 log10 p (watts), dB, for mobile and portable equipment. Test Setup: Test Procedure: a) Connect the EUT to the test equipment as shown in Set-Up. Begin with the uplink output connected to the spectrum analyzer. b) Configure the signal generator for AWGN with a 99% occupied bandwidth of 4.1 MHz operation with a center frequency corresponding to the center of the CMRS band under test. c) Set the signal generator amplitude to the level determined in the power measurement procedure in Maximum power. d) Turn on the signal generator RF output and measure the spurious emission power levels with an appropriate measurement instrument as follows. e) Set RBW = measurement bandwidth specified in the applicable rule section for the operational frequency band under consideration (see Annex A for relevant cross-references). Note that many of the individual rule sections permit the use of a narrower RBW (typically ≥ 1% of the emission bandwidth) to enhance measurement accuracy, but the result must then be integrated over the specified measurement bandwidth. f) Set VBW = 3 X RBW. g) Select the power averaging (RMS) detector. (See above note regarding the use of a peak detector for preliminary measurements.) h) Sweep time = auto-couple. i) Set the analyzer start frequency to the lowest radio frequency signal generated in the equipment, without going below 9 kHz, and the stop frequency to the lower band/block edge frequency minus 100 kHz or 1 MHz, as specified in the applicable rule part. Note that the number of measurement points in each sweep must be ≥ (2 X span/RBW) which may require that the measurement range defined by the start and stop frequencies above be subdivided, depending on the available number of measurement points provided by the spectrum analyzer. Trace average at least 10 traces in power averaging (i.e., RMS) mode. Report No.: TCT220719E018 Page 72 of 152 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com j) Use the peak marker function to identify the highest amplitude level over each measured frequency range Record the frequency and amplitude and capture a Test Plots for inclusion in the test report. k) Reset the analyzer start frequency to the upper band/block edge frequency plus 100 kHz or 1 MHz, as specified in the applicable rule part, and the analyzer stop frequency to 10 times the highest frequency of the fundamental emission. Note that the number of measurement points in each sweep must be ≥ (2 X span/RBW) which may require that the measurement range defined by the start and stop frequencies above be subdivided, depending on the available number of measurement points provided by the spectrum analyzer. l) Use the peak marker function to identify the highest amplitude level over each of the measured frequency ranges. Record the frequency and amplitude and capture a Test Plots for inclusion in the test report. m) Repeat steps b) through l) for each supported frequency band of operation. Test Result: PASS 5.5.2. Test Instruments Equipment Manufacturer Model Serial Number Calibration Date Calibration Due Signal Generator Agilent N5182A MY47070282 Jul. 04, 2022 Jul. 03, 2023 Spectrum Analyzer Agilent N9020A MY49100619 Jul. 05, 2022 Jul. 04, 2023 Attenuator 50FP-006-H3 JFW 907763 / / Report No.: TCT220719E018 Page 73 of 152 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com 5.5.3. Test data Cellular Uplink Test Plots Report No.: TCT220719E018 Page 74 of 152 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com Cellular Downlink Report No.: TCT220719E018 Page 75 of 152 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com Report No.: TCT220719E018 Page 76 of 152 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com Lower700MHz Uplink Test Plots Report No.: TCT220719E018 Page 77 of 152 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com Lower700MHz Downlink Report No.: TCT220719E018 Page 78 of 152 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com Report No.: TCT220719E018 Page 79 of 152 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com Upper700MHz Uplink Test Plots Report No.: TCT220719E018 Page 80 of 152 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com 763 MHz - 775 MHz Report No.:…

Text truncated - open the document above for the full version.

Report No.: TCT220719E018 Page 133 of 152 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com Lower700MHz UL Lower700MHz DL Report No.: TCT220719E018 Page 134 of 152 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com Upper700MHz UL Upper700MHz DL Report No.: TCT220719E018 Page 135 of 152 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com Test results of Mitigation or Shutdown Cellular Uplink(824-849MHz) Signal Type AWGN Isolation Peak Oscillations Minimal Level Delta Value Limit Time to Mitigate Oscillation Mitigation Time Limit Result Freq. Level Freq. Level dB MHz dBm MHz dBm dB dB sec sec +5 841.21 -64.40 843.56 -72.56 8.16 <12 109 300 Pass +4 841.21 -63.65 843.56 -72.57 8.92 <12 106 300 Pass +3 841.21 -62.35 843.56 -72.90 10.55 <12 108 300 Pass +2 841.21 -60.07 843.56 -72.95 12.88 <12 112 300 Pass +1 EUT Shutdown Cellular Downlink(869-894MHz) Signal Type AWGN Isolation Peak Oscillations Minimal Level Delta Value Limit Time to Mitigate Oscillation Mitigation Time Limit Result Freq. Level Freq. Level dB MHz dBm MHz dBm dB dB sec sec +5 876.58 -60.15 878.00 -68.02 7.87 <12 110 300 Pass +4 876.58 -59.42 878.00 -69.93 10.51 <12 115 300 Pass +3 876.58 -58.73 878.00 -69.74 11.01 <12 104 300 Pass +2 876.58 -57.41 878.00 -69.40 11.99 <12 111 300 Pass +1 876.58 -55.47 878.00 -70.15 14.68 <12 106 300 Pass 0 876.58 -48.48 878.00 -70.62 22.14 <12 109 300 Pass -1 EUT Shutdown Report No.: TCT220719E018 Page 136 of 152 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com Lower700M Hz Uplink(698-716MHz) Signal Type AWGN Isolation Peak Oscillations Minimal Level Delta Value Limit Time to Mitigate Oscillation Mitigation Time Limit Result Freq. Level Freq. Level dB MHz dBm MHz dBm dB dB sec sec +5 713.41 -58.93 711.76 -71.80 12.87 <12 115 300 Pass +4 713.41 -57.21 711.76 -72.04 14.83 <12 112 300 Pass +3 713.41 -56.08 711.76 -72.02 15.94 <12 108 300 Pass +2 EUT Shutdown Lower700M Hz Downlink(728-746MHz) Signal Type AWGN Isolation Peak Oscillations Minimal Level Delta Value Limit Time to Mitigate Oscillation Mitigation Time Limit Result Freq. Level Freq. Level dB MHz dBm MHz dBm dB dB sec sec +5 741.01 -58.56 739.13 -70.47 11.91 <12 114 300 Pass +4 741.01 -57.25 739.13 -70.74 13.49 <12 112 300 Pass +3 741.01 -55.26 739.13 -71.16 15.90 <12 108 300 Pass +2 741.01 -53.04 739.13 -71.47 18.43 <12 110 300 Pass +1 741.01 -48.45 739.13 -71.32 22.87 <12 111 300 Pass 0 741.01 -37.90 739.13 -71.61 33.71 <12 106 300 Pass -1 EUT Shutdown Report No.: TCT220719E018 Page 137 of 152 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com Upper700M Hz Uplink(776-787MHz) Signal Type AWGN Isolation Peak Oscillations Minimal Level Delta Value Limit Time to Mitigate Oscillation Mitigation Time Limit Result Freq. Level Freq. Level dB MHz dBm MHz dBm dB dB sec sec +5 781.28 -61.59 779.66 -71.64 10.05 <12 107 300 Pass +4 781.28 -60.71 779.66 -71.97 11.26 <12 110 300 Pass +3 781.28 -59.30 779.66 -72.15 12.85 <12 112 300 Pass +2 EUT Shutdown Upper700M Hz Downlink(746-757MHz) Signal Type AWGN Isolation Peak Oscillations Minimal Level Delta Value Limit Time to Mitigate Oscillation Mitigation Time Limit Result Freq. Level Freq. Level dB MHz dBm MHz dBm dB dB sec sec +5 751.95 -61.55 754.18 -70.86 9.31 <12 118 300 Pass +4 751.95 -59.90 754.18 -71.20 11.30 <12 114 300 Pass +3 751.95 -58.85 754.18 -71.30 12.45 <12 111 300 Pass +2 751.95 -56.70 754.18 -71.49 14.79 <12 116 300 Pass +1 751.95 -54.87 754.18 -71.55 16.68 <12 112 300 Pass 0 EUT Shutdown Report No.: TCT220719E018 Page 138 of 152 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com 6. Radiation Spurious Emission 6.1.1. Test Specification Test Requirement: FCC Part2 Section 2.1053 Test Method: KDB935210 D03 Signal booster Measurements v04r04 Limit: -13dBm; For equipment operating in the frequency bands 746-7 56 MHz and 777-787 MHz, The e.i.r.p. in the band 1559-1610 MHz shall not exceed -70 dBW/MHz for wideband signal and -80 dBW for discrete emission with bandwidth less than 700 Hz. Test setup: Test Procedure: a) Place the EUT on an OATS or semi-anechoic chamber turntable 3 m from the receiving antenna.15 b) Connect the EUT to the test equipment as shown in Figure 10 beginning with the uplink output (donor) port. c) Set the signal generator to produce a CW signal with the frequency set to the center of the operational band under test, and the power level set at PIN as determined from measurement results per 7.2. d) Measure the radiated spurious emissions from the EUT from the lowest to the highest frequencies as specified in § 2.1057. Maximize the radiated emissions by using the procedures described in ANSI C63.4. e) Capture the peak emissions Test Plotss using a peak detector with Max-Hold for inclusion in the test report. Tabular data is acceptable in lieu of spectrum analyzer Test Plotss. f) Repeat 7.12c) through 7.12e) for all uplink and downlink operational bands. Report No.: TCT220719E018 Page 139 of 152 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com Test results: PASS 6.1.2. Test Instruments Radiated Emission Name Model No. Manufacturer Date of Cal. Due Date EMI Test Receiver ESIB7 R&S Jul. 04, 2022 Jul. 03, 2023 Spectrum Analyzer FSQ40 R&S Jul. 04, 2022 Jul. 03, 2023 Pre-amplifier 8447D HP Jul. 04, 2022 Jul. 03, 2023 Pre-amplifier LNPA_0118G-45 SKET Feb. 25, 2022 Feb. 24, 2023 Pre-amplifier LNPA_1840G-50 SKET Feb. 25, 2022 Feb. 24, 2023 Broadband Antenna VULB9163 Schwarzbeck Jul. 06, 2022 Jul. 05, 2024 Horn Antenna BBHA 9120D Schwarzbeck Jul. 06, 2022 Jul. 05, 2024 Horn Antenna BBHA 9170 Schwarzbeck Apr. 11, 2021 Apr. 10, 2023 Coaxial cable RC-18G-N-M SKET Feb. 25, 2022 Feb. 24, 2024 Coaxial cable RC_40G-K-M SKET Feb. 25, 2022 Feb. 24, 2024 Loop antenna FMZB1519B Schwarzbeck Jun. 12, 2022 Jun. 11, 2024 Signal Generator N5182A Agi…

Text truncated - open the document above for the full version.

Page 1 of 2 Appendix A: Photographs of Test Setup Product: Cell phone booster Model: SF003 Page 2 of 2
