2A34XETAG6-0Electronic Price Tag

eTag & eTag Mini User Manual version [1.0.3] Table of contents Table of contents2 General workflow4 Login Page5 Website Layout8 Settings Menu9 The Grid10 Status Page12 Product-Tags Page14 How to...15 How to edit a Location (a.k.a store, warehouse, etc...)15 How to add a User16 How to edit a User17 How to add a Gateway18 How to edit a Gateway19 How to delete a Gateway20 How to add a Product-Tag21 How to activate a Product-Tag22 How to edit a Product-Tag23 How to edit multiple Product-Tags24 How to delete a Product-Tag26 How to view Product-Tag’s statistics27 How to assign a diamond to a Product-Tag28 How to unassign a diamond from a Product-Tag29 How to transfer a Product-Tag from one location to another30 How to attach a custom image32 How to force an images update33 Gateways (Centrals)34 A few things to make sure34 Add the new Gateway to the store35 Install the eTag Central Service35 How to add a product-tag (eTag)37 Add the eTag to your store37 Assign a product to an eTag39 Pair the eTag with a GateWay41 Start Advertising and connect to a central42 How to change eTag parameters43 How to monitor the eTags43 eTag main screens and menu44 Main screens44 eTag Menu44 Menu- info44 Menu -update now45 Menu- Pairing Info45 Menu- Erase Bonds45 Menu- System off45 Menu- Regulatory info45 Menu- Exit menu45 Icons46 No Connection in a while46 Battery Low46 Battery Extremely Low46 Regulatory Information47 Accessing Regulatory Information on an eTag device47 FCC47 Warnings47 Notes47 Known issues48 eTag firmware 4.6.148 eTag QR code is sometimes not readable.48 Auto return to default image does not work on main images49 Troubleshooting guide49 ETag Troubleshooting guide49 Latest software/firmware versions50 General workflow The e-tag device was developed to serve as an automatically updating electronic display. It displays multiple images to the customer, each holding information about the product attached to the device. The eTag platform relies both on hardware and software services to add, update and view information. The system is installed on several servers and the data is transmitted from the gateways to the servers over the internet. Here is a flow chart to help you understand the big picture. Login Page When first visiting the site you are greeted with the login page. Here you are required to enter your login credentials, meaning your email and password in order to gain access to the site. Forgot my password Clicking on the “I forgot my password” link in the previous page will lead you to this page where you can enter your email address and receive instructions on how to change your password. Enter a new password After requesting a password change an email with a link will be sent to you. Clicking the link will lead you to this page where you can change your password. *You can also change your password in the “Users” page. Website Layout Settings Menu The Grid On some grids you can select rows to perform certain actions on them. Status Page The status page shows store locations and their current status , each location row also contains the Product-tags and Gateways Grids belonging to that respective location. Product-Tags Page The Product-Tags page is where you can manage, edit and view information about Product-Tags. . How to... How to edit a Location (a.k.a store, warehouse, etc...) How to add a User How to edit a User How to add a Gateway How to edit a Gateway How to delete a Gateway How to add a Product-Tag How to activate a Product-Tag How to edit a Product-Tag How to edit multiple Product-Tags In some cases you might want to update more then one product-tag at a time and to do so you can use the “Multiple Update” form. After selecting your .CSV file two columns will be displayed, the left column are the names of the columns in your .CSV file and the right column are the product-tags field you want to update. You will need to match the two columns to successfully update your product-tags. How to delete a Product-Tag How to view Product-Tag’s statistics The chart icon on the right side of every product-tag row can be clicked to show a lot of useful and necessary information and to enable you to edit some of that information. How to assign a diamond to a Product-Tag Here is how to assign an item such as a diamond to the Product-Tag device. How to unassign a diamond from a Product-Tag Items such as diamonds need to be assigned and unassigned to Product-Tag devices. Here is how to unassign an item from a Product-Tag. How to transfer a Product-Tag from one location to another In the Product-Tags grid you can also transfer Product-Tags from one store to another. How to attach a custom image The images displayed on the Product-Tag device are usually automatically generated, but you can also add images of your own. How to force an images update The data displayed on the e-tag device is periodically updated. In some cases you might want to speed up the update by manually forcing it. to do that follow the instructions below. Gateways (Centrals) The Gateway is the point against which all peripheral communication is established. In BLE terminology, it is called a Central. We implemented the central on an Intel NUCs running bluetooth capabilities via a USB dongle. Current central versions are running on a Linux OS, specifically RedHat. The latest version supported can be found in theLatest software/firmwareversionssection. The central must have a working internet connection to be able to receive updates from the server. All centrals will be installed by an IT technician who will verify the central service is up, running, and is able to connect to the internet, and if possible the eTags, when it is installed. eTag The unit attached to each product is called an eTag. The units functions are automatic, but some functions which were found to be useful towards controlling a specific eTag. Type of eTags The eTags may come in several different forms, each one meant for a different use case. For example, the loo…

Text truncated - open the document above for the full version.

Segoma LTD. | 10 Ha’Menofim St., Herzliya, Israel 4672561 | Tel: +972.9.9740040 | Fax: +972.9.9745020 [email protected] | www.segoma.com I, an officer of Segoma LTD do hereby authorize Intertek Testing Services (Mr. Terry Chan / Tim Lee/ Herbert Wong / Kenneth Wong) to act on our behalf in front of the Federal Communications Commission with respect to all matters relating to certification of equipment under Part 15 and Part 18 of the FCC Rules until further notice . I further certify that no party (as defined in §1.2002(b) of CFR 47, 2004) to this application, including myself, is subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C.,862. . 2, 202Augustof st 1Dated By Signature Asaf Pipman Printed Name Product Manager Title

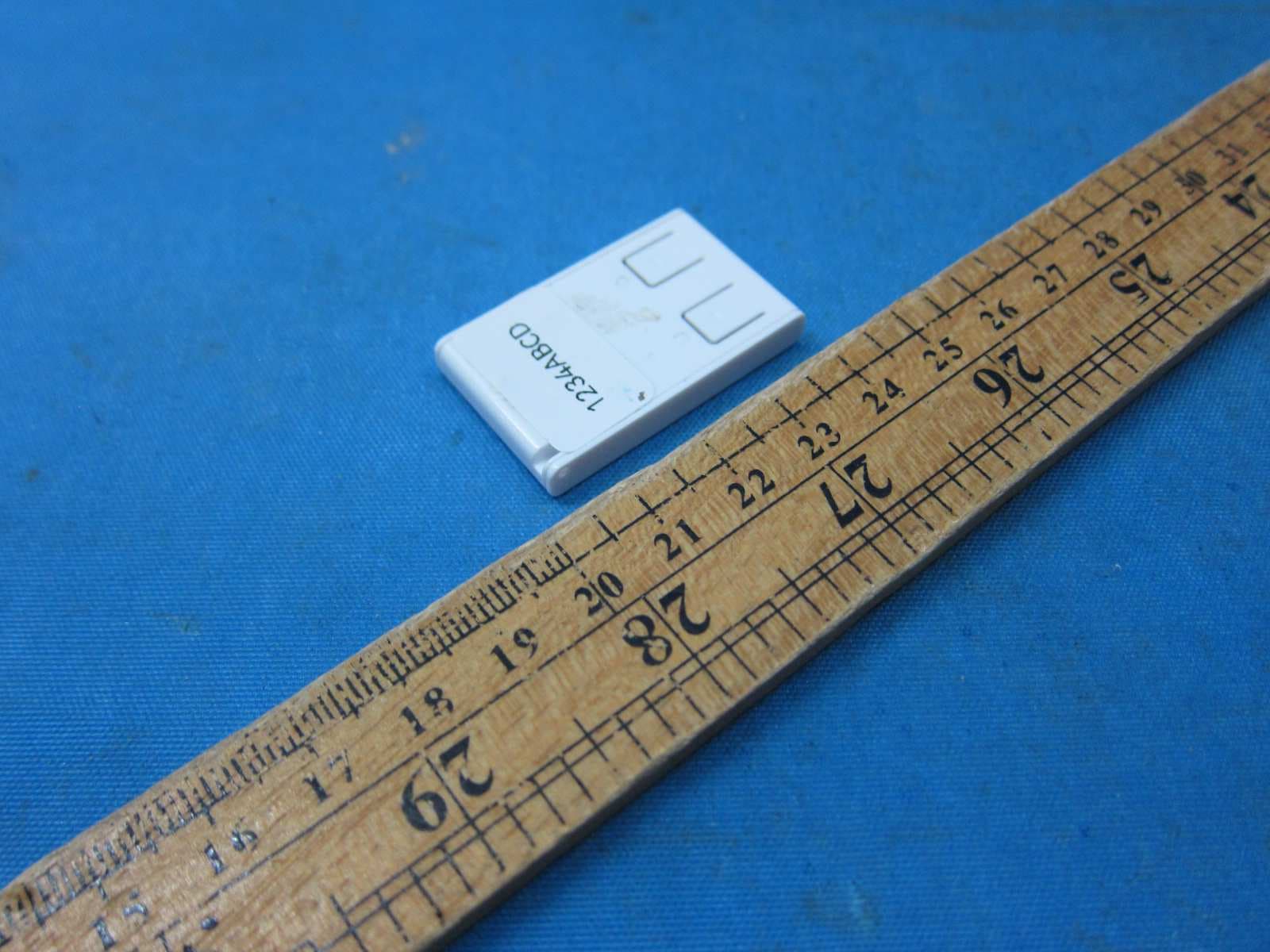

INTERTEK TESTING SERVICE Report No.: HK22080388 Equipment Photographs (External)

Below is a scheme of the eTag label as it will be placed onto every eTag. Contains: 1. A ‘Segoma’ label. 2. The model number for matching the FCC ID. 3. The FCC ID allocated to this model. 4. A serial number in writing and as a QR code. Comments: • The phrases ‘Model: eTag6.0and ‘FCC ID:2A34XETAG6-0’ shall be 6 points in size. • Other parts of the label – i.e the ‘eTag’ label, the Serial number and the QR code shall be as large as the label allows them to be. • The Model and FCC ID will match the eTag model on which they are placed. • The Serial number and QR code will change between eTags as they are unique to a single eTag.

INTERTEK TESTING SERVICE Report No.: HK22080388 Equipment Photographs (Internal) INTERTEK TESTING SERVICE Report No.: HK22080388 Equipment Photographs (Internal) INTERTEK TESTING SERVICE Report No.: HK22080388 Equipment Photographs (Internal)

Analysis Report The 6.0 is a Electronic Price Tag. The Equipment Under Test (EUT) operates at frequency range of 2402MHz to 2480MHz. The EUT is powered by 3VDC (3.0-3.3V standard CR2032 battery). Antenna Type: Internal, Integral, Inverted-L PCB Antenna Peak Antenna Gain: -2.21 dBi Average EIRP Radiated Power Range: -5dBm to -1dBm (90.2dBμV/m@3m to 94.2dBμV/m@3m) According to the KDB 447498 D04 Interim General RF Exposure Guidance v01 Based on the Maximum allowed average field strength of production tolerance was 94.2dBμV/m at 3m. Thus, it below calculated field strength according to minimum SAR exclusion threshold level as follows: The worst case of SAR Exclusion Threshold Level at 2.48GHz with distance 5mm: = 2.717mW According to the KDB 412172 D01: EIRP = [(FS*D) ^2*1000 / 30] Calculated Field Strength for 2.717mW with antenna gain -2.21dBi is 97.4dBuV/m @3m (average) Since maximum average field strength plus production tolerance < = 97.4dBuV/m @3m, it is concluded that maximum Conducted Power and Field Strength are well below the SAR Exclusion threshold level, so the EUT is considered to comply with SAR requirement without testing.

TEST REPORT 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong SAR, China. Telephone: (852) 2173 8888 Facsimile: (852) 2785 5487 www.intertek.com Intertek’s standard Terms and Conditions can be obtained at our website http://www.intertek.com/terms/. The test report only allows to be revised within the retention period unless further standard or the requirement was noticed. This report is for the exclusive use of Intertek's Client and is provided pursuant to the agreement between Intertek and its Client. Intertek's responsibility and liability are limited to the terms and conditions of the agreement. Intertek assumes no liability to any party, other than to the Client in accordance with the agreement, for any loss, expense or damage occasioned by the use of this report. Only the Client is authorized to permit copying or distribution of this report and then only in its entirety. Any use of the Intertek name or one of its marks for the sale or advertisement of the tested material, product or service must first be approved in writing by Intertek. The observations and test results in this report are relevant only to the sample tested. This report by itself does not imply that the material, product, or service is or has ever been under an Intertek certification program. © 2017 Intertek Page 1 of 22 Report No.: 22080388HKG-001 Segoma LTD Application For Original Grant of 47 CFR Part 15 Certification Electronic Price Tag FCC ID: 2A34XETAG6-0 Prepared and Checked by: Approved by: Signed on File Wong Cheuk Ho, Herbert Wong Kwok Yeung, Kenneth Lead Engineer Assistant Supervisor Date: January 05, 2023 TEST REPORT Segoma LTD Intertek Report No: 22080388HKG-001 Page 2 of 22 GENERAL INFORMATION Grantee: Segoma LTD Grantee Address: 10 Ha'Menofim, Herzliya, 4672561, Israel. FCC Specification Standard: FCC Part 15, October 1, 2021 Edition FCC ID: 2A34XETAG6-0 Model(s): 6.0 Type of EUT: Transceiver Description of EUT: Electronic Price Tag Brand Name: eTag Sample Receipt Date: August 09, 2022 Date of Test: August 09, 2022 to December 05, 2022 Report Date: January 05, 2023 Environmental Conditions: Temperature: +10 to 40°C Relative Humidity: 10 to 90% Conclusion: Test was conducted by client submitted sample. The submitted sample as received complied with the 47 CFR Part 15 Certification. TEST REPORT Segoma LTD Intertek Report No: 22080388HKG-001 Page 3 of 22 SUMMARY OF TEST RESULT Test Items FCC Part 15 Section Results Transmitter Power Line Conducted Emissions 15.207 Not Applicable Radiated Emission 15.249, 15.209 Complied Radiated Emission on the Bandedge Complied Radiated Emission in Restricted Bands 15.205 Complied Note: Pursuant to FCC Part 15 Section 15.215(c), the 20dB bandwidth of the emission was contained within the frequency band designated (mentioned as above) which the EUT operated. The effects, if any, from frequency sweeping, frequency hopping, other modulation techniques and frequency stability over expected variations in temperature and supply voltage were considered. The equipment under test is found to be complying with the following standards: FCC Part 15, October 1, 2021 Edition TEST REPORT Segoma LTD Intertek Report No: 22080388HKG-001 Page 4 of 22 TABLE OF CONTENTS 1.0 GENERAL DESCRIPTION ................................................................................................ 5 1.1 Product Description .................................................................................................. 5 1.2 Related Submittal(s) Grants ...................................................................................... 5 1.3 Test Methodology ..................................................................................................... 5 1.4 Test Facility ................................................................................................................ 5 2.0 SYSTEM TEST CONFIGURATION .................................................................................... 6 2.1 Justification ............................................................................................................... 6 2.2 EUT Exercising Software............................................................................................ 6 2.3 Special Accessories .................................................................................................... 6 2.4 Measurement Uncertainty........................................................................................ 6 2.5 Support Equipment List and Description .................................................................. 6 3.0 EMISSION RESULTS ...................................................................................................... 7 3.1 Field Strength Calculation ......................................................................................... 7 3.2 Radiated Emission Configuration Photograph .......................................................... 8 3.3 Radiated Emission Data ............................................................................................ 8 4.0 EQUIPMENT PHOTOGRAPHS...................................................................................... 13 5.0 PRODUCT LABELLING ................................................................................................. 13 6.0 TECHNICAL SPECIFICATIONS ...................................................................................... 13 7.0 INSTRUCTION MANUAL ............................................................................................. 13 8.0 MISCELLANEOUS INFORMATION ............................................................................... 14 8.1 Measured Bandwidth .............................................................................................. 14 8.2 Discussion of Pulse Desensitization ........................................................................ 17 8.3 Calculation of Average Factor ..................................................................…

Text truncated - open the document above for the full version.

SmallTag IL Antenna Matching Components מרדכי אלקובימ.א.פתרונותרדיו ואנטנות M.E.RF & Antenna Solution דווייטאייזנהאואר 3/55נתניה 4209022Dwight Eisenhower 3 Apartment 55 טל :09-8650103סלולר:053-7788308Tel:+972-9-8650103 Cel:+972-53-7788308 תאריך :03/10/2021 SEGOMA L5=1.8nHy C9=1.2 pF IL antenna with matching components Return Loss SEGOMA מרדכי אלקובימ.א.פתרונותרדיו ואנטנות M.E.RF & Antenna Solution דווייטאייזנהאואר 3/55נתניה 4209022Dwight Eisenhower 3 Apartment 55 טל :09-8650103סלולר:053-7788308Tel:+972-9-8650103 Cel:+972-53-7788308 תאריך :03/10/2021 IL antenna with matching components VSWR SEGOMA מרדכי אלקובימ.א.פתרונותרדיו ואנטנות M.E.RF & Antenna Solution דווייטאייזנהאואר 3/55נתניה 4209022Dwight Eisenhower 3 Apartment 55 טל :09-8650103סלולר:053-7788308Tel:+972-9-8650103 Cel:+972-53-7788308 תאריך :03/10/2021 IL antenna with matching components Smith Chart SEGOMA מרדכי אלקובימ.א.פתרונותרדיו ואנטנות M.E.RF & Antenna Solution דווייטאייזנהאואר 3/55נתניה 4209022Dwight Eisenhower 3 Apartment 55 טל :09-8650103סלולר:053-7788308Tel:+972-9-8650103 Cel:+972-53-7788308 תאריך :03/10/2021 IL antenna with matching components 3D Chamber Efficiency Antenna Measurements SEGOMA מרדכי אלקובימ.א.פתרונותרדיו ואנטנות M.E.RF & Antenna Solution דווייטאייזנהאואר 3/55נתניה 4209022Dwight Eisenhower 3 Apartment 55 טל :09-8650103סלולר:053-7788308Tel:+972-9-8650103 Cel:+972-53-7788308 תאריך :03/10/2021 IL antenna with matching components 3D Chamber Efficiency Antenna Test Results Band Frequency [MHz] Ant EFF [%] Ant 3D EFF [dbi] Peak Gain [dBi] BT240231.934.96-2.21- BT244225.625.91-3.17- BT248026.935.70-3.20- SEGOMA מרדכי אלקובימ.א.פתרונותרדיו ואנטנות M.E.RF & Antenna Solution דווייטאייזנהאואר 3/55נתניה 4209022Dwight Eisenhower 3 Apartment 55 טל :09-8650103סלולר:053-7788308Tel:+972-9-8650103 Cel:+972-53-7788308 תאריך :03/10/2021 Free Space 3D Chamber Efficiency Antenna Pattern Test Results SEGOMA מרדכי אלקובימ.א.פתרונותרדיו ואנטנות M.E.RF & Antenna Solution דווייטאייזנהאואר 3/55נתניה 4209022Dwight Eisenhower 3 Apartment 55 טל :09-8650103סלולר:053-7788308Tel:+972-9-8650103 Cel:+972-53-7788308 תאריך :03/10/2021 Free Space 3D Chamber Efficiency Antenna Pattern Test Results SEGOMA מרדכי אלקובימ.א.פתרונותרדיו ואנטנות M.E.RF & Antenna Solution דווייטאייזנהאואר 3/55נתניה 4209022Dwight Eisenhower 3 Apartment 55 טל :09-8650103סלולר:053-7788308Tel:+972-9-8650103 Cel:+972-53-7788308 תאריך :03/10/2021 Free Space 3D Chamber Efficiency Antenna Pattern Test Results SEGOMA מרדכי אלקובימ.א.פתרונותרדיו ואנטנות M.E.RF & Antenna Solution דווייטאייזנהאואר 3/55נתניה 4209022Dwight Eisenhower 3 Apartment 55 טל :09-8650103סלולר:053-7788308Tel:+972-9-8650103 Cel:+972-53-7788308 תאריך :03/10/2021

INTERTEK TESTING SERVICE Report No: HK22080388 Configuration Photographs Worst-Case Radiated Emissions (Front View) INTERTEK TESTING SERVICE Report No: HK22080388 Configuration Photographs Worst-Case Radiated Emissions (Rear View) INTERTEK TESTING SERVICE Report No: HK22080388 Configuration Photographs Worst-Case Radiated Emissions (Front View) INTERTEK TESTING SERVICE Report No: HK22080388 Configuration Photographs Worst-Case Radiated Emissions (Rear View)
