2A359-X1Chiteng Business Label Printer

X1 User Manual Before operating this product, please read this user manual guide carefully. 1* Data Cable 1*Trial ribbon Manual 2 * Ribbon Shaft 2 * Label Baffle 1 * Label Shaft 1*Trial label 1*Adapter 1 * Label Printer 1*Power Cord 1*User Manual Package Contents 1 Cover opening button Power interface USB Host USB port Power switch Paper compartment viewing window Paper feed button Indicator light Paper exit slot Rear paper feed entrance (compatible with an external stand for rear paper feeding) Exterior Components 2 2 2 4 4 6 6 8 8 10 10 12 12 0 Print head Ribbon take-up shaft Ribbon supply shaft Print module lift button Print module lift button Label baffle Label shaft Paper tear-off blade Paper compartment Paper jam release slider (press-down button) Sensor (movable) Rubber Roller ※When using the following labels, the location of the sensor needs to be adjusted: ① Black mark paper: The sensor needs to be moved below the black mark. ② Perforated paper: The sensor needs to be moved below the perforation. 2 2 4 4 6 6 8 8 10 10 12 12 0 Place the paper roll centered on the label shaft and secure both ends with label baffles (with groove side facing outward). ※If the roll core is smaller than 25mm, the label shaft and baffles are not required. Load the paper roll into the paper compartment with the printed side facing upward, as shown in the figure. Press the blue buttons at both ends of the print module to lift it up. Scan to watch paper roll installation video tutorial. Open the printer's top cover. 1 23 4 2 2 4 4 6 6 8 8 10 10 12 12 0 with the printed side facing upward Pull the front end of the label through the print module and the rubber roller. 5 Press and hold the paper jam release slider and move it to lock the label in place. 6 Paper Roll Installation 3 with groove side facing outward Scan to watch ribbon installation video tutorial. 02Insert the ribbon shaft from the left into the ribbon paper core and center the ribbon on the ribbon shaft. Ribbon supply side Ribbon take-up side 03 Snap the ribbon into the supply side. 01The ribbon is placed as shown Ribbon Rewind paper core Ribbon glossy surface The round hole of the ribbon shaft faces to the right. Ribbon Installation 4 Follow the steps to install the ribbon, and snap the ribbon into the ribbon supply and take-up shafts as shown in the figure. 1 ※If the ribbon roll core is a small core (13mm), no ribbon shaft is required. You simply need to snap it into the supply and take-up side. ※Ribbons sold by merchants generally do not come with paper cores. Therefore, it's recommended to keep the empty paper cores for reuse. ※For thermal printing paper, no ribbon installation is necessary, and this step can be skipped. Gently press the lift buttons at both ends of the print module to raise the print head, then pass the ribbon take-up core through the print module. Ribbon take-up core Ribbon supply side 2 Snap the ribbon take-up core into the ribbon take-up side. 3 Rotate the ribbon roller clockwise to tighten the ribbon, press the print module down with both hands until you hear a click. 4 Ribbon roller FunctionButtonOperation Method Power on Power off Feed one label Pause printing Resume printing Cancel print job Print self-test page Feed 10mm Toggle to "I" Toggle to "O" Click Long press for 2s Click during printing Click while paused Press and hold for 2 seconds while paused Double-Click Click when paper type is continuous Press and hold when paper type is continuous Press rapidly 3 times Power button Paper feed button Power button+ Paper feed button Hold feed button while off, then toggle power switch to "I" Change the paper type Continuous feed (release to stop) Paper detection (calibration) Change the printing mode Indicator Light Power indicator (blue) Error indicator (red) StatusLight Status Description Off Slow blink Steady on Off Slow blink Steady on Fast blink Not powered Bluetooth not connected Bluetooth connected Printer ready Pause printing Print head temperature too high Print head not locked in place /lack of paper/lack of ribbon Function Buttons 5 Indicator Light Description 6 Preconditions for printing The mobile phone's Bluetooth is switched on The printer is powered on The printer is powered on The phone is within 2m of the printer Preconditions for printing The printer is connected to the computer Installation of "Clabel trade" editing software Scan the QR code to install.Search for "Clabel trade" in the APP Store(iOS) or Google Play(Android) and install it. ※ If a PIN is required for Bluetooth connection, you can enter 0000 or 1234. ※ Mobile printing is only supported via Bluetooth connection. Mobile Phone Connection 7 Computer Connection 8 Scan the QR code to view the printer connection video tutorial(Phone & Computer). Download the driver from the above url and read the instructions on driver installation/software installation on the website. Visit https://ga.ctaiot.com/ to download software and drivers. Computer printing is only supported via USB connection and does not support Bluetooth. The table below lists typical issues that general users might encounter and their suggested solutions. If the printer still does not function properly after you have followed the recommended troubleshooting steps, please contact our after-sales team at [email protected] for further assistance. ProblemPossible CausesSolution ① The AC outlet plug and the power supply plug are not properly connected to the printer. ② The printer power switch is not turned on. ① The print head pressure is uneven. ② The label paper is not installed correctly. ③ The print density is improper. ④ The label paper is not fed correctly. ① The label is not installed correctly. ② There is dust or adhesive buildup on the print head. ③ The print density is not set correctly. ④ The print head is damaged. ① The label size setting is incorrect. ② The label sensor is obstruct- ed by foreign matters, causing incorrect detection. ③ The printer's paper type s…

Text truncated - open the document above for the full version.

Shenzhen Dudian Technology Co., Ltd. Covered Equipment Certification Attestation Letter 11/20/2025 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 USA ATTN.: Reviewing Engineer FCC ID: 2A359-X1 Shenzhen Dudian Technology Co., Ltd. (“the applicant”) certifies that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. Note: If the equipment for which the applicant seeks authorization is produced by any of the entities identified on the current Covered List, the applicant should include an explanation on why the equipment is not “covered” equipment. Shenzhen Dudian Technology Co., Ltd. (“the applicant”) certifies that, as of the date of the filing of the application, the applicant is not identified on the Covered List (as a specifically named entity or any of its subsidiaries or affiliates) as an entity producing “covered” equipment. Shenzhen Dudian Technology Co., Ltd. (“the applicant”) certifies that the equipment for which authorization is sought does not include cybersecurity or anti-virus software produced or provided by Kaspersky Lab, Inc. or any of its successors and assignees, including equipment with integrated Kaspersky Lab, Inc. (or any of its successors and assignees) cybersecurity or anti-virus software pursuant to DA-24-886 and KDB 986446 D01 Covered Equipment Guidance section B(2a). Signed: Printed name: Qi Liu Title: Purchasing manager Company Name: Shenzhen Dudian Technology Co., Ltd. Date: 11/20/2025

Shenzhen Dudian Technology Co., Ltd. U.S. Agent Letter of Attestation To: Federal Communications Commission 7435 Oakland Mills Road, Columbia, MD 21046, USA Date: November 20, 2025 Ref: Attestation Statement – Part 2.911(d)(7) filing FCC ID: 2A359-X1 Shenzhen Dudian Technology Co., Ltd.(“the applicant”) certifies that, as of the date of the filing of the application, CLF Import and Export Limited (“the agent”) is our designated U.S. agent for service of process for the above reference FCC ID. The applicant accepts to maintain an agent for service of process in the United States for no less than one year after either the grantee has permanently terminated all marketing and importation of the applicable equipment within the U.S., or the conclusion of any Commission-related administrative or judicial proceeding involving the equipment, whichever is later. The applicant further acknowledges it is our responsibility to inform the FCC whenever the agent information changes. CLF Import and Export Limited ("the agent) understand it is the agent's obligation to accept service of process in the United States for matters related to the applicable equipment, and at the physical U.S. address and email address. Designated U.S. Agent Company Name: CLF Import and Export Limited FRN: 0033489683 Address: 1312 17th Street #692, Denver, CO 80202, United States Signature: Contact Person: David Chen Tel: +1 949 254 2565 Email: [email protected] Applicant Shenzhen Dudian Technology Co., Ltd. FRN: 0031797301 Address: 1101, Building 3, COFCO Chuangzhi Factory, No. 67 District, Xingdong, Xin'an, Bao'an, Shenzhen, Guangdong, China Signature: Contact Person: Qi Liu Tel: +86-15919952986 Email: [email protected]

DATE: November 20, 2025 Equipment Autorisation Division Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 FCC ID: 2A359-X1 Product Name: Chiteng Business Label Printer Request for Confidentiality Pursuant to Sections 0.457 and 0.459 of the commission’s rules, we hereby request that the following documents be held confidential: (List here the documents for which you are seeking confidentiality – for example ...) • Schematics • Block diagram • Operation description These materials contain trade secrets and proprietary information and are not customarily released to the public. The public disclosure of this information might be harmful to the company and provide unjustified benefits to our competitors. <Signature> Name: Qi Liu Title: Purchasing manager Company: Shenzhen Dudian Technology Co., Ltd.

Date: November 20, 2025 Federal Communications Commission Authorization & Evaluation Division 7345 Oakland Mills Road Columbia, Maryland 21046 RE: LETTER OF AGENT AUTHORIZATION To Whom It May Concern: We, the undersigned, hereby authorize Compliance Testing, LLC to act on our behalf in all matters relating to application for equipment authorization, including the signing of all documents relating to these matters. We also hereby certify that no party to the application authorized hereunder is subject to the denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C.853(a). Sincerely, <Signature> Name: Qi Liu Title: Purchasing manager Company: Shenzhen Dudian Technology Co., Ltd.

DATE: November 20, 2025 Federal Communications Commission Authorization & Evaluation Division 7345 Oakland Mills Road Columbia, Maryland 21046 Authority to Act as Agent On our behalf, I appoint Shenzhen CCUT Quality Technology Co., Ltd. (1F, Building 35, Changxing Technology Indstrl Park Changzhen Community, Yutang Street,Shenzhen,China) to act as our agent in the preparation of this application for equipment certification. I certify that submitted documents properly describe the device or system for which equipment certification is sought. I also certify that each unit manufactured, imported or marketed, as defined in the Federal Communications Commission’s regulations will have affixed to it a label identical to that submitted for approval with this application. For instances where our authorized agent signs the application for certification on our behalf, I acknowledge that all responsibility for complying with the terms and conditions for certification, still resides with Shenzhen Dudian Technology Co., Ltd. (1101, Building 3, COFCO Chuangzhi Factory, No. 67 District, Xingdong, Xin'an, Bao'an, Shenzhen, Guangdong, China). <Signature> Name: Qi Liu Title: Purchasing manager Applicant Company: Shenzhen Dudian Technology Co., Ltd.

Shenzhen Dudian Technology Co., Ltd. Model Difference Statement Dear Sir/Madam, Added models X1Plus, X1 Pro, X1 Max, X1 Ultra, CT420C, CT430C, CT420C-H, CT430C-H basis of the original product X1 The color of appearance and model name of series models listed are different from the main model, but the circuit and the electronic construction are the same, declared by the manufacturer. Sincerely, Name: Qi Liu Company name: Shenzhen Dudian Technology Co., Ltd. Address: 1101, Building 3, COFCO Chuangzhi Factory, No. 67 District, Xingdong, Xin'an, Bao'an, Shenzhen, Guangdong, China

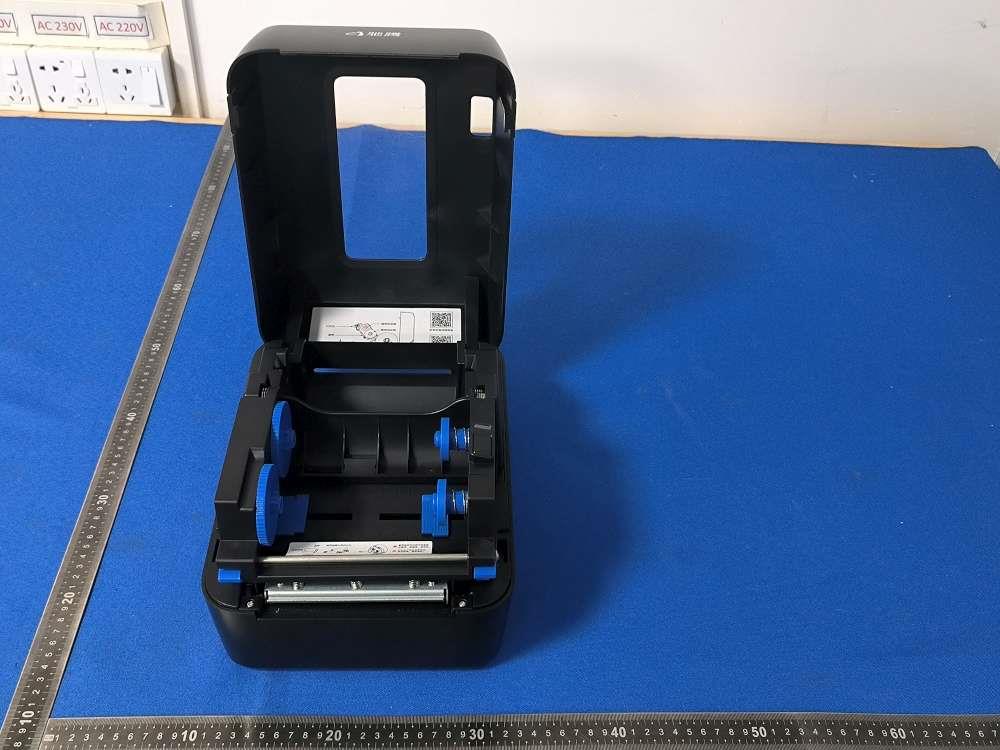

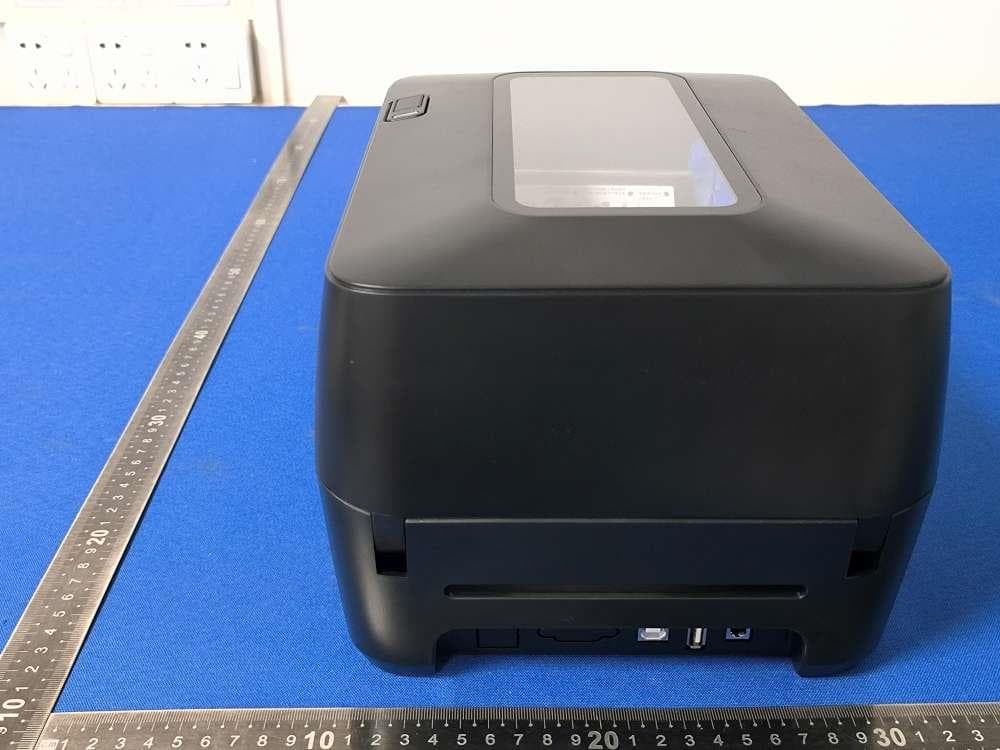

Report No: SSP25090438-1E FCC ID: 2A359-X1 Annex of Test Report Annex A. EUT External Photos Model: X1 EUT View 1 EUT View 2 Report No: SSP25090438-1E FCC ID: 2A359-X1 Annex of Test Report EUT View 3 EUT View 4 Report No: SSP25090438-1E FCC ID: 2A359-X1 Annex of Test Report EUT View 5 EUT View 6 Report No: SSP25090438-1E FCC ID: 2A359-X1 Annex of Test Report EUT View 7 EUT View 8 Report No: SSP25090438-1E FCC ID: 2A359-X1 Annex of Test Report EUT View 9 EUT View 10

Report No: SSP25090438-1E FCC ID: 2A359-X1 Annex of Test Report Annex D. Label and Information FCC Label Sample FCC Label Specifications Text is Black in color and is justified. Labels are printed in indelible ink on permanent adhesive backing or silk-screened onto the EUT or shall be affixed at a conspicuous location on the EUT. Where the EUT is constructed in two or more sections connected by wires and marketed together, the above statement is required to be affixed only to the main control unit. When the EUT is so small or for such use that it is not practicable to place the statement on it, the above information shall be placed in a prominent location in the instruction manual or pamphlet supplied to the user or, alternatively, shall be placed on the container in which the device is marketed. FCC Label Location

Report No: SSP25090438-1E FCC ID: 2A359-X1 Annex of Test Report Annex B. EUT Internal Photos Model: X1 EUT Internal View 1 EUT Internal View 2 PCB Antenna Report No: SSP25090438-1E FCC ID: 2A359-X1 Annex of Test Report EUT Internal View 3 EUT Internal View 4 Report No: SSP25090438-1E FCC ID: 2A359-X1 Annex of Test Report EUT Internal View 5 EUT Internal View 6 Report No: SSP25090438-1E FCC ID: 2A359-X1 Annex of Test Report EUT Internal View 7

FCC ID: 2A359-X1 RF Exposure Evaluation According to KDB 447498 D01 General RF Exposure Guidance v06 and part 2.1093，Unless specifically required by the published RF exposure KDB procedures, standalone 1-g head or body and 10-g extremity SAR evaluation for general population exposure conditions, by measurement or numerical simulation, is not required when the corresponding SAR Test Exclusion Threshold condition(s), listed below, is (are) satisfied. For 100 MHz to 6 GHz and test separation distances ≤ 50 mm, the 1-g and 10-g SAR test exclusion thresholds are determined by the following: [(max. power of channel, including tune-up tolerance, mW) / (min. test separation distance, mm)] · [√f(GHz)] ≤ 3.0 for 1-g SAR, and ≤ 7.5 for 10-g extremity SAR, where f(GHz) is the RF channel transmit frequency in GHz Power and distance are rounded to the nearest mW and mm before calculation The result is rounded to one decimal place for comparison Here, The device has been evaluated to meet general RF exposure requirement. The device can be used in portable exposure condition without restriction. For BLE Max Conducted Power(dBm) Tune-up Power(dBm) Max Tune-up Power(dBm) Max Power(mW) Frequency(MHz) Min. distance(mm) Calc. thresholds limit 0.04 0(±1) 1 1.259 2402 5 0.3902 3.0 So a SAR test is not required

Page 1 of 3 1. General Information 1.1 Product Information Manufacturer: Shenzhen Dudian Technology Co., Ltd. Address of Manufacturer: 1101, Building 3, COFCO Chuangzhi Factory, No. 67 District, Xingdong, Xin'an, Bao'an, Shenzhen, Guangdong, China Product Name: 2.4G Antenna Model Name: X1 Frequency Range: 2400MHz - 2483.5MHz Type of Antenna: PCB Antenna Antenna Gain: 0dBi (Max.) Impedance: 50 ohm Antenna View: Length * Width (1.5cm * 0.5cm) Page 2 of 3 2. OTA Test 2.1 Gain Frequency Peak Gain (dBi) Polarity 2402MHz 0 Horizontal 2402MHz -0.35 Vertical 2442MHz -1.56 Horizontal 2442MHz -1.83 Vertical 2480MHz -1.89 Horizontal 2480MHz -2.08 Vertical Page 3 of 3 2.2 Radiation Pattern View

Report No: SSP25090438-1E FCC Test Report Page 1 of 33 FCC TEST REPORT FCC ID: 2A359-X1 Report No. : SSP25090438-1E Applicant : Shenzhen Dudian Technology Co., Ltd. Product Name : Chiteng Business Label Printer Model Name : X1 Test Standard : FCC Part 15.247 Date of Issue : 2025-11-11 Shenzhen CCUT Quality Technology Co., Ltd. 1F, Building 35, Changxing Technology Industrial Park, Yutang Street, Guangming District, Shenzhen, Guangdong, China; (Tel.:+86-755-23406590 website: www.ccuttest.com) This test report is limited to the above client company and the product model only. It may not be duplicated without prior permitted by Shenzhen CCUT Quality Technology Co., Ltd. Report No: SSP25090438-1E FCC Test Report Page 2 of 33 Test Report Basic Information Applicant..................................: Shenzhen Dudian Technology Co., Ltd. Address of Applicant...............: 1101, Building 3, COFCO Chuangzhi Factory, No. 67 District, Xingdong, Xin'an, Bao'an, Shenzhen, Guangdong, China Manufacturer..........................: Shenzhen Dudian Technology Co., Ltd. Address of Manufacturer........: 1101, Building 3, COFCO Chuangzhi Factory, No. 67 District, Xingdong, Xin'an, Bao'an, Shenzhen, Guangdong, China Product Name.........................: Chiteng Business Label Printer Brand Name.............................: - Main Model..............................: X1 Series Models..........................: See section 1.1 (Page 5) Test Standard..........................: FCC Part 15 Subpart C KDB 558074 D01 15.247 Meas Guidance v05r02 ANSI C63.4-2014 ANSI C63.10-2020/Cor 1-2023 Date of Test .............................: 2025-09-29 to 2025-11-10 Test Result...............................: PASS Tested By ................................: (Coke Huang) Reviewed By............................: (Lorzix Luo) Authorized Signatory............: (Lahm Peng) Note : This test report is limited to the above client company and the product model only. It may not be duplicated without prior permitted by Shenzhen CCUT Quality Technology Co., Ltd.. All test data presented in this test report is only applicable to presented test sample. Report No: SSP25090438-1E FCC Test Report Page 3 of 33 CONTENTS 1. General Information ....................................................................................................................................................5 1.1 Product Information .............................................................................................................................................5 1.2 Test Setup Information..........................................................................................................................................6 1.3 Compliance Standards ...........................................................................................................................................7 1.4 Test Facilities ........................................................................................................................................................7 1.5 List of Measurement Instruments ..........................................................................................................................8 1.6 Measurement Uncertainty .....................................................................................................................................9 2. Summary of Test Results ........................................................................................................................................... 10 3. Antenna Requirement ............................................................................................................................................... 11 3.1 Standard and Limit.............................................................................................................................................. 11 3.2 Test Result .......................................................................................................................................................... 11 4. Conducted Emissions ................................................................................................................................................ 12 4.1 Standard and Limit.............................................................................................................................................. 12 4.2 Test Procedure.................................................................................................................................................... 12 4.3 Test Data and Results .......................................................................................................................................... 13 5. Radiated Emissions ................................................................................................................................................... 16 5.1 Standard and Limit.............................................................................................................................................. 16 5.2 Test Procedure.................................................................................................................................................... 16 5.3 Test Data and Results .......................................................................................................................................... 18 6. Band-edge Emissions(Radiated) ............................................................................................................................... 22 6.1 Standard and Limit.............................................................................................................................................. 22 6.2 Test Procedure.................................................................................................................................................... 22 6.3 Test Data and Results ............................................................…

Text truncated - open the document above for the full version.

Report No: SSP25090438-1E FCC ID: 2A359-X1 Annex of Test Report Annex C. Test Photos Conducted Emission Test View 1 Radiated Emission Test View Below 1GHz Report No: SSP25090438-1E FCC ID: 2A359-X1 Annex of Test Report Radiated Emission Test View Above 1GHz
