2A35HW200Kepup Smart Watch

W200 User Manual Please read this manual carefully before using the product and keep it properly. Note: In the shutdown state, if you can’t turn it on by pressing and holding the power button, please charge the watch first and try again. A. Bind device a.Download and install Scan the QR code below to download. Or open the mobile App store, search for [Kepup Wear] App to download. Note: The device system platform must meet: IOS 10.0 and above/Andriod 5.0 and above, Bluetooth BLE5.0 and above. b. Bind Method （ Note: Note: During the binding process, [Kepup Wear] will prompt you to turn on the Bluetooth of your mobile phone and authorize [Kepup Wear] to access the GPS on your phone If there is an abnormality in the binding of IOS users, please ignore this device in the Bluetooth list of the mobile phone. ） Click "+" in the upper right corner of the App homepage and select "Add Device" to search. Find the device corresponding to your watch in the search list, and click to bind it. B. Data Sync The watch will generate and record your various data during the wearing process. Before synchronization, you need to ensure that the device and the App are bound. The specific operations are as follows: Open the [Kepup Wear] App, drag the page downwards, and the synchroniza tion page will start to show synchronization prompts and progress at the same time. Note: Please synchronize data at least once within 7 days to avoid data being overwritten when the memory is full. C. Use instruction a. Charging diagram Please connect the device as shown in the figure and charge it. It is recommended to charge the battery for the first time and turn it on later. b.Wear and adjust 1.Wear Please keep the watch one finger away from the wrist bone and adjust the strap to a comfortable length. 2.Replace the strap Push the switch horizontally and remove the watch strap after loosening it. Note: Wearing too loosely or too tightly may af fect the accuracy of heart rate or blood oxygen detection. D. Operation Guide a.Key operation Short press the button: back to the dial Long press button: on/off b.Change the dial Long press the dial interface, the dial selection list appears after vibration, Swipe horizontally to select the watch face you like and click to change it. c.Interface operation Swipe the interface to enter diffe rent interfaces, the various interfaces are shown as follows: E.Function introduction a.Function overview Exercise / Heart Rate / Blood Oxygen / Sleep / Alarm Clock / Breath Training / Timer / weather / music control / stopwatch Note: The weather function needs to be turned on on the App to be used normally. For more function details, please check on the App. b. Start exercise Start exercise: Click the icon of the exercise function  select ex ercise type  start to detect exercise data after the countdown. Exercise control: Pause exercise-short press the side button. Resuming exercise: Short press the side button or tap the continue button on the screen. End exercise: Long press the side button or se lect the end button on the screen after pause. ———————————————————————————————————————— F.Cleaning and maintenance It is recommended to wear and clean the product according to the following requirements: 1. Keep the product clean 2. Keep the product dry 3. Do not wear too tight Do not use special detergents to clean the equipment, you can use soap-free detergents. For stains that are not easy to remove, it is recommended to wipe with alcohol. Note: Do not wear the device to take a bath, high temperature or steam will damage the device. G. Safety precautions Before using and operating the equipment, please read and observe the following precautions to ensure the best performance of the equipment and avoid dangerous or illegal use. Precautions for usage scenarios and operating environment: 1. The waterproof rating of the watch is IP68, but the waterproof function is not permanently effective and may weaken over time. It can be worn when swimming in a shallow pool, but it is not suitable for bathing, sauna and diving. 2. The touch screen of the watch does not support underwater operation. When the watch is dipped in water, please wipe the surface water stains dry with a soft cloth before use. 3. Some people have allergies. Their skin will be allergic to plastics, leathers, fibers and other materials. Long-term contact will cause redness, swelling, in flammation and other symptoms. Once similar conditions occur, please stop we aring them immediately and consult a doctor. 4. Please use the charging device that comes with the watch for charging. When choosing a power adapter, please use a power adapter that meets the requirements of the corresponding safety standards. 5. It is strictly forbidden to store this product in an area with too high or too low temperature, otherwise it may cause fire or explosion. 6. It is strictly forbidden to th row the watch or battery into the fire. If the battery is severely swollen, stop using it immediately. 7. Please store the watch and accessories out of the reach of children. To prevent children from swallowing it, causing suffocation or other dangers. 8. Any radio transmitting equipment (includi ng this equipment) may affect the normal operation of implanted medical equipment or personal medical equipment, such as pacemakers, hearing aids, etc. If you use these devices, please contact the manufacturer for restrictions on use. H. The name and content of hazardous substances in the product Part Name Harmful materials Pb Hg Cd Cr(VI) PBB PBDE Watch boby ○ ○ ○ ○ ○ ○ Battery ○ ○ ○ ○ ○ ○ Wristband ○ ○ ○ ○ ○ ○ Charging Cable × ○ ○ ○ ○ ○ This form is compiled in accordance with the regulations of SJ/T 11364. ○ : Indicates that the content of the hazardous substance in all homogeneous materials of the part is below the limit requirement specified in GB/T 26572. ×: Indicates that the content of the hazardous substance in at least one of the homogeneous materials of the part exceeds the …

Text truncated - open the document above for the full version.

HUABAO Technology Co., Ltd. Agent Authorization Company: HUABAO Technology Co., Ltd. Address: Rm. 302, 3rd Floor, Bld. B9, No.15 Jinyang Rd., Huaqiao Economic Development Zone, Kunshan City, China Product Name: Kepup Smart Watch Model Number(s): W200 Product Description: Kepup Smart Watch We authorize MiCOM Labs Inc., 575 Boulder Court, Pleasanton, California 94566, USA, to act on our behalf on all matters concerning the certification of above named equipment. We declare that MiCOM Labs Inc. is allowed to forward all information related to the approval and certification of equipment to the regulatory agencies as required and to discuss any issues concerning the approval application. Any and all acts carried out by MiCOM Labs on our behalf shall have the same effect as acts of our own. Signature: Date: 2022.01.14 Name: Xiao Dengyun Title: Quality Manager Company: HUABAO Technology Co., Ltd.

HUABAO Technology Co., Ltd. Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 USA Date: 2022.01.11 Subject; Request for Confidentiality FCC ID: 2A35HW200 To Whom It May Concern, Pursuant to the provisions of the Commission’s rules Title 47 Sections §0.457 and §0.459, we are requesting the Commission to withhold the following attachment(s) as confidential documents from public disclosure indefinitely. These documents contain detailed system and equipment descriptions and are considered as proprietary information in operation of the equipment. The public disclosure of these documents might be harmful to our company and would give competitors an unfair advantage in the market. Schematic Diagram Block Diagram Parts List Operational Description Tune-up Procedure In additional to above mentioned documents, in order to comply with the marketing regulations in Title 47 CFR §2.803 and the importation rules in Title 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices, we request Short Term Confidentiality of the following attachment(s); External Photos Test Setup Photos Internal Photos User Manual For 45 days, pursuant to Public Notice DA 04-1705. OR For 180 days pursuant to KDB 726920 D01. It is our understanding that all measurement test reports, FCC ID label format and correspondence during the certification review process cannot be granted as confidential documents and this information will be available for public review once the grant of equipment authorization is issued. Sincerely, Signature: Name: Xiao Dengyun Title: Quality Manager

HUABAO Technology Co., Ltd. Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 USA Date: 2022.01.11 Subject; Request for Confidentiality FCC ID: 2A35HW200 To Whom It May Concern: We, the undersigned, hereby authorize _Titto Zhao at CTC Laboratories, Inc. on our behalf, to apply to the Federal Communications Commission on our equipment. Any and all acts carried out by _ Titto Zhao _ on our behalf shall have the same effect as acts of our own. This is to advise that we are in full compliance with the Anti- Drug Abuse Act. We, the applicant, are not subject to a denial of federal benefits pursuant to Section 5301 of the Anti-Drug Act of 1988, 21 USC853a, and no party to the application is subject to a denial of federal benefits pursuant to that section. Regards, Signature: Name: Xiao Dengyun Title: Quality Manager

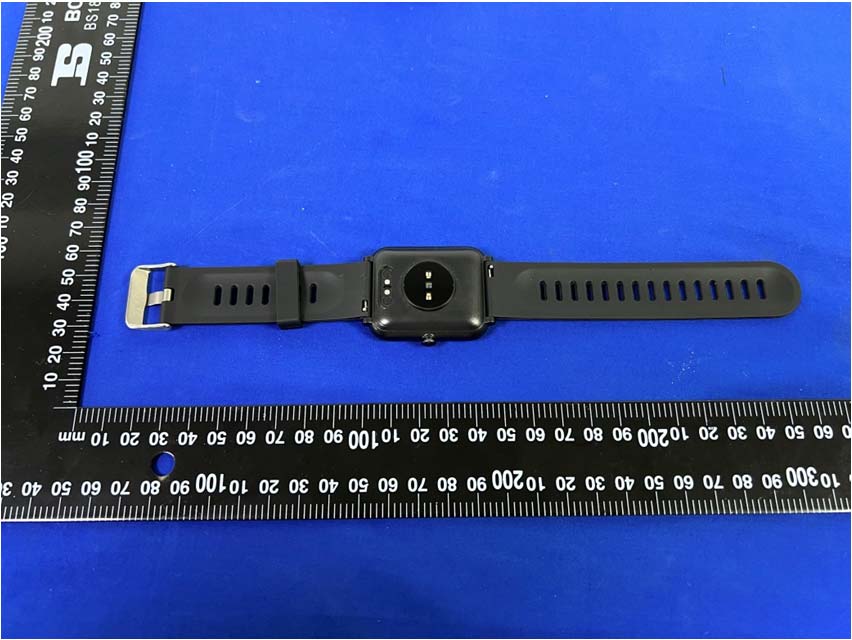

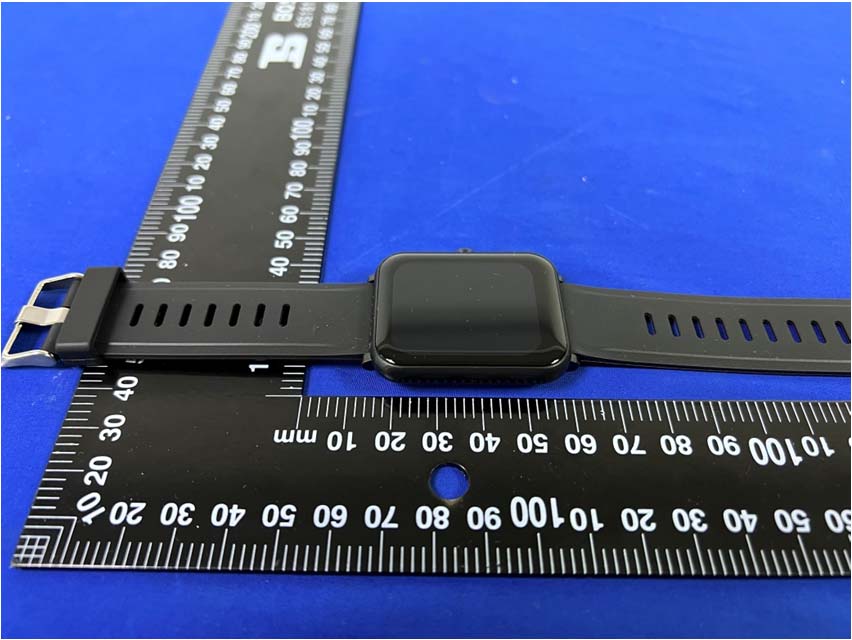

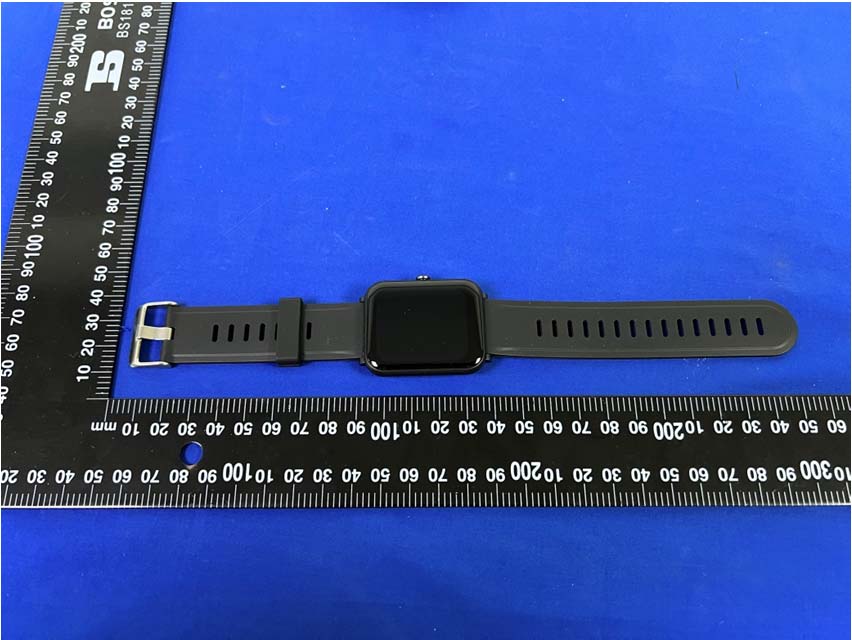

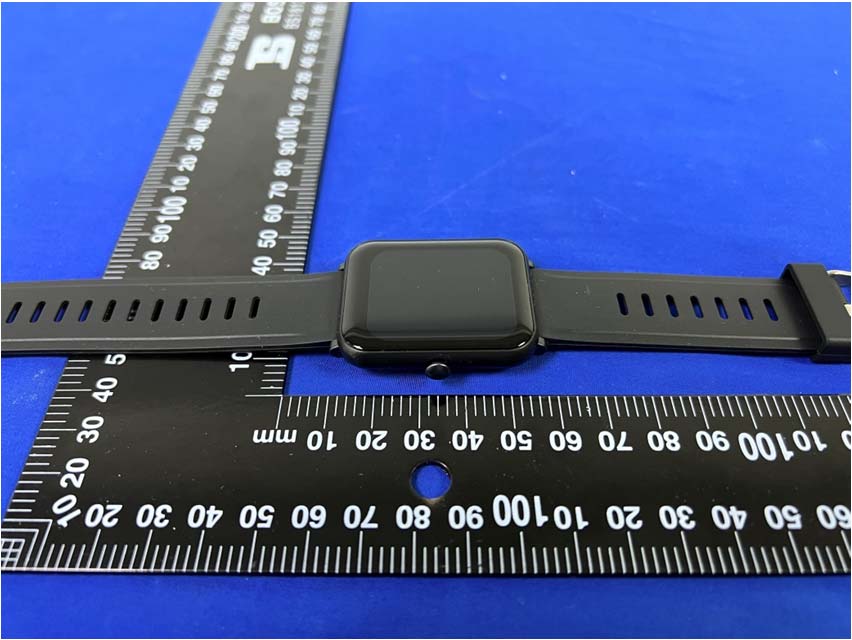

CTC Laboratories, Inc. 1-2/F., Building 2, Jiaquan Building, Guanlan High-Tech Park, Shenzhen, Guangdong, China Tel: +86-755- 27521059 Fax: +86-755- 27521011 Http://www.sz-ctc.org.cn Page 1 of 4 External Photographs Page 2 of 4 Page 3 of 4 Page 4 of 4

CTC Laboratories, Inc. 1-2/F., Building 2, Jiaquan Building, Guanlan High-Tech Park, Shenzhen, Guangdong, China Tel: +86-755- 27521059 Fax: +86-755- 27521011 Http://www.sz-ctc.org.cn Page 1 of 1 Label Label Location 1.

CTC Laboratories, Inc. 1-2/F., Building 2, Jiaquan Building, Guanlan High-Tech Park, Shenzhen, Guangdong, China Tel: +86-755- 27521059 Fax: +86-755- 27521011 Http://www.sz-ctc.org.cn Page 1 of 4 Internal Photographs Page 2 of 4 BLE Antenna Page 3 of 4 Page 4 of 4

CTC Laboratories, Inc. Add: 1-2/F., Building 2, Jiaquan Building, Guanlan High-Tech Park, Shenzhen, Guangdong, P.R.C. Tel: +86-755- 27521059 Fax: +86-755- 27521011 Http://www.sz-ctc.org.cn CTC Laboratories, Inc. 1-2/F., Building 2, Jiaquan Building, Guanlan High-Tech Park, Shenzhen, Guangdong, China Tel.: (86)755-27521059 Fax: (86)755-27521011 Http://www.sz-ctc.org.cn For anti-fake verification, please visit the official website of Certification and Accreditation Administration of the People’s Republic of China : http://yz.cnca.cn Maximum RF Exposure Evaluation FCC ID: 2A35HW200 According to KDB447498 D01 General RF Exposure Guidance v06, Clause 4.3.1(a) EUT Specification Product Name: Kepup Smart Watch Trade Mark: KEPUP Model/Type reference: W200 Listed Model(s): / Frequency band (Operating) BT/EDR: 2.402GHz ~ 2.480GHz BLE: 2.402GHz ~ 2.480GHz WLAN: 2.412GHz ~ 2.462GHz Others: Device category Portable (<5mm separation) Mobile (>20cm separation) Fixed (>20cm separation) Others ___ Antenna diversity Single antenna Multiple antennas Tx diversity Rx diversity Tx/Rx diversity Antenna gain (Max) -3.96dBi Max Evaluation applied RF Exposure Evaluation SAR Evaluation Limit [(max. power of channel, including tune-up tolerance, mW) / (min. test separation distance, mm)] · [√f (GHz) ] ≤ 3.0 Where -f (GHz) is the RF channel transmit frequency in GHz -Power and distance are rounded to the nearest mW and mm before calculation -The test exclusions are applicable only when the minimum test separation distance is ≤ 50 mm, and for transmission frequencies between 100 MHz and 6 GHz. When the minimum test separation distance is < 5 mm, a distance of 5 mm according to 4.1 f) is applied to determine SAR test exclusion. Page 2 of 2 Report No.: CTC20212175E02 CTC Laboratories, Inc. Add: 1-2/F., Building 2, Jiaquan Building, Guanlan High-Tech Park, Shenzhen, Guangdong, P.R.C. Tel.: (86)755-27521059 Fax: (86)755-27521011 Http://www.sz-ctc.org.cn For anti-fake verification, please visit the official website of Certification and Accreditation Administration of the People’s Republic of China : yz.cnca.cn Measurement Result Band Frequency (MHz) Antenna Gain (dBi) Maximum Power (dBm) Tune up tolerance (dBm) Max. Tune up Power (dBm) Calculation Value Limit BLE 2402 -3.96 0.36 0±1 1 0.157 3.000 2440 -3.96 1.22 1±1 2 0.199 2480 -3.96 0.02 0±1 1 0.159 Note For a more detailed features description, please refer to the RF Test Report. **********************THE END**********************

CTC Laboratories, Inc. 1-2/F., Building 2, Jiaquan Building, Guanlan High-Tech Park, Shenzhen, Guangdong, China Tel: +86-755- 27521059 Fax: +86-755- 27521011 Http://www.sz-ctc.org.cn TEST REPORT Report No. ··························: CTC20212175E01 FCC ID································: 2A35HW200 Applicant····························: HUABAO Technology Co., Ltd. Address·······························: Rm.302, 3rd Floor, Bld. B9, No.15 Jinyang Rd., Huaqiao Economic Development Zone, Kunshan City, China Manufacturer························: HUABAO Technology Co., Ltd. Address·······························: Rm.302, 3rd Floor, Bld. B9, No.15 Jinyang Rd., Huaqiao Economic Development Zone, Kunshan City, China Product Name······················: Kepup Smart Watch Trade Mark···························: KEPUP Model/Type reference·············: W200 Listed Model(s) ·····················: / Standard·····························: FCC CFR Title 47 Part 15 Subpart C Section 15.247 Date of receipt of test sample...: Dec. 27, 2021 Date of testing.......................: Dec. 28, 2021 ~ Jan. 04, 2022 Date of issue.........................: Jan. 05, 2022 Result.................................: PASS Compiled by: (Printed name+signature) Terry Su Supervised by: (Printed name+signature) Miller Ma Approved by: (Printed name+signature) Totti Zhao Testing Laboratory Name......: CTC Laboratories, Inc. Address...............................: 1-2/F., Building 2, Jiaquan Building, Guanlan High-Tech Park, Shenzhen, Guangdong, China This test report may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by CTC. The test results in the report only apply to the tested sample. The test report shall be invalid without all the signatures of testing engineers, reviewer and approver. Any objections must be raised to CTC within 15 days since the date when the report is received. It will not be taken into consideration beyond this limit. The test report merely correspond to the test sample. Page 2 of 44 Report No.: CTC20212175E01 CTC Laboratories, Inc. 1-2/F., Building 2, Jiaquan Building, Guanlan High-Tech Park, Shenzhen, Guangdong, China Tel.: (86)755-27521059 Fax: (86)755-27521011 Http://www.sz-ctc.org.cn For anti-fake verification, please visit the official website of Certification and Accreditation Administration of the People’s Republic of China : yz.cnca.cn Table of Contents Page 1. 7TEST SUMMARY ............................................................................................................................................. 3 1.1. T EST STANDARDS ................................................................................................................................................... 3 1.2. R EPORT VERSION ................................................................................................................................................... 3 1.3. T EST DESCRIPTION ................................................................................................................................................. 4 1.4. T EST FACILITY ........................................................................................................................................................ 5 1.5. M EASUREMENT UNCERTAINTY ................................................................................................................................. 5 1.6. E NVIRONMENTAL CONDITIONS ................................................................................................................................. 6 2. GENERAL INFORMATION .................................................................................................................................. 7 2.1. C LIENT INFORMATION ............................................................................................................................................. 7 2.2. G ENERAL DESCRIPTION OF EUT ............................................................................................................................... 7 2.3. A CCESSORY EQUIPMENT INFORMATION ...................................................................................................................... 8 2.4. O PERATION STATE .................................................................................................................................................. 9 2.5. M EASUREMENT INSTRUMENTS LIST ........................................................................................................................ 10 3. TEST ITEM AND RESULTS ................................................................................................................................ 12 3.1. C ONDUCTED EMISSION ......................................................................................................................................... 12 3.2. R ADIATED EMISSION ............................................................................................................................................. 15 3.3. B AND EDGE EMISSIONS (RADIATED) ........................................................................................................................ 25 3.4. B AND EDGE AND SPURIOUS EMISSIONS (CONDUCTED) ............................................................................................... 30 3.5. DTS BANDWIDTH ................................................................................................................................................ 36 3.6. P EAK OUTPUT POWER .......................................................................................................................................... 38 3.7. P OWER SPECTRAL DENSITY ...................................................................................................................…

Text truncated - open the document above for the full version.

CTC Laboratories, Inc. 1-2/F., Building 2, Jiaquan Building, Guanlan High-Tech Park, Shenzhen, Guangdong, China Tel: +86-755- 27521059 Fax: +86-755- 27521011 Http://www.sz-ctc.org.cn Page 1 of 2 Radiated Measurements Below 1GHz Above1GHz Page 2 of 2 Radiated Measurements Above1GHz Conducted Emissions
