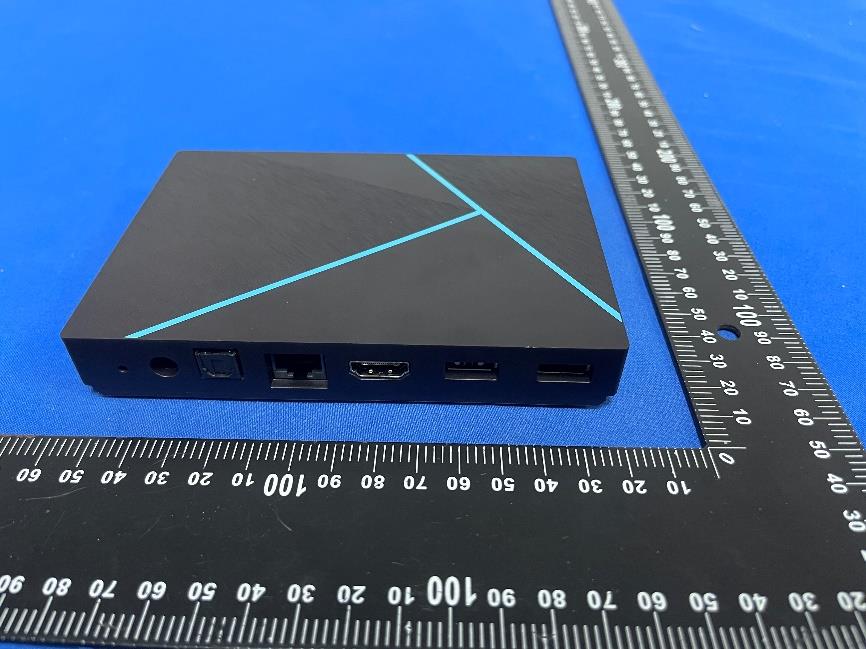

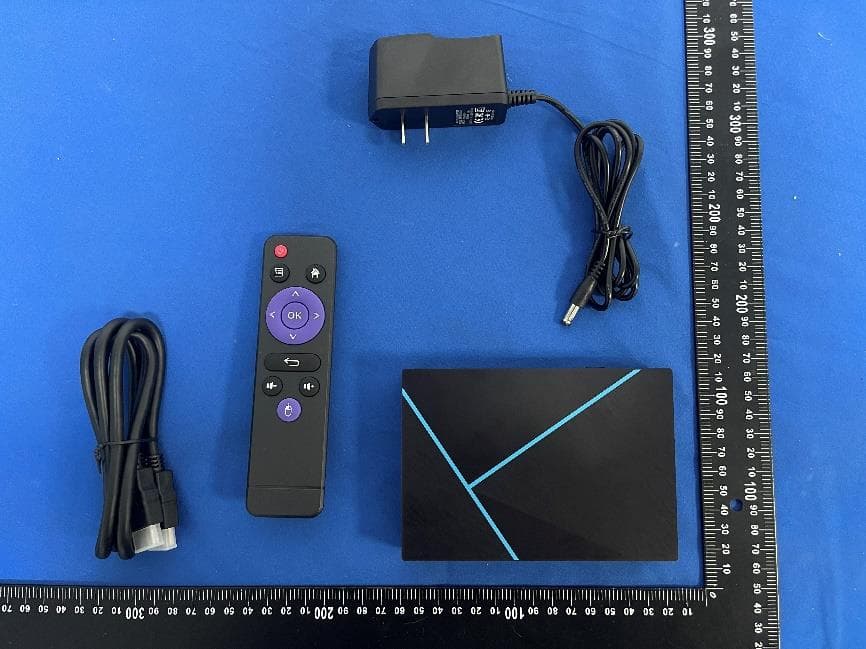

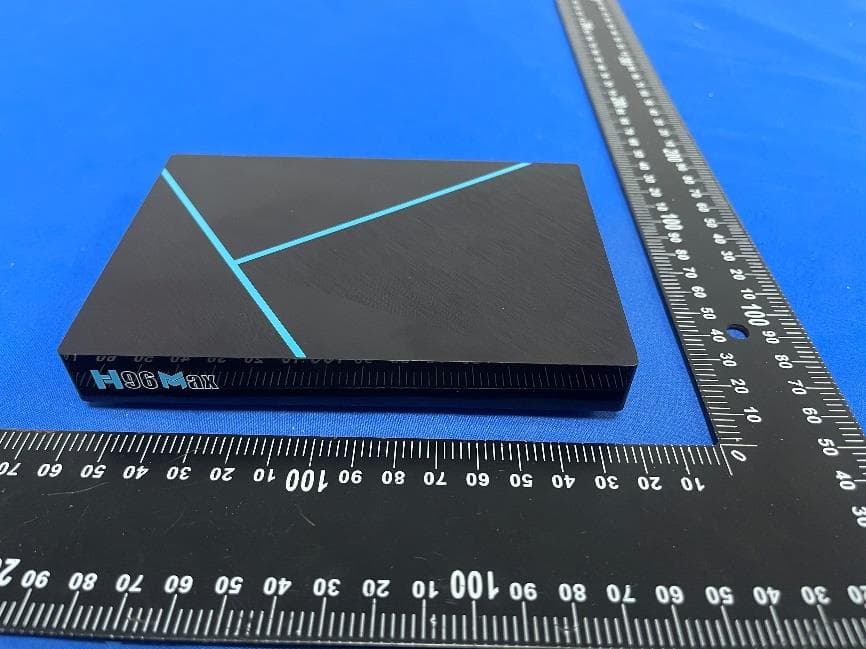

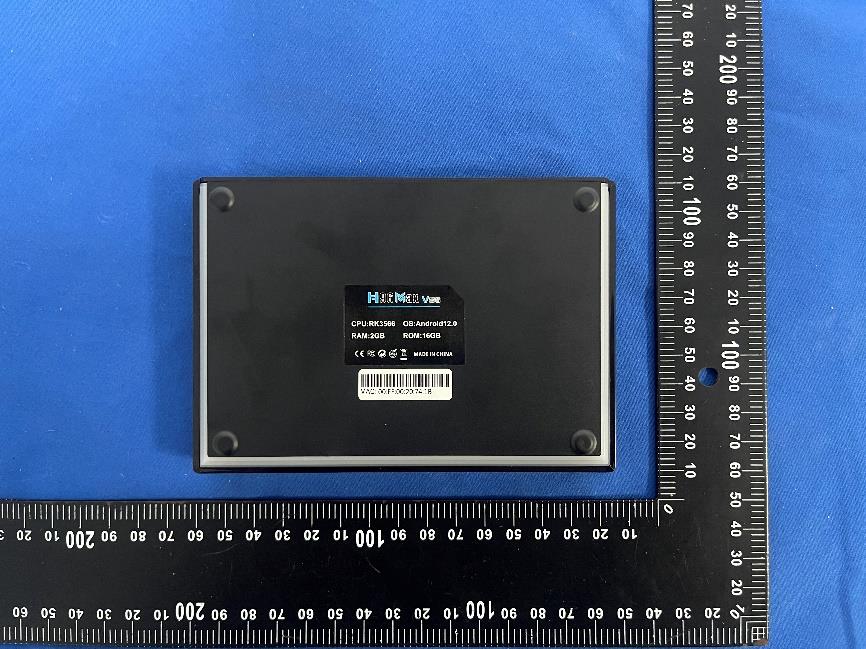

2A35W-H96MAXV56H96 Max V56

             !   " #$      !  %   & '$(   )   *      ) +,(  - % . -    &   (  ((-!*   !* #/     %   &  $ ( 0  "0* #    ,1  2 % (  %  &*     * !(( (   * *--  & '  %  % ! -   *-% %  *  %  3  (  & )- % .      % % *     *)4     %  % .     5-  (  - //6 &   '7  -(    -!8   %%   ( . *3 - &(   * . ! & -3 -( *%   &  !(  & -!  -    .-  ( *%  &  % //6$ & 8   #$ %((   -%   .  !-  (  .   &((  & -   -  *   ( &   ,9:,;; < =>?                ! "            "                  "#       "$                      %!  " %$    " %      &'(( )&*)+, -.'(/01**2)+)31)4'43()56)47)(&)+43+7'89:*)&2(7&73(;'42)16, .30*7'(<=(>&23(?)/'4@'+7A&3*7'(/*'*27/+)B7&)('*)5617&7*1>3664'B)+C>@3(0;3&*04)4     "      ! "D E     FG    FHG         "    I     "      HJ   "

1. Antenna Description: Antenna type Metal antenna Model H96 Max V56 Frequency range 2400-2500MHz, 5180-5240MHz, 5745-5825MHz Manufacturer Shenzhen Haochuangyi Technology Co.,Ltd. Address 1101,Building 6,Changyi Industrial Plant,No.1 Lirong Road,Xinshi Community,Dalang Street,Longhua District,Shenzhen,China ANT Peak Gain 2.16 dBi for 2402MHz~2480MHz 1.87 dBi for 5180-5240MHz 1.64 dBi for 5745-5825MHz 2. Antenna Photo: 3. Test Equipment & Conditions 3.1 Test instrument VSWR is tested using Agilent E5071B connected to a hand mechanism, and the status is free space. 3.2 Test environment and methods 4．Antenna Radiation Pattern 2400MHz 2450MHz 2500MHz 5180MHz 5220MHz 5240MHz 5745MHz 5785MHz 5825MHz

FCC ID:2A35W-H96MAXV56 Test Setup Photos of the EUT FCC ID:2A35W-H96MAXV56

1 FCC Appendix RF Test Data for BLE FCC ID : 2A35W-H96MAXV56 Company : Shenzhen Haochuangyi Technology Co.,Ltd. EUT : H96 Max V56 Model Number : H96 Max V56 Report No. : CTA26061100201 Reviewed By : Eric Wang 2 Appendix A: DTS Bandwidth Test Result TestMode Antenna Freq(MHz) DTS BW [MHz] FL[MHz] FH[MHz] Limit[MHz] Verdict BLE_1M Ant1 2402 0.648 2401.692 2402.340 0.5 PASS 2440 0.648 2439.692 2440.340 0.5 PASS 2480 0.632 2479.692 2480.324 0.5 PASS 3 Test Graphs BLE_1M_Ant1_2402 BLE_1M_Ant1_2440 BLE_1M_Ant1_2480 4 5 Appendix B: Occupied Channel Bandwidth Test Result TestMode Antenna Freq(MHz) OCB [MHz] FL[MHz] FH[MHz] Limit[MHz] Verdict BLE_1M Ant1 2402 1.0159 2401.5133 2402.5292 --- --- 2440 1.0059 2439.5168 2440.5227 --- --- 2480 1.0075 2479.5166 2480.5241 --- --- 6 Test Graphs BLE_1M_Ant1_2402 BLE_1M_Ant1_2440 BLE_1M_Ant1_2480 7 8 Appendix C: Maximum conducted output power Test Result Peak TestMode Antenna Freq(MHz) Conducted Peak Powert[dBm] Conducted Limit[dBm] Verdict BLE_1M Ant1 2402 -3.32 ≤30 PASS 2440 -3.37 ≤30 PASS 2480 -3.64 ≤30 PASS 9 Appendix D: Maximum power spectral density Test Result TestMode Antenna Freq(MHz) Result[dBm/3kHz] Limit[dBm/3kHz] Verdict BLE_1M Ant1 2402 -19.09 ≤8.00 PASS 2440 -19.21 ≤8.00 PASS 2480 -19.47 ≤8.00 PASS 10 Test Graphs BLE_1M_Ant1_2402 BLE_1M_Ant1_2440 BLE_1M_Ant1_2480 11 12 Appendix E: Band edge measurements Test Result TestMod e Antenn a ChNam e Freq(MHz ) RefLevel[dBm ] Result[dBm ] Limit[dBm ] Verdic t BLE_1M Ant1 Low 2402 -3.95 -54.38 ≤-23.95 PASS High 2480 -4.26 -54.62 ≤-24.26 PASS 13 Test Graphs BLE_1M_Ant1_Low_2402 BLE_1M_Ant1_High_2480 14 Appendix F: Conducted Spurious Emission Test Result TestMode Antenna Freq(MHz) FreqRange [MHz] RefLevel [dBm] Result[dBm] Limit[dBm] Verdict BLE_1M Ant1 2402 Reference -3.48 -3.48 --- PASS 30~1000 -3.48 -69.07 ≤-23.48 PASS 1000~26500 -3.48 -46.17 ≤-23.48 PASS 2440 Reference -4.28 -4.28 --- PASS 30~1000 -4.28 -68.35 ≤-24.28 PASS 1000~26500 -4.28 -47.82 ≤-24.28 PASS 2480 Reference -4.35 -4.35 --- PASS 30~1000 -4.35 -68.96 ≤-24.35 PASS 1000~26500 -4.35 -47.35 ≤-24.35 PASS 15 Test Graphs BLE_1M_Ant1_2402_0~Reference BLE_1M_Ant1_2402_30~1000 BLE_1M_Ant1_2402_1000~26500 16 BLE_1M_Ant1_2440_0~Reference BLE_1M_Ant1_2440_30~1000 17 BLE_1M_Ant1_2440_1000~26500 BLE_1M_Ant1_2480_0~Reference BLE_1M_Ant1_2480_30~1000 18 BLE_1M_Ant1_2480_1000~26500 19 Appendix G: Duty Cycle Test Result TestMode Antenna Freq(MHz) ON Time [ms] Period [ms] X DC [%] xFactor Limit Verdict BLE_1M Ant1 2402 0.41 0.62 0.6613 66.13 1.80 --- --- 2440 0.41 0.62 0.6613 66.13 1.80 --- --- 2480 0.41 0.62 0.6613 66.13 1.80 --- --- 20 Test Graphs BLE_1M_Ant1_2402 BLE_1M_Ant1_2440 BLE_1M_Ant1_2480 21 22 Appendix H: Emissions in Restricted Bands Test Result TestMod e Antenn a ChNam e Freq(M Hz) Detecto r Freq [MHz] Result [dBm] Gain [dB] DC Factor [dB] Result [dBuV/m ] Limit [dBuV/m] Verdic t BLE_1M Ant1 Low 2402 AV 2310.000 -60.75 2.16 1.80 38.41 ≤54 PASS AV 2378.855 -58.83 2.16 1.80 40.33 ≤54 PASS AV 2390.000 -59.99 2.16 1.80 39.17 ≤54 PASS Peak 2310.000 -51.5 2.16 0.00 45.86 ≤74 PASS Peak 2355.545 -47.72 2.16 0.00 49.64 ≤74 PASS Peak 2390.000 -51.79 2.16 0.00 45.57 ≤74 PASS High 2480 AV 2483.500 -57.93 2.16 1.80 41.23 ≤54 PASS AV 2484.400 -57.92 2.16 1.80 41.24 ≤54 PASS AV 2500.000 -58.97 2.16 1.80 40.19 ≤54 PASS Peak 2483.500 -50.82 2.16 0.00 46.54 ≤74 PASS Peak 2483.760 -48.49 2.16 0.00 48.87 ≤74 PASS Peak 2500.000 -51.25 2.16 0.00 46.11 ≤74 PASS Note： 1. The limit in dBm for average detector is conversion from 54dBuV/m, according to 15.209(a). The limit in dBm for peak detector is 20dB above the limit of average detector in dBm. 23 Test Graphs BLE_1M_Ant1_Low_2402_AV BLE_1M_Ant1_Low_2402_Peak BLE_1M_Ant1_High_2480_AV 24 BLE_1M_Ant1_High_2480_Peak

67 11AX40SISO_Ant1_2422 11AX40SISO_Ant1_2437 11AX40SISO_Ant1_2452 68 69 Appendix H: Emissions in Restricted Bands Test Result TestMod e Antenn a ChNam e Frequen cy[MHz] Detector Freq [MHz] Result [dBm] Gain [dB] DC Factor [dB] Result [dBuV/m] Limit [dBuV/m] Verdict 11B Ant1 Low 2412 AV 2310.000 -59.9 2.16 0.03 37.49 ≤54 PASS AV 2385.670 -49.46 2.16 0.03 47.93 ≤54 PASS AV 2390.000 -54.32 2.16 0.03 43.07 ≤54 PASS Peak 2310.000 -52.69 2.16 0.00 44.67 ≤74 PASS Peak 2386.190 -43.14 2.16 0.00 54.22 ≤74 PASS Peak 2390.000 -45.74 2.16 0.00 51.62 ≤74 PASS High 2462 AV 2483.500 -54.52 2.16 0.02 42.86 ≤54 PASS AV 2488.290 -51.22 2.16 0.02 46.16 ≤54 PASS AV 2500.000 -57.05 2.16 0.02 40.33 ≤54 PASS Peak 2483.500 -46.74 2.16 0.00 50.62 ≤74 PASS Peak 2488.840 -44.27 2.16 0.00 53.09 ≤74 PASS Peak 2500.000 -49.29 2.16 0.00 48.07 ≤74 PASS 11G Ant1 Low 2412 AV 2310.000 -59.91 2.16 1.03 38.48 ≤54 PASS AV 2389.960 -58.53 2.16 1.03 39.86 ≤54 PASS AV 2390.000 -58.53 2.16 1.03 39.86 ≤54 PASS Peak 2310.000 -52.87 2.16 0.00 44.49 ≤74 PASS Peak 2367.080 -48.43 2.16 0.00 48.93 ≤74 PASS Peak 2390.000 -50.9 2.16 0.00 46.46 ≤74 PASS High 2462 AV 2483.500 -59.15 2.16 1.25 39.46 ≤54 PASS AV 2485.540 -58.29 2.16 1.25 40.32 ≤54 PASS AV 2500.000 -59.01 2.16 1.25 39.6 ≤54 PASS Peak 2483.500 -51.57 2.16 0.00 45.79 ≤74 PASS Peak 2484.440 -48.09 2.16 0.00 49.27 ≤74 PASS Peak 2500.000 -50.81 2.16 0.00 46.55 ≤74 PASS 11N20SI SO Ant1 Low 2412 AV 2310.000 -60.56 2.16 0.87 37.67 ≤54 PASS AV 2386.840 -58.65 2.16 0.87 39.58 ≤54 PASS AV 2390.000 -59.75 2.16 0.87 38.48 ≤54 PASS Peak 2310.000 -53.81 2.16 0.00 43.55 ≤74 PASS Peak 2388.920 -47.6 2.16 0.00 49.76 ≤74 PASS Peak 2390.000 -52.23 2.16 0.00 45.13 ≤74 PASS High 2462 AV 2483.500 -59.19 2.16 1.06 39.23 ≤54 PASS AV 2492.140 -58.44 2.16 1.06 39.98 ≤54 PASS AV 2500.000 -59.12 2.16 1.06 39.3 ≤54 PASS Peak 2483.500 -51.27 2.16 0.00 46.09 ≤74 PASS Peak 2497.420 -48.17 2.16 0.00 49.19 ≤74 PASS Peak 2500.000 -49 2.16 0.00 48.36 ≤74 PASS 70 11N40SI SO Ant1 Low 2422 AV 2310.000 -60.74 2.16 1.06 37.68 ≤54 PASS AV 2389.550 -57.45 2.16 1.06 40.97 ≤54 PASS AV 2390.000 -57.69 2.16 1.06 40.73 ≤54 PASS Peak 2310.000 -51.82 2.16 0.00 45.54 ≤74 PASS Peak 2388.350 -47.79 2.16 0.00 49.57 ≤74 PASS Peak 2390.000 -50.69 2.16 0.00 46.67 ≤74 PASS High 2452 AV 2483.500 -58.26 2.16 1.06 40.16 ≤54 PASS AV 2484.875 -57.71 2.16 1.06 40.71 ≤54 PASS AV 2500.000 -59.53 2.16 1.06 38.89 ≤54 PASS Peak 2483.500 -49.56 2.16 0.00 47.8 ≤74 PASS Peak 2497.250 -47.63 2.16 0.00 49.73 ≤74 PASS Peak 2500.000 -52.09 2.16 0.00 45.27 ≤74 PASS 11AX20 SISO Ant1 Low 2412 AV 2310.000 -61.4 2.16 0.76 36.72 ≤54 PASS AV 2389.700 -58.58 2.16 0.76 39.54 ≤54 PASS AV 2390.000 -59.25 2.16 0.76 38.87 ≤54 PASS Peak 2310.000 -54.34 2.16 0.00 43.02 ≤74 PASS Peak 2381.120 -48.97 2.16 0.00 48.39 ≤74 PASS Peak 2390.000 -52.12 2.16 0.00 45.24 ≤74 PASS High 2462 AV 2483.500 -59.09 2.16 0.76 39.03 ≤54 PASS AV 2499.950 -58.86 2.16 0.76 39.26 ≤54 PASS AV 2500.000 -58.86 2.16 0.76 39.26 ≤54 PASS Peak 2483.500 -51.77 2.16 0.00 45.59 ≤74 PASS Peak 2484.660 -48.52 2.16 0.00 48.84 ≤74 PASS Peak 2500.000 -52.13 2.16 0.00 45.23 ≤74 PASS 11AX40 SISO Ant1 Low 2422 AV 2310.000 -60.64 2.16 0.87 37.59 ≤54 PASS AV 2389.850 -58.41 2.16 0.87 39.82 ≤54 PASS AV 2390.000 -58.86 2.16 0.87 39.37 ≤54 PASS Peak 2310.000 -52.2 2.16 0.00 45.16 ≤74 PASS Peak 2374.850 -49.37 2.16 0.00 47.99 ≤74 PASS Peak 2390.000 -50.39 2.16 0.00 46.97 ≤74 PASS High 2452 AV 2483.500 -58.8 2.16 0.87 39.43 ≤54 PASS AV 2484.500 -58.06 2.16 0.87 40.17 ≤54 PASS AV 2500.000 -59.41 2.16 0.87 38.82 ≤54 PASS Peak 2483.500 -49.45 2.16 0.00 47.91 ≤74 PASS Peak 2490.625 -49.01 2.16 0.00 48.35 ≤74 PASS Peak 2500.000 -50.15 2.16 0.00 47.21 ≤74 PASS Note： 1. The limit in dBm for average detector is conversion from 54dBuV/m, according to 15.209(a). The limit in dBm for peak detector is 20dB above the limit of average detector in dBm. 71 Test Graphs 11B_Ant1_Low_2412_AV 11B_Ant1_Low_2412_Peak 11B_Ant1_High_2462_AV 72 11B_Ant1_High_2462_Peak 11G_Ant1_Low_2412_AV 73 11G_Ant1_Low_2412_Peak 11G_Ant1_High_2462_AV 11G_Ant1_High_2462_Peak 74 11N20SISO_Ant1_Low_2412_AV 11N20SISO_Ant1_Low_2412_Peak 75 11N20SISO_Ant1_High_2462_AV 11N20SISO_Ant1_High_2462_Peak 11N40SISO_Ant1_Low_2422_AV 76 11N40SISO_Ant1_Low_2422_Peak 11N40SISO_Ant1_High_2452_AV 77 11N40SISO_Ant1_High_2452_Peak 11AX20SISO_Ant1_Low_2412_AV 11AX20SISO_Ant1_Low_2412_Peak 78 11AX20SISO_Ant1_High_2462_AV 11AX20SISO_Ant1_High_2462_Peak 79 11AX40SISO_Ant1_Low_2422_AV 11AX40SISO_Ant1_Low_2422_Peak 11AX40SISO_Ant1_High_2452_AV 80 11AX40SISO_Ant1_High_2452_Peak

67 11AX40SISO_Ant1_2422 11AX40SISO_Ant1_2437 11AX40SISO_Ant1_2452 68 69 Appendix H: Emissions in Restricted Bands Test Result TestMod e Antenn a ChNam e Frequen cy[MHz] Detector Freq [MHz] Result [dBm] Gain [dB] DC Factor [dB] Result [dBuV/m] Limit [dBuV/m] Verdict 11B Ant1 Low 2412 AV 2310.000 -59.9 2.16 0.03 37.49 ≤54 PASS AV 2385.670 -49.46 2.16 0.03 47.93 ≤54 PASS AV 2390.000 -54.32 2.16 0.03 43.07 ≤54 PASS Peak 2310.000 -52.69 2.16 0.00 44.67 ≤74 PASS Peak 2386.190 -43.14 2.16 0.00 54.22 ≤74 PASS Peak 2390.000 -45.74 2.16 0.00 51.62 ≤74 PASS High 2462 AV 2483.500 -54.52 2.16 0.02 42.86 ≤54 PASS AV 2488.290 -51.22 2.16 0.02 46.16 ≤54 PASS AV 2500.000 -57.05 2.16 0.02 40.33 ≤54 PASS Peak 2483.500 -46.74 2.16 0.00 50.62 ≤74 PASS Peak 2488.840 -44.27 2.16 0.00 53.09 ≤74 PASS Peak 2500.000 -49.29 2.16 0.00 48.07 ≤74 PASS 11G Ant1 Low 2412 AV 2310.000 -59.91 2.16 1.03 38.48 ≤54 PASS AV 2389.960 -58.53 2.16 1.03 39.86 ≤54 PASS AV 2390.000 -58.53 2.16 1.03 39.86 ≤54 PASS Peak 2310.000 -52.87 2.16 0.00 44.49 ≤74 PASS Peak 2367.080 -48.43 2.16 0.00 48.93 ≤74 PASS Peak 2390.000 -50.9 2.16 0.00 46.46 ≤74 PASS High 2462 AV 2483.500 -59.15 2.16 1.25 39.46 ≤54 PASS AV 2485.540 -58.29 2.16 1.25 40.32 ≤54 PASS AV 2500.000 -59.01 2.16 1.25 39.6 ≤54 PASS Peak 2483.500 -51.57 2.16 0.00 45.79 ≤74 PASS Peak 2484.440 -48.09 2.16 0.00 49.27 ≤74 PASS Peak 2500.000 -50.81 2.16 0.00 46.55 ≤74 PASS 11N20SI SO Ant1 Low 2412 AV 2310.000 -60.56 2.16 0.87 37.67 ≤54 PASS AV 2386.840 -58.65 2.16 0.87 39.58 ≤54 PASS AV 2390.000 -59.75 2.16 0.87 38.48 ≤54 PASS Peak 2310.000 -53.81 2.16 0.00 43.55 ≤74 PASS Peak 2388.920 -47.6 2.16 0.00 49.76 ≤74 PASS Peak 2390.000 -52.23 2.16 0.00 45.13 ≤74 PASS High 2462 AV 2483.500 -59.19 2.16 1.06 39.23 ≤54 PASS AV 2492.140 -58.44 2.16 1.06 39.98 ≤54 PASS AV 2500.000 -59.12 2.16 1.06 39.3 ≤54 PASS Peak 2483.500 -51.27 2.16 0.00 46.09 ≤74 PASS Peak 2497.420 -48.17 2.16 0.00 49.19 ≤74 PASS Peak 2500.000 -49 2.16 0.00 48.36 ≤74 PASS 70 11N40SI SO Ant1 Low 2422 AV 2310.000 -60.74 2.16 1.06 37.68 ≤54 PASS AV 2389.550 -57.45 2.16 1.06 40.97 ≤54 PASS AV 2390.000 -57.69 2.16 1.06 40.73 ≤54 PASS Peak 2310.000 -51.82 2.16 0.00 45.54 ≤74 PASS Peak 2388.350 -47.79 2.16 0.00 49.57 ≤74 PASS Peak 2390.000 -50.69 2.16 0.00 46.67 ≤74 PASS High 2452 AV 2483.500 -58.26 2.16 1.06 40.16 ≤54 PASS AV 2484.875 -57.71 2.16 1.06 40.71 ≤54 PASS AV 2500.000 -59.53 2.16 1.06 38.89 ≤54 PASS Peak 2483.500 -49.56 2.16 0.00 47.8 ≤74 PASS Peak 2497.250 -47.63 2.16 0.00 49.73 ≤74 PASS Peak 2500.000 -52.09 2.16 0.00 45.27 ≤74 PASS 11AX20 SISO Ant1 Low 2412 AV 2310.000 -61.4 2.16 0.76 36.72 ≤54 PASS AV 2389.700 -58.58 2.16 0.76 39.54 ≤54 PASS AV 2390.000 -59.25 2.16 0.76 38.87 ≤54 PASS Peak 2310.000 -54.34 2.16 0.00 43.02 ≤74 PASS Peak 2381.120 -48.97 2.16 0.00 48.39 ≤74 PASS Peak 2390.000 -52.12 2.16 0.00 45.24 ≤74 PASS High 2462 AV 2483.500 -59.09 2.16 0.76 39.03 ≤54 PASS AV 2499.950 -58.86 2.16 0.76 39.26 ≤54 PASS AV 2500.000 -58.86 2.16 0.76 39.26 ≤54 PASS Peak 2483.500 -51.77 2.16 0.00 45.59 ≤74 PASS Peak 2484.660 -48.52 2.16 0.00 48.84 ≤74 PASS Peak 2500.000 -52.13 2.16 0.00 45.23 ≤74 PASS 11AX40 SISO Ant1 Low 2422 AV 2310.000 -60.64 2.16 0.87 37.59 ≤54 PASS AV 2389.850 -58.41 2.16 0.87 39.82 ≤54 PASS AV 2390.000 -58.86 2.16 0.87 39.37 ≤54 PASS Peak 2310.000 -52.2 2.16 0.00 45.16 ≤74 PASS Peak 2374.850 -49.37 2.16 0.00 47.99 ≤74 PASS Peak 2390.000 -50.39 2.16 0.00 46.97 ≤74 PASS High 2452 AV 2483.500 -58.8 2.16 0.87 39.43 ≤54 PASS AV 2484.500 -58.06 2.16 0.87 40.17 ≤54 PASS AV 2500.000 -59.41 2.16 0.87 38.82 ≤54 PASS Peak 2483.500 -49.45 2.16 0.00 47.91 ≤74 PASS Peak 2490.625 -49.01 2.16 0.00 48.35 ≤74 PASS Peak 2500.000 -50.15 2.16 0.00 47.21 ≤74 PASS Note： 1. The limit in dBm for average detector is conversion from 54dBuV/m, according to 15.209(a). The limit in dBm for peak detector is 20dB above the limit of average detector in dBm. 71 Test Graphs 11B_Ant1_Low_2412_AV 11B_Ant1_Low_2412_Peak 11B_Ant1_High_2462_AV 72 11B_Ant1_High_2462_Peak 11G_Ant1_Low_2412_AV 73 11G_Ant1_Low_2412_Peak 11G_Ant1_High_2462_AV 11G_Ant1_High_2462_Peak 74 11N20SISO_Ant1_Low_2412_AV 11N20SISO_Ant1_Low_2412_Peak 75 11N20SISO_Ant1_High_2462_AV 11N20SISO_Ant1_High_2462_Peak 11N40SISO_Ant1_Low_2422_AV 76 11N40SISO_Ant1_Low_2422_Peak 11N40SISO_Ant1_High_2452_AV 77 11N40SISO_Ant1_High_2452_Peak 11AX20SISO_Ant1_Low_2412_AV 11AX20SISO_Ant1_Low_2412_Peak 78 11AX20SISO_Ant1_High_2462_AV 11AX20SISO_Ant1_High_2462_Peak 79 11AX40SISO_Ant1_Low_2422_AV 11AX40SISO_Ant1_Low_2422_Peak 11AX40SISO_Ant1_High_2452_AV 80 11AX40SISO_Ant1_High_2452_Peak

1 FCC Appendix RF Test Data for 2.4GWIFI FCC ID : 2A35W-H96MAXV56 Company : Shenzhen Haochuangyi Technology Co.,Ltd. EUT : H96 Max V56 Model Number : H96 Max V56 Report No. : CTA26061100203 Reviewed By : Eric Wang 2 Appendix A: DTS Bandwidth Test Result TestMode Antenna Frequency[MHz] DTS BW [MHz] FL[MHz] FH[MHz] Limit[MHz] Verdict 11B Ant1 2412 10.200 2406.920 2417.120 0.5 PASS 2437 10.240 2431.920 2442.160 0.5 PASS 2462 10.240 2456.920 2467.160 0.5 PASS 11G Ant1 2412 15.720 2404.080 2419.800 0.5 PASS 2437 15.720 2429.080 2444.800 0.5 PASS 2462 15.760 2454.160 2469.920 0.5 PASS 11N20SISO Ant1 2412 17.040 2403.440 2420.480 0.5 PASS 2437 16.280 2428.760 2445.040 0.5 PASS 2462 16.880 2453.720 2470.600 0.5 PASS 11N40SISO Ant1 2422 35.360 2404.560 2439.920 0.5 PASS 2437 35.840 2419.160 2455.000 0.5 PASS 2452 35.760 2434.240 2470.000 0.5 PASS 11AX20SISO Ant1 2412 18.720 2402.680 2421.400 0.5 PASS 2437 18.200 2427.760 2445.960 0.5 PASS 2462 18.400 2452.680 2471.080 0.5 PASS 11AX40SISO Ant1 2422 30.560 2408.640 2439.200 0.5 PASS 2437 37.600 2418.360 2455.960 0.5 PASS 2452 35.760 2434.640 2470.400 0.5 PASS 3 Test Graphs 11B_Ant1_2412 11B_Ant1_2437 11B_Ant1_2462 4 11G_Ant1_2412 11G_Ant1_2437 5 11G_Ant1_2462 11N20SISO_Ant1_2412 11N20SISO_Ant1_2437 6 11N20SISO_Ant1_2462 11N40SISO_Ant1_2422 7 11N40SISO_Ant1_2437 11N40SISO_Ant1_2452 11AX20SISO_Ant1_2412 8 11AX20SISO_Ant1_2437 11AX20SISO_Ant1_2462 9 11AX40SISO_Ant1_2422 11AX40SISO_Ant1_2437 11AX40SISO_Ant1_2452 10 11 Appendix B: Occupied Channel Bandwidth Test Result TestMode Antenna Channel Frequency[MHz] OCB [MHz] FL[MHz] FH[MHz] Limit[MHz] Verdict 11B Ant1 2412 13.442 2405.2806 2418.7226 --- --- 2437 13.436 2430.2937 2443.7297 --- --- 2462 13.425 2455.3098 2468.7348 --- --- 11G Ant1 2412 16.822 2403.6620 2420.4840 --- --- 2437 16.818 2428.6645 2445.4825 --- --- 2462 16.899 2453.5570 2470.4560 --- --- 11N20SISO Ant1 2412 17.919 2403.0599 2420.9789 --- --- 2437 17.860 2428.0868 2445.9468 --- --- 2462 17.883 2453.0562 2470.9392 --- --- 11N40SISO Ant1 2422 36.081 2404.1003 2440.1813 --- --- 2437 36.029 2419.1408 2455.1698 --- --- 2452 36.103 2434.0880 2470.1910 --- --- 11AX20SISO Ant1 2412 18.909 2402.5672 2421.4762 --- --- 2437 18.922 2427.5720 2446.4940 --- --- 2462 18.952 2452.5547 2471.5067 --- --- 11AX40SISO Ant1 2422 37.598 2403.3826 2440.9806 --- --- 2437 37.545 2418.4281 2455.9731 --- --- 2452 37.548 2433.3704 2470.9184 --- --- 12 Test Graphs 11B_Ant1_2412 11B_Ant1_2437 11B_Ant1_2462 13 11G_Ant1_2412 11G_Ant1_2437 14 11G_Ant1_2462 11N20SISO_Ant1_2412 11N20SISO_Ant1_2437 15 11N20SISO_Ant1_2462 11N40SISO_Ant1_2422 16 11N40SISO_Ant1_2437 11N40SISO_Ant1_2452 11AX20SISO_Ant1_2412 17 11AX20SISO_Ant1_2437 11AX20SISO_Ant1_2462 18 11AX40SISO_Ant1_2422 11AX40SISO_Ant1_2437 11AX40SISO_Ant1_2452 19 20 Appendix C: Maximum conducted output power Test Result Test Mode Antenna Frequency[MHz] Result [dBm] Limit [dBm] Verdict 11B Ant1 2412 15.58 ≤30.00 PASS 2437 15.68 ≤30.00 PASS 2462 15.94 ≤30.00 PASS 11G Ant1 2412 14.40 ≤30.00 PASS 2437 14.62 ≤30.00 PASS 2462 14.69 ≤30.00 PASS 11N20SISO Ant1 2412 14.36 ≤30.00 PASS 2437 14.34 ≤30.00 PASS 2462 14.62 ≤30.00 PASS 11N40SISO Ant1 2422 14.73 ≤30.00 PASS 2437 14.87 ≤30.00 PASS 2452 14.79 ≤30.00 PASS 11AX20SISO Ant1 2412 14.20 ≤30.00 PASS 2437 14.21 ≤30.00 PASS 2462 14.36 ≤30.00 PASS 11AX40SISO Ant1 2422 13.84 ≤30.00 PASS 2437 14.53 ≤30.00 PASS 2452 14.40 ≤30.00 PASS 21 Appendix D: Maximum power spectral density Test Result TestMode Antenna Frequency[MHz] Result[dBm/3-100kHz] Limit[dBm/3kHz] Verdict 11B Ant1 2412 -9.90 ≤8.00 PASS 2437 -10.73 ≤8.00 PASS 2462 -9.51 ≤8.00 PASS 11G Ant1 2412 -17.50 ≤8.00 PASS 2437 -17.77 ≤8.00 PASS 2462 -17.22 ≤8.00 PASS 11N20SISO Ant1 2412 -17.76 ≤8.00 PASS 2437 -15.70 ≤8.00 PASS 2462 -17.06 ≤8.00 PASS 11N40SISO Ant1 2422 -19.82 ≤8.00 PASS 2437 -19.11 ≤8.00 PASS 2452 -17.84 ≤8.00 PASS 11AX20SISO Ant1 2412 -18.96 ≤8.00 PASS 2437 -17.95 ≤8.00 PASS 2462 -18.16 ≤8.00 PASS 11AX40SISO Ant1 2422 -22.21 ≤8.00 PASS 2437 -20.30 ≤8.00 PASS 2452 -21.95 ≤8.00 PASS 22 Test Graphs 11B_Ant1_2412 11B_Ant1_2437 11B_Ant1_2462 23 11G_Ant1_2412 11G_Ant1_2437 24 11G_Ant1_2462 11N20SISO_Ant1_2412 11N20SISO_Ant1_2437 25 11N20SISO_Ant1_2462 11N40SISO_Ant1_2422 26 11N40SISO_Ant1_2437 11N40SISO_Ant1_2452 11AX20SISO_Ant1_2412 27 11AX20SISO_Ant1_2437 11AX20SISO_Ant1_2462 28 11AX40SISO_Ant1_2422 11AX40SISO_Ant1_2437 11AX40SISO_Ant1_2452 29 30 Appendix E: Band edge measurements Test Result TestMode Antenna ChName Frequency[MHz] RefLevel[dBm] Result[dBm] Limit[dBm] Verdict 11B Ant1 Low 2412 3.47 -49.16 ≤-16.53 PASS High 2462 4.06 -52.11 ≤-15.94 PASS 11G Ant1 Low 2412 -2.34 -33.3 ≤-22.34 PASS High 2462 -1.69 -57.96 ≤-21.69 PASS 11N20SISO Ant1 Low 2412 -2.37 -32.81 ≤-22.37 PASS High 2462 -1.61 -57.94 ≤-21.61 PASS 11N40SISO Ant1 Low 2422 -5.37 -33.88 ≤-25.37 PASS High 2452 -4.85 -56.53 ≤-24.85 PASS 11AX20SISO Ant1 Low 2412 -3.19 -33.91 ≤-23.19 PASS High 2462 -2.66 -58.45 ≤-22.66 PASS 11AX40SISO Ant1 Low 2422 -6.22 -36.32 ≤-26.22 PASS High 2452 -5.92 -57.11 ≤-25.92 PASS 31 Test Graphs 11B_Ant1_Low_2412 11B_Ant1_High_2462 11G_Ant1_Low_2412 32 11G_Ant1_High_2462 11N20SISO_Ant1_Low_2412 33 11N20SISO_Ant1_High_2462 11N40SISO_Ant1_Low_2422 11N40SISO_Ant1_High_2452 34 11AX20SISO_Ant1_Low_2412 11AX20SISO_Ant1_High_2462 35 11AX40SISO_Ant1_Low_2422 11AX40SISO_Ant1_High_2452 36 Appendix F: Conducted Spurious Emission Test Result TestMode Antenna Frequency[MHz] FreqRange [Mhz] RefLevel [dBm] Result [dBm] Limit [dBm] Verdict 11B Ant1 2412 Reference 2.66 2.66 --- PASS 30~1000 2.66 -68.62 ≤-17.34 PASS 1000~26500 2.66 -53.01 ≤-17.34 PASS 2437 Reference 2.43 2.43 --- PASS 30~1000 2.43 -68.88 ≤-17.57 PASS 1000~26500 2.43 -53.37 ≤-17.57 PASS 2462 Reference 3.04 3.04 --- PASS 30~1000 3.04 -67.05 ≤-16.96 PASS 1000~26500 3.04 -53.38 ≤-16.96 PASS 11G Ant1 2412 Reference -2.34 -2.34 --- PASS 30~1000 -2.34 -68.98 ≤-22.34 PASS 1000~26500 -2.34 -57.35 ≤-22.34 PASS 2437 Reference -2.15 -2.15 --- PASS 30~1000 -2.15 -68.86 ≤-22.15 PASS 1000~26500 -2.15…

Text truncated - open the document above for the full version.

Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn FCC PART 15 SUBPART C TEST REPORT FCC PART 15.247 Report Reference No. .................... : FCC ID. .......................................... : CTA26061100203 2A35W-H96MAXV56 Compiled by ( position+printed name+signature) . : File administrators Zoey Cao Supervised by ( position+printed name+signature) . : Project Engineer Ace Chai Approved by ( position+printed name+signature) . : RF Manager Eric Wang Date of issue .................................... : Jun. 24, 2026 Testing Laboratory Name ............. : Shenzhen CTA Testing Technology Co., Ltd. Address ............................................ : Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Applicant’s name ........................... : Shenzhen Haochuangyi Technology Co.,Ltd. Address ............................................ : 1101,Building 6,Changyi Industrial Plant,No.1 Lirong Road,Xinshi Community,Dalang Street,Longhua District,Shenzhen,China Test specification.......................... : Standard .......................................... : FCC Part 15.247 TRF Originator ................................. : Shenzhen CTA Testing Technology Co., Ltd. Shenzhen CTA Testing Technology Co., Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen CTA Testing Technology Co., Ltd. is acknowledged as copyright owner and source of the material. Shenzhen CTA Testing Technology Co., Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Test item description .................... : H96 Max V56 Trade Mark ....................................... : H96 Max Manufacturer .................................... : Shenzhen Haochuangyi Technology Co.,Ltd. Model/Type reference ...................... : H96 Max V56 Listed Models ................................... : N/A Modulation Type .............................. : CCK/DSSS/OFDM/ OFDMA Operation Frequency ....................... : From 2412 - 2462MHz Rating ............................................... : Input: DC 5V 2A Result ............................................... : PASS Report No.: CTA26061100203 Page 2 of 31 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn T E S T R E P O R T Equipment under Test : H96 Max V56 Model /Type : H96 Max V56 Listed Models : N/A Applicant : Shenzhen Haochuangyi Technology Co.,Ltd. Address : 1101,Building 6,Changyi Industrial Plant,No.1 Lirong Road,Xinshi Community,Dalang Street,Longhua District,Shenzhen,China Manufacturer : Shenzhen Haochuangyi Technology Co.,Ltd. Address : 1101,Building 6,Changyi Industrial Plant,No.1 Lirong Road,Xinshi Community,Dalang Street,Longhua District,Shenzhen,China Test Result: PASS The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Report No.: CTA26061100203 Page 3 of 31 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn Contents 1 TEST STANDARDS ...................................................................................................................................... 4 2 SUMMARY .................................................................................................................................................... 5 2.1 General Remarks .............................................................................................................................. 5 2.2 Product Description ........................................................................................................................... 5 2.3 Equipment Under Test ....................................................................................................................... 5 2.4 Short description of the Equipment under Test (EUT) ...................................................................... 5 2.5 EUT configuration .............................................................................................................................. 6 2.6 EUT operation mode ......................................................................................................................... 6 2.7 Block Diagram of Test Setup ............................................................................................................. 6 2.8 Related Submittal(s) / Grant (s) ......................................................................................................... 6 2.9 Modifications ...................................................................................................................................... 6 3 TEST ENVIRONMENT ................................................................................................................................. 7 3.1 Address of the test laboratory ........................................................................................................... 7 3.2 Test Facility........................................................................................................................................ 7 3.3 Environmental conditions .....................…

Text truncated - open the document above for the full version.

Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn FCC PART 15 SUBPART C TEST REPORT FCC PART 15.247 Report Reference No. ...................: FCC ID. ......................................... : CTA26061100201 2A35W-H96MAXV56 Compiled by ( position+printed name+signature) : File administrators Zoey Cao Supervised by ( position+printed name+signature) : Project Engineer Ace Chai Approved by ( position+printed name+signature) : RF Manager Eric Wang Date of issue ...................................: Jun. 24, 2026 Testing Laboratory Name .............: Shenzhen CTA Testing Technology Co., Ltd. Address ..........................................: Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Applicant’s name...........................: Shenzhen Haochuangyi Technology Co.,Ltd. Address ...........................................: 1101,Building 6,Changyi Industrial Plant,No.1 Lirong Road,Xinshi Community,Dalang Street,Longhua District,Shenzhen,China Test specification ......................... : Standard ..........................................: FCC Part 15.247 Shenzhen CTA T…
