2A36Z-WTWASV2SOUNDVIBE WATERPROOF WIRELESS SPEAKER

110.00 m m 63.00 mm Federal Communications Commission (FCC) Statement. This device complies with part 15 of the FCC Rules. Operation is subject to the following twoconditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide Reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one ormore of the following measures: •Reorient or relocate the receiving antenna. •Increase the separation between the equipment and receiver. •Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. •Consult the dealer or an experienced radio/TV technician for help. Warning: Changes or modifications made to this device not expressly approved by Nabfly, Inc. may void the FCC authorization to operate this device.Note: The manufacturer is not responsible for any radio or TV interference caused by unauthorized modifications to this equipment. Such modifications could void the user’s authority to operate the equipment. RF exposure statement: This device complies with FCC RF radiation exposure limits set forth for an uncontrolled environment. The device is installed and operated without restriction.

Nabfly, Inc. U.S. Agent Designation for Service of Process (Applicant and U.S. Agent are Separate Parties) TO: Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 ATTENTION: FCC Certification – Section 2.911(d)(7) Information Designated U.S. Agent Company Name: Nabfly, Inc. FRN: 0031805195 Contact Name: Steven Jaffe Street Address: 151 W. 25th St. Floor 5 City/Province/Zip: New York, NY 10001 USA Telephone No: (602) 809 1083 Email: [email protected] This letter is to confirm that we (“the Designated U.S. Agent) have accepted the responsibility to act as the Designated U.S. Agent for Service of Process as required by section 47 CFR 2.911(d)(7) on behalf of the Applicant noted below. U.S. Agent Signature: Date: Aug 11, 2023 Signed by (Printed Name/Title): : Steven Jaffe /CEO The Applicant acknowledges that they must maintain an agent for no less than one year after terminating all marketing and importation OR the conclusion of any Commission-related proceeding involving the equipment. The applicant further acknowledges their responsibility to inform the FCC whenever the Designated U.S. Agent information above changes. Applicant Company name: Nabfly, Inc. Grantee Code: 2A36Z FCC ID: 2A36Z-WTWASV2 Contact Name: Steven Jaffe Street Address: 151 W. 25th St. Floor 5, New York, NY 10001 USA Telephone No: (602) 809 1083 Email: [email protected] Applicant Signature: Date: Aug 11,2023 Signed by (Printed Name/Title): Steven Jaffe /CEO

Nabfly, Inc. Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 USA Date: August 11, 2023 FCC ID: 2A36Z-WTWASV2 Ref. #1: Attestation Statements Part 2.911(d)(5)(i) Filing Nabfly, Inc. certifies that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. Ref. #2: Attestation Statements Part 2.911(d)(5)(ii) Filing Nabfly, Inc. certifies that, as of the date of the filing of the application, the applicant is not identified on the Covered List as an entity producing “covered” equipment. Applicant: Nabfly, Inc. Address: 151 W. 25th St. Floor 5,New York, NY 10001 USA Contact Person: Steven Jaffe Tel.: (602) 809 1083 Email: [email protected] Sincerely, Signature:

Product specification Quick Reference Date ITEM ： Antenna module on the system board Antenna type： Inverted F shap Frequenc Range：2400 ~ 2500MHz Efficiency (dB)：70% Gain (dBi)： 1.54 Input Impendence(ohm)：50 Polarization Type：Vertical & Horizontal VSW ：< 2 Antenna Layout & module on the system board Nabfly, Inc. 151 W. 25th St.5th Floor, New York, NY 10001 USA 2.4GHz Chip Antenna:DFX001 Antenna Gain Nabfly, Inc. 151 W. 25th St.5th Floor, New York, NY 10001 USA The Environment of Antenna Radiation Pattern Nabfly, Inc. 151 W. 25th St.5th Floor, New York, NY 10001 USA 3D radiation pattern diagram Nabfly, Inc. 151 W. 25th St.5th Floor, New York, NY 10001 USA

Nabfly, Inc. Date：Aug 11, 2023 Product Model Number: Wren Tokay Wireless Adventure Speaker FCC ID：2A36Z-WTWASV2 To whom it may concern, Re: Product Certification Representative Authorization Letter We authorize QAI Laboratories Ltd. 3980 North Fraser Way, Burnaby B.C. Canada V5J 5K5 to act on our behalf on all matters concerning the above named equipment. This shall include the following: Testing Approval applications and procedures We declare that ORGANIZATION. is allowed to forward all information related to the approval project to the applied certification body and to the notification entities and to discuss any issues concerning the approval application. Any and all acts carried out by ORGANIZATION. on our behalf shall have the same effect as acts of our own. By: Contact Listed on FCC Wesbite Title: CEO Email: [email protected] Telephone: (602) 809 1083 On behalf of: Nabfly, Inc.

Nabfly, Inc. Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 USA Date: August 11, 2023 Signature: Subject; Request for Confidentiality FCC ID: 2A36Z-WTWASV2 To Whom It May Concern, Pursuant to the provisions of the Commission’s rules Title 47 Sections §0.457 and §0.459, we are requesting the Commission to withhold the following attachment(s) as confidential documents from public disclosure indefinitely. These documents contain detailed system and equipment descriptions and are considered as proprietary information in operation of the equipment. The public disclosure of these documents might be harmful to our company and would give competitors an unfair advantage in the market. Schematic Diagram Block Diagram Parts List Operational Description Tune-up Procedure Software Security Requirements for UNII devices In additional to above mentioned documents, in order to comply with the marketing regulations in Title 47 CFR §2.803 and the importation rules in Title 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices, we request Short Term Confidentiality of the following attachment(s); External Photos Test Setup Photos Internal Photos User Manual For 45 days, pursuant to Public Notice DA 04-1705. OR For 180 days pursuant to KDB 726920 D01. It is our understanding that all measurement test reports, FCC ID label format and correspondence during the certification review process cannot be granted as confidential documents and this information will be available for public review once the grant of equipment authorization is issued. Sincerely, Name: Steven Jaffe Title: CEO

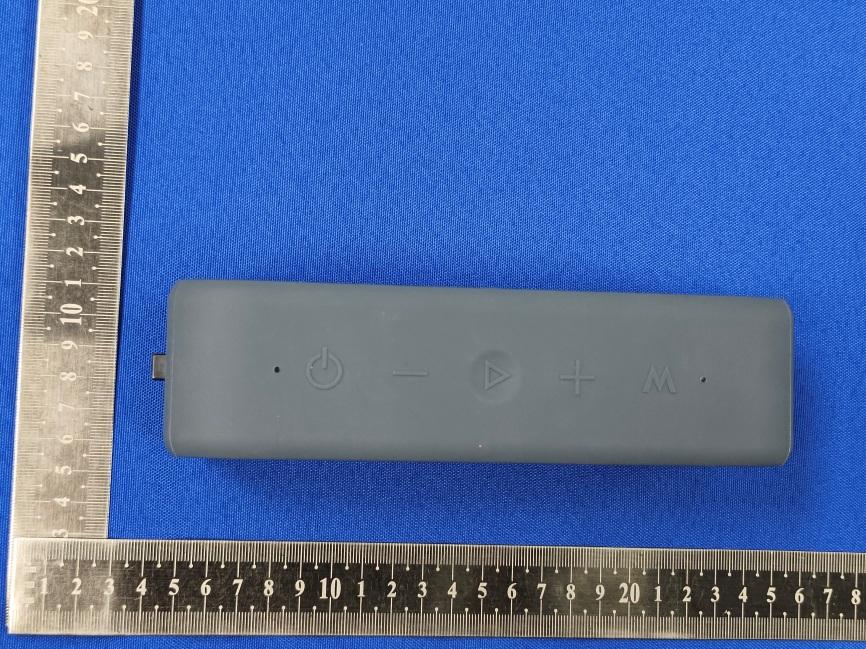

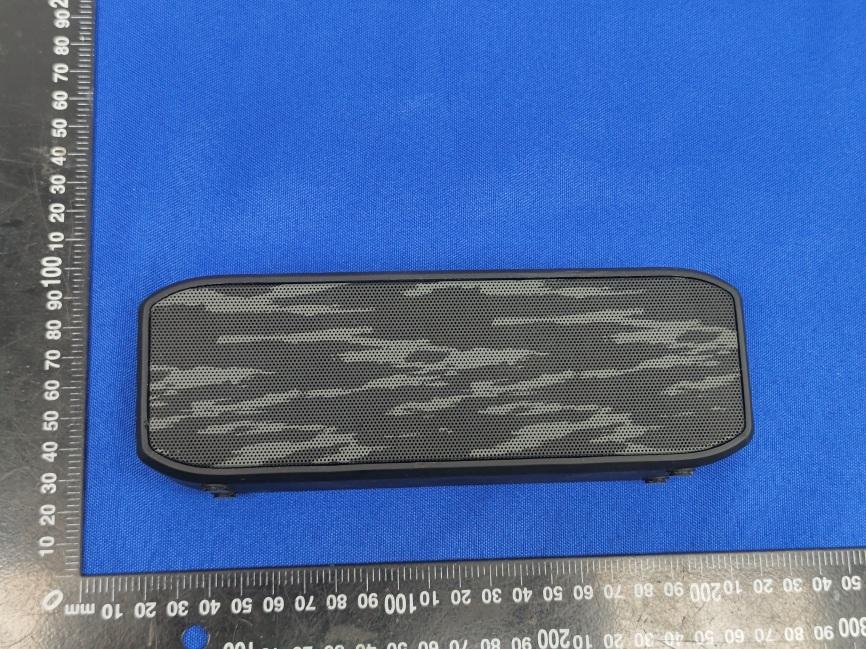

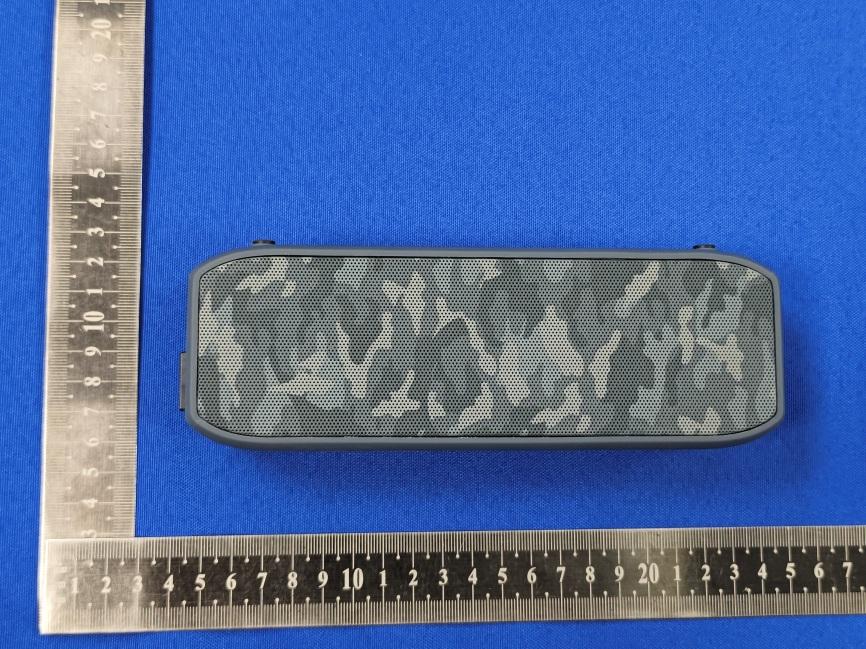

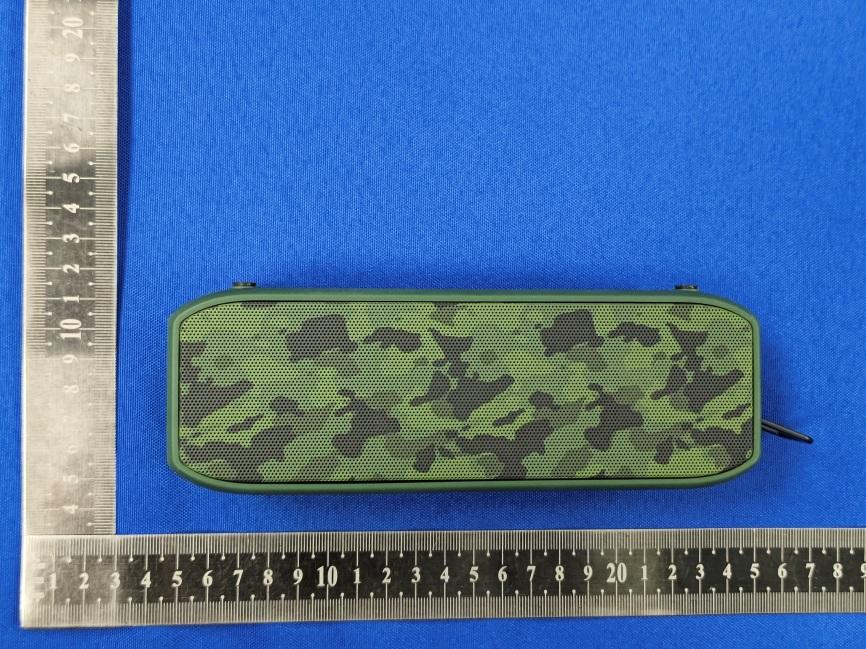

FCC ID: 2A36Z-WTWASV2 Page 1 of 6 Report No.: CTL2308022011-WF External Photos of EUT FCC ID: 2A36Z-WTWASV2 Page 2 of 6 Report No.: CTL2308022011-WF FCC ID: 2A36Z-WTWASV2 Page 3 of 6 Report No.: CTL2308022011-WF FCC ID: 2A36Z-WTWASV2 Page 4 of 6 Report No.: CTL2308022011-WF FCC ID: 2A36Z-WTWASV2 Page 5 of 6 Report No.: CTL2308022011-WF FCC ID: 2A36Z-WTWASV2 Page 6 of 6 Report No.: CTL2308022011-WF

FCC ID: 2A36Z-WTWASV2 Page 1 of 1 Report No.: CTL2308022011-WF FCC ID Label Information Label location: TOKAY WIRELESS ADVENTURE SPEAKER (IP67 RATED) Model: WTWASV2 FCC ID : 2A36Z-WTWASV2 BATTERY TYPE: LITHIUM-ION CAPACITY: 2,400 MAH INPUT: USB-C DC 5V/1A MADE IN CHINA Note: Label material is transparent PET, glue material is self-adhesive material; 25 square transparent dragon, water glue, plus light film. Not easy to drop.

FCC ID: 2A36Z-WTWASV2 Page 1 of 2 Report No.: CTL2308022011-WF Internal Photos of EUT Bluetooth Antenna FCC ID: 2A36Z-WTWASV2 Page 2 of 2 Report No.: CTL2308022011-WF

FCC ID: 2A36Z-WTWASV2 Page 1 of 1 Report No.: CTL2308022011-WF RF Exposure Letter According to 447498 D01 General RF Exposure Guidance v06 The 1‐g and 10‐g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune‐up tolerance, mW)/(min. test separation distance, mm)] ·[√f(GHz)] ≤ 3.0 for 1‐g SAR and ≤ 7.5 for 10 ‐g extremity SAR, where f(GHz) is the RF channel transmit frequency in GHz Power and distance are rounded to the nearest mW and mm before calculation The result is rounded to one decimal place for comparison BT pt=3.17dBm=2.07mW at 2402MHz So (2.07mW/5mm)x √2.402GHz =0.6432<3 BLE pt=2.43dBm=1.75mWat2402MHz So (1.75mW/5mm)x√2.402GHz =0.5424<3 Then SAR evaluation is not required

V1.0 Page 1 of 52 Report No.: CTL2308022011-WF 1. Bandwidth 1.1 OBW 1.1.1 Test Result Mode TX Type Frequency (MHz) Packet Type ANT 99% Occupied Bandwidth (MHz) Verdict Result GFSK SISO 2402 DH5 1 0.889 Pass 2441 DH5 1 0.888 Pass 2480 DH5 1 0.887 Pass Pi/4DQPSK SISO 2402 2DH5 1 1.178 Pass 2441 2DH5 1 1.176 Pass 2480 2DH5 1 1.180 Pass 8DPSK SISO 2402 3DH5 1 1.176 Pass 2441 3DH5 1 1.173 Pass 2480 3DH5 1 1.174 Pass V1.0 Page 2 of 52 Report No.: CTL2308022011-WF 1.1.2 Test Graph GFSK_DH5_LCH_2402MHz_Ant1_NTNV GFSK_DH5_MCH_2441MHz_Ant1_NTNV V1.0 Page 3 of 52 Report No.: CTL2308022011-WF GFSK_DH5_HCH_2480MHz_Ant1_NTNV Pi/4DQPSK_2DH5_LCH_2402MHz_Ant1_NTNV V1.0 Page 4 of 52 Report No.: CTL2308022011-WF Pi/4DQPSK_2DH5_MCH_2441MHz_Ant1_NTNV Pi/4DQPSK_2DH5_HCH_2480MHz_Ant1_NTNV V1.0 Page 5 of 52 Report No.: CTL2308022011-WF 8DPSK_3DH5_LCH_2402MHz_Ant1_NTNV 8DPSK_3DH5_MCH_2441MHz_Ant1_NTNV V1.0 Page 6 of 52 Report No.: CTL2308022011-WF 8DPSK_3DH5_HCH_2480MHz_Ant1_NTNV V1.0 Page 7 of 52 Report No.: CTL2308022011-WF 1.2 20dB BW 1.2.1 Test Result Mode TX Type Frequency (MHz) Packet Type ANT 20dB Bandwidth (MHz) Verdict Result GFSK SISO 2402 DH5 1 0.950 Pass 2441 DH5 1 0.949 Pass 2480 DH5 1 0.949 Pass Pi/4DQPSK SISO 2402 2DH5 1 1.324 Pass 2441 2DH5 1 1.307 Pass 2480 2DH5 1 1.297 Pass 8DPSK SISO 2402 3DH5 1 1.298 Pass 2441 3DH5 1 1.296 Pass 2480 3DH5 1 1.295 Pass V1.0 Page 8 of 52 Report No.: CTL2308022011-WF 1.2.2 Test Graph GFSK_DH5_LCH_2402MHz_Ant1_NTNV GFSK_DH5_MCH_2441MHz_Ant1_NTNV V1.0 Page 9 of 52 Report No.: CTL2308022011-WF GFSK_DH5_HCH_2480MHz_Ant1_NTNV Pi/4DQPSK_2DH5_LCH_2402MHz_Ant1_NTNV V1.0 Page 10 of 52 Report No.: CTL2308022011-WF Pi/4DQPSK_2DH5_MCH_2441MHz_Ant1_NTNV Pi/4DQPSK_2DH5_HCH_2480MHz_Ant1_NTNV V1.0 Page 11 of 52 Report No.: CTL2308022011-WF 8DPSK_3DH5_LCH_2402MHz_Ant1_NTNV 8DPSK_3DH5_MCH_2441MHz_Ant1_NTNV V1.0 Page 12 of 52 Report No.: CTL2308022011-WF 8DPSK_3DH5_HCH_2480MHz_Ant1_NTNV V1.0 Page 13 of 52 Report No.: CTL2308022011-WF 2. Maximum Conducted Output Power 2.1 Power 2.1.1 Test Result Mode TX Type Frequency (MHz) Packet Type Maximum Peak Conducted Output Power (dBm) Verdict ANT1 Limit GFSK SISO 2402 DH5 2.44 <=30 Pass 2441 DH5 2.32 <=30 Pass 2480 DH5 1.13 <=30 Pass Pi/4DQPSK SISO 2402 2DH5 2.85 <=20.97 Pass 2441 2DH5 2.60 <=20.97 Pass 2480 2DH5 1.64 <=20.97 Pass 8DPSK SISO 2402 3DH5 3.17 <=20.97 Pass 2441 3DH5 2.80 <=20.97 Pass 2480 3DH5 1.88 <=20.97 Pass Note1: Antenna Gain: Ant1: 1.54dBi; V1.0 Page 14 of 52 Report No.: CTL2308022011-WF 2.1.2 Test Graph GFSK_DH5_LCH_2402MHz_Ant1_NTNV GFSK_DH5_MCH_2441MHz_Ant1_NTNV V1.0 Page 15 of 52 Report No.: CTL2308022011-WF GFSK_DH5_HCH_2480MHz_Ant1_NTNV Pi/4DQPSK_2DH5_LCH_2402MHz_Ant1_NTNV V1.0 Page 16 of 52 Report No.: CTL2308022011-WF Pi/4DQPSK_2DH5_MCH_2441MHz_Ant1_NTNV Pi/4DQPSK_2DH5_HCH_2480MHz_Ant1_NTNV V1.0 Page 17 of 52 Report No.: CTL2308022011-WF 8DPSK_3DH5_LCH_2402MHz_Ant1_NTNV 8DPSK_3DH5_MCH_2441MHz_Ant1_NTNV V1.0 Page 18 of 52 Report No.: CTL2308022011-WF 8DPSK_3DH5_HCH_2480MHz_Ant1_NTNV V1.0 Page 19 of 52 Report No.: CTL2308022011-WF 3. Carrier Frequency Separation 3.1 Ant1 3.1.1 Test Result Ant1 Mode TX Type Frequency (MHz) Packet Type Channel Separation (MHz) 20dB Bandwidth (MHz) Limit (MHz) Verdict GFSK SISO HOPP DH5 0.994 0.950 >=0.95 Pass Pi/4DQPSK SISO HOPP 2DH5 1.001 1.324 >=0.883 Pass 8DPSK SISO HOPP 3DH5 0.984 1.298 >=0.865 Pass V1.0 Page 20 of 52 Report No.: CTL2308022011-WF 3.1.2 Test Graph GFSK_DH5_HOPP_Ant1_NTNV Pi/4DQPSK_2DH5_HOPP_Ant1_NTNV V1.0 Page 21 of 52 Report No.: CTL2308022011-WF 8DPSK_3DH5_HOPP_Ant1_NTNV V1.0 Page 22 of 52 Report No.: CTL2308022011-WF 4. Number of Hopping Frequencies 4.1 HoppNum 4.1.1 Test Result Mode TX Type Frequency (MHz) Packet Type Num of Hopping Frequencies Verdict ANT1 Limit GFSK SISO HOPP DH5 79 >=15 Pass Pi/4DQPSK SISO HOPP 2DH5 79 >=15 Pass 8DPSK SISO HOPP 3DH5 79 >=15 Pass V1.0 Page 23 of 52 Report No.: CTL2308022011-WF 4.1.2 Test Graph GFSK_DH5_HOPP_Ant1_NTNV Pi/4DQPSK_2DH5_HOPP_Ant1_NTNV V1.0 Page 24 of 52 Report No.: CTL2308022011-WF 8DPSK_3DH5_HOPP_Ant1_NTNV V1.0 Page 25 of 52 Report No.: CTL2308022011-WF 5. Time of Occupancy (Dwell Time) 5.1 Ant1 5.1.1 Test Result Ant1 Mode TX Type Frequency (MHz) Packet Type Duration of Single Pulse (ms) Observation Period (s) Num of Pulse in Observation Period Dwell Time (ms) Limit (ms) Verdict GFSK SISO HOPP DH1 0.376 31.600 320 120.320 <=400 Pass DH3 1.652 31.600 160 264.320 <=400 Pass DH5 2.900 31.600 107 310.300 <=400 Pass Pi/4DQPSK SISO HOPP 2DH1 0.380 31.600 320 121.600 <=400 Pass 2DH3 1.662 31.600 160 265.920 <=400 Pass 2DH5 2.912 31.600 107 311.584 <=400 Pass 8DPSK SISO HOPP 3DH1 0.382 31.600 320 122.240 <=400 Pass 3DH3 1.660 31.600 160 265.600 <=400 Pass 3DH5 2.912 31.600 107 311.584 <=400 Pass V1.0 Page 26 of 52 Report No.: CTL2308022011-WF 5.1.2 Test Graph GFSK_DH1_HOPP_Ant1_NTNV GFSK_DH1_HOPP_Ant1_NTNV V1.0 Page 27 of 52 Report No.: CTL2308022011-WF GFSK_DH3_HOPP_Ant1_NTNV GFSK_DH3_HOPP_Ant1_NTNV V1.0 Page 28 of 52 Report No.: CTL2308022011-WF GFSK_DH5_HOPP_Ant1_NTNV GFSK_DH5_HOPP_Ant1_NTNV V1.0 Page 29 of 52 Report No.: CTL2308022011-WF Pi/4DQPSK_2DH1_HOPP_Ant1_NTNV Pi/4DQPSK_2DH1_HOPP_Ant1_NTNV V1.0 Page 30 of 52 Report No.: CTL2308022011-WF Pi/4DQPSK_2DH3_HOPP_Ant1_NTNV Pi/4DQPSK_2DH3_HOPP_Ant1_NTNV V1.0 Page 31 of 52 Report No.: CTL2308022011-WF Pi/4DQPSK_2DH5_HOPP_Ant1_NTNV Pi/4DQPSK_2DH5_HOPP_Ant1_NTNV V1.0 Page 32 of 52 Report No.: CTL2308022011-WF 8DPSK_3DH1_HOPP_Ant1_NTNV 8DPSK_3DH1_HOPP_Ant1_NTNV V1.0 Page 33 of 52 Report No.: CTL2308022011-WF 8DPSK_3DH3_HOPP_Ant1_NTNV 8DPSK_3DH3_HOPP_Ant1_NTNV V1.0 Page 34 of 52 Report No.: CTL2308022011-WF 8DPSK_3DH5_HOPP_Ant1_NTNV 8DPSK_3DH5_HOPP_Ant1_NTNV V1.0 Page 35 of 52 Report No.: CTL2308022011-WF 6. Unwanted Emissions In Non-restricted Frequency Bands 6.1 Ref 6.1.1 Test Result Mode TX Type Frequency (MHz) Packet Type ANT Level of Reference (dBm) GFSK SISO 2402 DH5 1 1.96 2441 DH5 1 1.82 2480 DH5 1 0.68 Pi/4DQPSK SISO 2402 2DH5 1 1.70 2441 2DH5 1 1.62 2480 2DH5 1 0…

Text truncated - open the document above for the full version.

Shenzhen CTL Testing Technology Co., Ltd. Tel: +86-755-89486194 E-mail: [email protected] TEST REPORT FCC PART 15.247 Report Reference No.: CTL2308022011-WF01 Compiled by: ( position+printed name+signature) Happy Guo (File administrators) Tested by: ( position+printed name+signature) Jack Wang (Test Engineer) Approved by: ( position+printed name+signature) Ivan Xie (Manager) Product Name ............................ : Wren Tokay Wireless Adventure Speaker Model/Type reference ................ : WTWASV2 List Model(s) ............................... : N/A Trade Mark .................................. : Wren FCC ID ......................................... : 2A36Z-WTWASV2 Applicant’s name ....................... : Nabfly, Inc. Address of applicant ................. : 151 W. 25th St.5th Floor, New York, NY 10001 USA Test Firm ..................................... : Shenzhen CTL Testing Technology Co., Ltd. Address of Test Firm ................. : Floor 1-A, Baisha Technology Park, No.3011, Shahexi Road, Nanshan District, Shenzhen, China 518055 Test specification ....................... : Standard ...................................... : FCC Part 15.247: Operation within the bands 902-928 MHz, 2400-2483.5 MHz and 5725-5850 MHz. TRF Originator ............................. : Shenzhen CTL Testing Technology Co., Ltd. Master TRF .................................. : Dated 2011-01 Date of receipt of test item ........ : Aug. 02, 2023 Date of Test Date ........................ : Aug. 02, 2023- Aug. 11, 2023 Date of Issue .............................. : Aug. 14, 2023 Result .......................................... : Pass Shenzhen CTL Testing Technology Co., Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen CTL Testing Technology Co., Ltd. is acknowledged as copyright owner and source of the material. Shenzhen CTL Testing Technology Co., Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. V1.0 Page 2 of 44 Report No.: CTL2308022011-WF 01 TEST REPORT Test Report No. : CTL2308022011-WF01 Aug. 14, 2023 Date of issue Equipment under Test : Wren Tokay Wireless Adventure Speaker Sample No : CTL2308022011 Model /Type : WTWASV2 Listed Models : N/A Applicant : Nabfly, Inc. Address : 151 W. 25th St.5th Floor, New York, NY 10001 USA Manufacturer : Shenzhen Rockaudio Technology Co., Ltd. Address : 3rd Floor, Building A, Guangshengde lndustrial Park, Fuyong, Baoan District,Shenzhen,China Test result Pass * *In the configuration tested, the EUT complied with the standards specified page 5. The test results presented in this report relate only to the object tested. This report shall not be reproduced, except in full, without the written approval of the issuing testing laboratory. V1.0 Page 3 of 44 Report No.: CTL2308022011-WF 01 ** Modified History ** Revisions Description Issued Data Report No. Remark Version 1.0 Initial Test Report Release 2023-08-08 CTL2308022011-WF01 Tracy Qi V1.0 Page 4 of 44 Report No.: CTL2308022011-WF 01 Table of Contents Page 1. SUMMARY ............................................................................................................................................................... 5 1.1. TEST STANDARDS ..................................................................................................................................................... 5 1.2. TEST DESCRIPTION ........................................................................................................................................................ 5 1.3. TEST FACILITY .............................................................................................................................................................. 6 1.4. STATEMENT OF THE MEASUREMENT UNCERTAINTY ............................................................................................................... 6 2. GENERAL INFORMATION .......................................................................................................................................... 8 2.1. ENVIRONMENTAL CONDITIONS ........................................................................................................................................ 8 2.2. GENERAL DESCRIPTION OF EUT ...................................................................................................................................... 8 2.3. DESCRIPTION OF TEST MODES AND TEST FREQUENCY .......................................................................................................... 9 2.4. EQUIPMENTS USED DURING THE TEST ............................................................................................................................ 10 2.5. RELATED SUBMITTAL(S) / GRANT (S) .............................................................................................................................. 10 2.6. MODIFICATIONS ......................................................................................................................................................... 10 3. TEST CONDITIONS AND RESULTS ............................................................................................................................ 11 3.1. CONDUCTED EMISSIONS TEST ....................................................................................................................................... 11 3.2. RADIATED EMISSIONS AND BAND EDGE .......................................................................................................................... 14 3.3. MAXIMUM PEAK OUTPUT POWER ................................................................................................................................ 28 3.4. 20DB BANDWIDTH ........................................................................................................…

Text truncated - open the document above for the full version.

FCC ID: 2A36Z-WTWASV2 Page 1 of 1 Report No.: CTL2308022011-WF Test Setup Photos of the EUT
