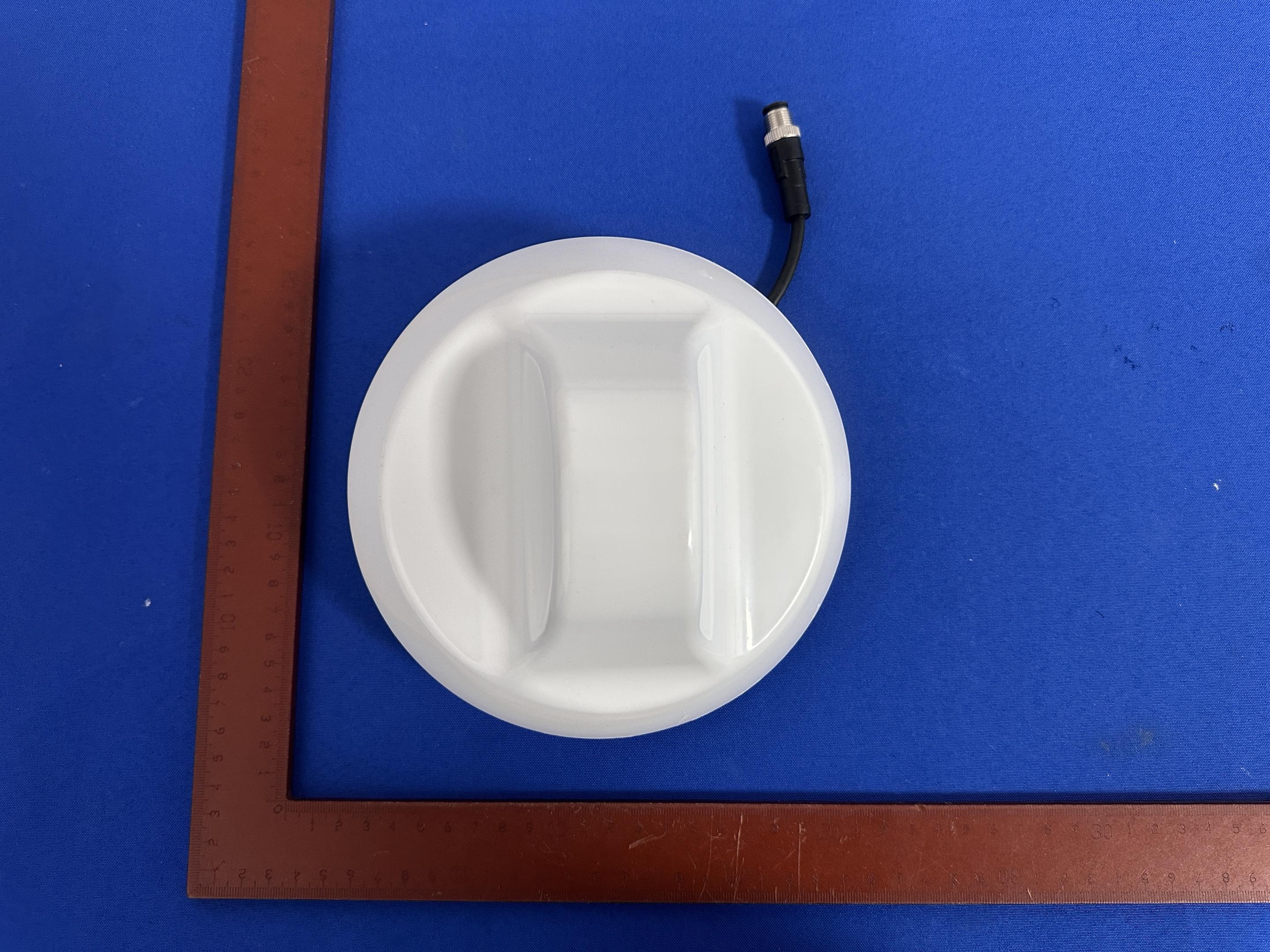

2A3AS-WVRMWireless zoom receiver

Page 71 of 138 FCC ID: 2A3AS-WVRM Report No.: LCSA01156055EA Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity Condition Mode Frequency (MHz) Antenna Spur Freq (MHz) Power (dBm) Gain (dBi) E (dBuV/m) Detector Limit (dBuV/m) Verdict NVNT a 5180 Ant2 4500 -61.84 2 35.39 Peak 68.2 Pass NVNT a 5180 Ant2 4500 -69.02 2 28.21 Average 54 Pass NVNT a 5180 Ant2 5149.6 -52.5 2 44.73 Peak 68.2 Pass NVNT a 5180 Ant2 5149.6 -62.65 2 34.58 Average 54 Pass NVNT a 5180 Ant2 5150 -56.7 2 40.53 Peak 68.2 Pass NVNT a 5180 Ant2 5150 -62.25 2 34.98 Average 54 Pass NVNT a 5240 Ant2 5350 -51.27 2 45.96 Peak 68.2 Pass NVNT a 5240 Ant2 5350 -57.87 2 39.36 Average 54 Pass NVNT a 5240 Ant2 5412.96 -46.93 2 50.3 Peak 68.2 Pass NVNT a 5240 Ant2 5441.28 -57.23 2 40 Average 54 Pass NVNT a 5240 Ant2 5460 -49.3 2 47.93 Peak 68.2 Pass NVNT a 5240 Ant2 5460 -57.45 2 39.78 Average 54 Pass NVNT n20 5180 Ant2 4500 -52.82 2 44.41 Peak 68.2 Pass NVNT n20 5180 Ant2 4500 -59.12 2 38.11 Average 54 Pass NVNT n20 5180 Ant2 5106.2 -47.15 2 50.08 Peak 68.2 Pass NVNT n20 5180 Ant2 5149.6 -56.3 2 40.93 Average 54 Pass NVNT n20 5180 Ant2 5150 -48.2 2 49.03 Peak 68.2 Pass NVNT n20 5180 Ant2 5150 -56.21 2 41.02 Average 54 Pass NVNT n20 5240 Ant2 5350 -51.6 2 45.63 Peak 68.2 Pass NVNT n20 5240 Ant2 5350 -57.83 2 39.4 Average 54 Pass NVNT n20 5240 Ant2 5409.84 -47.68 2 49.55 Peak 68.2 Pass NVNT n20 5240 Ant2 5425.68 -57.27 2 39.96 Average 54 Pass NVNT n20 5240 Ant2 5460 -50.65 2 46.58 Peak 68.2 Pass NVNT n20 5240 Ant2 5460 -57.53 2 39.7 Average 54 Pass NVNT n40 5190 Ant2 4500 -61.71 2 35.52 Peak 68.2 Pass NVNT n40 5190 Ant2 4500 -68.76 2 28.47 Average 54 Pass NVNT n40 5190 Ant2 5147.51 -53.15 2 44.08 Peak 68.2 Pass NVNT n40 5190 Ant2 5149.7 -59.42 2 37.81 Average 54 Pass NVNT n40 5190 Ant2 5150 -55.24 2 41.99 Peak 68.2 Pass NVNT n40 5190 Ant2 5150 -58.5 2 38.73 Average 54 Pass NVNT n40 5230 Ant2 5350 -50.72 2 46.51 Peak 68.2 Pass NVNT n40 5230 Ant2 5350 -57.79 2 39.44 Average 54 Pass NVNT n40 5230 Ant2 5396.82 -47.92 2 49.31 Peak 68.2 Pass NVNT n40 5230 Ant2 5425.17 -57 2 40.23 Average 54 Pass NVNT n40 5230 Ant2 5460 -51.21 2 46.02 Peak 68.2 Pass NVNT n40 5230 Ant2 5460 -57.2 2 40.03 Average 54 Pass NVNT ac20 5180 Ant2 4500 -51.12 2 46.11 Peak 68.2 Pass NVNT ac20 5180 Ant2 4500 -59.08 2 38.15 Average 54 Pass Page 72 of 138 FCC ID: 2A3AS-WVRM Report No.: LCSA01156055EA Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity NVNT ac20 5180 Ant2 5097.1 -46.99 2 50.24 Peak 68.2 Pass NVNT ac20 5180 Ant2 5149.6 -56.34 2 40.89 Average 54 Pass NVNT ac20 5180 Ant2 5150 -49.62 2 47.61 Peak 68.2 Pass NVNT ac20 5180 Ant2 5150 -56.18 2 41.05 Average 54 Pass NVNT ac20 5240 Ant2 5350 -51.33 2 45.9 Peak 68.2 Pass NVNT ac20 5240 Ant2 5350 -57.94 2 39.29 Average 54 Pass NVNT ac20 5240 Ant2 5437.2 -47.64 2 49.59 Peak 68.2 Pass NVNT ac20 5240 Ant2 5450.64 -57.24 2 39.99 Average 54 Pass NVNT ac20 5240 Ant2 5460 -50.39 2 46.84 Peak 68.2 Pass NVNT ac20 5240 Ant2 5460 -57.43 2 39.8 Average 54 Pass NVNT ac40 5190 Ant2 4500 -52.6 2 44.63 Peak 68.2 Pass NVNT ac40 5190 Ant2 4500 -58.88 2 38.35 Average 54 Pass NVNT ac40 5190 Ant2 5082.54 -46.95 2 50.28 Peak 68.2 Pass NVNT ac40 5190 Ant2 5149.7 -55.71 2 41.52 Average 54 Pass NVNT ac40 5190 Ant2 5150 -49.8 2 47.43 Peak 68.2 Pass NVNT ac40 5190 Ant2 5150 -55.6 2 41.63 Average 54 Pass NVNT ac40 5230 Ant2 5350 -50.92 2 46.31 Peak 68.2 Pass NVNT ac40 5230 Ant2 5350 -57.73 2 39.5 Average 54 Pass NVNT ac40 5230 Ant2 5369.55 -47.97 2 49.26 Peak 68.2 Pass NVNT ac40 5230 Ant2 5441.37 -56.8 2 40.43 Average 54 Pass NVNT ac40 5230 Ant2 5460 -49.52 2 47.71 Peak 68.2 Pass NVNT ac40 5230 Ant2 5460 -57.31 2 39.92 Average 54 Pass NVNT ac80 5210 Ant2 5350 -50.95 2 46.28 Peak 68.2 Pass NVNT ac80 5210 Ant2 5350 -57.05 2 40.18 Average 54 Pass NVNT ac80 5210 Ant2 5453.73 -46.37 2 50.86 Peak 68.2 Pass NVNT ac80 5210 Ant2 5405.22 -56.25 2 40.98 Average 54 Pass NVNT ac80 5210 Ant2 5460 -48.31 2 48.92 Peak 68.2 Pass NVNT ac80 5210 Ant2 5460 -56.31 2 40.92 Average 54 Pass NVNT ac80 5210 Ant2 4500 -51.59 2 45.64 Peak 68.2 Pass NVNT ac80 5210 Ant2 4500 -58.65 2 38.58 Average 54 Pass NVNT ac80 5210 Ant2 4721.2 -47.2 2 50.03 Peak 68.2 Pass NVNT ac80 5210 Ant2 5149.38 -55.3 2 41.93 Average 54 Pass NVNT ac80 5210 Ant2 5150 -49.49 2 47.74 Peak 68.2 Pass NVNT ac80 5210 Ant2 5150 -55.25 2 41.98 Average 54 Pass NVNT ax20 5180 Ant2 4500 -50.91 2 46.32 Peak 68.2 Pass NVNT ax20 5180 Ant2 4500 -59.08 2 38.15 Average 54 Pass NVNT ax20 5180 Ant2 5065.6 -46.8 2 50.43 Peak 68.2 Pass NVNT ax20 5180 Ant2 5149.6 -56.32 2 40.91 Average 54 Pass NVNT ax20 5180 Ant2 5150 -49.36 2 47.87 Peak 68.2 Pass NVNT ax20 5180 Ant2 5150 -55.99 2 41.24 Average 54 Pass NVNT ax20 5240 Ant2 5350 -51.01 2 46.22 Peak 68.2 Pass Page 73 of 138 FCC ID: 2A3AS-WVRM Report No.: LCSA01156055EA Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity NVNT ax20 5240 Ant2 5350 -57.92 2 39.31 Average 54 Pass NVNT ax20 5240 Ant2 5398.08 -47.17 2 50.06 Peak 68.2 Pass NVNT ax20 5240 Ant2 5448 -57.28 2 39.95 Average 54 Pass NVNT ax20 5240 Ant2 5460 -51.19 2 46.04 Peak 68.2 Pass NVNT ax20 5240 Ant2 5460 -57.39 2 39.84 Average 54 Pass NVNT ax40 5190 Ant2 4500 -52.13 2 45.1 Peak 68.2 Pass NVNT ax40 5190 Ant2 4500 -58.95 2 38.28 Average 54 Pass NVNT ax40 5190 Ant2 5035.09 -46.6 2 50.63 Peak 68.2 Pass NVNT ax40 5190 …

Text truncated - open the document above for the full version.

Page 1 of 48 FCC ID: 2A3AS-WVRM Report No.: LCSA01156055EB Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity FCC TEST REPORT For Shanghai Smart Control Co., Ltd. Wireless zoom receiver Test Model: WVRM Additional Model No.:eZoom Prepared for : Shanghai Smart Control Co., Ltd. Address : 2088 Lane, Laifang Road, Songjiang District, Shanghai Prepared by : Shenzhen LCS Compliance Testing Laboratory Ltd. Address : 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel : (+86)755-82591330 Fax : (+86)755-82591332 Web : www.LCS-cert.com Mail : [email protected] Date of receipt of test sample : January 20, 2026 Number of tested samples : 2 Sample No. : A260117032-1, A260117032-2 Serial number : Prototype Date of Test : January 20, 2026 ~ April 07, 2026 Date of Report : April 08, 2026 Page 2 of 48 FCC ID: 2A3AS-WVRM Report No.: LCSA01156055EB Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity FCC TEST REPORT FCC CFR 47 PART 15E (15.407) Report Reference No. ................. : LCSA01156055EB Date of Issue .................................. : April 08, 2026 Testing Laboratory Name ............ : Shenzhen LCS Compliance Testing Laboratory Ltd. Address .......................................... : 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Testing Location/ Procedure .......... : Full application of Harmonised standards ■ Partial application of Harmonised standards □ Other standard testing method □ Applicant’s Name ......................... : Shanghai Smart Control Co., Ltd. Address .......................................... : 2088 Lane, Laifang Road, Songjiang District, Shanghai Test Specification Standard ......................................... : FCC CFR 47 PART 15E (15.407) Test Report Form No.................... : TRF-4-E-149 A/0 TRF Originator ................................ : Shenzhen LCS Compliance Testing Laboratory Ltd. Master TRF ..................................... : Dated 2011-03 Shenzhen LCS Compliance Testing Laboratory Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen LCS Compliance Testing Laboratory Ltd. is acknowledged as copyright owner and source of the material. Shenzhen LCS Compliance Testing Laboratory Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. EUT Description. .......................... : Wireless zoom receiver Trade Mark ..................................... : N/A Test Model ...................................... : WVRM Ratings ........................................... : Please Refer to Page 6 Result ........................................... : PASS Supervised by: Compiled by: Approved by: Joker Hu/ Administrators Kevin Huang/ RF Manager Gavin Liang / Manager Page 3 of 48 FCC ID: 2A3AS-WVRM Report No.: LCSA01156055EB Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity FCC -- TEST REPORT Test Result: PASS The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Test Report No. : LCSA01156055EB April 08, 2026 Date of issue EUT......................................... : Wireless zoom receiver Test Model............................... : WVRM Applicant............................... : Shanghai Smart Control Co., Ltd. Address.................................. : 2088 Lane, Laifang Road, Songjiang District, Shanghai Telephone............................... : / Fax.......................................... : / Manufacturer........................ : Shanghai Smart Control Co., Ltd. Address................................... : 2088 Lane, Laifang Road, Songjiang District, Shanghai Telephone............................... : / Fax.......................................... : / Factory................................... : Shanghai Smart Control Co., Ltd. Address................................... : 2088 Lane, Laifang Road, Songjiang District, Shanghai Telephone............................... : / Fax.......................................... : / Page 4 of 48 FCC ID: 2A3AS-WVRM Report No.: LCSA01156055EB Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity Revision History Report Version Issue Date Revision Content Revised By 000 April 08, 2026 Initial Issue --- Page 5 of 48 FCC ID: 2A3AS-WVRM Report No.: LCSA01156055EB Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity TABLE OF CONTENTS 1. GENERAL INFORMATION ................................................................................................................................... …

Text truncated - open the document above for the full version.

Page 1 of 40 FCC ID: 2A3AS-WVRM Report No.: LCSA01156055EA Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity FCC TEST REPORT For Shanghai Smart Control Co., Ltd. Wireless zoom receiver Test Model: WVRM Additional Model No.:eZoom Prepared for : Shanghai Smart Control Co., Ltd. Address : 2088 Lane, Laifang Road, Songjiang District, Shanghai Prepared by : Shenzhen LCS Compliance Testing Laboratory Ltd. Address : 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel : (+86)755-82591330 Fax : (+86)755-82591332 Web : www.LCS-cert.com Mail : [email protected] Date of receipt of test sample : January 20, 2026 Number of tested samples : 2 Sample No. : A260117032-1, A260117032-2 Serial number : Prototype Date of Test : January 20, 2026 ~ April 07, 2026 Date of Report : April 08, 2026 Page 2 of 40 FCC ID: 2A3AS-WVRM Report No.: LCSA01156055EA Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity FCC TEST REPORT FCC CFR 47 PART 15E (15.407) Report Reference No. ................. : LCSA01156055EA Date of Issue .................................. : April 08, 2026 Testing Laboratory Name ............ : Shenzhen LCS Compliance Testing Laboratory Ltd. Address .......................................... : 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Testing Location/ Procedure .......... : Full application of Harmonised standards ■ Partial application of Harmonised standards □ Other standard testing method □ Applicant’s Name ......................... : Shanghai Smart Control Co., Ltd. Address .......................................... : 2088 Lane, Laifang Road, Songjiang District, Shanghai Test Specification Standard ......................................... : FCC CFR 47 PART 15E (15.407) Test Report Form No.................... : TRF-4-E-146 A/0 TRF Originator ................................ : Shenzhen LCS Compliance Testing Laboratory Ltd. Master TRF ..................................... : Dated 2011-03 Shenzhen LCS Compliance Testing Laboratory Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen LCS Compliance Testing Laboratory Ltd. is acknowledged as copyright owner and source of the material. Shenzhen LCS Compliance Testing Laboratory Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. EUT Description. .......................... : Wireless zoom receiver Trade Mark ..................................... : N/A Test Model ...................................... : WVRM Ratings ........................................... : Please Refer to Page 6 Result ........................................... : PASS Compiled by: Supervised by: Approved by: Joker Hu/ Administrators Kevin Huang/ RF Manager Gavin Liang / Manager Page 3 of 40 FCC ID: 2A3AS-WVRM Report No.: LCSA01156055EA Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity FCC -- TEST REPORT Test Result: PASS The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Test Report No. : LCSA01156055EA April 08, 2026 Date of issue EUT......................................... : Wireless zoom receiver Test Model............................... : WVRM Applicant............................... : Shanghai Smart Control Co., Ltd. Address.................................. : 2088 Lane, Laifang Road, Songjiang District, Shanghai Telephone............................... : / Fax.......................................... : / Manufacturer........................ : Shanghai Smart Control Co., Ltd. Address................................... : 2088 Lane, Laifang Road, Songjiang District, Shanghai Telephone............................... : / Fax.......................................... : / Factory................................... : Shanghai Smart Control Co., Ltd. Address................................... : 2088 Lane, Laifang Road, Songjiang District, Shanghai Telephone............................... : / Fax.......................................... : / Page 4 of 40 FCC ID: 2A3AS-WVRM Report No.: LCSA01156055EA Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity Revision History Report Version Issue Date Revision Content Revised By 000 April 08, 2026 Initial Issue --- Page 5 of 40 FCC ID: 2A3AS-WVRM Report No.: LCSA01156055EA Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity TABLE OF CONTENTS 1. GENERAL INFORMATION ................................................................................................................................... …

Text truncated - open the document above for the full version.

Page 76 of 141 FCC ID: 2A3AS-WVRM Report No.: LCSA01156055ED Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity Restrict Band NVNT a 5745MHz Ant2 Peak Restrict Band NVNT a 5745MHz Ant2 Average Page 77 of 141 FCC ID: 2A3AS-WVRM Report No.: LCSA01156055ED Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity Restrict Band NVNT a 5825MHz Ant2 Peak Restrict Band NVNT a 5825MHz Ant2 Average Page 78 of 141 FCC ID: 2A3AS-WVRM Report No.: LCSA01156055ED Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity Restrict Band NVNT n20 5745MHz Ant2 Peak Restrict Band NVNT n20 5745MHz Ant2 Average Page 79 of 141 FCC ID: 2A3AS-WVRM Report No.: LCSA01156055ED Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity Restrict Band NVNT n20 5825MHz Ant2 Peak Restrict Band NVNT n20 5825MHz Ant2 Average Page 80 of 141 FCC ID: 2A3AS-WVRM Report No.: LCSA01156055ED Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity Restrict Band NVNT n40 5755MHz Ant2 Peak Restrict Band NVNT n40 5755MHz Ant2 Average Page 81 of 141 FCC ID: 2A3AS-WVRM Report No.: LCSA01156055ED Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity Restrict Band NVNT n40 5795MHz Ant2 Peak Restrict Band NVNT n40 5795MHz Ant2 Average Page 82 of 141 FCC ID: 2A3AS-WVRM Report No.: LCSA01156055ED Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity Restrict Band NVNT ac20 5745MHz Ant2 Peak Restrict Band NVNT ac20 5745MHz Ant2 Average Page 83 of 141 FCC ID: 2A3AS-WVRM Report No.: LCSA01156055ED Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity Restrict Band NVNT ac20 5825MHz Ant2 Peak Restrict Band NVNT ac20 5825MHz Ant2 Average Page 84 of 141 FCC ID: 2A3AS-WVRM Report No.: LCSA01156055ED Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity Restrict Band NVNT ac40 5755MHz Ant2 Peak Page 85 of 141 FCC ID: 2A3AS-WVRM Report No.: LCSA01156055ED Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity Restrict Band NVNT ac40 5755MHz Ant2 Average Restrict Band NVNT ac40 5795MHz Ant2 Peak Restrict Band NVNT ac40 5795MHz Ant2 Average Page 86 of 141 FCC ID: 2A3AS-WVRM Report No.: LCSA01156055ED Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity Restrict Band NVNT ac80 5775MHz Ant2 Peak Restrict Band NVNT ac80 5775MHz Ant2 Average Page 87 of 141 FCC ID: 2A3AS-WVRM Report No.: LCSA01156055ED Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity Restrict Band NVNT ac80 5775MHz Ant2 Peak Restrict Band NVNT ac80 5775MHz Ant2 Average Page 88 of 141 FCC ID: 2A3AS-WVRM Report No.: LCSA01156055ED Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity Restrict Band NVNT ax20 5745MHz Ant2 Peak Restrict Band NVNT ax20 5745MHz Ant2 Average Page 89 of 141 FCC ID: 2A3AS-WVRM Report No.: LCSA01156055ED Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan co…

Text truncated - open the document above for the full version.

Page 1 of 141 FCC ID: 2A3AS-WVRM Report No.: LCSA01156055ED Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity Appendix D RF Test Data for 5.8GWIFI (Conducted Measurement) Product Name: Wireless zoom receiver Test Model: WVRM Environmental Conditions Temperature: 24.3C Relative Humidity: 55.6% ATM Pressure: 100.0 kPa Test Engineer: Jerry Chu Supervised by: Can Kun Page 2 of 141 FCC ID: 2A3AS-WVRM Report No.: LCSA01156055ED Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity D.1 -6dB Bandwidth Condition Mode Frequency (MHz) Antenna -6 dB Bandwidth (MHz) Limit -6 dB Bandwidth (MHz) Verdict NVNT a 5745 Ant1 16.34 0.5 Pass NVNT a 5785 Ant1 16.34 0.5 Pass NVNT a 5825 Ant1 16.34 0.5 Pass NVNT n20 5745 Ant1 17.29 0.5 Pass NVNT n20 5785 Ant1 17.53 0.5 Pass NVNT n20 5825 Ant1 17.4 0.5 Pass NVNT n40 5755 Ant1 35.77 0.5 Pass NVNT n40 5795 Ant1 35.74 0.5 Pass NVNT ac20 5745 Ant1 17.3 0.5 Pass NVNT ac20 5785 Ant1 17.4 0.5 Pass NVNT ac20 5825 Ant1 17.57 0.5 Pass NVNT ac40 5755 Ant1 35.63 0.5 Pass NVNT ac40 5795 Ant1 35.93 0.5 Pass NVNT ac80 5775 Ant1 75.93 0.5 Pass NVNT ax20 5745 Ant1 17.31 0.5 Pass NVNT ax20 5785 Ant1 17.4 0.5 Pass NVNT ax20 5825 Ant1 17.24 0.5 Pass NVNT ax40 5755 Ant1 35.92 0.5 Pass NVNT ax40 5795 Ant1 35.9 0.5 Pass NVNT ax80 5775 Ant1 75.9 0.5 Pass Page 3 of 141 FCC ID: 2A3AS-WVRM Report No.: LCSA01156055ED Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity -6dB Bandwidth NVNT a 5745MHz Ant1 -6dB Bandwidth NVNT a 5785MHz Ant1 Page 4 of 141 FCC ID: 2A3AS-WVRM Report No.: LCSA01156055ED Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity -6dB Bandwidth NVNT a 5825MHz Ant1 -6dB Bandwidth NVNT n20 5745MHz Ant1 Page 5 of 141 FCC ID: 2A3AS-WVRM Report No.: LCSA01156055ED Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity -6dB Bandwidth NVNT n20 5785MHz Ant1 -6dB Bandwidth NVNT n20 5825MHz Ant1 Page 6 of 141 FCC ID: 2A3AS-WVRM Report No.: LCSA01156055ED Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity -6dB Bandwidth NVNT n40 5755MHz Ant1 Page 7 of 141 FCC ID: 2A3AS-WVRM Report No.: LCSA01156055ED Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity -6dB Bandwidth NVNT n40 5795MHz Ant1 -6dB Bandwidth NVNT ac20 5745MHz Ant1 -6dB Bandwidth NVNT ac20 5785MHz Ant1 Page 8 of 141 FCC ID: 2A3AS-WVRM Report No.: LCSA01156055ED Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity -6dB Bandwidth NVNT ac20 5825MHz Ant1 -6dB Bandwidth NVNT ac40 5755MHz Ant1 Page 9 of 141 FCC ID: 2A3AS-WVRM Report No.: LCSA01156055ED Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity -6dB Bandwidth NVNT ac40 5795MHz Ant1 -6dB Bandwidth NVNT ac80 5775MHz Ant1 Page 10 of 141 FCC ID: 2A3AS-WVRM Report No.: LCSA01156055ED Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity -6dB Bandwidth NVNT ax20 5745MHz Ant1 -6dB Bandwidth NVNT ax20 5785MHz Ant1 Page 11 of 141 FCC ID: 2A3AS-WVRM Report No.: LCSA01156055ED Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity -6dB Bandwidth NVNT ax20 5825MHz Ant1 -6dB Bandwidth NVNT ax40 5755MHz Ant1 Page 12 of 141 FCC ID: 2A3AS-WVRM Report No.: LCSA01156055ED Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity -6dB Bandwidth NVNT ax40 5795MHz Ant1 -6dB Bandwidth NVNT ax80 5775MHz Ant…
