2A3AX-PW401Wireless Charger Speaker with Lamp

WIRELESS CHARGER WIRELESS SPEAKER+LED LAMP WIRELESS CHARGERMOOD LIGHTWIRELESS SPEAKERRADIOALARM CLOCKMOBILE PHONE STAND PRODUCT INSTRUCTIONS Thank you so much for choosing our product, please read the manual carefully before using the product. FEATURES Simple and exquisite. Night light. Radio. Wireless speaker Alarm clock. Wireless fast charger. Charging distance≤5mm. Aluminum handle. Lampshade Wireless charging area Silicone buttons Clock display area Speaker cavity Mobile phone stand Sillicone anti-slip mat Type-C input port Exhaust hole CHARACTERISTIC OPERATION METHOD 1. Connect the USB port of the USB data cable to the power adapter, and the Type-C port to the wireless charger. The clock display area has a “ DC ” indicator. 2. Please put the wireless charging device in the charging indication area,The charging indicator “ ” above the clock display area is always on, and it enters the charging state. NIGHT L IGHT FUNCTION Touch the switch for the first time to start the light, and the light brightness is 30%. Touch the switch for the second time to start the light, and the light brightness is 70%. Touch the switch for the third time to start the light, and the light brightness is 100%. Touch the switch for the fourth time to turn off the light. Turn on the lights in turn. BUTTON FUNCTION Button introduction ModeSwitchBluetoothRadioPlay/Stop Down/Screen brightness Up/Alarm switch ALARM CLOCK TO USE In normal clock display mode: 1. Short press MODE→Clock setting→Alarm setting→12/24h →year→Month/day. 2. Short press →Reduce the number. 3. Short press →Increase the number. 4. Short press SWITCH →Switch clock . hour/minut →Switch alarm.Hour/Minute→Switch 12/24h→Year- > Month/day. 5. Long press MODE→Finish setting and return to time display. When the time is not set: 1.Long pres →Alarm on/off. 2. Short press →Adjust the brightness of the clock screen. 3.Alarm sounds, touch the aluminum handle→Snooze. The snooze time lasts for 5 minutes, 3 times in total. Unplug the power: 1.Unplug the power and the screen will be on for another hour, it will automatically become a power saving mode! 2. Low battery! There will be a sound. USING BLUETOOTH SPEAKER METHOD: When the power cord is plugged in, short press the switch BT,there is a prompt, the blue function is turned onand it is in the state of preparing for pairing. At this time, turn on the blue function of your phone, and in the blue device, search for blue The words " WT-C411" appear on the sound, click to select the device name of " WT-C411"; the pairing is automatically entered, and there will be a prompt after the pairing connection is successful. Short press the switch BTagain to exit the Bluetooth function. When speaker playing: 1.Shortpress →play/stop. 2. Short press →decrease the volume,; Long press →switch to the next; When volume adjusted to the minimum, there will be a boost. 3. Short press →increase the volume; Long press →switch to the next; When volume adjusted to the maximum, there will be a boost. USING RADIO METHOD: After plugging in the power cord, short press the switchFM, there will be a beep, turn on the radio function; When using, first long press to search all surrounding channels and add radio stations; short press the switchFMagain to exit the radio function. When Radio playing: 1. Short press →play/shop, . Long press →auto search for radio stations. 2. Short press →switch to the next channel; press →decrease the volume, the volume will be adjusted to the minimum, and there will be a beep. 3. Short press →switch to the previous channel; press → increase the volume, the volume will be adjusted to the maximum, and there will be a beep. APPLICABLE DEVICE This product supports fast wireless charging, which complies with the QI wireless charging standard; it realizes short-distance wireless power transmission through magnetic induction. This device supports all wireless charging devices that meet the QI standard. When using a 5V output adapter , Wireless charging supports 5W load. When using an adapter that meets QC2.0 and above standards,the wireless charging supports 10W load; Support overcharge protection (9V) and overcurrent protection (2A). ATTENTION POINTS ●Do not use or store the product in direct sunlight or high temperature places for a long time. ●Do not charge in places too close to magnetic cards, magnetic recording media, and precision instruments. ●Do not disassemble or modify this product. ●Do not touch the AC adapter with wet hands. ●Keep this product away from water or other liquids. ●If you want to clean the product, please disconnect the power. ●Product working environment temperature range: -20~45°C. WIRELESS CHARGING SPECIFICATIONS Material:Imported ABS+PP+Hardware Input:DC5V/2.1A 9V/2A Charging efficiency:75% Battery capacity:1800mAh Power:5W/7.5W10W/15W Product size:225×116×87mm Charging port:Universal Type-C SPEAKER SPECIFICATIONS FCC Warning Bluetooth version:5.0 Bluetooth distance:10m Speaker power:4ΩW× Speaker specifications:50mm Made in China WT-C411 This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installa…

Text truncated - open the document above for the full version.

DECLARATION In normal operation, the internal battery cannot power the wireless charge. Hereby declare. <Signature> Name: JT Zeng Title: Sr.Sourcing Manager Applicant Company: Vinci Brands LLC Date: 2022-07-11

Vinci Brands LLC Model Declaration letter We hereby declares: Product name: Wireless Charger Speaker with Lamp Model: PW-401, PW-401-GRY Trade Mark: 1); 2) All model’s the function ,appearance, software, electric circuit, PCB layout and interior structure are the same except model name. The different models are designed for marketing. Company name: Vinci Brands LLC Company address: 1775 Flight Way, Suite 300, Tustin, CA 92782 Place, Date, Signature: 2022.07.08 Name: JT Zeng

DATE:2022-7-8 Federal Communications Commission Authorization & Evaluation Division 7345 Oakland Mills Road Columbia, Maryland 21046 Authority to Act asAgent On our behalf, I appoint DONGGUAN SHUOXIN ELECTRONIC TECHNOLOGY CO., LTD. Zone A, 1F, No. 6, XinGang Road YuanGang Street, XinAn District, ChangAn Town, DongGuan City, GuangDong, China (Name of Agent company name and address) to actas our agent in the preparation of this application for equipment certification. I certify that submitted documents properly describe the device or system for which equipment certification is sought. I also certify that each unit manufactured, imported or marketed, as defined in the Federal Communications Commission’s regulations will have affixed to it a label identical to that submitted for approval with this application. For instances where our authorized agentsigns the application for certification on our behalf, Iacknowledge that all responsibility for complying with the terms and conditions for certification, still resides with Vinci Brands LLC; 1775 Flight Way, Suite 300, Tustin, CA 92782. <Signature> Name: JT Zeng Title: Sr.Sourcing Manager Applicant Company: Vinci Brands LLC

DATE : 2022-07-08 Equipment Autorisation Division Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 FCC ID: 2A3AX-PW401 Product Name: Wireless Charger Speaker with Lamp Request for Confidentiality Pursuant to Sections 0.457 and 0.459 of the commissions rules, we hereby request that the following documents be held confidential: (List here the documents for which you are seeking confidentiality – for example ...) • Schematics • Block diagram • Operation description These materials contain trade secrets and proprietary information and are not customarily released to the public. The public disclosure of this information might be harmful to the company and provide unjustified benefits to our competitors. <Signature>: Name: JT Zeng Title: Sr.Sourcing Manager Applicant Company: Vinci Brands LLC

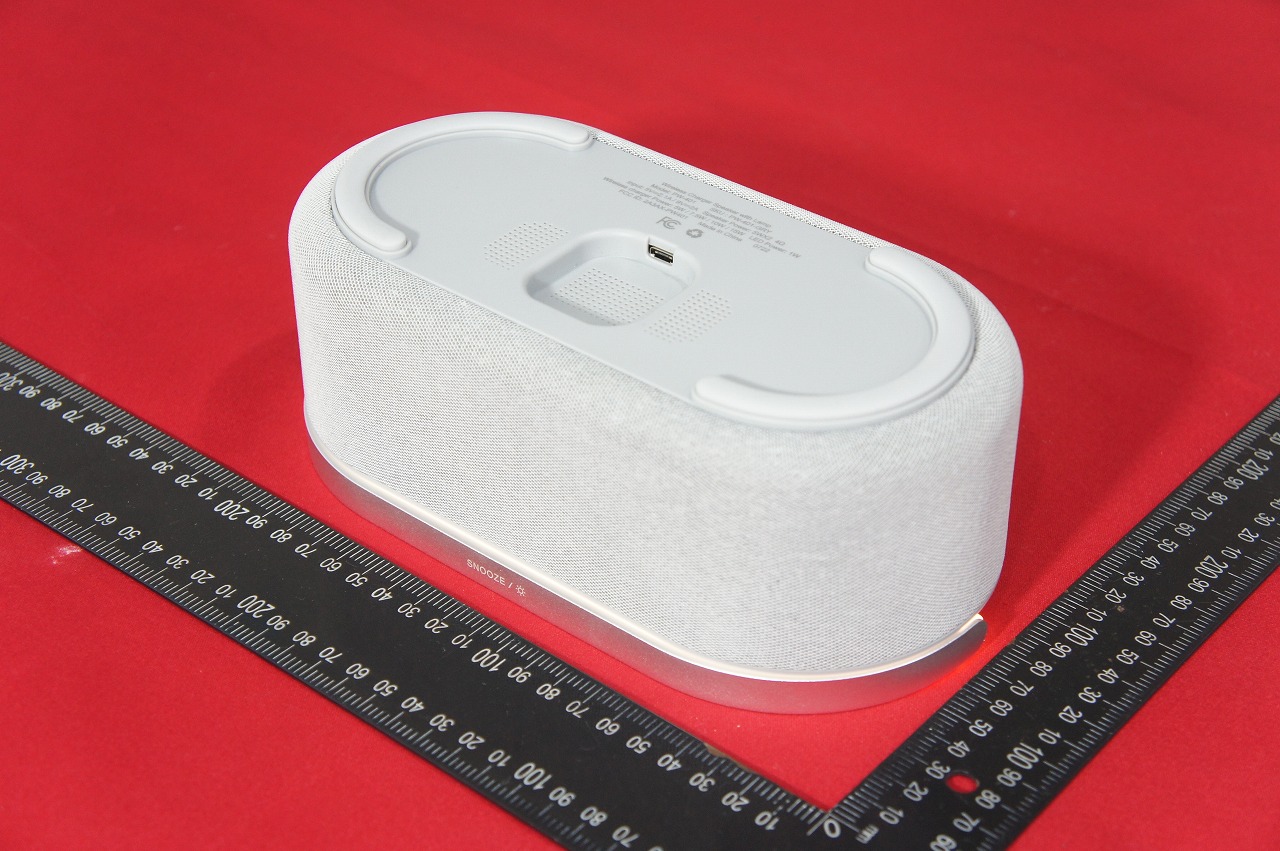

External photos END

Label Location Model: PW-401: PW-401-GRY Label Location

Internal photos FM receive Antenna Coil Bluetooth Antenna ----------------------- BLANK BELOW -------------------------

RF EXPOSURE REPORT FCC ID: 2A3AX-PW401 Report Reference No. ................ : 22EFSS06081 Date of issue .............................. : 2022-06-29 Applicant’s name ........................ : Vinci Brands LLC Address ...................................... : 1775 Flight Way, Suite 300, Tustin, CA 92782 Manufacturer .............................. : Vinci Brands LLC Equipment .................................. : Wireless Charger Speaker with Lamp Trade Mark ................................. : ; Model ........................................ : PW-401, PW-401-GRY Ratings ....................................... : Input: 5V 2.1A/9V2A Output: Wireless charger Power: 5W/7.5W/10W/15W Testing Laboratory ...................... : DongGuan ShuoXin Electronic Technology Co., Ltd. Address ...................................... : Zone A, 1F, No. 6, XinGang Road YuanGang Street, XinAn District, ChangAn Town, DongGuan City, GuangDong, China According ................................... : KDB 447498 D01 General RF Exposure Guidance v06 Test Engineer: Blue Qiu Responsible Engineer : Smile Wang Authorized Signatory: King Wang MPE CALCULATION METHOD: Calculation Method of RF Safety Distance: where: S = power density P = power input to the antenna G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the center of radiation of the antenna Table for Filed Antenna Ant. Brand Model Name Antenna Type Connector Gain(dBi) Note 1 N/A N/A PCB N/A 2 TEST RESULTS EUT： Wireless Charger Speaker with Lamp Model Name : PW-401, PW-401-GRY Temperature： 23.4 °C Relative Humidity: 58 % Test Voltage : AC 120V 60Hz BT Antenna Gain (dBi) Antenna Gain (numeric) Peak Output Power (dBm) Peak Output Power (mW) Power Density (S) (mW/cm 2 ) Limit of Power Density (S) (mW/cm 2 ) Te s t Result -0.58 0.8750 1.568 1.435 0.00025 1 Complies Note: the calculated distance is 20 cm.

Report No.: 22EFSS06081 05591 Page 1 of 51 FCC Radio Test Report FCC ID: 2A3AX-PW401 The report concerns: Original Grant Report Reference No. ....................... : 22EFSS06081 05591 Date Sample(s) Received ................. : 2022-06-22 Date of Tested ................................... : From 2022-06-24 to 2022-06-29 Date of issue ..................................... : 2022-06-29 Testing Laboratory ............................ : DongGuanShuoXin Electronic Technology Co., Ltd. Address ............................................. : Zone A, 1F, No. 6, XinGang Road YuanGang Street, XinAn District, ChangAn Town, DongGuan City, GuangDong, China Applicant’s name .............................. : Vinci Brands LLC Address ............................................. : 1775 Flight Way, Suite 300, Tustin, CA 92782 Manufacturer ..................................... : Vinci Brands LLC Equipment ......................................... : Wireless Charger Speaker with Lamp Trade Mark ....................................... : ; Model .............................................. : PW-401, PW-401-GRY Ratings .............................................. : Input: 5V 2.1A/9V2A Output: Wireless charger Power: 5W/7.5W/10W/15W Test Engineer: Blue Qiu Responsible Engineer : Smile Wang Authorized Signatory: King Wang Report No.: 22EFSS06081 05591 Page 2 of 51 Table of Contents Page 1 TEST REPORT DECLARE 4 2 SUMMARY OF TEST RESULTS 5 2.1 MEASUREMENT UNCERTAINTY 6 3 GENERAL INFORMATION 7 3.1 GENERAL DESCRIPTION OF EUT 7 3.2 DESCRIPTION OF TEST MODES 9 3.3 PARAMETERS OF TEST SOFTWARE 9 3.4 BLOCKDIAGRAMSHOWINGTHECONFIGURATIONOFSYSTEMTESTED 10 3.5 SUPPORT UNITS 10 3.6 TEST ENVIRONMENT CONDITIONS 10 4 AC POWER LINE CONDUCTED EMISSIONS TEST 11 4.1 LIMIT 11 4.2 TEST PROCEDURE 11 4.3 MEASUREMENT INSTRUMENTS LIST 11 4.4 TESTSETUP 12 4.5 EUT OPERATING CONDITIONS 12 4.6 TEST RESULTS 13 5 RADIATED EMISSION TEST 15 5.1 LIMIT 15 5.2 TEST PROCEDURE 16 5.3 MEASUREMENT INSTRUMENTS LIST 17 5.4 TESTSETUP 17 5.5 EUT OPERATING CONDITIONS 18 5.6 TEST RESULT- 9KHZ TO 30MHZ 19 5.7 TEST RESULT- 30MHZ TO 1000MHZ 20 5.8 TEST RESULT- ABOVE 1000MHZ(BAND EDGE) 22 5.9 TEST RESULTS - ABOVE 1000MHZ(HARMONIC) 30 6 BANDWIDTH TEST 42 6.1 LIMIT 42 6.2 TEST PROCEDURE AND SETTING 42 6.3 MEASUREMENT INSTRUMENTS LIST 42 6.4 TEST SETUP 42 6.5 EUT OPERATION CONDITIONS 42 Report No.: 22EFSS06081 05591 Page 3 of 51 Table of Contents Page 6.6 TESTRESULTS 43 7 MAXIMUM OUTPUT POWER 45 7.1 LIMIT 45 7.2 TEST PROCEDURE 45 7.3 MEASUREMENT INSTRUMENTS LIST 45 7.4 TEST SETUP 45 7.5 EUT OPERATION CONDITIONS 45 7.6 TESTRESULTS 46 8 CONDUCTED SPURIOUS EMISSION 47 8.1 LIMIT 47 8.2 TEST PROCEDURE 47 8.3 MEASUREMENT INSTRUMENTS LIST 47 8.4 TEST SETUP 47 8.5 EUT OPERATION CONDITIONS 47 8.6 TEST RESULTS 48 9 POWER SPECTRAL DENSITY TEST 50 9.1 LIMIT 50 9.2 TEST PROCEDURE 50 9.3 MEASUREMENT INSTRUMENTS LIST 50 9.4 TEST SETUP 50 9.5 EUT OPERATION CONDITIONS 50 9.6 TEST RESULTS 51 Report No.: 22EFSS06081 05591 Page 4 of 51 1TEST REPORT DECLARE Applicant Vinci Brands LLC Address 1775 Flight Way, Suite 300, Tustin, CA 92782 Manufacturer Same as Applicant Address Same as Applicant Factory Same as Applicant Address Same as Applicant Equipment Wireless Charger Speaker with Lamp Model No. PW-401,PW-401-GRY Trade Mark ; Standard FCC Part15, Subpart C (15.247) ANSI C63.10-2013 We Declare: The equipment described above is tested by DongGuan ShuoXin Electronic Technology Co., Ltd(ATT). and in the configuration tested the equipment complied with the standards specified above. The test results are contained in this test report and DongGuan ShuoXin Electronic Technology Co., Ltd.(ATT) is assumed of full responsibility for the accuracy and completeness of these tests. ATT is not responsible for the sampling stage, so the results only apply to the sample as received. ATT's reports apply only to the specific samples tested under conditions. It is manufacture’s responsibility to ensure that additional production units of this model are manufactured with the identical electrical and mechanical components. ATT shall have no liability for any declarations, inferences or generalizations drawn by the client or others from ATT issued reports. Report No.: 22EFSS06081 05591 Page 5 of 51 2SUMMARY OF TEST RESULTS The EUT have been tested according to the applicable standards as referenced below: Standard(s) Section Test Item Judgment Remark FCC ISED 15.207 - AC Power Line Conducted Emissions PASS ------ 15.247(d) 15.205(a) 15.209(a) - Radiated Emissions PASS ------ 15.247(a)(2) - Bandwidth PASS ------ 15.247(b)(3) - Maximum Output Power PASS ------ 15.247(d) - ConductedSpurious Emission PASS ------ 15.247(e) - Power Spectral Density PASS ------ - - Frequency Stability PASS ------ 15.203 - Antenna Requirement PASS Note(2) Note: (1) “N/A” denotes test is not applicable to this device. (2) The device what use a permanently attached antenna were considered sufficient tocomply with the provisions of 15.203. Report No.: 22EFSS06081 05591 Page 6 of 51 2.1MEASUREMENT UNCERTAINTY Test Item Uncertainty Uncertainty for Conductionemission test (9kHz-150kHz) 3.7 dB Uncertainty for Conduction emission test (150kHz-30MHz) 3.3 dB Uncertainty for Radiation Emission test (30MHz-200MHz) 4.60 dB (Polarize: V) 4.60 dB (Polarize: H) Uncertainty for Radiation Emission test (200MHz-1GHz) 6.10 dB (Polarize: V) 5.08 dB (Polarize: H) Uncertainty for Radiation Emission test (1GHz-6GHz) 5.01 dB (Polarize: V) 5.01 dB (Polarize: H) Uncertainty for Radiation Emission test (6GHz-18GHz) 5.26 dB (Polarize: V) 5.26 dB (Polarize: H) Uncertainty for Radiation Emission test (18GHz-40GHz) 5.06 dB (Polarize: V) 5.06 dB (Polarize: H) Uncertainty for radio frequency ±0.048kHz Uncertainty for conducted RF Power ±0.32dB Note: This uncertainty represents an expanded uncertainty expressed at approximately the 95%confidence level using a coverage factor of k=2. Test Facility: The Test site used by DongGuan ShuoXin Electronic Technology Co.,…

Text truncated - open the document above for the full version.

Test Setup Below 1GHz Above 1GHz Conducted setup (Bluetooth) END
