This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator and your body.

Sincerely, Name/Title： xingui zhu/Test Engineer Company: Shen zhen Powerful Photoelectron Co.,Ltd Address: 5th Floor, Building 3, Zone B, Hongfa Science and Technology Industrial Park, Tangtou Community, Shiyan Street, Baoan District, Shenzhen China Phone: 0755-26792525 Fax: 0755-26793339 E-Mail: [email protected]

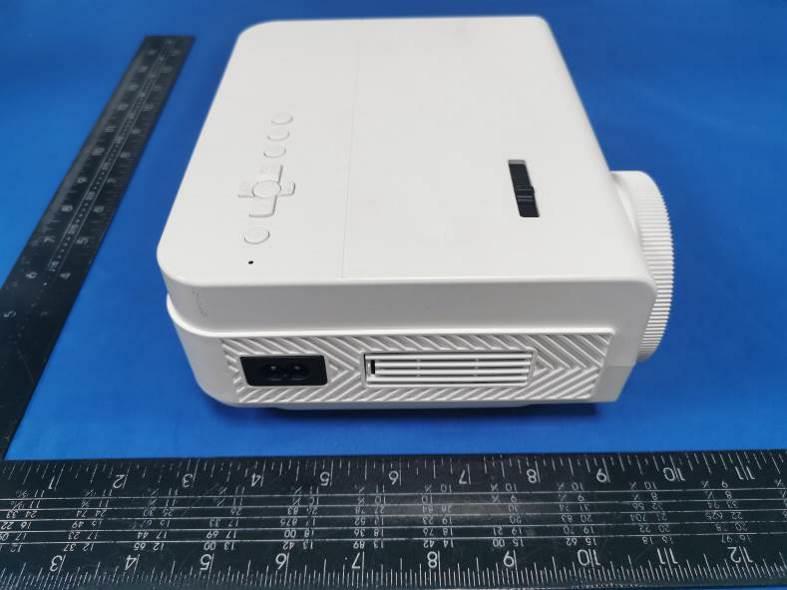

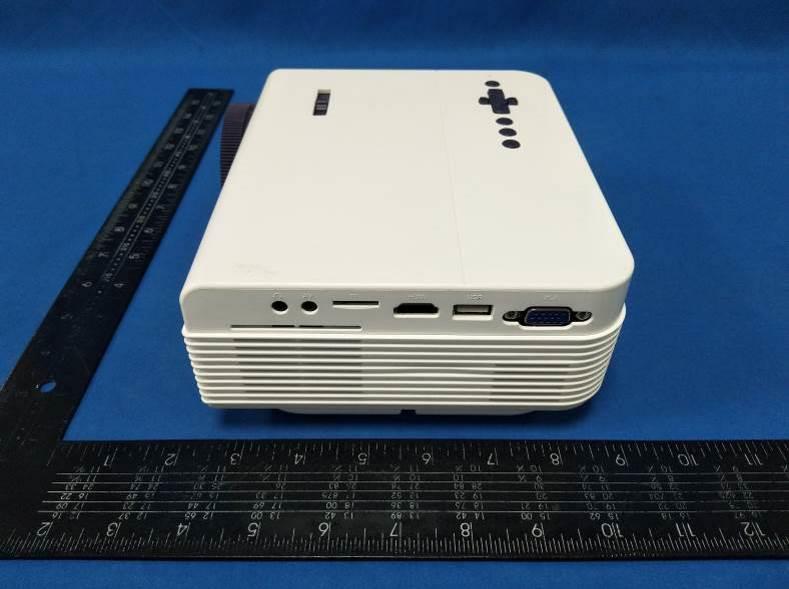

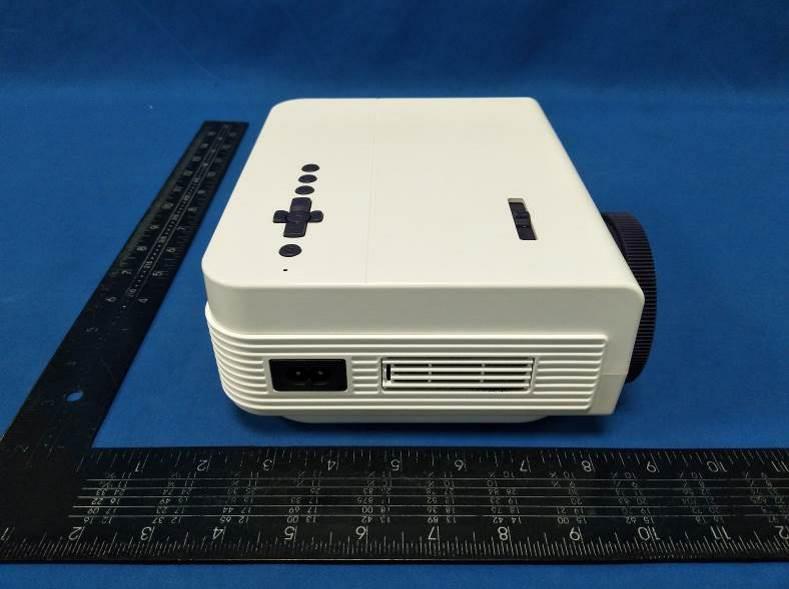

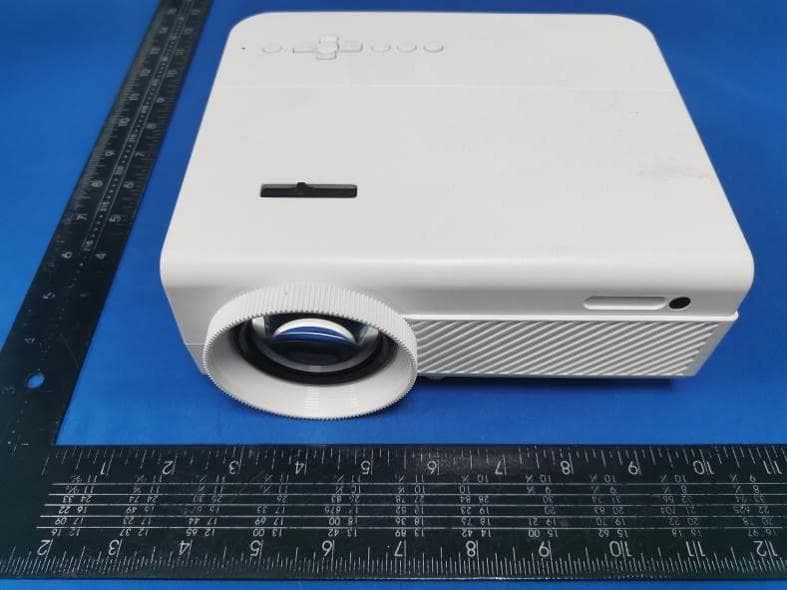

FCC ID: 2A3DJ-V7 External Photos of the EUT Photo 1 V7 Photo 2 Photo 3 FCC ID: 2A3DJ-V7 Photo 4 Photo 5 Photo 6 FCC ID: 2A3DJ-V7 Photo 7 Photo 8 AV7 Photo 9 FCC ID: 2A3DJ-V7 Photo 10 Photo 11 Photo 12 FCC ID: 2A3DJ-V7 Photo 13 Photo 14 BV7, CV7, DV7, EV7, FV7, GV7, HV7 Photo 15 FCC ID: 2A3DJ-V7 Photo 16 Photo 17 Photo 18 FCC ID: 2A3DJ-V7 Photo 19

Label and Location Size: L: 4.0cm*W: 3.0cm Label and Location Model No.: V7 FCC ID : 2A3DJ-V7 Caution : This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

FCC ID: 2A3DJ-V7 Internal Photos of the EUT Photo 1 V7 Photo 2 Photo 3 FCC ID: 2A3DJ-V7 Photo 4 Photo 5 Photo 6 BT (PCB)Antenna FCC ID: 2A3DJ-V7 Photo 7 Photo 8 Photo 9 FCC ID: 2A3DJ-V7 Photo 10 Photo 11 Photo 12 2.4GWIFI/5GWIFI(I nternal) Antenna tenna FCC ID: 2A3DJ-V7 Photo 13 Photo 14 Photo 15 AV7 FCC ID: 2A3DJ-V7 Photo 16 BV7, CV7, DV7, EV7, FV7, GV7, HV7

RF Exposure evaluation FCC ID: 2A3DJ-V7 Exposure category: General population/uncontrolled environment EUT Type: Production Unit Device Type: Mobile Device 1. Reference According to §1.1307(b)(1), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. According to §1.1310 and §2.1091 RF exposure is calculated. KDB447498 D01: Mobile and Portable Devices RF Exposure Procedures and Equipment Authorization Policies 2. Limit Limits for Maximum Permissible Exposure (MPE)/Controlled Exposure Frequency Range(MHz) Electric Field Strength(V/m) Magnetic Field Strength(A/m) Power Density (mW/cm²) Averaging Time (minute) Limits for Occupational/Controlled Exposure 0.3 – 3.0 3.0 – 30 30 – 300 300 – 1500 1500 – 100,000 614 1842/f 61.4 / / 1.63 4.89/f 0.163 / / (100) * (900/f 2 )* 1.0 f/300 5 6 6 6 6 6 Limits for Maximum Permissible Exposure (MPE)/Uncontrolled Exposure Frequency Range(MHz) Electric Field Strength(V/m) Magnetic Field Strength(A/m) Power Density (mW/cm²) Averaging Time (minute) Limits for Occupational/Controlled Exposure 0.3 – 3.0 3.0 – 30 30 – 300 300 – 1500 1500 – 100,000 614 824/f 27.5 / / 1.63 2.19/f 0.073 / / (100) * (180/f 2 )* 0.2 f/1500 1.0 30 30 30 30 30 F=frequency in MHz *=Plane-wave equivalent power density 3. MPE Calculation Method Predication of MPE limit at a given distance Equation from page 18 of OET Bulletin 65, Edition 97-01 S=PG/4πR² Where: S=power density P=power input to antenna G=power gain of the antenna in the direction of interest relative to an isotropic radiator R=distance to the center of radiation of the antenna 4. Antenna Information DP01 can only use antennas certificated as follows provided by manufacturer; Antenna No. Model No. of antenna: Type of antenna: Gain of the antenna (Max.) Frequency range: BT Antenna / PCB ANT -0.58dBi for 2400-2500MHz; 2.4GWIFI Antenna / PIFA Antenna 1.60dBi for 2400-2500MHz; 5.2GWIFI Antenna / PIFA Antenna 1.60dBi for 5180-5240MHz; 5.8GWIFI Antenna / PIFA Antenna -0.33dBi for 5745-5825MHz; 5. Manufacturing Tolerance [Bluetooth] GFSK (Peak) Frequency (MHz) 2402 2441 2480 Target (dBm) -1.0 -1.0 -1.0 Tolerance ± (dB) 1.0 1.0 1.0 π/4-DQPSK (Peak) Frequency (MHz) 2402 2441 2480 Target (dBm) -1.0 -1.0 -1.0 Tolerance ± (dB) 1.0 1.0 1.0 [2.4GHz WLAN] IEEE 802.11b (Peak) Frequency (MHz) 2412 2437 2462 Target (dBm) 16.0 16.0 16.0 Tolerance ± (dB) 1.0 1.0 1.0 IEEE 802.11g (Peak) Frequency (MHz) 2412 2437 2462 Target (dBm) 15.0 15.0 15.0 Tolerance ± (dB) 1.0 1.0 1.0 IEEE 802.11n HT20 (Peak) Frequency (MHz) 2412 2437 2462 Target (dBm) 15.0 15.0 15.0 Tolerance ± (dB) 1.0 1.0 1.0 [5.2GHz WLAN] IEEE 802.11A (Average) Frequency (MHz) 5180 5220 5240 Target (dBm) 11.0 11.0 11.0 Tolerance ± (dB) 1.0 1.0 1.0 IEEE 802.11n20 (Average) Frequency (MHz) 5180 5220 5240 Target (dBm) 10.0 10.0 10.0 Tolerance ± (dB) 1.0 1.0 1.0 IEEE 802.11n40 (Average) Frequency (MHz) 5190 / 5230 Target (dBm) 10.0 / 10.0 Tolerance ± (dB) 1.0 / 1.0 IEEE 802.11ac20 (Average) Frequency (MHz) 5180 5220 5240 Target (dBm) 10.0 10.0 10.0 Tolerance ± (dB) 1.0 1.0 1.0 IEEE 802.11ac40 (Average) Frequency (MHz) 5190 / 5230 Target (dBm) 10.0 / 10.0 Tolerance ± (dB) 1.0 / 1.0 IEEE 802.11ac80 (Average) Frequency (MHz) / 5210 / Target (dBm) / 10.0 / Tolerance ± (dB) / 1.0 / [5.8GHz WLAN] IEEE 802.11A (Average) Frequency (MHz) 5745 5785 5825 Target (dBm) 7.0 7.0 7.0 Tolerance ± (dB) 1.0 1.0 1.0 IEEE 802.11n20 (Average) Frequency (MHz) 5745 5785 5825 Target (dBm) 7.0 7.0 7.0 Tolerance ± (dB) 1.0 1.0 1.0 IEEE 802.11ac20 (Average) Frequency (MHz) 5745 5785 5825 Target (dBm) 7.0 7.0 7.0 Tolerance ± (dB) 1.0 1.0 1.0 IEEE 802.11n40 (Average) Frequency (MHz) 5755 / 5795 Target (dBm) 7.0 / 7.0 Tolerance ± (dB) 1.0 / 1.0 IEEE 802.11ac40 (Average) Frequency (MHz) 5755 / 5795 Target (dBm) 7.0 / 7.0 Tolerance ± (dB) 1.0 / 1.0 IEEE 802.11ac80 (Average) Frequency (MHz) / 5775 / Target (dBm) / 7.0 / Tolerance ± (dB) / 1.0 / 6. Standalone MPE Result As declared by the Applicant, the EUT is a wireless device used in a fix application, at least 20 cm from any body part of the user or nearby persons; from the maximum EUT RF output power, the minimum separation distance, r =20cm, as well as the gain of the used antennas are refer to section Antenna Information, the RF power density can be obtained. Modulation Type Output power Antenna Gain (dBi) Antenna Gain (linear) MPE (mW/cm 2 ) MPE Limits (mW/cm 2 ) dBm mW 2.4GWIFI 17.0 50.1187 1.60 1.4454 0.0144 1.0000 5.2GWIFI 12.0 15.8489 1.60 1.4454 0.0046 1.0000 5.8GWIFI 8.0 6.3096 -0.33 0.9268 0.0012 1.0000 BT 0.0 1.0000 -0.58 0.8750 0.0002 1.0000 Remark: 1. Output power (Peak) including turn-up tolerance; 2. MPE evaluate distance is 20cm from user manual provide by manufacturer. 7. simultaneous MPE Result 2.4GWIFI MPE Ratio BT MPE Ratio simultaneous MPE Ratio MPE Limits Ratio 0.0144 0.0002 0.0146 1.0000 8. Conclusion The measurement results comply with the FCC Limit per 47 CFR 2.1091 for the uncontrolled RF Exposure of mobile device. ----------------THE END OF REPORT---------------

Summary Antenna Specification Antenna plate FPC antenna MAX. Gain 1.60dBi Frequency range 2400-2500MHz; 5150-5850MHz Impedance 50Ω Manufacture Shenzhen MyAntenna RF Technology Co., Ltd. Model WF84A Antenna Photo Antenna Radiation Pattern [email protected] (3D) [email protected] (2D) Pattern@5G (3D) Pattern@5G (2D) 2.4G 5G Freq(MHz) Gain(dBi) Efficiency(dB) Efficiency(%) Freq(MHz) Gain(dBi) Efficiency(dB) Efficiency(%) 2400 1.58 -3.94 40.36 5150 1.60 -4.3 36.27 2410 1.60 -3.99 39.87 5180 1.13 -4.18 37.14 2420 1.38 -4.11 38.82 5200 0.88 -3.97 38.21 2430 0.96 -4.21 37.95 5220 0.37 -3.83 40.07 2440 0.79 -4.23 37.74 5240 0.32 -3.78 41.45 2450 0.62 -4.27 37.42 5260 0.39 -3.79 41.83 2460 0.56 -4.27 37.42 5280 0.44 -3.72 41.75 2470 0.59 -4.19 38.13 5300 0.68 -3.64 42.46 2480 0.56 -4.18 38.21 5320 0.91 -3.59 43.25 2490 0.65 -4.13 38.67 5340 1.13 -3.53 43.74 2500 0.72 -4.09 39.01 5360 1.24 -3.55 44.36 5380 1.21 -3.67 44.14 5400 1.29 -3.71 42.98 5420 0.83 -3.6 42.54 5440 0.91 -3.51 43.7 5460 0.99 -3.57 44.56 5480 0.95 -3.68 43.95 5500 0.79 -3.82 42.82 5520 0.53 -3.88 41.47 5540 0.31 -3.78 40.94 5560 0.26 -3.71 41.88 5580 0.23 -3.75 42.6 5600 0.13 -3.93 42.2 5620 -0.21 -4.09 40.43 5640 -0.42 -4.21 38.99 5660 -0.53 -4.19 37.95 5680 -0.41 -4.09 38.14 5700 -0.17 -4.11 39 5720 -0.08 -4.29 38.79 5740 -0.33 -4.51 37.28 5760 -0.67 -4.6 35.41 5780 -0.78 -4.53 34.68 5800 -0.67 -4.49 35.25 5820 -0.48 -4.56 35.57 5850 -0.41 -4.71 35.01

Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn FCC PART 15 SUBPART C TEST REPORT FCC PART 15 SUBPART E 15.407 Report Reference No. ..................... : FCC ID. ............................................ : CTA22102000303 2A3DJ-V7 Compiled by ( position+printed name+signature) .. : File administrators Zoey Cao Supervised by ( position+printed name+signature) .. : Project Engineer Amy Wen Approved by ( position+printed name+signature) .. : RF Manager Eric Wang Date of issue ..................................... : Dec. 20, 2022 Testing Laboratory Name .............. : Shenzhen CTA Testing Technology Co., Ltd. Address ............................................ : Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Applicant’s name ............................ : Shen Zhen Powerful Photoelectron Co., Ltd Address ............................................ : 5th Floor, Building 3, Zone B, Hongfa Science and Technology Industrial Park, Tangtou Community, Shiyan Street, Baoan District, Shenzhen, China Test specification ...........................: Standard ........................................... : FCC Part 15 Subpart E 15.407 TRF Originator .................................. : Shenzhen Global Test Service Co.,Ltd. Shenzhen CTA Testing Technology Co., Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen CTA Testing Technology Co., Ltd. is acknowledged as copyright owner and source of the material. Shenzhen CTA Testing Technology Co., Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Test item description .....................: PROJECTOR Trade Mark ....................................... : N/A Manufacturer .................................... : Shen Zhen Powerful Photoelectron Co., Ltd Model/Type reference....................... : V7 Listed Models .................................. : AV7, BV7, CV7, DV7, EV7, FV7, GV7, HV7 Modulation ....................................... : OFDM Frequency .......................................... From 5180MHz-5240MHz, 5745MHz-5825MHz Ratings ............................................. : AC 120V, 60Hz Result................................................ : PASS Report No.: CTA22102000303 Page 2 of 40 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn T E S T R E P O R T Equipment under Test : PROJECTOR Model /Type : V7 Serial Models : AV7, BV7, CV7, DV7, EV7, FV7, GV7, HV7 Applicant : Shen Zhen Powerful Photoelectron Co., Ltd Address : 5th Floor, Building 3, Zone B, Hongfa Science and Technology Industrial Park, Tangtou Community, Shiyan Street, Baoan District, Shenzhen, China Manufacturer : Shen Zhen Powerful Photoelectron Co., Ltd Address : 5th Floor, Building 3, Zone B, Hongfa Science and Technology Industrial Park, Tangtou Community, Shiyan Street, Baoan District, Shenzhen, China Test Result: PASS The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Report No.: CTA22102000303 Page 3 of 40 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn Contents 1 T E S T S T A N D A R D S ................................................................. 4 2 S U M M A R Y ............................................................................ 5 2.1 General Remarks 5 2.2 Product Description 5 2.3 Equipment Under Test 5 2.4 Short description of the Equipment under Test (EUT) 5 2.5 EUT operation mode 6 2.6 Block Diagram of Test Setup 6 2.7 Related Submittal(s) / Grant (s) 6 2.8 Modifications 6 3 T E S T E N V I R O N M E N T .............................................................. 7 3.1 Address of the test laboratory 7 3.2 Test Facility 7 3.3 Environmental conditions 7 3.4 Test Description 8 3.5 Statement of the measurement uncertainty 8 3.6 Equipments Used during the Test 9 4 T E S T C O N D I T I O N S A N D R E S U L T S ........................................... 10 4.1 AC Power Conducted Emission 10 4.2 Radiated Emissions 13 4.3 Maximum Conducted Average Output Power 20 4.4 Power Spectral Density 22 4.5 Emission Bandwidth (26dB Bandwidth) 29 4.6 Minimum Emission Bandwidth (6dB Bandwidth) 33 4.7 Frequency Stability 37 5 T E S T S E T U P P H O T O S O F T H E E U T ......................................... 39 6 P H O T O S O F T H E E U T ........................................................... 40 Report No.: CTA22102000303 Page 4 of 40 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn 1 T E S T S T A N D A R D S The tests were performed according to following standards: FCC Rules Part 15 Subpart E—Unlicensed National Information Infrastructure Devices ANSI C63.10-2013: American National Standard for Testing Unlicensed Wireless Devices KDB789033 D02: General UNII Test Procedures New Rules v01r02 Report No.: CTA22102000303 Page 5 of 40 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial…
