2A3DLA00811Phone Holder

3030 Corporate Grove Dr. Hudsonville, MI 49426 Phone: 616.396.1355 itc-us.com For warranty information please visit www.itc-us.com/warranty-return-policy DOC #: 710-00227 • Rev A • 07/12/2023 1. Desktop Version: Place in desired location on the desk and plug the charger into the power supply. Plug the other cord into the power supply and then plug into the wall. PARTS NEEDED: Desktop and Table Phone Charger Power Supply 2. Tabe Mount Version: Select location and place the charger portion on top of the work surface. Slide the bracket and knob under the surface and tighten until secure to the surface. Plug the charger into the power supply. Plug the other cord into the power supply and then plug into the wall. Page 1 of 1 IMPORTANT SAFETY INSTRUCTIONS Interior use only. Electrical ratings: 24V AC | 1.2A Charging Capacity: Wireless: Up to 10W USB-A - 5V / 2.4A / 12W USB-C - 5V, 9V, 12V, 20V / 3A / Max 60W FCC Statement: This device complies with Part 15 of the FCC rules. Operation is subjected to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Changes or modifications not expressly approved by the party responsible for compliance could void your authority to operate the equipment. Changes or modifications not expressly approved by the party responsible for compliance could void your authority to operate the equipment. FCC Radiation Exposure Statement The equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. The equipment should be installed and operated with minimum dis- tance 15cm between the radiator & your body. FCC VOC This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio f requency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a partic- ular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -- Reorient or relocate the receiving antenna. -- Increase the separation between the equipment and receiver. -- Connect the equipment into an outlet on a circuit different f rom that to which the receiver is connected. -- Consult the dealer or an experienced radio/TV technician for help. Only radiated measurements are used to show compliance with FCC limits for fundamental and spurious emissions. Vi ™ Desktop and Tabe Phone charger INSTALLATION INSTRUCTIONS Part#: VPH

3030 Corporate Grove Dr. Hudsonville, MI 49426 Phone: 616.396.1355 itc-us.com For warranty information please visit www.itc-us.com/warranty-return-policy DOC #: 710-00227 • Rev A • 09/01/23 1. Wall Mount Version: Attach screws (not provided) to wall. Slide wall plate onto screws. Plug the charger into the power supply. Plug the other cord into the power supply and then plug into the wall. PARTS NEEDED: Wall Mount Phone ChargerPower Supply INSTALLATION INSTRUCTIONS Vi ™ Wall Mount Phone Charger Part#: VPH Page 1 of 1 IMPORTANT SAFETY INSTRUCTIONS Interior use only. Electrical ratings: 24V AC | 1.2A Charging Capacity: Wireless: Up to 10W USB-A - 5V / 2.4A / 12W USB-C - 5V, 9V, 12V, 20V / 3A / Max 60W FCC Statement: This device complies with Part 15 of the FCC rules. Operation is subjected to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Changes or modifications not expressly approved by the party responsible for compliance could void your authority to operate the equipment. FCC Radiation Exposure Statement The equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. The equipment should be installed and operated with minimum dis- FCC VOC This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio f requency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a partic- ular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -- Reorient or relocate the receiving antenna. -- Increase the separation between the equipment and receiver. -- Connect the equipment into an outlet on a circuit different f rom that to which the receiver is connected. -- Consult the dealer or an experienced radio/TV technician for help. Only radiated measurements are used to show compliance with FCC limits for fundamental and spurious emissions. tance 15cm between the radiator & your body.

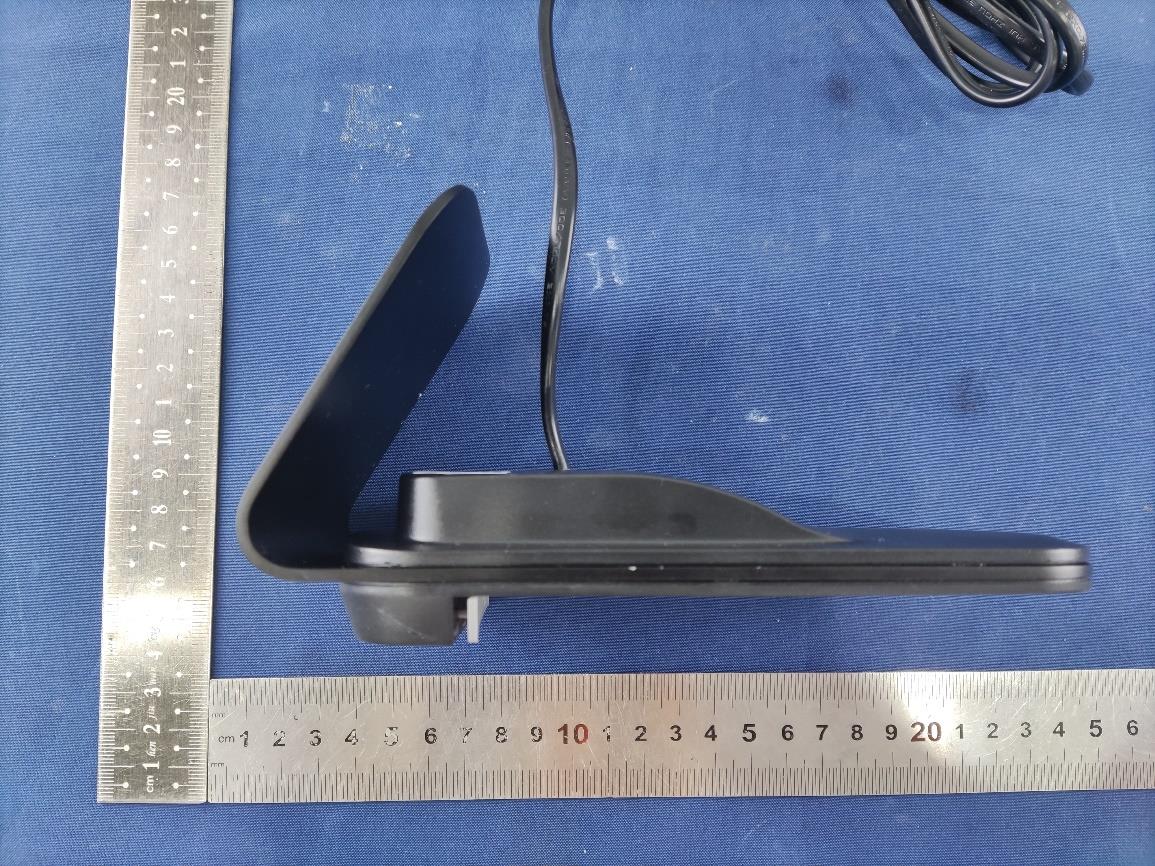

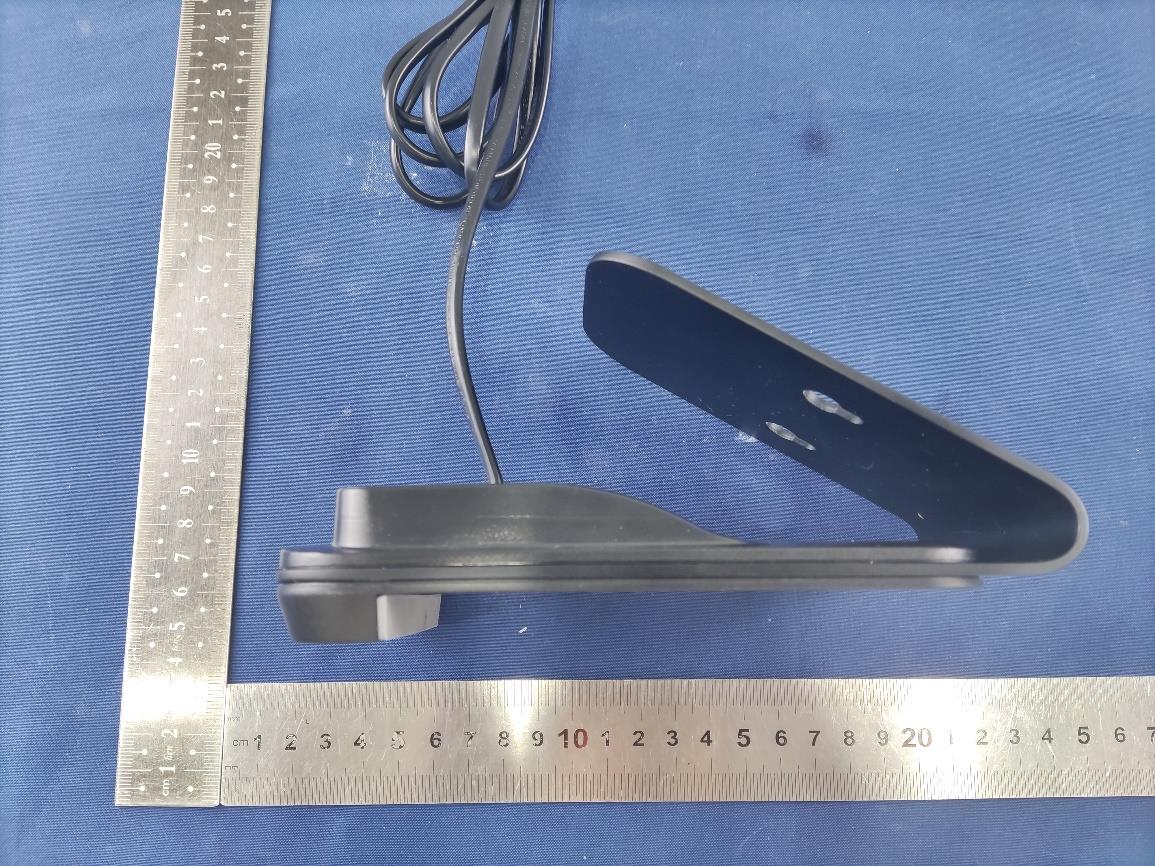

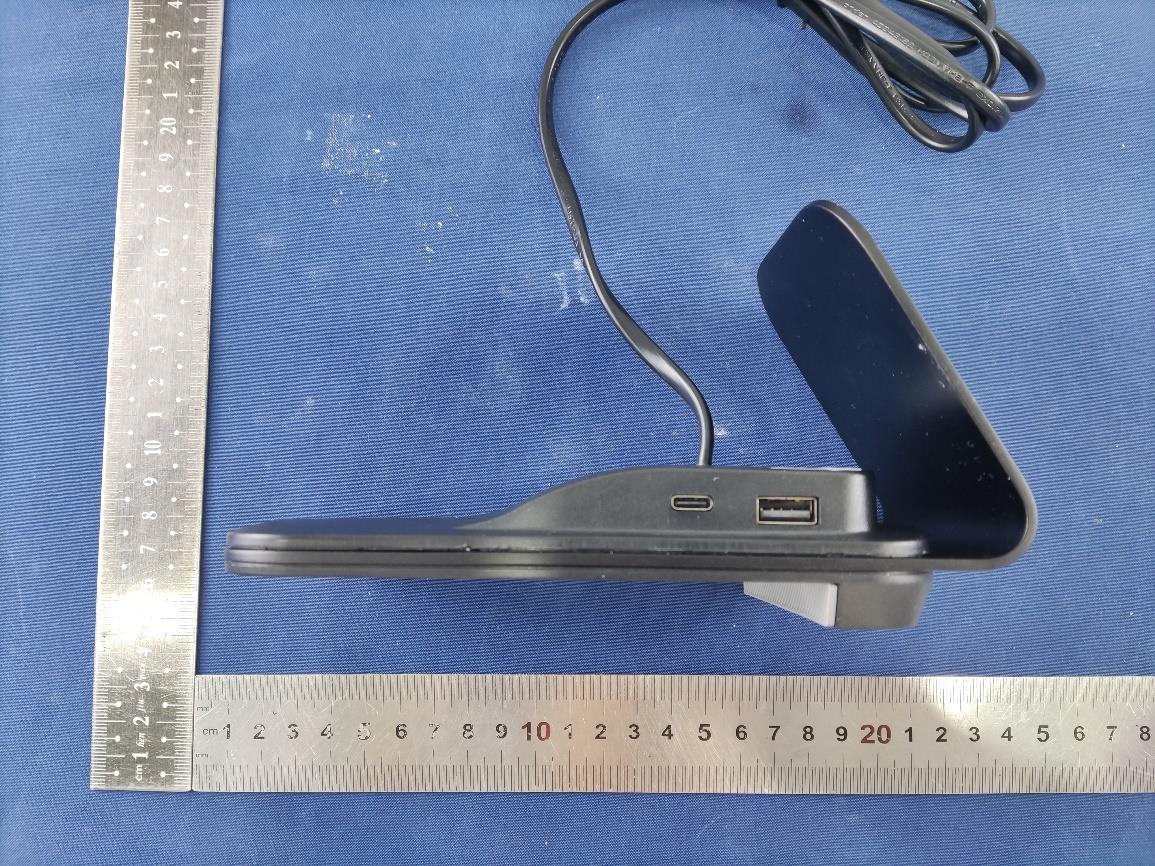

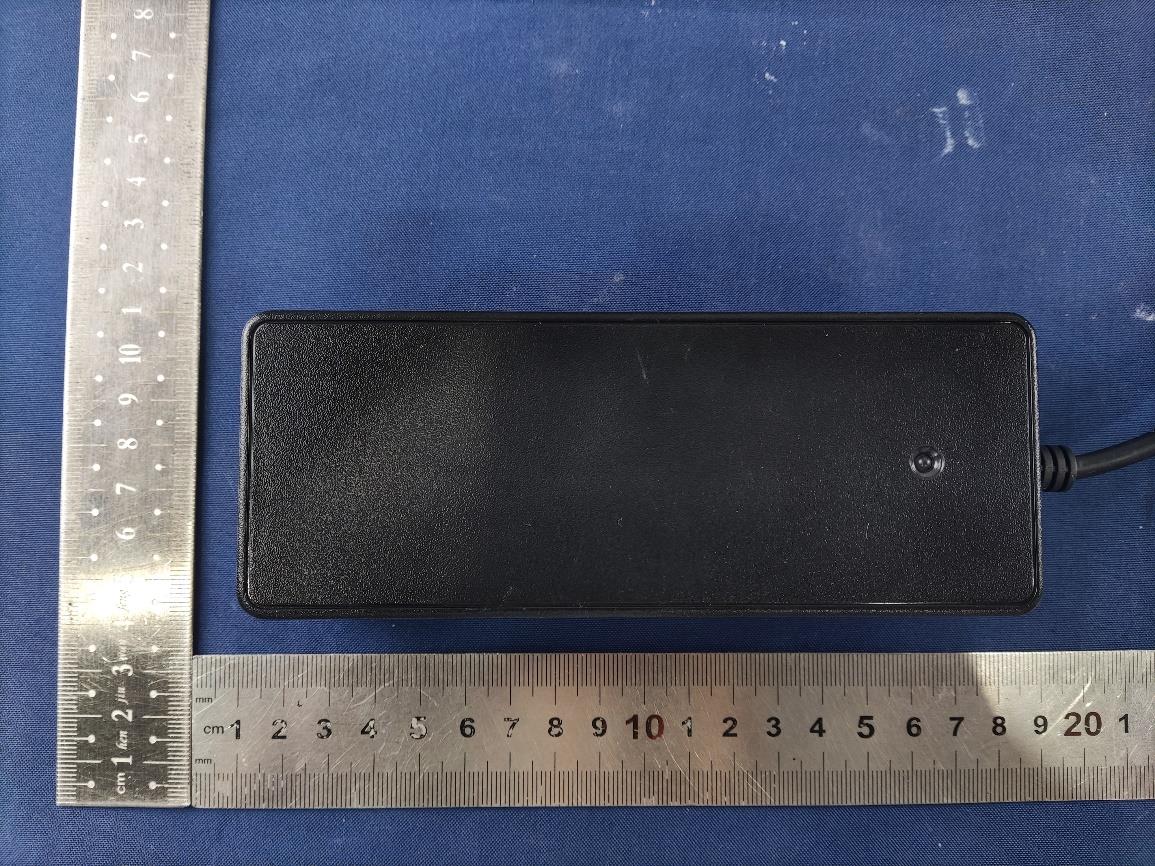

Dongguan Dongdian Testing Service Co., Ltd. Case No.: DDT-Q23081405-1E Page 1 of 17 AppendixI: Photos of the EUT Product Name : Phone Holder Model Number : VPH-AC9-BK-T, VPH-AC9-WH-T, VPH-AC9-BK-D, VPH-AC9-WH-D, VPH-AC9-BK-W, VPH-AC9-WH-W VPH-AC9-BK-D, VPH-AC9-BK-T, VPH-AC9-BK-W (Black): VPH-AC9-BK-D VPH-AC9-BK-T VPH-AC9-BK-W Dongguan Dongdian Testing Service Co., Ltd. Case No.: DDT-Q23081405-1E Page 2 of 17 VPH-AC9-WH-W, VPH-AC9-WH-D, VPH-AC9-WH-T (White): VPH-AC9-WH-T VPH-AC9-WH-D VPH-AC9-WH-W Dongguan Dongdian Testing Service Co., Ltd. Case No.: DDT-Q23081405-1E Page 3 of 17 Dongguan Dongdian Testing Service Co., Ltd. Case No.: DDT-Q23081405-1E Page 4 of 17 VPH-AC9-BK-T & VPH-AC9-WH-T (only color is different) Dongguan Dongdian Testing Service Co., Ltd. Case No.: DDT-Q23081405-1E Page 5 of 17 Dongguan Dongdian Testing Service Co., Ltd. Case No.: DDT-Q23081405-1E Page 6 of 17 Dongguan Dongdian Testing Service Co., Ltd. Case No.: DDT-Q23081405-1E Page 7 of 17 VPH-AC9-BK-W & VPH-AC9-WH-W (only color is different) Dongguan Dongdian Testing Service Co., Ltd. Case No.: DDT-Q23081405-1E Page 8 of 17 Dongguan Dongdian Testing Service Co., Ltd. Case No.: DDT-Q23081405-1E Page 9 of 17 Dongguan Dongdian Testing Service Co., Ltd. Case No.: DDT-Q23081405-1E Page 10 of 17 Dongguan Dongdian Testing Service Co., Ltd. Case No.: DDT-Q23081405-1E Page 11 of 17 VPH-AC9-BK-D & VPH-AC9-WH-D (only color is different) Dongguan Dongdian Testing Service Co., Ltd. Case No.: DDT-Q23081405-1E Page 12 of 17 Dongguan Dongdian Testing Service Co., Ltd. Case No.: DDT-Q23081405-1E Page 13 of 17 Dongguan Dongdian Testing Service Co., Ltd. Case No.: DDT-Q23081405-1E Page 14 of 17

0.020" MILLIMETERS 0 PLACE 2 PLACE 2 PLACE 0.5mm1 PLACE 0.004" 0.011" DIMENSIONAL TOLERANCES UNLESS OTHERWISE SPECIFIED 1 PLACE ANGULAR: +/-1 TITLE: ITCQ-3379 SHEET: TO ANY UNAUTHORIZED PERSON 700-01403-XX PAINT IDENTIFICATION NUMBERS ON STRUCTURAL WORK 3rd ANGLE PROJECTION PART NO: P/N LABEL , ITCQ-3379 0.040" 1mm SUPPLY OR DISCLOSE ANY INFORMATION REGARDING IT 0.3mm DO NOT SCALE DRAWING PROJ # 0.1mm 3 PLACE 3 PLACE INCHES 0 PLACE NOTICE: THIS DRAWING IS THE PROPERTY OF ITC, INC AND EMBODES A CONFIDENTIAL PROPIETARY DESIGN IN WHICH ITC, INC RETAINS ALL PATENT AND OTHER RIGHTS, INCLUDING EXCLUSIVE RIGHT OF USE, MANUFACTURE AND SALE. IT IS SUBMITTED UNDER A CONFIDENTIAL RELATIONSHIP FOR A SPECIFIC PURPOSE, AND THE RECIPIENT AGRESS BY ACCEPTING THIS DRAWING NOT TO MARK IDENTIFICATION AND MATERIAL NUMBER ON TOOL DETAILS. SHEET 1OF 1 NOTES: MATERIAL: WHITE PAPER BLACK LETTERS1. OTHER MATERIAL NOTES:UL APPROVED APPLICATION2. UNITS: MM3. THE DIMENSIONS WITH " " MARK ARE CONTROL4. REVISIONS CR/CNREV.DESCRIPTIONDATEBY CN6747AREL FOR PRODUCTION2023/9/14Bee DESIGN STATE: DESIGN P/NITC P/N 700-01403-01VPH-AC9-G-D 700-01403-02VPH-AC9-G-T 700-01403-03VPH-AC9-G-W 700-01403-04VPH-AC9-WH-D 700-01403-05VPH-AC9-WH-T 700-01403-06VPH-AC9-WH-W 700-01403-07VPH-AC9-BK-D 700-01403-08VPH-AC9-BK-T 700-01403-09VPH-AC9-BK-W 55.00 15.00

0.004" 3rd ANGLE PROJECTION 1 PLACE 0.5mm 0.011" 0.3mm 1 PLACE SUPPLY OR DISCLOSE ANY INFORMATION REGARDING IT 1mm PAINT IDENTIFICATION NUMBERS ON STRUCTURAL WORK 3 PLACE 0.020" ITCQ-3379 2 PLACE 2 PLACE PART NO: 0 PLACE SHEET: 0.1mm 3 PLACE TITLE: MILLIMETERS 700-01403-XX 0.040" P/N LABEL , ITCQ-3379 DO NOT SCALE DRAWING DIMENSIONAL TOLERANCES UNLESS OTHERWISE SPECIFIED ANGULAR: +/-1 TO ANY UNAUTHORIZED PERSON PROJ # INCHES 0 PLACE NOTICE: THIS DRAWING IS THE PROPERTY OF ITC, INC AND EMBODES A CONFIDENTIAL PROPIETARY DESIGN IN WHICH ITC, INC RETAINS ALL PATENT AND OTHER RIGHTS, INCLUDING EXCLUSIVE RIGHT OF USE, MANUFACTURE AND SALE. IT IS SUBMITTED UNDER A CONFIDENTIAL RELATIONSHIP FOR A SPECIFIC PURPOSE, AND THE RECIPIENT AGRESS BY ACCEPTING THIS DRAWING NOT TO MARK IDENTIFICATION AND MATERIAL NUMBER ON TOOL DETAILS. SHEET 1OF 1 NOTES: MATERIAL: WHITE PAPER BLACK LETTERS1. OTHER MATERIAL NOTES:UL APPROVED APPLICATION2. UNITS: MM3. THE DIMENSIONS WITH " " MARK ARE CONTROL4. REVISIONS CR/CNREV.DESCRIPTIONDATEBY CN6747AREL FOR PRODUCTION2023/9/14Bee DESIGN STATE: DESIGN P/NITC P/N 700-01403-01VPH-AC9-G-D 700-01403-02VPH-AC9-G-T 700-01403-03VPH-AC9-G-W 700-01403-04VPH-AC9-WH-D 700-01403-05VPH-AC9-WH-T 700-01403-06VPH-AC9-WH-W 700-01403-07VPH-AC9-BK-D 700-01403-08VPH-AC9-BK-T 700-01403-09VPH-AC9-BK-W 55.00 15.00

1mm 3 PLACE SUPPLY OR DISCLOSE ANY INFORMATION REGARDING IT PAINT IDENTIFICATION NUMBERS ON STRUCTURAL WORK DO NOT SCALE DRAWING ITCQ-3379 P/N LABEL , ITCQ-3379 3 PLACE 0.040" 0.1mm SHEET: PROJ # 3rd ANGLE PROJECTION 1 PLACE 0.3mm 0.020" 0.004" 0.5mm TO ANY UNAUTHORIZED PERSON 2 PLACE 0.011" 1 PLACE 0 PLACE 700-01403-XX MILLIMETERS DIMENSIONAL TOLERANCES UNLESS OTHERWISE SPECIFIED 2 PLACE PART NO: TITLE: ANGULAR: +/-1 INCHES 0 PLACE NOTICE: THIS DRAWING IS THE PROPERTY OF ITC, INC AND EMBODES A CONFIDENTIAL PROPIETARY DESIGN IN WHICH ITC, INC RETAINS ALL PATENT AND OTHER RIGHTS, INCLUDING EXCLUSIVE RIGHT OF USE, MANUFACTURE AND SALE. IT IS SUBMITTED UNDER A CONFIDENTIAL RELATIONSHIP FOR A SPECIFIC PURPOSE, AND THE RECIPIENT AGRESS BY ACCEPTING THIS DRAWING NOT TO MARK IDENTIFICATION AND MATERIAL NUMBER ON TOOL DETAILS. SHEET 1OF 1 NOTES: MATERIAL: WHITE PAPER BLACK LETTERS1. OTHER MATERIAL NOTES:UL APPROVED APPLICATION2. UNITS: MM3. THE DIMENSIONS WITH " " MARK ARE CONTROL4. REVISIONS CR/CNREV.DESCRIPTIONDATEBY CN6747AREL FOR PRODUCTION2023/9/14Bee DESIGN STATE: DESIGN P/NITC P/N 700-01403-01VPH-AC9-G-D 700-01403-02VPH-AC9-G-T 700-01403-03VPH-AC9-G-W 700-01403-04VPH-AC9-WH-D 700-01403-05VPH-AC9-WH-T 700-01403-06VPH-AC9-WH-W 700-01403-07VPH-AC9-BK-D 700-01403-08VPH-AC9-BK-T 700-01403-09VPH-AC9-BK-W 55.00 15.00

2 PLACE 2 PLACE 0 PLACE 0.004" 3rd ANGLE PROJECTION 1mm 0.5mm 0.011" SUPPLY OR DISCLOSE ANY INFORMATION REGARDING IT ANGULAR: +/-1 TITLE: 3 PLACE 1 PLACE 0.020" PROJ #PART NO: DIMENSIONAL TOLERANCES UNLESS OTHERWISE SPECIFIED TO ANY UNAUTHORIZED PERSON 0.3mm 1 PLACE 700-01403-XX SHEET: PAINT IDENTIFICATION NUMBERS ON STRUCTURAL WORK 0.040" 3 PLACE MILLIMETERS 0.1mm DO NOT SCALE DRAWING ITCQ-3379 P/N LABEL , ITCQ-3379 INCHES 0 PLACE NOTICE: THIS DRAWING IS THE PROPERTY OF ITC, INC AND EMBODES A CONFIDENTIAL PROPIETARY DESIGN IN WHICH ITC, INC RETAINS ALL PATENT AND OTHER RIGHTS, INCLUDING EXCLUSIVE RIGHT OF USE, MANUFACTURE AND SALE. IT IS SUBMITTED UNDER A CONFIDENTIAL RELATIONSHIP FOR A SPECIFIC PURPOSE, AND THE RECIPIENT AGRESS BY ACCEPTING THIS DRAWING NOT TO MARK IDENTIFICATION AND MATERIAL NUMBER ON TOOL DETAILS. SHEET 1OF 1 NOTES: MATERIAL: WHITE PAPER BLACK LETTERS1. OTHER MATERIAL NOTES:UL APPROVED APPLICATION2. UNITS: MM3. THE DIMENSIONS WITH " " MARK ARE CONTROL4. REVISIONS CR/CNREV.DESCRIPTIONDATEBY CN6747AREL FOR PRODUCTION2023/9/14Bee DESIGN STATE: DESIGN P/NITC P/N 700-01403-01VPH-AC9-G-D 700-01403-02VPH-AC9-G-T 700-01403-03VPH-AC9-G-W 700-01403-04VPH-AC9-WH-D 700-01403-05VPH-AC9-WH-T 700-01403-06VPH-AC9-WH-W 700-01403-07VPH-AC9-BK-D 700-01403-08VPH-AC9-BK-T 700-01403-09VPH-AC9-BK-W 55.00 15.00

PART NO: TITLE: ANGULAR: +/-1 700-01403-XX 0.020" 1 PLACE 0.004" 0 PLACE 0.1mm 3rd ANGLE PROJECTION 0.5mm PROJ # MILLIMETERS 3 PLACE TO ANY UNAUTHORIZED PERSON DO NOT SCALE DRAWING SHEET: 2 PLACE 2 PLACE ITCQ-3379 DIMENSIONAL TOLERANCES UNLESS OTHERWISE SPECIFIED 0.040" PAINT IDENTIFICATION NUMBERS ON STRUCTURAL WORK 0.011" 1mm 3 PLACE P/N LABEL , ITCQ-3379 0.3mm 1 PLACE SUPPLY OR DISCLOSE ANY INFORMATION REGARDING IT INCHES 0 PLACE NOTICE: THIS DRAWING IS THE PROPERTY OF ITC, INC AND EMBODES A CONFIDENTIAL PROPIETARY DESIGN IN WHICH ITC, INC RETAINS ALL PATENT AND OTHER RIGHTS, INCLUDING EXCLUSIVE RIGHT OF USE, MANUFACTURE AND SALE. IT IS SUBMITTED UNDER A CONFIDENTIAL RELATIONSHIP FOR A SPECIFIC PURPOSE, AND THE RECIPIENT AGRESS BY ACCEPTING THIS DRAWING NOT TO MARK IDENTIFICATION AND MATERIAL NUMBER ON TOOL DETAILS. SHEET 1OF 1 NOTES: MATERIAL: WHITE PAPER BLACK LETTERS1. OTHER MATERIAL NOTES:UL APPROVED APPLICATION2. UNITS: MM3. THE DIMENSIONS WITH " " MARK ARE CONTROL4. REVISIONS CR/CNREV.DESCRIPTIONDATEBY CN6747AREL FOR PRODUCTION2023/9/14Bee DESIGN STATE: DESIGN P/NITC P/N 700-01403-01VPH-AC9-G-D 700-01403-02VPH-AC9-G-T 700-01403-03VPH-AC9-G-W 700-01403-04VPH-AC9-WH-D 700-01403-05VPH-AC9-WH-T 700-01403-06VPH-AC9-WH-W 700-01403-07VPH-AC9-BK-D 700-01403-08VPH-AC9-BK-T 700-01403-09VPH-AC9-BK-W 55.00 15.00

0.040" TO ANY UNAUTHORIZED PERSON 3 PLACE P/N LABEL , ITCQ-3379 SHEET: DIMENSIONAL TOLERANCES UNLESS OTHERWISE SPECIFIED MILLIMETERS PROJ # 700-01403-XX ANGULAR: +/-1 3 PLACE 0.020" ITCQ-3379 DO NOT SCALE DRAWING 1mm 0.011" SUPPLY OR DISCLOSE ANY INFORMATION REGARDING IT 0.004" PART NO: TITLE: 0.3mm PAINT IDENTIFICATION NUMBERS ON STRUCTURAL WORK 0.5mm 0 PLACE 1 PLACE 3rd ANGLE PROJECTION 1 PLACE 0.1mm 2 PLACE 2 PLACE INCHES 0 PLACE NOTICE: THIS DRAWING IS THE PROPERTY OF ITC, INC AND EMBODES A CONFIDENTIAL PROPIETARY DESIGN IN WHICH ITC, INC RETAINS ALL PATENT AND OTHER RIGHTS, INCLUDING EXCLUSIVE RIGHT OF USE, MANUFACTURE AND SALE. IT IS SUBMITTED UNDER A CONFIDENTIAL RELATIONSHIP FOR A SPECIFIC PURPOSE, AND THE RECIPIENT AGRESS BY ACCEPTING THIS DRAWING NOT TO MARK IDENTIFICATION AND MATERIAL NUMBER ON TOOL DETAILS. SHEET 1OF 1 NOTES: MATERIAL: WHITE PAPER BLACK LETTERS1. OTHER MATERIAL NOTES:UL APPROVED APPLICATION2. UNITS: MM3. THE DIMENSIONS WITH " " MARK ARE CONTROL4. REVISIONS CR/CNREV.DESCRIPTIONDATEBY CN6747AREL FOR PRODUCTION2023/9/14Bee DESIGN STATE: DESIGN P/NITC P/N 700-01403-01VPH-AC9-G-D 700-01403-02VPH-AC9-G-T 700-01403-03VPH-AC9-G-W 700-01403-04VPH-AC9-WH-D 700-01403-05VPH-AC9-WH-T 700-01403-06VPH-AC9-WH-W 700-01403-07VPH-AC9-BK-D 700-01403-08VPH-AC9-BK-T 700-01403-09VPH-AC9-BK-W 55.00 15.00

VPH-AC9-BK-D/VPH-AC9-WH-D: VPH-AC9-BK-T/VPH-AC9-WH-T: VPH-AC9-BK-W/VPH-AC9-WH-W:

Dongguan Dongdian Testing Service Co., Ltd. Case No.: DDT-Q23081405-1E Page 14 of 17 Internal photo (all model is the same) Wireless charger antenna Dongguan Dongdian Testing Service Co., Ltd. Case No.: DDT-Q23081405-1E Page 15 of 17 Dongguan Dongdian Testing Service Co., Ltd. Case No.: DDT-Q23081405-1E Page 16 of 17 Wireless changer antenna Dongguan Dongdian Testing Service Co., Ltd. Case No.: DDT-Q23081405-1E Page 17 of 17 END

Dongguan Dongdian Testing Service Co., Ltd. Report No.:DDT-RE23081405-1E02 Page 1 of 13 RF EXPOSURE REPORT FOR Issued By: Dongguan Dongdian Testing Service Co., Ltd. Add.: No. 17, Zongbu Road 2, Songshan Lake Sci&Tech, Industry Park, Dongguan City, Guangdong Province, China, 523808 Tel.: +86-0769-38826678, E-mail: [email protected], http://www.dgddt.com Applicant : Dongguan ITC Lighting Manufacturing Co., Ltd Address : No 245 ShiHeng Avenue, XiaSha Village, Shipai Town, DongGuan City, GuanDong Province, China Equipment under Test : Phone Holder Model No. : VPH-AC9-BK-T, VPH-AC9-WH-T, VPH-AC9-BK-D, VPH-AC9-WH-D, VPH-AC9-BK-W, VPH-AC9-WH-W Trade Mark : N/A FCC ID : 2A3DLA00811 Manufacturer : Dongguan ITC Lighting Manufacturing Co., Ltd Address : No 245 ShiHeng Avenue, XiaSha Village, Shipai Town, DongGuan City, GuanDong Province, China Report No.: DDT-RE23081405-1E02 Issued Date: Sep. 08, 2023 Dongguan Dongdian Testing Service Co., Ltd. Report No.:DDT-RE23081405-1E02 Page 2 of 13 Table of Contents Test report declares........................................................................................................3 1. General Information ....................................................................................................... 5 1.1. Description of equipment ............................................................................................... 5 1.2. Accessories of EUT ........................................................................................................ 5 1.3. Assistant equipment used for test .................................................................................. 5 1.4. Block diagram of EUT configuration for test .................................................................. 6 1.5. Assess laboratory ........................................................................................................... 6 2. Equipment Used During Test ......................................................................................... 7 3. Method of Measurement ................................................................................................ 8 3.1. Applicable standard ........................................................................................................ 8 3.2. Block diagram of test setup ............................................................................................ 8 3.3. Test procedure ............................................................................................................... 8 3.4. Equipment approval considerations: .............................................................................. 9 3.5. E and H Field Strength ................................................................................................. 10 4. TEST SETUP PHOTO ................................................................................................. 11 Dongguan Dongdian Testing Service Co., Ltd. Report No.: DDT-RE23081405-1E02 Page 3 of 13 Test Report Declare Assess Standard Used: FCC CFR 47 part1, 1.1307(b), 1.1310; KDB 680106 D01 RF Exposure Wireless Charging App v03r01. We Declare: The equipment described above is assessed by Dongguan Dongdian Testing Service Co., Ltd and in the configuration assessed the equipment complied with the standards specified above. The assessed results are contained in this report and Dongguan Dongdian Testing Service Co., Ltd is assumed of full responsibility for the accuracy and completeness of these assess. After evaluation, our opinion is that the equipment In Accordance with above standard. Report No.: DDT-RE23081405-1E02 Date of Receipt: Aug. 25, 2023 Date of Test: Aug. 25, 2023 ~ Aug. 30, 2023 Prepared By: Approved By: ____________________ _____________________ Jacky Huang/Engineer Damon Hu/EMC Manager Note: This report applies to above tested sample only. This report shall not be reproduced in parts without written approval of Dongguan Dongdian Testing Service Co., Ltd. Applicant : Dongguan ITC Lighting Manufacturing Co., Ltd Address : No 245 ShiHeng Avenue, XiaSha Village, Shipai Town, DongGuan City, GuanDong Province, China Equipment under Test : Phone Holder Model No. : VPH-AC9-BK-T, VPH-AC9-WH-T, VPH-AC9-BK-D, VPH-AC9-WH-D, VPH-AC9-BK-W, VPH-AC9-WH-W Trade Mark : N/A Manufacturer : Dongguan ITC Lighting Manufacturing Co., Ltd Address : No 245 ShiHeng Avenue, XiaSha Village, Shipai Town, DongGuan City, GuanDong Province, China Dongguan Dongdian Testing Service Co., Ltd. Report No.: DDT-RE23081405-1E02 Page 4 of 13 Revision History Rev. Revisions Issue Date Revised By --- Initial issue Sep. 08, 2023 Dongguan Dongdian Testing Service Co., Ltd. Report No.: DDT-RE23081405-1E02 Page 5 of 13 1. General Information 1.1. Description of equipment Note: EUT is the abbreviation of equipment under test. 1.2. Accessories of EUT Description of Accessories Manufacturer Model number Description Remark AC DC Adapter Shenzhenshi Zhenhuan Electronic Co., Ltd. ZF-120a-2404000 INPUT: 100-240V~50/60Hz 2.0A, OUTPUT: 24V/4.0A N/A 1.3. Assistant equipment used for test Assistant equipment Manufacturer Model number EMC Compliance Other Dummy Load N/A N/A N/A N/A EUT Name : Phone Holder Model Number : VPH-AC9-BK-T, VPH-AC9-WH-T, VPH-AC9-BK-D, VPH-AC9-WH-D, VPH-AC9-BK-W, VPH-AC9-WH-W Model Difference : It's the same except for the size, structure, and color of the exterior. The test model is VPH-AC9-BK-W. EUT function description : Please reference user manual of this device Power Supply : Input: 24V⎓4.0A Output: 5W, 7.5W, 10W Wireless charging Operation frequency : 110KHz-148KHz Antenna Type : Inductive loop coil antenna Serial Number : S23081405-03 Dongguan Dongdian Testing Service Co., Ltd. Report No.: DDT-RE23081405-1E02 Page 6 of 13 1.4. Block diagram of EUT configuration for test For mode 1: Tx mode For mode 2: Standby mode: Note: Scan with mode 1 and mode 2, the worst case is mode 1 Tx mode and recorded in this report. 1.5. Assess laboratory Dongguan Dongdian Testi…
