2A3DS-A305Aroma diffuser

SCENT MARKETING PRODUCT MANUAL Concentration and Consumption Up gradeDown grade Grade G20 G19 G18 G17 G16 G15 G14 G13 G12 G11 G10 G9 G8 G7 G6 G5 G4 G3 G2 G1 Consumption(ml/h) work(s)intervals(s) 15s 15s 20s 20s 25s 30s 30s 30s 30s 30s 300s 150s 120s 85s 80s 75s 60s 50s 40s 33s 33s 40s 50s 60s 75s 30s 30s 30s 30s 30s 80s 85s 120s 150s 300s 25s 20s 20s 15s 15s (1) (2) Mon TUES WED THUR FRI SAT SUN Mon TUES WED THUR FRI SAT SUN (3) Mon TUES WED THUR FRI SAT SUN (4) Mon TUES WED THUR FRI SAT SUN (5) Mon TUES WED THUR FRI SAT SUN Cu 5-500s5-500s 1.00 0.10 0.14 0.18 0.22 0.26 0.30 0.34 0.38 0.45 0.50 0.55 0.60 0.65 0.70 0.75 0.80 0.85 0.90 0.95 2.0 0.1 0.2 0.3 0.4 0.5 0.6 0.7 0.8 0.9 1.0 1.1 1.2 1.3 1.4 1.5 1.6 1.7 1.8 1.9 4.0 0.2 0.3 0.5 0.6 0.8 0.9 1.0 1.2 1.3 1.5 1.8 2.0 2.3 2.5 2.8 3.0 3.3 3.5 3.8 A305S-BLEA305M-BLEA305L-BLE A305S/M/L APP instructions AAAA AAAA AAAA AAA Name: Label: AAAAAA AAA AAA AAA Add device Input password Amend device name Remarks: location Delete working period Add working period Time switch (PS: There are 5 working periods available to be set.) Amend password Slide up and down to adjust If you forget the password, please press the reset button to restore the factory settings. The factory settings password is 8888. Select grade Select the day Where can I download this APP: Please search “scent marketing” in Google play or App store. Time setting Mon TUES WED THUR FRI SAT SUN Power on/off Connect power supply, power on with a sound “beep”, and the screen displays initial time and current grade. The screen will be off when disconnect the power. Date Current grade Local time 00:00 - 00:00 (PS: The first working period is factory defaults with start working time 07:00 and stop working time 19:00, Grade1, the rest are all with 00:00.) Work time period setting There are 5 working periods available to be set every day (Figure 3). Touch SET button to set working period (ON1) , touch ▲or▼ to choose working period (1-5); touch ENT button for the working period switch, touch ▲or▼ to choose ON or OFF, touch ENT button again to move to the operation time, touch ▲or▼to adjust number. Touch ENT again for grade. Next touch ENT to choose the day (MON), touch ▲ button to turn on the working period (ON1) (Figure4), touch ▼ button to turn off the working period (OFF1) (Figure5). Touch ENT to move to the next day and repeat the steps for TUES to SUN. Once finish, touch SET to confirm and exit, Repeat the same setting steps of ON1 for ON2, ON3 ON4 and ON5. PS:Grade display with “-Cu-“ is for customized grade set by APP only(Figure6). Machine doesn't work when the start working period is as same as stop working time Concentration grade setting There are 20 grades available. Touch▲to increase grade, touch ▼to decrease grade(Figure 2). Working time period 00:00 - 00:00 00:00 - 00:00 00:00 - 00:00 00:00 - 00:00 ON/OFF Mon ON/OFFON/OFFON/OFFON/OFF ON/OFF Thues ON/OFFON/OFFON/OFFON/OFF ON/OFF Wed ON/OFFON/OFFON/OFFON/OFF ON/OFF Thur ON/OFFON/OFFON/OFFON/OFF ON/OFF Fri ON/OFFON/OFFON/OFFON/OFF ON/OFF Sat ON/OFFON/OFFON/OFFON/OFF ON/OFF Sun ON/OFFON/OFFON/OFFON/OFF Local time setting Touch SET button (about 3s) till a sound “beep” comes out for day setting; touch▲or▼to adjust the day; touch ENT button for local time setting, touch▲ or▼to adjust the time (Figure 1) ON/OFF Diffusing display Notice:1. Above date is base on test trial. 2.Consumption data is for reference only. Different fragrance may be coming with different consumption. Auto-lock and un-lock Button will be locked automatically if there is no any fur ther manual manipulation in 60s; Touch SET (about 5s) comes out with sound “beep” and screen lights on to unlock machine. (6) Mon TUES WED THUR FRI SAT SUN Fan on/off Touch ▲ button (3s) to turn on fan, touch ▼ button (3s) to turn off fan. 物料编码：50301-00001

















































































第1⻚（共2⻚） 图纸版本：B1.0
















































































CYG-00117-B10-A305


































































Sealing tape Plug Bottle PU tube Key ManualAtomized nozzle connector Screw SpecificationOverview Direction Idea for Hotels, Conference rooms, Malls, Exhibition halls, Major retailers, Bars, SPAs, Business places or anywhere you wanto a fragrance experience. Installation steps 1.Aim at the position of the mounting bracket, then drill the hole in the wall and insert the expansion bolts into the hole in the wall; 2.Install the mounting bracket on the wall with screws, and finally hang the machine on the mounting bracket. The method of using expansion bolts Drill the wall, insert the expansion tube into the hole, put the screw into the expansion tube and tighten it Installation Troubleshooting 1.Please keep the machine vertical. Tilt or lie flatly may cause oil over flow. The
machine efficiency may be affected. 2.Shall not modify, disassemble or repair the machine if you are not a technician. If any failure happens to the machine, please contact our technical personnel. 3.The machine is stop during off work time period, even the Atomization display is on 4.The button is invalid and no display on screen when machine locked 5.If the display is cluttered, freezes or other problem, please restart machine to reset to defaults(Method: Press ENT button and hold on about 5 seconds till hear a sound “beep”) Warning ! Caution Shall not modif y, disassemble or repair the machine arbitrarily. Any failure happens, please contact technician in time. Shall not damage the power cord, force to bend, yank , heavy load, clip or reprocess. - Shall not use damaged plug or unmatched with the socket; - Shall not wet the machine or the plug; - Shall not use overloaded power socket, wire or broken plug. Shall not touch the wire or product shell when thundering or/and lightening. Shall not disassemble the machine when it is under operating. 1.Open the door by key 2.Unscrew the atomized nozzle, take out …

Text truncated - open the document above for the full version.

Guangzhou Chiyang Scent Technology Co., LTD. Agent Authorization Company: Guangzhou Chiyang Scent Technology Co., LTD. Address: 4F, Building C5, Gaosha Industrial Estate, Zhongyi Village, Zhongcun Town, Panyu District, Guangzhou, Guangdong, China Product Name: Aroma diffuser Model Number(s): A305, A305S, A305M, A305L, A306, A306S, A306M, A306L, SA002C, SE005B Product Description: Aroma diffuser We authorize MiCOM Labs Inc., 575 Boulder Court, Pleasanton, California 94566, USA, to act on our behalf on all matters concerning the certification of above named equipment. We declare that MiCOM Labs Inc. is allowed to forward all information related to the approval and certification of equipment to the regulatory agencies as required and to discuss any issues concerning the approval application. Any and all acts carried out by MiCOM Labs on our behalf shall have the same effect as acts of our own. Signature: Date: 2022.12.27 Name: Denny Feng Title: Manager Company: Guangzhou Chiyang Scent Technology Co., LTD.

Guangzhou Chiyang Scent Technology Co., LTD. Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 USA Date: December 28, 2022 Subject; Request for Confidentiality FCC ID: 2A3DS-A305 To Whom It May Concern, Pursuant to the provisions of the Commission’s rules Title 47 Sections §0.457 and §0.459, we are requesting the Commission to withhold the following attachment(s) as confidential documents from public disclosure indefinitely. These documents contain detailed system and equipment descriptions and are considered as proprietary information in operation of the equipment. The public disclosure of these documents might be harmful to our company and would give competitors an unfair advantage in the market. Schematic Diagram Block Diagram Parts List Operational Description Tune-up Procedure In additional to above mentioned documents, in order to comply with the marketing regulations in Title 47 CFR §2.803 and the importation rules in Title 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices, we request Short Term Confidentiality of the following attachment(s); External Photos Test Setup Photos Internal Photos User Manual For 45 days, pursuant to Public Notice DA 04-1705. OR For 180 days pursuant to KDB 726920 D01. It is our understanding that all measurement test reports, FCC ID label format and correspondence during the certification review process cannot be granted as confidential documents and this information will be available for public review once the grant of equipment authorization is issued. Sincerely, Signature: Name: Denny Feng Title: Manager

Guangzhou Chiyang Scent Technology Co., LTD. Model Difference Statement Dear Sir/Madam, Added models A305S, A305M, A305L, A306, A306S, A306M, A306L, SA002C, SE005B basis of the original product A305. These models color of appearance and model names are different, but the circuit and the electronic construction are the same. Sincerely, Name: Denny Feng Title: Manager Company name: Guangzhou Chiyang Scent Technology Co., LTD. Address: 4F, Building C5, Gaosha Industrial Estate, Zhongyi Village, Zhongcun Town, Panyu Guangzhou, Guangdong, China

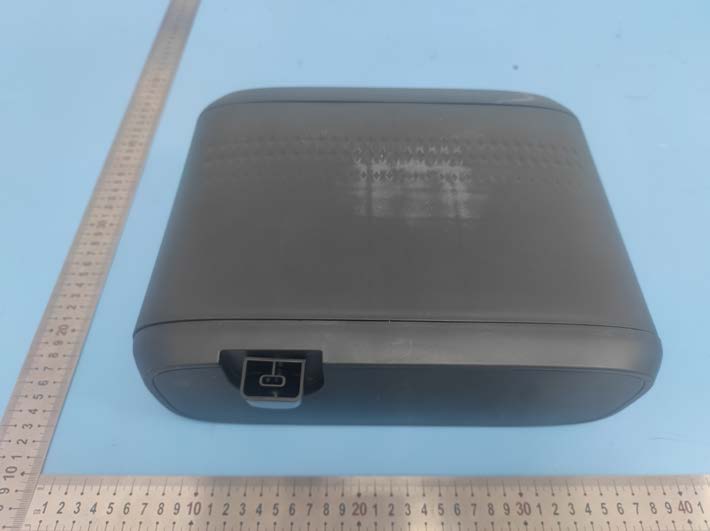

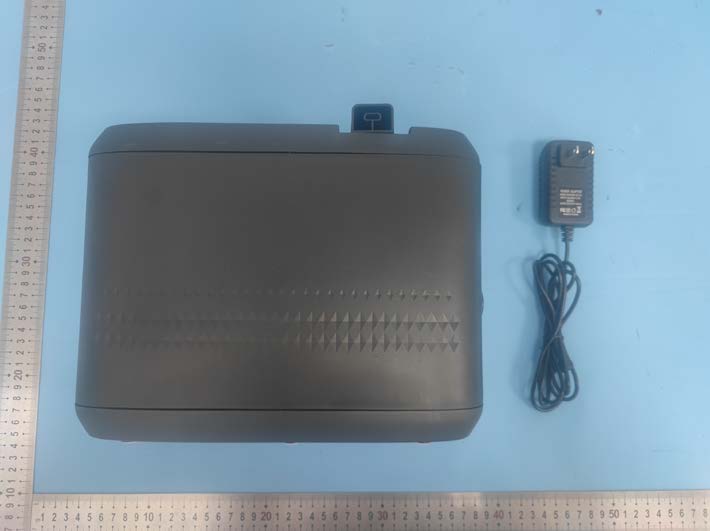

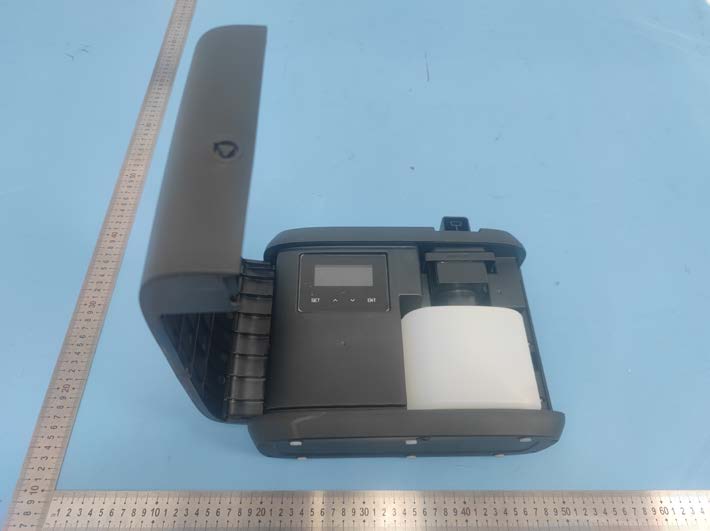

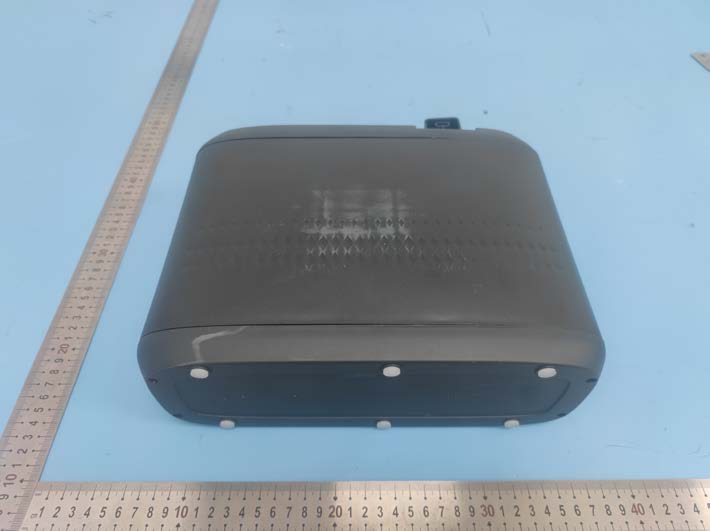

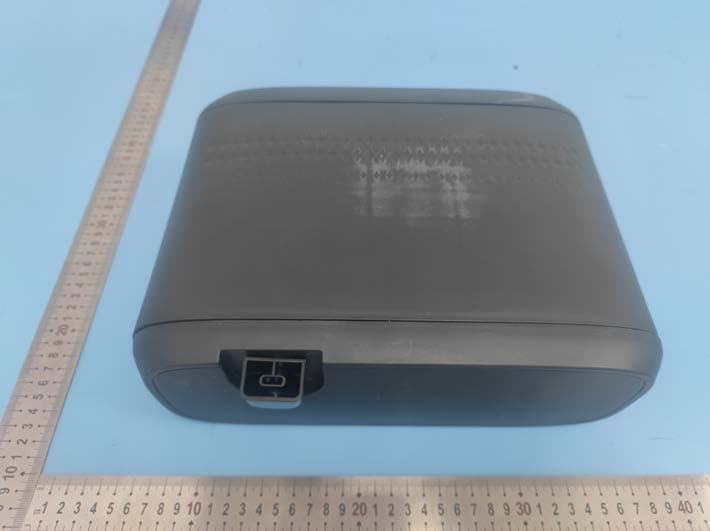

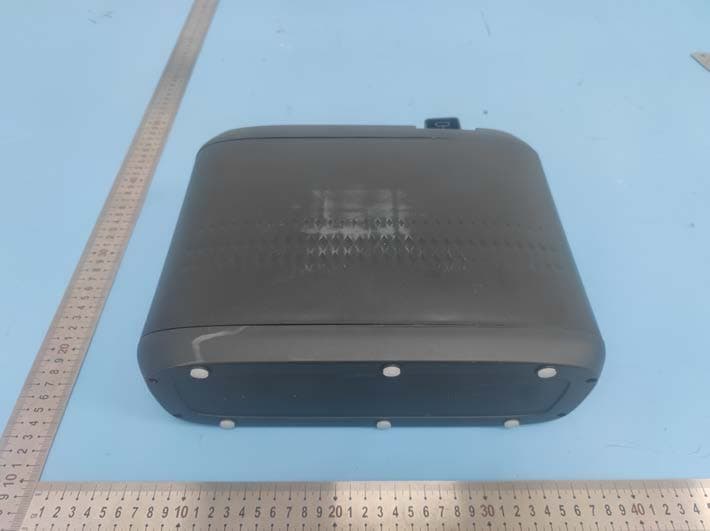

EUT PHOTO(External Photos) FCC ID: 2A3DS-A305

Page 1 of 1 Label and Information FCC Label Sample FCC Label Specifications Text is Black in color and is justified. Labels are printed in indelible ink on permanent adhesive backing or silk-screened onto the EUT or shall be affixed at a conspicuous location on the EUT. Where the EUT is constructed in two or more sections connected by wires and marketed together, the above statement is required to be affixed only to the main control unit. When the EUT is so small or for such use that it is not practicable to place the statement on it, the above information shall be placed in a prominent location in the instruction manual or pamphlet supplied to the user or, alternatively, shall be placed on the container in which the device is marketed. FCC Label Location

EUT PHOTO(Internal Photos) FCC ID: 2A3DS-A305 BT ANT ※※※※※ END OF REPORT ※※※※※

FCC ID: 2A3DS-A305 RF Exposure Evaluation According to KDB 447498 D01 General RF Exposure Guidance v06 and part 2.1093， Unless specifically required by the published RF exposure KDB procedures, standalone 1-g head or body and 10-g extremity SAR evaluation for general population exposure conditions, by measurement or numerical simulation, is not required when the corresponding SAR Test Exclusion Threshold condition(s), listed below, is (are) satisfied. For 100 MHz to 6 GHz and test separation distances ≤ 50 mm, the 1-g and 10-g SAR test exclusion thresholds are determined by the following: [(max. power of channel, including tune-up tolerance, mW) / (min. test separation distance, mm)] · [√f (GHz) ] ≤ 3.0 for 1-g SAR, and ≤ 7.5 for 10-g extremity SAR, where f (GHz) is the RF channel transmit frequency in GHz Power and distance are rounded to the nearest mW and mm before calculation The result is rounded to one decimal place for comparison Here, The device has been evaluated to meet general RF exposure requirement. The device can be used in portable exposure condition without restriction. For BT Max Conducted Power(dBm) Tune-up Power(dBm) Max Tune-up Power(dBm) Max Power(mW) Frequency(MHz) Min. distance(mm) Calc. thresholds limit 1.28 1(±1) 2 1.585 2480 5 0.499212 3.0 So a SAR test is not required

TestDate:2019.05.06 地址：深圳市宝安区67区洪浪北二路凌云大厦10楼 电话：17688988025陈先生www.RFsister.com 聚焦·开放·分享 JDY-23蓝牙 天线测试报告 -RFsister TestDate:2019.05.06 地址：深圳市宝安区67 区洪浪北二路凌云大厦10 楼 电话：17688988025陈先生www.RFsister.com 聚焦·开放·分享 1.ElectricalCharacteristics No.ItemSpecifications 1 WorkingCentralFrequency2450MHz 2 BandWidth ±75 MHz( 2400 ～2500MHz) 3 Gain -3.68dbi 4 V.S.W.R(in BW) ≤4.3 5 PolarizationLinear 6 AzimuthBeamwidthOmni-directional 7 Impedance阻抗50 2.Return Loss and Smith Chat Return Loss TestDate:2019.05.06 地址：深圳市宝安区67区洪浪北二路凌云大厦10楼 电话：17688988025陈先生www.RFsister.com 聚焦·开放·分享 V.S.W.R SmithChat TestDate:2019.05.06 地址：深圳市宝安区67区洪浪北二路凌云大厦10楼 电话：17688988025陈先生www.RFsister.com 聚焦·开放·分享 3.PhysicalTestEnvironment E5071C网络分析仪 4.Shapeoftheantenna Efficiency ： TestDate:2019.05.06 地址：深圳市宝安区67区洪浪北二路凌云大厦10楼 电话：17688988025陈先生www.RFsister.com 聚焦·开放·分享 Hpattern Fre(Mhz)Maxgain(dB)Degree 2400(MHz)-6.79dB114.00deg 2450(MHz)-4.92dB112.00deg 2500(MHz)-4.07dB108.00deg TestDate:2019.05.06 地址：深圳市宝安区67区洪浪北二路凌云大厦10楼 电话：17688988025陈先生www.RFsister.com 聚焦·开放·分享 E1pattern Fre(Mhz)Maxgain(dB)Degree 2400(MHz)-5.29dB164.00deg 2450(MHz)-4.80dB160.00deg 2500(MHz)-4.87dB-20.00deg TestDate:2019.05.06 地址：深圳市宝安区67区洪浪北二路凌云大厦10楼 电话：17688988025陈先生www.RFsister.com 聚焦·开放·分享 E2pattern Fre(Mhz)Maxgain(dB)Degree 2400(MHz)-5.86dB174.00deg 2450(MHz)-4.78dB-70.00deg 2500(MHz)-3.68dB-68.00deg

ProjectNo.:ZKT-220905L6468E Page 1 of 41 FCCTESTREPORT FCCID:2A3DS-A305 ReportNumber. .................................. : ZKT-220905L6468E DateofTest ....................................................... : September07,2022toOctober08,2022 Dateofissue ......................................... : October10,2022 Totalnumberofpages .......................... 41 TestResult..........................................: PASS TestingLaboratory............................: ShenzhenZKTTechnologyCo.,Ltd. Address...............................................: 1/F,No.101,BuildingB,No.6,TangweiCommunityIndustrial Avenue,FuhaiStreet,Bao'anDistrict,Shenzhen,China Applicant'sname.............................: GuangzhouChiyangScentTechnologyCo.,LTD. Address...............................................: 4F,BuildingC5,GaoshaIndustrialEstate,ZhongyiVillage, ZhongcunTown,PanyuGuangzhou,Guangdong,China Manufacturer'sname......................: GuangzhouChiyangScentTechnologyCo.,LTD. Address ............................................... : 4F,BuildingC5,GaoshaIndustrialEstate,ZhongyiVillage, ZhongcunTown,PanyuGuangzhou,Guangdong,China Testspecification: Standard................................................: FCCCFRTitle47Part15SubpartCSection15.247 ANSIC63.10:2013 Testprocedure ..................................... : / Non-standardtestmethod ................ :N/A TestReportFormNo........................: TRF-EL-111_V0 TestReportForm(s)Originator.....: ZKTTesting MasterTRF........................................: Dated:2020-01-06 ThisdevicedescribedabovehasbeentestedbyZKT,andthetestresultsshowthattheequipmentunder test(EUT)isincompliancewiththeFCCrequirements.Anditisapplicableonlytothetestedsample identifiedinthereport. Thisreportshallnotbereproducedexceptinfull,withoutthewrittenapprovalofZKT,thisdocumentmay bealteredorrevisedbyZKT,personalonly,andshallbenotedintherevisionofthedocument. Productname.....................................:Aromadiffuser Trademark...........................................:-- Model/Typereference......................:A305,A305S,A305M,A305L,A306,A306S,A306M,A306L, SA002C,SE005B Ratings .................................................. : DC12Vbyadapter ProjectNo.:ZKT-220905L6468E Page 2 of 41 Testingprocedureandtestinglocation: TestingLaboratory ....................................... :ShenzhenZKTTechnologyCo.,Ltd. Address ............................................................ :1/F,No.101,BuildingB,No.6,TangweiCommunity IndustrialAvenue,FuhaiStreet,Bao'anDistrict, Shenzhen,China JimLiu Testedby(name+signature) ....................... : TomZou Reviewer(name+signature).......................: LakeXie Approved(name+signature) ....................... : ProjectNo.:ZKT-220905L6468E Page 3 of 41 TableofContents Page 1.VERSION5 2.SUMMARYOFTESTRESULTS6 2.1TESTFACILITY7 2.2MEASUREMENTUNCERTAINTY7 3.GENERALINFORMATION8 3.1GENERALDESCRIPTIONOFEUT8 3.2DESCRIPTIONOFTESTMODES10 3.3BLOCKDIGRAMSHOWINGTHECONFIGURATIONOFSYSTEMTESTED10 3.4DESCRIPTIONOFSUPPORTUNITS(CONDUCTEDMODE)10 3.5EQUIPMENTSLISTFORALLTESTITEMS11 4.EMCEMISSIONTEST13 4.1CONDUCTEDEMISSIONMEASUREMENT13 4.1.1POWERLINECONDUCTEDEMISSIONLIMITS13 4.1.2TESTPROCEDURE13 4.1.3DEVIATIONFROMTESTSTANDARD13 4.1.4TESTSETUP14 4.1.5EUTOPERATINGCONDITIONS14 4.2.1RADIATEDEMISSIONLIMITS17 4.2.2TESTPROCEDURE18 4.2.3DEVIATIONFROMTESTSTANDARD18 4.2.4TESTSETUP18 4.2.5EUTOPERATINGCONDITIONS19 5.RADIATEDBANDEMISSIONMEASUREMENT24 5.1TESTREQUIREMENT:24 5.2TESTPROCEDURE24 5.3DEVIATIONFROMTESTSTANDARD24 5.4TESTSETUP25 5.5EUTOPERATINGCONDITIONS25 5.6TESTRESULT26 6.POWERSPECTRALDENSITYTEST27 6.1APPLIEDPROCEDURES/LIMIT27 6.2TESTPROCEDURE27 6.3DEVIATIONFROMSTANDARD27 6.4TESTSETUP27 6.5EUTOPERATIONCONDITIONS27 6.6TESTRESULT28 ProjectNo.:ZKT-220905L6468E Page 4 of 41 TableofContentsPage 7.CHANNELBANDWIDTH30 7.1APPLIEDPROCEDURES/LIMIT30 7.2TESTPROCEDURE30 7.3DEVIATIONFROMSTANDARD30 7.4TESTSETUP30 7.5EUTOPERATIONCONDITIONS30 7.6TESTRESULT31 8.PEAKOUTPUTPOWERTEST35 8.1APPLIEDPROCEDURES/LIMIT35 8.2TESTPROCEDURE35 8.3DEVIATIONFROMSTANDARD35 8.4TESTSETUP35 8.5EUTOPERATIONCONDITIONS35 8.6TESTRESULT36 9.CONDUCTEDBANDEDGEANDSPURIOUSEMISSION37 9.1APPLICABLESTANDARD37 9.2TESTPROCEDURE37 9.3DEVIATIONFROMSTANDARD37 9.4TESTSETUP37 9.5EUTOPERATIONCONDITIONS37 10.ANTENNAREQUIREMENT40 11.TESTSETUPPHOTO41 12.EUTCONSTRUCTIONALDETAILS41 ProjectNo.:ZKT-220905L6468E Page 5 of 41 1.VERSION ReportNo.VersionDescriptionApproved ZKT-220905L6468ERev.01InitialissueofreportOctober10,2022 ProjectNo.:ZKT-220905L6468E Page 6 of 41 2.SUMMARYOFTESTRESULTS Testproceduresaccordingtothetechnicalstandards: FCCPart15(15.247),SubpartC Standard Section TestItemJudgmentRemark FCCpart15.203/15.247 (c) AntennarequirementPASS FCCpart15.207ACPowerLineConductedEmissionPASS FCCpart15.247(b)(3)ConductedPeakOutputPowerPASS FCCpart15.247(a)(2)ChannelBandwidth&99%OCBPASS FCCpart15.247(e)PowerSpectralDensityPASS FCCpart15.247(d)BandEdgePASS FCCpart15.205/15.209SpuriousEmissionPASS NOTE: (1)“N/A”denotestestisnotapplicableinthisTestReport ProjectNo.:ZKT-220905L6468E Page 7 of 41 2.1TESTFACILITY ShenzhenZKTTechnologyCo.,Ltd. Add.:1/F,No.101,BuildingB,No.6,TangweiCommunityIndustrialAvenue,FuhaiStreet,Bao'an District,Shenzhen,China FCCTestFirmRegistrationNumber:692225 DesignationNumber:CN1299 ICRegisteredNo.:27033 2.2MEASUREMENTUNCERTAINTY Thereporteduncertaintyofmeasurementy±U ， whereexpendeduncertaintyUisbasedonastandard uncertaintymultipliedbyacoveragefactorofk=2 ， providingalevelofconfidenceofapproximately95 % 。 No.ItemUncertainty 1 3mcamberRadiatedspurious emission(9KHz-30MHz) U=4.5dB 2 3mcamberRadiatedspurious emission(30MHz-1GHz) U=4.8dB 3 3mchamberRadiatedspurious emission(1GHz-6GHz) U=4.9dB 4 3mchamberRadiatedspurious emission(6GHz-40GHz) U=5.0dB 5ConducteddisturbanceU=3.2dB 6RFBandEdgeU=1.68dB 7RFpowerconductedU=1.86dB 8RFconductedSpuriousEmissionU=2.2dB 9RFOccupiedBandwidthU=1.8dB 10RFPowerSpectralDensityU=1.75dB 11humidityuncertaintyU=5.3% 12Temperatureuncertainty U=0.59 °C ProjectNo.:ZKT-220905L6468E Page 8 …

Text truncated - open the document above for the full version.

EUT TEST PHOTO FCC ID: 2A3DS-A305 Radiated band emission (Above 1GHz): Radiated band emission (30MHz-1GHz): Conducted emission:
