2A3DS-SA100CAroma diffuser

250.00 mm 2 1 0 . 0 0 m m 尺寸：250*210mm 材质：铜版纸 86.2 FCC Warning This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. NOTE 1: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. -Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -Consult the dealer or an experienced radio/TV technician for help. NOTE 2: Any changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. The device has been evaluated to meet general RF exposure requirement. The device can be used in portable exposure condition without restriction.

Guangzhou Chiyang Scent Technology Co., LTD. Agent Authorization Company: Guangzhou Chiyang Scent Technology Co., LTD. Address: 4F, Building C5, Gaosha Industrial Estate, Zhongyi Village, Zhongcun Town, Panyu Guangzhou, Guangdong, 511495 China Product Name: Aroma diffuser Model Number(s): SA100C, SA250C, SA600C, SE2500B, SE5000B, SE6400C, SE005B, SE005C, A304, A304L, A304L-T, A315S, A315M, A315L, JY100, JY2000, JY5000, BA100C, BA250C, BA600C Product Description: Aroma diffuser We authorize MiCOM Labs Inc., 575 Boulder Court, Pleasanton, California 94566, USA, to act on our behalf on all matters concerning the certification of above named equipment. We declare that MiCOM Labs Inc. is allowed to forward all information related to the approval and certification of equipment to the regulatory agencies as required and to discuss any issues concerning the approval application. Any and all acts carried out by MiCOM Labs on our behalf shall have the same effect as acts of our own. Signature: Date: 2022.09.20 Name: Denng Feng Title: Manager Company: Guangzhou Chiyang Scent Technology Co., LTD.

Guangzhou Chiyang Scent Technology Co., LTD. Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 USA Date: September 20, 2022 Subject; Request for Confidentiality FCC ID: 2A3DS-SA100C To Whom It May Concern, Pursuant to the provisions of the Commission’s rules Title 47 Sections §0.457 and §0.459, we are requesting the Commission to withhold the following attachment(s) as confidential documents from public disclosure indefinitely. These documents contain detailed system and equipment descriptions and are considered as proprietary information in operation of the equipment. The public disclosure of these documents might be harmful to our company and would give competitors an unfair advantage in the market. Schematic Diagram Block Diagram Parts List Operational Description Tune-up Procedure In additional to above mentioned documents, in order to comply with the marketing regulations in Title 47 CFR §2.803 and the importation rules in Title 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices, we request Short Term Confidentiality of the following attachment(s); External Photos Test Setup Photos Internal Photos User Manual For 45 days, pursuant to Public Notice DA 04-1705. OR For 180 days pursuant to KDB 726920 D01. It is our understanding that all measurement test reports, FCC ID label format and correspondence during the certification review process cannot be granted as confidential documents and this information will be available for public review once the grant of equipment authorization is issued. Sincerely, Signature: Name: Denny Feng Title: Manager

Guangzhou Chiyang Scent Technology Co., LTD. Model Difference Statement Dear Sir/Madam, Added models SA250C, SA600C, SE2500B, SE5000B, SE6400C, SE005B, SE005C, A304, A304L, A304L-T, A315S, A315M, A315L, JY100, JY2000, JY5000, BA100C, BA250C, BA600C basis of the original product SA100C. These models color of appearance and model names are different, but the circuit and the electronic construction are the same. Sincerely, Name: Denny Feng Title: Manager Company name: Guangzhou Chiyang Scent Technology Co., LTD. Address: 4F, Building C5, Gaosha Industrial Estate, Zhongyi Village, Zhongcun Town, Panyu Guangzhou, Guangdong, 511495 China

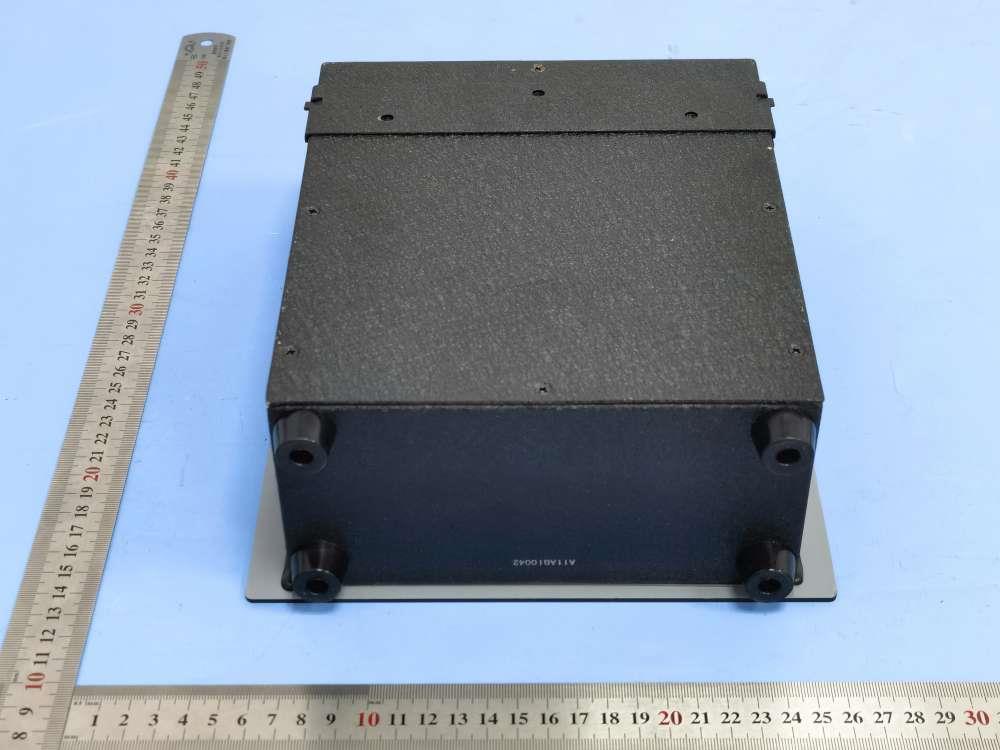

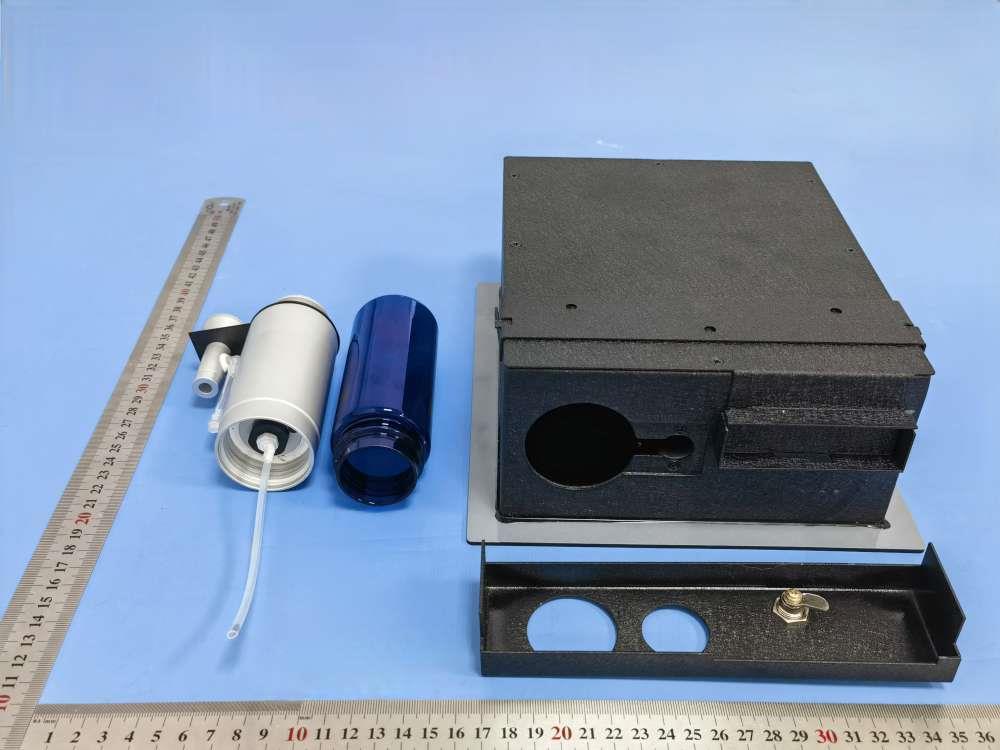

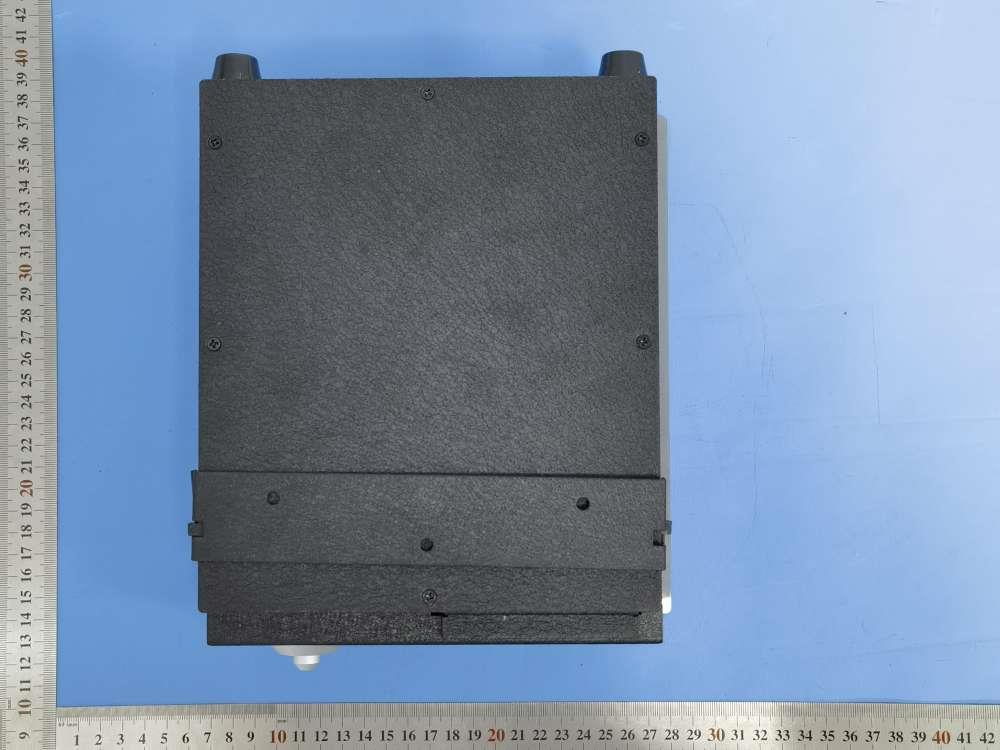

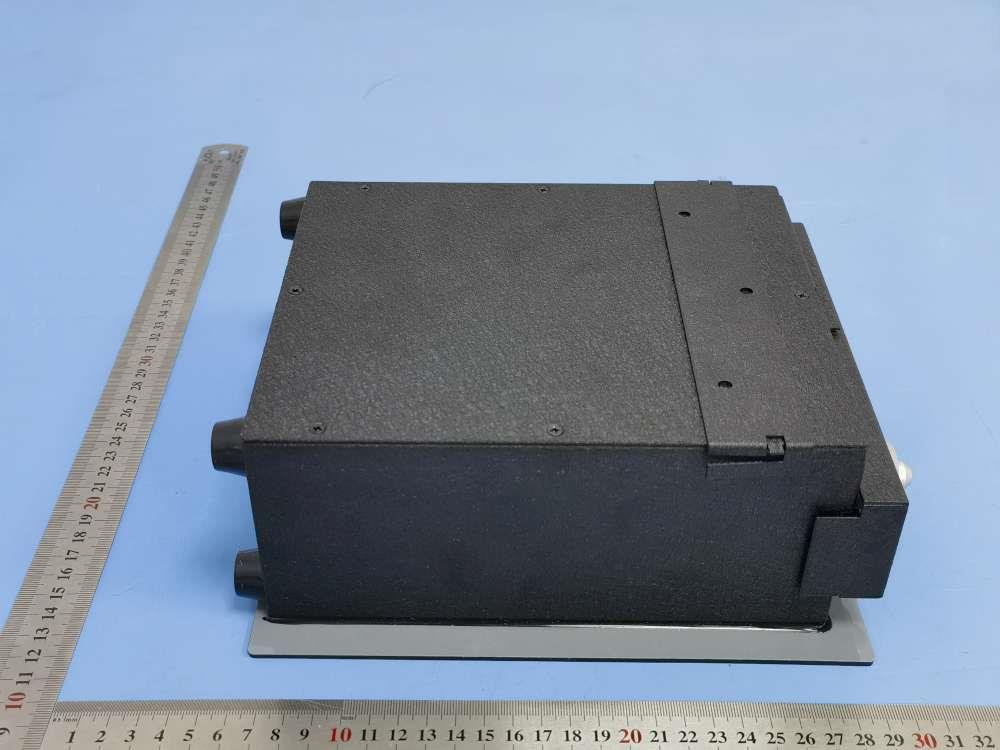

FCC ID: 2A3DS-SA100C EUT PHOTO(External Photos)

Page 1 of 1 Label and Information FCC Label Sample FCC Label Specifications Text is Black in color and is justified. Labels are printed in indelible ink on permanent adhesive backing or silk-screened onto the EUT or shall be affixed at a conspicuous location on the EUT. Where the EUT is constructed in two or more sections connected by wires and marketed together, the above statement is required to be affixed only to the main control unit. When the EUT is so small or for such use that it is not practicable to place the statement on it, the above information shall be placed in a prominent location in the instruction manual or pamphlet supplied to the user or, alternatively, shall be placed on the container in which the device is marketed. FCC Label Location

Internal Photos BT ANT

FCC ID: 2A3DS-SA100C RF Exposure Evaluation According to KDB 447498 D01 General RF Exposure Guidance v06 and part 2.1093， Unless specifically required by the published RF exposure KDB procedures, standalone 1-g head or body and 10-g extremity SAR evaluation for general population exposure conditions, by measurement or numerical simulation, is not required when the corresponding SAR Test Exclusion Threshold condition(s), listed below, is (are) satisfied. For 100 MHz to 6 GHz and test separation distances ≤ 50 mm, the 1-g and 10-g SAR test exclusion thresholds are determined by the following: [(max. power of channel, including tune-up tolerance, mW) / (min. test separation distance, mm)] · [√f (GHz) ] ≤ 3.0 for 1-g SAR, and ≤ 7.5 for 10-g extremity SAR, where f (GHz) is the RF channel transmit frequency in GHz Power and distance are rounded to the nearest mW and mm before calculation The result is rounded to one decimal place for comparison Here, The device has been evaluated to meet general RF exposure requirement. The device can be used in portable exposure condition without restriction. For BT Max Conducted Power(dBm) Tune-up Power(dBm) Max Tune-up Power(dBm) Max Power(mW) Frequency(MHz) Min. distance(mm) Calc. thresholds limit 0.86 0(±1) 1 1.259 2402 5 0.309967 3.0 So a SAR test is not required

TestDate:2019.05.06 地址：深圳市宝安区67区洪浪北二路凌云大厦10楼 电话：17688988025陈先生www.RFsister.com 聚焦·开放·分享 JDY-23蓝牙 天线测试报告 -RFsister TestDate:2019.05.06 地址：深圳市宝安区67 区洪浪北二路凌云大厦10 楼 电话：17688988025陈先生www.RFsister.com 聚焦·开放·分享 1.ElectricalCharacteristics No.ItemSpecifications 1 WorkingCentralFrequency2450MHz 2 BandWidth ±75 MHz( 2400 ～2500MHz) 3 Gain -3.68dbi 4 V.S.W.R(in BW) ≤4.3 5 PolarizationLinear 6 AzimuthBeamwidthOmni-directional 7 Impedance阻抗50 2.Return Loss and Smith Chat Return Loss TestDate:2019.05.06 地址：深圳市宝安区67区洪浪北二路凌云大厦10楼 电话：17688988025陈先生www.RFsister.com 聚焦·开放·分享 V.S.W.R SmithChat TestDate:2019.05.06 地址：深圳市宝安区67区洪浪北二路凌云大厦10楼 电话：17688988025陈先生www.RFsister.com 聚焦·开放·分享 3.PhysicalTestEnvironment E5071C网络分析仪 4.Shapeoftheantenna Efficiency ： TestDate:2019.05.06 地址：深圳市宝安区67区洪浪北二路凌云大厦10楼 电话：17688988025陈先生www.RFsister.com 聚焦·开放·分享 Hpattern Fre(Mhz)Maxgain(dB)Degree 2400(MHz)-6.79dB114.00deg 2450(MHz)-4.92dB112.00deg 2500(MHz)-4.07dB108.00deg TestDate:2019.05.06 地址：深圳市宝安区67区洪浪北二路凌云大厦10楼 电话：17688988025陈先生www.RFsister.com 聚焦·开放·分享 E1pattern Fre(Mhz)Maxgain(dB)Degree 2400(MHz)-5.29dB164.00deg 2450(MHz)-4.80dB160.00deg 2500(MHz)-4.87dB-20.00deg TestDate:2019.05.06 地址：深圳市宝安区67区洪浪北二路凌云大厦10楼 电话：17688988025陈先生www.RFsister.com 聚焦·开放·分享 E2pattern Fre(Mhz)Maxgain(dB)Degree 2400(MHz)-5.86dB174.00deg 2450(MHz)-4.78dB-70.00deg 2500(MHz)-3.68dB-68.00deg

Project No.: ZKT-220915L6893E Page 1 of 42 FCC TEST REPORT FCC ID:2A3DS-SA100C Report Number. ................................ : ZKT-220915L6893E Date of Test ........................................September 15, 2022 to October 11, 2022 Date of issue .................................... : October 11, 2022 Total number of pages ...................... 41 Test Result ..................................... : PASS Testing Laboratory. ........................ : Shenzhen ZKT Technology Co., Ltd. Address .......................................... : 1/F, No. 101, Building B, No. 6, Tangwei Community Industrial Avenue, Fuhai Street, Bao'an District, Shenzhen, China Applicant's name ......................... : Guangzhou Chiyang Scent Technology Co., LTD. Address .......................................... : 4F, Building C5, Gaosha Industrial Estate, Zhongyi Village, Zhongcun Town, Panyu Guangzhou, Guangdong, 511495 China Manufacturer's name ................... : Guangzhou Chiyang Scent Technology Co., LTD. Address .......................................... : 4F, Building C5, Gaosha Industrial Estate, Zhongyi Village, Zhongcun Town, Panyu Guangzhou, Guangdong, 511495 China Test specification: Standard ........................................... : FCC CFR Title 47 Part 15 Subpart C Section 15.247 ANSI C63.10:2013 Test procedure ................................. : / Non-standard test method ............. : N/A Test Report Form No. .................... : TRF-EL-111_V0 Test Report Form(s) Originator .... : ZKT Testing Master TRF .................................... : Dated: 2020-01-06 This device described above has been tested by ZKT, and the test results show that the equipment under test (EUT) is in compliance with the FCC requirements. And it is applicable only to the tested sample identified in the report. This report shall not be reproduced except in full, without the written approval of ZKT, this document may be altered or revised by ZKT, personal only, and shall be noted in the revision of the document. Product name ................................. : Aroma diffuser Trademark ...................................... : -- Model/Type reference......................: SA100C, SA250C, SA600C, SE2500B, SE5000B, SE6400C, SE005B, SE005C, A304, A304L, A304L-T, A315S, A315M, A315L, JY100, JY2000, JY5000, BA100C, BA250C, BA600C Ratings ............................................. : DC 12V/1A by adapter Project No.: ZKT-220915L6893E Page 2 of 42 Testing procedure and testing location: Testing Laboratory ................................... : Shenzhen ZKT Technology Co., Ltd. Address ...................................................... :1/F, No. 101, Building B, No. 6, Tangwei Community Industrial Avenue, Fuhai Street, Bao'an District, Shenzhen, China Jim Liu Tested by (name + signature) .................... : Jackson Fang Reviewer (name + signature) ..................... : Lake Xie Approved (name + signature) .................... : Project No.: ZKT-220915L6893E Page 3 of 42 Table of Contents Page 1.VERSION 5 2. SUMMARY OF TEST RESULTS 6 2.1 TEST FACILITY 7 2.2 MEASUREMENT UNCERTAINTY 7 3. GENERAL INFORMATION 8 3.1 GENERAL DESCRIPTION OF EUT 8 3.2 DESCRIPTION OF TEST MODES 10 3.3 BLOCK DIGRAM SHOWING THE CONFIGURATION OF SYSTEM TESTED 10 3.4 DESCRIPTION OF SUPPORT UNITS(CONDUCTED MODE) 10 3.5 EQUIPMENTS LIST FOR ALL TEST ITEMS 12 4. EMC EMISSION TEST 14 4.1 CONDUCTED EMISSION MEASUREMENT 14 4.1.1 POWER LINE CONDUCTED EMISSION LIMITS 14 4.1.2 TEST PROCEDURE 14 4.1.3 DEVIATION FROM TEST STANDARD 14 4.1.4 TEST SETUP 15 4.1.5 EUT OPERATING CONDITIONS 15 4.2.1 RADIATED EMISSION LIMITS 18 4.2.2 TEST PROCEDURE 19 4.2.3 DEVIATION FROM TEST STANDARD 19 4.2.4 TEST SETUP 19 4.2.5 EUT OPERATING CONDITIONS 20 5.RADIATED BAND EMISSION MEASUREMENT 25 5.1 TEST REQUIREMENT: 25 5.2 TEST PROCEDURE 25 5.3 DEVIATION FROM TEST STANDARD 25 5.4 TEST SETUP 26 5.5 EUT OPERATING CONDITIONS 26 5.6 TEST RESULT 27 6.POWER SPECTRAL DENSITY TEST 28 6.1 APPLIED PROCEDURES / LIMIT 28 6.2 TEST PROCEDURE 28 6.3 DEVIATION FROM STANDARD 28 6.4 TEST SETUP 28 6.5 EUT OPERATION CONDITIONS 28 6.6 TEST RESULT 29 Project No.: ZKT-220915L6893E Page 4 of 42 Table of Contents Page 7. CHANNEL BANDWIDTH 31 7.1 APPLIED PROCEDURES / LIMIT 31 7.2 TEST PROCEDURE 31 7.3 DEVIATION FROM STANDARD 31 7.4 TEST SETUP 31 7.5 EUT OPERATION CONDITIONS 31 7.6 TEST RESULT 32 8.PEAK OUTPUT POWER TEST 36 8.1 APPLIED PROCEDURES / LIMIT 36 8.2 TEST PROCEDURE 36 8.3 DEVIATION FROM STANDARD 36 8.4 TEST SETUP 36 8.5 EUT OPERATION CONDITIONS 36 8.6 TEST RESULT 37 9. CONDUCTED BAND EDGE AND SPURIOUS EMISSION 38 9.1 APPLICABLE STANDARD 38 9.2 TEST PROCEDURE 38 9.3 DEVIATION FROM STANDARD 38 9.4 TEST SETUP 38 9.5 EUT OPERATION CONDITIONS 38 10.ANTENNA REQUIREMENT 41 11. TEST SETUP PHOTO 42 12. EUT CONSTRUCTIONAL DETAILS 42 Project No.: ZKT-220915L6893E Page 5 of 42 1.VERSION Report No. Version Description Approved ZKT-220915L6893E Rev.01 Initial issue of report October 10, 2022 Project No.: ZKT-220915L6893E Page 6 of 42 2. SUMMARY OF TEST RESULTS Test procedures according to the technical standards: FCC Part15 (15.247) , Subpart C Standard Section Test Item Judgment Remark FCC part 15.203/15.247 (c) Antenna requirement PASS FCC part 15.207 AC Power Line Conducted Emission PASS FCC part 15.247 (b)(3)Conducted Peak Output Power PASS FCC part 15.247 (a)(2)Channel Bandwidth& 99% OCB PASS FCC part 15.247 (e) Power Spectral Density PASS FCC part 15.247(d) Band Edge PASS FCC part 15.205/15.209 Spurious Emission PASS NOTE: (1)“N/A” denotes test is not applicable in this Test Report Project No.: ZKT-220915L6893E Page 7 of 42 2.1 TEST FACILITY Shenzhen ZKT Technology Co., Ltd. Add. : 1/F, No. 101, Building B, No. 6, Tangwei Community Industrial Avenue, Fuhai Street, Bao'an District, Shenzhen, China FCC Test Firm Registration Number: 692225 Designation Number: CN1299 IC Registered No.: 27033 2.2 MEASUREMENT UNCERTAINTY The reported uncertainty of measurement y ± U，where expended uncertainty U i…

Text truncated - open the document above for the full version.

EUT TEST PHOTO FCC ID: 2A3DS-SA100C Radiated band emission (30MHz-1GHz): Conducted emission: Radiated band emission (Above 1GHz):
