2A3E5-EYEON12WCEyeOn Air

EyeOn Air Speech Generating Device User Guide Last Updated: May 2021 2 Overview In te nded & Prohibited Use................................................................................................................04 Service L ife...........................................................................................................................................04 Device Identification Label................................................................................................................04 Technical Data Diagram............................................................................................................................................06-07 Safety......................................................................................................................................................08 Setu p What’s in the B ox?................................................................................................................................10 Firs t Use..................................................................................................................................................10 Device Operation On/Off................................................................................................... ...................................................13 Restarting................................................................................................................................................13 Charging...................................................................................................................................................14 Sto rage.............................................................................. .......................................................................15 Device Access Touch S cre en Contr ol.............................................................................................................................17 Eye Gaz e Contr ol.....................................................................................................................................17 Mouse Contr ol..........................................................................................................................................17 Switch Contr ol..........................................................................................................................................18 Keyboard Contr ol.....................................................................................................................................18 Message Formulation Message F ormulation..............................................................................................................................20 Mai nte nance Tro ubleshooting & Repairs.....................................................................................................................22 Cl eaning.....................................................................................................................................................22 Ba ttery Replacement & Disposal ............................................................... ................ .............................22 Contact Us Contact Us..................................................................................................................................................24 3 4 *+B862EYEON12WC0/$2218F* Model: EyeOn-12WC Voice Synthesizer/Digitizer GMDN Code: 17187 29.6(W)x20.8(H)x1.3cm(D) QTY: 1 EA CAT EYEON12WC LOT 2218 0 40 Input: 12V 5A Manufacturer EyeTech Digital Systems, Inc. Tempe, AZ 85282 888.539.3832 (Main) www.eyetechds.com This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: 1 This device may not cause harmful interference, 2 This device must accept any interference received, including interference that may cause undesired operation. Made in China FCC ID: 2A3E5-EYEON12WC IC: 25941-EYEON12WC Intended Use The EyeOn Air is a speech generation device intended to provide an individual who has a severe speech impairment with the ability to meet their functional speaking needs. The primary purpose of the EyeOn Air device is to provide synthesized speech through use of speech generating hardware and software. This device is generally not useful to an individual in the absence of an illness or injury. Methods of Use The EyeOn Air device is intended for use in the home by individuals who have a severe speech impairment. The EyeOn Air device can be used on a flat table or desktop surface by utilizing the integrated kickstand. In addition, the EyeOn Air device can also be mounted to various wheelchair mounts using the VESA mounting pattern located on the back of the device. Prohibited Use This device should not be used for clinical, therapeutic, or diagnostic purposes. Service Life The expected service life of the EyeOn Air device is five (5) years. The EyeOn Air device is intended for daily, repeated use. Device Identification Label The label containing the device serial number and manufacturer information can be found on the back of the EyeOn Air device. 5 6 1 Secondary Speakers 6 Power Input 11 User Defined Button 2 Switch Port 7 Headphone Jack 12 Fr ont Facing Ca mera 3 USB Port 8 Micro HDMI 13 IR Lig hts 4 Primary Speakers 9 Power Button 14 Eye Tracking Cam era 5 SI M Card Sl ot 10 Volume Button 15 Touchscreen 15 1 4 14 13 13 12 11 10 9 8 7 6 5 4 3 3 2 2 1 4 2 5 11 11 7 Hardware Di agram | Back Vi e 16 Carryin g Handle 17 Rear Facing Ca mera 18 Kickstand 19 VESA Mounting Pattern 19 18 16 17 8 Safety CAUTION When mounting the EyeOn Air device to a wheelchair, ensure that the unit is securely fastened. CAUTION CAUTION CAUTION Do not expose or submerge the EyeOn Air device in liquid substances. The EyeOn Air device uses a Li-ion battery. Do not dispose of the battery in the garbage when replacing. EyeTech uses a third party agent for battery disposal. Go to https://w…

Text truncated - open the document above for the full version.

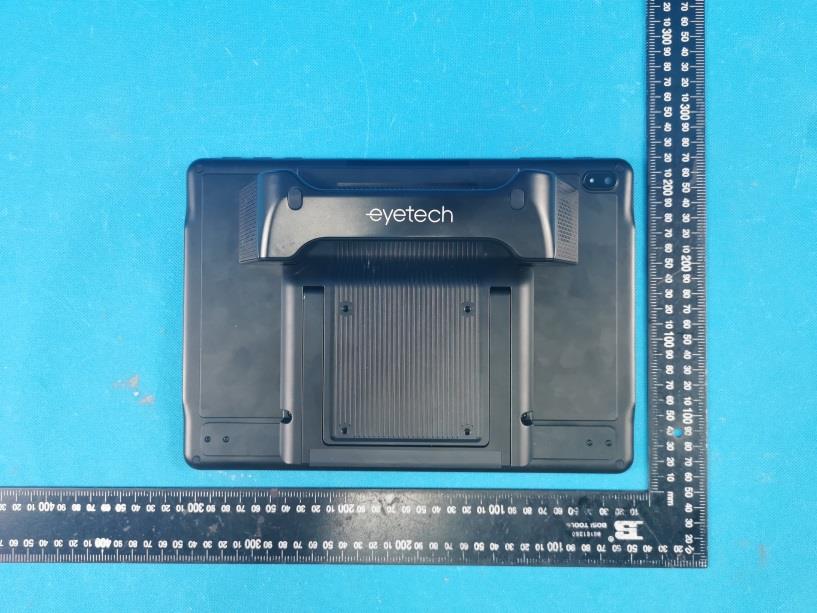

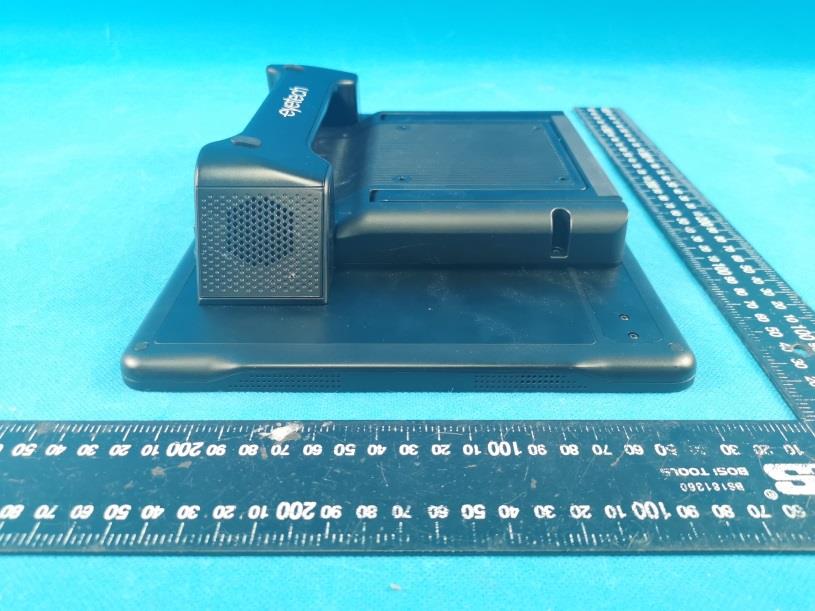

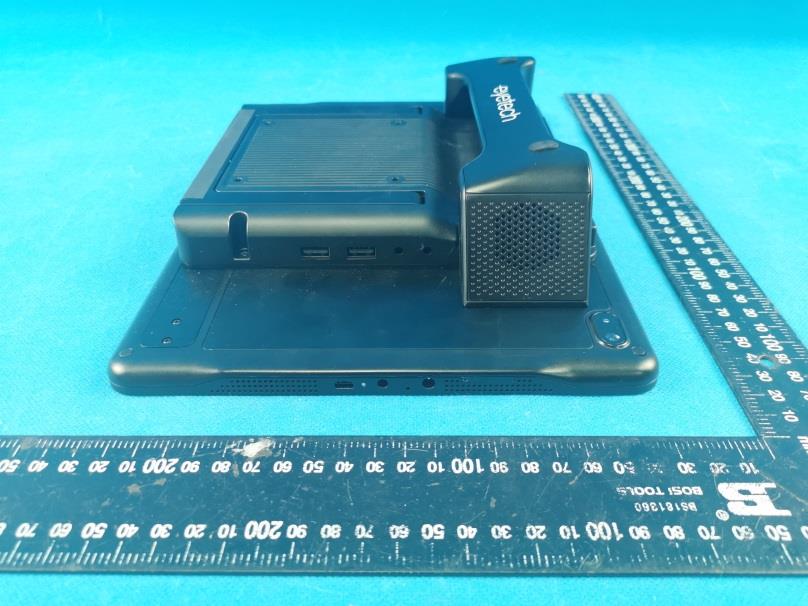

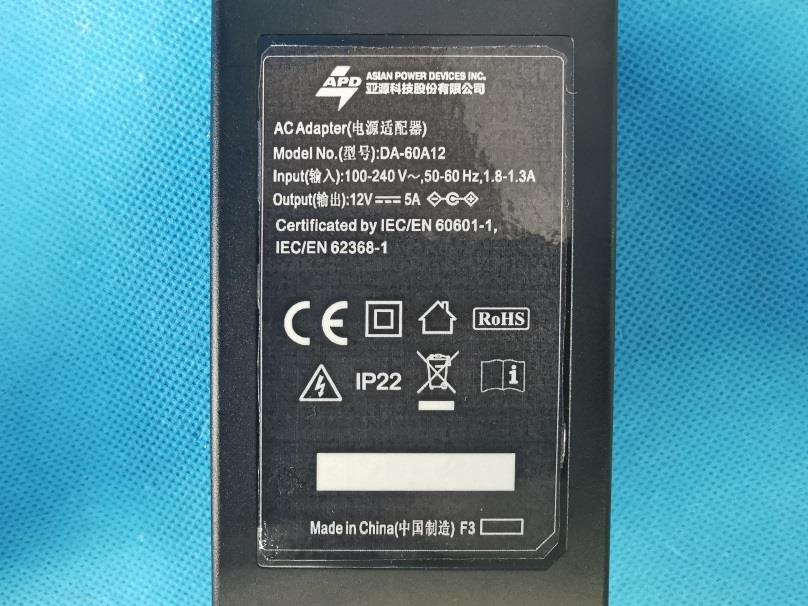

7.EXTERNAL AND INTERNAL PHOTOS OF THE EUT 7.1. External photos Model: EyeOn-12WC

7.2. Internal photos Model: EyeOn-12WC

Page: 1 of 59 TEST REPORT For SAR Report No. ...................................... : CHTEW22040194 Report vertification: Project No. ...................................... : SHT2202018605EW FCC ID ............................................. : 2A3E5-EYEON12WC Applicant’s name ........................... : EyeTech Digital Systems , Inc. Address ............................................. : 2141 E Broadway Rd, Ste 202, Tempe, AZ 85282, United States of America Test item description .................... : EyeOn Air Trade Mark ....................................... : EyeOn Model/Type reference ....................... : EyeOn-12WC Listed Model(s) ................................. : - Standard ......................................... : FCC 47 CFR Part2.1093 IEEE Std C95.1: 1999 Edition IEEE Std 1528: 2013 Date of receipt of test sample..........: Feb. 21, 2022 Date of testing..............................: Feb. 22, 2022- Apr. 26. , 2022 Date of issue...............................: Apr. 27. , 2022 Result .................. ........................: PASS Compiled by ( position+printedname+signature) ... : File administrators: Silvia Li Supervised by ( position+printedname+signature) ... : Test Engineer: Weiyang Xiang Approved by ( position+printedname+signature) ... : Manager: Hans Hu Testing Laboratory Name ............. : Shenzhen Huatongwei International Inspection Co., Ltd Address ............................................. : 1/F, Bldg 3, Hongfa Hi-tech Industrial Park, Genyu Road, Tianliao, Gongming, Shenzhen, China Shenzhen Huatongwei International Inspection Co., Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen Huatongwei International Inspection Co., Ltd is acknowledged as copyright owner and source of the material. Shenzhen Huatongwei International Inspection Co., Ltd takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. The test report merely correspond to the test sample. Report No.: CHTEW22040194 Page: 2 of 59 Issued: 2022-04-27 Shenzhen Huatongwei International Inspection Co., Ltd. Report Template Version: V04 (2022-01) Contents 1. Statement of Compliance ................................................................................................................................. 3 2. Test Standards and Report version .................................................................................................................. 4 2.1. Test Standards ............................................................................................................................................ 4 2.2. Report version ............................................................................................................................................. 4 3. Summary .......................................................................................................................................................... 5 3.1. Client Information ........................................................................................................................................ 5 3.2. Product Description ..................................................................................................................................... 5 3.3. RF Specification Description ....................................................................................................................... 6 3.4. Testing Laboratory Information ................................................................................................................... 7 3.5. Environmental conditions ............................................................................................................................ 7 4. Equipments Used during the Test .................................................................................................................... 8 5. Measurement Uncertainty ................................................................................................................................ 9 6. SAR Measurement System Configuration ...................................................................................................... 10 6.1. SAR Measurement Set-up ........................................................................................................................ 10 6.2. DASY5 E-field Probe System ................................................................................................................... 11 6.3. Phantoms .................................................................................................................................................. 12 6.4. Device Holder ........................................................................................................................................... 12 7. SAR Test Procedure ....................................................................................................................................... 13 7.1. Scanning Procedure ................................................................................................................................. 13 7.2. Data Storage and Evaluation .................................................................................................................... 15 8. Position of the wireless device in relation to the phantom ............................................................................. 17 8.1. Body Position ............................................................................................................................................ 17 9. Dielectric Property Measurements & System Check ..................................................................................... 18 9.1. Tissue Dielectric Parameters ................................................................................…

Text truncated - open the document above for the full version.

Appendix Report Project No. SHT2202018605EW Test sample No. YPHT22020186005 Model No. Y12 Start test date 2022/3/5 Finish date 2022/4/24 Temperature 22.5°C Humidity 46% Test EngineerBo WangAuditor Appendix clause Test ItemResult AConducted Power Measurement ResultsPASS BSAR Measurement ResultsPASS CSimultaneous Transmission analysisPASS Appendix:1 of 36 Project No.:SHT2202018605EW Appendix A:Conducted Power Measurement Results-GSM GSM850 Burst Average Power (dBm) Tune-up limit (dBm) Division Factors Frame-Average Power (dBm) Tune-up limit (dBm) CH128CH190CH251CH128CH190CH251 824.2MHz836.6MHz848.8MHz824.2MHz836.6MHz848.8MHz GSM32.20 32.54 32.48 33.00-9.03 23.17 23.51 23.45 23.97 GPRS (GMSK) 1Tx slot32.19 32.51 32.42 33.00-9.03 23.16 23.48 23.39 23.97 2Tx slots31.10 31.58 31.55 32.00-6.02 25.08 25.56 25.53 25.98 3Tx slots29.71 29.79 29.73 30.00-4.26 25.45 25.53 25.47 25.74 4Tx slots27.97 28.32 28.19 28.50-3.01 24.96 25.31 25.18 25.49 EGPRS (8PSK) 1Tx slot27.06 26.48 25.88 27.50-9.03 18.03 17.45 16.85 18.47 2Tx slots25.99 25.59 25.01 26.00-6.02 19.97 19.57 18.99 19.98 3Tx slots24.07 23.67 22.92 24.50-4.26 19.81 19.41 18.66 20.24 4Tx slots22.66 22.34 21.73 23.00-3.01 19.65 19.33 18.72 19.99 GSM1900 Burst Average Power (dBm) Tune-up limit (dBm) Division Factors Frame-Average Power (dBm) Tune-up limit (dBm) CH512CH661CH810CH512CH661CH810 1850.2MHz1880MHz1909.8MHz1850.2MHz1880.0MHz1909.8MHz GSM28.35 28.58 28.55 29.00-9.03 19.32 19.55 19.52 19.97 GPRS (GMSK) 1Tx slot28.30 28.34 28.33 28.50-9.03 19.27 19.31 19.30 19.47 2Tx slots27.43 27.60 27.62 28.00-6.02 21.41 21.58 21.60 21.98 3Tx slots25.56 25.81 25.88 26.00-4.26 21.30 21.55 21.62 21.74 4Tx slots23.94 24.22 24.32 24.50-3.01 20.93 21.21 21.31 21.49 EGPRS (8PSK) 1Tx slot24.17 23.92 23.50 24.50-9.03 15.14 14.89 14.47 15.47 2Tx slots23.41 23.16 22.91 23.50-6.02 17.39 17.14 16.89 17.48 3Tx slots21.55 21.18 20.77 22.00-4.26 17.29 16.92 16.51 17.74 4Tx slots21.13 19.72 19.49 21.50-3.01 18.12 16.71 16.48 18.49 Appendix: 2/36 Project No.:SHT2202018605EW Appendix A:Conducted Power Measurement Results-WCDMA WCDMA Band II Conducted Power (dBm) Tune-up limit (dBm)CH9262CH9400CH9538 1852.4MHz1880MHz1907.6MHz AMR 12.2K22.09 22.40 22.36 22.50 RMC 12.2K22.12 22.43 22.39 22.50 HSDPA Subtest-118.94 19.40 19.49 19.50 Subtest-218.44 18.88 19.05 19.50 Subtest-318.47 18.87 19.09 19.50 Subtest-418.46 18.91 19.08 19.50 HSUPA Subtest-119.26 18.01 17.91 19.50 Subtest-219.68 18.25 18.25 20.00 Subtest-318.45 18.76 18.76 19.00 Subtest-419.32 17.87 17.84 19.50 Subtest-521.23 21.58 21.48 22.00 WCDMA Band IV Conducted Power (dBm) Tune-up limit (dBm)CH1312CH1413CH1513 1712.4MHz1732.6MHz1752.6MHz AMR 12.2K22.55 22.59 22.71 23.00 RMC 12.2K22.58 22.62 22.74 23.00 HSDPA Subtest-121.25 21.28 21.31 21.50 Subtest-220.67 20.75 20.81 21.00 Subtest-320.68 20.81 20.83 21.00 Subtest-420.73 20.80 20.83 21.00 HSUPA Subtest-119.36 19.41 19.50 20.00 Subtest-219.81 19.93 19.99 20.00 Subtest-319.68 20.46 20.52 21.00 Subtest-419.40 19.43 19.50 20.00 Subtest-521.40 21.47 21.52 22.00 WCDMA Band V Conducted Power (dBm) Tune-up limit (dBm)CH4132CH4183CH4233 826.4MHz836.6MHz846.6MHz AMR 12.2K23.76 23.74 23.44 24.00 RMC 12.2K23.80 23.78 23.48 24.00 HSDPA Subtest-120.56 20.52 20.23 21.00 Subtest-219.99 20.02 19.72 20.50 Subtest-319.80 20.06 19.78 20.50 Subtest-419.91 20.01 14.98 20.50 HSUPA Subtest-119.77 19.85 20.00 20.50 Subtest-220.25 20.36 19.84 20.50 Subtest-320.77 20.90 20.55 21.00 Subtest-419.82 19.87 20.06 20.50 Subtest-522.33 22.35 22.07 22.50 Appendix: 3/36 Project No.:SHT2202018605EW Appendix A:Conducted Power Measurement Results-LTE LTE-FDD Band 2 Conducted Power (dBm) Tune-up Limit(dBm) Band-width (MHz)ModulationRB allocationRB offsetLowMiddleHigh 1.4 QPSK 1 022.26 22.64 22.66 23.00222.45 22.82 22.81 522.31 22.61 22.66 3 022.43 22.70 22.76 23.00122.40 22.65 22.78 322.40 22.74 22.80 6021.41 21.69 21.82 22.00 16QAM 1 021.40 21.51 21.77 22.50221.65 21.74 22.00 521.42 21.56 21.78 3 021.33 21.53 21.66 22.00121.31 21.50 21.64 321.29 21.47 21.69 6020.44 20.68 20.65 21.00 3 QPSK 1 022.26 22.55 22.54 23.00822.23 22.52 22.53 1422.30 22.53 22.58 8 021.30 21.58 21.59 22.00421.31 21.59 21.60 721.27 21.57 21.59 15021.27 21.54 21.56 22.00 16QAM 1 021.48 21.47 21.75 22.00821.38 21.48 21.75 1421.44 21.44 21.71 8 020.30 20.56 20.67 21.00420.30 20.58 20.65 720.28 20.57 20.63 15020.17 20.47 20.56 21.00 5 QPSK 1 022.24 22.52 22.53 23.001222.41 22.63 22.65 2422.31 22.51 22.50 12 021.30 21.51 21.53 22.00621.29 21.49 21.48 1321.33 21.52 21.55 25021.28 21.55 21.55 22.00 16QAM 1 021.48 21.54 21.58 22.001221.60 21.66 21.67 2421.56 21.53 21.51 12 020.32 20.54 20.51 21.00620.33 20.58 20.50 1320.34 20.56 20.52 25020.30 20.60 20.56 21.00 10 QPSK 1 022.26 22.55 22.67 23.002422.48 22.72 22.73 4922.36 22.57 22.51 25 021.40 21.63 21.67 22.001221.37 21.62 21.66 2521.44 21.62 21.73 50021.38 21.59 21.68 22.00 16QAM 1 021.44 21.44 21.85 22.002421.65 21.60 21.90 4921.56 21.48 21.71 25 020.42 20.65 20.67 21.001220.40 20.64 20.66 2520.47 20.63 20.73 50020.41 20.57 20.67 21.00 Appendix: 4/36 Project No.:SHT2202018605EW 15 QPSK 1 022.19 22.53 22.62 23.003822.36 22.55 22.62 7422.36 22.48 22.43 38 021.47 21.40 21.78 22.001821.70 21.48 21.88 3721.61 21.37 21.62 75021.39 21.56 21.79 22.00 16QAM 1 021.52 21.39 21.78 22.003821.67 21.49 21.86 7421.64 21.38 21.63 38 021.51 21.36 21.74 22.001821.69 21.49 21.87 3721.62 21.37 21.63 75020.36 20.57 20.67 21.00 20 QPSK 1 022.26 22.32 22.59 23.004922.51 22.58 22.89 9922.34 22.31 22.53 50 021.30 21.55 21.80 22.002521.39 21.57 21.82 5021.47 21.53 21.90 100021.41 21.51 21.88 22.00 16QAM 1 021.39 21.45 21.66 22.004921.71 21.67 21.87 9921.57 21.45 21.52 50 020.36 20.59 20.79 21.002520.35 20.65 20.86 5020.45 20.61 20.90 100020.41 20.56 20.86 21.00 Appendix: 5/36 Project No.:SHT2202018605EW LTE-FDD Band 4 Conducted Power (dBm) Tune-up Limit(dBm) Band-width(MHz)ModulationRB allocationRB offsetLowMiddleHigh 1.4 QPSK 1 022.32 22.42 22.57 23.00222.46 22.59 22.68 522.35 22.44 22.55 3 022.51 22.54 22.65 23.00…

Text truncated - open the document above for the full version.

Test Laboratory: Huatongwei International Inspection Co., Ltd.,SAR Lab Date: 4/18 /2022 GSM 850-M-Body Communication System: UID 0, Generic GPRS(TDMA, GMSK, TN 0-1) (0); Frequency: 836.6 MHz;Duty Cycle: 1:4.10015 Medium parameters used (interpolated): f = 836.6 MHz; σ = 0.907 S/m; ε r = 40.958; ρ = 1000 kg/m 3 Phantom section: Flat Section Ambient Temperature:22.4°C;Liquid Temperature:22.2°C; DASY Configuration: l Probe: EX3DV4 - SN3748; ConvF(8.48, 8.48, 8.48) @ 836.6 MHz; Calibrated: 12/29/2021 l Sensor-Surface: 1.4mm (Mechanical Surface Detection) l Electronics: DAE4 Sn540; Calibrated: 2/22/2022 l Phantom: ELI V8.0 ; Type: QD OVA 004 AA ; Serial: 2078 l DASY52 52.10.2(1495); SEMCAD X 14.6.12(7450) Rear/CH 190/Area Scan (101x71x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Maximum value of SAR (interpolated) = 0.862 W/kg Rear/CH 190/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 1.391 V/m; Power Drift = 0.09 dB Peak SAR (extrapolated) = 1.24 W/kg SAR(1 g) = 0.677 W/kg; SAR(10 g) = 0.395 W/kg Maximum value of SAR (measured) = 0.836 W/kg 0 dB = 0.836 W/kg = -0.78 dBW/kg Appendix D:SAR Test Data Plots Plot No.1 Test Laboratory: Huatongwei International Inspection Co., Ltd.,SAR Lab Date: 4/22/2022 GSM 1900-H-Body Communication System: UID 0, Generic GPRS(TDMA, GMSK, TN 0-1-2) (0); Frequency: 1909.8 MHz;Duty Cycle: 1:2.66993 Medium parameters used: f = 1910 MHz; σ = 1.417 S/m; ε r = 38.861; ρ = 1000 kg/m 3 Phantom section: Flat Section Ambient Temperature:22.2°C;Liquid Temperature:22.0°C; DASY Configuration: l Probe: EX3DV4 - SN3748; ConvF(7.18, 7.18, 7.18) @ 1909.8 MHz; Calibrated: 12/29/2021 l Sensor-Surface: 1.4mm (Mechanical Surface Detection) l Electronics: DAE4 Sn540; Calibrated: 2/22/2022 l Phantom: ELI V8.0 ; Type: QD OVA 004 AA ; Serial: 2078 l DASY52 52.10.2(1495); SEMCAD X 14.6.12(7450) Rear/CH 810/Area Scan (101x71x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Maximum value of SAR (interpolated) = 1.79 W/kg Rear/CH 810/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 0 V/m; Power Drift = -0.07 dB Peak SAR (extrapolated) = 2.81 W/kg SAR(1 g) = 1.39 W/kg; SAR(10 g) = 0.656 W/kg Maximum value of SAR (measured) = 1.88 W/kg 0 dB = 1.88 W/kg = 2.74 dBW/kg Appendix D:SAR Test Data Plots Plot No.2 Test Laboratory: Huatongwei International Inspection Co., Ltd.,SAR Lab Date: 4/22/2022 WCDMA Band II-M-Body Communication System: UID 0, Generic UMTS (0); Frequency: 1880 MHz;Duty Cycle: 1:1 Medium parameters used: f = 1880 MHz; σ = 1.434 S/m; ε r = 38.883; ρ = 1000 kg/m 3 Phantom section: Flat Section Ambient Temperature:22.3°C;Liquid Temperature:22.0°C; DASY Configuration: l Probe: EX3DV4 - SN3748 ; ConvF(7.18 , 7.18 , 7.18) @ 1880 MHz; Calibrated: 12/29/2021 l Sensor-Surface: 1.4mm (Mechanical Surface Detection) l Electronics: DAE4 Sn540; Calibrated: 2/22/2022 l Phantom: ELI V8.0 ; Type: QD OVA 004 AA ; Serial: 2078 l DASY52 52.10.2(1495); SEMCAD X 14.6.12(7450) Rear/CH 9400/Area Scan (101x71x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Maximum value of SAR (interpolated) = 1.33 W/kg Rear/CH 9400/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 0 V/m; Power Drift = 0.10 dB Peak SAR (extrapolated) = 1.99 W/kg SAR(1 g) = 0.991 W/kg; SAR(10 g) = 0.476 W/kg Maximum value of SAR (measured) = 1.30 W/kg 0 dB = 1.30 W/kg = 1.14 dBW/kg Appendix D:SAR Test Data Plots Plot No.3 Test Laboratory: Huatongwei International Inspection Co., Ltd.,SAR Lab Date: 4/21/2022 WCDMA Band IV-H-Body Communication System: UID 0, Generic UMTS (0); Frequency: 1752.6 MHz;Duty Cycle: 1:1 Medium parameters used (interpolated): f = 1752.6 MHz; σ = 1.392 S/m; ε r = 39.057; ρ = 1000 kg/m 3 Phantom section: Flat Section Ambient Temperature:22.4°C;Liquid Temperature:22.2°C; DASY Configuration: l Probe: EX3DV4 - SN3748; ConvF(7.42, 7.42, 7.42) @ 1752.6 MHz; Calibrated: 12/29/2021 l Sensor-Surface: 1.4mm (Mechanical Surface Detection) l Electronics: DAE4 Sn540; Calibrated: 2/22/2022 l Phantom: ELI V8.0 ; Type: QD OVA 004 AA ; Serial: 2078 l DASY52 52.10.2(1495); SEMCAD X 14.6.12(7450) Rear/CH 1513/Area Scan (101x71x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Maximum value of SAR (interpolated) = 0.592 W/kg Rear/CH 1513/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 0 V/m; Power Drift = -0.05 dB Peak SAR (extrapolated) = 0.908 W/kg SAR(1 g) = 0.447 W/kg; SAR(10 g) = 0.213 W/kg Maximum value of SAR (measured) = 0.589 W/kg 0 dB = 0.589 W/kg = -2.30 dBW/kg Appendix D:SAR Test Data Plots Plot No.4 Test Laboratory: Huatongwei International Inspection Co., Ltd.,SAR Lab Date: 4/18/2022 WCDMA Band V-L-Body Communication System: UID 0, Generic UMTS (0); Frequency: 826.4 MHz;Duty Cycle: 1:1 Medium parameters used (interpolated): f = 826.4 MHz; σ = 0.901 S/m; ε r = 40.962; ρ = 1000 kg/m 3 Phantom section: Flat Section Ambient Temperature:22.4°C;Liquid Temperature:22.2°C; DASY Configuration: l Probe: EX3DV4 - SN3748; ConvF(8.48, 8.48, 8.48) @ 826.4 MHz; Calibrated: 12/29/2021 l Sensor-Surface: 1.4mm (Mechanical Surface Detection) l Electronics: DAE4 Sn540; Calibrated: 2/22/2022 l Phantom: ELI V8.0 ; Type: QD OVA 004 AA ; Serial: 2078 l DASY52 52.10.2(1495); SEMCAD X 14.6.12(7450) Rear/CH 4132/Area Scan (101x71x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Maximum value of SAR (interpolated) = 0.640 W/kg Rear/CH 4132/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 1.405 V/m; Power Drift = 0.07 dB Peak SAR (extrapolated) = 1.02 W/kg SAR(1 g) = 0.560 W/kg; SAR(10 g) = 0.327 W/kg Maximum value of SAR (measured) = 0.688 W/kg 0 dB = 0.688 W/kg = -1.62 dBW/kg Appendix D:SAR Test Data Plots Plot No.5 Test Laboratory: Huatongwei International Inspection Co., Ltd.,SAR Lab Date: 4/22/2022 LTE Band 2-H-Body Communication System: UID 0, Generic LTE-FDD (0); Frequency: 1900 MHz;Duty Cycle: 1:1 Medium parameters used: f = 1900 MHz; σ = 1.406 S/m; ε r = 38.873; ρ …

Text truncated - open the document above for the full version.

Test Laboratory: Huatongwei International Inspection Co., Ltd.,SAR Lab Date: 4/20 /2022 Wifi 2.4G-M-Body Communication System: UID 0, Generic WIFI (0); Frequency: 2437 MHz;Duty Cycle: 1:1 Medium parameters used (interpolated): f = 2437 MHz; σ = 1.77 S/m; ε r = 37.606; ρ = 1000 kg/m 3 Phantom section: Flat Section Ambient Temperature:22.4°C;Liquid Temperature:22.2°C; DASY Configuration: l Probe: EX3DV4 - SN3748; ConvF(6.82, 6.82, 6.82) @ 2437 MHz; Calibrated: 12/29/2021 l Sensor-Surface: 1.4mm (Mechanical Surface Detection) l Electronics: DAE4 Sn540; Calibrated: 2/22/2022 l Phantom: ELI V8.0 ; Type: QD OVA 004 AA ; Serial: 2078 l DASY52 52.10.2(1495); SEMCAD X 14.6.12(7450) Rear/CH 6/Area Scan (121x121x1): Interpolated grid: dx=1.200 mm, dy=1.200 mm Maximum value of SAR (interpolated) = 0.570 W/kg Rear/CH 6/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 0 V/m; Power Drift = - 0.08 dB Pe a k SA R (extrapolated) = 0.849 W/kg SAR(1 g) = 0.397 W/kg; SAR(10 g) = 0.172 W/kg Maximum value of SAR (measured) = 0.544 W/kg 0 dB = 0.544 W/kg = -2.64 dBW/kg Appendix D:SAR Test Data Plots Plot No.18 Test Laboratory: Huatongwei International Inspection Co., Ltd.,SAR Lab Date: 3/8/2022 Wifi 5G U-NII-1-H-Body Communication System: UID 0, Generic WIFI (0); Frequency: 5240 MHz;Duty Cycle: 1:1 Medium parameters used: f = 5240 MHz; σ = 4.858 S/m; ε r = 34.61; ρ = 1000 kg/m 3 Phantom section: Flat Section Ambient Temperature:22.5°C;Liquid Temperature:22.2°C; DASY Configuration: l Probe: EX3DV4 - SN3748; ConvF(5, 5, 5) @ 5240 MHz; Calibrated: 12/29/2021 l Sensor-Surface: 1.4mm (Mechanical Surface Detection) l Electronics: DAE4 Sn540; Calibrated: 2/22/2022 l Phantom: ELI V8.0 ; Type: QD OVA 004 AA ; Serial: 2078 l DASY52 52.10.2(1495); SEMCAD X 14.6.12(7450) Rear/CH 48/Area Scan (141x141x1): Interpolated grid: dx=1.000 mm, dy=1.000 mm Maximum val ue of SAR (interpolated) = 2.01 W/kg Rear/CH 48/Zoom Scan (8x8x8)/Cube 0: Measurement grid: dx=4mm, dy=4mm, dz=1mm Reference Val ue = 1.686 V/m; Power Drift = -0.08 dB Peak SAR (extrapolated) = 4.16 W/kg SAR(1 g) = 0.0 W/kg; SAR(10 g) = 0.323 W/kg Maximum val ue of SAR (measured) = 2.60 W/kg 0 dB = 2.60 W/kg = 4.15 dBW/kg Appendix D:SAR Test Data Plots Plot No.19 Test Laboratory: Huatongwei International Inspection Co., Ltd.,SAR Lab Date: 3/8/2022 Wifi 5G U-NII-2A-M-Body Communication System: UID 0, Generic WIFI (0); Frequency: 5280 MHz;Duty Cycle: 1:1 Medium parameters used: f = 5280 MHz; σ = 4.903 S/m; ε r = 34.857; ρ = 1000 kg/m 3 Phantom section: Flat Section Ambient Temperature:22.4°C;Liquid Temperature:22.2°C; DASY Configuration: l Probe: EX3DV4 - SN3748; ConvF(5, 5, 5) @ 5280 MHz; Calibrated: 12/29/2021 l Sensor-Surface: 1.4mm (Mechanical Surface Detection) l Electronics: DAE4 Sn540; Calibrated: 2/22/2022 l Phantom: ELI V8.0 ; Type: QD OVA 004 AA ; Serial: 2078 l DASY52 52.10.2(1495); SEMCAD X 14.6.12(7450) Rear/CH 56/Area Scan (141x141x1): Interpolated grid: dx=1.000 mm, dy=1.000 mm Maximum val ue of SAR (interpolated) = 2.58 W/kg Rear/CH 56/Zoom Scan (8x8x7)/Cube 0: Measurement grid: dx=4mm, dy=4mm, dz=1.4mm Reference Val ue = 1.652 V/m; Power Drift = -0.07 dB Peak SAR (extrapolated) = 4.61 W/kg SAR(1 g) = 0.623 W/kg; SAR(10 g) = 0.354 W/kg Maximum val ue of SAR (measured) = 2.81 W/kg 0 dB = 2.81 W/kg = 4.49 dBW/kg Appendix D:SAR Test Data Plots Plot No.20 Test Laboratory: Huatongwei International Inspection Co., Ltd.,SAR Lab Date: 3/8/2022 Wifi 5G U-NII-2C-M-Body Communication System: UID 0, Generic WIFI (0); Frequency: 5580 MHz;Duty Cycle: 1:1 Medium parameters used: f = 5580 MHz; σ = 5.156 S/m; ε r = 33.851; ρ = 1000 kg/m 3 Phantom section: Flat Section Ambient Temperature:22.4°C;Liquid Temperature:22.2°C; DASY Configuration: l Probe: EX3DV4 - SN3748; ConvF(4.58, 4.58, 4.58) @ 5580 MHz; Calibrated: 12/29/2021 l Sensor-Surface: 1.4mm (Mechanical Surface Detection) l Electronics: DAE4 Sn540; Calibrated: 2/22/2022 l Phantom: ELI V8.0 ; Type: QD OVA 004 AA ; Serial: 2078 l DASY52 52.10.2(1495); SEMCAD X 14.6.12(7450) Rear/CH 116/Area Scan (141x141x1): Interpolated grid: dx=1.000 mm, dy=1.000 mm Maximum value of SAR (interpolated) = 2.91 W/kg Rear/CH 116/Zoom Scan (8x8x7)/Cube 0: Measurement grid: dx=4mm, dy=4mm, dz=1.4mm Reference Value = 1.750 V/m; Power Drift = -0.06 dB Peak SAR (extrapolated) = 4.96 W/kg SAR(1 g) = 0.622 W/kg; SAR(10 g) = 0.406 W/kg Maximum value of SAR (measured) = 3.18 W/kg 0 dB = 3.18 W/kg = 5.02 dBW/kg Appendix D:SAR Test Data Plots Plot No.21 Test Laboratory: Huatongwei International Inspection Co., Ltd.,SAR Lab Date: 3/8/2022 Wifi 5G U-NII-3-L-Body Communication System: UID 0, Generic WIFI (0); Frequency: 5745 MHz;Duty Cycle: 1:1 Medium parameters used (interpolated): f = 5745 MHz; σ = 5.342 S/m; ε r = 35.184; ρ = 1000 kg/m 3 Phantom section: Flat Section Ambient Temperature:22.3°C;Liquid Temperature:22.0°C; DASY Configuration: l Probe: EX3DV4 - SN3748; ConvF(4.67, 4.67, 4.67) @ 5745 MHz; Calibrated: 12/29/2021 l Sensor-Surface: 1.4mm (Mechanical Surface Detection) l Electronics: DAE4 Sn540; Calibrated: 2/22/2022 l Phantom: ELI V8.0 ; Type: QD OVA 004 AA ; Serial: 2078 l DASY52 52.10.2(1495); SEMCAD X 14.6.12(7450) Rear/CH 149/Area Scan (141x141x1): Interpolated grid: dx=1.000 mm, dy=1.000 mm Maximum val ue of SAR (interpolated) = 2.46 W/kg Rear/CH 149/Zoom Scan (8x8x8)/Cube 0: Measurement grid: dx=4mm, dy=4mm, dz=1mm Reference Val ue = 1.820 V/m; Power Drift = -0.10 dB Peak SAR (extrapolated) = 4.90 W/kg SAR(1 g) = 0. W/kg; SAR(10 g) = 0.402 W/kg Maximum val ue of SAR (measured) = 3.18 W/kg 0 dB = 3.18 W/kg = 5.02 dBW/kg Appendix D:SAR Test Data Plots Plot No.22 Test Laboratory: Huatongwei International Inspection Co., Ltd.,SAR Lab Date: 4/21 /2022 Bluetooth-M-Body Communication System: UID 0, Generic BT (0); Frequency: 2441 MHz;Duty Cycle: 1:1 Medium parameters used (interpola…

Text truncated - open the document above for the full version.
