2A3E9-PTRSHV1Tour tracking sensor

Topgolf Sweden AB
Tour tracking sensor - FCC ID 2A3E9-PTRSHV1 - Topgolf Sweden AB
Click to zoom

Application Details

Equipment Class
FDS - Part 15 Field Disturbance Sensor
Date of Grant
Nov 25, 2021
Application Purpose
Original Equipment
Date of Application
Nov 25, 2021
Equipment Note
Tour tracking sensor
Frequency Range
10500.00000000 - 10550.00000000
Company
Topgolf Sweden AB
Country
Sweden

Documents & Files

Select a file to view

Users Manual

↗

Cover Letter(s)

↗

External Photos

↗

ID Label/Location Info

↗

Internal Photos

↗

RF Exposure Info

↗

Test Report

↗

Test Setup Photos

↗

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

Topgolf Sweden AB Svärdvägen 3A 182 33 Danderyd Tour Tracking Sensor PVRS-HV1 Topgolf Sweden AB Svärdvägen 3A 182 33 Danderyd Regulatory notice FCC and ISED statement This device contains licence-exempt transmitter(s)/receiver(s) that comply with Innovation, Science and Economic Development Canada’s licence-exempt RSS(s) and complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: 1. This device may not cause harmful interference. 2. This device must accept any interference received, including interference that may cause undesired operation of the device. L’émetteur/récepteur exempt de licence contenu dans le présent appareil est conforme aux CNR d’Innovation, Sciences et Développement économique Canada applicables aux appareils radio exempts de licence. L’exploitation est autorisée aux deux conditions suivantes : 1. L’appareil ne doit pas produire de brouillage. 2. L’appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d’en compromettre le fonctionnement. Changes or modifications made to this equipment not expressly approved by Topgolf Sweden AB may void the FCC authorization to operate this equipment. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. Topgolf Sweden AB Svärdvägen 3A 182 33 Danderyd Radiofrequency radiation exposure Information: This equipment complies with FCC and ISED radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance of 20 cm between the radiator and your body. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. Cet équipement est conforme aux limites d'exposition aux rayonnements ISED établies pour un environnement non contrôlé. Cet équipement doit être installé et utilisé avec un minimum de 20 cm de distance entre la source de rayonnement et votre corps. Ce transmetteur ne doit pas etre place au meme endroit ou utilise simultanement avec un autre transmetteur ou antenne. Specification: Sensor Adapter Name Topgolf Golf Tracking Sensor Deltaco Switching Adapter Model PVRS-HV1 PS12-50A Size 572x320x147 mm 61,5x114x37mm Weight <12 kg 0.48 kg Input Voltage 12 – 28 VDC 100 -240 VAC Output Voltage - 12 VDC Operating Temperature 32 – 122 °F 32 – 122 °F

Cover Letter(s)

Document Version 1.1 2020-10-30 LONG-TERM CONFIDENTIALITY REQUEST for Certification Service in the USA Federal Communication Commission Equipment Authorization Division, Application Processing Branch 7435 Oakland Mills Road Columbia, MD 21048 TO WHOM IT M AY CONCERN Pursuant to Paragraphs §0.457 and 0.459 of the Commission’s Rules (47 C.F.R.) and Section §552(b)(4) of the Freedom of Information Act, we request Long-Term Confidentiality for the following product: For the product stated above, we request Long-Term Confidentiality for exhibits which contain Block Diagram, Operational Description, Parts List/Tune Up Info, Schematics, SDR Software/Security Info. The above exhibits contain ou r trade secrets and proprietary information that could be of benefit to o ur competitors. This information will not be publicly available. If you have any questions, please feel free to contact us at the address shown below. Sincerely, Company Name: Phone: Company Address: Fax: E-mail: Contact Name: Signature: Signature Date: Check your GC here. Click Grantee Search. FCC I D: Grantee Code Equipment Product Code

External Photos

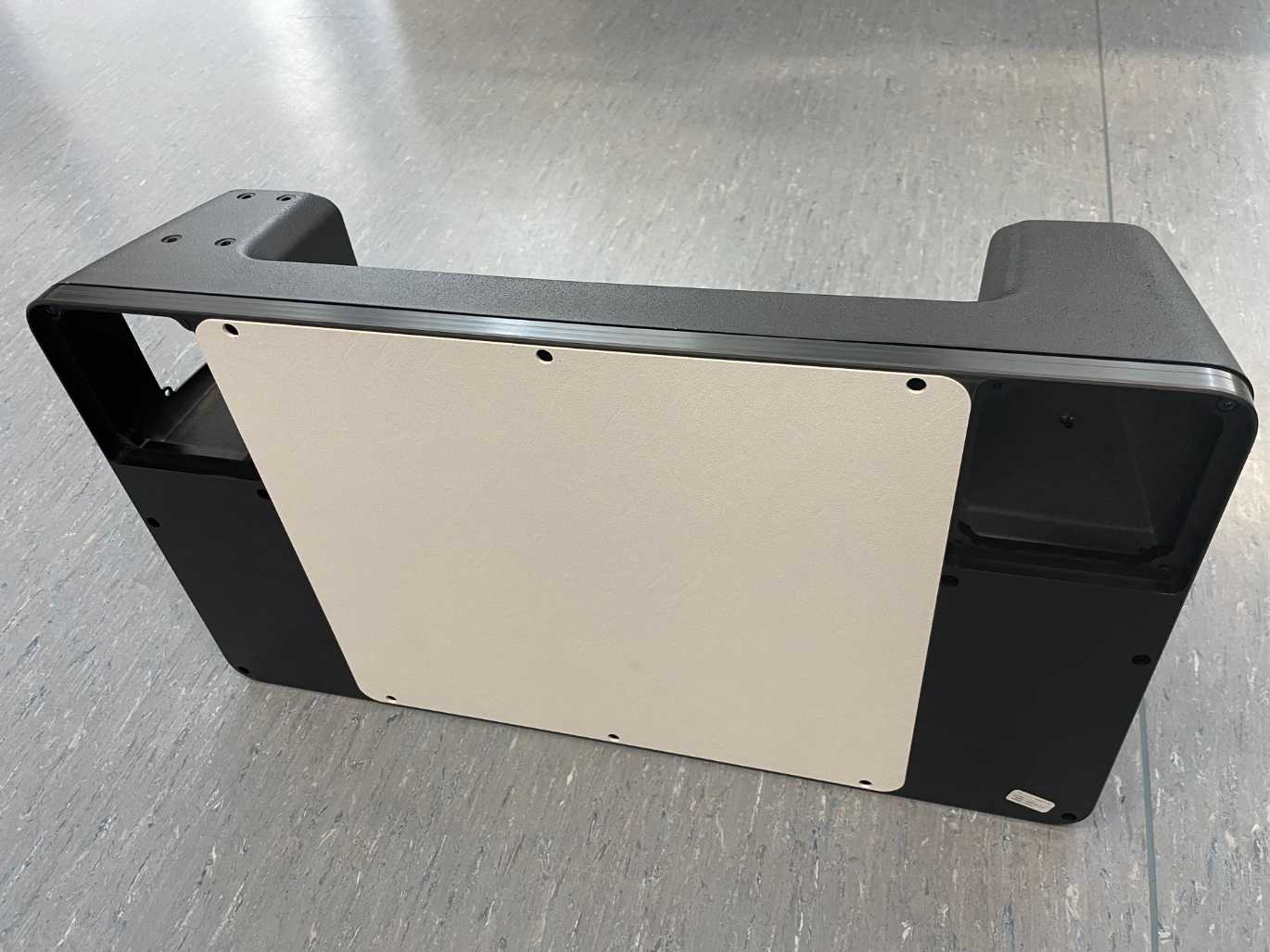

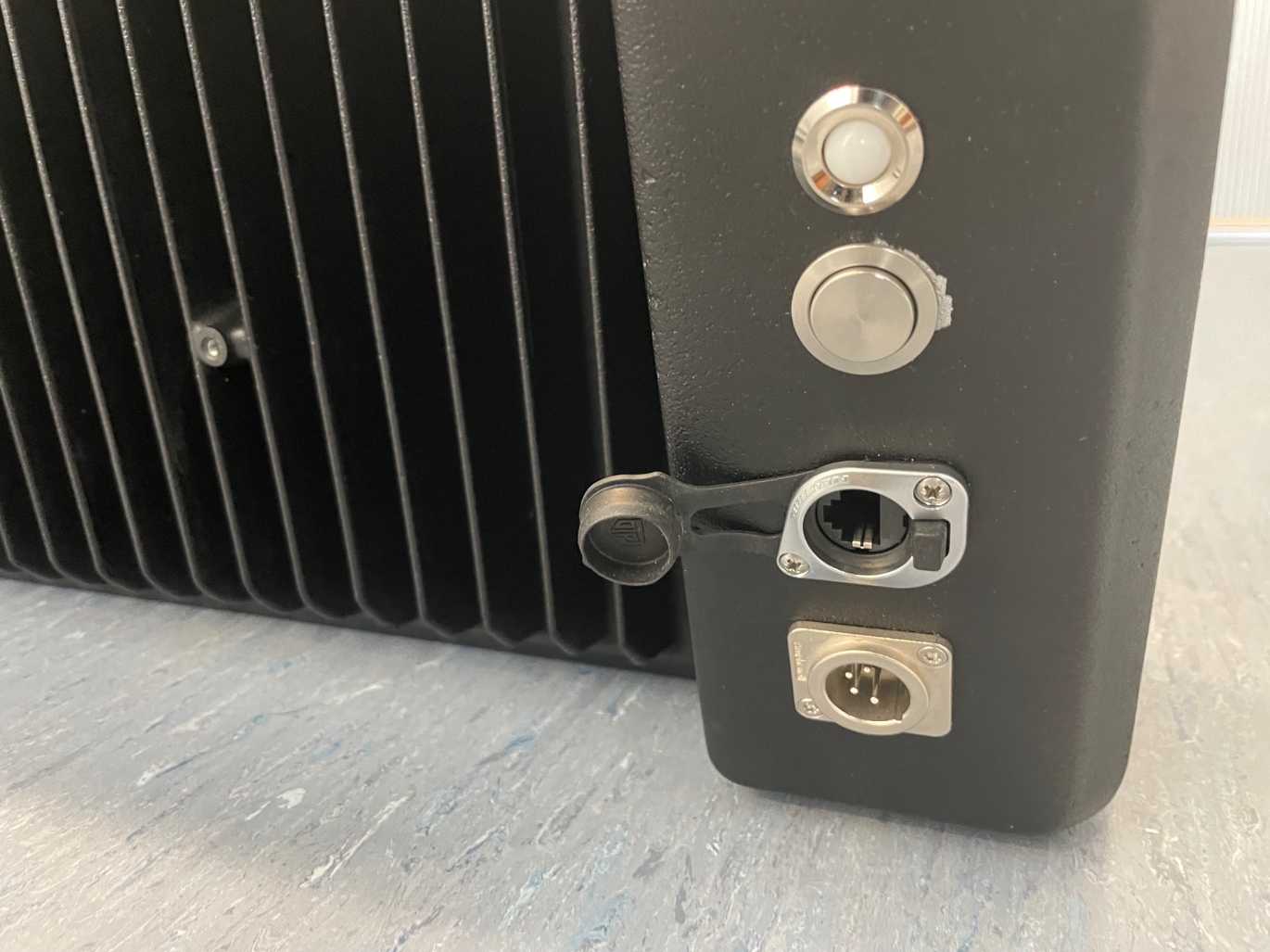

Annex A 1-2991/21-01-01_AnnexA External photos of the Equipment Under Test This addendum is electronically signed and valid without handwritten signature. For verification of the electronic signatures, the public keys can be requested at the testing laboratory. Document authorized: Meheza Walla Lab Manager Radio Communications & EMC CTC advanced GmbHUntertuerkheimer Str. 6-10 66117 Saarbruecken / Germany Phone: +49 681 5 98 - 0 Fax: +49 681 5 98 - 9075 web: ctcadvanced.com e-mail: [email protected] Photos Photo 1 Photo 2 2021-10-26Document No. 1-2991/21-01-01_AnnexA2/4 Photo 3 2021-10-26Document No. 1-2991/21-01-01_AnnexA3/4 Document history VersionApplied changesDate of release initial release2021-10-26 - END OF DOCUMENT - 2021-10-26Document No. 1-2991/21-01-01_AnnexA4/4

ID Label/Location Info

Topgolf Sweden AB Svärdvägen 3A 182 33 Danderyd Label: X§ Location of the label: Tour Tracking Sensor Model: PTRS-HV1 Serial number: XXXXXXX FCC ID: 2A3E9-PTRSHV1 MAC address: XX:XX:XX:XX:XX:XX IC: 27817-PTRSHV1 Made in Sweden

Internal Photos

Annex B 1-2991/21-01-01_AnnexB Internal photos of the Equipment Under Test This addendum is electronically signed and valid without handwritten signature. For verification of the electronic signatures, the public keys can be requested at the testing laboratory. Document authorized: Meheza Walla Lab Manager Radio Communications & EMC CTC advanced GmbHUntertuerkheimer Str. 6-10 66117 Saarbruecken / Germany Phone: +49 681 5 98 - 0 Fax: +49 681 5 98 - 9075 web: ctcadvanced.com e-mail: [email protected] Photos Photo 1 Photo 2 2021-10-26Document No. 1-2991/21-01-01_AnnexB2/8 Photo 3 Photo 4 2021-10-26Document No. 1-2991/21-01-01_AnnexB3/8 Photo 5 Photo 6 2021-10-26Document No. 1-2991/21-01-01_AnnexB4/8 Photo 7 Photo 8 2021-10-26Document No. 1-2991/21-01-01_AnnexB5/8 Photo 9 Photo 10 2021-10-26Document No. 1-2991/21-01-01_AnnexB6/8 Photo 11 Photo 12 2021-10-26Document No. 1-2991/21-01-01_AnnexB7/8 Document history VersionApplied changesDate of release initial release2021-10-26 - END OF DOCUMENT - 2021-10-26Document No. 1-2991/21-01-01_AnnexB8/8

RF Exposure Info

© CTC advanced GmbH Page 1 of 3 BNetzA - CAB - 02/21 - 102 Maximum Permissible Exposure (MPE) & Exposure evaluation Report identification number: 1-2991/21-01-12 MPE (FCC_ISED) Certification numbers and labeling requirements FCC ID 2A3E9-PTRSHV1 ISED number 27817-PTRSHV1 HVIN (Hardware Version Identification Number) PTRS-HV1 PMN (Product Marketing Name) PTRS-HV1 FVIN (Firmware Version Identification Number) -/- HMN (Host Marketing Name) -/- This test report is electronically signed and valid without handwritten signature. For verification of the electronic signatures, the public keys can be requested at the testing laboratory. Document authorised: Alexander Hnatovskiy Marco Scigliano Lab Manager Testing Manager Radio Communications & EMC Radio Communications & EMC Report no.: 1-2991/21-01-12 © CTC advanced GmbH Page 2 of 3 EUT technologies: Technologies: Max. EIRP Declared by customer 10.5 GHz Radar Tracking System 32.55 dBm Prediction of MPE limit at given distance - FCC Equation from page 18 of OET Bulletin 65, Edition 97-01 S = PG / 4π R 2 where: S = Power density P = Power input to the antenna G = Antenna gain R = Distance to the center of radiation of the antenna PG = Output Power including antenna gain The table below is excerpted from Table 1B of 47 CFR 1.1310 titled “Limits for Maximum Permissible Exposure (MPE), Limits for General Population/Uncontrolled Exposure” Frequency Range (MHz) Power Density (mW/cm 2 ) Averaging Time (minutes) 300 -1500 f/1500 30 1500 - 100000 1.0 30 where f = Frequency (MHz) Prediction: worst case Technologies: RTS Frequency (MHz) 10500 PG Declared max power (EIRP) 32.55 dBm R Distance 20 cm S MPE limit for uncontrolled exposure 1 mW/cm 2 Calculated Power density: 0.3581 mW/cm² Calculated percentage of Limit: 35.81% This prediction demonstrates the following: The power density levels for FCC at a distance of 20 cm are below the maximum levels allowed by regulations. Report no.: 1-2991/21-01-12 © CTC advanced GmbH Page 3 of 3 Prediction of MPE limit at given distance - ISED RSS-102, Issue 5, 2.5.2 RF exposure evaluation is required if the separation distance between the user and/or bystander and the device’s radiating element is greater than 20 cm, except when the device operates as follows: • below 20 MHz and the source-based, time-averaged maximum e.i.r.p. of the device is equal to or less than 1 W (adjusted for tune-up tolerance); • at or above 20 MHz and below 48 MHz and the source-based, time-averaged maximum e.i.r.p. of the device is equal to or less than 4.49/ƒ 0.5 W (adjusted for tune-up tolerance), where ƒ is in MHz; • at or above 48 MHz and below 300 MHz and the source-based, time-averaged maximum e.i.r.p. of the device is equal to or less than 0.6 W (adjusted for tune-up tolerance); • at or above 300 MHz and below 6 GHz and the source-based, time-averaged maximum e.i.r.p. of the device is equal to or less than 1.31 x 10 -2 ƒ 0.6834 W (adjusted for tune-up tolerance), where ƒ is in MHz; • at or above 6 GHz and the source-based, time-averaged maximum e.i.r.p. of the device is equal to or less than 5 W (adjusted for tune-up tolerance). Prediction: worst case RTS Frequency 10500 MHz R Distance 20 cm P G Maximum EIRP 32.55 dBm P G Maximum EIRP 1798.9 mW Exclusion Limit from above: 5.00 W Calculated percentage of Limit: 35.98% Conclusion: RF exposure evaluation is not required.

Test Report

BNetzA - CAB - 02/21 - 102 TEST REPORT Test report no.: 1-2991/21-01-02 Testing laboratory Applicant CTC advanced GmbH Untertuerkheimer Strasse 6 – 10 66117 Saarbruecken / Germany Phone: + 49 681 5 98 - 0 Fax: + 49 681 5 98 - 9075 Internet: https://www.ctcadvanced.com e-mail: [email protected] Accredited Testing Laboratory: The testing laboratory (area of testing) is accredited according to DIN EN ISO/IEC 17025 (2018-03) by the Deutsche Akkreditierungsstelle GmbH (DAkkS) The accreditation is valid for the scope of testing procedures as stated in the accreditation certificate starting with the registration number: D-PL-12076-01. Topgolf Sweden AB Svardvagen 3A 18233 Danderyd / SWEDEN Phone: +46 707 778758 Contact: Jonas Norlander e-mail: [email protected] Manufacturer Topgolf Sweden AB Svardvagen 3A 18233 Danderyd / SWEDEN Test standard/s FCC - Title 47 CFR Part 15 FCC - Title 47 of the Code of Federal Regulations; Chapter I; Part 15 - Radio frequency devices RSS - 210 Issue 10 Annex F Licence-Exempt Radio Apparatus: Category I Equipment RSS - Gen Issue 5 Spectrum Management and Telecommunications Radio Standards Specification - General Requirements for Compliance of Radio Apparatus For further applied test standards please refer to section 3 of this test report. Test Item Kind of test item: Ball Tracking Radar Model name: Toptracer FCC ID: 2A3E9-PTRSHV1 ISED certification number: 27817-PTRSHV1 Frequency: 10.50 GHz – 10.55 GHz Antenna: Integrated patch antenna Power supply: 12 V to 28 V DC or 100 to 240 V AC, 50/60 Hz – 1.5A max Temperature range: -20°C to +50°C This test report is electronically signed and valid without handwritten signature. For verification of the electronic signatures, the public keys can be requested at the testing laboratory. Test report authorized: Test performed: Thomas Vogler Meheza Walla Lab Manager Lab Manager Radio Communications Radio Communications Test report no.: 1-2991/21-01-02 © CTC advanced GmbH Page 2 of 54 1 Table of contents 1 Table of contents ............................................................................................................................................. 2 2 General information ......................................................................................................................................... 3 2.1 Notes and disclaimer ........................................................................................................................... 3 2.2 Application details ............................................................................................................................... 3 2.3 Test laboratories sub-contracted ........................................................................................................ 3 3 Test standard/s, references and accreditations .............................................................................................. 4 4 Reporting statements of conformity – decision rule ...................................................................................... 5 5 Test environment ............................................................................................................................................. 6 6 Test item........................................................................................................................................................... 6 6.1 General description ............................................................................................................................. 6 6.2 Additional information......................................................................................................................... 6 7 Description of the test setup ............................................................................................................................ 7 7.1 Shielded semi anechoic chamber ....................................................................................................... 8 7.2 Shielded fully anechoic chamber ...................................................................................................... 10 7.3 Radiated measurements > 18 GHz .................................................................................................... 12 7.4 Radiated measurements > 50/85 GHz .............................................................................................. 12 7.5 AC conducted .................................................................................................................................... 14 8 Sequence of testing ....................................................................................................................................... 15 8.1 Sequence of testing radiated spurious 9 kHz to 30 MHz ................................................................. 15 8.2 Sequence of testing radiated spurious 30 MHz to 1 GHz ................................................................. 16 8.3 Sequence of testing radiated spurious 1 GHz to 18 GHz ................................................................. 17 8.4 Sequence of testing radiated spurious above 18 GHz ...................................................................... 18 8.5 Sequence of testing radiated spurious above 50 GHz with external mixers .................................... 19 9 Measurement uncertainty .............................................................................................................................. 20 10 Summary of measurement results ............................................................................................................ 21 11 Measurement results ................................................................................................................................ 22 11.1 Field strength of emissions (wanted signal) ..................................................................................... 22 11.2 Occupied bandwidth (99% bandwidth) .…

Text truncated - open the document above for the full version.

Test Setup Photos

Annex D 1-2991/21-01-01_AnnexD Setup photos of the Equipment Under Test This addendum is electronically signed and valid without handwritten signature. For verification of the electronic signatures, the public keys can be requested at the testing laboratory. Document authorized: Meheza Walla Lab Manager Radio Communications & EMC CTC advanced GmbHUntertuerkheimer Str. 6-10 66117 Saarbruecken / Germany Phone: +49 681 5 98 - 0 Fax: +49 681 5 98 - 9075 web: ctcadvanced.com e-mail: [email protected] Photos Photo 1 Photo 2 2021-10-26Document No. 1-2991/21-01-01_AnnexD2/5 Photo 3 Photo 4 2021-10-26Document No. 1-2991/21-01-01_AnnexD3/5 Photo 5 Photo 6 2021-10-26Document No. 1-2991/21-01-01_AnnexD4/5 Document history VersionApplied changesDate of release initial release2021-10-26 - END OF DOCUMENT - 2021-10-26Document No. 1-2991/21-01-01_AnnexD5/5

Contact Information

Applicant

Jonas Bertil Norlander(Project Manager)
[email protected]+46707778758Fax: na

Test Firm

cetecom advanced GmbHGerald Schmidt
[email protected]49-681-598-0Fax: 49-681-598-8775

Technical Specifications

#Rule PartsFrequency RangePower Output
115.24510.50 GHz - 10.55 GHz-
Confidentiality
Long Term
Grant Notes
This device must be installed to provide a separation distance of at least 20 cm from all persons. RF exposure compliance is addressed for 1.1310 and 2.1091 MPE limits. End Users must be provided with transmitter operation conditions for satisfying RF exposure compliance.
